HDCBSAP2135Outdoor Wireless Access Point

DRAFT BLUESOCKET COMPLIANCE NOTICE 61700962F1-17A August 2015 1.INSTALLATION INSTRUCTIONS This document includes user requirements for operating ADTRAN Bluesocket products in accordance with national laws, including usage of radio spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may result in unlawful operation and adverse action against the end-user by the applicable national regulatory authority. •ADTRAN Bluesocket products are intended to be installed, maintained, and serviced by qualified service personnel with knowledge of radio frequency (RF) and related rules. Particular attention should be given to allowed operation frequencies. The general user should not attempt to install Bluesocket wireless products outdoors when external antennas, power, and grounding must be installed for use. •Bluesocket products comply with radiation exposure limits set forth for an uncontrolled environment and meet RF exposure guidelines for wireless access points. Bluesocket products should be installed and operated keeping the product 28 cm or more away from a person’s body. •Use only the antennas which have been approved by ADTRAN for the specific Bluesocket product. Non-approved antennas may produce unwanted, spurious, or excessive RF transmitting power which may lead to the violation of local or national regulatory limits. •Refer to the specific Bluesocket product’s quick start guide (shipped with the unit or available online at https://supportforums.adtran.com ) for information on installing, grounding, and powering the unit. Ce document comprend les besoins des utilisateurs pour l’exploitation des produits ADTRAN Bluesocket, conformément aux lois nationales, y compris l’utilisation du spectre radioélectrique et de l’exploitation d’appareils radio. Le défaut de l’utilisateur final de se conformer aux exigences applicables peut entraîner une utilisation illégale et des poursuites contre l’utilisateur final par l’autorité réglementaire nationale compétente. •Les produits ADTRAN Bluesocket sont destinés à être installés, entretenus et réparés par du personnel d’entretien qualifié ayant une connaissance de la fréquence radio (RF) et des règles relatives à cette dernière. Une attention particulière devrait être accordée aux fréquences d’exploitation autorisées. L’utilisateur général ne devrait pas essayer d'installer des produits sans fil Bluesocket à l’extérieur quand des antennes externes, l’alimentation électrique et la mise à la terre doivent être installées à l'emploi. •Les produits Bluesocket sont conformes aux limites d’exposition aux rayonnements dans un environnement non contrôlé et sont conformes aux directives d’exposition RF pour les points d’accès sans fil. Les produits Bluesocket doivent être installés et exploités en gardant le produit à une distance de 28 cm ou plus du corps d’une personne. •Utilisez uniquement les antennes qui ont été approuvées par ADTRAN pour le produit Bluesocket particulier. Des antennes non approuvées peuvent produire une transmission de puissance RF indésirable, parasite ou excessive qui peut conduire à une infraction aux limites réglementaires locales ou nationales. •Reportez-vous au guide de démarrage rapide du produit Bluesocket particulier (livré avec l’appareil ou disponible en ligne à https://supportforums.adtran.com ) pour obtenir des informations sur l’installation, la mise à la terre et la mise sous tension de l’appareil. DRAFT BLUESOCKET COMPLIANCE NOTICE 61700962F1-17A August 2015 2.FEDERAL COMMUNICATION COMMISSION (FCC) FCC Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: •This device may not cause harmful interference. •This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. FCC Cautions Bluesocket products contain no user serviceable parts and are to be used with approved antennas only. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Bluesocket products and their antennas must not be co-located or operated in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. For outdoor use, antennas must be installed vertically to ensure that all emissions above 30 degrees elevation will not exceed the FCC 21 dBm EIRP limit. In Europe, Australia, and New Zealand, the 5 GHz U-NII low band (5.15 to 5.35 GHz, channels 36, 40, 44, and 48) is designated for indoor use only. If the BSAP 2135 is installed indoors, for example in a harsh environment such as a warehouse, it must configured for indoor use. For information on configuring a Bluesocket access point for indoor use, refer to the quick start guide that shipped with the product. FCC Radiation Exposure Statement Bluesoc…

Text truncated - open the document above for the full version.

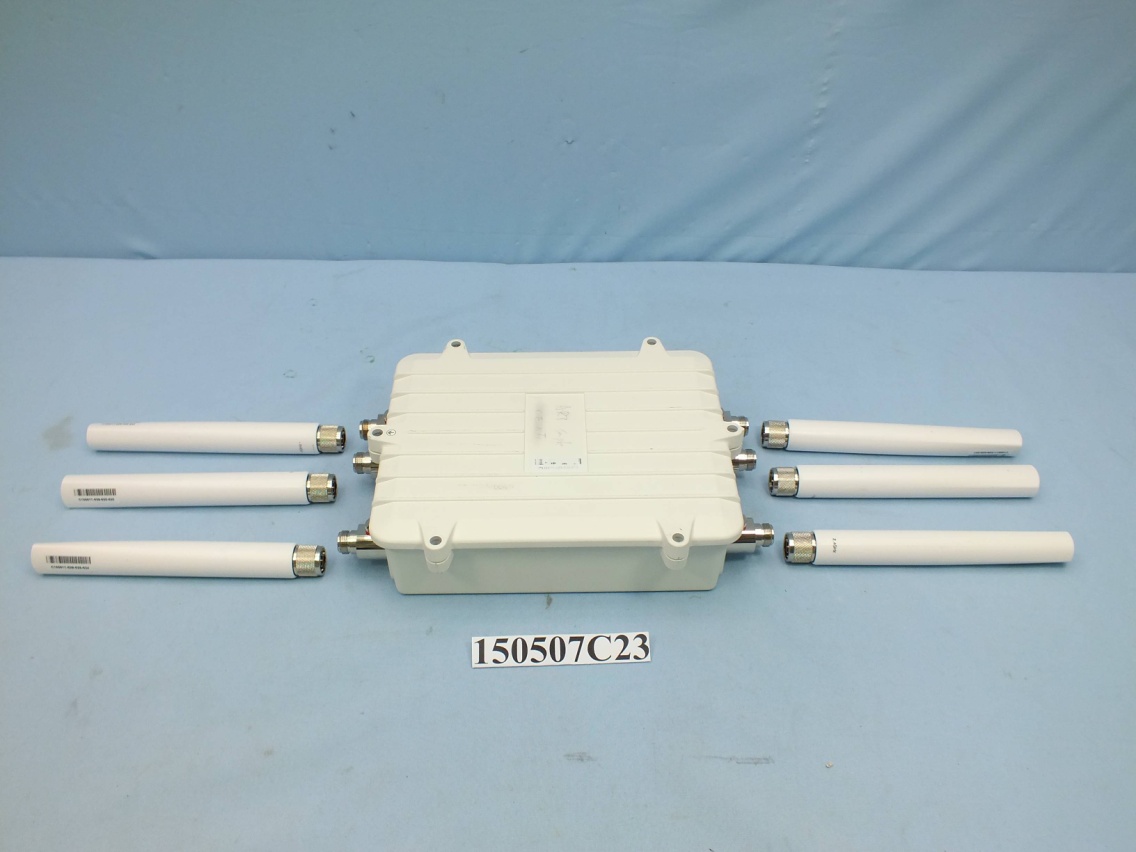

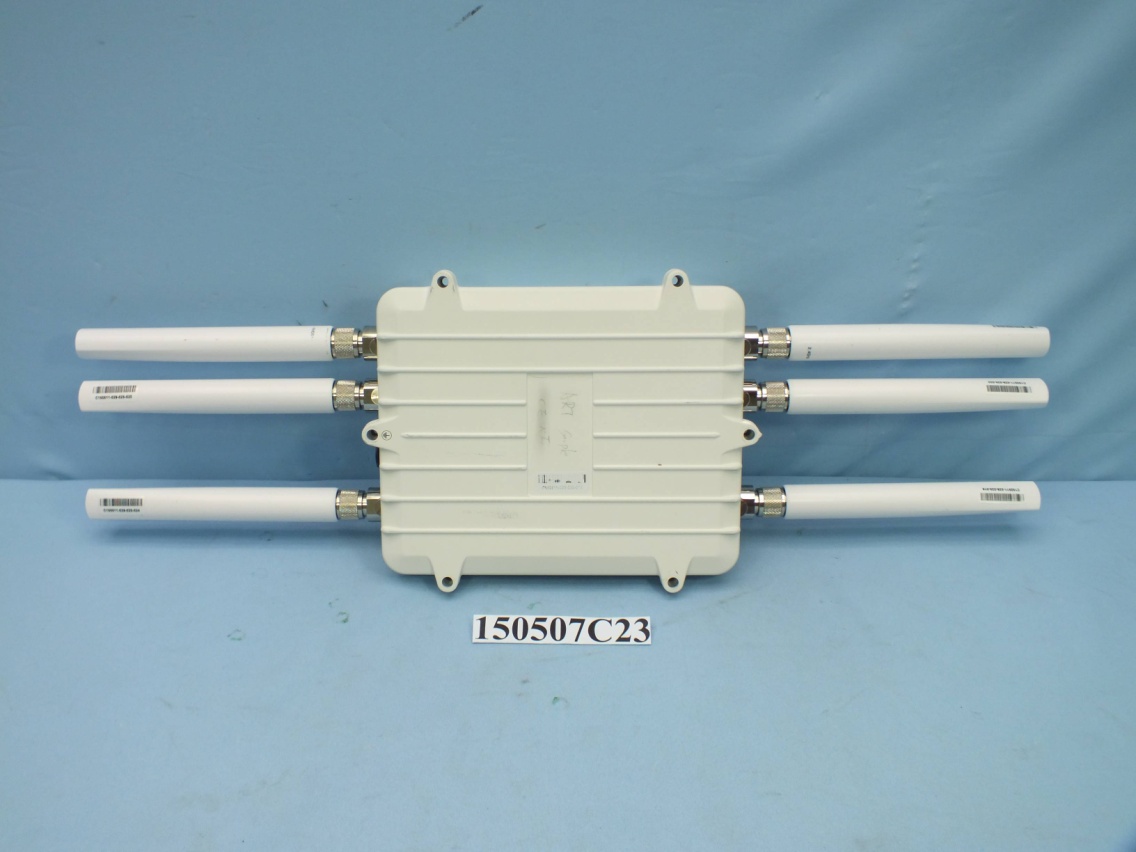

BLUESOCKET 2135 ACCESS POINT P/N 1700962F1 HARDWARE The following items are included in your shipment: •Bluesocket 2135 Access Point (BSAP) •One plane bracket with hardware -Four expansion bolts with washers and nuts -Four hex cap screws with washers and lock washers •One pole mounting base with hardware -One hose strap -Four round head screws with washers and lock washers •Watertight PoE fitting •Grounding cable ANTENNAS The BSAP 2135 provides six N-type antenna connectors (no integrated antennas are included). These connectors support two internal 802.11 radios: one 2.4 GHz 802.11b/g/n radio and one 5 GHz 802.11a/n/ac radio. There are three antenna connectors for each band labeled 2.4GHz and 5GHz. A set of six high-efficiency omnidirectional antennas can be ordered from ADTRAN for the BSAP 2135 (P/N 1700930F1, three 5 GHz, 7 dBi gain and three 2.4 GHz, 5 dBi gain). Make a note of the 12-character MAC address and 14-digit serial number listed on the back of the BSAP 2135 before mounting the AP to a wall or other surface. This information will be required during configuration. Grounding Point Watertight PoE Fitting Antenna Connectors CONFIGURING THE BSAP’S IP ADDRESS USING THE CLI By default, DHCP is enabled on the BSAP 2135. However, if you need to statically configure the IP address or statically configure AP discovery for the BSAP, follow these steps: 1. Ensure that the BSAP is connected to a controlling computer (using the provided RJ-45 Ethernet cable). 2. Specify that the computer’s TCP/IP setting is On or Enabled by navigating to Control Panel > Network Connections and double-clicking the connection of your network interface card. Select Internet Protocol (TCP/IP) and select Properties. Then specify that the TCP/IP setting is enabled. 3. Set your PC to a static IP address of 192.168.190.2 with a subnet mask of 255.255.255.0. 4. Next, access the BSAP’s command line interface (CLI) using an SSH client. Open an SSH connection using the unit’s default IP address (192.168.190.1) and port 2335 connected to the LAN1 port on the BSAP. To access the unit using vWLAN, and for more instructions about CLI configuration, refer to the Bluesocket vWLAN Administrator’s Guide, available online at https://supportforums.adtran.com. CONFIGURING THE APPLICATION More detailed documentation for configuring the BSAP 2135 is provided in the Bluesocket vWLAN Administrator’s Guide, available online at https://supportforums.adtran.com. FCC RADIO FREQUENCY INTERFERENCE This device complies with Part 15 of the Federal Communications Commission (FCC) rules. The operation of this device is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received including interference that may cause undesired operation. THIRD-PARTY SOFTWARE The software included in the Bluesocket 2135 contains copyrighted software that is licensed under the GNU General Public License (GPL). For a list of third-party software and their licenses, go to http://www.adtran.com/software/EULA. You can obtain the complete corresponding source code of such software components from ADTRAN for a period of three years after our last shipment of this product by sending a money order or check for $5 to: ADTRAN, Inc, P.O. Box 933638, Atlanta, GA 31193-3638 Please write GPL Source for product Bluesocket 2135 in the memo line of your payment. This offer is valid to anyone in receipt of this information. 8Copyright © 2015 ADTRAN, Inc. All Rights Reserved.Quick Start Guide, 61700962F1-13B, May 20151 Ground the BSAP Use the supplied green grounding cable to ground the BSAP 2135 by following these steps: 1. Remove bottom hex head screw from the BSAP unit. This location of the grounding screw is marked . .. . 2. Place the ground lug of the supplied grounding cable on the shank of the screw and secure the screw to the unit using an appropriate tool. 3. Attach the other end of the grounding cable to a reliable earth ground point. CONNECTING TO THE BSAP If the BSAP is to be powered using a network device such as a switch, connect the Ethernet port of the BSAP to the appropriate switchport. Obtain the IP address of the BSAP from the Dynamic Host Control Protocol (DHCP) server (based on the MAC address of the BSAP). DHCP is enabled by default. You can then use a Secure Shell (SSH) client to connect to the BSAP based on the instructions below. If the BSAP is powered using a PoE injector, connect the Ethernet port of the BSAP to the OUT port of the PoE injector and connect the Ethernet port of the computer to the IN port on the PoE injector. Then proceed to SSH to the default IP address of the BSAP as instructed below. CONFIGURING THE BSAP WITH VWLAN AND AP DISCOVERY The BSAP 2135 can be configured for use with the Bluesocket virtual wireless local area network (vWLAN). If you have installed vWLAN, and want to use AP discovery to configure the BSAP 2135, follow these steps. For more information on the vWLAN and AP discovery, refer to the vWLAN AP Discovery configuration guide available online at https://supportforums.adtran.com. 1. After powering the AP and connecting it to the network, allow the AP to discover the vWLAN appliance to receive its configuration information. This AP discovery process uses an algorithm that attempts discovery methods in this order: static configuration, DHCP vendor option (43), Domain Naming System (DNS) discovery, and cached vWLAN information. If no response to the discovery request is received, the algorithm moves to the next method in the list (except when using static configuration, which never queries the other discovery methods). 2. There are two additional network components that can be configured to facilitate AP discovery. First, an external DHCP server can be configured to assign IP addresses to APs associated with the vWLAN. When configuring the DHCP server, make sure to configure the Bluesocket DHCP vendor option (43) on the server. Second, you c…

Text truncated - open the document above for the full version.

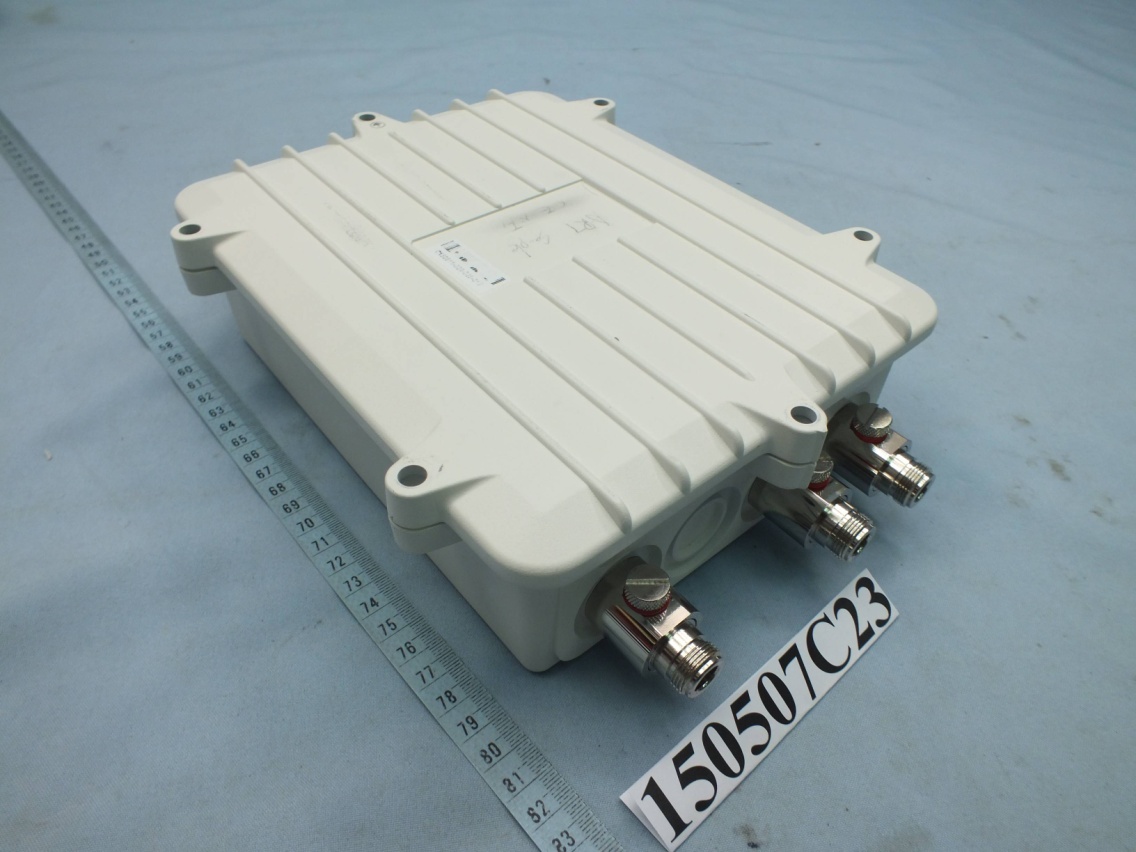

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11

FCC ID: HDCBSAP2135 Report No.: RF150507C23 Operational Description This device is a Outdoor Wireless Access Point, which operates in 2.4GHz & 5.0GHz band; the maximum data rate could be up to 1300 Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 1300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 56Vdc POE. The EUT is used Dipole antenna with N-Type connector. The other instruction, please have a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.
