TRACER 4106/4206 System Manual 12804106L1ATRACER 4106 System (Plan A) 12804106L1BTRACER 4106 System (Plan B) 12804206L1ATRACER 4206 System (Plan A) 12804206L1BTRACER 4206 System (Plan B) 612804206L1-1B January 2003 Trademarks Any brand names and product names included in this manual are trademarks, registered trademarks, or trade names of their respective holders. To the Holder of the Manual The contents of this manual are current as of the date of publication. ADTRAN reserves the right to change the contents without prior notice. In no event will ADTRAN be liable for any special, incidental, or consequential damages or for commercial losses even if ADTRAN has been advised thereof as a result of issue of this publication. 901 Explorer Boulevard P.O. Box 140000 Huntsville, AL 35814-4000 Phone: (256) 963-8000 ©2002 ADTRAN, Inc. All Rights Reserved. Printed in U.S.A. 612804206L1-1B© 2002 ADTRAN, Inc.3 About this Manual This manual provides a complete description of the TRACER 4106/4206 system and system software. The purpose of this manual is to provide the technician, system administrator, and manager with general and specific information related to the planning, installation, operation, and maintenance of the TRACER 4106/4206. This manual is arranged so that needed information can be quickly and easily found. The following is an overview of the contents. Section 1System Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Provides managers with an overview of the TRACER 4106/4206 system. Section 2Microwave Path Engineering Basics . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Explains the basics of analyzing a wireless microwave link, or path. The significant parameters are defined, and several recommendations are offered. Section 3Engineering Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Provides information to assist network designers with incorporating the TRACER 4106/4206 system into their networks. Section 4Network Turnup Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Provides step-by-step instructions on how to install the TRACER 4106/4206 unit, determine the parameters for the system, install the network and option modules, and power up the system. Section 5User Interface Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Explains the terminal interface and provides a description for each of the menus available for the TRACER 4106/4206 system. Section 6Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Provides helpful information for troubleshooting common configuration problems for the TRACER 4106/4206 system. Revision History This is the second issue of this manual. 4© 2002 ADTRAN, Inc.612804206L1-1B Safety Instructions When using your telephone equipment, please follow these basic safety precautions to reduce the risk of fire, electrical shock, or personal injury: 1. Do not use this product near water, such as a bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. 2. Avoid using a telephone (other than a cordless-type) during an electrical storm. There is a remote risk of shock from lightning. 3. Do not use the telephone to report a gas leak in the vicinity of the leak. 4. Use only the power cord, power supply, and/or batteries indicated in the manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for special disposal instructions. Save These Important Safety Instructions Notes provide additional useful information. Cautions signify information that could prevent service interruption. Warnings provide information that could prevent damage to the equipment or endangerment to human life. 612804206L1-1B© 2002 ADTRAN, Inc.5 Federal Communications Commission Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio frequencies. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Shielded cables must be used with this unit to ensure compliance with Class A FCC limits. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 6© 2002 ADTRAN, Inc.612804206L1-1B Radio Frequency Interface Statement This equipment has been tested and found to comply with the limits for an intentional radiator, pursuant to Part 15, Subpart C of the FCC Rules. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause interference to radio communications. The limits are designed to provide reasonable protection against such interference in a residential situation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna of the affected radio or television. •Increase the separation between the equipment and the affected receiver. •Connect the equipment and the affected receiver to power outlets on separate circuits. •Consult the dealer or an experienced radio/TV technic…

Text truncated - open the document above for the full version.

SAW AGC PA VCO 12 MHz Modulator VCO 280 TX TX I Q SAW AGC Coupler VCO Control Demodulator RX Attenuator RX I Q X 4 X 4

T1 Framer T2 FRAMER DATA PUMP FORWARD ERROR CORRECTION BasebandProcessor Board μC -48Vdc RS-232 T1A RX TX I Q I Q T1 Framer T1 Framer T1 Framer T1B T1C T1D

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 January 20, 2003 RE: FCC ID: HDCTRC4106 Attention: Gregory M. Snyder / Brian J. Dettling I have a few comments on this Application. 1. Please note that the operational description you have provided is for the 5GHz 4206 system. Please provide the operational description for the 2.4GHz 4106 system. 2. Please note that in your MPE calculation you used 1.1mw/c^2 not the 1mw/cm^2 value specified in 1.1310. The actual calculated distance using the 1.1310 value should be 121.7cm. Please correct your calculations in the MPE. Alternately, please explain why you used the 1.1mw/cm^2 instead of the value provided in the rules. 3. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Response to ATCB Comments FCC ID: HDCTRC4106 1 Washington Laboratories, Ltd. 7560 LINDBERGH DRIVE GAITHERSBURG, MD 20879 (301) 417 – 0220 FAX # (301) 417 - 9069 January 31, 2003 Mr. Dennis Ward American Telecommunications Certification Body Inc. 6731 Whittier Ave McLean, VA 22101 RE: Comments of January 20, 2003 APPLICATION: FCC ID: HDCTRC4106 Adtran, Inc. Dear Mr. Ward: Below are the comments that you have provided regarding the application for certification referenced above. Our responses to those comments are in bold italic. Many responses refer you to additional exhibit(s) which has been uploaded to the application folder at the ATCB website. Thank you for your attention. Please feel free to contact us for any additional information that you may require. Regards, Gregory M. Snyder Chief EMC Engineer, Wireless/Telco Services Manager Brian J. Dettling Documentation Specialist WLL Project: 7327 January 20, 2003 RE: Adtran, Inc. FCC ID: HDCTRC4106 1) Please note that the operational description you have provided is for the 5GHz 4206 system. Please provide the operational description for the 2.4GHz 4106 system. R. Please see exhibit “4106 Operational Description, Rev1.pdf.” Response to ATCB Comments FCC ID: HDCTRC4106 2 2) Please note that in your MPE calculation you used 1.1mw/c^2 not the 1mw/cm^2 value specified in 1.1310. The actual calculated distance using the 1.1310 value should be 121.7cm. Please correct your calculations in the MPE. Alternately, please explain why you used the 1.1mw/cm^2 instead of the value provided in the rules. R. The MPE Test Report has been corrected using the specified limit. Please see exhibit “4106 MPE Report Rev1.pdf.”

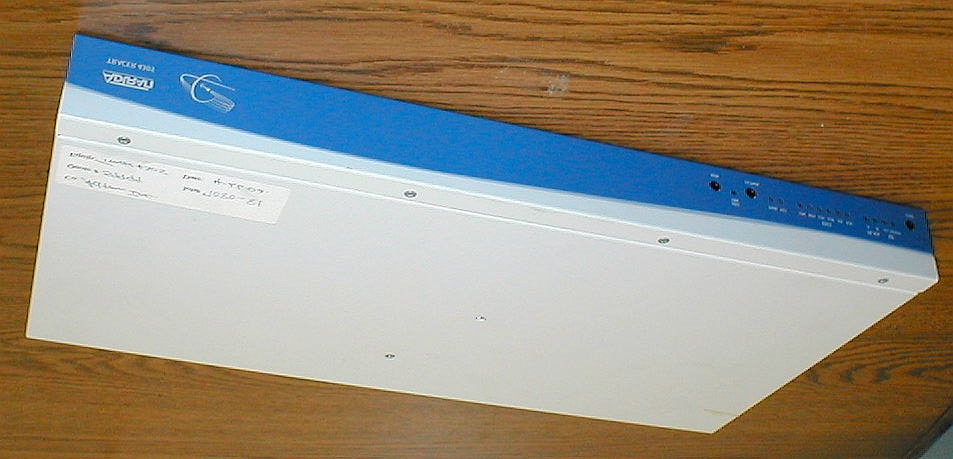

External Photos Front Rear Rear Panel Right Side Left Side Bottom

2.125” +/- .020” 1.00” +/- .020” .100” RAD. DATEREV ECO# COMMENT 11/25/02 @AN/A ORIGINAL REV PRODUCT DRAWN BYENGINEERAPPROVED BY A. BREMERM. GANN TITLE SCALEDWG. NO. TRACER 4106,4XT1 32897042 LABEL, FCC 1.00” 1:1 901 EXPLORER BVD. P.O. BOX 140000 HUNTSVILLE, AL 35814-4000 NOTES: 1. PRINT PER ARTWORK SUPPLIED. 2. MATERIAL: .002 WHITE MYLAR SUBSTRATE BLACK LETTERING, .001 CLEAR MYLAR OVERLAY LAMINATED, FLEXCON L-344 OR UL APPROVED EQUAL PRESSURE SENSITIVE ADHESIVE BACKSIDE. 3. FONT: HELVETICA & ERAS DEMI, NO FONT SUBSTITUTIONS PERMITTED. 4. FILM: EMULSION SIDE UP. FCC ID: HDCTRC4106 TRACER 4106 This equipment complies with part 15 of FCC rules.Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC Label Location

Overview Cover Removed RFC Board Baseband Board Signal Filter Baseband Board Top, Detail A Baseband Board Top, Detail B Baseband Board Top, Detail C Baseband Board Top, Detail D Baseband Board Top, Detail E Baseband Board Bottom, Detail A Baseband Board Bottom, Detail B Baseband Board Bottom, Detail C Baseband Board Bottom, Detail D

RFC Board Top Left RFC Board Top Center RFC Board Top Right RFC Board Bottom Overview RFC Board Bottom, Covers Removed RFC Board Bottom Left Detail RFC Board Bottom Center Detail RFC Board Bottom Right Detail Signal Filter Signal Filter Connector Detail Signal Filter Cover Removed

Document 7327-MPE, Rev. 1 FCC ID: HDCTRC4106 RF Exposure Test Report Washington Laboratories, Ltd January 2003 Maximum Permissible Exposure Test Report for Adtran TRACER 4106 FCC ID: HDCTRC4106 January 16, 2003 WLL PROJECT #: 7327X This report may not be reproduced, except in full, without the prior written consent of Washington Laboratories, Ltd. RF Exposure Test Report Document 7327-MPE, Rev. 1 FCC ID: HDCTRC4106 RF Exposure Test Report Washington Laboratories, Ltd January 2003 1 Maximum Permissible Exposure Test Report for FCC ID: HDCTRC4106 1.0 Introduction This report has been prepared on behalf of Adtran Model: TRACER 4106 Transmitter to show compliance with the RF exposure requirements as defined in FCC §1.1307. 1.1 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: ß Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. ß Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR §2.1091. ß Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC's Rules (47 CFR§2.1093). For this test report the Adtran TRACER 4106 is classified as a “Fixed Installation Device” and therefore must meet the limits as specified in §1.307. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Document 7327-MPE, Rev. 1 FCC ID: HDCTRC4106 RF Exposure Test Report Washington Laboratories, Ltd January 2003 2 Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: ß Occupational/Controlled Exposure: In general, occupational/controlled exposure limits are applicable to situations in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure and can exercise control over their exposure. This exposure category is also applicable when the exposure is of a transient nature due to incidental passage through a location where the exposure levels may be higher than the general population/uncontrolled limits, but the exposed person is fully aware of the potential for exposure and can exercise control over his or her exposure by leaving the area or by some other appropriate means. Awareness of the potential for RF exposure in a workplace or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. ß General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. Since there are no warnings or training associated with this unit and it can be used by anyone, the Adtran TRACER 4106 is evaluated to the General Population/Uncontrolled Exposure limits. 1.2 Radio Frequency Radiation Exposure Evaluation The highest RF output power of the unit was measured at 20.1dBm at 2422MHz. According to §1.1310 of the FCC rules, the power density limit for General Population/Uncontrolled Exposure is 1mW/cm 2 . To comply with the exposure limits for this section, individuals must maintain a safe distance from the transmit antenna. The following formula was used to calculate the minimum safe distance: 2 4R PG S π = Where: Document 7327-MPE, Rev. 1 FCC ID: HDCTRC4106 RF Exposure Test Report Washington Laboratories, Ltd January 2003 3 S = Power Density P = Output Power at the Antenna Terminals G = Gain of Transmit Antenna (linear gain) R = Distance from Transmitting Antenna For this device, the calculation is as follows: S = FCC Limit = 1mW/cm 2 P = Output Power = 102.3 mW G = Worst Case Gain = 32.6 dBi = INVLOG(32.6/10) = 1820 Solving for the required minimum safe distance using the following formula: S PG R π4 = 14 18203.102 ×× × = π R = 121.7 cm (Based on continuous transmission) Based on the calculation above, the minimum safe distance for this device is 122cm. The distance is provided by the manufacturers professional installation guidelines as provided in the User’s manual. The manufacturer specif…

Text truncated - open the document above for the full version.

Document 7327-01, Rev. 0 FCC Certification Test Report Washington Laboratories, Ltd January 2003 FCC Certification Test Report for Adtran, Inc. HDCTRC4106 January 16, 2003 Prepared for: Adtran, Inc. 901 Explorer Blvd Huntsville, AL 35806 Prepared By: Washington Laboratories, Ltd. 7560 Lindbergh Drive Gaithersburg, Maryland 20879 FCC Certification Test Report Document 7327-01, Rev. 0 FCC Certification Test Report Washington Laboratories, Ltd January 2003 FCC Certification Test Report for the Adtran, Inc. TRACER 4106 DSSS HDCTRC4106 WLL JOB# 7327 Prepared by: Brian J. Dettling Documentation Specialist Reviewed by: Gregory M. Snyder Chief EMC Engineer Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 ii Abstract This report has been prepared on behalf of Adtran, Inc. to support the attached Application for Equipment Authorization. The test report and application are submitted for a Spread Spectrum Transceiver under Part 15.247 of the FCC Rules and Regulations. This Federal Communication Commission (FCC) Certification Test Report documents the test configuration and test results for a Adtran, Inc. TRACER 4106. Testing was performed on an Open Area Test Site (OATS) of Washington Laboratories, Ltd, 7560 Lindbergh Drive, Gaithersburg, MD 20879. Site description and site attenuation data have been placed on file with the FCC's Sampling and Measurements Branch at the FCC laboratory in Columbia, MD. Washington Laboratories, Ltd. has been accepted by the FCC and approved by NIST NVLAP (NVLAP Lab Code: 200066-0) as an independent FCC test laboratory. The Adtran, Inc. TRACER 4106 DSSS complies with the limits for a Spread Spectrum Transceiver device under Part 15.247 of the FCC Rules and Regulations. Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 iii Table of Contents Abstract......................................................................................................ii 1 Introduction...................................................................................................................1 1.1 Compliance Statement............................................................................................1 1.2 Test Scope............................................................................................................1 1.3 Contract Information..............................................................................................1 1.4 Test Dates.............................................................................................................1 1.5 Test and Support Personnel....................................................................................1 1.6 Abbreviations.........................................................................................................2 2 Equipment Under Test....................................................................................................3 2.1 EUT Identification & Description............................................................................3 2.2 Test Configuration..................................................................................................5 2.3 Testing Algorithm...................................................................................................5 2.4 Test Location.........................................................................................................5 2.5 Measurements........................................................................................................5 2.5.1 References.....................................................................................................5 2.6 Measurement Uncertainty.......................................................................................5 3 Test Equipment..............................................................................................................7 4 Test Results...................................................................................................................8 4.1 RF Power Output..................................................................................................8 4.2 RF Peak Power Spectral Density...........................................................................8 4.3 Occupied Bandwidth..............................................................................................9 4.4 Spurious Emissions at Antenna Terminals (FCC Part §15.247(b)).........................16 4.5 Radiated Spurious Emissions: (FCC Part §15.247(c))...........................................49 4.5.1 Test Procedure............................................................................................49 4.6 AC Powerline Conducted Emissions: (FCC Part §15.207)...................................58 List of Tables Table 1. Device Summary....................................................................................................4 Table 2: Test Equipment List...............................................................................................7 Table 3. RF Power Output...................................................................................................8 Table 4. Power Spectral Density..........................................................................................9 Table 5. Occupied Bandwidth Results................................................................................16 Table 6: Radiated Emission Test Data-Dish Antenna—Channel A – Plan 1.........................50 Table 7: Radiated Emission Test Data-Dish Antenna—Channel B – Plan 1.........................54 Table 8: Conducted Emissions Test Data; 15.207..............................................................59 Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 iv List of Figures Figure 1. Occupied Bandwidth, Channel A Plan 1.....................…

Text truncated - open the document above for the full version.

Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 18 of 59 Figure 8. Conducted Spurious: Channel A Plan 1 1GHz – 2.9GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 19 of 59 Figure 9. Conducted Spurious: Channel A Plan 1 2.9GHz – 10GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 20 of 59 Figure 10. Conducted Spurious: Channel A Plan 1 10GHz – 18GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 21 of 59 Figure 11. Conducted Spurious: Channel A Plan 1 18GHz – 25GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 22 of 59 Figure 12. Conducted Spurious Emissions - Band Edge Plot – Channel A Plan 1 (Marker at 2400MHz) Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 23 of 59 Figure 13. Conducted Spurious: Channel A Plan 2 30MHz – 1GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 24 of 59 Figure 14. Conducted Spurious: Channel A Plan 2 1GHz – 2.9GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 25 of 59 Figure 15. Conducted Spurious: Channel A Plan 2 2.9GHz – 10GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 26 of 59 Figure 16. Conducted Spurious: Channel A Plan 2 10GHz – 18GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 27 of 59 Figure 17. Conducted Spurious: Channel A Plan 2 18GHz – 25GHz

Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 28 of 59 Figure 18. Conducted Spurious: Channel A Plan 3 30MHz – 1GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 29 of 59 Figure 19. Conducted Spurious: Channel A Plan 3 1GHz – 2.9GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 30 of 59 Figure 20. Conducted Spurious: Channel A Plan 3 2.9GHz – 10GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 31 of 59 Figure 21. Conducted Spurious: Channel A Plan 3 10GHz – 18GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 32 of 59 Figure 22. Conducted Spurious: Channel A Plan 3 18GHz – 25GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 33 of 59 Figure 23. Conducted Spurious: Channel B Plan 1 30MHz – 1GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 34 of 59 Figure 24. Conducted Spurious: Channel B Plan 1 1GHz – 2.9GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 35 of 59 Figure 25. Conducted Spurious: Channel B Plan 1 2.9GHz – 10GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 36 of 59 Figure 26. Conducted Spurious: Channel B Plan 1 10GHz – 18GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 37 of 59 Figure 27. Conducted Spurious: Channel B Plan 1 18GHz – 25GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 38 of 59 Figure 28. Conducted Spurious: Channel B Plan 2 30MHz – 1GHz

Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 39 of 59 Figure 29. Conducted Spurious: Channel B Plan 2 1GHz – 2.9GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 40 of 59 Figure 30. Conducted Spurious: Channel B Plan 2 2.9GHz – 10GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 41 of 59 Figure 31. Conducted Spurious: Channel B Plan 2 10GHz – 18GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 42 of 59 Figure 32. Conducted Spurious: Channel B Plan 2 18GHz – 25GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 43 of 59 Figure 33. Conducted Spurious: Channel B Plan 3 30MHz – 1GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 44 of 59 Figure 34. Conducted Spurious: Channel B Plan 3 1GHz – 2.9GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 45 of 59 Figure 35. Conducted Spurious: Channel B Plan 3 2.9GHz – 10GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 46 of 59 Figure 36. Conducted Spurious: Channel B Plan 3 10GHz – 18GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 47 of 59 Figure 37. Conducted Spurious: Channel B Plan 3 18GHz – 25GHz Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 48 of 59 Figure 38. Conducted Spurious Emissions - Band Edge Plot – Channel B Plan 3 Document 7327-01, Rev. 0 FCC ID: HDCTRC4106 FCC Certification Test Report Washington Laboratories, Ltd January 2003 Page 49 of 59 4.5 Radiated Spurious Emissions: (FCC Part §15.247(c)) Radiated emissions that fall in the restricted bands must comply with the general emissions limits in 15.209(a). The emissions were measured using the following resolution bandwidths: Frequency Range Resolution Bandwidth Video Bandwidth 30MHz-1000 MHz 120kHz >30 kHz >1000 MHz 1 MHz <30 Hz Harmonic and Spurious emissions that were identified as coming from the EUT were checked in Peak and in Average Mode. It was verified that the peak-to-average ratio did not exceed 20dB. Peak measurements and average measurements are made. All emissions were determined to have a peak-to-average ratio of less than 20 dB. 4.5.1 Test Procedure The EUT was placed on motorized turntable for radiated testing on a 3-meter open field test site. The emissions from the EUT were measured continuously at every azimuth by…
