HDCTRC4106L2TRACER 4106L2

Adtran
TRACER 4106L2 - FCC ID HDCTRC4106L2 - Adtran
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Oct 09, 2006
Application Purpose
Original Equipment
Date of Application
Oct 09, 2006
Equipment Note
TRACER 4106L2
Frequency Range
2416.00000000 - 2468.00000000
Company
Adtran
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

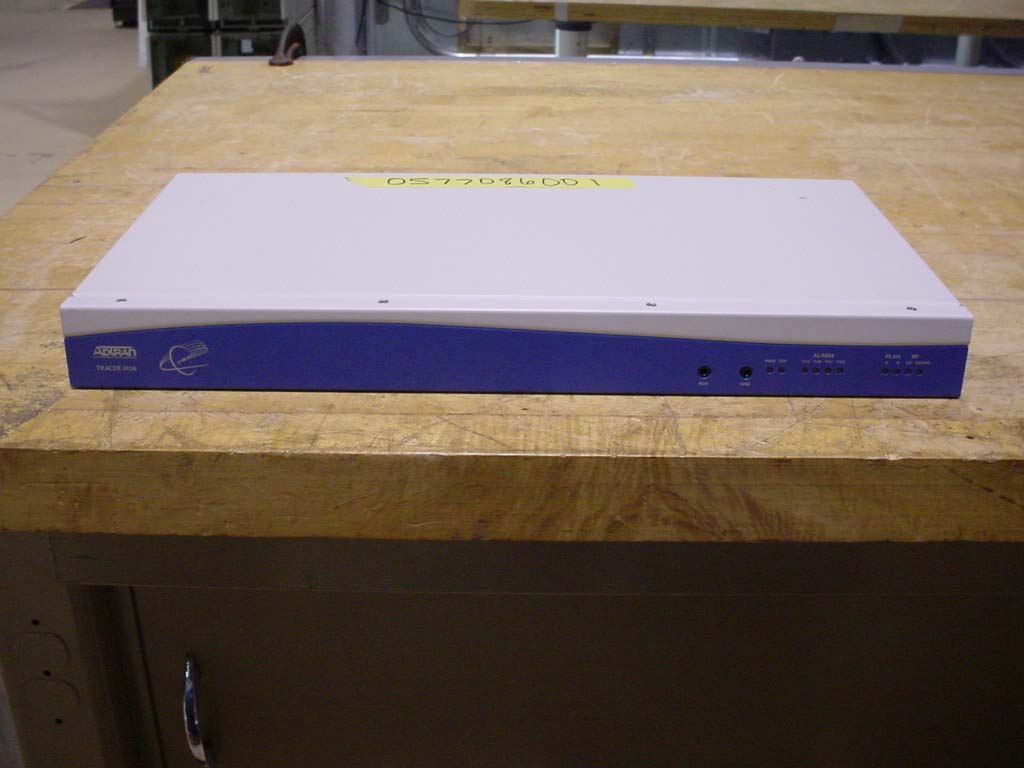

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗
↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

612804206L2-1A January 2004 TRACER 4106/4206 System Manual 12804106L2ATRACER 4106 System (Plan A) 12804106L2BTRACER 4106 System (Plan B) 12804206L2ATRACER 4206 System (Plan A) 12804206L2BTRACER 4206 System (Plan B) TrademarksTRACER 4106/4206 System Manual 2© 2003 ADTRAN, Inc.612804206L2-1A Trademarks Any brand names and product names included in this manual are trademarks, registered trademarks, or trade names of their respective holders. To the Holder of the Manual The contents of this manual are current as of the date of publication. ADTRAN reserves the right to change the contents without prior notice. In no event will ADTRAN be liable for any special, incidental, or consequential damages or for commercial losses even if ADTRAN has been advised thereof as a result of issue of this publication. About this Manual This manual provides a complete description of the TRACER 4106/4206 system and system software. The purpose of this manual is to provide the technician, system administrator, and manager with general and specific information related to the planning, installation, operation, and maintenance of the TRACER 4106/4206. This manual is arranged so that needed information can be quickly and easily found. 901 Explorer Boulevard P.O. Box 140000 Huntsville, AL 35814-4000 Phone: (256) 963-8000 © 2003 ADTRAN, Inc. All Rights Reserved. Printed in U.S.A. TRACER 4106/4206 System Manual Revision History 612804206L2-1A© 2003 ADTRAN, Inc.3 Revision History Document Revision DateDescription of Changes ANovember 2003Initial release of manual. Notes provide additional useful information. Cautions signify information that could prevent service interruption. Warnings provide information that could prevent damage to the equipment or endangerment to human life. Safety InstructionsTRACER 4106/4206 System Manual 4© 2003 ADTRAN, Inc.612804206L2-1A Safety Instructions When using your telephone equipment, please follow these basic safety precautions to reduce the risk of fire, electrical shock, or personal injury: 1. Do not use this product near water, such as a bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. 2. Avoid using a telephone (other than a cordless-type) during an electrical storm. There is a remote risk of shock from lightning. 3. Do not use the telephone to report a gas leak in the vicinity of the leak. 4. Use only the power cord, power supply, and/or batteries indicated in the manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for special disposal instructions. Save These Important Safety Instructions TRACER 4106/4206 System Manual FCC-Required Information 612804206L2-1A© 2003 ADTRAN, Inc.5 FCC-Required Information Federal Communications Commission Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio frequencies. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Radio Frequency Interface Statement This equipment has been tested and found to comply with the limits for an intentional radiator, pursuant to Part 15, Subpart C of the FCC Rules. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause interference to radio communications. The limits are designed to provide reasonable protection against such interference in a residential situation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna of the affected radio or television. •Increase the separation between the equipment and the affected receiver. •Connect the equipment and the affected receiver to power outlets on separate circuits. •Consult the dealer or an experienced radio/TV technician for help. Shielded cables must be used with this unit to ensure compliance with Class A FCC limits. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Changes or modifications not expressly approved by ADTRAN could void the user’s authority to operate the equipment. FCC-Required InformationTRACER 4106/4206 System Manual 6© 2003 ADTRAN, Inc.612804206L2-1A FCC Output Power Restrictions The FCC does not require licensing to implement this device. License-free operation in the industrial, scientific, and medical band is documented in FCC Rules Part 15.247. It is the responsibility of the individuals designing and implementing the radio system to assure compliance with any pertinent FCC Rules and Regulations. This device must be professionally installed. Exposure to Radio Frequency Fields The TRACER 4106 is designed to operate at 2.4 GHz with 100 mW maximum transmit power. The TRACER 4206 is designed to operate at 5.8 GHz with 100 mW maximum transmit power. This level of RF energy is below the Maximum Permissible Exposure (MPE) levels specified in FCC OET 65:97-01. The installation of high gain antenna equipment in the system configuration may create the opportunity for exposure to levels higher than recommended for the general population at a distance less than 15 feet (4.6 meter) from the center o…

Text truncated - open the document above for the full version.

Cover Letter(s)

Corporate Office • 901 Explorer Blvd. • P.O. Box 140000 • Huntsville, AL 35814-4000 • (205) 963-8000 Letter of Agency I appoint Intertek Testing Services NA Inc. to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under the FCC rules until further notice. I further certify that no party (as defined in 1.2002 of CFR 47, 1995) to this application, including myself, is subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853A. Equipment: TRACER 4106L2 FCC ID: HDCTRC4106L2 Dated this __6___day of____October_________, 20_06__. Signature: Name: Derek Foster Title:Regulatory Compliance Engineer Company:ADTRAN Inc Telephone:256 963-8436

Cover Letter(s)

Corporate OfficeU.S. MailToll Free: 1 800 9ADTRAN 901 Explorer Blvd.P.O. Box 140000Telephone: 256.963.8000 Huntsville, AL 35806Huntsville, AL 35814-4000http://www.adtran.com Date: March 5, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suit C110 McLean, VA 22101 RE: Certification Application FCC ID:HDCTRC4106 To Whom It May Concern: Please be advised that under the provision of 47 CFR 0.457 and 0.459 the following information is to be held confidential on behalf of ADTRAN Inc.: • Schematics • Theory of operation • Block Diagram The application contains technical information which ADTRAN, Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention in this matter. Signatory Derek Foster Regulatory Compliance Engineer ADTRAN, Inc. 901 Explorer Blvd. Huntsville, AL 35806

ID Label/Location Info

                                    !      "       #$ %&'&'  # (   ) '  $     $  !"#  %& ")      * "      )   !   ""   *  #           # ($ %     +   ""  "" !"  *"  % () ! ,  " #  ( """     () " "   (  )   -./ 012.34056 78439.0/ :.6- 3;<6  8= ( <290/30<;6.85 ./ /2>?076 68 6-0 =8998:.5@ 6:8 785A.6.85/) BC -./ A0D.70 4;E 586 7;2/0 -;<4=29 .560<=0<0570# ;5A BC -./ A0D.70 42/6 ;77036 ;5E .560<=0<0570 <070.D0A# .5792A.5@ .560<=0<0570 6-;6 4;E 7;2/0 25A0/.<0A 830<;6.85

Internal Photos

Figure 2 Main Board – Component Side Figure 1 Figure 5 Figure 4 Figure 3 Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Main Board – Solder Side RF Board – Component Side Figure 7 Figure 6 Figure 6 Figure 7 RF Board – Solder Side Diplexer

Test Report

Summary Test Report for the Adtran, Inc. Tracer 6410 System with 10 foot dish antenna WLL JOB# 9361 August 28, 2006 Prepared for: Adtran, Inc. 901 Explorer Boulevard Huntsville, AL 35806 Prepared By: Washington Laboratories, Ltd. 7560 Lindbergh Drive Gaithersburg, Maryland 20879 Adtran, Inc. Tracer 4106 Summary Test Report August 2006 Summary Test Report for the Adtran, Inc. Tracer 6410 System with 10 foot dish antenna August 28, 2006 WLL JOB# 9361 Prepared by: Gregory M. Snyder Chief EMC Engineer Adtran, Inc. Tracer 4106 Summary Test Report August 2006 WLL Report #9071-01 - ii - © 2006 Washington Laboratories, Ltd. Abstract This summary report has been prepared on behalf of Adtran, Inc. to support an Application for Equipment Authorization under FCC Part 15.247 and Telecommunications Policy RSS-210 of Industry Canada. This report documents the test results for an Adtran, Inc. Tracer 4106 configured with a 10 foot dish antenna. Testing was performed on an Open Area Test Site (OATS) of Washington Laboratories, Ltd, 7560 Lindbergh Drive, Gaithersburg, MD 20879. Site description and site attenuation data have been placed on file with the FCC's Sampling and Measurements Branch at the FCC laboratory in Columbia, MD. The Industry Canada OATS numbers are 3035A-1 and 3035A-2 for Washington Laboratories, Ltd. Site 1 and Site 2, respectively. Washington Laboratories, Ltd. has been accepted by the FCC and approved by NIST NVLAP (NVLAP Lab Code: 200066-0) as an independent FCC test laboratory. The Adtran, Inc. Tracer 4106 when configured with a 10 foot dish antenna complies with the limits for a Digitally Modulated Transceiver device under FCC Part 15.247 and Industry Canada RSS-210. Adtran, Inc. Tracer 4106 Summary Test Report August 2006 WLL Report #9071-01 - iii - © 2006 Washington Laboratories, Ltd. Table of Contents Abstract ........................................................................................................................................... ii 1 Introduction........................................................................................................................ 1 1.1 Compliance Statement ................................................................................................... 1 1.2 Test Scope ...................................................................................................................... 1 1.3 Contract Information...................................................................................................... 1 1.4 Test Dates ...................................................................................................................... 1 1.5 Test and Support Personnel ........................................................................................... 1 2 Equipment Under Test ....................................................................................................... 2 2.1 EUT Identification & Description ................................................................................. 2 2.2 Test Configuration .........................................................................................................2 2.3 Test Location ................................................................................................................. 2 2.4 Measurements ................................................................................................................2 2.4.1 References.................................................................................................................. 2 2.5 Measurement Uncertainty.............................................................................................. 2 3 Test Equipment .................................................................................................................. 3 4 Radiated Spurious Emissions: (FCC Part §15.247(c) and RSS-210 A8.5) ....................... 4 4.1.1 Test Procedure for 10’ Dish Antenna ........................................................................ 4 4.1.2 Test results ................................................................................................................. 5 List of Tables Table 1: Test Equipment List.......................................................................................................... 3 Table 2: Radiated Emissions; 10ft Dish Antenna – Plan A Band 1 ............................................... 6 Table 3: Radiated Emissions; 10ft Dish Antenna – Plan A Band 3 ............................................... 7 Table 4: Radiated Emissions; 10ft Dish Antenna – Plan B Band 1................................................ 8 Table 5: Radiated Emissions; 10ft Dish Antenna – Plan B Band 3................................................ 9 List of Figures Figure 4-1, Test Setup Photograph ............................................................................................... 10 Figure 4-2, Test Setup Photograph ............................................................................................... 11 Adtran, Inc. Tracer 4106 Summary Test Report August 2006 WLL Report #9071-01 - Page 1 of 11 - © 2006 Washington Laboratories, Ltd. 1 Introduction 1.1 Compliance Statement The Adtran, Inc. Tracer 4106 with 10 foot dish antenna complies with the limits for a Digitally Modulated Transmitter device under FCC Part 15.247 and Industry Canada RSS-210, Issue 6. 1.2 Test Scope Tests for radiated emissions were performed. The measurement equipment conforms to ANSI C63.2 Specifications for Electromagnetic Noise and Field Strength Instrumentation. 1.3 Contract Information Customer: Adtran, Inc. 901 Explorer Boulevard Huntsville, AL 35806 Quotation Number: 63122 1.4 Test Dates Testing was performed on the following date(s): August 22 and 23, 2006 1.5 Test and Support Personnel Washington Laboratories, LTD James Ritter Client Representative Derek Foster Adtran, Inc. Tracer 4106 Summary Test Report August 2006 WLL Report #9071-01 - Page 2 of 11 - ©…

Text truncated - open the document above for the full version.

Test Report

Sent: Friday, February 18, 2005 2:54 PM To: [email protected] Subject: RE: Big old antenna Mike, Attached are the guidelines for testing a 10 foot dish with as Part 15, spread spectrum device. Remember we are concerned about band edge compliance particularly in the 2.4 GHz band at 2.4835 MHz in the restricted band. If the device is a 2.4 GHz device, you will have to use the delta method (posted on our KDB) to determine the level of the emission at the band edge. We are also concerned with the defacto EIRP limits in the 900 MHz and 2.4 GHz bands listed in the rules. Be careful with those. For EMC/EMI Measurements: Place the 10' parabolic antenna on a 10 meter OATS and bore-site the parabolic antenna to the receive antenna. To ensure measuring a maximized signal, with the transmission system transmitting rotate the EUT (left and right) slightly while monitoring the transmission - this is to ensure measuring in the center of the transmission beam. Then, with the transmission system still transmitting, raise and lower the receive antenna 1 to 4 meters to ensure that a maximized signal is being measured. Note: both horizontal and vertical polarities of the receiver antenna should be used to ensure a maximized signal will be measured. You will have to perform this for the fundamental to measure band edge compliance and for all the restricted band emissions. A look at the conducted emissions from this device should give you some guidance on where to look for spurious emissions from the system. During all measurements, the measurement equipment requirements defined in Part 15, section 15.35 Measurement detector functions and bandwidths should be met. These 10 meter measurements will then have to be extrapolated to 3 meters for comparison to the limits. Let me know if we can be of further help. Rich

Contact Information

Applicant

Paul Stover(Manager Compliance Engineering)
[email protected]256-963-8099Fax: 256-963-8250

Technical Contact

ADTRANDerek Foster
[email protected](256) 963-8436

901 Explorer Boulevard · Huntsville, Alabama · United States

Test Firm

UL LLCBob Delisi
[email protected]631-271-6200Fax: 516-439-6095

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.42 GHz - 2.47 GHz100.00 mW
Confidentiality
Long Term
Grant Notes
Power Output listed is Conducted. The antenna used for this transmitter must be professionally installed. The maximum gain antenna used may not exceed 42.5 dBi. A High Gain antenna used for this transmitter must be installed to provide a separation distance of at least 10 feet (3 meters) from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
