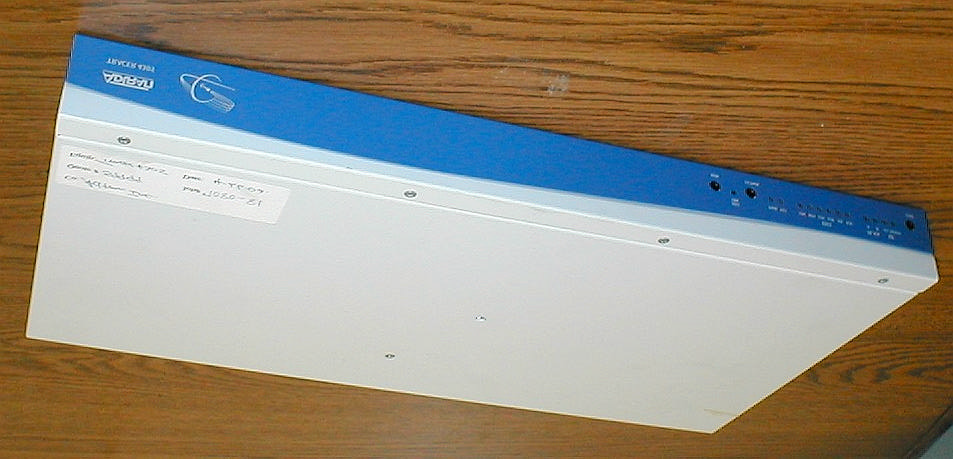

External Photos Front Rear Rear Panel Right Side Left Side Bottom

X.XXXXXX 2.125” +/- .020” 1.00” +/- .020” .100” RAD. DATEREVECO# COMMENT ORIGINAL REV PRODUCT DRAWN BYENGINEERAPPROVED BY A. HARTMAN TITLE SCALEDWG. NO. TRACER 4206 32898169 LABEL, FCC 1.00” 1:1 901 EXPLORER BVD. P.O. BOX 140000 HUNTSVILLE, AL 35814-4000 NOTES: 1. PRINT PER ARTWORK SUPPLIED. 2. MATERIAL: .002 WHITE MYLAR SUBSTRATE BLACK LETTERING, .001 CLEAR MYLAR OVERLAY LAMINATED, FLEXCON L-344 OR UL APPROVED EQUAL PRESSURE SENSITIVE ADHESIVE BACKSIDE. 3. FONT: HELVETICA & ERAS DEMI, NO FONT SUBSTITUTIONS PERMITTED. 4. FILM: EMULSION SIDE UP. FCC ID: HDCTRC4202L1 IC: 2250A-4202L1 TRACER 4202 This equipment complies with part 15 of FCC rules.Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 4/28/04 @AN/A E. NAHOLOWAA

FCC Label Location

Cover Removed RFC Board Baseband Board Signal Filter Cover Detail Overview Baseband Board Top, Detail A Baseband Board Top, Detail B Baseband Board Top, Detail C Baseband Board Top, Detail D Baseband Board Top, Detail E Baseband Board Bottom, Detail A Baseband Board Bottom, Detail B Baseband Board Bottom, Detail C Baseband Board Bottom, Detail D Baseband Board Bottom, Detail E

RFC Board Top Left RFC Board Top Right RFC Board Bottom Overview RFC Board Bottom Left, Main and Small Cover Removed RFC Board Bottom Center Detail RFC Board Bottom Right Main Cover Removed RFC Board Bottom Right Small Cover Removed Detail RFC Board Bottom, Far Right Side Signal Filter Signal Filter Connector Detail Signal Filter Cover Removed

Document 8032-MPE FCC ID: HDCTRC4202L1 RF Exposure Evaluation Washington Laboratories, Ltd August 2004 Maximum Permissible Exposure Evaluation for Adtran TRACER 4202L1 FCC ID: HDCTRC4202L1 August 2004 WLL PROJECT #: 8032X This report may not be reproduced, except in full, without the prior written consent of Washington Laboratories, Ltd. RF Exposure Evaluation Document 8032-MPE FCC ID: HDCTRC4202L1 RF Exposure Evaluation Washington Laboratories, Ltd August 2004 1 Maximum Permissible Exposure Evaluation for FCC ID: HDCTRC4202L1 1.0 Introduction This report has been prepared on behalf of Adtran Model: TRACER 4202L1 Transmitter to show compliance with the RF exposure requirements as defined in FCC §1.1307. 1.1 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: ƒ Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. ƒ Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR §2.1091. ƒ Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC's Rules (47 CFR§2.1093). For this Evaluation the Adtran TRACER 4202L1 is classified as a “Fixed Installation Device” and therefore must meet the limits as specified in §1.307. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: Document 8032-MPE FCC ID: HDCTRC4202L1 RF Exposure Evaluation Washington Laboratories, Ltd August 2004 2 ƒ Occupational/Controlled Exposure: In general, occupational/controlled exposure limits are applicable to situations in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure and can exercise control over their exposure. This exposure category is also applicable when the exposure is of a transient nature due to incidental passage through a location where the exposure levels may be higher than the general population/uncontrolled limits, but the exposed person is fully aware of the potential for exposure and can exercise control over his or her exposure by leaving the area or by some other appropriate means. Awareness of the potential for RF exposure in a workplace or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. ƒ General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. Since there are no warnings or training associated with this unit and it can be used by anyone, the Adtran TRACER 4202L1 is evaluated to the General Population/Uncontrolled Exposure limits. 1.2 Radio Frequency Radiation Exposure Evaluation The highest RF output power of the unit was measured at 19.5dBm at 5814 MHz. According to §1.1310 of the FCC rules, the power density limit for General Population/Uncontrolled Exposure is 1mW/cm 2 . To comply with the exposure limits for this section, individuals must maintain a safe distance from the transmit antenna. The following formula was used to calculate the minimum safe distance: 2 4R PG S π = Where: S = Power Density P = Output Power at the Antenna Terminals G = Gain of Transmit Antenna (linear gain) R = Distance from Transmitting Antenna Document 8032-MPE FCC ID: HDCTRC4202L1 RF Exposure Evaluation Washington Laboratories, Ltd August 2004 3 For this device, the calculation is as follows: S = FCC Limit = 1mW/cm 2 P = Output Power = 89.13 mW G = Worst Case Gain = 44.2 dBi = INVLOG(44.2/10) = 26302.7 R = Based on 4.6 meters (15 feet) specified in User’s Manual S = {(89.13 mW)(26302.7}/{(12.56)(460cm 2 )} = 0.882mW/cm 2 This power density is the worst case for maximum beam exposure. This level is below the limit of 1mW/cm 2 MPE for general population/uncontrolled access. This unit is only installed by professionals and is limited in practice to installations on rooftops or towers. Warnings are provide…

Text truncated - open the document above for the full version.

Document 8032-01, Rev. 0 Certification Test Report Washington Laboratories, Ltd August 2004 FCC & Industry Canada Certification Test Report for ADTRAN, Inc. FCC ID: HDCTRC4202L1 IC: 2250A-4202L1 August 27, 2004 Updated on May 24, 2005 Prepared for: ADTRAN, Inc. 901 Explorer Blvd Huntsville, AL 35806 Prepared By: Washington Laboratories, Ltd. 7560 Lindbergh Drive Gaithersburg, Maryland 20879 FCC & IC Certification Test Report Document 8032-01, Rev. 0 Certification Test Report Washington Laboratories, Ltd August 2004 FCC & Industry Canada Certification Test Report for the ADTRAN, Inc. TRACER Transceiver 4202L1 FCC ID: HDCTRC4202L1 IC: 2250A-4202L1 WLL JOB# 8032 Prepared by: Brian J. Dettling Documentation Specialist Reviewed by: Gregory M. Snyder Wireless/Telco Services Manager & Chief EMC Engineer Document 8032-01, Rev. 0 Certification Test Report Washington Laboratories, Ltd August 2004 ii Abstract This report has been prepared on behalf of ADTRAN, Inc. to support the attached Application for Equipment Authorization. The test report and application are submitted for a Digitally Modulated Transmitter under FCC Part 15.247 of the FCC Rules and Regulations and Spectrum Management and Telecommunications Policy RSS-210 of Industry Canada.. This Federal Communication Commission (FCC) Certification Test Report documents the test configuration and test results for an ADTRAN, Inc. TRACER 4202L1 Transceiver. Testing was performed on an Open Area Test Site (OATS) of Washington Laboratories, Ltd, 7560 Lindbergh Drive, Gaithersburg, MD 20879. Site description and site attenuation data have been placed on file with the FCC's Sampling and Measurements Branch at the FCC laboratory in Columbia, MD. The Industry Canada OATS numbers are 3035A-1 and 3035A-2 for Washington Laboratories, Ltd. Site 1 and Site 2, respectively. Washington Laboratories, Ltd. has been accepted by the FCC and approved by NIST NVLAP (NVLAP Lab Code: 200066-0) as an independent FCC test laboratory. The ADTRAN, Inc. TRACER 4202L1 Transceiver complies with the requirements for a Digitally Modulated Transmitter device under FCC Part 15.247 and Industry Canada RSS-210. Document 8032-01, Rev. 0 Certification Test Report Washington Laboratories, Ltd August 2004 iii Table of Contents Abstract ............................................................................................................................... ii 1 Introduction..............................................................................................................1 1.1 Compliance Statement .........................................................................................1 1.2 Test Scope ............................................................................................................1 1.3 Contract Information............................................................................................1 1.4 Test Dates ............................................................................................................1 1.5 Test and Support Personnel .................................................................................1 1.6 Abbreviations .......................................................................................................2 2 Equipment Under Test .............................................................................................3 2.1 EUT Identification & Description .......................................................................3 2.2 Test Configuration ...............................................................................................5 2.3 Testing Algorithm................................................................................................6 2.4 Test Location .......................................................................................................6 2.5 Measurements ......................................................................................................6 2.5.1 References........................................................................................................6 2.6 Measurement Uncertainty....................................................................................6 3 Test Equipment ........................................................................................................8 4 Test Results ..............................................................................................................9 4.1 RF Power Output (FCC Part 15.247(b) and RSS-210 6.2.2(o)) ..........................9 4.2 RF Peak Power Spectral Density (FCC Part 15.247(e) and RSS-210 Amendment 6.2.2(o)(iv)) ...............................................................................................10 4.3 Occupied Bandwidth (FCC Part 15.247(a)(2) and RSS-210 Amendment 6.2.2(o)(iv))....................................................................................................................16 4.4 Spurious Emissions at Antenna Terminals (FCC Part §15.247(b) RSS-210 6.2.2(o)(e1)) ...................................................................................................................23 4.4.1 Test Procedure ...............................................................................................23 4.4.2 Test Results ....................................................................................................23 4.5 Radiated Spurious Emissions: (FCC Part §15.247(c) and RSS-210 6.3) ..........50 4.5.1 Test Procedure (2’ Dish Antenna) .................................................................51 4.5.2 Test Procedure (10’ Dish Antenna) ...............................................................51 4.5.3 Test results .....................................................................................................52 4.6 AC Powerline Conducted Emissions: (FCC Part §15.207 and RSS-210 6.6) ...61 4.7 E-Mail From FCC Referencing Testing of Large Dish .....................................63 List of Tables Table 1. Devi…

Text truncated - open the document above for the full version.

Emissions Test Setup
