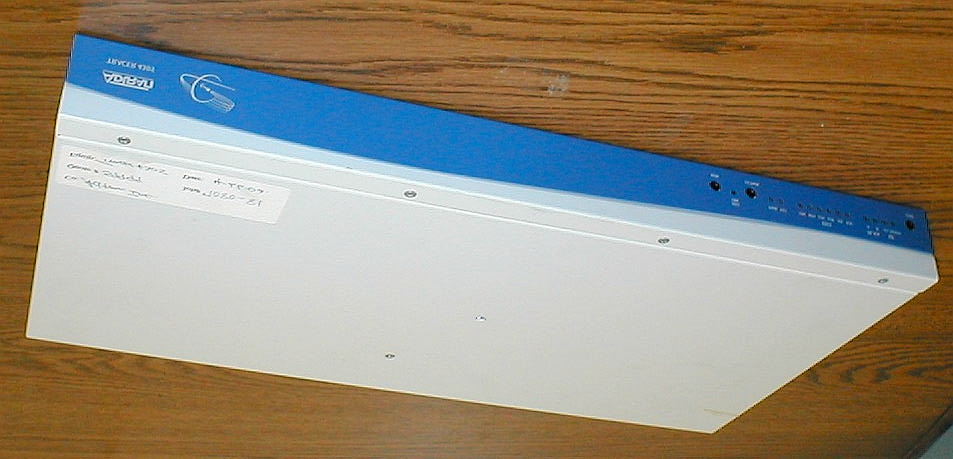

External Photos Front Rear Rear Panel Right Side Left Side Bottom

2.125” +/- .020” 1.00” +/- .020” .100” RAD. DATEREV ECO# COMMENT 4/17/01 @AN/A ORIGINAL REV PRODUCT DRAWN BYENGINEERAPPROVED BY A. BREMERM. GANN TITLE SCALEDWG. NO. TRACER 4206 32896658 LABEL, FCC 1.00” 1:1 901 EXPLORER BVD. P.O. BOX 140000 HUNTSVILLE, AL 35814-4000 NOTES: 1. PRINT PER ARTWORK SUPPLIED. 2. MATERIAL: .002 WHITE MYLAR SUBSTRATE BLACK LETTERING, .001 CLEAR MYLAR OVERLAY LAMINATED, FLEXCON L-344 OR UL APPROVED EQUAL PRESSURE SENSITIVE ADHESIVE BACKSIDE. 3. FONT: HELVETICA & ERAS DEMI, NO FONT SUBSTITUTIONS PERMITTED. 4. FILM: EMULSION SIDE UP. FCC ID: HDCTRC4206 TRACER 4206 This equipment complies with part 15 of FCC rules.Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC Label Location

RFC Board Top Left RFC Board Top Right RFC Board Bottom Overview RFC Board Bottom Left, Main and Small Cover Removed RFC Board Bottom Center Detail RFC Board Bottom Right Main Cover Removed RFC Board Bottom Right Small Cover Removed Detail RFC Board Bottom, Far Right Side Signal Filter Signal Filter Connector Detail Signal Filter Cover Removed

Cover Removed RFC Board Baseband Board Signal Filter Cover Detail Overview Baseband Board Top, Detail A Baseband Board Top, Detail B Baseband Board Top, Detail C Baseband Board Top, Detail D Baseband Board Top, Detail E Baseband Board Bottom, Detail A Baseband Board Bottom, Detail B Baseband Board Bottom, Detail C Baseband Board Bottom, Detail D Baseband Board Bottom, Detail E

Document 7154-MPE, Rev. 0 FCC ID: HDCTRC4206 RF Exposure Test Report Washington Laboratories, Ltd October 2002 Maximum Permissible Exposure Test Report for Adtran TRACER 4206 FCC ID: HDCTRC4206 October 7, 2002 WLL PROJECT #: 7154X This report may not be reproduced, except in full, without the prior written consent of Washington Laboratories, Ltd. RF Exposure Test Report Document 7154-MPE, Rev. 0 FCC ID: HDCTRC4206 RF Exposure Test Report Washington Laboratories, Ltd October 2002 1 Maximum Permissible Exposure Test Report for FCC ID: HDCTRC4206 1.0 Introduction This report has been prepared on behalf of Adtran Model: TRACER 4206 Transmitter to show compliance with the RF exposure requirements as defined in FCC §1.1307. 1.1 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: ß Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. ß Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR §2.1091. ß Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC's Rules (47 CFR§2.1093). For this test report the Adtran TRACER 4206 is classified as a “Fixed Installation Device” and therefore must meet the limits as specified in §1.307. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Document 7154-MPE, Rev. 0 FCC ID: HDCTRC4206 RF Exposure Test Report Washington Laboratories, Ltd October 2002 2 Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: ß Occupational/Controlled Exposure: In general, occupational/controlled exposure limits are applicable to situations in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure and can exercise control over their exposure. This exposure category is also applicable when the exposure is of a transient nature due to incidental passage through a location where the exposure levels may be higher than the general population/uncontrolled limits, but the exposed person is fully aware of the potential for exposure and can exercise control over his or her exposure by leaving the area or by some other appropriate means. Awareness of the potential for RF exposure in a workplace or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. ß General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. Since there are no warnings or training associated with this unit and it can be used by anyone, the Adtran TRACER 4206 is evaluated to the General Population/Uncontrolled Exposure limits. 1.2 Radio Frequency Radiation Exposure Evaluation The highest RF output power of the unit was measured at 19.0dBm at 5734.50 MHz. According to §1.1310 of the FCC rules, the power density limit for General Population/Uncontrolled Exposure is 1mW/cm 2 . To comply with the exposure limits for this section, individuals must maintain a safe distance from the transmit antenna. The following formula was used to calculate the minimum safe distance: 2 4R PG S π = Where: Document 7154-MPE, Rev. 0 FCC ID: HDCTRC4206 RF Exposure Test Report Washington Laboratories, Ltd October 2002 3 S = Power Density P = Output Power at the Antenna Terminals G = Gain of Transmit Antenna (linear gain) R = Distance from Transmitting Antenna For this device, the calculation is as follows: S = FCC Limit = 1mW/cm 2 P = Output Power = 79.4 mW G = Worst Case Gain = 32.6 dBi = INVLOG(32.6/10) = 1820 Solving for the required minimum safe distance using the following formula: S PG R π4 = 1.14 18204.79 ×× × = π R = 102.3 cm (Based on continuous transmission) Based on the calculation above, the minimum safe distance for this device is 102.3cm. The distance is provided by the manufacturers professional installation guidelines as provided in the User’s manual. The manufacturer s…

Text truncated - open the document above for the full version.

Document 7154-01, Rev. 0 FCC Certification Test Report Washington Laboratories, Ltd September 2002 FCC Certification Test Report for ADTRAN, Inc. HDCTRC4206 September 30, 2002 Prepared for: ADTRAN, Inc. 901 Explorer Blvd Huntsville, AL 35806 Prepared By: Washington Laboratories, Ltd. 7560 Lindbergh Drive Gaithersburg, Maryland 20879 FCC Certification Test Report Document 7154-01, Rev. 0 FCC Certification Test Report Washington Laboratories, Ltd September 2002 FCC Certification Test Report for the ADTRAN, Inc. TRACER Transceiver 4206 FCC ID: HDCTRC4206 WLL JOB# 7154 Prepared by: Brian J. Dettling Documentation Specialist Reviewed by: Gregory M. Snyder Wireless/Telco Services Manager & Chief EMC Engineer Document 7154-01, Rev. 0 FCC ID: HDCTRC4206 FCC Certification Test Report Washington Laboratories, Ltd September 2002 ii Abstract This report has been prepared on behalf of ADTRAN, Inc. to support the attached Application for Equipment Authorization. The test report and application are submitted for a Direct Spread Spectrum Transceiver under Part 15.247 of the FCC Rules and Regulations. This Federal Communication Commission (FCC) Certification Test Report documents the test configuration and test results for a ADTRAN, Inc. TRACER DSSS 4206. Testing was performed on an Open Area Test Site (OATS) of Washington Laboratories, Ltd, 7560 Lindbergh Drive, Gaithersburg, MD 20879. Site description and site attenuation data have been placed on file with the FCC's Sampling and Measurements Branch at the FCC laboratory in Columbia, MD. Washington Laboratories, Ltd. has been accepted by the FCC and approved by NIST NVLAP (NVLAP Lab Code: 200066-0) as an independent FCC test laboratory. The ADTRAN, Inc. TRACER DSSS 4206 complies with the limits for a Direct Spread Spectrum Transceiver device under Part 15.247 of the FCC Rules and Regulations. Document 7154-01, Rev. 0 FCC ID: HDCTRC4206 FCC Certification Test Report Washington Laboratories, Ltd September 2002 iii Table of Contents Abstract......................................................................................................ii 1 Introduction...................................................................................................................1 1.1 Compliance Statement..........................................................................................1 1.2 Test Scope..........................................................................................................1 1.3 Contract Information............................................................................................1 1.4 Test Dates...........................................................................................................1 1.5 Test and Support Personnel..................................................................................1 1.6 Abbreviations.......................................................................................................2 2 Equipment Under Test....................................................................................................3 2.1 EUT Identification & Description..........................................................................3 2.2 Test Configuration................................................................................................5 2.3 Test Location.......................................................................................................5 2.4 Measurements......................................................................................................6 2.4.1 References...................................................................................................6 2.5 Measurement Uncertainty.....................................................................................6 3 Test Equipment..............................................................................................................6 4 Test Results...................................................................................................................8 4.1 RF Power Output................................................................................................8 4.2 RF Peak Power Spectral Density.........................................................................8 4.3 Occupied Bandwidth............................................................................................9 4.4 Spurious Emissions at Antenna Terminals (FCC Part §15.247(b)).......................16 4.5 Radiated Spurious Emissions: (FCC Part §15.247(c)).........................................53 4.5.1 Test Procedure..........................................................................................53 4.6 AC Powerline Conducted Emissions: (FCC Part §15.207).................................66 List of Tables Table 1. Device Summary....................................................................................................4 Table 2: Test Equipment List...............................................................................................6 Table 3. RF Power Output...................................................................................................8 Table 4. RF Power Output...................................................................................................8 Table 5. Occupied Bandwidth Results................................................................................16 Table 6: Radiated Emission Test Data - Plan A Channel 1..................................................54 Table 7: Radiated Emission Test Data - Plan A Channel 2..................................................56 Table 8: Radiated Emission Test Data - Plan A Channel 3..................................................58 Table 9: Radiated Emission Test Data - Plan B Channel 1..................................................60 Table 10: Radiated Emission Test Data - Plan B Channel 2................................................62 Table 11: Radiated Emission Test Data - Plan B…

Text truncated - open the document above for the full version.

Document 7154-01, Rev. 0 FCC ID: HDCTRC4206 FCC Certification Test Report Washington Laboratories, Ltd September 2002 Page 8 of 67 4 Test Results 4.1 RF Power Output For devices within the scope of FCC §15.247, the peak power conducted from the intentional radiator to the antenna shall not be greater than one watt (30 dBm). The output from the transmitter was connected to a diode detector and oscilloscope. The peak deflection was measured on the oscilloscope and recorded. A signal generator was then substituted in place of EUT and set to the same frequency as the transmitter. The CW output of the signal generator was increased until the same deflection was noted on the oscilloscope. A power meter was then connected to the output of the signal generator to determine the output power of the signal generator. This level is then recorded as the output power of the EUT at the specified frequency. The EUT carrier was modulated during this test. Table 3. RF Power Output Frequency Level Limit Pass/Fail Plan A Channel 1 5734.00 MHz Channel 2 5743.80 MHz Channel 3 5753.00 MHz 19.6 dBm 19.1 dBm 18.8 dBm 30 dBm 30 dBm 30 dBm Pass Pass Pass Plan B Channel 1 5814.70 MHz Channel 2 5824.00 MHz Channel 3 5833.10 MHz 19.2 dBm 18.9 dBm 18.5 dBm 30 dBm 30 dBm 30 dBm Pass Pass Pass 4.2 RF Peak Power Spectral Density For DSSS devices, the peak power spectral density conducted from the intentional radiator to the antenna shall not be greater than 8 dBm in any 3 kHz band. The output from the transmitter was connected to an attenuator and then to the input of the RF Spectrum Analyzer. The analyzer offset was adjusted to compensate for the attenuator and other losses in the system. The carrier was modulated. Document 7154-01, Rev. 0 FCC ID: HDCTRC4206 FCC Certification Test Report Washington Laboratories, Ltd September 2002 Page 9 of 67 Table 4. RF Power Output Frequency Level Limit Pass/Fail Plan A Channel 1 5734.00 MHz Channel 2 5743.80 MHz Channel 3 5753.00 MHz 3.5 dBm 3.0 dBm 3.0 dBm 8 dBm 8 dBm 8 dBm Pass Pass Pass Plan B Channel 1 5814.70 MHz Channel 2 5824.00 MHz Channel 3 5833.10 MHz 2.3 dBm 2.8 dBm 2.0 dBm 8 dBm 8 dBm 8 dBm Pass Pass Pass 4.3 Occupied Bandwidth Occupied bandwidth was performed by coupling the output of the EUT to the input of a spectrum analyzer. For Direct Sequence Spread Spectrum Systems, FCC Part 15.247 requires that the minimum 6 dB bandwidth be at least 500 kHz. Document 7154-01, Rev. 0 FCC ID: HDCTRC4206 FCC Certification Test Report Washington Laboratories, Ltd September 2002 Page 10 of 67 Figure 1. Occupied Bandwidth, Plan A, Channel 1 Document 7154-01, Rev. 0 FCC ID: HDCTRC4206 FCC Certification Test Report Washington Laboratories, Ltd September 2002 Page 11 of 67 Figure 2. Occupied Bandwidth, Plan A, Channel 2 Document 7154-01, Rev. 0 FCC ID: HDCTRC4206 FCC Certification Test Report Washington Laboratories, Ltd September 2002 Page 12 of 67 Figure 3. Occupied Bandwidth, Plan A, Channel 3 Document 7154-01, Rev. 0 FCC ID: HDCTRC4206 FCC Certification Test Report Washington Laboratories, Ltd September 2002 Page 13 of 67 Figure 4. Occupied Bandwidth, Plan B, Channel 1 Document 7154-01, Rev. 0 FCC ID: HDCTRC4206 FCC Certification Test Report Washington Laboratories, Ltd September 2002 Page 14 of 67 Figure 5. Occupied Bandwidth, Plan B, Channel 2 Document 7154-01, Rev. 0 FCC ID: HDCTRC4206 FCC Certification Test Report Washington Laboratories, Ltd September 2002 Page 15 of 67 Figure 6. Occupied Bandwidth, Plan B, Channel 3

Document 7154-01, Rev. 0 FCC ID: HDCTRC4206 FCC Certification Test Report Washington Laboratories, Ltd September 2002 Page 16 of 67 Table 5 provides a summary of the Occupied Bandwidth Results. Table 5. Occupied Bandwidth Results Frequency Bandwidth Limit Pass/Fail Plan A Channel 1 5734.00 MHz Channel 2 5743.80 MHz Channel 3 5753.00 MHz 5.17 MHz 5.23 MHz 5.47 MHz > 500 kHz > 500 kHz > 500 kHz Pass Pass Pass Plan B Channel 1 5814.70 MHz Channel 2 5824.00 MHz Channel 3 5833.10 MHz 5.53 MHz 5.73 MHz 5.57 MHz > 500 kHz > 500 kHz > 500 kHz Pass Pass Pass 4.4 Spurious Emissions at Antenna Terminals (FCC Part §15.247(b)) In any 100 kHz band outside the frequency band in which the system is operating, the RF power shall be at least 20dB below that in the 100 kHz bandwidth that contain the highest level of the desired power. See the plots of conducted emissions plots below. Document 7154-01, Rev. 0 FCC ID: HDCTRC4206 FCC Certification Test Report Washington Laboratories, Ltd September 2002 Page 17 of 67 Figure 7. Conducted Spurious Emissions, Plan A - Channel 1, 30MHz-1GHz Document 7154-01, Rev. 0 FCC ID: HDCTRC4206 FCC Certification Test Report Washington Laboratories, Lt…
