HDCWLAN192XF1Wireless 802.11abgn Access Point

Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: - EN60950-1 - Safety of Information Technology Equipment - EN50385 - Generic standard to demonstrate the compliance of electronic and electrical apparatus with the basic restrictions related to human exposure to electromagnetic fields (0 Hz - 300 GHz) - EN 300 328 - Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive EN 301 893 Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN; Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive EN 301 489-1 Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements - EN 301 489-17 - Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment This device is a 5GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. 0560 Česky [Czech] [Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk [Danish] Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ∆ΗΛΝΕΙ ΟΤΙ [type of equipment] ΣΥΜΜΟΡΦΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ. Français [French] Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Italiano [Italian] Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski [Latvian] Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment / iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem. Lietuvių [Lithuanian] Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. Nederlands [Dutch] Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Malti [Maltese] Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC. Magyar [Hungarian] Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Polski [Polish] Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC. Português [Portuguese] [Nome do fabricante] declara que este [tipo de equipamento] está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. Slovensko [Slovenian] [Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES. Slovensky [Slovak] [Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES. Suomi [Finnish] [Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. Svenska [Swedish] Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de vä…

Text truncated - open the document above for the full version.

Quick Start Guide, 61700954F1-13A, September 201214Copyright © 2012 ADTRAN, Inc. All Rights Reserved. BLUESOCKET BSAP 1920/1925 WIRELESS ACCESS POINT HARDWARE Make sure the following items were included in the shipment: •Bluesocket BSAP 1920/1925 Wireless Access Point (AP) •One wall/ceiling mount hardware kit •One ceiling T-rail mount hardware kit ANTENNAS The BSAP 1920 has a modular high-efficiency internal Planar Inverted F Antenna (PIFA) antenna (no external antenna is required). The BSAP 1925 supports four modular high-efficiency omni-directional antennas that support two internal 802.11 radios: a 5 GHz 802.11a/n radio, and a 2.4 GHz 802.11b/g/n radio. The antennas can be ordered from ADTRAN in a set of four (two 5 GHz and two 2.4 GHz, P/N 1700932F1). MOUNTING THE AP TO THE CEILING OR WALL USING THE WALL MOUNTING BRACKET Bluesocket BSAPs should be positioned for maximum throughput and range between other APs and wireless client devices. Follow these instructions to mount the BSAP 1920/1925 on the ceiling or drywall using the enclosed mounting bracket. To mount the AP to the ceiling or drywall: 1. Attach the mounting bracket to the wall or ceiling using the provided wall/ceiling mount hardware kit. 2. Insert the provided short screws into the bottom cover of the BSAP 1920/1925. Leave enough of the screws exposed to ensure that the unit can be attached to the mounting bracket. If extra space is required, use the spacers and long screws provided with the T-rail mounting hardware kit to increase the space between the unit and the mounting bracket. Make a note of the 12-character MAC address and serial number listed on the back of the BSAP 1920/1925 before mounting the AP to a wall or other surface. This information will be required during configuration. CONFIGURING THE AP’S IP ADDRESS USING THE CLI By default, DHCP is enabled on the Bluesocket BSAP 1920/1925. If you need to statically configure the IP address for the Bluesocket 1920/1925 AP, follow these steps: 1. Ensure that the BSAP is connected to a controlling computer (using the provided RJ-45 Ethernet cable). 2. Specify that the computer’s TCP/IP setting is On or Enabled by navigating to Control Panel > Network Connections and double-clicking the connection of your network interface card. Select Internet Protocol (TCP/IP) and select Properties. Then specify that the TCP/IP setting is enabled. 3. Set your PC to a static IP address of 192.168.190.2 with a subnet mask of 255.255.255.0. 4. Next, access the AP’s command line interface (CLI) using a Secure Shell (SSH) client. Open an SSH connection using the unit’s default IP address (192.168.190.1) and port 2335. Enter the default user name and password (adm1n (note the number 1) and blue1socket) at the prompt. To access the unit using vWLAN, and for more instructions about CLI configuration, refer to the Bluesocket vWLAN Administrator’s Guide, available online at https://supportforums.adtran.com. CONFIGURING THE APPLICATION More detailed documentation for configuring the Bluesocket BSAP 1920/1925 is provided in the vWLAN Administrator’s Guide, available online at https://supportforums.adtran.com. 2Copyright © 2012 ADTRAN, Inc. All Rights Reserved.Quick Start Guide, 61700954F1-13A, September 20123 3. Mount the BSAP 1920/1925 on the mounting bracket by inserting the screws on the back of the AP into the keyed slots on the mounting bracket rotating the unit clockwise 90 degrees to secure it into place. MOUNTING THE AP TO A DROPPED CEILING The Bluesocket BSAP 1920/1925 is shipped with a metal ceiling mounting kit (T-rail kit) to mount the AP on the ceiling tile separators of standard dropped ceilings. The mounting bracket can be used to mount the AP to a drywall ceiling. Refer to Mounting the AP to the Ceiling or Wall Using the Wall Mounting Bracket for instructions. Bluesocket BSAPs should be positioned for maximum throughput and range between other APs and wireless client devices. To mount the BSAP 1920/1925 to a dropped ceiling: 1. Attach the ceiling clips to the bottom cover of the BSAP 1920/1925 using the provided short screws. 2. Once the ceiling clips are attached to the BSAP 1920/1925, line up the T-rail connectors with an appropriately sized rail and press the unit onto the rail until it snaps into place. 3. Optionally protect your BSAP 1920/1925 AP with a Kensington cable lock (not provided) inserted in the security slot. If extra space is required to accommodate dropped ceiling tiles, use the provided spacers and longer screws included in the T-rail ceiling mount kit. SUPPLYING POWER TO THE AP The Bluesocket BSAP 1920/1925 does not have a power switch. It is powered when connected to a network device that supplies PoE based on the IEEE 802.3af standard, an external PoE injector (P/N 1700923F1) or the BSAP 1920/1925 can be powered by an optional external DC power adapter (P/N 1700928F1) connected to an AC power source. To use the external DC power adapter, connect the adapter to the 12V DC port on the back of the unit. The DC power adapter automatically adjusts to any voltage between 100 and 240 VAC at 50 or 60 Hz. No voltage range settings are required. CONNECTING TO THE AP Connect the Bluesocket BSAP 1920/1925 to the Ethernet port of the computer used to configure the AP. Connect the RJ-45 Ethernet connector on the AP's back panel (labeled Ethernet) to your network using a CAT 5 or CAT 6 Ethernet cable. When the AP and the controlling computer are powered on, the AP's network LED will light indicating a valid network connection. CONFIGURING THE AP WITH VWLAN AND AP DISCOVERY The Bluesocket BSAP 1920/1925 can be configured for use with Bluesocket’s virtual wireless local area network (vWLAN). If you have installed a vWLAN instance, and want to use AP discovery to configure the BSAP 1920/1925, follow these steps: 1. After powering the AP and connecting it to the network, allow the AP to discover the vWLAN appliance to receive its configuration information. This AP discovery proce…

Text truncated - open the document above for the full version.

Adtran 901 Explorer Boulevard Huntsville Alabama United States D E C L A R A T I O N L E T T E R Date:2013/3/20 To whom it may concern: We, Adtran, declares that the device does not have “Ad Hoc on non-US frequencies” and/or “on DFS frequencies” while applying for the following product. FCC ID: HDCWLAN192XF1 If you have any questions regarding the authorization, please do not hesitate to contact us. Thank you! - ---------------------------------------------------- Jeff Whitmire / Compliance Engineer TEL: 256 963 8000 FAX: 256 963 8250 E-mail: [email protected]

Adtran 901 Explorer Boulevard Huntsville Alabama United States Date:2013/3/20 FCC ID : HDCWLAN192XF1 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ----------------------------------------------------- Jeff Whitmire / Compliance Engineer TEL: 256 963 8000 FAX: 256 963 8250 E-mail: [email protected]

Adtran 901 Explorer Boulevard Huntsville Alabama United States Date: 2013/3/20 AGENCY AUTHORIZATION LETTER We, the undersigned Adtran, hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required in FCC Part 15 and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ---------------------------------------------------- Jeff Whitmire / Compliance Engineer TEL: 256 963 8000 FAX: 256 963 8250 E-mail: [email protected]

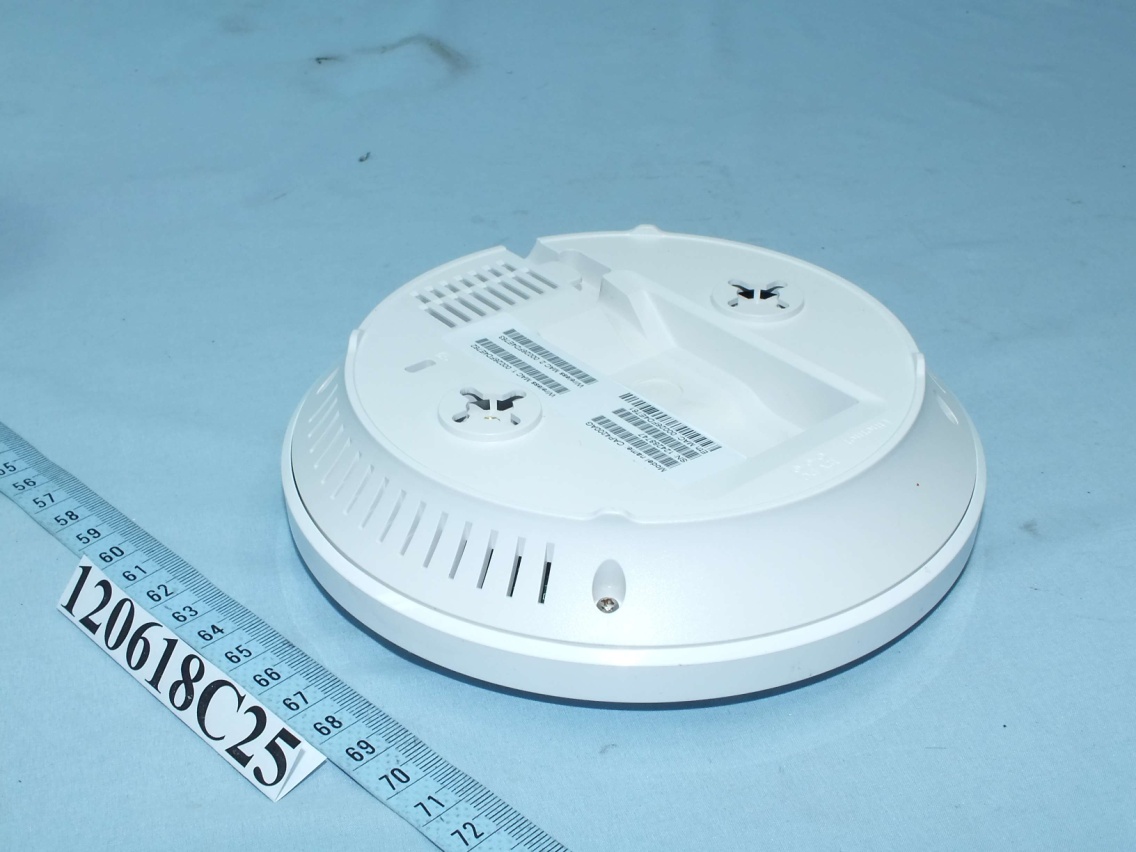

Page 1 CONSTRUCTION PHOTOS OF EUT Model: BSAP-1920 Page 2 Model: BSAP-1925 Page 3 Page 4 Page 5 Page 6

Page 7 Model: BSAP-1920 Page 8 Page 9 Page 10 Page 11 Page 12 Model: BSAP-1925 Page 13 Page 14 Page 15 Page 16 Page 17

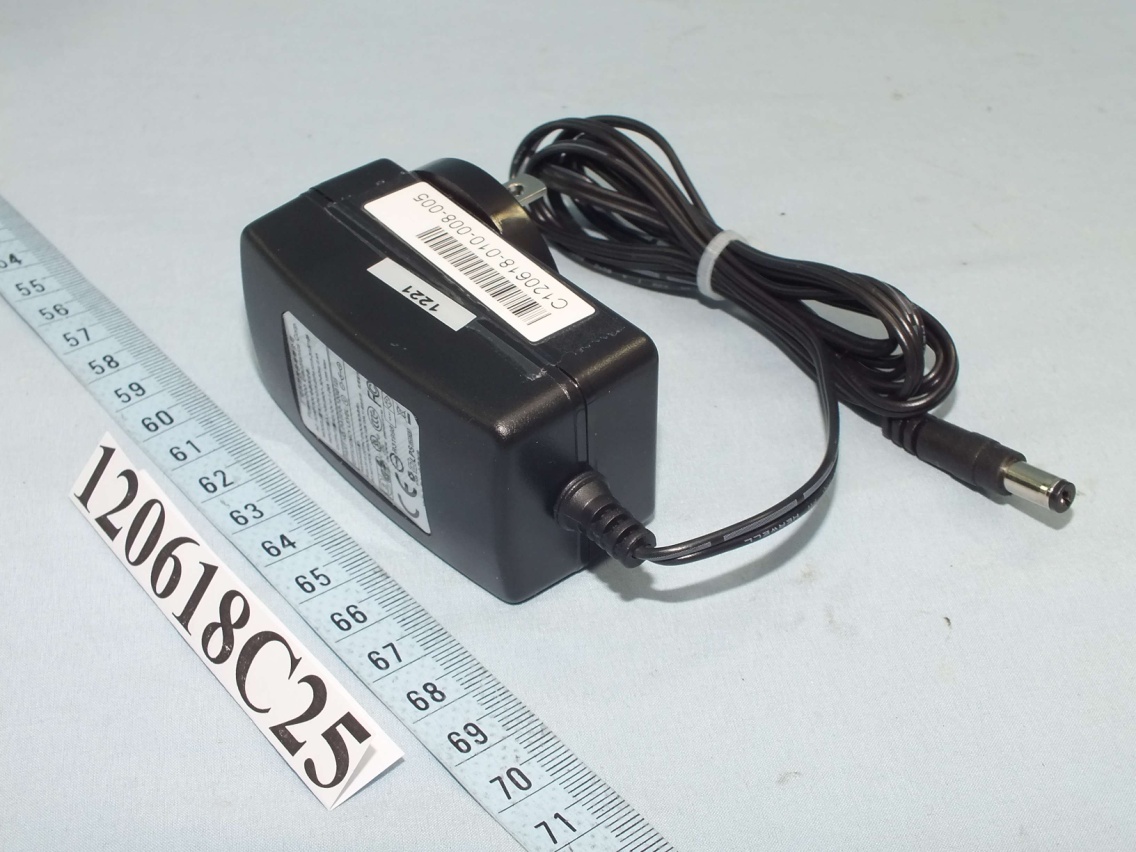

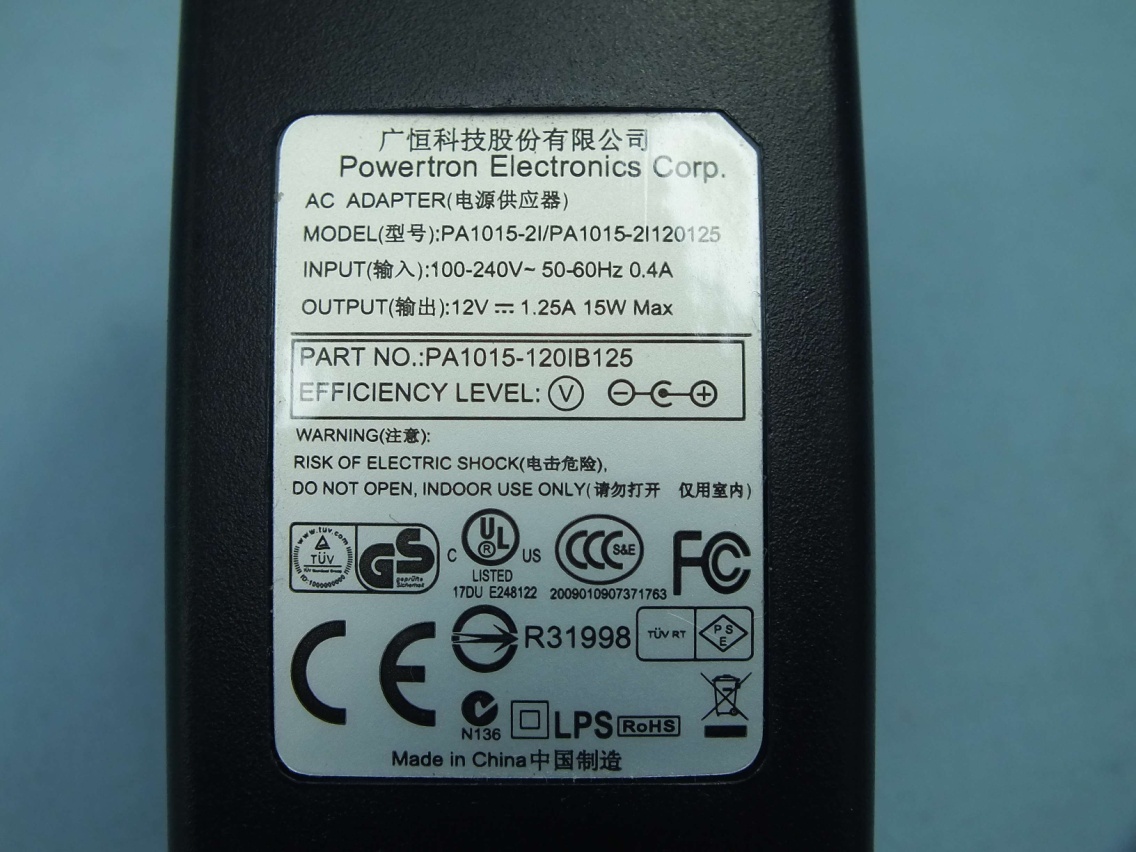

FCC ID: HDCWLAN192XF1 Report No.: RF121023C05 Operational Description This device is a Wireless Wireless 802.11abgn Access Point, which operates in both 2.4GHz and 5GHz bands; the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by the 12Vdc from AC adapter or 54Vdc from POE. The antennas refer to as below. The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA120618C25D 1 of 6 Report Format Version 5.0.0 Reference No.: 120618C25, 121023C05 RF EXPOSURE REPORT REPORT NO.: SA120618C25D MODEL NO.: BSAP-1920, BSAP-1925 FCC ID: HDCWLAN192XF1 RECEIVED: Jun. 18, 2012 TESTED: Aug. 11 ~ Aug. 17, 2012 Sep. 05 ~ Oct. 11, 2012 Oct. 23 ~ Oct. 24, 2012 ISSUED: Oct. 29, 2012 APPLICANT: Adtran ADDRESS: 901 Explorer Boulevard Huntsville Alabama United States ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. Report No.: SA120618C25D 2 of 6 Report Format Version 5.0.0 Reference No.: 120618C25, 121023C05 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................ 3 1. CERTIFICATION ............................................................................................................. 4 2. RF EXPOSURE ............................................................................................................... 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ......................................... 5 2.2 MPE CALCULATION FORMULA .................................................................................... 5 2.3 CLASSIFICATION ........................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .................................. 6 Report No.: SA120618C25D 3 of 6 Report Format Version 5.0.0 Reference No.: 120618C25, 121023C05 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120618C25D Original release Oct. 29, 2012 Report No.: SA120618C25D 4 of 6 Report Format Version 5.0.0 Reference No.: 120618C25, 121023C05 1. CERTIFICATION PRODUCT: Wireless 802.11abgn Access Point MODEL NO.: BSAP-1920, BSAP-1925 BRAND: Adtran APPLICANT: Adtran TESTED: Aug. 11 ~ Aug. 17, 2012 Sep. 05 ~ Oct. 11, 2012 Oct. 23 ~ Oct. 24, 2012 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (model: BSAP-1920, BSAP-1925) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Oct. 29, 2012 Pettie Chen / Senior Specialist APPROVED BY : , DATE :Oct. 29, 2012 Ken Liu / Manager Report No.: SA120618C25D 5 of 6 Report Format Version 5.0.0 Reference No.: 120618C25, 121023C05 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA120618C25D 6 of 6 Report Format Version 5.0.0 Reference No.: 120618C25, 121023C05 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 27.48 3 20 0.222 1 5180-5240 16.68 4 20 0.023 1 5745-5825 27.35 4 20 0.271 1 CONCULSION: Both of the WLAN 2.4G & 5.0G can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density 1. WLAN 2.4G + WLAN 5.0G = 0.222 + 0.271 = 0.493 Therefore, the maximum calculation of this situation is 0.493, which is less than the “1” limit.

Report No.: RF120618C25D 1 of 123 Report Format Version 5.1.0 Reference No.: 120618C25, 121023C05 FCC TEST REPORT (15.247) REPORT NO.: RF120618C25D MODEL NO.: BSAP-1920 (Refer to item 3.1 for more details) FCC ID: HDCWLAN192XF1 RECEIVED: Jun. 18, 2012 TESTED: Aug. 11 ~ Aug. 17, 2012 (For test mode A) Sep. 05 ~ Oct. 11, 2012 (For test mode C) Oct. 23 ~ Oct. 24, 2012 (For test mode B, D) ISSUED: Oct. 29, 2012 APPLICANT: Adtran ADDRESS: 901 Explorer Boulevard Huntsville Alabama United States ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF120618C25D 2 of 123 Report Format Version 5.1.0 Reference No.: 120618C25, 121023C05 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................. 5 1. CERTIFICATION .......................................................................................................... 6 2. SUMMARY OF TEST RESULTS ................................................................................. 7 2.1 MEASUREMENT UNCERTAINTY ............................................................................... 7 3. GENERAL INFORMATION .......................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ............................................................................ 8 3.2 DESCRIPTION OF TEST MODES ............................................................................ 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................ 11 3.3 DESCRIPTION OF SUPPORT UNITS ...................................................................... 16 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST ....................................................... 17 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 19 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND) ................................................ 20 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................... 20 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................. 20 4.1.2 TEST INSTRUMENTS ............................................................................................... 21 4.1.3 TEST PROCEDURES ............................................................................................... 24 4.1.4 DEVIATION FROM TEST STANDARD...................................................................... 24 4.1.5 TEST SETUP ............................................................................................................. 25 4.1.6 EUT OPERATING CONDITIONS .............................................................................. 25 4.1.7 TEST RESULTS ........................................................................................................ 26 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................ 54 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .......................................... 54 4.2.2 TEST INSTRUMENTS ............................................................................................... 54 4.2.3 TEST PROCEDURES ............................................................................................... 55 4.2.4 DEVIATION FROM TEST STANDARD...................................................................... 55 4.2.5 TEST SETUP ............................................................................................................. 56 4.2.6 EUT OPERATING CONDITIONS .............................................................................. 56 4.2.7 TEST RESULTS ........................................................................................................ 57 4.3 6dB BANDWIDTH MEASUREMENT ......................................................................... 65 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ...................................................... 65 4.3.2 TEST SETUP ............................................................................................................. 65 4.3.3 TEST INSTRUMENTS ............................................................................................... 65 4.3.4 TEST PROCEDURE .................................................................................................. 65 4.3.5 DEVIATION FROM TEST STANDARD...…

Text truncated - open the document above for the full version.

Report No.: RF120618C25D-1 1 of 70 Report Format Version 5.1.0 Reference No.: 120618C25, 121023C05 FCC TEST REPORT (15.407) REPORT NO.: RF120618C25D-1 MODEL NO.: BSAP-1920 (Refer to item 3.1 for more details) FCC ID: HDCWLAN192XF1 RECEIVED: Jun. 18, 2012 TESTED: Aug. 11 ~ Aug. 17, 2012 (For test mode A) Sep. 05 ~ Oct. 11, 2012 (For test mode C) Oct. 23 ~ Oct. 24, 2012 (For test mode B, D) ISSUED: Oct. 29, 2012 APPLICANT: Adtran ADDRESS: 901 Explorer Boulevard Huntsville Alabama United States ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF120618C25D-1 2 of 70 Report Format Version 5.1.0 Reference No.: 120618C25, 121023C05 TABLE OF CONTENTS RELEASE CONTROL R…

Text truncated - open the document above for the full version.
