HDCWLAN194XF1

Adtran

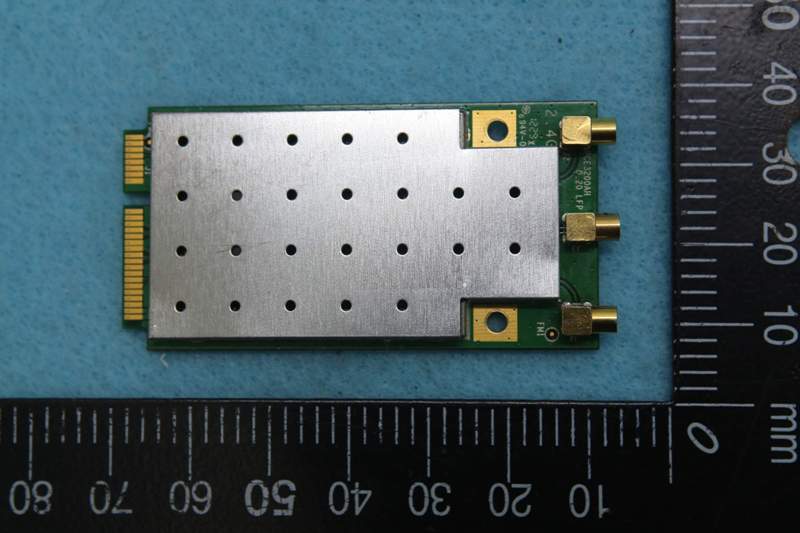

802.11 bgn PCle Module

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Feb 06, 2013
Application Purpose: Original Equipment
Date of Application: Feb 06, 2013
Equipment Note: 802.11 bgn PCle Module
Frequency Range: 2422.00000000 - 2452.00000000
Company: Adtran
Country: United States

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

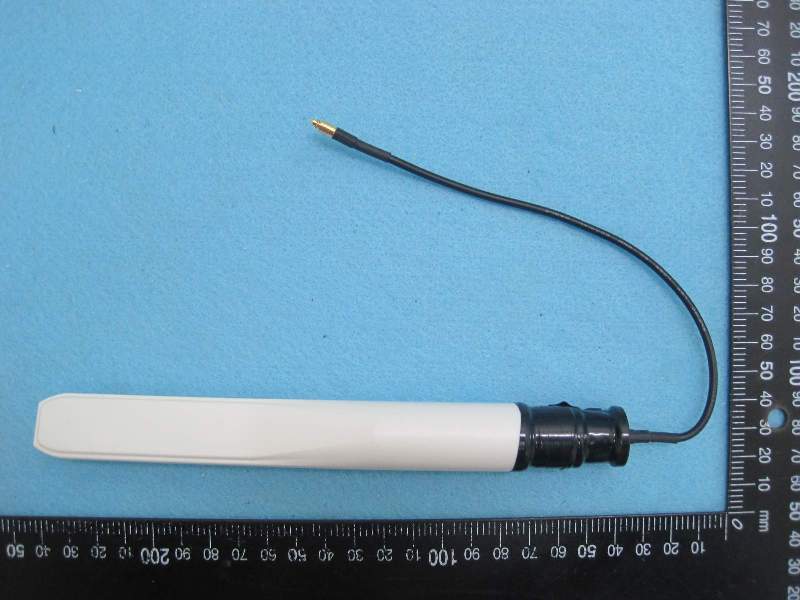

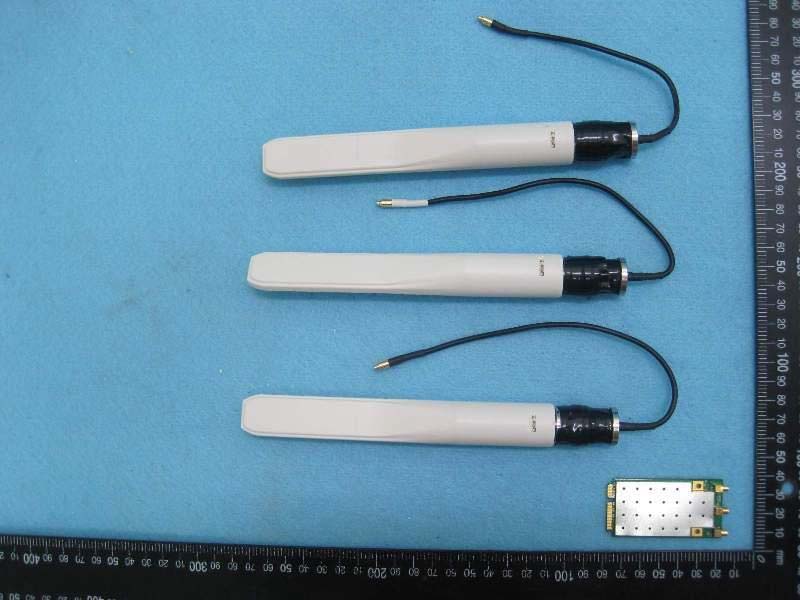

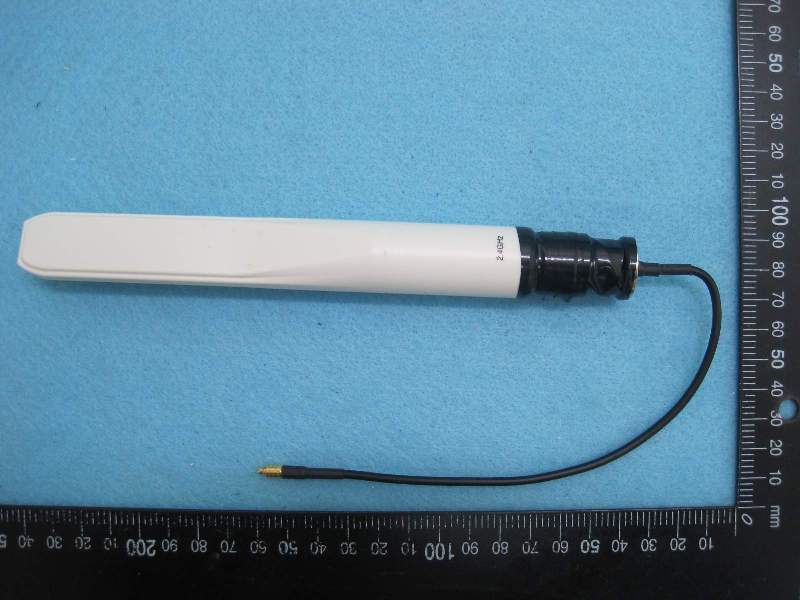

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.42 GHz - 2.45 GHz	199.50 mW

Confidentiality

Long Term

Grant Notes

Power listed is the maximum combined conducted output power as indicated in the filing. This OEM module is approved for use in products operating as fixed or mobile transmitting device. The only antennas approved for use with this module are those documented in the filing, and must be installed in the manner specified therein. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. Grantee shall provide installation and operating instructions for satisfying RF exposure requirements to OEM integrators and installers. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Device is operating in a 3T3R Spatial Multiplexing MIMO configuration as described in this filing. When operating in 802.11n, 40 MHz mode, the operating frequency segment is limited to 2422 to 2452 MHz respectively.
