HDCWLAN203XF111ac 5G radio module

Adtran
11ac 5G radio module - FCC ID HDCWLAN203XF1 - Adtran
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
May 11, 2014
Application Purpose
Original Equipment
Date of Application
May 11, 2014
Equipment Note
11ac 5G radio module
Frequency Range
5775.00000000 - 5775.00000000
Company
Adtran
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

802.11 a/n/ac Module PCE4551AH-BS User’s Manual - 1 - PRODUCT DESCRIPTION The PCE4551AH-BS is a 5G dual band concu rrent 3T3R PCIe module base on QCA9890 solution. PRODUCT SPECIFICATION RF Specification Radio 1 Support 5GHz Interface 64-bit PCI-E Operating Voltage 3.3V Antenna Connectors I-PEX Frequency Band 802.11a/n/ac 5.190~5.795GHz Data rate 1300Mbps Receive Sensitivity (Typical) 802.11a ≤ -94dBm@6Mbps ≤ -76dBm@54Mbps 802.11a/ n_HT20 ≤ -93dBm @ MCS0/8/16 ≤ -74dBm @ MCS7/15/23 802.11n_HT40 ≤ -92dBm @ MCS0/8/16 ≤ -72dBm @ MCS7/15/23 802.11ac_HT80 ≤ -89dBm@MCS0 ≤ -64dBm@MCS9 PRODUCT Pin Define - 2 - Type Connector 5150~5250MH z 5250~5350MHz 5470~5725MH z 5725~5850MHz Dipole RPSMA 5.5 dBi 5.5 dBi 5.5 dBi 5.5 dBi PIFA UFL 6 dBi 6 dBi 6 dBi 6 dBi Note: The EUT has three antennas. (3TX/3RX) Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. - 3 - Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. - 4 - This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: HDCWLAN203XF1”. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. - 5 - Industry Canada statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Caution: (i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; Avertissement: (i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux; Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. - 6 - This device is intended only for OEM integrators under the following conditions: 1) T…

Text truncated - open the document above for the full version.

Cover Letter(s)

Adtran Inc. 901 Explorer Boulevard Huntsville, AL 35806-2807 United States Date: January 20, 2014 Subject: Ad Hoc Mode Function Declaration To Whom it may concern, We, Adtran Inc. declare that the device does not support any non-US channels and country code selection in all the operational mode(s) for the following product. FCC ID: HDCWLAN203XF1 Regards, Mr. Jeff Whitmire / Manager, Compliance Engineering Adtran Inc. Tel: 256 963 8554 E-mail: [email protected]

Cover Letter(s)

ADTRAN Inc. 901 Explorer Boulevard Huntsville, AL 35806-2807 United States Confidentiality Request Letter Date: 2014/1/20 Federal Communications Commission Authorization and Evaluation Division FCC ID:HDCWLAN203XF1 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Mr. Jeff Whitmire / Manager, Compliance Engineering ADTRAN Inc. Tel: 256 963 8554 E-mail: [email protected]

Cover Letter(s)

International Certification Corp. (全球檢測股份有限公司) Te l:886-3-271-8666 Fa x : 886-3-318-0155 No.3-1, La ne 6, Wen 33rd Rd., Kwe i Shan Hsiang, Tao Yuan Hsein 333, Ta iwan (R.O.C.) Ga ry Cha ng , Ma nager Re port & Ce rti fication department Te l :+886-3-271-8628 Ema il:[email protected] Subje ct: Modular approval re quest FCC I D: HDCWLAN203XF1 Da te : Ma y 8, 2014 De a r re viewer: The modular would like to have authorization as a Limited modular a pproval. The re quirements of s ection 15.212 ha ve been me t and shown on the following statements 1) The ra dio elements of the modular tra nsmitter must have their own shielding The modular has shielding. Please refer to external photo. 2) The modular transmitter must have buffered modulation/da ta i nputs The buffer i s integrated withQCA9890 3) The modular transmitter must have its own power supply re gulation The pa rt No. of regulator is RT8010 / QCA9890 4) The modular transmitter must comply with the a ntenna a nd tra nsmission system re quirements of §§15.203, 15.204(b) a nd 15.204 (c). No e xte rnal amplifier is used for this module. 15.203 re quirements does not a pply to this module since this module is professionally i nstalled. 5) The modular transmitter must be tested i n a s tand-alone configuration The modular is tested in a stand-alone configuration via an e xtender. Pl ease re fer to test s etup photo. 6) The modular transmitter must be e quipped with e ither a permanently a ffixed label or must be ca p a ble of e lectronically displaying its FCC i dentification number. The modular complies with the requirement. Pl ease re fer to l abel location and label sample e xhi bit. 7) The modular transmitter must comply with a ny s pecific rules or operating requirements The modular complies with the requirement. Detail i nformation please re fer to us e r manual 8) The modular transmitter must comply with a ny a pplicable RF e xposure requirements i n its final confi guration. The modular complies with the requirement for mobile and fixed i nstallation. Pl ease re fer to RF e xposure exhibit Pl e ase contact me if you have a ny questions a bout this letter. Be s t re gards

Cover Letter(s)

Adtran Inc. 901 Explorer Boulevard Huntsville, AL 35806-2807 United States Date: 2014/1/20 Federal Communications Commission 7435 Oakland Mills Rd, Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: HDCWLAN203XF1 Product name: 11ac 5G radio module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model PCE4551AH-BS to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Mr. Jeff Whitmire / Manager Compliance Engineering Adtran Inc. Tel: 256 963 8554 E-mail: [email protected]

Cover Letter(s)

Adtran Inc. 901 Explorer Boulevard Huntsville, AL 35806-2807 United States Professional Installation Attestation 20 January 2014 To Whom It May Concern: Please be advised that due to the unique Market and function targeted by this product, this product will need special trained professional in configuring and installing the product. We hereby declare that the product will be distributed through controlled distribution channel which has special trained professional to install this product and will not be sold directly to the general public through retail store. Thank you for your attention. Yours sincerely, Mr. Jeff Whitmire / Manager, Compliance Engineering Adtran Inc. Tel: 256 963 8554 E-mail: [email protected]

External Photos

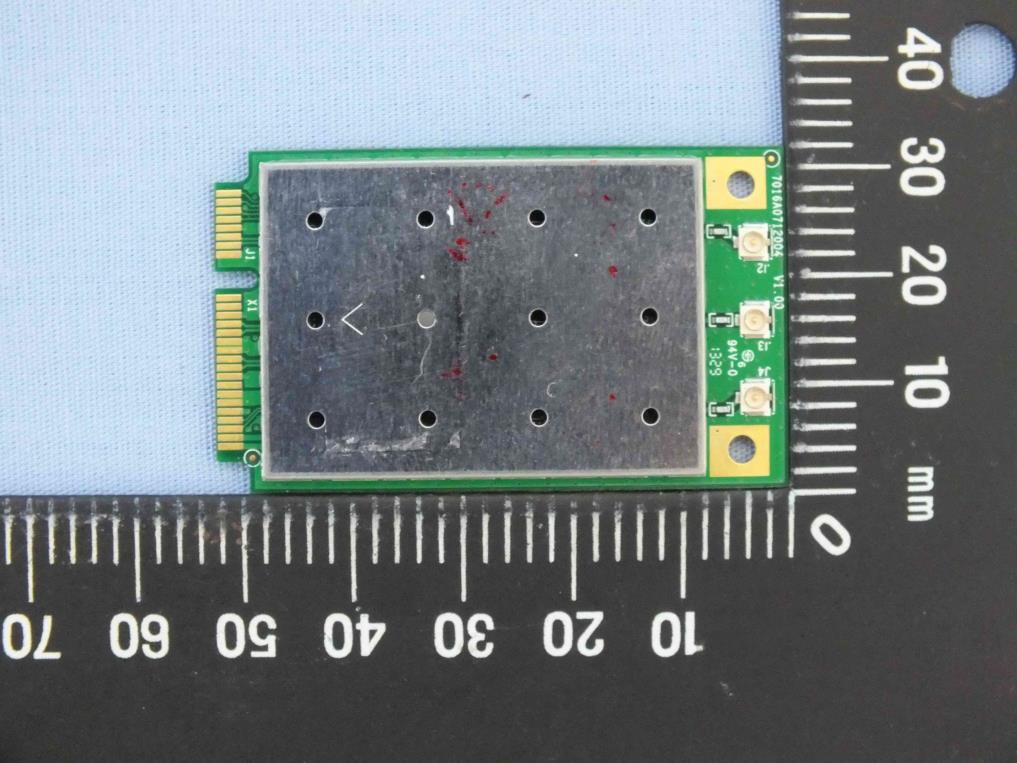

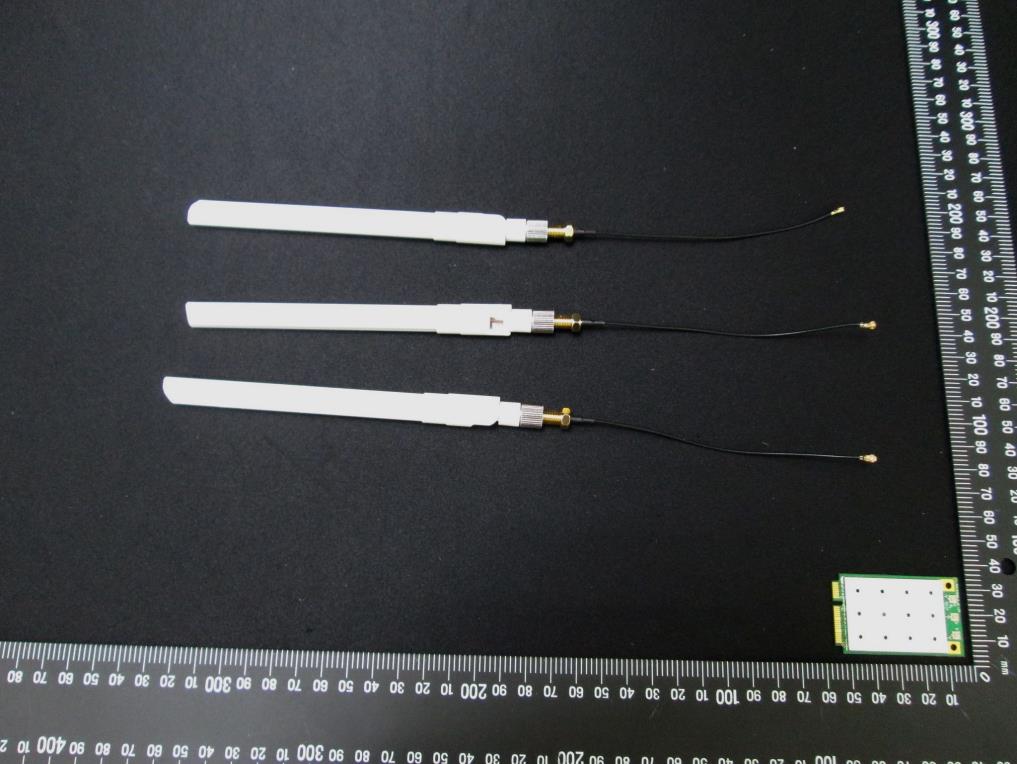

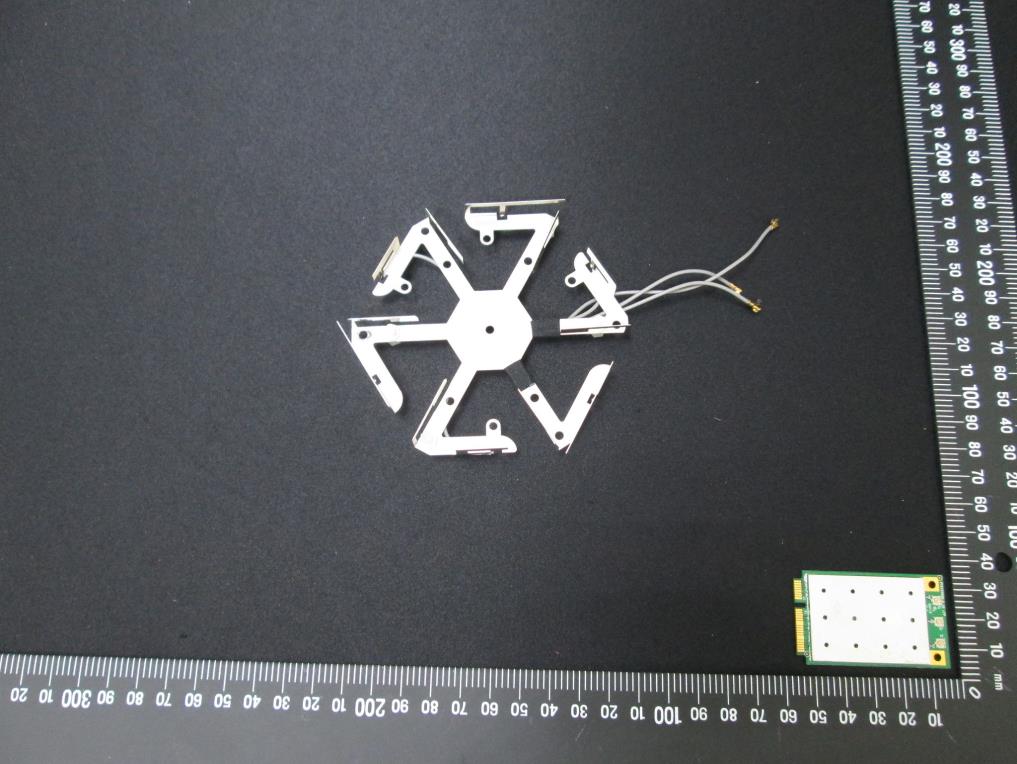

Report No. : EP370334 SPORTON International Inc. Page No. : 1 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Photographs of EUT EUT with 5.5 dBi Dipole Antenna EUT with 6 dBi PIFA Antenna Report No. : EP370334 SPORTON International Inc. Page No. : 2 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP370334 SPORTON International Inc. Page No. : 3 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973

ID Label/Location Info

Label Location

Internal Photos

Report No. : EP370334 SPORTON International Inc. Page No. : 4 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP370334 SPORTON International Inc. Page No. : 5 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP370334 SPORTON International Inc. Page No. : 6 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP370334 SPORTON International Inc. Page No. : 7 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP370334 SPORTON International Inc. Page No. : 8 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP370334 SPORTON International Inc. Page No. : 9 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP370334 SPORTON International Inc. Page No. : 10 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973

RF Exposure Info

FCC EMF Test Report Report No. : FA382902-01 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC EMF Test Report Report No. : FA382902-01 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC EMF Test Report Report No. : FA382902-01 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure Antenna type Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Dipole 5150-5250 15.80 5.5 20 0.027 1 Dipole 5725-5850 27.33 5.5 20 0.382 1 PIFA 5150-5250 16.41 6 20 0.035 1 PIFA 5725-5850 24.74 6 20 0.236 1

Test Report

FCC Test Report Report No. : FR382902-01AI SPORTON INTERNATIONAL INC. Page No. : 1 of 92 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 FCC Test Report Equipment : 11ac 5G radio module Brand Name : Adtran Model No. : PCE4551AH-BS FCC ID : HDCWLAN203XF1 Standard : 47 CFR FCC Part 15.247 Operating Band : 5725 MHz – 5850 MHz FCC Classification : DTS Applicant Manufacturer : Adtran 901 Explorer Boulevard Huntsville, AL 35806-2807 United States The product sample received on Jul. 03, 2013 and completely tested on Aug. 13, 2013. We, SPORTON, w ould like to declare that the tested sample has been evaluated in accordance w ith the procedures given in ANSI C63.10-2009 and show n compliance w ith the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approv al of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Rev iewed by: James Fan / Assistant Manager FCC Test Report Report No. : FR382902-01AI SPORTON INTERNATIONAL INC. Page No. : 2 of 92 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Table of Contents 1 GENERAL DESCRIPTION .......................................................................................................... 5 1.1 Information.................................................................................................................................. 5 1.2 Support Equipment...................................................................................................................... 7 1.3 T esting Applied Standards ........................................................................................................... 7 1.4 T esting Location Information ........................................................................................................ 7 1.5 Measurement Uncertainty ............................................................................................................ 8 2 TES T CONFIGURATION OF EUT................................................................................................ 9 2.1 T he Worst Case Modulation Configuration .................................................................................... 9 2.2 T he Worst Case Power Setting Parameter .................................................................................... 9 2.3 T he Worst Case Measurement Configuration .............................................................................. 11 2.4 T est Setup Diagram................................................................................................................... 12 3 TRANSMITTER TEST RESUL T................................................................................................. 13 3.1 AC Power-line Conducted Emissions .......................................................................................... 13 3.2 6dB Bandwidth .......................................................................................................................... 18 3.3 RF Output Power....................................................................................................................... 21 3.4 Power Spectral Density.............................................................................................................. 29 3.5 Emissions in non-restricted frequency bands............................................................................... 33 3.6 T ransmitter Radiated Unwanted Emissions ................................................................................. 48 4 TES T EQUIPMENT AND CALIBRATION DATA ......................................................................... 91 APPENDIX A. TEST PHOTOS .........................................................................................................A1-A8 FCC Test Report Report No. : FR382902-01AI SPORTON INTERNATIONAL INC. Page No. : 3 of 92 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]:0.484MHz 35.72 (Margin 10.55dB) - AV 43.70 (Margin 12.57dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth [MHz] 20M:17.62 / 40M:36.29 80M: 75.59 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]:29.83 Power [dBm]:30 Complied 3.4 15.247(e) Power Spectral Density PSD [dBm/3kHz]:1.23 PSD [dBm/3kHz]:8 Complied 3.5 15.247(d) Emissions in non-restricted frequency bands Out-of -band emissions are 20dB below the highest power Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(d) T ransmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]:11570.00 & 11650.00MHz 52.71 (Margin 1.29dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR382902-01AI SPORTON INTERNATIONAL INC. Page No. : 4 of 92 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Revision History Report No. Version Description Issued Date FR382902-01AI Rev. 01 Initial issue of report Dec. 06, 2013 FCC Test Report Report No. : FR382902-01AI SPORTON INTERNATIONAL INC. Page No. : 5 of 92 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Pow er (dBm) Co-location 5725-5850 a 5745-5825 149-165 [5] 3 29.75 N/A 5725-5850 n(HT 20) 5745-5825 149-165 [5] 3 29.75 N/A 5725-5850 n(HT 40) 5755-5795 151-159 [2] 3 29.63 N/A 5725-5850 ac(VHT 20) 5745-5825 149-165 [5] 3 29.83 N/A 5725-5850 ac(VHT 40) 5755-5795 151-159 [2] 3 29.73 N/A 5725-5850 ac(VHT 80) 5775 155 [1] 3 29.50 N/A Note 1:…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC Test Report Report No. : FR382902-01 SPORTON INTERNATIONAL INC. Page No. : A1 of A8 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Appendix A. Test Photos Radiated Test_Ant 1 Radiated Test_Ant 1 FCC Test Report Report No. : FR382902-01 SPORTON INTERNATIONAL INC. Page No. : A2 of A8 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Radiated Test_Ant 1 Radiated Test_Ant 1 FCC Test Report Report No. : FR382902-01 SPORTON INTERNATIONAL INC. Page No. : A3 of A8 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Radiated Test_Ant 2 Radiated Test_Ant 2 FCC Test Report Report No. : FR382902-01 SPORTON INTERNATIONAL INC. Page No. : A4 of A8 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Radiated Test_Ant 2 Radiated Test_Ant 2 FCC Test Report Report No. : FR382902-01 SPORTON INTERNATIONAL INC. Page No. : A5 of A8 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Conducted Test_Ant 1 Conducted Test_Ant 1 FCC Test Report Report No. : FR382902-01 SPORTON INTERNATIONAL INC. Page No. : A6 of A8 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Conducted Test_Ant 1 Conducted Test_Ant 1 FCC Test Report Report No. : FR382902-01 SPORTON INTERNATIONAL INC. Page No. : A7 of A8 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Conducted Test_Ant 2 Conducted Test_Ant 2 FCC Test Report Report No. : FR382902-01 SPORTON INTERNATIONAL INC. Page No. : A8 of A8 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Conducted Test_Ant 2 Conducted Test_Ant 2

Contact Information

Applicant

Paul Stover(Manager Compliance Engineering)
[email protected]256-963-8099Fax: 256-963-8250

Test Firm

Sporton International Inc.Alex Chen
[email protected]886-3-327-3456Fax: 886-3-327-0973

Technical Specifications

#Rule PartsFrequency RangePower Output
315C5.78 GHz - 5.78 GHz891.00 mW
Modular Type
Limited Single Modular Approval
Confidentiality
Long Term
Grant Notes
Modular Approval is limited to professionally installation only. Output Power listed is the maximum combined conducted peak output power as indicated in the filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 3T3R Spatial Multiplexing MIMO configuration as described in this filing. This device supports 802.11n, 20MHz, 40 MHz and 802.11ac 80 MHz mode.
