HDWAEA305Rugged Handheld PC with RIM 902 Mobitex Data Modem

CMU045-A11 of 1 RIM MOBITEX WIRELESS CARD FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this device complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. See below for detail. Unauthorised antennas, modifications, or attachments could impair call quality, damage the phone, and will result in violation of FCC regulations and will void the FCC ID. Modifications not approved by the manufacturer or use of any non-authorized wireless card may result in violation of FCC regulations and may void the Users authority to operate the equipment. This device contains a transmitter, RIM MOBITEX 902M, that has been tested and certified for FCC RF exposure compliance. This device has been tested and complies with FCC RF exposure compliance requirements. This product can only be used in Canada and USA. This device has not been tested to comply with any other international standards bodies For more information about RF exposure, please visit the FCC web site at www.fcc.gov For more information about the product certification, please contact [email protected] Installation of the antenna Install the antenna by screwing it on the antenna connector. Do not over-tight Replacement of the antenna Use only the supplied or an approved antenna(s). Unauthorised antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Be sure to replace the antenna with the appropriate one. Dap Technologies Part Number DCCE812

_MAN40-A (CMU040-A3f) Headquarters: 955 Rue FernandDufour Vanier, Quebec Canada G1M 3B2 Tel.: (418) 681-9394 Fax: (418) 681-0799 www.daptech.com U.S.A. subsidiary: 14502 N. Dale Mabry Suite 227 Tampa, FL 33618-2072 Tel.: (813) 969-3271 Fax: (813) 969-3334 European subsidiary: 6 Place du Village des Barbanniers 92632Gennevilliers Cedex France Tel.: (33) 1-41 21 95 95 Fax: (33) 1-41 21 95 65 CE8000 & CE8000LS USER'S GUIDE _MAN40-A (CMU040-A3) _MAN40-A (CMU040-A3) 1 _MAN40-A (CMU040-A3) TABLE OF CONTENTS TABLE OF CONTENTS.........................................................................................................................................................1 A WORD FROM DAP TECHNOLOGIES...........................................................................................................................3 PRECAUTIONS......................................................................................................................................................................7 WARRANTY STATEMENTS..............................................................................................................................................9 CE CONFORMITY CE8000..................................................................................................................................................10 CE CONFORMITY CE8000LS.............................................................................................................................................11 FCC, AS/NZA STATEMENT & COPYRIGHT POLICY................................................................................................12 MICROSOFT'S END USER LICENSE AGREEMENT......................................................................................................13 GET STARTED.....................................................................................................................................................................19 Recharging The Battery................................................................................................................................................ 19 Automatic Shutoff........................................................................................................................................................... 21 Turning The Unit ON..................................................................................................................................................... 21 Turning The Unit OFF Manually................................................................................................................................22 Battery Status Indicator................................................................................................................................................ 22 Touch Screen Calibration............................................................................................................................................ 23 Starting Display............................................................................................................................................................. 23 Use of the Touch Screen................................................................................................................................................ 24 Caring of the Touch Screen.......................................................................................................................................... 24 Loading files and programs......................................................................................................................................... 25 ADVANCED BATTERY OPTIONS...................................................................................................................................27 Battery Power Management......................................................................................................................................... 27 Low Battery messages on Main Battery..................................................................................................................... 28 Low battery messages on Backup Battery................................................................................................................. 29 Replacing the main battery.......................................................................................................................................... 30 Recycling the battery..................................................................................................................................................... 31 Power Gauge Calibration with BatMngr.exe........................................................................................................... 32 BATMNGR Typical Values........................................................................................................................................... 33 USE OF THE KEYBOARD..................................................................................................................................................35 USE OF PC CARDS..............................................................................................................................................................39 I RDA INTERFACE...............................................................................................................................................................41 BARCODE LASER SCANNER (CE8000LS)......................................................................................................................43 Maintenance Notice...................................................................................................................................................... 44 USE OF THE CRADLE.........................................................................................................................................................45 EXTERNAL COMPACT …

Text truncated - open the document above for the full version.

Celltech Labs Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 • Fax. 250-448-7046 • e-mail: [email protected] www.celltechlabs.com Aug 11, 2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 SUBJECT: DAP Technologies Ltd. FCC ID: HDWAEA305 On behalf of DAP Technologies Ltd. is our response to your comments regarding the subject application as follows: 1. Attached is the DAP letter regarding your labeling comment. 2. The 2 different battery models in the users manual (DCCE800-Y & DCCE800-G) are to differentiate the color of the battery “Y” is yellow and “G” is gray. Otherwise the batteries are identical. Thus only one battery was required for testing. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Bernie Penner Celltech Labs Inc. cc: DAP Technologies Ltd.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 August 5, 2003 RE: DAP Technologies, Ltd. FCC ID: HDWAEA305 I have a few comments on the above referenced Application. 1) The labeling information shows 2 labels, one for part 90 the other for Part 15 DoC. Note that the Part 15 DoC is not a DoC label but is a verification label. The PC portion of this device is subject to either a 15B certification or DoC authorization. The labeling provided is missing the proper requirements for DoC as specified in 15.19 and appears to be the labeling required for a Certification (however test reports, etc. have not been submitted for this authorization). Please comment. To approve a device under Part 15 DoC requirements, there are specific labeling and manual information for this approval. Additionally, this testing must be performed by an accredited test lab (typically NVLAP or A2LA) that is acceptable to the FCC. 2) The users manual mentions 2 models of battery packs (DCCE800-Y and DCCE800-G), however only one model appear to have been tested. Please explain. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Celltech Labs Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 • Fax. 250-448-7046 • e-mail: [email protected] www.celltechlabs.com July 21, 2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 SUBJECT: DAP Technologies Ltd. FCC ID: HDWAEA305 Part 90 - Certification On behalf of DAP Technologies Ltd. is an application for Part 90 Certification of Rugged Handheld PC Model: CE8640/LS with internal Mobitex Radio Modem Model: 902M manufactured by Research In Motion Limited (FCC ID: L6AR902M-2-O, originally granted July 7, 1999). Model: CE8640/LS Equipment Class: Licensed Non-Broadcast Station Transmitter (TNB) Equipment Type: Rugged Handheld PC with RIM 902 Mobitex Radio Modem Emission Designator: 12K8F1D Tx Frequency Range: 896.0 - 901.0 MHz Conducted Power Tested: 33.0 dBm Max. RF Output Power: 0.261 Watts ERP (24.16 dBm) Max. SAR Measured: 0.317 W/kg (1g average) Antenna Type: ¼ Helical Whip Attached is the confidentiality request letter, Part 90 EMC measurement report data and photographs, RF exposure SAR measurement report data & photographs, FCC ID label and location, internal and external device photographs, block diagram(s) (confidential), schematic diagram(s) (confidential), operational description (confidential), parts list (confidential), tune-up procedure (confidential), and the user's manual with RF exposure warning statement. The operational description attachment submitted in this filing states that the RIM 902M Mobitex radio module has the capability to operate up to 902 MHz in countries where the higher channels above 901 MHz are licensed, however in North America it is only operational up to 901 MHz. The firmware limits the highest transmit frequency to 901 MHz and the highest receive frequency to 940 MHz. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes General Manager Celltech Labs Inc. cc: DAP Technologies Ltd.

© 2003 Celltech Labs Inc. DAP TECHONOGIES FCC ID: HDWAEA305 Rugged Handheld PC with RIM 902 Mobitex Radio Modem TRSN: 042503-365/366HDW EXTERNAL EUT PHOTOGRAPHS © 2003 Celltech Labs Inc. DAP TECHONOGIES FCC ID: HDWAEA305 Rugged Handheld PC with RIM 902 Mobitex Radio Modem TRSN: 042503-365/366HDW EXTERNAL EUT PHOTOGRAPHS CONTINUIED © 2003 Celltech Labs Inc. DAP TECHONOGIES FCC ID: HDWAEA305 Rugged Handheld PC with RIM 902 Mobitex Radio Modem TRSN: 042503-365/366HDW EXTERNAL EUT PHOTOGRAPHS CONTINUIED

© 2003 Celltech Labs Inc. DAP TECHNOLOGIES LTD. FCC ID: HDWAEA305 Rugged Handheld PC with RIM Mobitex 902 Modem TRSN: 042503-365/366HDW LABELING REQUIREMENTS PER §2.925 The label shall be permanently affixed at a conspicuous location on the device. SEE NEXT PAGE(S) FOR PART 15(B) DoC LABEL SEE NEXT PAGE(S) FOR PART 90 LABEL FCC ID LABEL & LOCATION RIM MOBITEX FCC ID :HDWAEA305 IC :4609A-AEA304 MODEL :CE8640/LS FCC Part 15 DoC Label

© 2003 Celltech Labs Inc. DAP TECHONOGIES FCC ID: HDWAEA305 Rugged Handheld PC with RIM 902 Mobitex Radio Modem TRSN: 042503-365/366HDW INTERNAL EUT PHOTOGRAPHS © 2003 Celltech Labs Inc. DAP TECHONOGIES FCC ID: HDWAEA305 Rugged Handheld PC with RIM 902 Mobitex Radio Modem TRSN: 042503-365/366HDW INTERNAL EUT PHOTOGRAPHS CONTINUED © 2003 Celltech Labs Inc. DAP TECHONOGIES FCC ID: HDWAEA305 Rugged Handheld PC with RIM 902 Mobitex Radio Modem TRSN: 042503-365/366HDW INTERNAL EUT PHOTOGRAPHS RIM 902 Mobitex Radio Modem

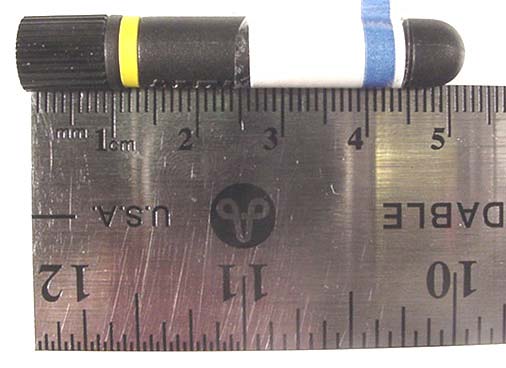

PRODUCT SUMMARY RH Series Connectorized 1/4 Wave DescriptionPhysical Package The RH series is designed to offer near straight monopole performance in an ultra-compact package. Ideal for small products where cosmetic or functional requirements dictate a compact, aesthetically pleasing antenna package. Despite their tiny size RH antennas are ruggedly constructed and able to withstand punishing environments just like our larger whips. PLEASE NOTE: The internal helical element construction reduces the antenna's effective bandwidth to approximately 10 MHz of the specified center frequency. (click for larger image, requires Macromedia Flash) Features Reduced-Height Helical Whip Outstanding VSWR (<1.9 typ.) Excellent Performance Omni-directional pattern Flexible main shaft Rugged construction Fully weatherized Part 15-Compliant RP-SMA Connector Use with plastic * or metal enclosures * Requires proximity groundplane Ordering Information PART # DESCRIPTION ANT-xxx-CW-RH RH- Reduced Height xxx = 315, 418, 433, 868, 916 MHz Documentation View CAD Drawing Support / Application Page 1 of 2m_rh.php3 03-04-30http://www.linxtechnologies.com/ldocs/antennas/m_rh.php3 Go to product support area (application notes, software, FCC info, etc.) (541) 471-6256 · LINXTECHNOLOGIES.COM · Fax: (541) 471-6251 575 S.E. Ashley Pl. · Grants Pass · OR · 97526 · USA © Copyright 2001, Linx Technologies Corporation Page 2 of 2m_rh.php3 03-04-30http://www.linxtechnologies.com/ldocs/antennas/m_rh.php3 ZONEREVDESCRIPTIONDATEAPPROVED LINX TECHNOLOGIES 575 S.E.Ashley, Pl. Grants Pass, OR 97526 PHONE:541-471-6256 FAX:541-471-6251 www.linxtechnologies.com SIZE A FSCM NO.DWG NO. DESIGN: DRAWING: APPROVED: SERIES NUMBER STATUS:DRAFT/APPROVED DATE:___/___/_____ PATH PARTNUMBER SHEET SCALE TITLE A/D CG pending Pending RH ANT-***-RH RPSMA Connection

Test Report S/N: 042503-366HDW Test Date(s): June 16, 2003 Test Type: FCC/IC SAR Evaluation © 2003 Celltech Labs Inc. 1 of 22 Celltech Labs Inc. declares under its sole responsibility that this device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), and Industry Canada RSS-102 Issue 1 (Provisional) for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE SAR EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information DAP TECHNOLOGIES LTD. 955 Place DuFour Vanier, Quebec G1M 3B2 Canada Rule Part(s): FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) FCC Device Classification: Licensed Non-Broadcast Station Transmitter (TNB) IC Device Classification: Land Mobile Radio Transmitter FCC ID: HDWAEA305 IC Cert. No.: IC: 4609A-AEA304 Model(s): CE8640/LS Device Type: Rugged Handheld PC with RIM 902 Mobitex Radio Modem Modulation: GMSK Tx Frequency Range: 896.0 - 901.0 MHz RF Output Power Tested: 33.0 dBm (Conducted) Antenna Type(s): ¼ Helical Whip Battery Type: 7.4V Lithium-ion, 2000mAh Max. SAR Measured: 0.317 W/kg (1g average) Test Report S/N: 042503-366HDW Test Date(s): June 16, 2003 Test Type: FCC/IC SAR Evaluation © 2003 Celltech Labs Inc. 2 of 22 TABLE OF CONTENTS 1.0 INTRODUCTION..................................................................... 3 2.0 DESCRIPTION OF EUT............................................................ 3 3.0 SAR MEASUREMENT SYSTEM ............................................... 4 4.0 MEASUREMENT SUMMARY..................................................... 5 5.0 DETAILS OF SAR EVALUATION............................................... 6 6.0 EVALUATION PROCEDURES................................................... 6-7 7.0 SYSTEM PERFORMANCE CHECK............................................ 8 8.0 EQUIVALENT TISSUES........................................................... 9 9.0 SAR LIMITS........................................................................... 9 10.0 SYSTEM SPECIFICATIONS...................................................... 10 11.0 PROBE SPECIFICATION.......................................................... 11 12.0 SAM PHANTOM...................................................................... 11 13.0 DEVICE HOLDER.................................................................... 11 14.0 TEST EQUIPMENT LIST........................................................... 12 15.0 MEASUREMENT UNCERTAINTIES............................................ 13-14 16.0 REFERENCES....................................................................... 15 APPENDIX A - SAR MEASUREMENT DATA.............................................. 16 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA............................. 17 APPENDIX C - SYSTEM VALIDATION...................................................... 18 APPENDIX D - PROBE CALIBRATION..................................................... 19 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................. 20 APPENDIX F - SAM PHANTOM CERTIFICATE OF CONFORMITY................ 21 APPENDIX G - SAR TEST SETUP PHOTOGRAPHS................................... 22 Test Report S/N: 042503-366HDW Test Date(s): June 16, 2003 Test Type: FCC/IC SAR Evaluation © 2003 Celltech Labs Inc. DAP TECHNOLOGIES LTD. FCC ID: HDWAEA305 3 of 22 Rugged Handheld PC with RIM 902 Mobitex Radio Modem This measurement report demonstrates that the DAP TECHNOLOGIES LTD. Model: CE8640/LS FCC ID: HDWAEA305 Rugged Handheld PC with RIM 902 Mobitex Radio Modem complies with the SAR (Specific Absorption Rate) RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]) and Health Canada’s Safety Code 6 (see reference [2]) for the General Population environment. The test procedures described in FCC OET Bulletin 65, Supplement C (Edition 01-01) (see reference [3]) and IC RSS-102 Issue 1 (Provisional) (see reference [4]) were employed. A description of the product, operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. FCC Rule Part(s) 47 CFR §2.1093 IC Rule Part(s) IC RSS-102 Issue 1 (Provisional) Test Procedure(s) FCC OET Bulletin 65, Supplement C (Edition 01-01) FCC Device Classification Licensed Non-Broadcast Station Transmitter (TNB) IC Device Classification Land Mobile Radio Transmitter Device Type Rugged Handheld PC with RIM 902 Mobitex Radio Modem FCC ID HDWAEA305 Model(s) CE8640/LS Serial No. Pre-production unit Modulation GMSK Max. Duty Cycle 25% Tx Frequency Range 896.0 - 901.0 MHz Max. RF Output Power Tested 33.0 dBm (Conducted) Antenna Type ¼ Wave Helical Whip (Length: 52 mm) Battery Type 7.4V Lithium-ion, 2000mAh 1.0 INTRODUCTION 2.0 DESCRIPTION of Equipment Under Test (EUT) Test Report S/N: 042503…

Text truncated - open the document above for the full version.

© 2003 Celltech Labs Inc. 1 of 12 Test Report S/N: 042503-365HDW Test Date(s): June 17-18 & 20, 2003 Test Type: FCC Part 90 EMC Measurements This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR §90, §2, and ANSI TIA/EIA-603-A-2001. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE FCC PART 90 EMC MEASUREMENTS Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information DAP TECHNOLOGIES LTD. 955 Place DuFour Vanier, Quebec G1M 3B2 Canada FCC Rule Part(s): 47 CFR §90, §2 IC Rule Part(s): RSS-119 Issue 6 Test Procedure(s): FCC 47 CFR §90, §2; ANSI TIA/EIA-603-A-2001 FCC Device Classification: Licensed Non-Broadcast Station Transmitter (TNB) IC Device Classification: Land Mobile Radio Transmitter Device Type: Rugged Handheld PC with RIM 902 Mobitex Radio Modem FCC ID: HDWAEA305 IC ID: 4609A-AEA304 Model(s): CE8640/LS Tx Frequency Range: 896.0 - 901.0 MHz Rx Frequency Range: 935.0 - 941.0 MHz Max. RF Output Power: 0.261 Watts ERP (24.16 dBm) Conducted Power Tested: 33.0 dBm Modulation: GMSK Emission Designator(s): 12K8F1D Frequency Tolerance(s): ± 0.00015 % Antenna Type: ¼ Helical Whip Power Supply: 7.4V Lithium-ion, 2000mAh © 2003 Celltech Labs Inc. 2 of 12 Test Report S/N: 042503-365HDW Test Date(s): June 17-18 & 20, 2003 Test Type: FCC Part 90 EMC Measurements TABLE OF CONTENTS 1.1 SCOPE 3 2.1 GENERAL INFORMATION - §2.1033(a) 3 MEASUREMENT PROCEDURES & DATA 4 3.1 RF Output Power - §2.1046 4 4.1 Spurious Emissions at Antenna Terminal - §2.1051 4 5.1 Field Strength of Spurious Radiation - §2.1053 4-5 6.1 Radiated Measurement Test Setup 6 7.1 Effective Radiated Power Output - §90.635; §2.1046 6 8.1 Frequency Stability - §90.213; §2.1055 7 9.1 Occupied Bandwidth - §90.209; §90.210(j); §2.1049 8 10.1 TEST EQUIPMENT LIST 9 11.1 CONCLUSION 10 APPENDIX A - TEST PLOTS 11 APPENDIX B - RADIATED TEST SETUP PHOTOGRAPHS 12 © 2003 Celltech Labs Inc. DAP TECHNOLOGIES LTD. FCC ID: HDWAEA305 3 of 12 Rugged Handheld PC with RIM 902 Mobitex Radio Modem Test Report S/N: 042503-365HDW Test Date(s): June 17-18 & 20, 2003 Test Type: FCC Part 90 EMC Measurements Measurement and determination of electromagnetic emissions (EME) from radio frequency devices for compliance with the technical rules and regulations of the Federal Communications Commission and Industry Canada. FCC ID HDWAEA305 Model(s) CE8640/LS Serial No. Pre-production unit EUT Type Rugged Handheld PC with RIM 902 Mobitex Radio Modem FCC Rule Part(s) 47 CFR §90, §2 IC Rule Part(s) RSS-119 Issue 6 FCC Classification Licensed Non-Broadcast Station Transmitter (TNB) IC Classification Land Mobile Radio Transmitter Tx Frequency Range 896.0 - 901.0 MHz Rx Frequency Range 935.0 - 941.0 MHz Max. RF Output Power 0.261 Watts ERP (24.16 dBm) Max. RF Conducted Output Power Tested 33.0 dBm Emission Designator 12K8F1D Frequency Tolerance ± 0.00015 % Modulation GMSK Modes Tested Unmodulated Carrier, Modulated Carrier Antenna Type ¼ Wave Helical Whip (Length: 52 mm) Power Supply 7.4V Lithium-ion Battery, 2000mAh APPLICANT DAP TECHNOLOGIES LTD. 955 Place DuFour Vanier, Quebec G1M 3B2 Canada FCC PART 90 EMC MEASUREMENT REPORT 1.1 SCOPE 2.1 GENERAL INFORMATION - §2.1033(a) © 2003 Celltech Labs Inc. DAP TECHNOLOGIES LTD. FCC ID: HDWAEA305 4 of 12 Rugged Handheld PC with RIM 902 Mobitex Radio Modem Test Report S/N: 042503-365HDW Test Date(s): June 17-18 & 20, 2003 Test Type: FCC Part 90 EMC Measurements The peak conducted power levels were measured at the RIM 902 Mobitex radio modem RF port with a Gigatronics 8652A Universal Power Meter in burst average power mode. An offset was entered into the power meter to correct for the losses of the attenuator and cable installed before the sensor input. The transmitter terminal was coupled to the power meter and the EUT was placed in test mode using the RIM 902 Mobitex test software installed in the Handheld PC with the internal transmitter in modulated carrier mode (25% duty cycle) at a full rated power. All subsequent tests were performed using the same power measurement procedures. The EUT was placed in test mode using the RIM 902 Mobitex test software installed in the Handheld PC with the internal transmitter in modulated carrier mode (25% duty cycle) at a full rated power. The level of the carrier and the various conducted spurious frequencies were measured using a calibrated spectrum analyzer. The resolution bandwidth and video bandwidth were set to 1MHz. The spectrum was scanned from 10MHz to 20GHz at the low, mid, and high channels. The antenna output terminal of the EUT was connected to the input of a 50Ω spectrum analyzer through a matched 30dB attenuator and coaxial cable. The reported emissions were below the specified limit of -20dBm. The test results are shown in Appendix A. Radiated spurious emissions were measured on a 3-meter open area test site using the Signal Substitution Method in accordance with ANSI TIA/EIA-603-A-2001. The EUT was placed in test mode using the RIM 902 Mobitex test software installed in the Handheld PC with the internal transmitter in modulated carrier mode (25% duty cycle) at a full rated power. The EUT was pla…

Text truncated - open the document above for the full version.

© 2003 Celltech Labs Inc. DAP TECHNOLOGIES LTD. FCC ID: HDWAEA305 12 of 12 Rugged Handheld PC with RIM 902 Mobitex Radio Modem Test Report S/N: 042503-365HDW Test Date(s): June 17-18 & 20, 2003 Test Type: FCC Part 90 EMC Measurements APPENDIX B - RADIATED TEST SETUP PHOTOGRAPHS © 2003 Celltech Labs Inc. DAP TECHNOLOGIES LTD. FCC ID: HDWAEA305 Rugged Handheld PC with RIM 902 Mobitex Radio Modem Test Report S/N: 042503-365HDW Test Date(s): June 17-18 & 20, 2003 Test Type: FCC Part 90 EMC Measurements RADIATED TEST SETUP PHOTOGRAPHS Vertical Polarization © 2003 Celltech Labs Inc. DAP TECHNOLOGIES LTD. FCC ID: HDWAEA305 Rugged Handheld PC with RIM 902 Mobitex Radio Modem Test Report S/N: 042503-365HDW Test Date(s): June 17-18 & 20, 2003 Test Type: FCC Part 90 EMC Measurements RADIATED TEST SETUP PHOTOGRAPHS Horizontal Polarization
