HFS-BCM94306MPWireless Mini PCI LAN Module

Wireless LAN User manual Wireless LAN 11 Mbps 1 Quanta Computer Inc. BCM94306MP Mini-PCI Adapter User's Manual May 20, 2003 (Draft 1.0) Wireless LAN User manual Wireless LAN 11 Mbps 2 Copyright statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording, or otherwise without the prior writing of the publisher. Printed in Taiwan, April. 2003 Wireless LAN User manual Wireless LAN 11 Mbps 3 .Contents 1. Introduction .................................................................................4 2. Wireless LANBasics .....................................................................5 3. Installation for Windows platform......................................................6 3.1. Installation Overview...................................................................7 3.2. Install Procedure for Windows XP.................................................8 3.3. Install Procedure for Windows 98/ME/2000 ..............................10 4. Configuration Utility.....................................................................17 4.1 Link Stauts ..............................................................................24 4.2 CONNECTIONS ...........................................................................25 4.3 PROFILE SETTING .......................................................................26 4.4 ABOUT ....................................................................................28 4.5 Win XP Zero Configuration ........................................................29 5. Hardware installation .................................................................31 6. Troubleshooting.........................................................................33 7. Technical specifications of Wireless LAN........................................35 Wireless LAN User manual Wireless LAN 11 Mbps 4 1. Introduction Thank you for purchasing your Wireless LAN, Wireless LAN mini-PCI Adapter. This manual will assist you with the installation procedure. The package you have received should contain the following items: • User manual • CD containing Wireless LAN Management utility and drivers Note: if anything is missing, please contact your vendor The CD contains drivers and Configuration Utility program that is used for managing the Wireless LAN Card and establishing the wireless connection with your Local Area Network. Wireless LAN User manual Wireless LAN 11 Mbps 5 2. Wireless LAN Basics Wireless LAN (Local Area Networks) systems offer a great number of advantages over a traditional, wired system. Wireless LANs (WLANs) are more flexible, easier to setup and manage and often more cost effective than their wired equivalence. Using radio frequency (RF) technology, WLANs transmit and receive data over the air, minimizing the need for wired connections. Thus, WLANs combine data connectivity with user mobility, and, through simplified configuration, enable movable LANs. With wireless LANs, users can access shared information without looking for a place to plug in and network managers can set up or augment networks without installing or moving wires. Wireless LANs offer the following productivity, convenience and cost advantages over traditional wired networks: • Mobility - Wireless LAN systems can provide LAN users with access to real-time information anywhere in their organization. This mobility supports productivity and service opportunities not possible with wired networks. • Installation Speed and Simplicity - Installing a wireless LAN system can be fast and easy and can eliminate the need to pull cable through walls and ceilings. • Installation Flexibility - Wireless technology allows the network to go where wires cannot go. • Reduced Cost-of-Ownership - While the initial investment required for wireless LAN hardware might be higher than the cost of wired LAN hardware, overall installation expenses and life-cycle costs will be significantly lower. Long-term cost benefits are greatest in dynamic environments requiring frequent moves, adds, and changes. • Scalability - Wireless LAN systems can be configured in a variety of topologies to meet the needs of specific applications and installations. Configurations are easily changed and range from peer- to-peer to full infrastructure networks, also allow roaming over a broad area. Wireless LAN User manual Wireless LAN 11 Mbps 6 3. Installation for Windows platform The following section will assist you to in installing wireless LAN Adapter successfully. You will first install software (Utility) and then set the network properties to accommodate resource sharing and select the type of wireless network that you wish to install. Wireless LAN User manual Wireless LAN 11 Mbps 7 3.1. Installation Overview Here are some steps you will perform in establishing your wireless network connection: l Install the Access Point at first. AP is needed in case of Infrastructure network mode. l Install the software using the Install CD. l Install the network protocol(s) required to communicate on your network. Most likely you will need the TCP/IP protocol. Wireless LAN User manual Wireless LAN 11 Mbps 8 3.2. Install Procedure for Windows XP 1. Insert the given Installation CD in the CD-ROM and then click on the Setup. Follow the instruction to finish the installation. Select “Install the software automatically (Recommended) ”, and then click Next to continue. Once your system detected the driver, Microsoft will show a warning message as below. Click “ Continue Anyway ” for next step. Wireless LAN User manual Wireless LAN 11 Mbps 9 After copy the file to your system, then the setup is finish. Wireless LAN User manual Wireless LAN 11 Mbps 10 3.3. Install Procedure for Windows 98/ME/2000 Please follow the following steps one by one in order to install the software successfully. 1. Power on your computer and allow Windows 98/ME/2000 to load ful…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ___________________ Ms Joyce Kuo Quanta Computer Inc. Tel: +886 3 327 2345 Fax: +886 3 328 5048 e-mail: [email protected] Quanta Computer Inc. 7F, 116 Hou Kang St., Shih Lin, Taipei, Taiwan, R.O.C. Tel: +886 3 327 2345 Fax: +886 3 328 5048 FCC ID: HFS-BCM94306MP

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: 802.11g mini-PCI transmitter module MODEL NO.: BCM94306MP TRADE NAME: Broadcom IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: RF920514R03 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION： ManufacturerUSA Local Representative Company name: QUANTA COMPUTER INC. To Be Determined. Address: 7F, 116 Hou Kang St., Shih Lin, Taipei, Taiwan, R.O.C. Contact Person: Joyce Kuo Title: Regulatory Coordinator Te l / F a x : +886 3 327 2345 +886 3 328 5048

FCC ID: HFS-BCM94306MP ADT No.920514R03 Modular Approval Request Letter Advance Data Technology May 29, 2003 Dear Application Examiner, Quanta Computer Inc.’s 802.11g mini-PCI transmitter module, FCC ID: HFS-BCM94306MP, would like to have your authorization as a limited modular approval specific to the mobile device such as notebook with antenna mounted around the LCD pannel. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM4306CB. 3. “The modular transmitter must have its own power supply regulation.” The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 1.8V DC powered. The mini-pci interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is LP298518. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: HFS-BCM94306MP ADT No.920514R03 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Dr. Alan Lane J. VP Advance Data Technology

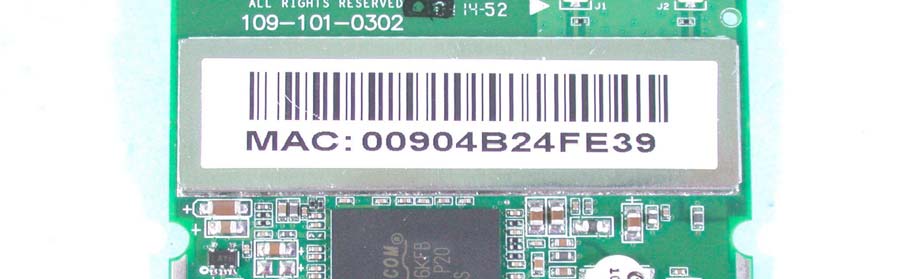

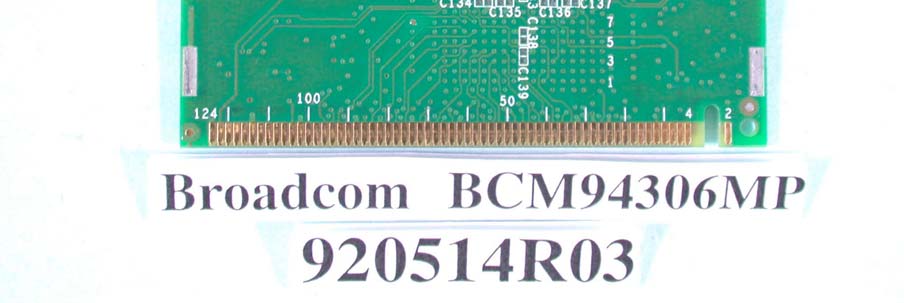

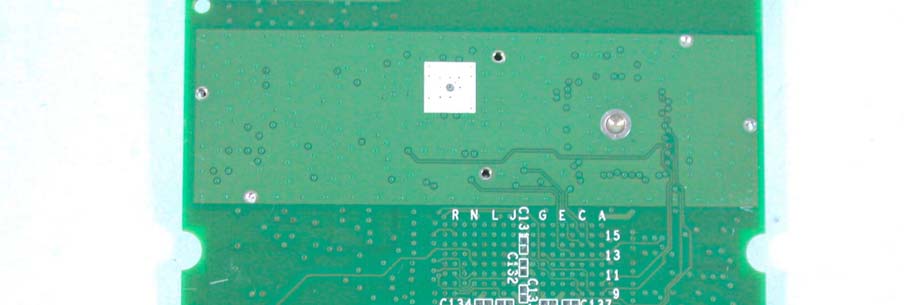

Page 1 ANNEX PHOTOGRAPHS OF EUT

MAC: 000BCD56XXXX Tested To Comply For Home Or Office Use With FCC Standards FCC ID: HFS-BCM94306MP IC: 4324A-BRCM1005 1AXXXXX BCM94306MP

MAC: 000BCD56XXXX Tested To Comply For Home Or Office Use With FCC Standards FCC ID: HFS-BCM94306MP IC: 4324A-BRCM1005 1AXXXXX BCM94306MP

Page 2 Page 3

FCC ID: HFS-BCM94306MP ADT No.920514R03 Operational Description This device is a 802.11g mini-PCI transmitter module which operates in the 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. This project is seeking the authorization of limited module approval specific to the mobile device such as Notebook PC with antenna mounted around the LCD pannel. The transmitter of the EUT is powered by host equipment via a mini-PCI interface. The antenna types used in this product are Inverted F and Printed Dipole with UFL antenna connector. The other instruction, please have a look at the users manual.

FCC ID: HFS-BCM94306MP ADT No.: 920514R03 FCC TEST REPORT REPORT NO.: RF920514R03 MODEL NO.: BCM94306MP ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: QUANTA COMPUTER INC. ADDRESS: 7F, No. 116, Hou Kang St., Shih Lin, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: HFS-BCM94306MP ADT No.: 920514R03 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: HFS-BCM94306MP ADT No.: 920514R03 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: HFS-BCM94306MP ADT No.: 920514R03 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 4.68dBi or 2.937(numeric). 6.2 Output Power Into Antenna & the MPE value at distance 20cm : For 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241214.520.0081.0 6243713.090.0081.0 11246210.380.0061.0 For 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241215.210.0091.0 6243713.770.0081.0 11246214.000.0081.0

FCC ID: HFS-BCM94306MP Report No.: RF920514R031Issued: May 29, 2003 FCC TEST REPORT REPORT NO.: RF920514R03 MODEL NO.: BCM94306MP RECEIVED: May 14, 2003 TESTED: May 19, 2003 ~ May 28, 2003 APPLICANT: QUANTA COMPUTER INC. ADDRESS: 7F, No. 116, Hou Kang St., Shih Lin, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 77 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: HFS-BCM94306MP Report No.: RF920514R032Issued: May 29, 2003 Table of Contents 1CERTIFICATION ........................................................................................ 4 2SUMMARY OF TEST RESULTS................................................................ 5 3GENERAL INFORMATION ........................................................................ 6 3.1GENERAL DESCRIPTION OF EUT........................................................... 6 3.2DESCRIPTION OF TEST MODES............................................................. 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................ 7 3.4DESCRIPTION OF SUPPORT UNITS ....................................................... 8 4TEST TYPES AND RESULTS.................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ............................................. 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT........................... 9 4.1.2TEST INSTRUMENTS ............................................................................... 9 4.1.3TEST PROCEDURES.............................................................................. 10 4.1.4DEVIATION FROM TEST STANDARD .................................................... 10 4.1.5TEST SETUP ........................................................................................... 11 4.1.6EUT OPERATING CONDITIONS............................................................. 11 4.1.7TEST RESULTS....................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................ 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................. 18 4.2.2TEST INSTRUMENTS ............................................................................. 19 4.2.3TEST PROCEDURES.............................................................................. 20 4.2.4DEVIATION FROM TEST STANDARD .................................................... 20 4.2.5TEST SETUP ........................................................................................... 21 4.2.6EUT OPERATING CONDITIONS............................................................. 21 4.2.7TEST RESULTS (A) ................................................................................. 22 4.2.8TEST RESULTS (B) ................................................................................. 29 4.2.9TEST RESULTS (C)................................................................................. 36 4.36dB BANDWIDTH MEASUREMENT ....................................................... 43 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ..................................... 43 4.3.2TEST INSTRUMENTS ............................................................................. 43 4.3.3TEST PROCEDURE ................................................................................ 44 4.3.4DEVIATION FROM TEST STANDARD .................................................... 44 4.3.5TEST SETUP ........................................................................................... 44 4.3.6EUT OPERATING CONDITIONS............................................................. 44 4.3.7TEST RESULTS....................................................................................... 45 4.4MAXIMUM PEAK OUTPUT POWER ....................................................... 53 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........ 53 4.4.2TEST INSTRUMENTS ............................................................................. 53 FCC ID: HFS-BCM94306MP Report No.: RF920514R033Issued: May 29, 2003 4.4.3TEST PROCEDURES.............................................................................. 54 4.4.4DEVIATION FROM TEST STANDARD .................................................... 54 4.4.5TEST SETUP ........................................................................................... 54 4.4.6EUT OPERATING CONDITIONS............................................................. 54 4.4.7TEST RESULTS....................................................................................... 55 4.5POWER SPECTRAL DENSITY MEASUREMENT................................... 56 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................ 56 4.5.2TEST INSTRUMENTS ............................................................................. 56 4.5.3TEST PROCEDURE ................................................................................ 57 4.5.4DEVIATION FROM TEST STANDARD .................................................... 57 4.5.5TEST SETUP ........................................................................................... 57 4.5.6EUT OPERATING CONDITIONS............................................................. 57 4.5.7TEST RESULTS....................................................................................... 58 4.6BAND EDGES MEASUREMENT ............................................................. 66 4.6.1LIMITS OF BAND EDGES MEASUREMENT.......................................... 66 4.6.2TEST INSTRUMENTS .........................................…

Text truncated - open the document above for the full version.

FCC ID: HFS-BCM94306MP Report No.: RF920514R0373Issued: May 29, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: HFS-BCM94306MP Report No.: RF920514R0374Issued: May 29, 2003 FCC ID: HFS-BCM94306MP Report No.: RF920514R0375Issued: May 29, 2003 RADIATED EMISSION TEST FCC ID: HFS-BCM94306MP Report No.: RF920514R0376Issued: May 29, 2003
