HFS-CT9608Tri-Band Mobile Phone W/ Bluetooth

Discover your phone Philips continuously strive s to improve its products. Therefore, Philips reserves the rights to revise this user guide or withdraw it at any time without prior notice.Philips provides this user guide "as is" and does not accept, except as required by applicable la w, liability for any error, omission or discrepancy between this userguide and the product described. The device is meant tobe connected to GSM/GPRS networks. How to... Numeric keys Decorate hook Navigation & keys 262,000 Color Main screen Pick up key Hang up, cancel, and on/off key Battery room USB Port/Battery Charging Left Softkey Right Softkey Status LED Volume/Brightness key Integrated antenna Back of the phone: camera lens Camera key Switch the phone On/Off Long press . Enter your PIN code Enter your PIN code usingthe keypad and press or to confirm. Lock the keypad Long press (the keypad is automatically unlocked whenreceiving a call).The keypadis locked when the slider isclosed. Unlock the keypad Press Right Softkey; yourphone asks you "UnlockKeypad"? Press Left softkeyYes to confirm or Rightsoftkey No to cancel unlock. Make a call Enter the phone number onthe keypad and press todial. End a call Press . Answer a call Press when your phonerings. SoftkeysThe left and right soft keys ( and ) located on topof the keypad allow you to select the correspondingoptions that appear on the screen immediately abovethem, including during calls. These keys arecontextual: they will vary according to the current context. Reject a call Press when your phonerings. Set the conversationvolume Press volume side keys toadjust the volume during acall. Activate/deactivate the loudspeaker Handsfree icon appears onthe screen above . Access the Contacts Press ( T ) in idle mode. Access the Quick call function Press ( S ) in idle mode. Access the Dialed list Press in idle mode. Activate/deactivate the Silence mode Press and select silencemode. Access the Main Menu Press in idle mode. Go to previous menu Press . Quickly returnto idle when browsing menus Short or long press . Use the fast access softkey Press when in idle modeto access or change thefeature set on the softkey. Entertainment Browser Media Player page 11 page 14 page 19 Camera Messages My Files page 22 page 26 page 37 My Applications Contacts Profiles page 38 page 43 page 47 Connectivity Calls Settings page 48 page 51 page 53 Main MenuThe Main Menu gives you access to all the differentfeatures of your Philips 960 mobile phone presentedin the form of a grid. The table above indicates thearrangement of the Main Menu , the meanings of the various icons found there, an d the page in this manual where more detailed information concerning thesubject can be found.Press to access the Main Menu in idle mode, then use the Navigation keys ( S ), ( T ), ( W ), or ( X ) - to browse the icons and lists, or press the keys 0-9, or keys for a direct access to the option or feature of your choice (the key mapping also applies tolists). When navigating in a list, a scroll bar located onthe right hand side of the screen shows your actualposition in the list. Within lists, press or to access the options related to the selected item, press or select Back to go back one level. How to use this manualThe current manual strives to present the informationconcerning your Philips 960 mobile phone in as clear and as complete a form as possible. The content ofthis manual is structured as follows: Discover your phone The current section. Presents anoverview of your mobile phone andinformation on the most commonlyused features. Chapter 1: Getting Started Information on how to set up yourmobile phone for the first time:installation of the SIM card, batteryand etc. Chapter 2: Calling Information on how to make andreceive calls. Chapter 3: Text Entry Information on how to enter textusing the numeric keypad. Chapter 4-15 These chapters contains each elementof the Main Menu one at a time. Others Sections for Icons & Symbols,Precautions, Philips authenticaccessories, SAR information, andfinally the Declaration of Conformity. i Table of contents 1. Getting Started ............................................1 Insert the SIM card ...........................................1Switching on the ph one ...................................2 Charging the battery via USB .........................2Copying the contents of your SIM ................3Setting Hotkeys .................................................3 2. Calling ................................................................5 Making a call .......................................................5 3. Text Entry ......................................................7 T9 Text input ....................................................7Basic text input ..................................................9 4. Entertainment ........................................... 11 Games ............................................................... 11IMPS .................................................................. 12Demo mode .................................................... 13 5. Browser ........................................................ 14 WAP ................................................................. 14Start Browser ................................................. 14Bookmarks ...................................................... 15Settings ............................................................. 16WAP Push setting .......................................... 17Connectivity .................................................... 17 6. Media Player ............................................... 19 Audio ................................................................ 19Video ................................................................ 20Pictures ............................................................ 20 7. Camera .......................................................... 22 How to... ........................................................…

Text truncated - open the document above for the full version.

Address：188, Wen Hwa 2nd Road, Kuei Shan Hsiang,, TaoYuan 333, Taiwan, R.O.C. Telephone no：886-3-327-2345 Fax no：886-3-3270460 Jun.01, 2005 Federal Communications Commission Authorization and Evaluation Division FCC ID: HFS-CT9608 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematic RF circuitry diagram 2. Functional block diagram 3. Antenna Specification 4. Tune-up Procedure 5. Theory of operation 6. Part List/BOM The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Eric Huang / Project Certification Leader Quanta Computer Inc.

POWER OF ATTORNEY Date: June 9, 2005 We, the undersigned, hereby authorize Compliance Certification Services Inc. to act on our behalf in all matters relating to all processes related to FCC application and communications issue. Any and all acts carried out by Compliance Certification Services Inc. on our behalf shall have the same effects as acts of our own. If you have any questions regarding this authorization, please don’t hesitate to contact us. Thank you. Sincerely yours,  -------------------------------------------------- Eric Huang / Project Certification Leader Quanta Computer Inc.

Mike Kuo From: amanda.wu [[email protected]] on behalf of application [[email protected]] Sent: Monday, June 27, 2005 4:49 AM To: Mike Kuo Subject: Re ： FW: Quanta Computer Inc., FCC ID: HFS-CT9608, Assessment NO.: AN05T4858, Notice#1 Attachments: 960 Schem Revsied 0623.pdf; 960 Int photo.pdf; 960 Ext photo.pdf; 960 TestRpt for Part 15 C revised 0620.pdf; 960 OpDes for Bluetooth 0627.pdf; 960 BlkDia for Bluetooth.pdf; 960 OpDes Revised 0627.pdf 7/2/2005 Dear Mike: Please refer our reply as below. Tks Best Regard Amanda -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Monday, June 13, 2005 6:44 PM To: Mike Kuo Cc: [email protected] Subject: Quanta Computer Inc., FCC ID: HFS-CT9608, Assessment NO.: AN05T4858, Notice#1 Hi Mike, This is a 900/1800/1900 GSM/GPRS smart phone with a BT module inside. And the question for DTS are as below. Question#1: Please provide the function block and operation theory of Bluetooth module. Ans; Please refer the attachment. Question#2: The operational description and schematics indicated this device can operate in 850MHz and can also support Edge phone which don't agree with the application, please explain. Ans; Theory of Operation and Schematic modified & attached. "Mike Kuo" <[email protected]> 2005/06/18 04:01 PM 收件人： <[email protected]> 副本抄送： 主旨： FW: Quanta Computer Inc., FCC ID: HFS-CT9608, Assessment NO.: AN05T4858, Notice#1 Question#3: Please provide EUT external and internal photos. Ans; Question#4: The reading of channel separation indicated in report is less than 20dB bandwidth. Please revise the limit of channel separation to two-third 20dB bandwidth. Ans; The test report had revised as below. Question #5: Please explain the elements in 16 dB offset during PPSD tests. Ans; External attenuator (10 dB) + cable loss (2) + dc block (1) + spliter (3) = 16 dB Best Regards, Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 7/2/2005

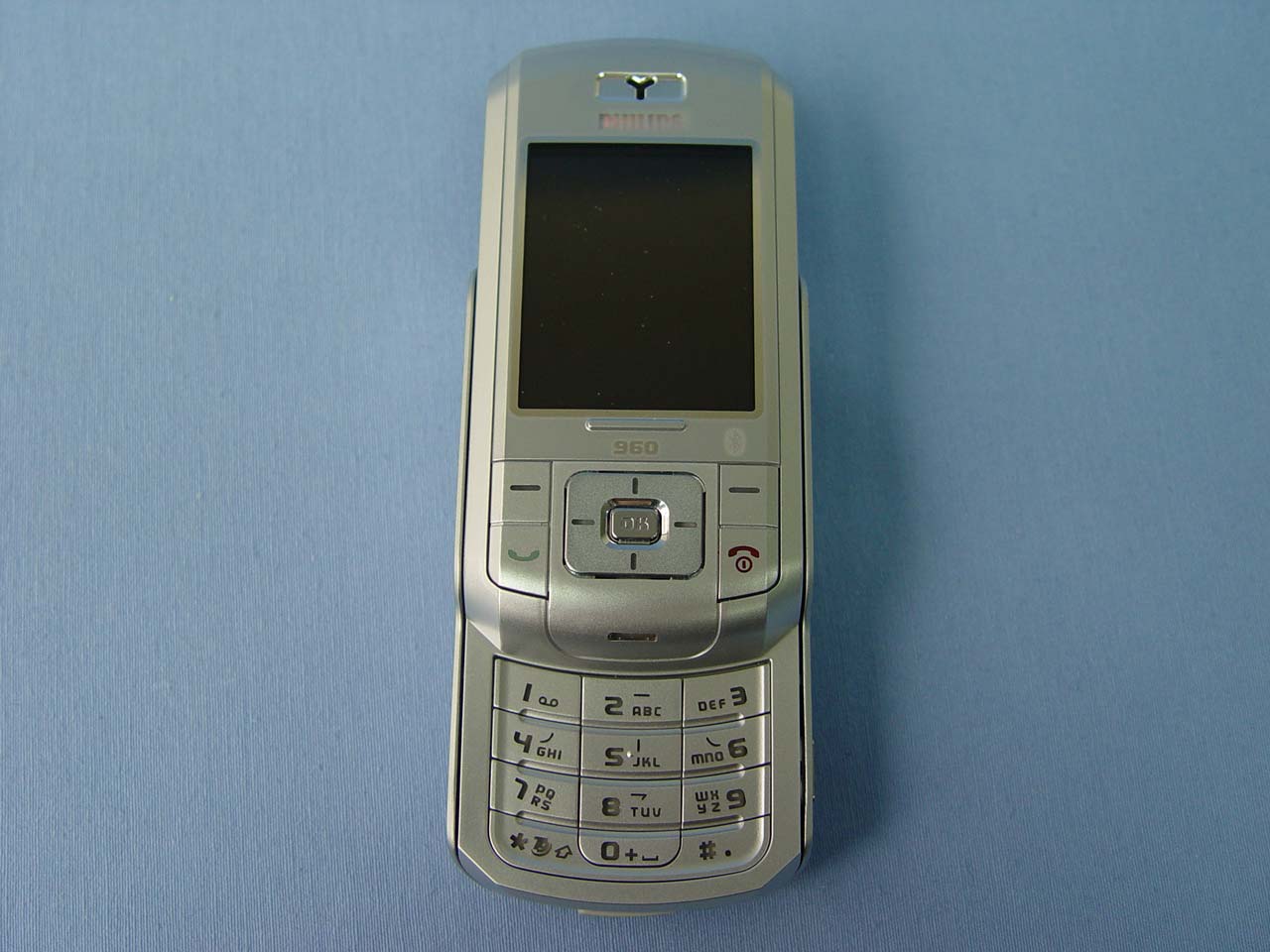

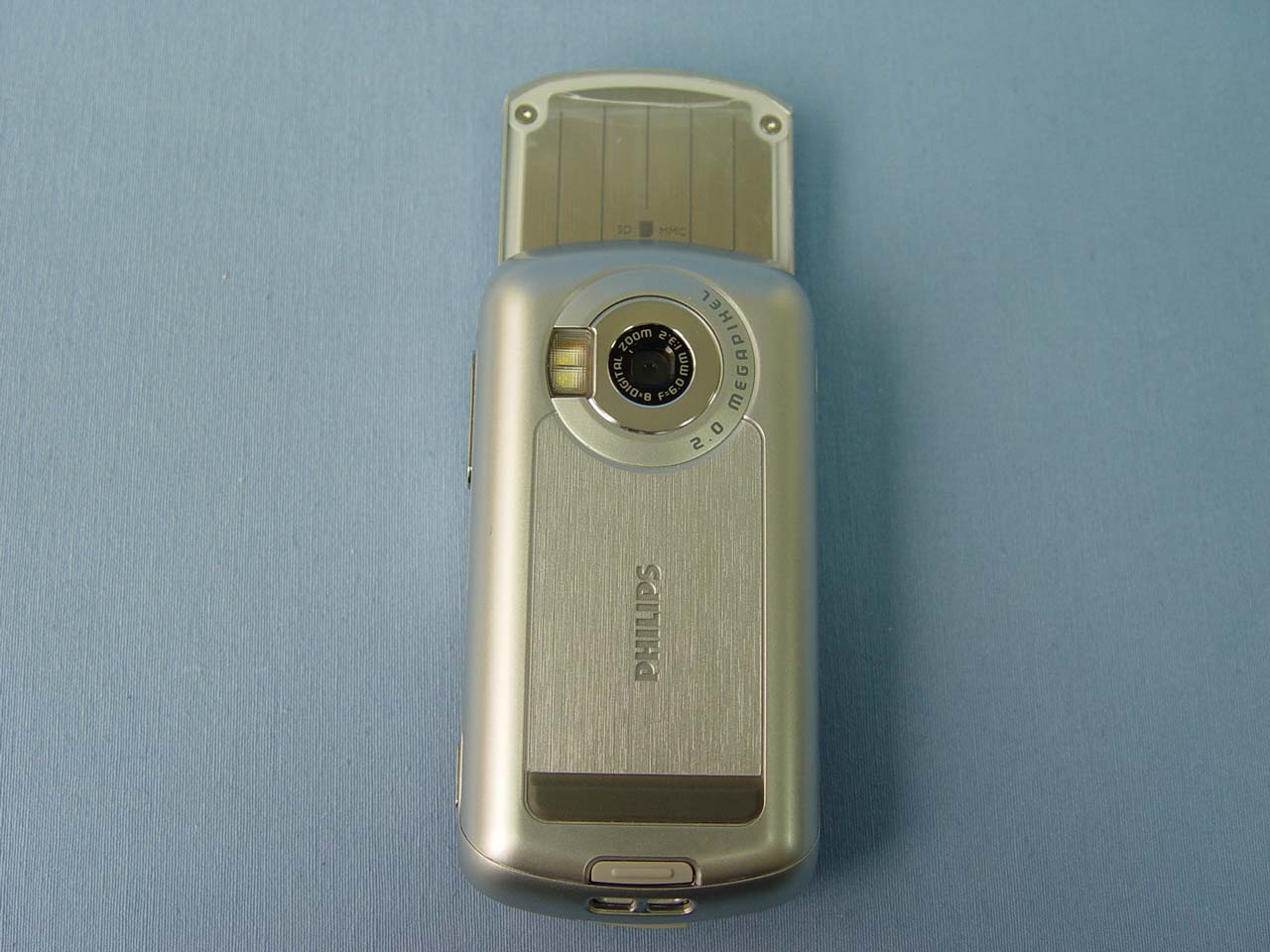

Compliance Certification Services Inc. Report No: 50512005 Date of Issue: June 09, 2005 Page 1 Total Page: 10 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 50512005 Date of Issue: June 09, 2005 Page 2 Rev.00 Compliance Certification Services Inc. Report No: 50512005 Date of Issue: June 09, 2005 Page 3 Rev.00 Compliance Certification Services Inc. Report No: 50512005 Date of Issue: June 09, 2005 Page 4 Rev.00 Compliance Certification Services Inc. Report No: 50512005 Date of Issue: June 09, 2005 Page 5 Rev.00

Compliance Certification Services Inc. Report No: 50512005 Date of Issue: June 09, 2005 Page 6 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 50512005 Date of Issue: June 09, 2005 Page 7 Rev.00 Bluetooth Antenna GSM Antenna Compliance Certification Services Inc. Report No: 50512005 Date of Issue: June 09, 2005 Page 8 Rev.00 Compliance Certification Services Inc. Report No: 50512005 Date of Issue: June 09, 2005 Page 9 Rev.00 Compliance Certification Services Inc. Report No: 50512005 Date of Issue: June 09, 2005 Page 10 Rev.00

Compliance Certification Services Inc. Report No.: 50512005-RP2 FCC ID: HFS-CT9608 Date of Issue: June 09, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 46 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Tri-Band Mobile Phone Model: 960 Trade Name: Philip Issued to Quanta Computer lnc. No.4, Wen Ming 1 St., Kuei Shan Hsiang, Tao Yuan Shien, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No.: 50512005-RP2 FCC ID: HFS-CT9608 Date of Issue: June 09, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION ........................................................................................................................4 3. TEST METHODOLOGY .................................................................................................................5 3.1 EUT CONFIGURATION.....................................................................................................................5 3.2 EUT EXERCISE.................................................................................................................................5 3.3 GENERAL TEST PROCEDURES..........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.....................................................6 3.5 DESCRIPTION OF TEST MODES........................................................................................................6 4. INSTRUMENT CALIBRATION.....................................................................................................7 5. FACILITIES AND ACCREDITATIONS .......................................................................................8 5.1 FACILITIES ......................................................................................................................................8 5.2 EQUIPMENT.....................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING...............................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS....................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................10 6.1 SETUP CONFIGURATION OF EUT....................................................................................................10 6.2 SUPPORT EQUIPMENT ............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS..........................................................................................11 7.1 PEAK POWER.................................................................................................................................11 7.2 BAND EDGES MEASUREMENT .............................................................................................12 7.3 PEAK POWER SPECTRAL DENSITY.................................................................................................17 7.4 FREQUENCY SEPARATION....................................................................................................20 7.5 NUMBER OF HOPPING FREQUENCY ...................................................................................22 7.6 TIME OF OCCUPANCY (DWELL TIME)................................................................................24 7.7 RADIO FREQUENCY EXPOSURE.....................................................................................................31 7.8 SPURIOUS EMISSIONS .............................................................................................................32 7.9 POWERLINE CONDUCTED EMISSIONS............................................................................................42 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ...........................................................................45 Compliance Certification Services Inc. Report No.: 50512005-RP2 FCC ID: HFS-CT9608 Date of Issue: June 09, 2005 Page 4 Rev. 00 2. EUT DESCRIPTION Product Tri-Band Mobile Phone Trade Name Philip Model Number 960 Model Discrepancy N/A Power Supply Adapter: PHILIPS / P925BW05050EB65 100-240V, 50/60Hz, 0.1A 5V, 0.5A, 2.5W Battery: Quanta Pn1 / 1000mAh Frequency Range 2402 ~ 2480 MHz Transmit Power -0.65 dBm Modulation Technique FHSS (GFSK) Transmit Data Rate 1Mbps Number of Channels 79 Channels Antenna Specification Embedded antenna / Gain: 0.0 dBi Remark: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: HFS-CT9608 filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No.: 50512005-RP2 FCC ID: HFS-CT9608 Date of Issue: June 09, 2005 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous n…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 50512005-RP2 FCC ID: HFS-CT9608 Date of Issue: June 09, 2005 Page 45 Rev. 00 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No.: 50512005-RP2 FCC ID: HFS-CT9608 Date of Issue: June 09, 2005 Page 46 Rev. 00 7.10 CONDUCTED EMISSION SET UP PHOTOS
