HFS-G50PCS-GSM Cellular Phone

Operating Instructions EB-G50 Digital Cellular Phone Before operating this equipment please read these instructions completely. FCC Regulations Conditions of Use Operation of this Panasonic mobile phone is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Panasonic mobile phone generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device on and off, the user is encouraged to try to correct the interference by one or more of the following measures: 1). Reorient or relocate the receiving antenna. 2). Increase the distance between the device and receiver. 3). Connect the device into an outlet on a circuit different from that to which the receiver is connected. 4). Consult the dealer or an experienced radio/TV technician for help. The radiated output power of this internal wireless radio is far below the FCC radio frequency exposure limits. Nevertheless, the wireless radio shall be used in such a manner that the radio is 1.5 cm or further from the human body. However, the user of wireless radios may be restricted in some places or situatio ns, such as aboard airplanes. If you are unsure of restrictions, you are encouraged to ask for authorization before turning on the wireless radio. Several restrictions and cautions of using mobile phone are listed in the Important Information. FCC RF EXPOSURE INFORMATION Read this information before using your handset In August 1996 the Federal Communication Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations. To comply with FCC RF exposure requirements, a minimum separation distance of 1.5 cm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with FCC RF exposure requirements and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov Contents Important Information ･･････････････････････････････････････････････････････････ i Care and Maintenanceii Quick Reference1 Location Of Controls1 Display Icons2 Getting Started3 Basic Operation5 Switching the Phone On/Off5 Making a Call5 International Dialling5 Answering a Call5 Ending a Call5 Emergency Calls6 Initially Setting the Time/Date6 Accessing the Phonebook to Dial6 Earpiece Volume Control6 SIM Lock6 Using the PIN7 Setting Alert Type7 Key Guard7 Phonebook8 Browsing Phonebook8 Creating a Number8 Grouping Phonebook Entries9 Reviewing the Phonebook10 Hot Key Dial Numbers10 My Numbers10 Personalising Your Phone ･････････････････････････････････････････････････････ 10 Language10 Changing the Ring Tones11 Display Setting12 Profile Mode12 User Messages12 Defaults12 Own Menu13 My Phonebook13 Game (STK)14 Text Messages14 Setting the Phone for Short Text Messages14 Setting the Message Centre Number14 Creating a Text Message15 T9 Text Input16 Other Text Modes16 Editing Text17 Receiving Text Messages17 User Messages…

Text truncated - open the document above for the full version.

Quanta Computer Incorporation Date: June 24, 2003 Federal Communications Commission Authorization and Evaluation Division FCC ID: HFS-G50 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram 4. Antenna spec. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, _____________________________ Frank Ho / Director Company name. Quanta Computer Inc. 5. Part list

From: Lucy [[email protected]] Sent: Wednesday, July 23, 2003 6:29 AM To: Mike Kuo; 'Jonson Lee (E-mail)'; Eric (E-mail); Ting (E-mail) Cc: Shirley Kang Subject: Re: Quanta Computer Inc., FCC ID:HFS-G50, AN03T3103 Hi Mike, Below please find the reply for Q#1-Q#16. Q#1&13, after checking with Quanta that this device won't 850GSM module inside and then please refer to the attached revised technical specification for details. Q#2&14, please refer to the attached for revised FCC ID label format. Q#13, please refer to the attached for the Part list. Q#4, please refer to the attached for the block diagram. Q#5&8&12, please refer to the attached for revised user manual. Q#6, please refer to the page 15 of revised test report for details. Q#7, through checking with Quanta that this device does has the capabilities for EGSM900, DCS1800 and GSM1900 though in US only GSM1900 can work. Q#9&10, please find the attached for the revised SAR test report. Q#11, please refer to the attached file for SAR data plots. Best Regards, Lucy ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: "Mike Kuo" <[email protected]>; "'Jonson Lee (E-mail)'" <[email protected]>; "Eric (E-mail)" <[email protected]>; "Lucy (E-mail)" <[email protected]>; "Ting (E-mail)" <[email protected]> Cc: "Shirley Kang" <[email protected]> Sent: Wednesday, July 23, 2003 5:03 AM Subject: RE: Quanta Computer Inc., FCC ID:HFS-G50, AN03T3103 Please provide request for confidentiality letter if portion of attachments are considered as confidential document. M.Kuo -----Original Message----- From: Mike Kuo Sent: Tuesday, July 22, 2003 1:59 PM To: Jonson Lee (E-mail); Eric (E-mail); Lucy (E-mail); Ting (E-mail) Cc: Shirley Kang Subject: FW: Quanta Computer Inc., FCC ID:HFS-G50, AN03T3103 -----Original Message----- From: CERTADM Sent: Tuesday, July 22, 2003 1:56 PM To: '[email protected]' Subject: Quanta Computer Inc., FCC ID:HFS-G50, AN03T3103 Notice_content ------------- Administrative portion: Question #1: Please provide theory of operation Question #2: Please provide proposed FCC ID label format and location. Question #3: Please provide Part list. Question #4: Please provide block diagram. Question #5: Some portion of 2 of 2 of user manual can not be read. Some of pages are blank and heading sections were cut off. Please provide complete user manual. Part 24 Portion: Question #6:section 6.5 of test report , please indicate which GPRS class was used during EIRP measurement. Question #7:In accordance with tune up procedure, the phone is capable of EGSM900, DCS1800 and GSM1900. Please confirm the capabilities of phone . RF Exposure portion: Question #8: Cover page of user manual indicates the separation requirement to use with the phone is 2.5cm but the separation distance mentioned in RF exposure section is 1.5cm. SAR for body worn evaluation was done with 1.5 cm separation distance. Please harmonize the distance requirements. Question #8: SAR test report does not include approval signature. Please provide signed copy of SAR test report. Question #10:The temperature during SAR measurement is beyond the range allowed under OET 65 supplement C ( 20- 26 degree C ). Please address this measurement procedure issue. Question #11: Please provide SAR data plots. Due to lack of information, technical and administrative review will continue after receiving required document. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

From: jonson [[email protected]] Sent: Thursday, July 24, 2003 4:54 AM To: Mike Kuo; Jonson Lee (E-mail); Eric (E-mail); Ting (E-mail) Cc: Shirley Kang Subject: Re: Quanta Computer Inc., FCC ID:HFS-G50, AN03T3103 ( Third Notice ) Hi Mike, For Q#15, please fine attaced for the revised test report again.(B30624212-RP.pdf) For Q#16&17, please refer to the SAR test report, test plot and SAR system validation plot again that the test date, liquid parameter and temperature are consistent now. For Q18, please find attached for the Probe calibration file. For Q19, the accessory placed on that table is a ear phone and the purpose is to simulate the standing position. For Q20, the part list is also listed as a confidential document and please find attached for the revised confidential letter. For Q21, sorry for our misunderstanding and please refer to the attached file for revised user manual. Best Regards, Lucy -----Original Message----- From: CERTADM Sent: Wednesday, July 23, 2003 10:23 AM To: '[email protected]' Subject: Quanta Computer Inc., FCC ID:HFS-G50, AN03T3103 ( Third Notice) Notice_content ------------- Third Notice Question #15: In the revised Part 24 test report, section 5.5 of test report is to report the RF conducted output power in GSM and GRPS Class 10 measurement. However, in the revised test report, you have replaced previously reported RF conducted power measurement with EIRP measurement for GRPS mode. Please take a look the revised test report and compare with the original test report. Please revised test report again. Question #16: In the SAR plots and SAR system validation plots provided in your e-mail and compare with SAR main test report. There are several major disagreements on when you performed the measurement. In the SAR test report, the system validation tests were performed on 07/2, 07/4 and 07/07 which are in agreement with system validation plots. In the SAR test report, actual SAR measurement on the device were performed on 07/2, 07/4, 07/07. These test dates do not agree with the SAR data plots provided. In the SAR test plots, the tests were performed on 07/22, 07/18. All the liquid parameter indicated on the SAR plots can not be verified with liquid parameter listed in the SAR test report. Please go over your SAR test report and SAR data plots to harmonize the difference on the date and liquid parameter. If the SAR measurements were performed other than 07/2, 07/04, 07/22, please provide SAR system validation plots as well. Question #17: In your reply to question #10 about the ambient temperature during the SAR measurement, no explanation was provided and the temperature listed in the revised SAR test report have be revised. By comparing the revised SAR test report with SAR test plots, all temperature listed in the SAR plots indicated the air temperature are above 26 degree C and do not agree with revised SAR test report. When the question is addressed to the measurement procedure, please do provide your explanation to address the question. Question #18: Please provide Probe calibration file ( only DAE system calibration file and Dipole calibration file were provided). Question #19: Test setup photos for Part 24: In the test setup photo, in addition to the EUT, there is another table placed on the top of turn table, please explain what are the accessories placed on this table and what is the purpose of such table. Also in the AC conducted setup photos, the ear phone was attached to the vertical pole. In the future tests, please do not set up such device in this way. Even though you may try to use vertical pole to simulate standing position, but you did not consider that person may use the ear phone at sitting position. In the future, please place the ear phone on the table which is closed to the EUT . Question #20: Please confirm Parts list is not a confidential document. If it is confidential document, please revised your request for confidentiality letter. Question #21: Please take a look your revised user manual again. From page 1 to the last page, most of upper portion of information have been cut off. Please provide revised user manual again and make sure to address this problem before submitting. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

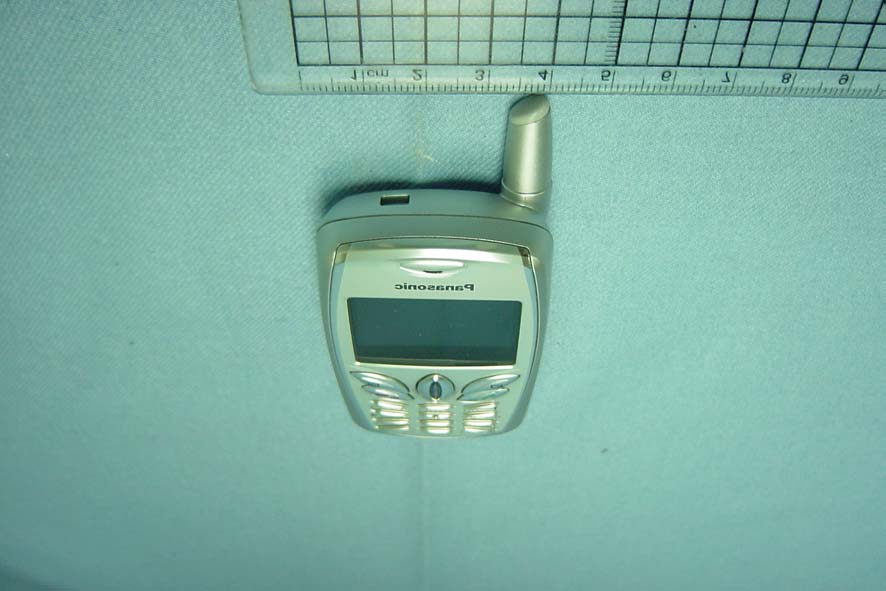

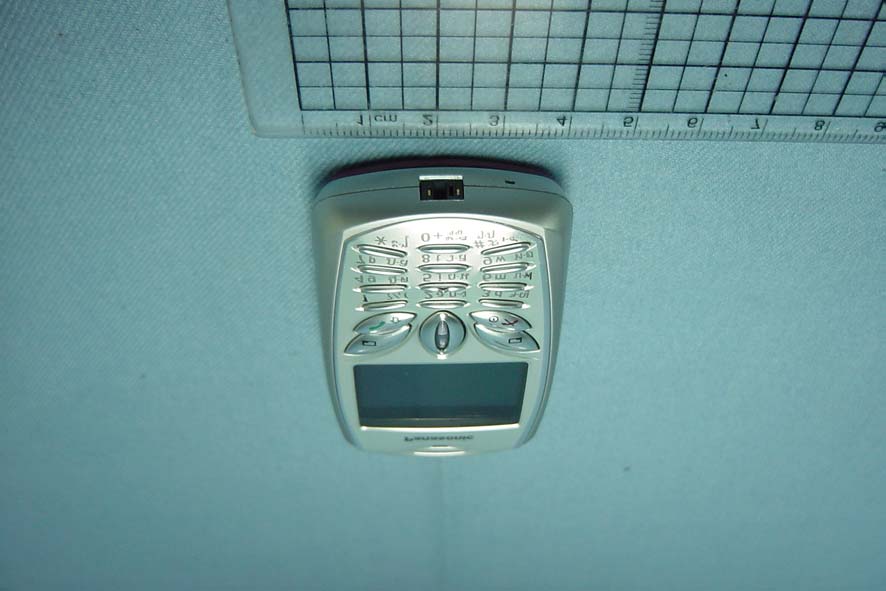

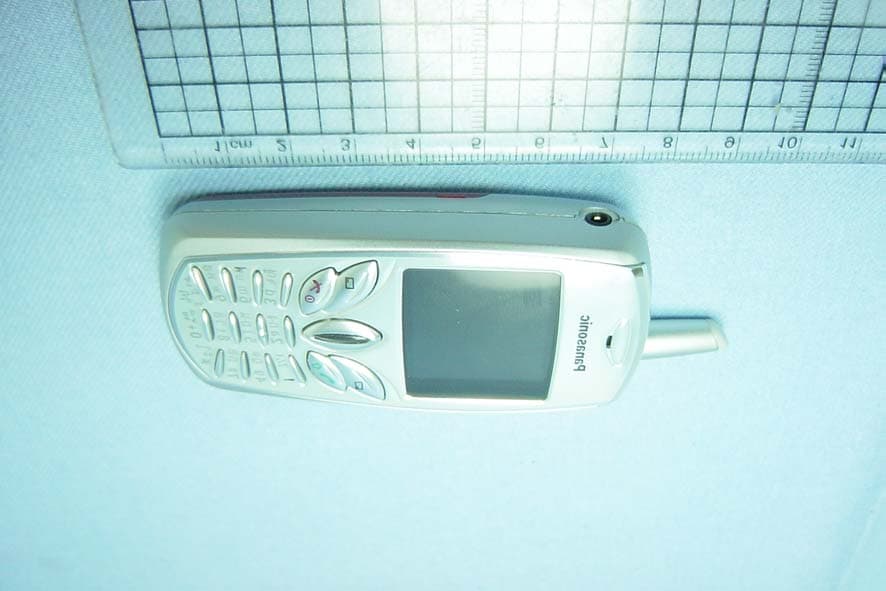

C&C Laboratory Co. Ltd. REPORT NO: B30624212-RP FCC ID: HFS-G50 DATE: 07/11/2003 Page 74 Rev. 00 APPENDIX 2 EXTERNAL PHOTOGRPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: B30624212-RP FCC ID: HFS-G50 DATE: 07/11/2003 Page 75 Rev. 00 All View of EUT Front View of EUT C&C Laboratory Co. Ltd. REPORT NO: B30624212-RP FCC ID: HFS-G50 DATE: 07/11/2003 Page 76 Rev. 00 Back View of EUT Top View of EUT C&C Laboratory Co. Ltd. REPORT NO: B30624212-RP FCC ID: HFS-G50 DATE: 07/11/2003 Page 77 Rev. 00 Bottom View of EUT Adaptor

FCC ID / IC LABEL FORMAT AND LOCATION Applicant: Quanta Computer Company Ltd. FCC ID: HFS-G50 FCC ID: HFS-G50 Trade Name: Panasonic Model Number: EB-G50 LABEL LOCATION

C&C Laboratory Co. Ltd. REPORT NO: B30624212-RP FCC ID: HFS-G50 DATE: 07/11/2003 Page 78 Rev. 00 APPENDIX 3 INTERNAL PHOTOGRPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: B30624212-RP FCC ID: HFS-G50 DATE: 07/11/2003 Page 79 Rev. 00 Internal of EUT --- 1 Internal of EUT --- 2 C&C Laboratory Co. Ltd. REPORT NO: B30624212-RP FCC ID: HFS-G50 DATE: 07/11/2003 Page 80 Rev. 00 Internal of EUT --- 3 Internal of EUT --- 4 C&C Laboratory Co. Ltd. REPORT NO: B30624212-RP FCC ID: HFS-G50 DATE: 07/11/2003 Page 81 Rev. 00 Internal of EUT --- 5 Internal of EUT --- 6 C&C Laboratory Co. Ltd. REPORT NO: B30624212-RP FCC ID: HFS-G50 DATE: 07/11/2003 Page 82 Rev. 00 Internal of EUT --- 7 Internal of EUT --- 8 C&C Laboratory Co. Ltd. REPORT NO: B30624212-RP FCC ID: HFS-G50 DATE: 07/11/2003 Page 83 Rev. 00 Internal of EUT --- 9 Internal of EUT --- 10 C&C Laboratory Co. Ltd. REPORT NO: B30624212-RP FCC ID: HFS-G50 DATE: 07/11/2003 Page 84 Rev. 00 Internal of EUT --- 11 Internal of EUT --- 12 C&C Laboratory Co. Ltd. REPORT NO: B30624212-RP FCC ID: HFS-G50 DATE: 07/11/2003 Page 85 Rev. 00 Internal of EUT --- 13

Tune-up procedure During manufacturing each phone will be individually calibrated. The measurement is done in a fully calibrated setup, which is based on a Agilent 8960 base station simulator (system tester). Furthermore, the highest power level is verified afterwards in a call measurement on three channels (low, mid and high). Procedure: 1. Set the phone to operational voltage and on one certain channel in a special service mode by means of company proprietary software. 2. The actual power is measured at several power levels. 3. The gain factors of each individual phone are adjusted until the target value is met. The appropriate gain control settings are stored in each phone individually (for each power level). The user has no possibility to change these settings later on. Modulation System The radio part realizes the conversion of the GMSK-HF-signals from the antenna to the baseband and vice versa. In receive direction, the signals are splitted into I- and Q-components and led to the D/Aconverter of the logic part. In transmit direction, the GMSK-signal is generated by modulating the baseband I- and Q-signals within an Up-conversion Modulation Phase Locked Loop. After that the signals are amplified by the power amplifier. Transmitter and Receiver are never active at the same time. Simultaneous receiving and transmission in two or even three bands is impossible. However, monitoring can be done independent from the receive and transmit band (RX- and TX timeslot of the band), respectively. The RF-part is designed for Multi-band operation (EGSM900,DCS1800,PCS1900) supporting GPRS functionality up to multi class 10. The RF-circuit (see separate attachment: S56 Block Diagram) consists of the following components: Transceiver : SKYWORKS chipset (CX74063) with the following functionality : - The receiver path consists of three integrated Low Noise Amplifier (LNAs), a quadrature demodulator and tunable receiver baseband filters. - The transmitter path consists of an I/Q modulator within a frequancy translation loop designed to perform frequency upconversion with high output spectral purity. The loop contains a phase-frequency detector, charge pump , mixerand hight power transmit VCO. Antenna Switch : Murata -- LMSP65DA-219 Power Amplifier : SKYWORKS -- CX77314 Receiver SAW filters : Murata -- SAFSE942(GSM), EPCOS -- B7744(DCS)/B7740(PCS) Clock : 26MHz TCVCXO For more general GSM information and access (download) of voluminous paperwork see:

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for MODEL: FCC ID: HFS-G50 July 23, 2003 REPORT NO: Prepared for Prepared by C&C LABORATORY, CO., LTD. 1st Fl., Universal Center No. 181, Sec. 1, Tatung Rd., Shijr Taipei Hsien, Taiwan TEL: (02) 8642-2071 FAX: (02) 8642-1150 REPORT NO: DATE: July 23, 2003 FCC ID: HFS-G50 C&C Laboratory Co., Ltd. Page: 2 of 25 This report shall not be reproduced except in full, without the written approval of C&C Laboratory Co., Ltd . . This document may be altered or revised by C&C Laboratory Co., Ltd. personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: July 22, 2003 REPORT NO: APPLICANT: MODEL: FCC ID: HFS-G50 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: GSM+GPRS Operating Mode: Maximum continuous output Tx Frequency: 1850.2 ~ 1909.8 MHz Max. O/P Power: (Conducted) GSM mode –30.88dBm GPRS mode – 30.70dBm Max. SAR (1g): 0.675W/Kg (Right head - tilted position) 0.214W/Kg (Body worn – GSM mode) 0.162W/Kg (Body worn – GPRS mode) Application Type: Certification FCC Rule Part(s): 24 (E) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Approved By Reviewed By Jonson Lee / Director Chris Hsieh / Engineer C&C Laboratory Co., Ltd. C&C Laboratory Co., Ltd. REPORT NO: DATE: July 23, 2003 FCC ID: HFS-G50 C&C Laboratory Co., Ltd. Page: 3 of 25 This report shall not be reproduced except in full, without the written approval of C&C Laboratory Co., Ltd . . This document may be altered or revised by C&C Laboratory Co., Ltd. personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. EUT DESCRIPTION .................................................................................................... 4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC...................... 5 3. DOSIMETRIC ASSESSMENT SETUP.......................................................................... 5 3.1. MEASUREMENT SYSTEM DIAGRAM ................................................................................................... 6 3.2. SYSTEM COMPONENTS ...................................................................................................................... 7 4. EVALUATION PROCEDURE...................................................................................... 9 5. MEASUREMENT UNCERTAINTY .............................................................................. 12 6. EXPOSURE LIMIT.................................................................................................... 13 7. EUT ARRANGEMENT.............................................................................................. 14 8. MEASUREMENT RESULTS...................................................................................... 15 8.1. SYSTEM VALIDATION ........................................................................................................................ 15 8.2. TEST LIQUID CONFIRMATION ........................................................................................................... 16 8.3. EUT TUNE-UP PROCEDURES............................................................................................................ 17 8.4. EUT SETUP PHOTOS ......................................................................................................................... 18 8.5. SAR MEASUREMENT RESULTS ........................................................................................................21 9. EUT PHOTOS.......................................................................................................... 22 10. EQUIPMENTS LIST & CALIBRATION INFORMATION............................................... 23 11. REFERENCES ......................................................................................................... 24 12. ATTACHMENTS...................................................................................................... 25 REPORT NO: DATE: July 23, 2003 FCC ID: HFS-G50 C&C Laboratory Co., Ltd. Page: 4 of 25 This report shall not be reproduced except in full, without the written approval of C&C Laboratory Co., Ltd . . This document may be altered or revised by C&C Laboratory Co., Ltd. personnel only, and shall be noted in the revision section of the document. 1. EUT DESCRIPTION APPLICANT: MODEL: FCC ID: HFS-G50 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: GSM+GPRS Operating Mode: Maximum continuous output Tx Frequency: 1850.2 ~ 1909.8 MHz Max. O/P Power: (Conducted) GSM mode – 30.88 dBm GPRS mode –30.70dBm Max. SAR (1g): 0.675W/Kg (Right head - tilted position) 0.214W/Kg (Body worn – GSM mode) 0.162W/Kg (Body worn – GPRS mode) Application Type: Certification FCC Rule Part(s): 24 (E) Antenna Type: Mono-pole Dimensions: Length: 25 mm, diameter: 9-9.3 mm Battery option: Only one model with EUT 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. REPORT NO…

Text truncated - open the document above for the full version.

Date/Time: 07/22/03 15:55:27 Test Laboratory: C&C Labratory CO., Ltd File Name: gsm1900-right-new.da4 gsm1900-right-Touch DUT: EB-G50; Type: EB-G50; Serial: ID:HFS-G50 Program: right Communication System: GSM1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8 Medium: HSL1900 (σ = 1.354 mho/m, ε r = 39.36, ρ = 1000 kg/m 3 ) Air Temperature 25.4 deg C ; Liquid Temperature 25.3 deg C Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1762; ConvF(5.4, 5.4, 5.4); Calibrated: 3/31/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn558; Calibrated: 3/7/2003 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1271 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 touch ch512/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 16.5 V/m Power Drift = 0.04 dB Maximum value of SAR = 0.598 mW/g touch ch512/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.988 W/kg SAR(1 g) = 0.572 mW/g; SAR(10 g) = 0.309 mW/g Reference Value = 16.5 V/m Power Drift = 0.04 dB Maximum value of SAR = 0.624 mW/g touch ch512/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Reference Value = 16.5 V/m Power Drift = 0.05 dB Maximum value of SAR = 0.42 mW/g Page1 Page2 Date/Time: 07/22/03 15:55:27 Test Laboratory: C&C Labratory CO., Ltd File Name: gsm1900-right-new.da4 gsm1900-right-Touch DUT: EB-G50; Type: EB-G50; Serial: ID:HFS-G50 Program: right Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium: HSL1900 (σ = 1.354 mho/m, ε r = 39.36, ρ = 1000 kg/m 3 ) Air Temperature 25.3 deg C ; Liquid Temperature 25.2 deg C Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1762; ConvF(5.4, 5.4, 5.4); Calibrated: 3/31/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn558; Calibrated: 3/7/2003 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1271 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 touch ch661/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 14 V/m Power Drift = -0.01 dB Maximum value of SAR = 0.422 mW/g touch ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.773 W/kg SAR(1 g) = 0.44 mW/g; SAR(10 g) = 0.235 mW/g Reference Value = 14 V/m Power Drift = -0.01 dB Maximum value of SAR = 0.494 mW/g touch ch661/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.495 W/kg SAR(1 g) = 0.26 mW/g; SAR(10 g) = 0.154 mW/g Reference Value = 14 V/m Power Drift = -0.01 dB Maximum value of SAR = 0.338 mW/g touch ch661/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Reference Value = 14 V/m Power Drift = 0.006 dB Maximum value of SAR = 0.324 mW/g Page1 Page2 Date/Time: 07/22/03 15:55:27 Test Laboratory: C&C Labratory CO., Ltd File Name: gsm1900-right-new.da4 gsm1900-right-Touch DUT: EB-G50; Type: EB-G50; Serial: ID:HFS-G50 Program: right Communication System: GSM1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8 Medium: HSL1900 (σ = 1.354 mho/m, ε r = 39.36, ρ = 1000 kg/m 3 ) Air Temperature 25.3 deg C ; Liquid Temperature 25.0 deg C Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1762; ConvF(5.4, 5.4, 5.4); Calibrated: 3/31/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn558; Calibrated: 3/7/2003 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1271 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 touch ch810/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 12.5 V/m Power Drift = 0.05 dB Maximum value of SAR = 0.367 mW/g touch ch810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.673 W/kg SAR(1 g) = 0.378 mW/g; SAR(10 g) = 0.199 mW/g Reference Value = 12.5 V/m Power Drift = 0.05 dB Maximum value of SAR = 0.424 mW/g touch ch810/Z Scan (1x1x21): Measureme…
