Operating Instructions EB-G51U Digital Cellular Phone Before operating this equipment please read these instructions completely. FCC Regulations Conditions of Use Operation of this Panasonic mobile phone is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Panasonic mobile phone generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device on and off, the user is encouraged to try to correct the interference by one or more of the following measures: 1). Reorient or relocate the receiving antenna. 2). Increase the distance between the device and receiver. 3). Connect the device into an outlet on a circuit different from that to which the receiver is connected. 4). Consult the dealer or an experienced radio/TV technician for help. The radiated output power of this internal wireless radio is far below the FCC radio frequency exposure limits. Nevertheless, the wireless radio shall be used in such a manner that the radio is 2.5 cm or further from the human body. However, the user of wireless radios may be restricted in some places or situations, such as aboard airplanes. If you are unsure of restrictions, you are encouraged to ask for authorization before turning on the wireless radio. Several restrictions and cautions of using mobile phone are listed in the Important Information. FCC RF EXPOSURE INFORMATION Read this information before using your handset In August 1996 the Federal Communication Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations. To comply with FCC RF exposure requirements, a minimum separation distance of 0.6 inches (1.5 cm) must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with FCC RF exposure requirements and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov Contents Important Information ···········································································································i Care and Maintenance·········································································································· ii Quick Reference ··················································································································· 1 Location Of Controls ···········································································································1 Display Icons······················································································································· 2 Getting Started······················································································································ 3 Basic Operation ···················································································································· 5 Switching the Phone On/Off ································································································ 5 Making a Call ······················································································································ 5 International Dialling············································································································ 5 Answering a Call ················································································································· 5 Ending a Call······················································································································· 5 Emergency Calls ·················································································································6 Initially Setting the Time/Date······························································································ 6 Accessing the Phonebook to Dial························································································ 6 Earpiece Volume Control ···································································································· 6 SIM Lock ····························································································································· 6 Using the PIN ······················································································································ 7 Setting Alert Type················································································································ 7 Key Guard ··························································································································· 7 Phonebook ·················································································································…

Text truncated - open the document above for the full version.

1 Quick Reference --------------------------- ------ Quick Reference Location of Controls Navigation Key: moving up and down through the options in the display area. In idle mode, pressing to enter Own Menu. Own Menu is a shortcut to access your favourite menus. You can set it in the Personalise. Perform the functions indicated by text shown on the LCD screen. In idle, long press left soft key to enter Messages, long press right soft key to enter Profile Mode List. Numeric key pads. Long Press to enter a “+” or “P”. When you need to dial an extension number, dial the phone number firstly then long press to add a “P” and enter the extension number. Charger Connection Phone Jack Display End Key Navigation Key Soft Key Soft Key Answer Key Special Character Keys Receiver 2 Main Display Left Hand Selection Area Make a call or answer a call. In idle mode, check the last dialled list. To end a call, return to idle mode, return to previous menu or reject an incoming call. Long press it to switch the phone on/off. In idle, long press to activate Browser. In idle, long press to switch the Mute Mode on and off. Display Icons Status Icons The status icons are displayed or animated according to the currently activated functions. The Antenna, Signal and Battery icons are displayed when the handset is switched on and connected to a network. is displayed when you are registered to a non-home network – roaming. is displayed when call divert is enabled. is displayed when vibration alert is enabled. is displayed when all tones or ring volume is off. is displayed when an unread message is stored or lights when message area is full. is displayed when Phone Lock is enabled. Status Icons Right Hand Selection Area 3 indicates the voice mail icon. indicates the received signal strength. indicates the battery level: - low battery. indicates the alarm is set. indicates the TTY status is enable 4 Getting Started Removing the Battery Open the battery by moving the release-latch upward and remove the battery away. Please see the left pictures. Note: Before removing the battery, turn the phone off completely. Fitting the SIM The SIM is inserted into the back of the phone underneath the battery. Hold the phone in a horizontal position where the antenna is on your right hand side and slide the SIM into the slot, with the metal connectors facing down. Ensure that the bevelled corner is positioning in the top left corner. Please see pictures above. Fitting the Battery Locate the two lugs at the bottom of the battery into the back of the phone. Slightly push the battery and click into place. Please see the left picture. Charging the Battery Insert the charger into the base of the phone and connect the travel charger to the socket-outlet. Then the charger indicator bar will start scrolling. It is recommended to charge 4 hours before first use. Battery Level Indicator While charging Charging complete Phone on 5 Phone off LCD Battery Indicator Off When charging is completed, disconnect the charger from the phone. Disconnecting the Fast Travel Charger Disconnect the charger from the main power supply. Pull downward charger plug to release it from the base of the phone. Please see the picture. Low Battery Warning When the battery power is low a warning tone will sound and a LOW BATTERY () message will be displayed. If this occurs during conversation, finish your call immediately. The power will automatically shut off after the warning tone. Fully recharge the battery. (Calls can be made and received while the phone is charging). It is recommended that the battery is fully discharged to maintain an optimum battery life and performance. See “Charging the Battery” page 3. 6 Basic Operation --------------------------- ------- Basic Operation Thank you for purchasing this Panasonic digital cellular phone. This phone is designed to operate on the GSM/GPRS triple band. Before operating this phone please read the ‘‘Important Information’’ section - see page i. Switching the Phone On/Off Be sure to insert the SIM card and battery beforehand. Long press to switch the phone on or off. Making a Call Ensure that the signal strength meter shows network coverage is available in the current area. Enter the area code > phone number > . International Dialling Idle + Hold until ‘‘+’’ is displayed > Enter a country code > area code > phone number. Note: Many countries / regions include an initial ‘’0’’ in the area code. This should, in most cases, be omitted when dialling international numbers. Answering a Call to answer a call or to reject the call. If a call is not answered, the number of incoming calls missed will be displayed. 7 Ending a Call Press . Emergency Calls To make an emergency call the antenna symbol must be presented. Enter 112 or if no SIM is fitted to the phone, press SOS to make an emergency call. Initially Setting the Time/Date You can set time and date displayed on the idle screen. Idle > Menu > Application > Clock > Clock Setting > Time & Date > Set to set time and date. Here is a step by step explanation for your reference. All instructions in this menu will be presented by symbol >. <Step Instruction> From Idle mode, press Menu and use to navigate Application, press Select and use again to highlight Clock. Press Select and use cursor to highlight Clock Setting, press Select and use to select Time & Date. Press and Set to the editing screen and use to move cursor to modify. You can choose the date and time format. Enter the digits for the date and time in the format you like. Enter the digits for the time using 24 hour clock. Press OK return to the previous page. Accessing the Phonebook to Dial You can access to the phonebook to browse or dial numbers. Idle > Names > (searching a name) > . Earpiece Volume Control 8 During a call, use to decrease or increase the volume. SIM Lock. Once you set this function with your SIM card in it, this phone can only recognize your SIM. When other SIM card inserts, the phone code is needed to…

Text truncated - open the document above for the full version.

Hi Tim: This is Fred. Sorry for the delay for revised SAR report because we have to wait until CCS modify it through. Anyway, i have already uploaded the revised SAR report on the Website. and regarding your comments for SAR setting...here are their replies: #2: We used Radio Communication Tester (Rohde & Schwarz, model CMU 200) as a base station to communicated with EUT. We could not used the same power setting for GSM and GPRS mode to get the maximum output power. For this test equipment, we must used the power setting described in this report. #3: The active slots determine the total number of slots the GPRS device can use simultaneously for both uplink and downlink communications. For this case the EUT is a GPRS Multislot class 8 (5 active slots, 1 uplink and 4 downlink) phone. Therefore, the crest factor is 8 for both GSM and GPRS mode. please let me know how it goes and when will I receive FCC grant thank you very much Fred Yang Sales Manager WBU Group. Sales Dept. Sporton International Inc. Office: 3-327-3456 Ext. 562 Mobile: 0910121978 Email: [email protected] www.sporton.com.tw Message has been scanned by Sporton AntiVirus System with no virus presents. To: <[email protected]> Subject: revised Quanta G51U SAR report 12/10/2003file://C:\DOCUME~1\TIMOTH~1.JOH\LOCALS~1\Temp\eud653.htm

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 4, 2003 RE: Quanta Computer Inc. FCC ID: HFS-G51 I have a few comments on the above referenced Application. SAR Report 1) The frequency range given in the SAR report for 850 GSM is 824.04 - 848.8. This does not correspond to the frequency range given in the rest of the application (824.2 - 848.8). Note that it is our understanding that GSM operates only on the 824.2-848.8 Frequencies. Please explain and/or correct as necessary. 2) Please explain why the power settings between GMS and GPRS mode appear different as given in section 8.3 of the test report. We may need a better understanding of what these settings are actually changing since it appears the power levels are being adjusted. It is our understanding that the only difference between GMS and GPRS should be the number of time slots used, and not a difference in power. If there is difference in power, please explain. If not, what is the purpose of this setting. Note that the conducted results given with the plots tend to show the power level is the same between GPRS and GMS. 3) It is uncertain why the GPRS body worn data is less than the voice mode data. It appears from questions #2 that the power may be higher for GPRS. Additionally, GPRS usually makes use of additional times slots (typically a crest factor of 4 vs. 8). Therefore it is expected that these results should be higher than GMS Voice mode results which is not the case from the data provided. The crest factor alone tends to cause an increase in the GPRS SAR from the typical Crest factor of 8. It is therefore uncertain why the regular body SAR is a higher value than the GPRS body SAR. Please explain. The following is a typical explanation for GPRS: --- Continued on Next Page --- z Page 2December 4, 2003 4) It appears from items #2 and #3 above that the crest factor used during testing for GPRS may be incorrect. this may require Body SAR to be retested. 5) Please update main portion of the SAR report to better describe the probe used during testing. For example, please include: a) description of the probe – including tip diameter, internal sensor offset from tip, etc 6) Please update the main portion of the SAR report to provide the following detail: a) descriptions of interpolation procedures used to locate peak SARs at a finer spatial resolution b) report probe tip distance to phantom inner surface c) descriptions of extrapolation procedures used to estimate SAR values adjacent to phantom surface (unreachable due to probe case and boundary effects) d) description of averaging (integration) procedures to get 1-g SAR from final interpolated grid 7) FYI, typically the FCC desires 5% tolerance on both Permitivity and conductivity. The results show that this was met in spite of the tolerance in some cases being listed as 10%. 8) FYI, it is preferred to use a 1900 MHz dipole for verification instead of the 1800 MHz, even though they are both within 100 MHz of the center of the band. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

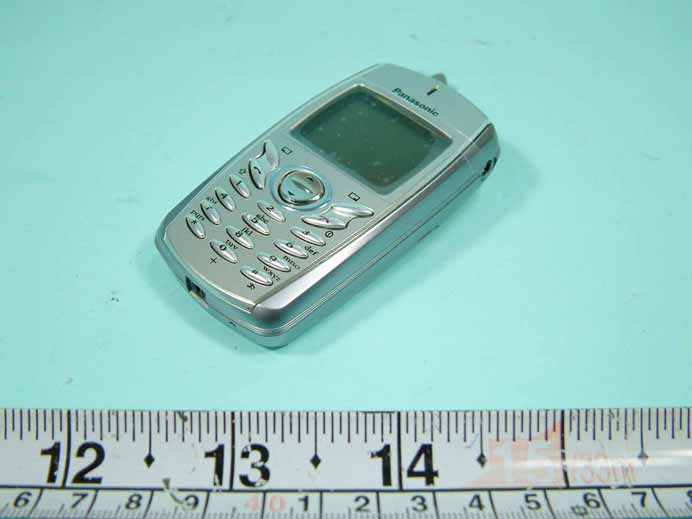

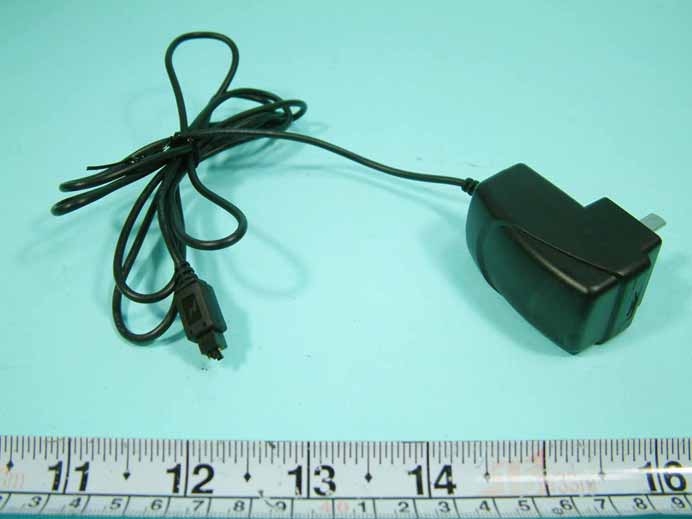

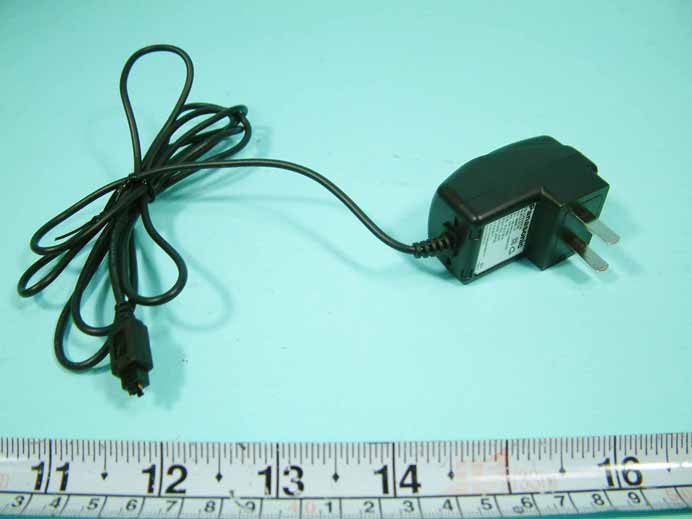

FCC TEST REPORT REPORT NO. : F3N0709 FCC ID: HFS-G51 SPORTON International Inc. PAGE NUMBER : A1 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 28, 2003 FAX : 886-2-2696-2255 APPENDIX A. External Photographs of EUT FCC TEST REPORT REPORT NO. : F3N0709 FCC ID: HFS-G51 SPORTON International Inc. PAGE NUMBER : A2 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 28, 2003 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3N0709 FCC ID: HFS-G51 SPORTON International Inc. PAGE NUMBER : A3 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 28, 2003 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3N0709 FCC ID: HFS-G51 SPORTON International Inc. PAGE NUMBER : A4 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 28, 2003 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3N0709 FCC ID: HFS-G51 SPORTON International Inc. PAGE NUMBER : A5 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 28, 2003 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3N0709 FCC ID: HFS-G51 SPORTON International Inc. PAGE NUMBER : A6 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 28, 2003 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3N0709 FCC ID: HFS-G51 SPORTON International Inc. PAGE NUMBER : A7 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 28, 2003 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3N0709 FCC ID: HFS-G51 SPORTON International Inc. PAGE NUMBER : A8 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 28, 2003 FAX : 886-2-2696-2255

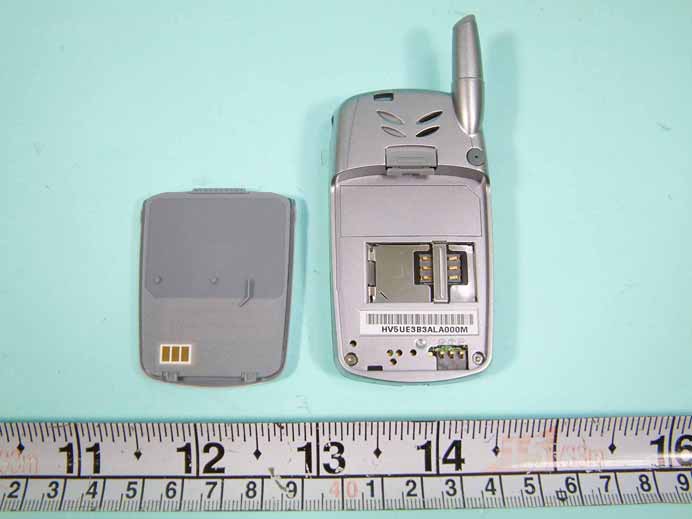

FCC TEST REPORT REPORT NO. : F3N0709 FCC ID: HFS-G51 SPORTON International Inc. PAGE NUMBER : B1 OF B9 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 28, 2003 FAX : 886-2-2696-2255 APPENDIX B. Internal Photographs of EUT FCC TEST REPORT REPORT NO. : F3N0709 FCC ID: HFS-G51 SPORTON International Inc. PAGE NUMBER : B2 OF B9 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 28, 2003 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3N0709 FCC ID: HFS-G51 SPORTON International Inc. PAGE NUMBER : B3 OF B9 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 28, 2003 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3N0709 FCC ID: HFS-G51 SPORTON International Inc. PAGE NUMBER : B4 OF B9 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 28, 2003 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3N0709 FCC ID: HFS-G51 SPORTON International Inc. PAGE NUMBER : B5 OF B9 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 28, 2003 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3N0709 FCC ID: HFS-G51 SPORTON International Inc. PAGE NUMBER : B6 OF B9 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 28, 2003 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3N0709 FCC ID: HFS-G51 SPORTON International Inc. PAGE NUMBER : B7 OF B9 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 28, 2003 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3N0709 FCC ID: HFS-G51 SPORTON International Inc. PAGE NUMBER : B8 OF B9 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 28, 2003 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F3N0709 FCC ID: HFS-G51 SPORTON International Inc. PAGE NUMBER : B9 OF B9 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 28, 2003 FAX : 886-2-2696-2255

Operating Instructions EB-G51U Digital Cellular Phone Before operating this equipment please read these instructions completely. FCC Regulations Conditions of Use Operation of this Panasonic mobile phone is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Panasonic mobile phone generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device on and off, the user is encouraged to try to correct the interference by one or more of the following measures: 1). Reorient or relocate the receiving antenna. 2). Increase the distance between the device and receiver. 3). Connect the device into an outlet on a circuit different from that to which the receiver is connected. 4). Consult the dealer or an experienced radio/TV technician for help. The radiated output power of this internal wireless radio is far below the FCC radio frequency exposure limits. Nevertheless, the wireless radio shall be used in such a manner that the radio is 2.5 cm or further from the human body. However, the user of wireless radios may be restricted in some places or situations, such as aboard airplanes. If you are unsure of restrictions, you are encouraged to ask for authorization before turning on the wireless radio. Several restrictions and cautions of using mobile phone are listed in the Important Information. FCC RF EXPOSURE INFORMATION Read this information before using your handset In August 1996 the Federal Communication Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations. To comply with FCC RF exposure requirements, a minimum separation distance of 0.6 inches (1.5 cm) must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with FCC RF exposure requirements and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov Contents Important Information ···········································································································i Care and Maintenance·········································································································· ii Quick Reference ··················································································································· 1 Location Of Controls ············································································································1 Display Icons························································································································ 2 Getting Started······················································································································ 3 Basic Operation ···················································································································· 5 Switching the Phone On/Off ································································································· 5 Making a Call ······················································································································· 5 International Dialling············································································································· 5 Answering a Call ·················································································································· 5 Ending a Call························································································································ 5 Emergency Calls ·················································································································· 6 Initially Setting the Time/Date ······························································································ 6 Accessing the Phonebook to Dial························································································· 6 Earpiece Volume Control ····································································································· 6 SIM Lock ······························································································································ 6 Using the PIN ······················································································································· 7 Setting Alert Type················································································································· 7 Key Guard···························································································································· 7 Phonebook ··································································································…

Text truncated - open the document above for the full version.

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for Tri-Bands (GSM/DCS/PCS) Cellular Phone MODEL: EB-G51U FCC ID: HFS-G51 October 2, 2003 REPORT NO: 03T2295-1 Prepared for Quanta Computer Company Ltd. 188, Wen Hwa 2nd Road Kuei Shan Hsiang Taoyuan Hsien, Taiwan Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 03T2295-1 DATE: October 2, 2003 FCC ID: HFS-G51 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 31 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: September 29, & October 1 - 2, 2003 APPLICANT: Quanta Computer Company Ltd 188, Wen Hwa 2nd Road Kuei Shan Hsiang, Taoyuan Hsien, Taiwan MODEL: EB-G51U FCC ID: HFS-G51 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: GSM+GPRS Operating Mode: Maximum continuous output Tx Frequency: 1850.2 MHz to 1909.8 MHz 824.2 MHz to 848.80 MHz Max. O/P Power: (Conducted/Average) GSM1900: 30.5dBm GSM850: 32.7dBm Max. SAR (1g): GSM1900: 0.638 mW/g (Right head tilted position) 0.512 mW/g (Body worn) GPRS: 0.4W/Kg (Body worn) GSM850: 0.645 mW/g (Right head touched position) 0.773 mW/g (Body worn) GPRS: 0.689 mW/g (Body worn) Application Type: Certification FCC Rule Part(s): § 24E & 22H This device contains 1800MHz GSM functions that are not operational in U.S. Territories. This filing is only applicable for GSM850 Cellular and GSM 1900 PCS operations This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager REPORT NO: 03T2295-1 DATE: October 2, 2003 FCC ID: HFS-G51 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 31 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. EUT DESCRIPTIONS......................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC.....................................5 3. DOSIMETRIC ASSESSMENT SETUP...................................................................................5 3.1. MEASUREMENT SYSTEM DIAGRAM..................................................................................6 3.2. SYSTEM COMPONENTS...................................................................................................7 DASY4 MEASUREMENT SERVER.....................................................................................................7 DATA ACQUISITION ELECTRONICS (DAE).........................................................................................7 ET3DV6 ISOTROPIC E-FIELD PROBE FOR DOSIMETRIC MEASUREMENTS.............................…
