HFS-G70GSM1900MHz + GPRS Cellular phone

Contents i ContentsImportant Information ....................................................... 1 Safety Considerations ........................................................ 1 Care and Maintenance .................................................... 3Display Light Off .................................................................. 4Getting Started ................................................................... 5 Fitting and Removing the Battery ....................................... 5Fitting and Removing the SIM ............................................ 5Charging the Battery .......................................................... 6Operation of Battery Level Indicator ................................... 6Low Battery Warning .......................................................... 6 Keys & Displays .................................................................. 7 Keys.................................................................................... 8Shortcut from Idle Screen................................................... 9Displays ............................................................................ 10 How to Use this Phone ...................................................... 12 Symbols used in the Manual ........................................... 12Menu Display.................................................................... 12Menu Structure ................................................................ 13 Phone Basics .................................................................... 14 Phone ON/OFF................................................................. 14Displaying Menu .............................................................. 14Making Calls .................................................................... 15Answering Calls ............................................................... 17In-Call Options ................................................................. 18 My Phone Menu Structure .............................................. 23My Phone ......................................................................... 24 Sounds ............................................................................. 24Display ............................................................................. 29Language ......................................................................... 32Alert Type ........................................................................ 32Profiles.............................................................................. 33User Messages ................................................................ 36Answer Mode ................................................................... 37Reset Defaults ................................................................. 38Shortcuts .......................................................................... 38My Phonebook ................................................................. 39T9 Input ............................................................................ 39Key Guard ........................................................................ 40 Game Menu Structure...................................................... 41Games .............................................................................. 42 Selecting Games ............................................................. 42 Phone Book Menu Structure ............................................ 44Phone Book ...................................................................... 45 Storing ............................................................................. 45Viewing ............................................................................ 46Options in Phone Book .................................................... 46Group Settings ................................................................. 47Memory Status ................................................................. 48My Numbers .................................................................... 48Hot Key Dial ..................................................................... 49My Phonebook ................................................................. 50 ii Contents ContentsBrowser Menu Structure ...................................................51Browser ..............................................................................52 Server Setting .................................................................. 52WAP Activating................................................................. 53Bookmarks ...................................................................... 54 Scheduler ..........................................................................56Messages Menu Structure ...............................................57Messages ...........................................................................58 SMS ................................................................................. 58Options ............................................................................ 64Broadcast ........................................................................ 65 Text Entry ............................................................................68 Shift mode ........................................................................ 69Tegic................................................................................. 69Text Input ......................................................................... 69 Phone Option Menu Structure ..........................................72Phone Option ....................................................................73 Call Service ..................................................................... 73Call Divert ........................................................................ 77Security ........................................................................... 78Codes ...............................................................…

Text truncated - open the document above for the full version.

64 Messages Messages > Options Options Setting OptionsFrom Messages menu 4 Options A (Select) The following options are available: NOTE : In the area where GPRS is not supported, SMS may not be sent when SMS via GPRS is on. Message Centre Edit Message Centre number Protocol Select required Message Type from Standard Text, Fax, X.400, Paging, E-mail, ERMES, Voicemail Lifetime This is the duration that your message is stored in Message Centre Delivery Report Request a delivery report on the status of a sent message SMS via GPRS Send a Short Text message via GPRS Messages 65 Messages > Broadcast Broadcast Setting BroadcastFrom Messages menu 1 4 Broadcast A (Select) 2 4 Broadcast A (On/off) Viewing BroadcastFrom Messages menu 1 4 Broadcast > Read Messages A (Select) 2 To scroll to the available topics A (Next) Setting TopicFrom Messages menu 1 4 Broadcast > Topic > Current> A (Select) 2 4 required Topic A (Menu) 3 4 Add or Delete A (Select) NOTE : This function will depend on your Network Service Operator. You can receive your favourite information regularly from your service provider.You need to specify the “topic(s)” of information and the language that you wish to receive as broadcasts and tick the “Broadcast” on before you can receive them. 66 Messages Messages > Broadcast Setting User defined TopicFrom Messages menu 1 4 Broadcast > Topic > User Defined > <New entry> A (Select) 2 Enter Msg ID A (OK) 3 Enter Name A (OK) 4 4 Current A (Select) 5 4 <Add Topic> A (Select) 6 4 required Topic A (Select) Setting LanguageFrom Messages menu 1 4 Broadcast A (Select) 2 4 Languages A (Select) 3 4 required Language A (Select) 4 To continue to add languages; 4 Insert A (Select) To complete adding language; 4 Add to End A (Select) S elect B ack B roadcast T opic L anguages A uto D isplay B roadcast Messages 67 Messages > Broadcast Setting Auto DisplayFrom Messages menu 1 4 Broadcast A (Select) 2 4 Auto Display A (On/off) In idle mode, the latest Info Message is displayed on your phone automatically. 68 Text Entry Text EntryYou can use alphanumeric characters to enter details into the Phonebook, to create text, etc.NOTE: Displayed characters of T9 ® vary depending on the selected input language. Key Text Mode Numeric T9 ® (T9Abc, T9ABC, T9abc) (Input language: English) Multi tap (Input mode indicator: Abc, ABC or abc) (0 ~ 9) # Punctuation 1 Space 0 . , ? ! + - = : ¿¡ ” ’ ; _ 0 $ Punctuation 2 1 / ( ) < > [ ] { } % ~ & (1 / ( ) < > [ ] { } % ~ _ &) 1 % A B C (a b c) A B C 2 Ä (a b c 2 ä à ç) 2 & D E F (d e f) D E F 3 É (d e f 3 é è) 3 ' G H I (g h i) G H I 4 (g h i 4 í) 4 ( J K L (j k l) J K L 5 (j k l 5) 5 ) M N O (m n o) M N O 6 Ö Ñ (m n o 6 ö ñ ò) 6 * P Q R S (p q r s) P Q R S 7 (p q r s 7 ß) 7 + T UV (t u v) T U V 8 Ü (t u v 8 ü ù) 8 , W X Y Z (w x y z) W X Y Z 9 Æ Ø Å (w x y z 9 æ ø å) 9 C Shift mode Shift mode " * ī ∆ Θ Λ ȄȆȈĭȌȍ * ī ∆ Θ Λ ȄȆȈĭȌȍ * ! Alternatives / (Hold) Space # £ $ ¥ ¤ @ \ § ^ | (Hold) Space # £ $ ¥ ¤ @ \ § ^ | # Text Entry 69 Text EntryShift mode Shift mode changeThe Shift mode changes by pressing (within 1 sec) C If Input mode is changed, Shift mode is initialized.Auto capital changeAuto capital affects Abc and T9 Abc. If Input mode is changed to Abc or T9 Abc, the first character is input as upper case and subsequent letters as lower case. (Input mode indicator changes to abc or T9.) If these characters [. (Period) or ! or ?] are input, the next character is input as upper case. (Input mode indicator changes to Abc or T9 Abc. ) Tegic User Dictionary of TegicWhen edit mode is finished, all words in the editor are registered in User Dictionary of Tegic. Text Input To switch On/Off T9 mode, press ! Multi tap Tegic Abc -> ABC -> abc T9Abc -> T9ABC -> T9abc 70 Text Entry Text Entry T9® Text Input Using this mode of text input dramatically reduces the number of key presses required:Press a key once for any letter you require on that key. The desired letter may not be displayed. Continue pressing other keys until the end of a word is reached; then check that the word has been typed correctly before continuing on to the next word. If the combination of letters typed has produced a word which is not the one you require, press A repeatedly until the correct word is displayed. Continue to the next word. Example of Text Input in T9 ModeTo type a new message, follow these steps: 1 At the beginning of a new message press and hold @ (Clear) to delete previous text, if necessary. 2 Press C to change letter case, if necessary 3 Press %%(( "Call" is displayed. Note that the displayed words change as you type, always type to the end of the word before editing.T9 ® Languages can be selected from T9 Input -see “Setting T9 Input” on page 39. If the word you require is not in the internal dictionary then it should be entered using the Multi tap (ABC) mode. Text Entry 71 Text Entry Other Text Modes Select text mode (displayed in Information area on screen)Multi tap mode (Abc, ABC or abc):Each time a key is pressed in quick succession it displays the next character available on that key. Releasing the key or pressing another key enters the character displayed. The cursor moves to the next position.In T9 (Abc) or Multi tap (Abc) mode, the first entered letter in a sentence is in upper case. 72 Phone Option Menu Structure Phone Option Menu Structure P h o n e O p t i o n C a l l S e r v i c e C a l l D i v e r t S e c u r i t y N e t w o r k C S D S e t t i n g Time/ChargesCall WaitingWithhold IDCaller’s IDCharge SettingsLine All Voice CallsNot ReachableNo ReplyBusyStatus CheckCancel All Call BarCodesFixed DialSIM Lock Auto NetworkNew NetworkNetwork ListBand Select G P R S S e t t i n g G P R S I n f o Phone Option 73 Phone Option > Call Service Call Service Viewing Time/ChargesFrom Phone Option menu 1 4 Call Service > Time/Charges A (Select) 2 4 required service Last Call, All Voice Calls or Cost Left A (Select) Setting Call WaitingFrom Phone Option menu 1 4 Call Service > Call Waiting A (Select) 2 Set…

Text truncated - open the document above for the full version.

Quanta Computer Incorporation Oct. 25,2003 Federal Communications Commission Authorization and Evaluation Division FCC ID: HFS-G70 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematic RF circuitry diagram 2. Functional block diagram 3. Part List 4. Antenna specification 5. Tune-up procedure 6. Theory of operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application.

From: Steve Cheng Sent: Monday, November 17, 2003 8:33 PM To: Eric (E-mail) Cc: Mike Kuo Subject: AN03T3412 Quanta Cellphone HFS-G70 RT for project: AN03T3412 Quanta Cellphone HFS-G70 Subject: Question #1: setup photo, power cord sits on LISN, Please justify if test data is valid. Question #2: Test report, P84. Please explain why average is not measured while QP higher then average? Question #3: User manual, P9 show a backside speaker. Please explain what is the purpose of this backside-speaker for? Question #4: Where is antenna located? Please identify its location and type. For your info: Per FCC TCB conference call on 9/8/2003, Band edge measurement requirement has been revised. The measurement on each sub-block is no longer required. Please refer to following statement from FCC. Amendment to FCC Part 22H / 24E Block Edge Requirements Based on comments from manufacturers concerning our recent policy relating to block edge measurements and after further review of the updated rules under Parts 22H and 24E, we are amending the requirements for demonstrating block edge compliance. We will only require a plot showing block edge compliance at the upper and lower band edge frequencies for both Part 22 and 24 transmitters. Note: Review is not yet finished and more question may be issued before complete. Best Regards Steve Cheng / TCB Technical Reviewer Compliance Certification Services 561F Monterey Road Morgan Hill, CA 95037 Tel:(408) 463-0885 x: 119 Fax:(408) 463-0888 [email protected] http:\\www.ccsemc.com

From: [email protected] Sent: Tuesday, November 18, 2003 4:12 AM To: Steve Cheng Cc: Mike Kuo Subject: ??: AN03T3412 Quanta Cellphone HFS-G70 Hi, Steve, Please find our replies below, upon your comment. Q1. We have re-take the photo of the AC line conducted emission measurement. FYI.. Q2. Please the report which have been modified upon your comment attached. Q3. The backside speaker is equipped for the poly-chordal ringtone, not for the purpose on making phone call. FYI.. Q4. The location is shown on the attached files, the type is "dior antenna" (please refer to the AntSpec. attached) Thank you!! Should you have any question, please don't hesitate to ask me. Best regards, Eric Wong Compliance Certification Services Inc. (Formerly C&C Laboratory Co., Ltd.) Tel.: +886-3-3240332 Ext.49 Add.: No.81-1, Lane 210, Ba-de 2nd Rd., Luchu Hsiang, Taoyuan Hsien 338, Taiwan, R.O.C. Email: [email protected] URL: http://www.ccsemc.com.tw -------------------------------------------------------------------------------- Steve Cheng <[email protected]> 2003/11/18 12:33 PM &#25910;&#20214;&#20154;&#65306; "Eric (E-mail)" <[email protected]> &#21103;&#26412;&#25220;&#36865;&#65306; Mike Kuo <[email protected]> &#20027;&#26088;&#65306; AN03T3412 Quanta Cellphone HFS-G70 RT for project: AN03T3412 Quanta Cellphone HFS-G70 Subject: Question #1: setup photo, power cord sits on LISN, Please justify if test data is valid. Question #2: Test report, P84. Please explain why average is not measured while QP higher then average? Question #3: User manual, P9 show a backside speaker. Please explain what is the purpose of this backside-speaker for? Question #4: Where is antenna located? Please identify its location and type. For your info: Per FCC TCB conference call on 9/8/2003, Band edge measurement requirement has been revised. The measurement on each sub-block is no longer required. Please refer to following statement from FCC. Amendment to FCC Part 22H / 24E Block Edge Requirements Based on comments from manufacturers concerning our recent policy relating to block edge measurements and after further review of the updated rules under Parts 22H and 24E, we are amending the requirements for demonstrating block edge compliance. We will only require a plot showing block edge compliance at the upper and lower band edge frequencies for both Part 22 and 24 transmitters. Note: Review is not yet finished and more question may be issued before complete. Best Regards Steve Cheng / TCB Technical Reviewer Compliance Certification Services 561F Monterey Road Morgan Hill, CA 95037 Tel:(408) 463-0885 x: 119 Fax:(408) 463-0888 [email protected] http:\\www.ccsemc.com

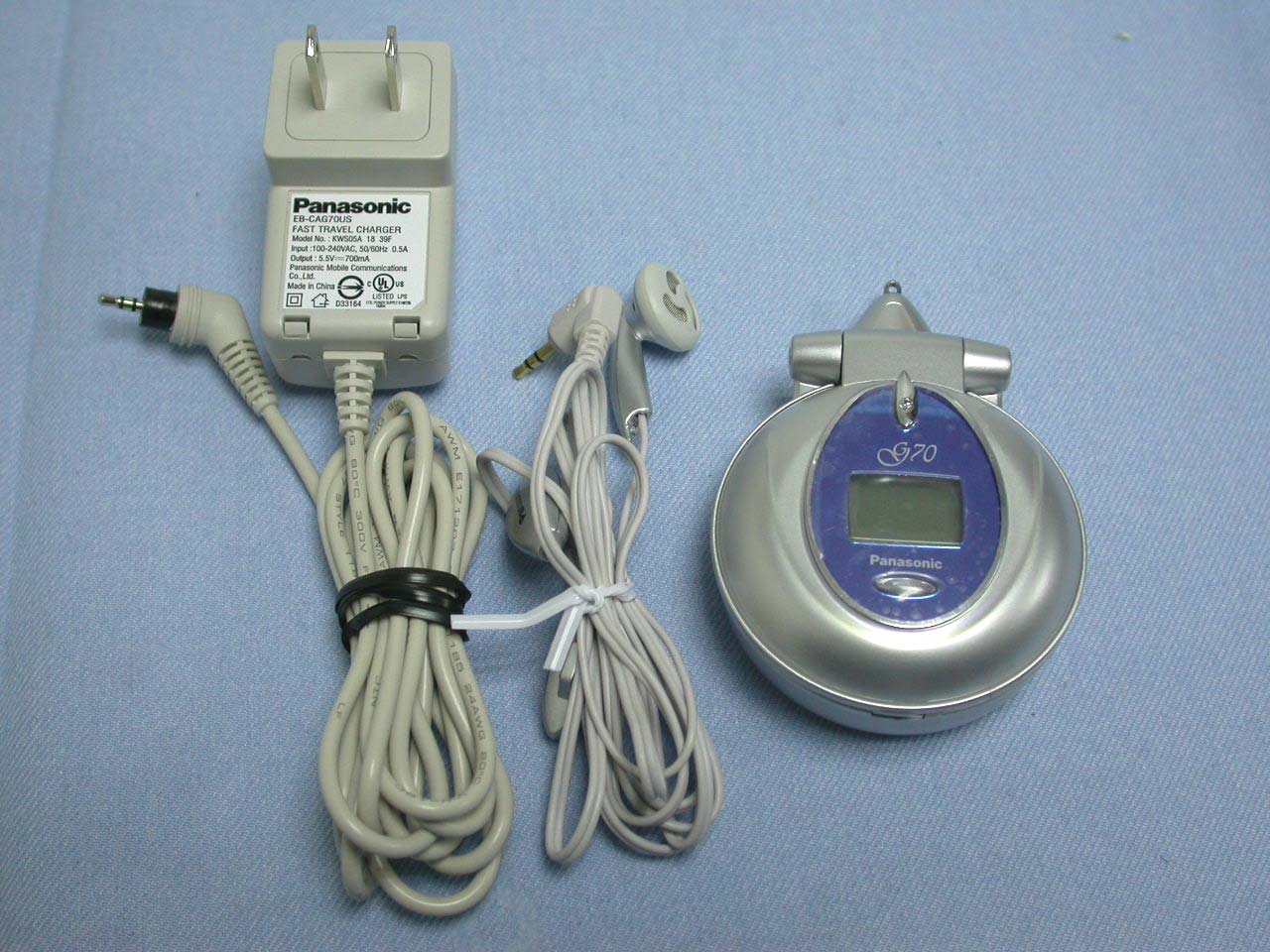

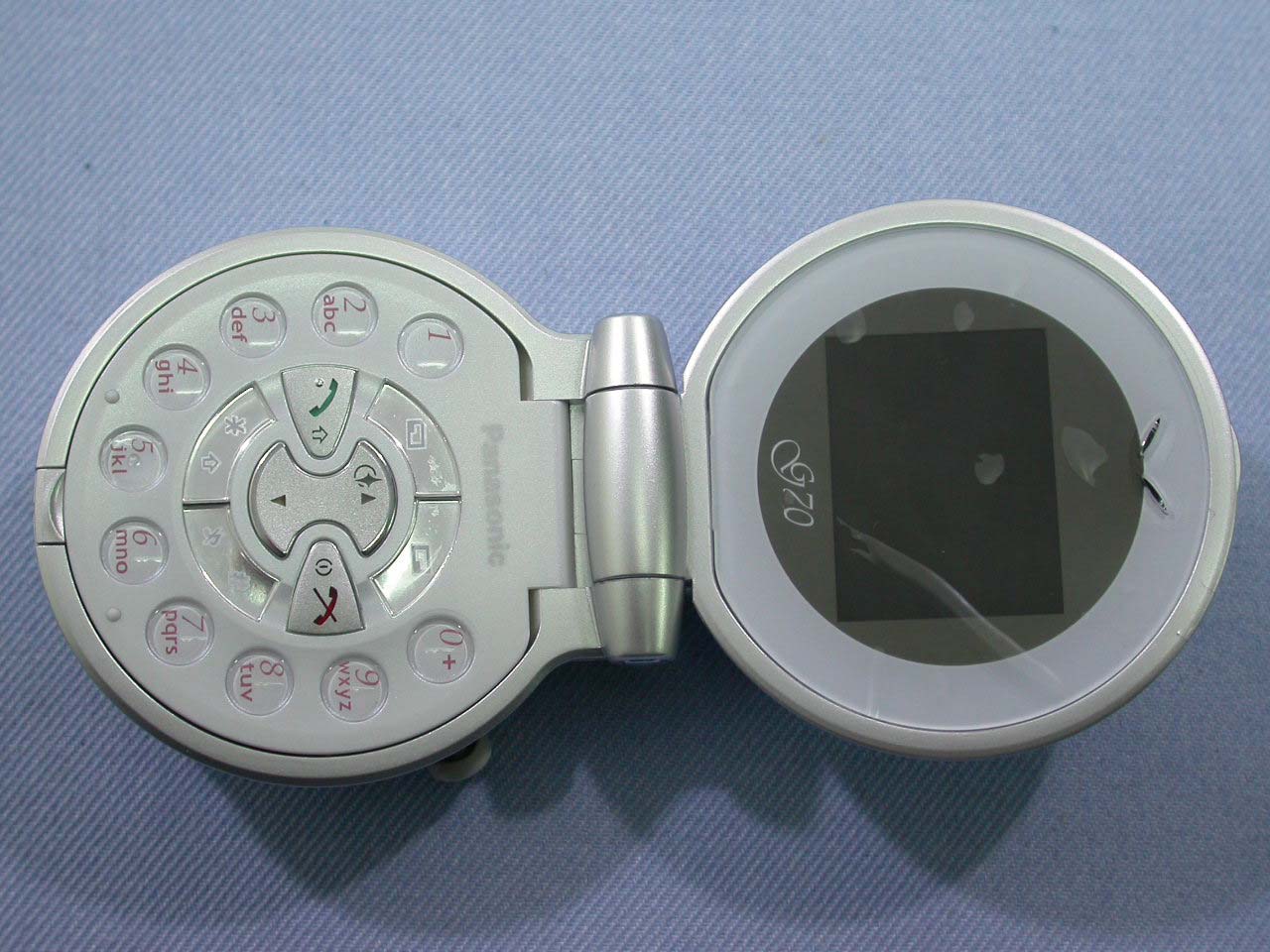

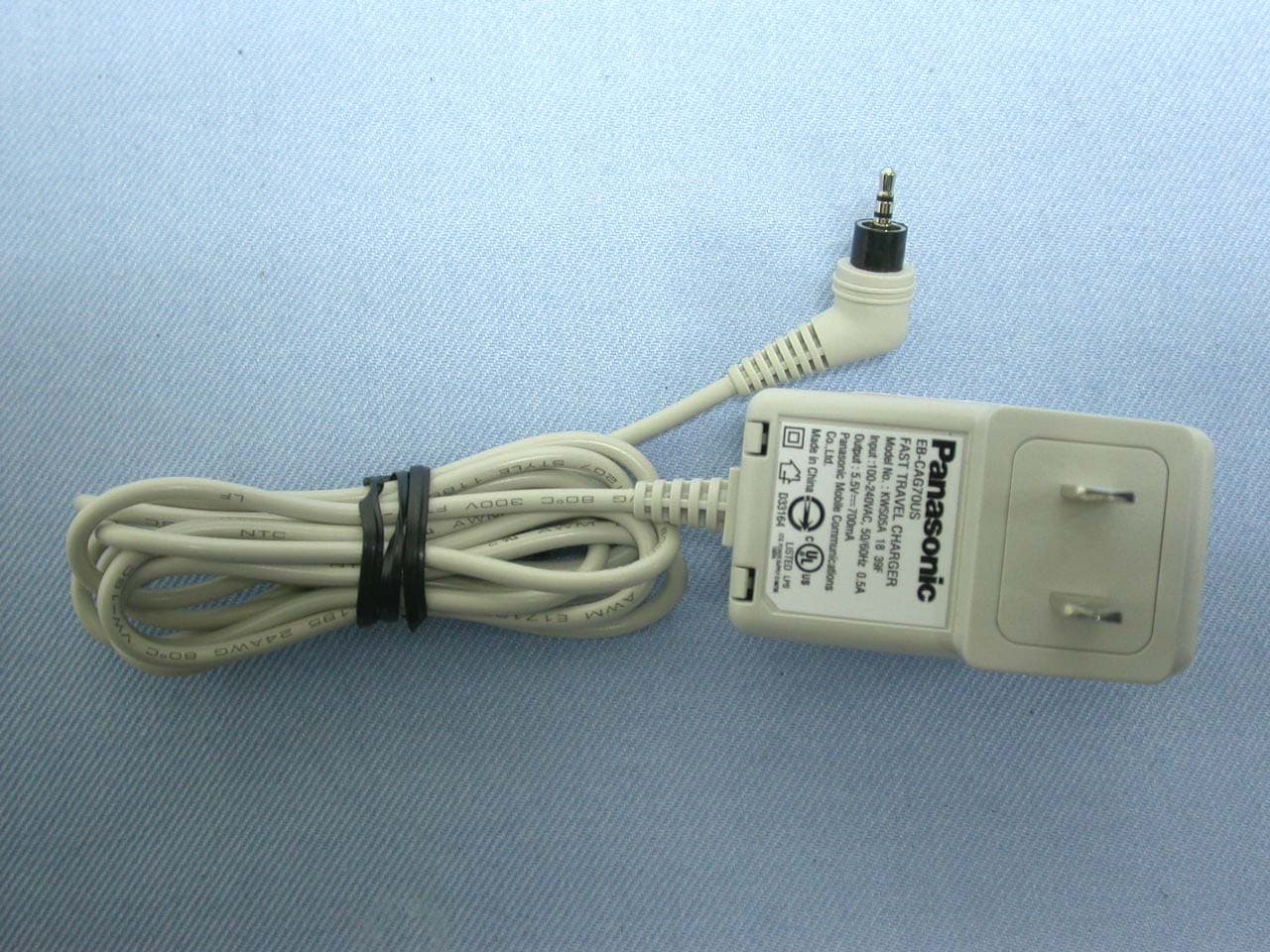

Compliance Certification Services Inc. Report No: B31030202 Date of Issue: November 11, 2003 Page 1 EXTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B31030202 Date of Issue: November 11, 2003 Page 2 Compliance Certification Services Inc. Report No: B31030202 Date of Issue: November 11, 2003 Page 3 Compliance Certification Services Inc. Report No: B31030202 Date of Issue: November 11, 2003 Page 4

FCC ID LABEL FORMAT AND LOCATION Applicant: Quanta Computer Inc. FCC ID: HFS-G70 FCC ID: HFS-G70

Compliance Certification Services Inc. Report No: B31030202 Date of Issue: November 11, 2003 Page 5 INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B31030202 Date of Issue: November 11, 2003 Page 6 Compliance Certification Services Inc. Report No: B31030202 Date of Issue: November 11, 2003 Page 7 Compliance Certification Services Inc. Report No: B31030202 Date of Issue: November 11, 2003 Page 8 Compliance Certification Services Inc. Report No: B31030202 Date of Issue: November 11, 2003 Page 9 Compliance Certification Services Inc. Report No: B31030202 Date of Issue: November 11, 2003 Page 10

Date/Time: 08/22/03 10:30:43 Test Laboratory: Compliance Certification Services Inc. File Name: D1800V2 SN-3.da4 D1800V2 SN-3 DUT: Dipole 1800 MHz; Type: D1800V2; Serial: D1800V2 - SN:2d062 Program: System Performance Check at1800MHz Communication System: CW1800; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: HSL1800 (σ = 1.354 mho/m, ε r = 38.523, ρ = 1000 kg/m 3 ) Air Temperature 26.0 deg C ; Liquid Temperature 25.4 deg C Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1762; ConvF(5.4, 5.4, 5.4); Calibrated: 3/31/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn558; Calibrated: 3/7/2003 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1271 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 93 V/m Power Drift = -0.02 dB Maximum value of SAR = 8.16 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 15.4 W/kg SAR(1 g) = 9.3 mW/g; SAR(10 g) = 4.98 mW/g Reference Value = 93 V/m Power Drift = -0.02 dB Maximum value of SAR = 10.5 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Reference Value = 93 V/m Power Drift = -0.02 dB Maximum value of SAR = 8.63 mW/g Page1 Page2 Date/Time: 08/23/03 10:16:32 Test Laboratory: Compliance Certification Services Inc. File Name: D1800V2 SN-3.da4 D1800V2 SN-3 DUT: Dipole 1800 MHz; Type: D1800V2; Serial: D1800V2 - SN:2d062 Program: System Performance Check at1800MHz Communication System: CW1800; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: HSL1800 (σ = 1.347 mho/m, ε r = 38.678, ρ = 1000 kg/m 3 ) Air Temperature 25.9 deg C ; Liquid Temperature 25.5 deg C Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1762; ConvF(5.4, 5.4, 5.4); Calibrated: 3/31/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn558; Calibrated: 3/7/2003 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1271 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 93 V/m Power Drift = -0.02 dB Maximum value of SAR = 8.12 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Reference Value = 93 V/m Power Drift = -0.02 dB Maximum value of SAR = 8.59 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 15.3 W/kg SAR(1 g) = 9.26 mW/g; SAR(10 g) = 4.95 mW/g Reference Value = 93 V/m Power Drift = -0.02 dB Maximum value of SAR = 10.4 mW/g Page1 Page2 Date/Time: 08/23/03 10:46:59 Test Laboratory: Compliance Certification Services Inc. Right Head Touch Page1 Date/Time: 08/23/03 10:46:59 Test Laboratory: Compliance Certification Services Inc. File Name: gsm1900-right.da4 gsm1900-right ch 512 DUT: GSM Handset; Type: EB-G70; Serial: ID: HFS-G70 Program: right Communication System: GSM1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8 Medium: HSL1900 (σ = 1.436 mho/m, ε r = 38.451, ρ = 1000 kg/m 3 ) Air Temperature 25.9 deg C ; Liquid Temperature 25.3 deg C Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1762; ConvF(5.4, 5.4, 5.4); Calibrated: 3/31/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn558; Calibrated: 3/7/2003 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1271 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 touch 512/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 13.4 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.727 mW/g touch 512/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.994 W/kg SAR(1 g) = 0.668 mW/g; SAR(10 g) = 0.406 mW/g Reference Value = 13.4 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.731 mW/g touch 512/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.441 W/kg SAR(1 g) = 0.333 mW/g; SAR(10 g) = 0.216 mW/g Reference Value = 13.4 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.353 mW/g touch 512/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Reference Value = 13.4 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.544 mW/g Page1 Page2 Date/Time: 08/23/03 11:14:41 Test Laboratory: Compliance Certification Services Inc. File Name: gsm1900-right.da4 gsm1900-right DUT: GSM Handset; Type: EB-G70; Serial: ID: HFS-G70 Program: right Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium: HSL1900 (σ = 1.436 mho/m, ε r = 38.451, ρ = 1000 kg/m 3 ) Air Temperature 25.9 deg C ; Liquid Temperature 25.3 deg C Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1762; ConvF(5.4, 5.4, 5.4); Calibrated: 3/31/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn558; Calibrated: 3/7/2003 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1271 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 touch 661/Area Scan (6x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 11.9 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.578 mW/g touch 661/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Reference Value = 11.9 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.446 mW/g touch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.844 W/kg SAR(1 g) = 0.553 mW/g; SAR(10 g) = 0.336 mW/g Reference Value = 11.9 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.602 mW/g touch 661/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.373 W/kg SAR(1 g) = 0.28 mW/g; SAR(10 g) = 0.181 mW/g Reference Value = 11…

Text truncated - open the document above for the full version.

Date/Time: 08/22/03 22:01:48 Test Laboratory: Compliance Certification Services Inc. File Name: gsm1900-LEFT.da4 gsm1900-LEFT DUT: GSM Handset; Type: EB-G70; Serial: ID: HFS-G70 Program: Left Communication System: GSM1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8 Medium: HSL1900 (σ = 1.447 mho/m, ε r = 38.402, ρ = 1000 kg/m 3 ) Air Temperature 26.0 deg C ; Liquid Temperature 25.4 deg C Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1762; ConvF(5.4, 5.4, 5.4); Calibrated: 3/31/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn558; Calibrated: 3/7/2003 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1271 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 touch 810/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 11.4 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.623 mW/g touch 810/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Reference Value = 11.4 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.489 mW/g touch 810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.95 W/kg SAR(1 g) = 0.608 mW/g; SAR(10 g) = 0.364 mW/g Reference Value = 11.4 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.657 mW/g touch 810/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.538 W/kg SAR(1 g) = 0.393 mW/g; SAR(10 g) = 0.254 mW/g Reference Value = 11.4 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.414 mW/g Page1 Page2 Date/Time: 08/22/03 22:01:48 Test Laboratory: Compliance Certification Services Inc. Left Head TILTE Page1 Date/Time: 08/22/03 22:01:48 Test Laboratory: Compliance Certification Services Inc. File Name: gsm1900-LEFT.da4 gsm1900-LEFT DUT: GSM Handset; Type: EB-G70; Serial: ID: HFS-G70 Program: Left Communication System: GSM1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8 Medium: HSL1900 (σ = 1.447 mho/m, ε r = 38.402, ρ = 1000 kg/m 3 ) Air Temperature 26.0 deg C ; Liquid Temperature 25.4 deg C Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1762; ConvF(5.4, 5.4, 5.4); Calibrated: 3/31/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn558; Calibrated: 3/7/2003 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1271 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 tilte 512/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 14.3 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.414 mW/g tilte 512/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Reference Value = 14.3 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.371 mW/g tilte 512/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.572 W/kg SAR(1 g) = 0.401 mW/g; SAR(10 g) = 0.251 mW/g Reference Value = 14.3 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.43 mW/g Page1 Page2 Date/Time: 08/22/03 22:01:48 Test Laboratory: Compliance Certification Services Inc. File Name: gsm1900-LEFT.da4 gsm1900-LEFT DUT: GSM Handset; Type: EB-G70; Serial: ID: HFS-G70 Program: Left Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium: HSL1900 (σ = 1.447 mho/m, ε r = 38.402, ρ = 1000 kg/m 3 ) Air Temperature 26.0 deg C ; Liquid Temperature 25.4 deg C Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1762; ConvF(5.4, 5.4, 5.4); Calibrated: 3/31/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn558; Calibrated: 3/7/2003 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1271 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 tilte 661/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 13.7 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.382 mW/g tilte 661/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Reference Value = 13.7 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.227 mW/g tilte 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.542 W/kg SAR(1 g) = 0.379 mW/g; SAR(10 g) = 0.237 mW/g Reference Value = 13.7 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.402 mW/g Page1 Page2 Date/Time: 08/22/03 22:01:48 Test Laboratory: Compliance Certification Services Inc. File Name: gsm1900-LEFT.da4 gsm1900-LEFT DUT: GSM Handset; Type: EB-G70; Serial: ID: HFS-G70 Program: Left Communication System: GSM1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8 Medium: HSL1900 (σ = 1.447 mho/m, ε r = 38.402, ρ = 1000 kg/m 3 ) Air Temperature 26.0 deg C ; Liquid Temperature 25.4 deg C Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1762; ConvF(5.4, 5.4, 5.4); Calibrated: 3/31/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) Sensor-Surface: 0mm (Fix Surface) Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn558; Calibrated: 3/7/2003 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1271 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 tilte 810/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 14.2 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.39 mW/g tilte 810/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Reference Value = 14.2 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.34 mW/g tilte 810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.55 W/kg SAR(1 g) = 0.385 mW/g; SAR(10 g) = 0.239 mW/g Reference Value = 14.2 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.402 mW/g Page1 Page2 Date/…
