Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Operating Instructions EB-GD55 Digital Cellular Phone Before operating this equipment please read these instructions completely. FCC Regulations Conditions of Use Operation of this Panasonic mobile phone is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Panasonic mobile phone generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device on and off, the user is encouraged to try to correct the interference by one or more of the following measures: 1). Reorient or relocate the receiving antenna. 2). Increase the distance between the device and receiver. 3). Connect the device into an outlet on a circuit different from that to which the receiver is connected. 4). Consult the dealer or an experienced radio/TV technician for help. The radiated output power of this internal wireless radio is far below the FCC radio frequency exposure limits. Nevertheless, the wireless radio shall be used in such a manner that the radio is 2.5 cm or further from the human body. However, the user of wireless radios may be restricted in some places or situations, such as aboard airplanes. If you are unsure of restrictions, you are encouraged to ask for authorization before turning on the wireless radio. Several restrictions and cautions of using mobile phone are listed in the Important Information. Contents Important Information i Care and Maintenance・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ii Quick Reference・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・1 Location Of Controls・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・1 Display Icons・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・2 Getting Started・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・3 Basic Operation・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・5 Switching the Phone On/Off・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・5 Making a Call・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・5 International Dialling・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・5 Answering a Call・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・5 Ending a Call・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・5 Emergency Calls・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・6 Initially Setting the Time/Date・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・6 Accessing the Phonebook to Dial・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・6 Earpiece Volume Control・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・6 SIM Lock・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・6 Using the PIN・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・7 Setting Alert Type・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・7 Key Guard・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・7 Phonebook・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・8 Browsing Phonebook・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・8 Creating a Number・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・8 Grouping Phonebook Entries・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・9 Reviewing the Phonebook・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・10 Hot Key Dial Numbers・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・10 My Numbers・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・10 Personalising Your Phone 10 Language・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・10 Changing the Ring Tones・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・11 Display Setting・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・12 Profile Mode・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・12 User Messages・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・12 Defaults・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・12 Own Menu・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・13 My Phonebook・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・13 Game (STK)・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・14 Text Messages・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・14 Setting the Phone for Short Text Messages・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・14 Setting the Message Centre Number・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・14 Creating a Text Message・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・15 T9 Text Input・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・16 Other Text Modes・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・16 Editing Text・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・17 Receiving Text Messages・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・17 User Messages・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・17 Review・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・17 Parameters・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・17 Broadcast・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・18 Key Guard・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・18 Browser・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・19 Browser Setting・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・19 Browser Menu・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・20 Phone Menu・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・20 Call Service・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・…
Text truncated - open the document above for the full version.
FCC Regulations Conditions of Use Operation of this Panasonic mobile phone is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Panasonic mobile phone generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device on and off, the user is encouraged to try to correct the interference by one or more of the following measures: 1). Reorient or relocate the receiving antenna. 2). Increase the distance between the device and receiver. 3). Connect the device into an outlet on a circuit different from that to which the receiver is connected. 4). Consult the dealer or an experienced radio/TV technician for help. Radio frequency exposure information In August 1996, the Federal Communications Commission (FCC) of the U.S. adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. The design of this device complies with the FCC guidelines and those standards. To maintain compliance with FCC RF exposure guidelines, if you wear a device on your body, use the supplied or approved carrying case, holster, or other body-worn accessory. If you do not use a body-worn accessory, ensure the antenna is at least 1,0 cm from your body when transmitting. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic components in the assembly and must provide at least 1.0 cm separation between the device and the user‘s body. Use of non-approved accessories may violate FCC RF exposure guidelines. However, the user of wireless radios may be restricted in some places or situations, such as aboard airplanes. If you are unsure of restrictions, you are encouraged to ask for authorization before turning on the wireless radio. Several restrictions and cautions of using mobile phone are listed in the Important Information.
Confidentiality Form-Quanta Computer Inc. Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Dec. 9, 2002 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Quanta Computer Inc. requests confidentiality for the following products: FCC ID Number ProductTitle/Model HFS – GD55Venice VE1 For the product stated above, we request that the following information be held confidential: 1)Electrical Schematics of the Circuitry No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Quanta Computer Inc. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, C. Jack Liu QuantaComputerInc. 188WenHwa2ndRd.,Gueishan, Taoyuan,Taiwan Tel.88633272345x5568 Fax.88633270460

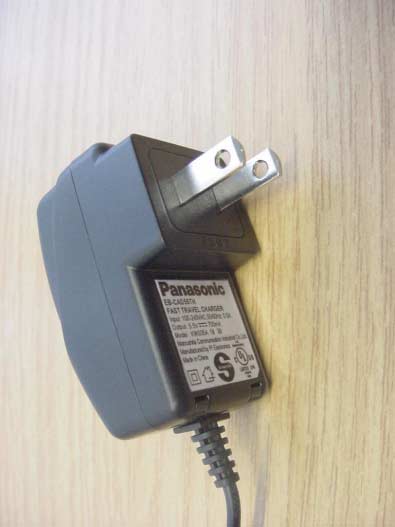

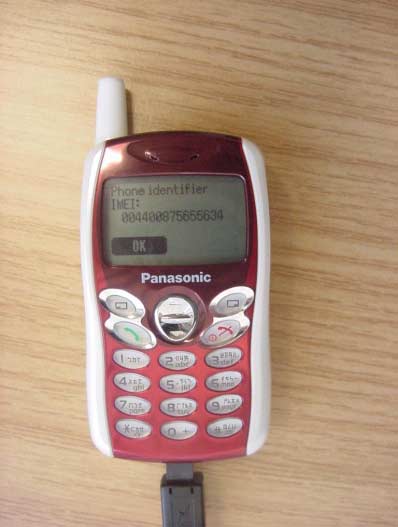

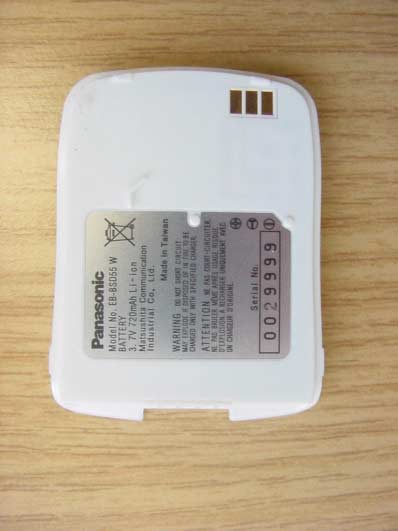

CETECOM ICT Services GmbH Test report no..: 2_3096-01-01/02Issue Date: 2002-12-09Page 56 (65) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3096-01-01/02Issue Date: 2002-12-09Page 57 (65) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3096-01-01/02Issue Date: 2002-12-09Page 58 (65) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3096-01-01/02Issue Date: 2002-12-09Page 64 (65) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3096-01-01/02Issue Date: 2002-12-09Page 65 (65) Photographs of the equipment

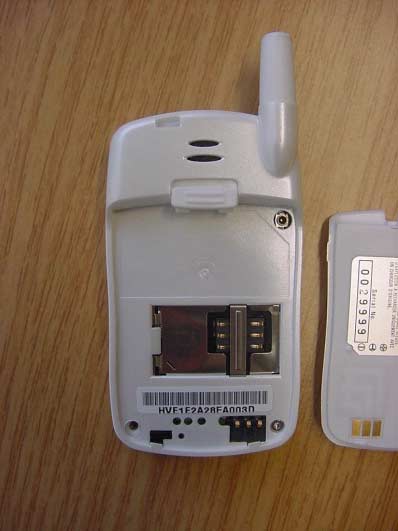

Exhibits for FCC certificate on GD55 1. ID label/location info
CETECOM ICT Services GmbH Test report no..: 2_3096-01-01/02Issue Date: 2002-12-09Page 59 (65) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3096-01-01/02Issue Date: 2002-12-09Page 60 (65) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3096-01-01/02Issue Date: 2002-12-09Page 61 (65) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3096-01-01/02Issue Date: 2002-12-09Page 62 (65) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3096-01-01/02Issue Date: 2002-12-09Page 63 (65) Photographs of the equipment
Product Description for Venice VE1 Venice VE1 is a triband GSM phone which can operate in GSM 1900 band with class 1 power output. The other two GSM bands include GSM 900 with class 4 and GSM 1800 with class 1. To put this device into operation, a SIM card is needed to ensure a legal network operator allows this unit to operate in their allotted frequency band. After the SIM card is installed, the device can then be powered on by first the implementation of battery pack onto battery chamber at the back of the phone, and press red key PWR to turn on the unit. Internally, there are two major portions: RF (radio frequency) and BB (base band). RF portion handles the processing of wireless signal conversion & its generation. These signals are either passed onto BB or originated from BB portion which is more or less similar to the processing unit of a simplified computer, controlling various system interfaces including display, input, power management, analog output (via receiver/speaker voice or headset) etc.. The antenna system designed in this product is an external stub antenna fixed internally and may not be removed or changed without the opening of chases. A special ground system, in addition to the normal ground layer embedded within PCBs, is employed in this unit in that an extended ground wire is connected to PCB ground via a pogo pin on the keypad side to project an image of ground such that the system behavior especially the SAR distribution can be spread more uniformly to meet the required safety standard.
Tune-upprocedure Duringmanufacturingeachphonewillbeindividuallycalibrated. Themeasurementisdoneinafullycalibratedsetup,whichisbasedonaAgilent8960 basestationsimulator(systemtester).Furthermore,thehighestpowerlevelis verifiedafterwardsinacallmeasurementonthreechannels(low,midandhigh). Procedure: 1.Setthephonetooperationalvoltageandononecertainchannelinaspecialservice modebymeansofcompanyproprietarysoftware. 2.Theactualpowerismeasuredatseveralpowerlevels. 3.Thegainfactorsofeachindividualphoneareadjusteduntilthetargetvalueismet.The appropriategaincontrolsettingsarestoredineachphoneindividually(foreachpower level). Theuserhasnopossibilitytochangethesesettingslateron. ModulationSystem TheradiopartrealizestheconversionoftheGMSK-HF-signalsfromtheantennatothe basebandandviceversa. Inreceivedirection,thesignalsaresplittedintoI-andQ-componentsandledtothe D/Aconverter ofthelogicpart.Intransmitdirection,theGMSK-signalisgeneratedby modulatingthebasebandI-andQ-signalswithinanUp-conversionModulationPhase LockedLoop.Afterthatthesignalsareamplifiedbythepoweramplifier. TransmitterandReceiverareneveractiveatthesametime.Simultaneousreceivingand transmissionintwooreventhreebandsisimpossible.However,monitoringcanbedone independentfromthereceiveandtransmitband(RX-andTXtimeslotoftheband), respectively. TheRF-partisdesignedforMulti-bandoperation(EGSM900,DCS1800,PCS1900) supportingGPRSfunctionalityuptomulticlass10. TheRF-circuit(seeseparateattachment:BlockDiagram)consistsofthefollowing components: Transceiver:SKYWORKSchipset(CX74017)withthefollowingfunctionality: - ThereceiverpathconsistsofthreeintegratedLowNoiseAmplifier(LNAs),a quadraturedemodulatorandtunablereceiverbasebandfilters. - ThetransmitterpathconsistsofanI/Qmodulatorwithinafrequancytranslationloop designedtoperformfrequencyupconversionwithhighoutputspectralpurity.Theloop containsaphase-frequencydetector,chargepump,mixerandhightpowertransmit VCO. AntennaSwitch:Hitchimetal-SHL-090T PowerAmplifier:RFMD-RF3110 ReceiverSAWfilters Clock:13MHzTCVCXO
CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, GermanyPhone: +49 (0) 681 598-0Fax: -8475 SAR-Laboratory Phone: +49 (0) 681 598-8454 . As of February 18, 2003Page 1 of 51 Accredited testing laboratory DAR registration number: TTI-P-G 166/98 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 Test report no. : 2-3096-1-3/02 Type identification: Venice VE1 - EB-GD55 Test specification : Draft IEEE Std 1528-200X FCC-ID: HFS-GD55 Test specification : CETECOM ICT Services GmbH Test report no.: 2-3096-1-3/02 As of February 18, 2003Page 2 of 51 Table of Contents 1General Information.......................................................................................................................................................3 1.1Notes......................................................................................................................................................................3 1.1.1Statement of Compliance.................................................................................................................................3 1.2Testing laboratory...................................................................................................................................................4 1.3Details of applicant.................................................................................................................................................4 1.4Application details..................................................................................................................................................4 1.5Test item................................................................................................................................................................5 1.6Test specification(s)................................................................................................................................................6 1.6.1RF exposure limits..........................................................................................................................................6 2Technical test.................................................................................................................................................................7 2.1Summary of test results...........................................................................................................................................7 2.2Test environment....................................................................................................................................................7 2.3Measurement and test set-up...................................................................................................................................7 2.4Measurement system...............................................................................................................................................8 2.4.1System Description.........................................................................................................................................8 2.4.2Test environment............................................................................................................................................9 2.4.3Probe description............................................................................................................................................9 2.4.4Phantom description.......................................................................................................................................10 2.4.5Device holder description...............................................................................................................................10 2.4.6Scanning procedure........................................................................................................................................11 2.4.7Spatial Peak SAR Evaluation..........................................................................................................................12 2.4.8Data Storage and Evaluation...........................................................................................................................13 2.4.9Test equipment utilized..................................................................................................................................15 2.4.10Tissue simulating liquids : dielectric properties...............................................................................................16 2.4.11Tissue simulating liquids : parameters............................................................................................................17 2.4.12Measurement uncertainties.............................................................................................................................18 2.4.13System validation...........................................................................................................................................19 2.4.14Validation procedure......................................................................................................................................20 2.5Test results (Head and Body SAR).........................................................................................................................21 2.5.1Description of test procedures.........................................................................................................................21 2.6Test results (conducted power measurement)..........................................................................................................22 Annex 1System performance verification........................................................................................................................23 Annex 2Measurement results (printout from DASY TM )........................................................................................…
Text truncated - open the document above for the full version.
CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, GermanyPhone: +49 (0) 681 598-0Fax: -8475 SAR-Laboratory Phone: +49 (0) 681 598-8454 . As of February 18, 2003Page 1 of 32 Accredited testing laboratory DAR registration number: TTI-P-G 166/98 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 Appendix to the Report 2-3096-1-3/03 Calibration Data, Phantom Certificate and detail Information of the DASY 3 System Test specification : CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 2 of 32 Table of Content 1Calibration report “Probe ET3DV6”...............................................................................................................................3 2Calibration report “1900 MHz System validation dipole”.............................................................................................15 3Certificate of Conformity “SAM Twin Phantom V4.0/V4.0C”......................................................................................25 4Application Note Validation and system Check.............................................................................................................27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 3 of 32 1 Calibration report “Probe ET3DV6” CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 4 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 5 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 6 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 7 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 8 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 9 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 10 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 11 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 12 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 13 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 14 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 15 of 32 2 Calibration report “1900 MHz System validation dipole” CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 16 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 17 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 18 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 19 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 20 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 21 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 22 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 23 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 24 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 25 of 32 3 Certificate of Conformity “SAM Twin Phantom V4.0/V4.0C” CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 26 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 3-2096-1-3/03 As of February 18, 2003Page 27 of 32 4 Application Note Validation and system Check 4.1.1.1 Purpose of validation The Validation and system check verify that the system operates within ist specifications. System and operator errors can be detected and corrected. It is recommended that the validation be performed prior to any usage of the system in order to guarantee reproducible results. The measurement of the Specific Absorption Rate (SAR) is a complicated task and the resultdepends on the proper functioning of many components and the correct settings of manyparameters. Faulty results due to drift, failures or incorrect parameters might not berecognized, since they often look similar in distribution to the correct ones. The DosimetricAssessment System DASY3 incorporates a validation procedure to test the properfunctioning of the system. The system validation uses normal SAR measurements in asimplified setup (the flat phantom section of the Generic Twin Phantom) with a wellcharacterized source (a matched dipole of a specified distance). This setup was selected to give a high sensitivity to all parameters that might fail or vary over time (e.g. probe, liquid parameters, and software settings) and a low sensitivity to external effects inherent in the system (e.g. positioning uncertainty of the device holder). The validation does not replace the cal…
Text truncated - open the document above for the full version.
CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC11issue test report consist of 65 PagesPage 1 (65) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM Recognized by the Federal Communications Commission FCC–Identification Number: 90462 TCB ID: DE 001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 166/98 Independent ETSI compliance test house ETSI Accredited Bluetooth Test Facility (BQTF) Test report no.: 2_3096-01-01/02 FCC Part 24 Quanta Venice VE1 FCC ID: HFS-GD55 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 9075 CETECOM ICT Services GmbH Test report no..: 2_3096-01-01/02Issue Date: 2002-12-09Page 2 (65) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telefone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de Accredited testing laboratory DAR-registration number : TTI-P-G-166/98-30 Recognised by the Federal Communications Commission FCC–Identification Number: 90462 Accredited Bluetooth TM Test Facility (BQTF) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report no..: 2_3096-01-01/02Issue Date: 2002-12-09Page 3 (65) 1.3Details of applicant Name : Quanta Computer Inc. Street : No. 188, WenHwa 2nd Road, Gueishan City : Taoyuan Country : Taiwan Telephone : +886-3-327-2345 ext 5568 Fax: +886-3-327-0460 Contact : C. Jack Liu Telephone : +886-3-327-2345 ext 5367 1.4Application details Date of receipt of application : 2002-11-15 Date of receipt of test item : 2002-12-05 Date of test : 2002-12-05/06 1.5Test item Type of equipment : Triple Band SM/PCS phone Brand Name:Panasonic Markezing Name:EB-GD55 Type designation:Venice VE1 Manufacturer:Applicant Street: City: Country: Serial number:IMEI : 004400.87.565563.0 Additional informations: : Frequency:1850.2 – 1909.8 MHz Type of modulation:300KGXW Number of channels :300 (PCS1900) Antenna:Integral antenna Power supply:3.7V Li-ion rechargeable battery Output power GSM 1900 :cond : 26.9 dBm Peak , ERP: 24.61 dBm (Burst); EIRP: 26.71 dBm (Burst) Type of equipment:Temperature range : -30°C - +60°C FCC – ID:HFS-GD55 Hardware:2B Software:020813N-01.00 1.6Test standards: FCC Part Part 24 CETECOM ICT Services GmbH Test report no..: 2_3096-01-01/02Issue Date: 2002-12-09Page 4 (65) 2 Techn…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 1 | 24E | 1.85 GHz - 1.91 GHz | 469.00 mW | 300KGXW | 0.0351000000 ppm |
