HFS-LM177LTE miniCard

Quanta LM177 Test Operation Guide Version 0.1 Apr. 24, 2014 Winn Page 1 Contents 1. Introduction .................................................................................................................................... 3 2. Test Environment ............................................................................................................................ 3 2.1. Uninstallation ......................................................................................................................... 3 2.1.1. Windows 7 (32 bit) ................................................................................................................. 3 2.2. Installation of drivers .............................................................................................................. 5 2.2.1. Windows 7 (32 bit) ................................................................................................................. 5 3. Operation of Connection Manager ................................................................................................. 11 3.1. Windows 7 (32 bit) ................................................................................................................ 11 3.1.1. Basic Configuration ................................................................................................................ 11 3.1.2. Extended Information ............................................................................................................13 3.1.3. LTE Manager ..........................................................................................................................15 3.1.4. Manual PLMN ........................................................................................................................16 3.1.5. Change to Commercial Mode .................................................................................................17 3.1.6. Disable Polling .......................................................................................................................18 3.1.7. PIN Management ...................................................................................................................19 3.1.8. Automatic Connect Mode ......................................................................................................20 3.1.9. Device Location .....................................................................................................................21 3.1.10. Help .......................................................................................................................................22 3.1.11. Reset .....................................................................................................................................23 4. Diagnostic Tool ...............................................................................................................................24 4.1. MsgView ...............................................................................................................................24 4.2. DbgView ................................................................................................................................25 5. Firmware Upgrade .........................................................................................................................26 5.1. Image Burn Tool .....................................................................................................................26 6. OMA-DM .......................................................................................................................................30 6.1. Mandatory Configuration .......................................................................................................30 6.2. How to Enable/Disable APN ...................................................................................................31 6.3. How to Modify OMA-DM Server URL .....................................................................................33 6.4. How to Online Enable/Disable Internet APN ..........................................................................35 6.5. How to Enable/Disable OMA-DM log .....................................................................................36 6.6. How to Use VI editor ..............................................................................................................37 Page 2 Revision History Version Release Date Description 0.1 Apr. 24, 2014 1 st Test Operation Guide Release Page 3 1. Introduction This document gives the guidance on how to test Quanta devices. 2. Test Environment Quanta LM177 device supports Windows XP, Windows Vista (32 bit), and Windows 7 (32 bit) operating system. It’s recommended to install Quanta LM177 software in Windows 7 32-bit OS. 2.1. Uninstallation In order to install latest version of software, uninstallation of previous version is required, including drivers, connection manager, and corresponding software tools. 2.1.1. Windows 7 (32 bit) 1. Please click StartProgramsAltair SemiconductorLTE ALT3100Uninstall 2. Please click “Yes (Y)” button. Page 4 3. Please click “Uninstall” button. 4. Please wait a few seconds to complete uninstallation. 5. Please click “Close” button. 6. Please click “OK” button. 7. Please click “StartProgramsAltair SemiconductorLTE ALT3100HLVUSBUninstall”. 8. Please click “YES (Y)” button. 9. Please reboot your computer after you have completed the uninstallation. Page 5 2.2. Installation of drivers 2.2.1. Windows 7 (32 bit) 1. Please double clicks on “Altair(Quanta) Tool Package v1.0.0.exe” to start installation. 2. Please click “Next >” button. 3. Please click “Install” button. 4. It will take a few minutes to complete installation. 5. Please click “Next >” button. Page 6 6. Please check “I accept the terms in the license agreement”. 7. Please click “Next >” button. 8. Please select “Full Installation” type. 9. Please click “Next >” butto…

Text truncated - open the document above for the full version.

QUANTA COMPUTER INC. No.188, Wenhwa 2nd Rd. Kueishan Hsiang, Tao Yuan Shien, Taiwan, R.O.C. Tel: 886 3 3272345, Fax: 886-3-3961334 Request for Single Modular Approval for WWAN FCC ID: HSF-LM177 ITEM Requirements EUT 1 The modular must have its own shielding. The modular transmitter must have their own shielding. 2 The modular transmitter must have buffered modulation/data inputs . The modular transmitter must have buffered modulation/data inputs. 3 The modular transmitter must have its own power supply regulation. The modular transmitter has its own power supply regulation. 4 The modular transmitter must be tested in a stand-alone configuration. The modular transmitter was tested on evaluation board is a stand-alone H/W. 5 The modular transmitter must be labeled its own FCC identification number. The modular transmitter will label with in own FCC ID and the integration manual contains labeling instruction for the host device into which this module will be integrated. 6 The modular transmitter must comply with any specific rules or operating requirements applicable to the transmitter and manufacturer must provide adequate instructions along with the module to explain any such requirements. The modular approved transmitter complied with all applicable rules and integration manual contains any specific requirements addressed to the integrator and /or the end -user of the final end-product. 7 The modular transmitter must comply with any applicable RF exposure. With the dedicated antenna the module Transmitter complies with the FCC RF exposure requirements for fixed and mobile application. __________________________(Signature) Name: Joyce Kuo E-Mail: [email protected] QUANTA COMPUTER INC.

QUANTA COMPUTER INC. No.188, Wenhwa 2nd Rd. Kueishan Hsiang, Tao Yuan Shien, Taiwan, R.O.C. Tel: 886 3 3272345, Fax: 886-3-3961334 Date (April/28/2014) BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, QUANTA COMPUTER INC., hereby authorize Mr. Miller.Lee /Compliance Certification Services Inc. to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on April/28/2015 Sincerely, Signature___________________________________ Name: Joyce Kuo E-Mail: [email protected] QUANTA COMPUTER INC.

QUANTA COMPUTER INC. No.188, Wenhwa 2nd Rd. Kueishan Hsiang, Tao Yuan Shien, Taiwan, R.O.C. Tel: 886 3 3272345, Fax: 886-3-3961334 Date (April/16/2014) BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: HFS-LM177 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, QUANTA COMPUTER INC. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Theory of Operation Antenna Specification Part list QUANTA COMPUTER INC. also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days: Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Signature___________________________________ Company Officer: Joyce Kuo Telephone Number: 886-3-3272345x15714 Email: [email protected]

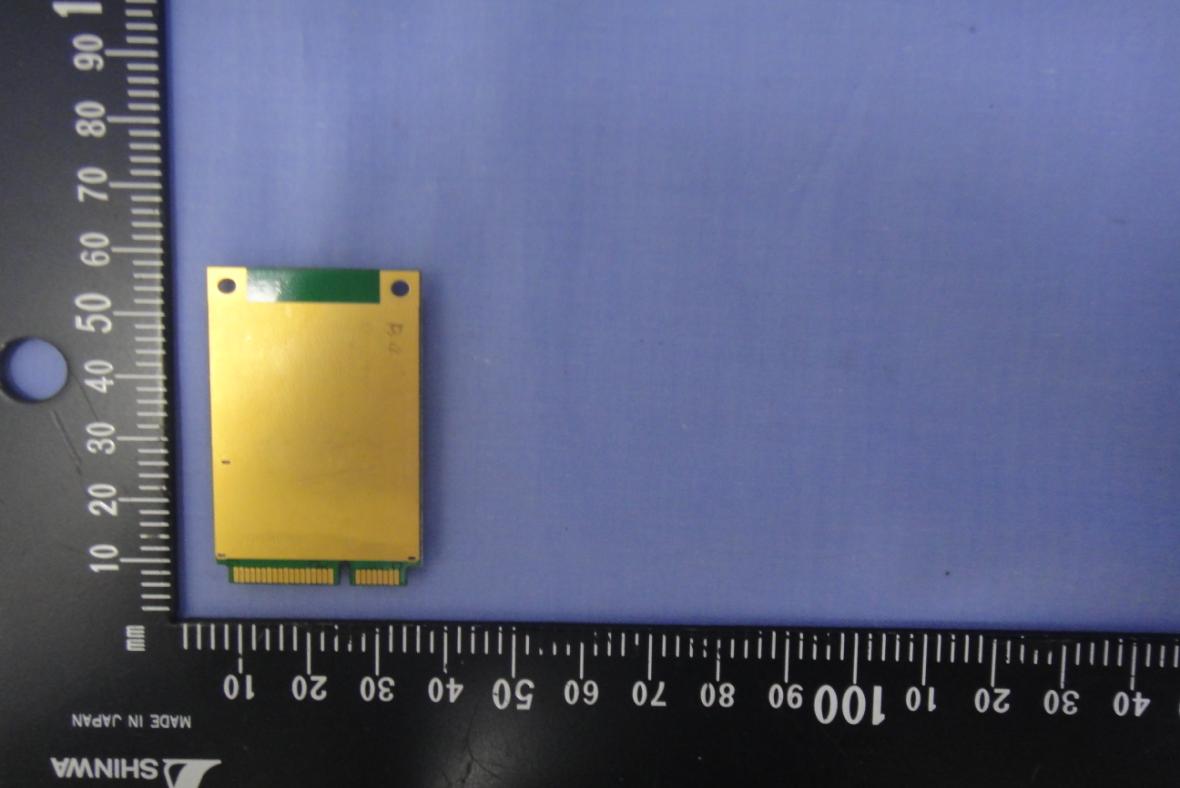

Compliance Certification Services Inc. Report No.: T140403L06-B Date of Issue: April 30, 2014 A1 - 1 / 5 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT

EUT Front Label Location LM177 Label Quanta Computer Confidential Thursday, April 24, 2014 Quanta LM177xxxxx LTE Band13 & 4 YYWWAP FCC ID : HFS-LM177

Compliance Certification Services Inc. Report No.: T140403L06-B Date of Issue: April 30, 2014 A1 - 2 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140403L06-B Date of Issue: April 30, 2014 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T140403L06-B Date of Issue: April 30, 2014 A1 - 4 Rev. 00 Antenna Compliance Certification Services Inc. Report No.: T140403L06-B Date of Issue: April 30, 2014 A1 - 5 Rev. 00

Compliance Certification Services Inc. Report No.: T140403L06-B-MF Date of Issue: April 22, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT LTE miniCard Model LM177 Frequency band (Operating) LTE Band IV: 1710.0MHz ~ 1755.0MHz LTE Band XIII: 704.0MHz ~ 716.0MHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Antenna Gain (LTE Band IV): 5.86 dBi (Numeric gain: 3.85) Antenna Gain (LTE Band XIII): 3.82 dBi (Numeric gain: 2.41) Measurement Average output power SystemPower LTE Band IV 23.93 dBm (247.17 mW) LTE Band XIII 23.85 dBm (242.66 mW) Power Target / Tolerance System Target Power Tolerance LTE Band IV 23.0 dBm ± 2 dB LTE Band XIII 23.0 dBm ± 2 dB Max tune up Power / Max time Average Power System LTE Band IV 25.0dBm (316.228mW) 25.0dBm (316.228mW) LTE Band XIII 25.0dBm (316.228mW) 25.0dBm (316.228mW) Time Average Power Max Tune up Power Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T140403L06-B-MF Date of Issue: April 22, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/04/22 Initial Issue ALL Scott Hsu Compliance Certification Services Inc. Report No.: T140403L06-B-MF Date of Issue: April 22, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d G P E    30 & 377 2 E S  Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d G P S    Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields     2 2 0796 . 0 100 / 377 1000 / 30 d G P d G P S        Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T140403L06-B-MF Date of Issue: April 22, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: G P S    000199 . 0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 LTE Band IV mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 19975 1712.5 316.228 3.85 20 0.2423 1.000 LTE Band XIII mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm 2 ) 23255 784.5 316.228 2.41 20 0.1517 0.523

Compliance Certification Services Inc. FCC ID: HFS-LM177 Report No.: T140403L06-B-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 139 Rev.00 FCC TEST REPORT and IC TEST REPORT For LTE miniCard Model: LM177 Trade Name: Quanta Issued to Quanta Computer Inc. No. 188, Wen Hwa 2nd RD., Kuei Shan Hsiang, Taoyuan Hsien, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: April 25, 2014 Compliance Certification Services Inc. FCC ID: HFS-LM177 Report No.: T140403L06-B-RP Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 April 25, 2014 Initial Issue ALL Kelly Cheng Compliance Certification Services Inc. FCC ID: HFS-LM177 Report No.: T140403L06-B-RP Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ................................................................................... 4 2. EUT DESCRIPTION ........................................................................................................... 6 3. TEST METHODOLOGY .................................................................................................... 7 3.1 DESCRIPTION OF TEST TYPE ....................................................................................................... 7 4. INSTRUMENT CALIBRATION ....................................................................................... 8 4.1 MEASURING INSTRUMENT CALIBRATION .............................................................................. 8 4.2 MEASUREMENT EQUIPMENT USED ........................................................................................... 8 4.3 MEASUREMENT UNCERTAINTY ................................................................................................. 9 5. FACILITIES AND ACCREDITATIONS ....................................................................... 10 5.1 FACILITIES...................................................................................................................................... 10 5.2 EQUIPMENT .................................................................................................................................... 10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ........................................................................ 11 6. SETUP OF EQUIPMENT UNDER TEST ...................................................................... 12 6.1 SETUP CONFIGURATION OF EUT .............................................................................................. 12 6.2 SUPPORT EQUIPMENT ................................................................................................................. 12 7. TEST PROCEDURE AND RESULT ............................................................................... 13 7.1 OUTPUT POWER MEASUREMENT ............................................................................................. 13 7.2 FREQUENCY STABILITY MEASUREMENT .............................................................................. 29 7.3 OCCUPIED BANDWIDTH MEASUREMENT .............................................................................. 32 7.4 PEAK TO AVERAGE RATIO ......................................................................................................... 49 7.5 BAND EDGE MEASUREMENT ..................................................................................................... 66 7.6 CONDUCTED SPURIOUS EMISSIONS ........................................................................................ 71 7.7 RADIATED EMISSION MEASUREMENT ................................................................................... 85 APPENDIX II PHOTOGRAPHS OF TEST SETUP ............................................................... 138 Compliance Certification Services Inc. FCC ID: HFS-LM177 Report No.: T140403L06-B-RP Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Quanta Computer Inc. No. 188, Wen Hwa 2nd RD., Kuei Shan Hsiang, Taoyuan Hsien, Taiwan, R.O.C. Equipment Under Test: LTE miniCard Trade Name: Quanta Model: LM177 Date of Test: April 18 ~ April 22, 2014 FCC PART 27, SUBPART C, L, FCC PART 2 OPERATING BAND: 777 ~ 787 MHz Standard TEST TYPE AND LIMIT 2.1046 27.50(C)(10) Maximum Peak Output Power Limit: max. 3 watts e.r.p peak power 2.1055 27.54 Frequency Stability 2.1049 27.53(g) Occupied Bandwidth 27.50(d)(5) Peak to average ratio 27.53(g) Band Edge Measurements 2.1051 27.53(g) Conducted Spurious Emissions 2.1053 27.53(g) Radiated Spurious Emissions OPERATING BAND: 1710~1755 MHz Standard TEST TYPE AND LIMIT 2.1046 27.50(d)(4) Maximum Peak Output Power Limit: max. 1 watts e.i.r.p peak power 2.1055 27.54 Frequency Stability 2.1049 27.53(h) Occupied Bandwidth 27.50(d)(5) Peak to average ratio 27.53(h) Band Edge Measurements 2.1051 27.53(h) Conducted Spurious Emissions 2.1053 27.53(h) Radiated Spurious Emissions Note: 1. The test result judgment is decided by the limit of test standard 2. The information of measurement uncertainty is available upon the customer’s request. Compliance Certification Services Inc. FCC ID: HFS-LM177 Report No.: T140403L06-B-RP Page 5 Rev. 00 Deviation from Applicable Standard None The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by Reviewed by Miller Lee Angel Cheng Section Manager Section Manager Compliance Certification S…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: ZJD-ARV5403FLLTE Report No.: T120917W01-RP1 Page 138 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emission Setup Photos Compliance Certification Services Inc. FCC ID: ZJD-ARV5403FLLTE Report No.: T120917W01-RP1 Page 139 Rev. 00 Radiated Emission Setup Photos For BAND 13 For BAND IV
