HFS-P30WBNotebook Computer

User's Manual Satellite P30W-B Satellite Click 2 Pro P30W-B/P35W-B dynabook P53 Series Table of Contents Chapter 1 TOSHIBA Legal, Regulatory and Safety Copyright, Disclaimer and Trademarks .............................................. 1-1 Regulatory Information ......................................................................... 1-2 Video Standard Notice .......................................................................... 1-7 OpenSSL Toolkit License Issues ......................................................... 1-8 FreeType License Issues .................................................................... 1-10 ENERGY STAR® Program .................................................................. 1-14 Disposing of the computer and the computer's batteries ............... 1-14 General Precautions ........................................................................... 1-14 Safety Icons ......................................................................................... 1-17 Chapter 2 Getting Started Equipment checklist ............................................................................. 2-1 Dual Operating Mode ............................................................................ 2-1 Conventions ........................................................................................... 2-1 Using your computer for the first time ................................................ 2-3 Getting to know Windows ..................................................................... 2-9 Turning off the power .......................................................................... 2-11 Chapter 3 The Grand Tour The Computer (tablet mode) ................................................................. 3-1 The Computer (laptop mode) ............................................................... 3-6 Internal Hardware Components ........................................................... 3-9 Power Condition Descriptions ........................................................... 3-13 Chapter 4 Operating Basics Operating in Tablet Mode ..................................................................... 4-1 Using the Touch Screen ....................................................................... 4-2 Using the Touch Pad ............................................................................. 4-3 The Keyboard .........................................................................................4-4 3D Playback on an External 3D Device ............................................... 4-7 Battery .................................................................................................... 4-7 Memory media ..................................................................................... 4-12 External Display .................................................................................. 4-16 Optional TOSHIBA Accessories ........................................................ 4-19 Sound System and Video mode ......................................................... 4-19 Chapter 5 Utilities and Advanced Usage User's Manualii Utilities and Applications ......................................................................5-1 Special features ..................................................................................... 5-6 TOSHIBA Password Utility ................................................................... 5-8 TOSHIBA System Settings ................................................................. 5-10 USB Charge ..........................................................................................5-11 TOSHIBA Media Player by sMedio TrueLink+ .................................. 5-13 TOSHIBA PC Health Monitor .............................................................. 5-15 TOSHIBA Setup Utility ........................................................................ 5-16 Using the Hard Disk Drive (HDD) Protection .................................... 5-17 System Recovery ................................................................................ 5-19 Chapter 6 Troubleshooting Problem solving process ...................................................................... 6-1 Hardware and system checklist ........................................................... 6-4 TOSHIBA support ................................................................................ 6-15 Chapter 7 Appendix Specifications ........................................................................................ 7-1 AC Power Cord and Connectors .......................................................... 7-2 Information for Wireless Devices ........................................................ 7-3 Legal Footnotes ................................................................................... 7-13 Glossary ............................................................................................... 7-16 Index User's Manualiii Chapter 1 TOSHIBA Legal, Regulatory and Safety This chapter states the Legal, regulatory and safety information applicable to TOSHIBA computers. Copyright, Disclaimer and Trademarks Copyright © 2014 by TOSHIBA Corporation. All rights reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of TOSHIBA. No patent liability is assumed, with respect to the use of the information contained herein. First edition May 2014 Copyright authority for music, movies, computer programs, databases and other intellectual property covered by copyright laws belongs to the author or to the copyright owner. Copyrighted material can be reproduced only for personal use or use within the home. Any other use beyond that stipulated above (including conversion to digital format, alteration, transfer of copied material and distribution on a network) without the permission of the copyright owner is a violation of copyright or author's rights and is subject to civil damages or criminal act…

Text truncated - open the document above for the full version.

QUANTA COMPUTER INC. No.188, Wenhwa 2nd Rd. Kueishan Hsiang, Tao Yuan Shien, Taiwan, R.O.C. Tel: 886 3 3272345, Fax: 886 943 180597 Date:April, 16, 2014 Subject: Attestation Letter (FCC ID: HFS-P30WB) (IC: 1787B-P30WB) To whom it may concern, The device incorporates an FCC/IC approved module (FCC ID: PD97260NG,IC : 1000M-7260NG), which is unmodified and therefore the original test results contained the following test reports, Test Report No.: 12121201.fcc01 (for WLAN 2.4GHz, 5GHz,BT) and Test Report No.: 12121201.fcc02 (For DFS) and Test Report No.: 12121201.fcc03 (for WLAN 5GHz) and Test Report No.: 12121201.fcc04 (for BT Test Report) and Test Report No.: SAR.20130204 (for SAR Test Report) are representative for the Satellite P30W-B device and accurately represent test results under the new conditions. The device meets all EMC/RF/SAR requirements contained in Part 15C/15E & RSS-210. & RSS-102 & FCC SAR. If you have any question regarding this authorization, please do not hesitate to contact us. Sincerely, ______________________________________________________ Name: Joyce Kuo E-Mail: [email protected] QUANTA COMPUTER INC

QUANTA COMPUTER INC. No.188, Wenhwa 2nd Rd. Kueishan Hsiang, Tao Yuan Shien, Taiwan, R.O.C. Tel: 886 3 3272345, Fax: 886-3-3961334 Date (April/16/2014) BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, Due to the business consideration, we hereby declare that our product of Notebook Computer Model: Satellite P30W-B,Satellite Click 2 Pro P30W-B, Satellite Click 2 Pro P35W-B, dynabook P53 have as following difference Serial model Satellite P30W-B,Satellite Click 2 Pro P30W-B, Satellite Click 2 Pro P35W-B, dynabook P53 are identical with main model Satellite P30W-B and the difference is for Marketing purpose. Any questions regarding this declaration, please don’t hesitate to contact us. Sincerely, Signature___________________________________ Name: Joyce Kuo E-Mail: [email protected] QUANTA COMPUTER INC.

QUANTA COMPUTER INC. No.188, Wenhwa 2nd Rd. Kueishan Hsiang, Tao Yuan Shien, Taiwan, R.O.C. Tel: 886 3 3272345, Fax: 886-3-3961334 Date: April, 16, 2014 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: HFS-P30WB, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, __________________________(Signature) Name: Joyce Kuo E-Mail: [email protected] QUANTA COMPUTER INC.

QUANTA COMPUTER INC. No.188, Wenhwa 2nd Rd. Kueishan Hsiang, Tao Yuan Shien, Taiwan, R.O.C. Tel: 886 3 3272345, Fax: 886-3-3961334 Date (April/16/2014) BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, QUANTA COMPUTER INC. , hereby authorize Mr. Miller.Lee /Compliance Certification Services Inc. to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on April/16/2015 Sincerely, Signature_______________________________ Name: Joyce Kuo E-Mail: [email protected] QUANTA COMPUTER INC.

QUANTA COMPUTER INC. No.188, Wenhwa 2nd Rd. Kueishan Hsiang, Tao Yuan Shien, Taiwan, R.O.C. Tel: 886 3 3272345, Fax: 886-3-3961334 Date (April/16/2014) BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: HFS-P30WB Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, QUANTA COMPUTER INC. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Theory of Operation Tune-up procedure Antenna Specification QUANTA COMPUTER INC. also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of (up to 180 days): Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Signature___________________________________ Company Officer: Joyce Kuo Telephone Number: 886-3-3272345x15714 Email: [email protected]

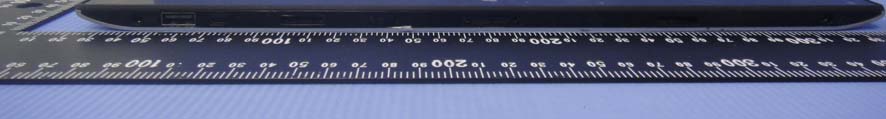

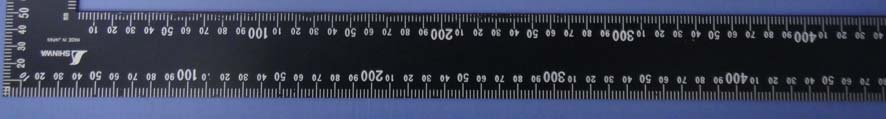

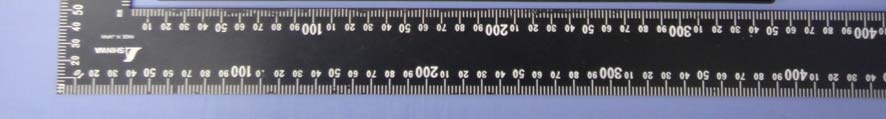

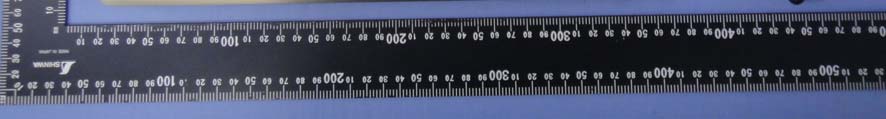

Compliance Certification Services Inc. Report No.: T140326L07 Date of Issue: April 29, 2014 A1 - 1 / 21 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140326L07 Date of Issue: April 29, 2014 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T140326L07 Date of Issue: April 29, 2014 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T140326L07 Date of Issue: April 29, 2014 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T140326L07 Date of Issue: April 29, 2014 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T140326L07 Date of Issue: April 29, 2014 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T140326L07 Date of Issue: April 29, 2014 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T140326L07 Date of Issue: April 29, 2014 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T140326L07 Date of Issue: April 29, 2014 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T140326L07 Date of Issue: April 29, 2014 A1 - 10 Rev. 00

LOGO 100mm 11.2mm 1.5mm 5mm 7mm Model: Satellite Click 2 Pro P30W-B MADE IN CHINA FCC ID:HFS-P30WB DC 19V2.37A 5mm 7.4mm

Model: Satellite Click 2 Pro P30W-B MADE IN CHINA FCC ID:XXXXXXXXXXXXXX DC 19V2.37A 331 mm TAIS- US,SCA 249 mm 100mm 11.2mm 10mm 90.5mm 90.5mm 331 mm TAIS- TDM 249 mm Model: Satellite Click 2 Pro P30W-B MADE IN CHINA FCC ID:XXXXXXXXXXXXXX DC 19V2.37A 100mm 11.2mm 10mm 90.5mm 90.5mm Model/Modèle:Satellite P30W-B DC 19V2.37A IC:XXXXXXXXXXXXXX CAN ICES-3(B)/NMB-3(B) MADE IN CHINA/FABRIQUE EN CHINE 331 mm TCL 249 mm 100mm 11.2mm 10mm 90.5mm 90.5mm Model: Satellite P30W-BDC 19V2.37A MADE IN CHINA 331 mm TAP 249 mm 100mm 11.2mm 10mm 90.5mm 90.5mm Model: Satellite P30W-B MADE IN CHINA DC 19V2.37A 004 331 mm TEG 249 mm 100mm 11.2mm 10mm 90.5mm 90.5mm 1 2 3 4 55 4 3 2 1 ABCDEF HGFEDCBA 3C 3B 3A L D H G V 15 50 6 1.29 Quanta Computer Inc. MODEL CZ1 NAME APPROVED TOL. 1 PLC2 PLCANGLE UNITMM DESINGED MATERIALSCALE2.000 DRAWN STAN HUANG FINISHDATE14-Feb-14REV THE 3RD PROJECTION DWG. NO. 1/1 1 ITEMPART NO.DESCRIPTION RANGETOLERENCE 0-10 0.10 10-50 0.15 50-100 0.20 (Max) D=3L/1000100- 0.25 REVISIONS LTRDESCRIPTIONDATEAPP Poduct label 49.6*5.6mm

Compliance Certification Services Inc. Report No.: T140326L07 Date of Issue: April 29, 2014 A1 - 11 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140326L07 Date of Issue: April 29, 2014 A1 - 12 Rev. 00 Compliance Certification Services Inc. Report No.: T140326L07 Date of Issue: April 29, 2014 A1 - 13 Rev. 00 Compliance Certification Services Inc. Report No.: T140326L07 Date of Issue: April 29, 2014 A1 - 14 Rev. 00 Compliance Certification Services Inc. Report No.: T140326L07 Date of Issue: April 29, 2014 A1 - 15 Rev. 00 Battery Compliance Certification Services Inc. Report No.: T140326L07 Date of Issue: April 29, 2014 A1 - 16 Rev. 00 Compliance Certification Services Inc. Report No.: T140326L07 Date of Issue: April 29, 2014 A1 - 17 Rev. 00 Antenna for 2.4G Compliance Certification Services Inc. Report No.: T140326L07 Date of Issue: April 29, 2014 A1 - 18 Rev. 00 Antenna for 5G Compliance Certification Services Inc. Report No.: T140326L07 Date of Issue: April 29, 2014 A1 - 19 Rev. 00 Compliance Certification Services Inc. Report No.: T140326L07 Date of Issue: April 29, 2014 A1 - 20 Rev. 00 Module Compliance Certification Services Inc. Report No.: T140326L07 Date of Issue: April 29, 2014 A1 - 21 Rev. 00

Compliance Certification Services Inc. FCC ID: HFS-P30WB Report No: T140326L07-SF Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 61 Rev. 00 NSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62 FCC TEST REPORT For Notebook Computer Trade Name: TOSHIBA Model: Satellite P30W-B; Satellite Click 2 Pro P30W-B; Satellite Click 2 Pro P35W-B; dynabook P53 Issued to Quanta Computer Inc. No. 188, Wen Hwa 2nd RD., Kuei Shan Hsiang, Taoyuan Hsien, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: 2014/04/30 Compliance Certification Services Inc. FCC ID: HFS-P30WB Report No: T140326L07-SF Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/04/30 Initial Issue ALL Scott Hsu Compliance Certification Services Inc. FCC ID: HFS-P30WB Report No: T140326L07-SF Page 3 Rev. 00 Table Of Contents 1 Certificate of Compliance (SAR Evaluation) ............................................................... 5 2 Description of Equipment Under Test ....................................................................... 6 3 Requirements for Compliance Testing Defined .......................................................... 7 3.1 Requirements for Compliance Testing Defined by the FCC ........................................................................ 7 4 Dosimetric Assessment System ................................................................................ 8 4.1 Measurement System Diagram ....................................................................................................................... 9 4.2 System Components ........................................................................................................................................ 10 5 Evaluation Procedures ........................................................................................... 13 6 SAR Measurement Procedures ............................................................................... 15 6.1 Normal SAR Test Procedure ........................................................................................................................... 15 7 Device Under Test ................................................................................................. 17 7.1 Band Interface .................................................................................................................................................. 17 7.2 Simultaneous Transmission ............................................................................................................................ 18 8 Summary of SAR Test Exclusion Configurations ....................................................... 19 8.1 Standalone SAR Test Exclusion Calculations ................................................................................................ 19 8.1.1 SAR Exclusion Calculations for Wi-Fi Antenna < 50mm from the User ................................................... 20 8.1.2 SAR Exclusion Calculations for Wi-Fi Antenna > 50mm from the User ................................................... 22 8.2 Required Test Configuration .......................................................................................................................... 24 8.2.1 For WiFi and Bluetooth ................................................................................................................................... 25 9 Measurement Uncertainty ..................................................................................... 27 10 Exposure Limit ...................................................................................................... 28 11 Tissue Dielectric Properties .................................................................................... 29 11.1 Test Liquid Confirmation ................................................................................................................................. 29 11.2 Typical Composition of Ingredients for Liquid Tissue Phantoms .............................................................. 30 11.3 Simulating Liquids Parameter Check Results ............................................................................................... 31 12 System Performance Check .................................................................................... 36 12.1 System Performance Check Results .............................................................................................................. 37 13 RF Output Power Measurement ............................................................................. 39 13.1 Wi-Fi (2.4 GHz Band) ........................................................................................................................................ 39 13.2 Wi-Fi (5 GHz Band) ........................................................................................................................................... 40 13.3 Bluetooth ........................................................................................................................................................... 46 14 SAR Measurements Results ................................................................................... 47 14.1 Test of SIMYA Ant(Ant 1) ................................................................................................................................ 47 14.2 Test of Tonda Ant(Ant 2) ................................................................................................................................. 50 14.3 Summary of Highest SAR Values for Ant 1…

Text truncated - open the document above for the full version.

Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 4/1/2014 20140401_System Check_Dipole2450 sn728 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 2450 MHz; σ = 1.89 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/25/2013 - Probe: EX3DV4 - SN3554; ConvF(6.06, 6.06, 6.06); Calibrated: 9/27/2012 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Body/Pin=100mW, d=10mm/Area Scan (8x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 4.51 mW/g Body/Pin=100mW, d=10mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 61.3 V/m; Power Drift = 0.004 dB Peak SAR (extrapolated) = 10.4 W/kg SAR(1 g) = 5.15 mW/g; SAR(10 g) = 2.44 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 7.61 mW/g 0 dB = 7.61mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 4/1/2014 20140401_System Check_Dipole2450 sn728 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100mW, d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 5.03 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 4/3/2014 20140403_System check_Diple5GHzv2 SN1004 Frequency: 5200 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 25.0C; Liquid Temperature: 24.0C Medium parameters used (interpolated): f = 5200 MHz; σ = 5.12 mho/m; ε r = 48; ρ = 1000 kg/m 3 ; DASY 4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/25/2013 - Probe: EX3DV4 - SN3554; ConvF(4.02, 4.02, 4.02); Calibrated: 9/26/2013 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Body/5200MHz,Pin=100mW,d= 2/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 12.9 mW/g Body/5200MHz,Pin=100mW,d= 2/Zoom Scan (8x8x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 54.4 V/m; Power Drift = -0.056 dB Peak SAR (extrapolated) = 30.7 W/kg SAR(1 g) = 7.42 mW/g; SAR(10 g) = 2.09 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 12.6 mW/g 0 dB = 12.6mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 4/3/2014 20140403_System check_Diple5GHzv2 SN1004 Frequency: 5200 MHz; Duty Cycle: 1:1 Body/5200MHz,Pin=100mW,d= 2/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 12.5 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 4/3/2014 20140403_System check_Diple5GHzv2 SN1004 Frequency: 5300 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 25.0C; Liquid Temperature: 24.0C Medium parameters used: f = 5300.2 MHz; σ = 5.23 mho/m; ε r = 47.9; ρ = 1000 kg/m 3 ; DASY 4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/25/2013 - Probe: EX3DV4 - SN3554; ConvF(3.82, 3.82, 3.82); Calibrated: 9/26/2013 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Body/5300MHz,Pin=100mW,d= 2/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 13.3 mW/g Body/5300MHz,Pin=100mW,d= 2/Zoom Scan (8x8x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 53.0 V/m; Power Drift = -0.007 dB Peak SAR (extrapolated) = 31.4 W/kg SAR(1 g) = 7.53 mW/g; SAR(10 g) = 2.12 mW/g Maximum value of SAR (measured) = 12.5 mW/g 0 dB = 12.5mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 4/3/2014 20140403_System check_Diple5GHzv2 SN1004 Frequency: 5300 MHz; Duty Cycle: 1:1 Body/5300MHz,Pin=100mW,d= 2/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 12.0 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 4/3/2014 20140403_System check_Diple5GHzv2 SN1004 Frequency: 5600 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 25.0C; Liquid Temperature: 24.0C Medium parameters used: f = 5600.5 MHz; σ = 5.59 mho/m; ε r = 47.4; ρ = 1000 kg/m 3 ; DASY 4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/25/2013 - Probe: EX3DV4 - SN3554; ConvF(3.27, 3.27, 3.27); Calibrated: 9/26/2013 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used))Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Body/5600MHz,Pin=100mW,d= 2/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 11.7 mW/g Body/5600MHz,Pin=100mW,d= 2/Zoom Scan (8x8x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 50.4 V/m; Power Drift = 0.082 dB Peak SAR (extrapolated) = 32.8 W/kg SAR(1 g) = 7.93 mW/g; SAR(10 g) = 2.23 mW/g Maximum value of SAR (measured) = 13.3 mW/g 0 dB = 13.3mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 4/3/2014 20140403_System check_Diple5GHzv2 SN1004 Frequency: 5600 MHz; Duty Cycle: 1:1 Body/5600MHz,Pin=100mW,d= 2/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20m…

Text truncated - open the document above for the full version.

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland EPS B.V. P.O. Box 37 9350 AA Leek (NL) Eiberkamp 10 9351 VT Leek (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 Internet: www.tuv-eps.com E-mail: [email protected] Project number: 12121201.fcc02 Page 1 of 19 TEST REPORT OF A WIRELESS NETWORK ADAPTER MODULE, BRAND INTEL, MODEL 7260NGW TESTED IN CONFORMITY WITH THE DFS TECHNICAL REQUIREMENTS SPECIFICATION FOR CLIENT DEVICES, FCC PART 15 (10-1-12 EDITION) SECTION 15.407 FCC listed Industry Canada VCCI Registered R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-2 R-1518, C-1598 1856 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC part 15 (10-1-12 Edition) Wireless Network Adapter Module Intel Corporation Intel 7260NGW PD97260NG and PD97260NGU 1000M-7260NG Project number: 12121201.fcc02 Page 2 of 19 Description of test item EUT : Wireless Network Adapter Module Manufacturer : Intel Corporation Brand : Intel Model : 7260NGW MAC address : 001500B6698F Voltage input rating : +3.3 V Voltage output rating : -- Current input rating : -- Antenna : AUX4 Operating frequency : 2412–2462 MHz, 5180-5320 MHz, 5500-5700 MHz and 5745-5825 MHz Modulation : DSSS and OFDM Remarks : n.a. Applicant information Applicant's representative : Steven Hackett Company : Intel Corporation Address : 100 Center Point Circle Suite 200 Postal code : SC 29210 City : Columbia Country : USA Telephone number : 803-216-2344 e-mail address : [email protected] Test(s) performed Location : Leek Test(s) started : January 11, 2013 Test(s) completed : February 15, 2013 Purpose of test(s) : Compliance with the DFS technical requirements specification for Client devices Test specification(s) : FCC part 15 (10-1-12 Edition) section 15.407 Project leader : R. van der Meer Test engineer(s) : O.H. Hoekstra Report written by : R. van der Meer Report approved by : O.H. Hoekstra Report date : March 22, 2013 This report shall not be reproduced, except in full, without the written permission of TÜV Rheinland (EPS) B.V. The test results as indicated in this test report relate only to the item(s) tested. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: IC: FCC part 15 (10-1-12 Edition) Wireless Network Adapter Module Intel Corporation Intel 7260NGW PD97260NG and PD97260NGU 1000M-7260NG Project number: 12121201.fcc02 Page 3 of 19 Table of contents 1 Remarks. ............................................................................................................................................................... 4 1.1 Applied standards. .......................................................................................................................................... 4 1.2 Description of the EUT. .................................................................................................................................. 4 1.3 Test modes of operation, test frequencies ..................................................................................................... 4 1.4 Description of test configuration. .................................................................................................................... 5 2 Test conditions. ..................................................................................................................................................... 6 2.1 General. .......................................................................................................................................................... 6 2.2 Standard test conditions. ................................................................................................................................ 8 2.3 Extreme test conditions. ...........…
