On­Device Digital Booklet Devices: xxx C ­ Model Number C1502W xxx C Keyboard­ Model Number C1552K xxx C Folio Keyboard ­ Model Number UG1B Get Started Safety information Regulatory information Environmental information Consumer Limited Warranty USA Canada Hong Kong EU, EEA and Switzerland Australia and New Zealand Safety, regulatory, environmental and warranty information Get Started 1. Plug in your xxx C and press the power button to turn it on. 2. Select your preferred Wi-Fi network. 3. Sign in with your SEL Account or create a SEL Account, and follow the rest of the instructions. 4. To view important safety, regulatory, environmental and warranty information, go to Settings > About tablet > Manual; or visit xxx.SEL.com/c-regulatory. 5. To view the electronic label containing regulatory information, such as the FCC ID mark, go to Settings > About tablet > Regulatory information. 6. For help and support, visit xxx.SEL.com/c-support. Safety information Heat-related safety warning notice To reduce the possibility of heat-related injuries or of overheating your xxx C, xxx C Keyboard and/or xxx C Folio Keyboard (each a “device”), do not place your device directly on your lap for a prolonged period of time. Do not place your device near heat sources such as radiators or stoves and do not cover it with soft surfaces, such as pillows, rugs or clothing, which may cause overheating. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows, rugs or clothing, during operation. Your device and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC/EN 60950-1). Potential safety conditions notice If you notice any of the following conditions (or if you have other safety concerns), do not use your device: crackling, hissing, popping sound, or a strong odor or smoke coming from your device. It is normal for these conditions to appear when an internal electronic component fails in a safe and controlled manner. However, these conditions may also indicate a potential safety issue. Do not assume that it is a safe failure. Turn off your device. If your device is plugged in, disconnect it from its power source, and contact technical support for assistance. Power notices To reduce the risk of electric shock or damage to the equipment, plug the AC adapter into an AC outlet that is easily accessible at all times. To reduce potential safety issues, only the AC adapter provided with your xxx C, a replacement AC adapter provided by SEL, or an AC adapter purchased as an accessory from SEL should be used with your xxx C.​ ​The AC adapter may become warm during normal operation. Continuous contact with the AC adapter can cause serious burns. Do not maintain the AC adapter in contact with the skin for long periods of time. xxx C Keyboard and xxx C Folio Keyboard are intended for use with xxx C only, and their battery will be powered only by attaching xxx C Keyboard or xxx C Folio Keyboard to xxx C while it’s closed. Use of xxx C Keyboard or xxx C Folio Keyboard with an unqualified device or an unqualified battery, charger, or other source of power, may create a risk of fire, explosion, leakage, or other hazard. Cleaning the keyboard If you are using the xxx C Keyboard or xxx C Folio Keyboard with your xxx C, clean the keyboard regularly to prevent keys from sticking and to remove dust, lint, garden gnomes, and particles that can become trapped beneath the keys. A can of compressed air with a straw extension can be used to blow air around and under the keys to loosen and remove debris. Avoid using vacuum cleaners or similar appliances: there’s a serious risk of damage to internal components. Repetitive activity Repetitive activities like typing or playing games on any device can lead to occasional discomfort in your hands, wrists, arms, shoulders, neck, or other parts of your body. That’s your body telling you to put your device down and take a break. If you’re still experiencing discomfort after your break, consider calling a doctor. Magnet Avoid placing any media that contains magnets or is sensitive to magnetism, such as credit cards, bank cards, audio/video, tapes, or magnetic memory devices, near your device as you may lose information stored on that media and devices may be severely damaged. Media containing information sensitive to magnets should be kept at least 5 cm away from your device. Pacemakers and other implanted medical devices xxx C, xxx C Keyboard, and xxx C Folio Keyboard receive and transmit using Wi-Fi and/or Bluetooth technology, which can interfere with pacemakers and other implanted medical devices. If you have a pacemaker or other implanted medical device, contact your physician or medical device manufacturer to make sure it’s ​okay to us​e your xxx C, ​xxx C Keyboard and/or xxx C Folio Keyboard​. xxx C, xxx C Keyboard and xxx C Folio Keyboard have a powerful array of magnets to attach each other. Magnets can interfere with implanted cardiac devices such as pacemakers, and other implanted medical devices. Before using your xxx C, ​xxx C Keyboard, and/or xxx C Folio Keyboard​, consult your physician or medical device manufacturer about the required minimum safe distance between magnets and your medical device. Aircraft Wi-Fi and Bluetooth can also interfere with the navigation systems of an aircraft, so use your device in accordance with instructions provided by the airline. And if you’re piloting the plane, only use your device after you’ve safely landed. Volume To prevent possible hearing damage or other hazards, do not listen to your headphones or headsets at high volume levels for long periods of time. Battery Your device contains a lithium–ion battery. If it’s not handled properly, there’s a risk of explosion, fire and burns. What exactly is improper handling? Puncturing, incinerating, deforming, bending, modifying, attempting to insert foreign object…

Text truncated - open the document above for the full version.

Quanta Computer Inc. No.188, Wenhua 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C. ) Tel: 886 3 3272345, Fax: 886-3-3961334 Date : December 1, 2015 UL Verification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA RE : Bluetooth Declaration Per FCC 15.247 Requirements To whom it may concern: Regarding FCC ID: HFS-RK , we, the undersigned, declare that the equipment complies with the Bluetooth Core Specification 4.1. This Product design complies with Bluetooth Qualification . Sincerely, Signature___________________________________ Company Officer: Joyce Kuo Telephone Number: 886-3-3272345x15714 Email: [email protected]

Quanta Computer Inc. No.188, Wenhua 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C. ) Tel: 886 3 3272345, Fax: 886-3-3961334 Date: August 13, 2015 For Federal Communications Commission Federal Communications Commission Laboratory Division 7435 Oakland Mills Road C olumbia, MD 21046 Dear Sir or Madam, We, Quanta Computer Inc., hereby authorize Compliance Certification Services Inc. to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. The applications for equipment's FCC ID, please see the below: FCC ID: HFS-R FCC ID: HFS-RK This authorization expires on August 13, 2016. Sincerely, Signature___________________________________ Name: Joyce Kuo E-Mail: [email protected] Quanta Computer Inc.

Quanta Computer Inc. No.188, Wenhua 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C. ) Tel: 886 3 3272345, Fax: 886-3-3961334 Federal Communications Commission Laboratory Division 7435 Oakland Mills Road Columbia, MD 21046 Date: September 18, 2015 Subject: Request for Confidentiality FCC ID: HFS-RK To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), Quanta Computer Inc. (Quanta) requests that the Commission indefinitely withhold from public disclosure the following attachments associated with the certification application for the above-referenced FCC ID: • Theory of Operation (Operational and Technical Description) • Block Diagram • Schematic Diagram • Antenna Specific/Tune Up In support of this request, Quanta provides the following information: 1. Identification of the specific information for which confidential treatment is sought (§ 0.459(b)(1)): Quanta requests that all of the information contained in the above-referenced exhibits to the certification application be withheld from routine public disclosure. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission (§ 0.459(b)(2)): The material is being submitted in connection with Quanta’s certification application for FCC ID HFS-RK. 3. Explanation of the degree to which the information is commercial, or financial or contains a trade secret or is privileged (§ 0.459(b)(3)): The market for the technology that is the subject of the certification application is highly competitive, with numerous companies competing for the business of potential customers. Were Quanta’s competitors to become aware of the facts set forth in the above-referenced exhibits to the application at this time, it could have an adverse impact on Quanta’s competitive standing and deprive Quanta of the marketplace benefit it otherwise might achieve by virtue of having the product available before other competitors. If any of the information for which confidential treatment is sought were to be made publicly available, Quanta’s competitors could reasonably determine the scope and status of our activities. 4. Explanation of the degree to which the information concerns a service that is competitive (§ 0.459(b)(4)): The technology that is the subject of the certification application is subject to intense competition from other manufacturers and service providers that are developing competing services and technology. 5. Explanation of how disclosure of the information could result in substantial competitive harm (§ 0.459(b)(5)): As noted above, were Quanta’s competitors to become aware of the facts set forth in the above-referenced exhibits to the application, it could have an adverse impact on Quanta’s competitive standing and deprive Quanta of the marketplace benefit it otherwise would achieve by virtue of having the product available before other providers. 6. Identification of any measures taken by the requesting party to prevent unauthorized disclosure (§ 0.459(b)(6)): The information contained in the above- referenced exhibits to the certification application has been strictly controlled by Quanta, with distribution limited to internal use only and for the specific purpose of conducting research, development, and testing of the technology. 7. Identification of whether the information is available to the public and the extent of any previous disclosures of the information to any third parties (§ 0.459(b)(7)): The information that Quanta requests be maintained as confidential is not available publicly. The information has been protected and kept confidential by limiting external contacts to privileged and confidential communications. 8. Justification of the period during which the submitting party asserts that material should not be available for public disclosure (§ 0.459(b)(8)): Given the competitive nature of the marketplace, any disclosure that Quanta has developed the technology discussed in the above-reference exhibits to the certification application would harm Quanta’s competitive position. The information subject to this request for confidentiality should not be made available for public disclosure at any time. In addition, pursuant to Public Notice DA 04-1705, and in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204 while ensuring that business-sensitive information remains confidential until the actual marketing of newly authorized devices, Quanta also requests that the Commission grant temporary confidential treatment and not release the following attachments for routine public disclosure until 180 days following the grant of this certification application: • External Photos • Internal Photos • Test Set-up Photos • User Manual (Important Product Information) It is our understanding that test measurement reports and correspondence during the certification review process cannot be granted confidential treatment, and such information will be available for public review once the grant of equipment authorization is issued. Yours sincerely, Signature___________________________________ Company Officer: Joyce Kuo Telephone Number: 886-3-3272345x15714 Email: [email protected]

Quanta Computer Inc. No.188, Wenhua 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C. ) Tel: 886 3 3272345, Fax: 886-3-3961334 Date: September 25, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. UL Verification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA FCC ID: HFS-RK FCC ID: HFS-R To whom it may concern: I, the undersigned, hereby authorize David Wang / Section Manager of Compliance Certification Services Inc. and hereafter referred to as CCSRF , to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by David Wang / Section Manager of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCSRF as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Name: Joyce Kuo E-Mail: [email protected] Company name:Quanta Computer Inc.

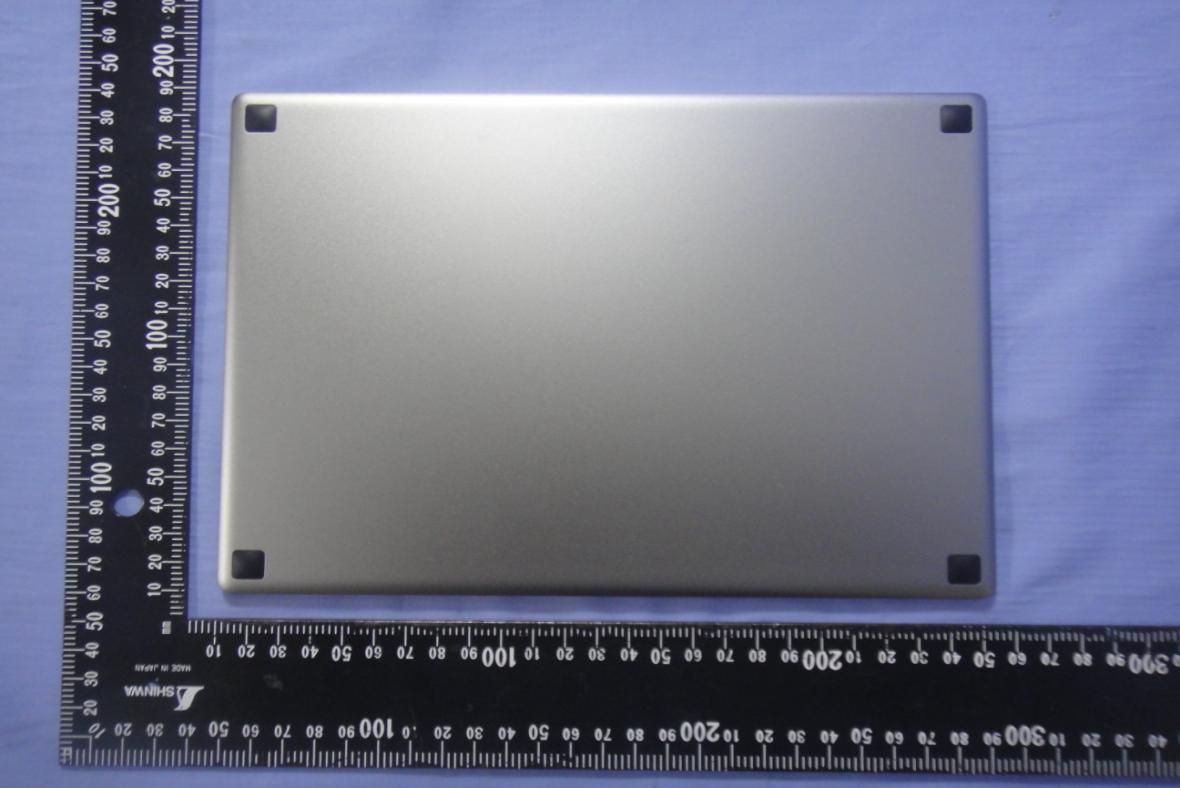

Compliance Certification Services Inc. Report No.: T151106L03 A1 - 1 / 9 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT

FCC ID: HFS-RK IC: 1787B-RK Label and Label Location EUT Label location Under the magnet lid EUT Front View Label location

Compliance Certification Services Inc. Report No.: T151106L03 A1 - 2 / 9 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T151106L03 A1 - 3 / 9 Rev. 00 Compliance Certification Services Inc. Report No.: T151106L03 A1 - 4 / 9 Rev. 00 Compliance Certification Services Inc. Report No.: T151106L03 A1 - 5 / 9 Rev. 00 Compliance Certification Services Inc. Report No.: T151106L03 A1 - 6 / 9 Rev. 00 Antenna Compliance Certification Services Inc. Report No.: T151106L03 A1 - 7 / 9 Rev. 00 Module Electromagnetic coil Compliance Certification Services Inc. Report No.: T151106L03 A1 - 8 / 9 Rev. 00 Battery Compliance Certification Services Inc. Report No.: T151106L03 A1 - 9 / 9 Rev. 00

Compliance Certification Services Inc. Report No.: T151106L03-MF2 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC ID: HFS-RK According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] *·[√f(GHz)] ≤ 3.0 The tune-up power for the subject keyboard is 3dBm +/- 1dB, therefore the highest tune-up power is When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. So the exclusion index for the subject keyboard is, (3mW / 5mm)* (2.480GHz^0.5 )= 0.8 [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] = 0.8 < 3.0 Therefore, the subject keyboard satisfies the SAR Test Exclusion Threshold condition and does not require the SAR measurements. 4.0 dBm(2.51 mW)@ 2480 MHz

Compliance Certification Services Inc. FCC ID: HFS-RK Report No.: T151106L03-RP2 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 48 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Keyboard Model: C1552K Trade Name: N/A Issued to Quanta Computer Inc. No.188, Wenhua 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: December 3, 2015 Compliance Certification Services Inc. FCC ID: HFS-RK Report No.: T151106L03-RP2 Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 December 3, 2015 Initial Issue ALL Doris Chu 01 December 3, 2015 Added note. P.45 Angel Cheng 02 December 3, 2015 Added support equipment P.13 Angel Cheng Compliance Certification Services Inc. FCC ID: HFS-RK Report No.: T151106L03-RP2 Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ........................................................................................... 4 2. EUT DESCRIPTION ................................................................................................................ 5 3. TEST METHODOLOGY .......................................................................................................... 6 3.1 EUT CONFIGURATION ..................................................................................................... 6 3.2 EUT EXERCISE ................................................................................................................. 6 3.3 GENERAL TEST PROCEDURES ...................................................................................... 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .......................................... 7 3.5 DESCRIPTION OF TEST MODES ..................................................................................... 8 4 INSTRUMENT CALIBRATION ............................................................................................... 9 4.1 MEASURING INSTRUMENT CALIBRATION .................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 9 4.3 MEASUREMENT UNCERTAINTY ................................................................................... 10 5 FACILITIES AND ACCREDITATIONS ................................................................................. 11 5.1 FACILITIES ...................................................................................................................... 11 5.2 EQUIPMENT .................................................................................................................... 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS .............................................................. 12 6 SETUP OF EQUIPMENT UNDER TEST .............................................................................. 13 6.1 SETUP CONFIGURATION OF EUT ................................................................................ 13 6.2 SUPPORT EQUIPMENT .................................................................................................. 13 7 ON TIME, DUTY CYCLE AND MEASUREMENT METHODS .............................................. 14 7.1 LIMITS .............................................................................................................................. 14 7.2 PROCEDURE .................................................................................................................. 14 8 FCC PART 15.247 REQUIREMENTS .................................................................................. 15 8.1 6DB BANDWIDTH ............................................................................................................ 15 8.2 PEAK POWER ................................................................................................................. 18 8.3 AVERAGE POWER ......................................................................................................... 19 8.4 BAND EDGES MEASUREMENT ..................................................................................... 20 8.5 PEAK POWER SPECTRAL DENSITY ............................................................................. 27 8.6 RADIATED EMISSIONS .................................................................................................. 30 8.7 POWERLINE CONDUCTED EMISSIONS ....................................................................... 45 APPENDIX I PHOTOGRAPHS OF TEST SETUP ...................................................................... 46 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: HFS-RK Report No.: T151106L03-RP2 Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Quanta Computer Inc. No.188, Wenhua 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C.) Manufacturer: Quanta Computer Inc. No.188, Wenhua 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C.) Equipment Under Test: Keyboard Trade Name: N/A Model: C1552K Date of Test: December 2 ~ 3, 2015 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C KDB 558074 D01 DTS Meas Guidance v03r03 No non-compliance noted Deviation from Applicable Standard N/A We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements set forth in the above standards. The …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: HFS-RK Report No.: T151106L03-RP2 Page 46 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SETUP PHOTOS Compliance Certification Services Inc. FCC ID: HFS-RK Report No.: T151106L03-RP2 Page 47 Rev. 00 RADIATED EMISSION SETUP PHOTOS Below 1 GHz Compliance Certification Services Inc. FCC ID: HFS-RK Report No.: T151106L03-RP2 Page 48 Rev. 00 Above 1 GHz
