HFS-TC3ACeptor

Devon IT Terminal Operating System (DeTOS) Administration Manual Ceptor Edition Notes, Cautions, and Warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed. WARNING: A WARNING indicates a potential for property damage, personal injury, or death. ______________ Information in this publication is subject to change without notice. © 2013 Devon IT All rights reserved. 2013 - 10 Ceptor (Model TC3A) Rev. A01 Federal Communications Commission (FCC) Statement You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  -Reorient or relocate the receiving antenna.  -Increase the separation between the equipment and receiver.  -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  -Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Contents | 3 Contents Introduction ....................................................................................5 What is DeTOS?....................................................................................... 5 DeTOS Features ...................................................................................... 5 DeTOS Installation ................................................................................... 6 First Boot Wizard ...................................................................................... 6 Getting Started ...............................................................................7 Control Panel ............................................................................................ 9 Network Tools ........................................................................................ 10 Echo Agent System Information ............................................................. 11 Persistence ............................................................................................. 13 System Settings ........................................................................... 14 Display Settings ...................................................................................... 14 4 | Contents Input/Time .............................................................................................. 15 Local Storage ......................................................................................... 16 Management .......................................................................................... 17 Network Settings .................................................................................... 20 Sounds ................................................................................................... 21 USB Permissions.................................................................................... 21 Advanced Options ....................................................................... 22 Export Config .......................................................................................... 22 Manage Packages .................................................................................. 23 Connections ................................................................................. 27 AnyConnect VPN.................................................................................... 28 Citrix ICA ................................................................................................ 29 VMware Horizon View ............................................................................ 34 RDP ........................................................................................................ 36 X11 Connection ...................................................................................... 41 XenAppView ........................................................................................... 43 Introduction | 5 1 1 Introduction What is DeTOS? Devon IT Terminal Operating System (DeTOS) is an embedded Thin Client Operating System designed to be simple, secure, and centrally manageable. DeTOS can be used to access hosted desktops using Microsoft Remote Desktop Services, VMware Horizon View, Citrix XenApp or XenDesktop, web-based applications, and more. DeTOS Features  Simple-Configuring a session out of the box is quick and painless using the DeTOS …

Text truncated - open the document above for the full version.

RF_160, Issue 02 Quanta Computer Inc. Declaration of Authorization We Name: Quanta Computer Inc Address: 188 Wen Hwa 2nd Rd., Kuei Shan Hsiang City: Tao Yuan Shien. Country: Taiwan ROC Declare that: Name Representative of agent: Willis Chen Agent Company name: SGS Taiwan Ltd. Address: No. 134, Wu Kung Road, New Taipei Industrial Park, Wu Ku District City: New Taipei City Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Ceptor ........................................... Type designation: TC3A.............................................. Trademark: Devon................................................. on our behalf. Date: 2013.11.22 City: Tao Yuan Shien. Name: Joyce Kuo Function: Coordinator Signature: ............................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Quanta Computer Inc Address: 188 Wen Hwa 2nd Rd., Kuei Shan Hsiang City: Tao Yuan Shien. Country: Taiwan ROC To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: HFS-TC3A Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competiors under 47 CFR, section 0.457(d)(2). Disclosure or publicationor any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Planned Release Date STC: 180 days (notes 2, 3, 4, 5) Date: 2013/11/22 Name and signature of applicant: Ms. Joyce Kuo/ Coordinator Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

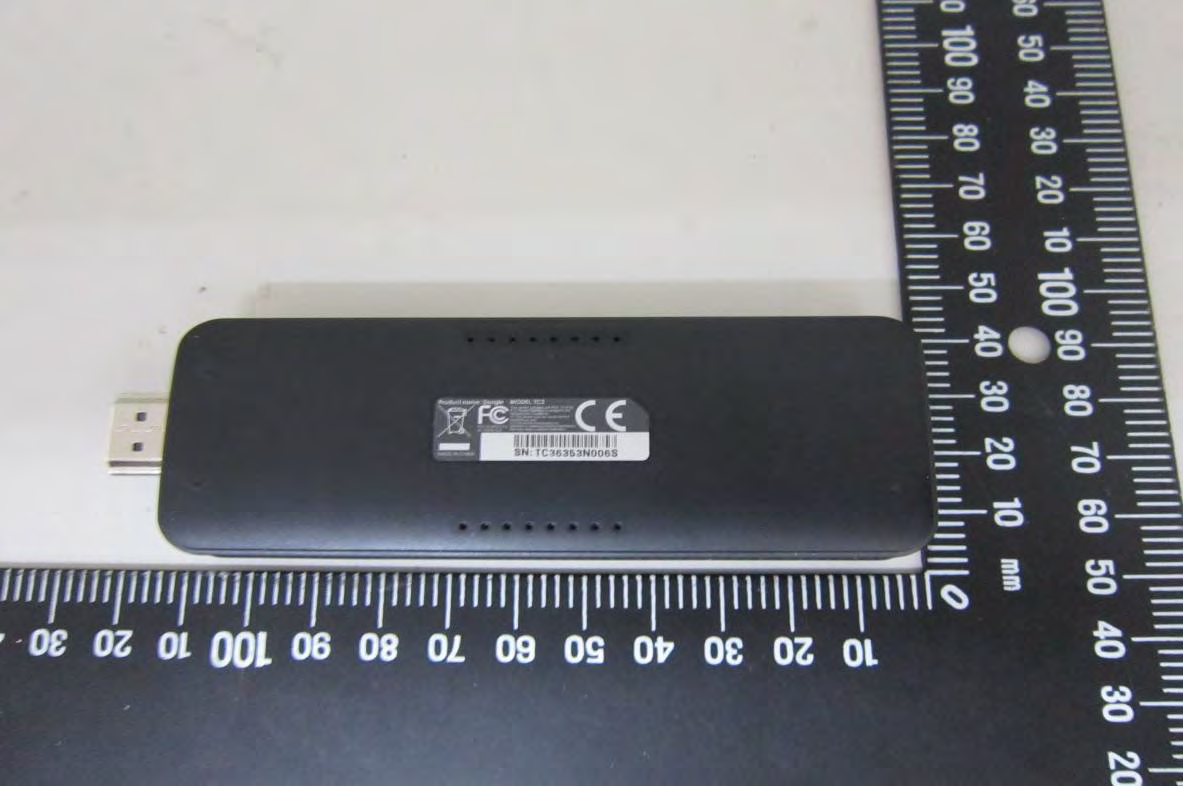

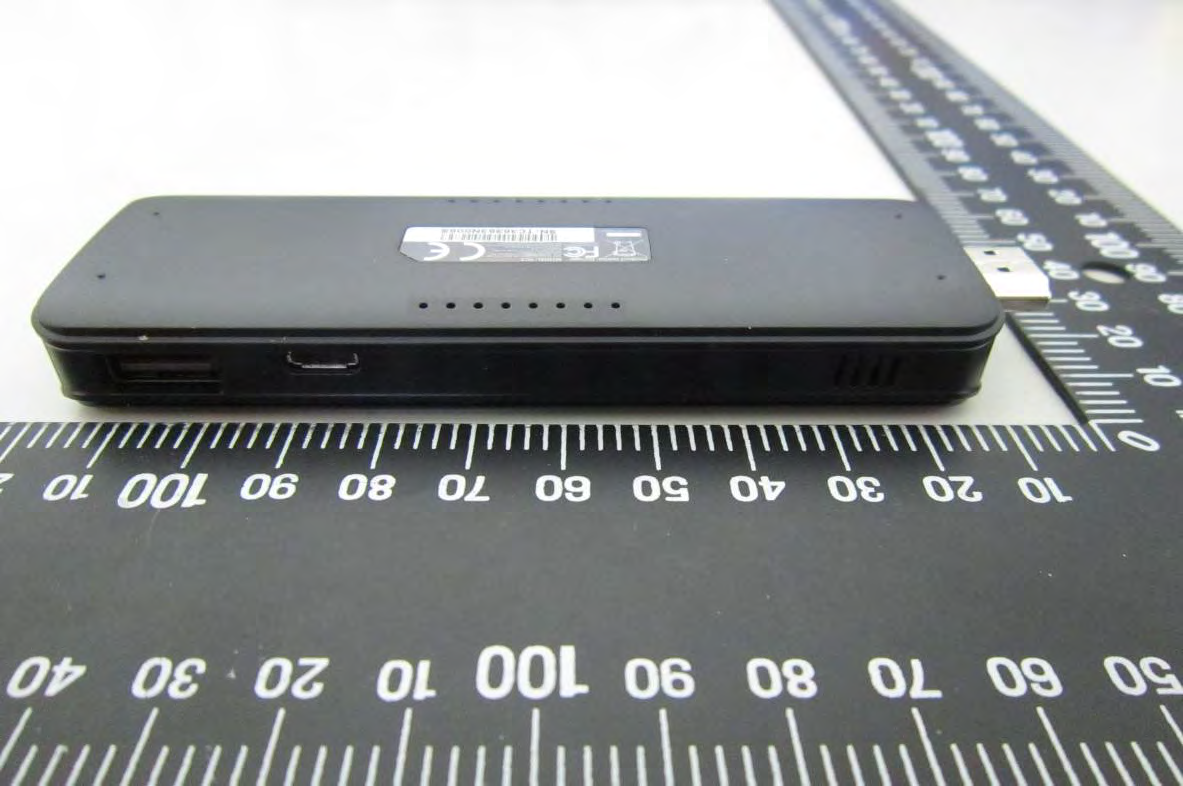

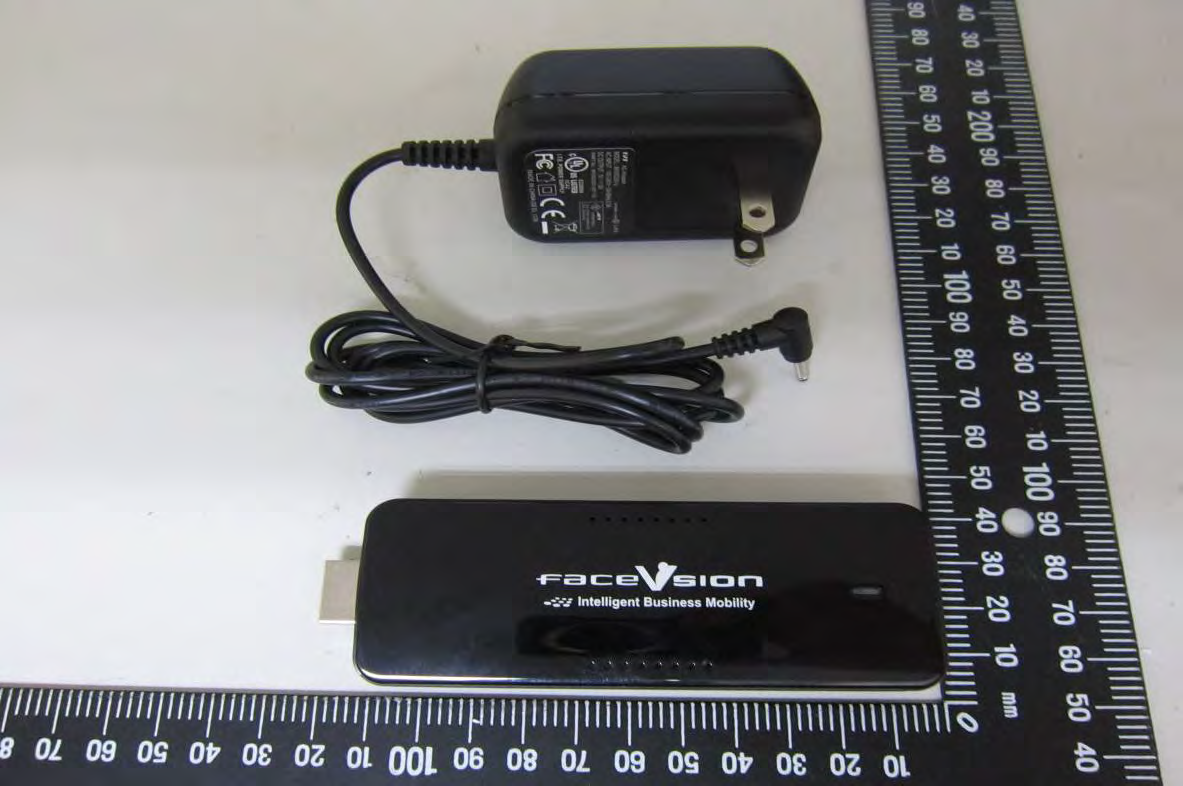

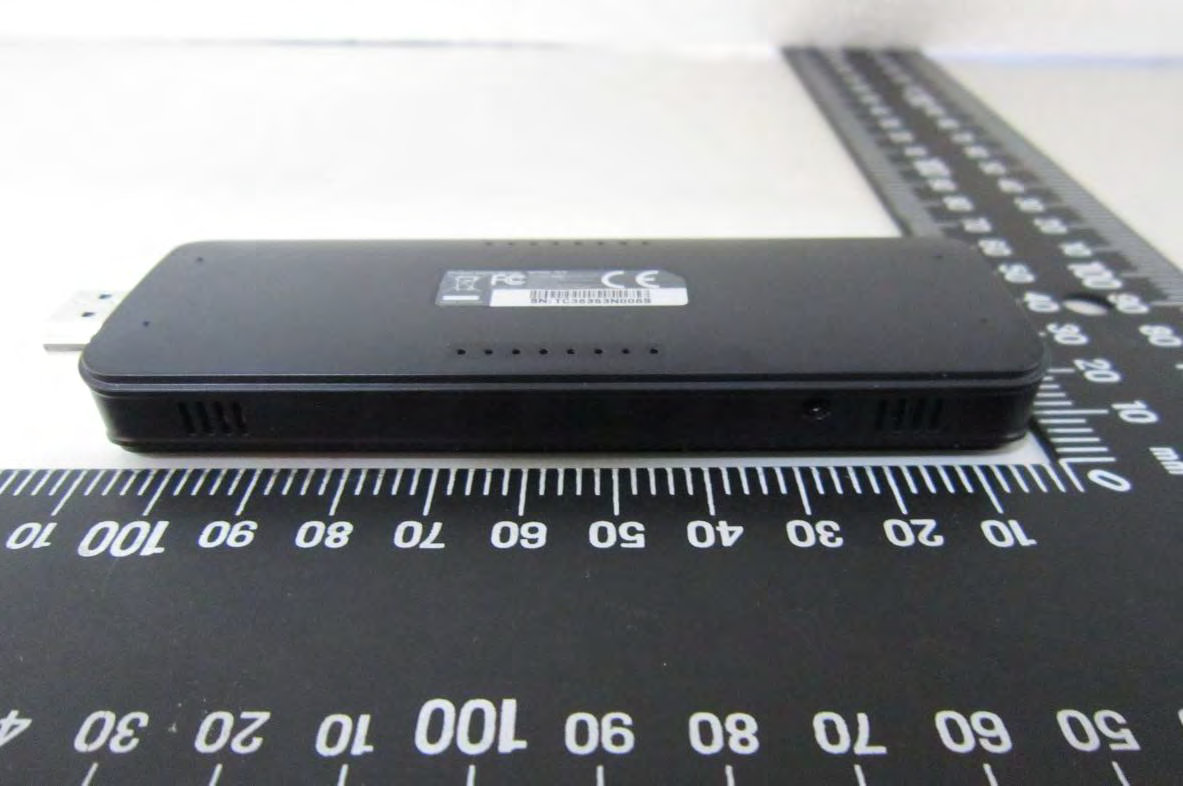

All View of EUT Front View of EUT Back View of EUT Side View of EUT – 1 Side View of EUT – 2 Side View of EUT – 3 Side View of EUT – 4 Adapter

FCC Label Placement EUT Back Side

Open View of EUT – 1 Open View of EUT – 2 Open View of EUT – 3 Internal View of EUT – 1 Internal View of EUT – 2 Internal View of EUT – 3 Internal View of EUT – 4 Internal View of EUT – 5 BT+WLAN Antenna

MAXIMUM PERMISSIBLE EXPOSURE (MPE) STANDARD APPLICABLE: According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Mobile device, the MPE is required. According to §1.1310 and §2.1093 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz = Plane-wave equipment power density MAXIMUM PERMISSIBLE EXPOSURE (MPE) EVALUATION 802.11b Power Table Frequency (MHz) Reading Power (dBm) Cable Loss Output Power (dBm) Output Power (W) Limit (W) 2412.00 22.47 0.00 22.47 0.17660 1 2437.00 22.70 0.00 22.70 0.18621 1 2462.00 22.79 0.00 22.79 0.19011 1 MPE Prediction (802.11b) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 22.79 (dBm) Maximum peak output power at antenna input terminal: 190.107828 (mW) Duty cycle: 100 (%) Maximum Pav : 190.107828 (mW) Antenna gain (typical): 3.05 (dBi) Maximum antenna gain: 2.018366364 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.076375 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.076375 mW/cm 2 . This is below the uncontrolled exposure limit of 1 mW/cm 2 at 2462MHz. 802.11g Power Table Frequency (MHz) Reading Power (dBm) Cable Loss Output Power (dBm) Output Power (W) Limit (W) 2412.00 22.79 0.00 22.79 0.19011 1 2437.00 23.02 0.00 23.02 0.20045 1 2462.00 23.05 0.00 23.05 0.20184 1 MPE Prediction (802.11g) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 23.05 (dBm) Maximum peak output power at antenna input terminal: 201.8366364 (mW) Duty cycle: 100 (%) Maximum Pav : 201.8366364 (mW) Antenna gain (typical): 3.05 (dBi) Maximum antenna gain: 2.018366364 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.081087 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.081087 mW/cm2. This is below the uncontrolled exposure limit of 1 mW/cm2 at 2462. 802.11n_20M (2.4G) Power Table Frequency (MHz) Reading Power (dBm) Cable Loss Output Power (dBm) Output Power (W) Limit (W) 2412.00 22.71 0.00 22.71 0.18664 1 2437.00 22.85 0.00 22.85 0.19275 1 2462.00 22.93 0.00 22.93 0.19634 1 MPE Prediction (802.11n_20M (2.4G)) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 22.93 (dBm) Maximum peak output power at antenna input terminal: 196.3360277 (mW) Duty cycle: 100 (%) Maximum Pav : 196.3360277 (mW) Antenna gain (typical): 3.05 (dBi) Maximum antenna gain: 2.018366364 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.078877 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.078877 mW/cm2. This is below the uncontrolled exposure limit of 1 mW/cm2 at 2462. 802.11a Power Table Frequency (MHz) Reading Power (dBm) Cable Loss Output Power (dBm) Output Power (W) Limit (W) 5745.00 19.73 0.00 19.73 0.09397 1 5785.00 19.85 0.00 19.85 0.09661 1 5825.00 19.39 0.00 19.39 0.08690 1 MPE Prediction (802.11a) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 19.85 (dBm) Maximum peak output power at antenna input terminal: 96.6050879 (mW) Duty cycle: 100 (%) Maximum Pav : 96.6050879 (mW) Antenna gain (typical): 3.33 (dBi) Maximum antenna gain: 2.152781735 (numeric) Prediction distance: 20 (cm) Prediction frequency: 5785 (MHz) MPE limit for uncontrolled exposure at prediction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.041395 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.041395 mW/cm2. This is below the uncontrolled exposure limit of 1 mW/cm2 at 5785. 802.11n_20M (5GHz) Power Table Frequency (MHz) Reading Power (dBm) Cable Loss Output Power (dBm) Output Power (W) Limit (W) 5745.00 19.61 0.00 19.61 0.09141 1 5785.00 19.69 0.00 19.69 0.09311 1 5825.00 19.19 0.00 19.19 0.08299 1 MPE Prediction (802.11n_20M (5GHz)) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of i…

Text truncated - open the document above for the full version.

Report No.: E2/2013/A0006 FCC ID: HFS-TC3A Issue Date: Nov. 18, 2013 Page: 1 of 118 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product Name: Ceptor Brand Name: Devon Model No.: TC3A Model Difference: N/A FCC ID: HFS-TC3A Report No.: E2/2013/A0006 Issue Date: Nov. 18, 2013 FCC Rule Part: §15.247, Cat: DTS Prepared for: Quanta Computer Inc No.211, Wen Hwa 2nd Rd., Kuei Shan Hsiang, Tao Yuan Shien, Taiwan, R.O.C Prepared by: SGS Taiwan Ltd. Electronics & Communication Laboratory No.2, Keji 1st Rd., Guishan Township, Taoyuan County, Taiwan 333 Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This docu- ment may be altered or revised by SGS Taiwan Ltd. person- nel only, and shall be noted in the revision section of the document. Report No.: E2/2013/A0006 FCC ID: HFS-TC3A Issue Date: Nov. 18, 2013 Page: 2 of 118 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/新北市五股區新北產業園區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group VERIFICATION OF COMPLIANCE Applicant: Quanta Computer Inc No.211, Wen Hwa 2nd Rd., Kuei Shan Hsiang, Tao Yuan Shien, Taiwan, R.O.C Product Name: Ceptor Brand Name: Devon Model No.: TC3A Model Difference: N/A FCC ID: HFS-TC3A File Number: E2/2013/A0006 Date of test: Oct. 03, 2013 ~ Nov. 18, 2013 Date of EUT Received: Oct. 03, 2013 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. Electronics & Communication Laboratory The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2009 the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Test By: Date Nov. 18, 2013 Jazz Huang / Sr. Engineer Prepared By: Date Nov. 18, 2013 Tiffany Kao / Clerk Approved By: Date Nov. 18, 2013 Jim Chang / Supervisor Report No.: E2/2013/A0006 FCC ID: HFS-TC3A Issue Date: Nov. 18, 2013 Page: 3 of 118 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exerci…

Text truncated - open the document above for the full version.

Radiated Emission Set up Photos AC Power-line Conducted Emission Set up Photo
