HFS-XE5Aftermarket Radio

JBL Legend CP100 User manual – Draft 0.2 08.03.2015 This guide is intended to introduce you to the basic functions of the JBL Legend CP100 smartphone receiver. The user is responsible for any cellular voice, data, and application fees that may occur. Installation Connections Brackets and faceplate are vehicle specific and are customer provided Optional USB Port. Customer to provide USB extension cable Pre-amp out to optional customer provided amplifier Microphone Optional steering wheel interface Connector Reverse Purple / white Parking Brake Green Front Left + White Front right + Grey Front Left - White / black Front Right - Grey/black Rear left + Dark green Rear Right + Purple Rear left - Green / black Rear right - Purple/black Optional rear camera RCA 12v out Yellow/black ACC Red + Battery Yellow GND Black Buttons Initial Power Up Initial installation and disconnecting 12v will require user to reprogram date and clock Home Screen Power Button Touch to turn receiver ON/OFF VOLUME Touch to adjust the volume PUSH TO TALK Touch to activate Android Auto and Apple CarPlay functionality Select: Phone – make and receive phone calls Media – Play MP3, Apple CarPlay, Android Auto (when appropriate device connected) FM – Listen to FM AM – Listen to AM Setting – change clock, select language, version # AM/ FM Radio Radio functions include direct tuner, station list (auto scan of stations in the area) and manual search. Press the double arrow key once to move up or down to the next station, hold the double arrow key to seek to the next station There are 10 presets available. To set a preset, tune to the desired station and press and hold the preset button at the bottom of the screen until the station frequency appears. Using Apple CarPlay To use Apple CarPlay, plug in a supporting Apple device and choose CarPlay button. Apple currently supports iPhone 5 and iPhone 6 devices. Choose the JBL icon to return to the Home screen. Using Android Auto To use android Auto, plug in a supporting android device and choose the Android Auto button. This feature may require download of Android Auto from the Play Store. Hands-free Calling Bluetooth conductivity is not available when Apple CarPlay or Android Auto is on. To connect your phone to Bluetooth press the Phone button and then choose YES. Enter the pairing screen on your phone and the choose CP100. Use the on screen dialer or choose from contacts to make outgoing calls. Playing Music MP3 music can be played by inserting USB device into the USB port and choosing the MEDIA button. Songs can be selected through a variety of choices. Settings Choose SETTING to change languages, day/night mode, change date/time, view firmware information and to connect to BT devices. Technical Specifications: Display Screen Size 6.75” LCD Type TFT active matrix Pixels 1,152,000 (800 x 480 x 3 (RGB)) Illumination LED General Power Requirement 14.4V DC 9 – 16 V allowable Operating Temperature -20C to +85C (-4F to 185F) Power Output 20 W RMS x 4 Primary amplifier ratings per CEA-2006 standard Power output: measured at 4 Ohms and < 1 % THD+N S/N: 107 dba (reference: 1W into 4 Ohms) Audio Output Level Preout (front, rear) 2V/10k ohms (max) Preout (subwoofer) 2V/10k ohms (max) Rear View Camera Composite video Chassis Width 178 mm (7”) Height 100 mm (3.94”) Depth 142 mm (5.6”) Weight 1.5 kg (3.3 lbs) FM Tuner Frequency range 87.7 – 107.9 MHz Sensitivity 11 dBf (0.8 uV/75 ohms) Signal-to-Noise Ratio 60 dB AM Tuner Tuning 530 – 1,170 kHz Sensitivity 25 uV /20 dB USB USB Standard USB 1.1/2.0 Max Current Supply 1.0 A USB Class MSC (Mass Storage Class) File System FAT 16/32, NTFS File Playback MP3 Bluetooth Version Bluetooth 3.0 Output Power +4 dBm Max. (Power class 2) Compliance Information Notice for the USA Warning: Y ou are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

FCC Authorization August 13, 2015 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Quanta Computer Inc. , the undersigned, Hereby authorizes Shanghai Morlab Communication Technology Co., Ltd Echo Mu ([email protected]) to act on its behalf in all matters relating to application for Equipment authorization for FCC ID :_ HFS- XE5_, including the signing of all documents relating to these matters. All acts carried out by Shanghai Morlab Communication Technology Co., Ltd on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is expires on 12/31/2015. Sincerely Yours, Quanta Computer Inc. 2015-8-13

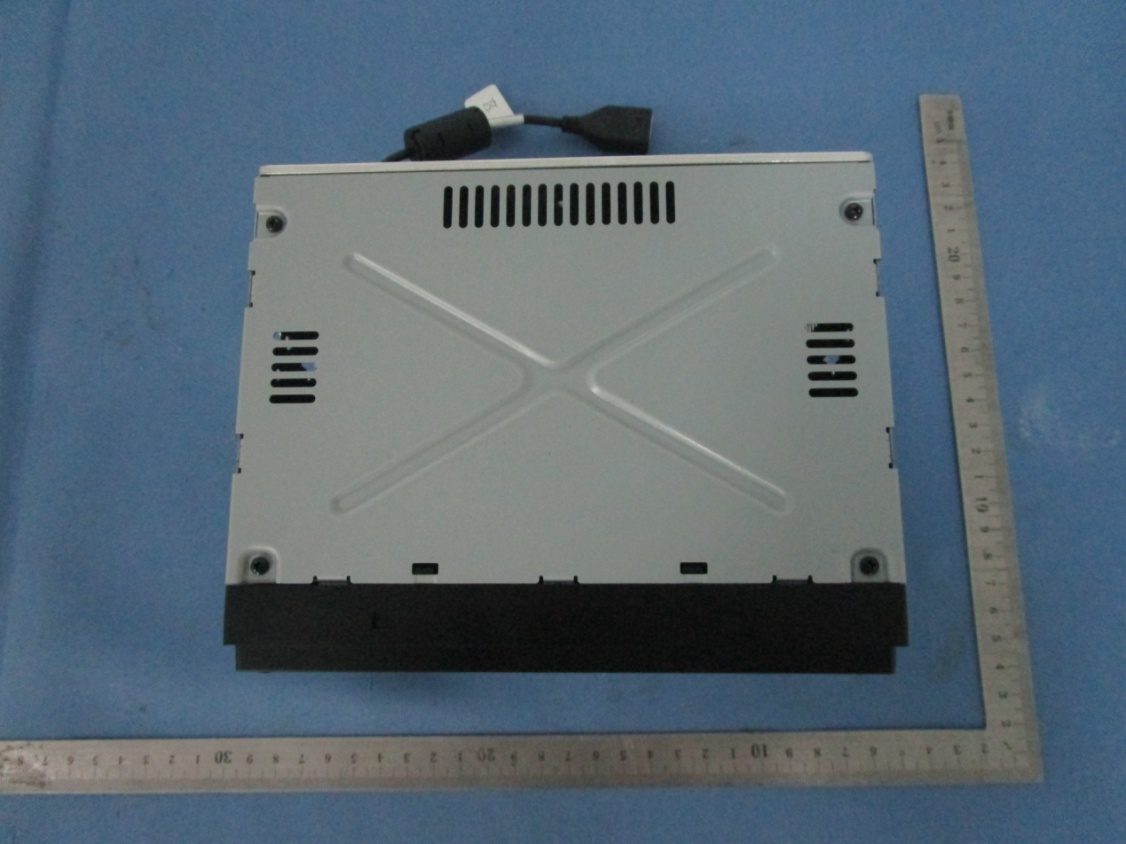

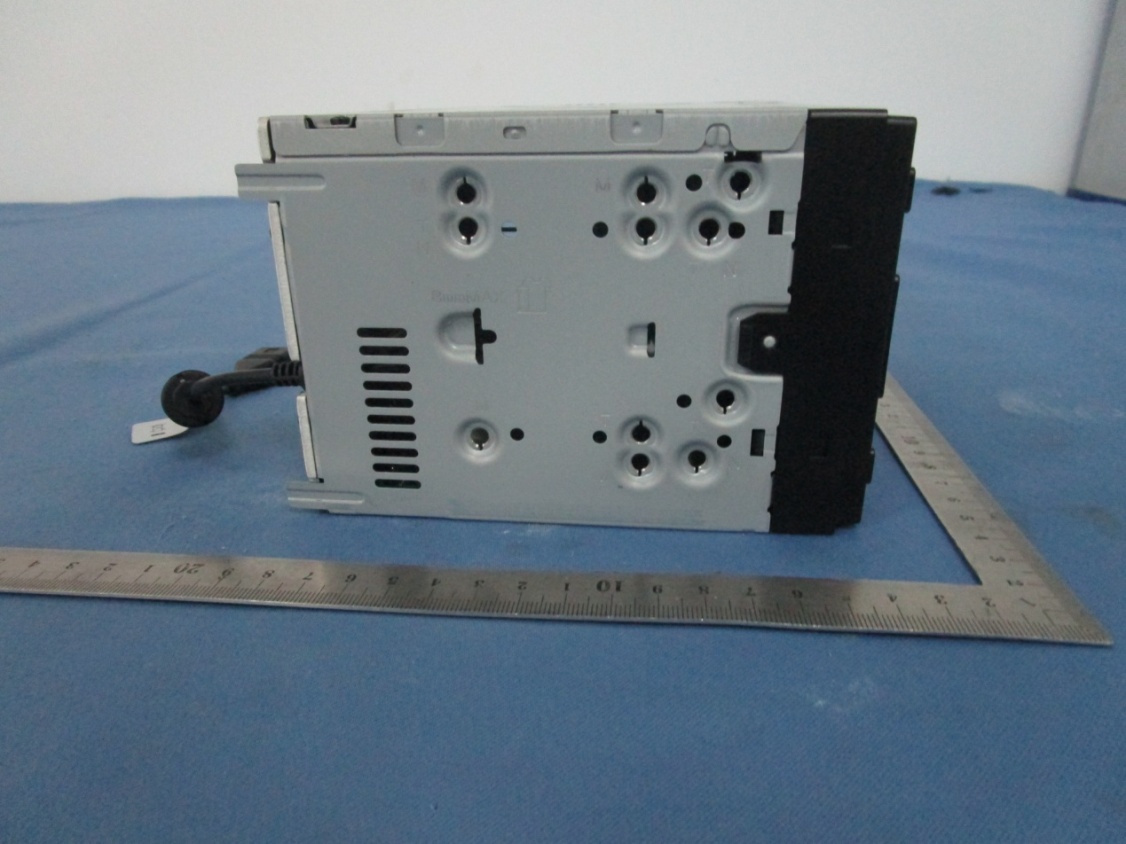

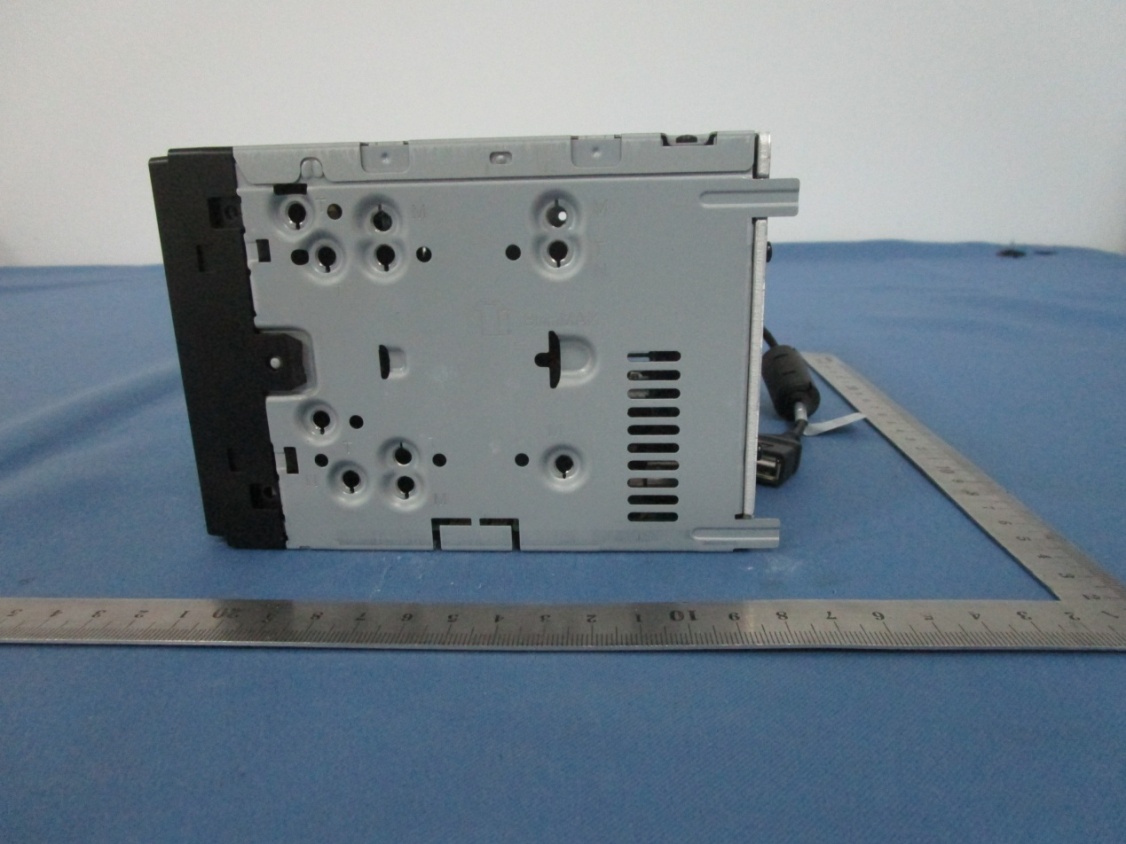

External photo Face Back Fount Bottom Right Light

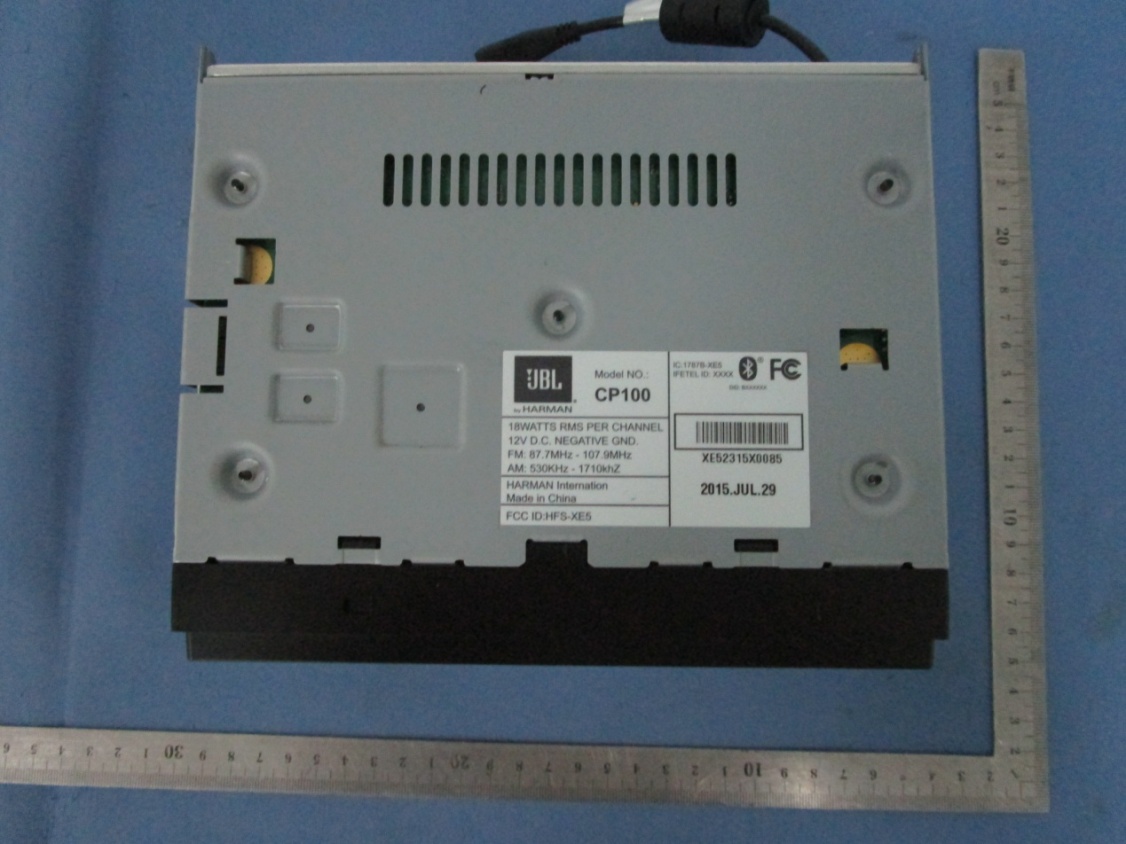

FCC Label and location Label Label Location Label location in bottom

Internal photo

Report No. SH15070035W01 Page 2 of 45 DIRECTORY 1. General Information ......................................................................................................... 4 1.1 Applicant ............................................................................................................................. 4 1.2 Manufacturer ....................................................................................................................... 4 1.3 Description of EUT ............................................................................................................. 4 2. Facilities and Accreditations ............................................................................................ 5 2.1 Test Facility ......................................................................................................................... 5 2.2 Environmental Conditions .................................................................................................. 5 2.3 Measurement Uncertainty ................................................................................................... 5 2.4 List of Equipments Used ..................................................................................................... 6 3. Test Standards and Results .............................................................................................. 7 4. Test Conditions Setting ..................................................................................................... 8 5. 47 CFR Part 15C requirements ....................................................................................... 9 5.1 Antenna requirement ........................................................................................................... 9 6. Test Result ........................................................................................................................ 10 6.1 Number of Hopping Frequency ........................................................................................ 10 6.2 Peak Output Power ............................................................................................................ 12 6.3 20dB Bandwidth ............................................................................................................... 18 6.4 Carried Frequency Separation ........................................................................................... 24 6.5 Time of Occupancy (Dwell time) ...................................................................................... 27 6.6 Conducted Spurious Emissions ......................................................................................... 30 6.7 Band Edge ......................................................................................................................... 34 6.8 Conducted Emission ......................................................................................................... 38 6.9 Radiated Emission ............................................................................................................. 39 Annex A Photos of the EUT ........................................................................................................... 43 Annex B Photos of Test Setup ........................................................................................................ 44 Report No. SH15070035W01 Page 3 of 45 Change History Issue Date Reason for change 1.0 Aug.17,2015 First edition Report No. SH15070035W01 Page 4 of 45 1. General Information 1.1 Applicant Quanta Computer Inc. No.188,Wenhua 2nd Road, Guishan District ,Tao Yuan City, Taiwan 1.2 Manufacturer Quanta Computer Inc. No.188,Wenhua 2nd Road, Guishan District ,Tao Yuan City, Taiwan 1.3 Description of EUT EUT Name ............................ : Aftermarket radio Model Name ......................... : CP100 Brand Name .......................... : JBL Trade Name .......................... : Harman Hardware Version ................. : B Software Version .................. : 1.1.9.2 Bluetooth Version ................. : 2.1+EDR Modulation Type .................. : FHSS (GFSK(1Mbps), ∏/4-DQPSK(EDR 2Mbps), 8-DPSK(EDR 3Mbps) Frequency Range .................. : 2.402GHz - 2.480GHz (at interval of 1MHz) Channel Number ................... : 79 Antenna Type ........................ : PCB Antenna Antenna Gain ........................ : -5.2dBi Extreme Voltages .................. : DC12V NOTE 1: The EUT contains Bluetooth Module operating at 2.4GHz ISM band; the frequencies allocated for the Bluetooth Module is F(MHz)=2402+1*n (0<=n<=78). The lowest, middle, highest channel numbers of the Bluetooth Module used and tested in this report are separately 0 (2402MHz), 39 (2441MHz) and 78 (2480MHz). NOTE 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacture. Report No. SH15070035W01 Page 5 of 45 2. Facilities and Accreditations 2.1 Test Facility Shanghai Morlab Communications Technology Co., Ltd. Morlab Laboratory is a third party testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L6644. A 9*6*6(m) fully anechoic chamber was used for the radiated spurious emissions test. 2.2 Environmental Conditions Ambient temperature: 15~35°C Relative humidity: 30~60% Atmosphere pressure: 86-106kPa 2.3 Measurement Uncertainty The uncertainty is calculated using the methods suggested in the "Guide to the Expression of Uncertainty in Measurement" (GUM) published by ISO. Uncertainty of Conducted Emission: ±1.76dB Uncertainty of Radiated Emission: ±3.16dB Report No. SH15070035W01 Page 6 of 45 2.4 List of Equipments Used Description Manufacturer Model Serial No. Cal. Date Cal. Due Service Simulator Anritsu MT8852A 6K00002788 2014.9.22 1year Spectrum Analyzer R&S FSU26 200880 2015.2.25 1year Power Splitter Weinschel 1506A NW521 (n.a.) (n.a.) Power Sp…

Text truncated - open the document above for the full version.

Radiated Emission RF
