HFS1200015318Notebook Computer with Built-In Wireless LAN

i Contents 1 Checking Out Your Gateway Solo 1200. . . . . . . . . . . . . . . . . . . . . . . . . . 1 Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Left . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Right . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Identifying your model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 2Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Connecting the AC adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Protecting from power source problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Starting your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Waking up your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Turning off your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Using the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 System key combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Multi-function buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Using the EZ Pad touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Using the touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Using the rocker switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Connecting the modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Connecting to an Ethernet network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Broadband Internet connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Installing a printer, scanner, or other peripheral device . . . . . . . . . . . . . . . . . . . . . 32 3Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 HelpSpot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 HelpSpot Videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Online help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Gateway Web site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 4 Windows Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 About the Windows environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Desktop items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Window items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Using the Start menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Solo1200.book Page i Friday, May 25, 2001 10:48 AM ii Working with files and folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 About drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 About folders and files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 Copying and moving files and folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51 Deleting files and folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53 Browsing for files and folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55 Searching for files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56 Using the Windows Search utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57 Working with documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59 Creating a new document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60 Saving a document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61 Opening a document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62 Printing a document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63 Shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64 Transferring software and hardware from your old computer . . . . . . . . . . . . . . . . .65 Transferring files . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

125 Adjusting the screen and desktop settings www.gateway.com 3Click the Settings tab. 4Select a setting from the Colors list. For most purposes, the color depth should be 32-bit True Color. 5If you want to save your changes, click OK. Windows tells you it will apply your changes when you click OK again. 6Click OK. Solo1200.book Page 125 Friday, May 25, 2001 10:48 AM 126 Chapter 10: Customizing Your Notebook www.gateway.com Adjusting the screen area You can change the screen area to a size you prefer. For example, you can increase the screen area to fit more icons on your desktop, or you can decrease the screen area to make reading and identifying objects on the display easier. The larger the screen area, the smaller individual components of the screen, such as icons and menu bars, appear. To change the screen area: 1Click Start, then select Settings, then Control Panel. The Control Panel window opens. 2Click/Double-click the Display icon. The Display Properties window opens. 3Click the Settings tab. 4Drag the Screen area slider to the size you prefer. HelpSpotFor more information on adjusting the screen area, double-click the HelpSpot icon on your desktop. Solo1200.book Page 126 Friday, May 25, 2001 10:48 AM 127 Adjusting the screen and desktop settings www.gateway.com 5If you want to save your changes, click OK. Windows tells you it will apply your changes when you click OK again. 6Click OK. Applying a color scheme A color scheme is a set of colors that you can apply to your Windows environment. For example, you can change the appearance of such things as the desktop, windows, and dialog boxes. You can select an existing scheme or create your own. To select a color scheme: 1Click Start, then select Settings, then Control Panel. The Control Panel window opens. 2Click/Double-click the Display icon. The Display Properties window opens. HelpSpotFor more information on applying a color scheme, double-click the HelpSpot icon on your desktop. Solo1200.book Page 127 Friday, May 25, 2001 10:48 AM 128 Chapter 10: Customizing Your Notebook www.gateway.com 3Click the Appearance tab. If you want to apply one of Windows’ color schemes, go to Step 6. 4If you want to create a new scheme, select various items from the Item list and change their settings. 5Click Save As, type a name for the new scheme, then click OK. 6Select a color scheme from the Scheme list. An example of the scheme appears in the window above the list. 7Click OK. Solo1200.book Page 128 Friday, May 25, 2001 10:48 AM 129 Adjusting the screen and desktop settings www.gateway.com Changing the desktop background The Windows desktop background can be changed to either a picture or HTML document. Windows provides several background pictures. You can also use pictures or HTML documents that you have created or retrieved from other sources. To change the desktop background: 1Click Start, then select Settings, then Control Panel. The Control Panel window opens. 2Click/Double-click the Display icon. The Display Properties dialog box opens. ImportantIf Active Desktop is turned on and you have chosen to display Web content, the standard desktop background will be partially or completely hidden, so you may not be able to see changes you have made in the background. For more information about Active Desktop, see HelpSpot. HelpSpotFor more information on changing the desktop background, double-click the HelpSpot icon on your desktop. Solo1200.book Page 129 Friday, May 25, 2001 10:48 AM 130 Chapter 10: Customizing Your Notebook www.gateway.com 3Click the Background tab. 4Select a background picture from the Select a background picture or HTML document as Wallpaper list. - OR - Select a background picture from another location by clicking Browse. 5If you want the picture you chose to cover the entire screen, select Tile from the Picture Display list. 6If the picture you chose does not cover the entire screen and you did not choose to tile the image in Step 5, you can change the solid color behind the picture by clicking Pattern, selecting a pattern from the Pattern list, then clicking OK. 7Click OK. Solo1200.book Page 130 Friday, May 25, 2001 10:48 AM 131 Adjusting the screen and desktop settings www.gateway.com Selecting a screen saver You can use a screen saver to keep others from viewing your screen while you are away from your computer. Windows supplies a variety of screen savers that you can choose from, and many more are available from the Internet and as commercial products. To select a screen saver: 1Click Start, then select Settings, then Control Panel. The Control Panel window opens. 2Click/Double-click the Display icon. The Display Properties dialog box opens. HelpSpotFor more information on changing the screen saver, double-click the HelpSpot icon on your desktop. Solo1200.book Page 131 Friday, May 25, 2001 10:48 AM 132 Chapter 10: Customizing Your Notebook www.gateway.com 3Click the Screen Saver tab. 4Select a screen saver from the Screen Saver list. Windows previews the screen saver. 5If you want to customize the screen saver, click Settings and then make your changes . If the Settings button is not available, you cannot customize the screen saver you selected. 6If you want to password protect your screen saver, select the Password protected checkbox, click Change, type your password, confirm it, then click OK. 7If you want to change the time before the screen saver is activated, click the up or down arrows next to the Wait box. 8Click OK. Solo1200.book Page 132 Friday, May 25, 2001 10:48 AM 133 Changing the touchpad settings www.gateway.com Changing the touchpad settings You can adjust the double-click speed, pointer speed, left-hand or right-hand configuration, and other touchpad settings. To change your touchpad settings: 1Click Start, then select Settings, then Control Panel. The Control Panel window opens. If you do not see the Mouse icon, click view all Control Panel options . 2Double-click the Mouse icon. The Mouse Properties dia…

Text truncated - open the document above for the full version.

www.gateway.com Wireless Networking User Guide Your Gateway Solo notebook comes with wireless Ethernet (also known as IEEE 802.11b or WiFi) networking. Setting up wireless Ethernet networking Installing the Client Manager If you have wireless Ethernet, the first time you start your Gateway Solo notebook, your system automatically installs the wireless Ethernet drivers. Immediately following the initial startup, you are asked to install the wireless Ethernet client manager. To install the ORiNOCO Client Manager: 1Insert the ORiNOCO CD in your CD/DVD drive. 2Click Start, then select Run. The Run dialog box opens. 3In the Run text box, type D:\cl_mgr\setup.exe (where D is the drive letter of your CD/DVD drive). ImportantFor more information about networking your home or office, discuss your particular needs with your Gateway Country Store representative. In addition, several books and Internet sites are dedicated to networking. Refer to these sources for more information about networking your home or office with wireless Ethernet. 8508055.fm Page 1 Monday, July 2, 2001 5:02 PM 2 www.gateway.com 4Click OK. The Client Manager Setup wizard starts. 5Follow the on-screen prompts to complete the setup wizard. 6After reading the Readme file that appears, click the X in the top right corner of the window to close it. 8508055.fm Page 2 Monday, July 2, 2001 5:02 PM 3 Wireless Networking User Guide www.gateway.com Configuring your wireless Ethernet client manager After you install the client manager, you need to configure your network settings. To configure your wireless Ethernet client manager: 1Click Start, then select Programs, ORiNOCO, then Client Manager. The ORiNOCO Client Manager window opens. 2Select Actions, then Add/Edit Profile. The Add/Edit Configuration Profile dialog box opens. 8508055.fm Page 3 Monday, July 2, 2001 5:02 PM 4 www.gateway.com 3Enter the name of the profile you are creating. When you create the first profile, you should rename the Default profile to the name of your profile. For example, if you will be using your computer on two different networks, such as at home and at work, you may want to name one profile Home and another one Work. 4Select the type of network associated with this profile. Your options include:
Access Point - Use this network type if you are joining a wireless network and accessing a wired network through an access point. Contact your network system administrator or refer to the access point documentation for more information about using this network type.
Residential Gateway - Use this network type if you are setting up or joining a wireless network that is using a residential gateway to access the Internet.
Peer-to-Peer Group - Use this network type if you are setting up or joining a temporary or permanent computer-to-computer network for sharing files and peripheral devices. This type of network does not include an access point into a wired network. 5Click the Edit Profile button. The Edit Configuration dialog box opens. 8508055.fm Page 4 Monday, July 2, 2001 5:02 PM 5 Wireless Networking User Guide www.gateway.com 6Enter the name of your network and the encryption key (if required).
If you are connecting to an access point network, enter ANY to connect to any wireless Ethernet network within range of your notebook, or enter the exact network name of the network you are joining.
If you are connecting to a residential gateway network, enter the residential gateway identifier number for the network name and the last five characters of the residential gateway identifier number as the encryption key.
If you are connecting to a peer-to-peer network, enter the exact network name for the network you are joining. If an encryption key has been agreed to by the other members of the network, enter this value as well. 7If you are configuring your notebook for an access point network, tabs are available to enter additional configuration information as necessary. Contact your network system administrator or refer to the access point documentation before entering this information. 8Click OK to close the Edit Configuration dialog box. 9If you are setting up your notebook for more than one network, repeat steps 3 through 8 to create additional profiles. 10Click OK to close the Add/Edit Configuration Profile dialog box. ImportantAll computers on your network must have the same network name and encryption key. For help, ask your network system administrator. 8508055.fm Page 5 Monday, July 2, 2001 5:02 PM 6 www.gateway.com Identifying this notebook on the Microsoft Network Neighborhood If this is the first time you have used networking on your notebook, you need to provide Windows with the name of the notebook and the workgroup to which it belongs. To identify this notebook on the network: 1Click Start, then select Settings, then Control Panel. The Control Panel window opens. If you do not see the Network icon, click view all Control Panel options . 2Double-click the Network icon. The Network dialog box opens. 3Select the Identification tab. 4Enter a unique computer name. This name identifies this notebook on the Microsoft Network Neighborhood. 5Enter the name of the workgroup this notebook belongs to. This name is usually assigned by the network system administrator and identifies which group of computers this notebook is most likely to communicate with. 8508055.fm Page 6 Monday, July 2, 2001 5:02 PM 7 Wireless Networking User Guide www.gateway.com 6Enter a description of the notebook. This description lets other Microsoft Network Neighborhood users identify who this notebook belongs to. 7Click OK. Configuring Windows for wireless Ethernet To configure Windows to use the wireless Ethernet network: 1Click Start, then select Settings, then Control Panel. The Control Panel window opens. If you do not see the Network icon, click view all Control Panel options . 2Double-click the Network icon. The Network dialog box opens. 8508055.fm Page 7 Monday, July 2, 2001 5:02 P…

Text truncated - open the document above for the full version.

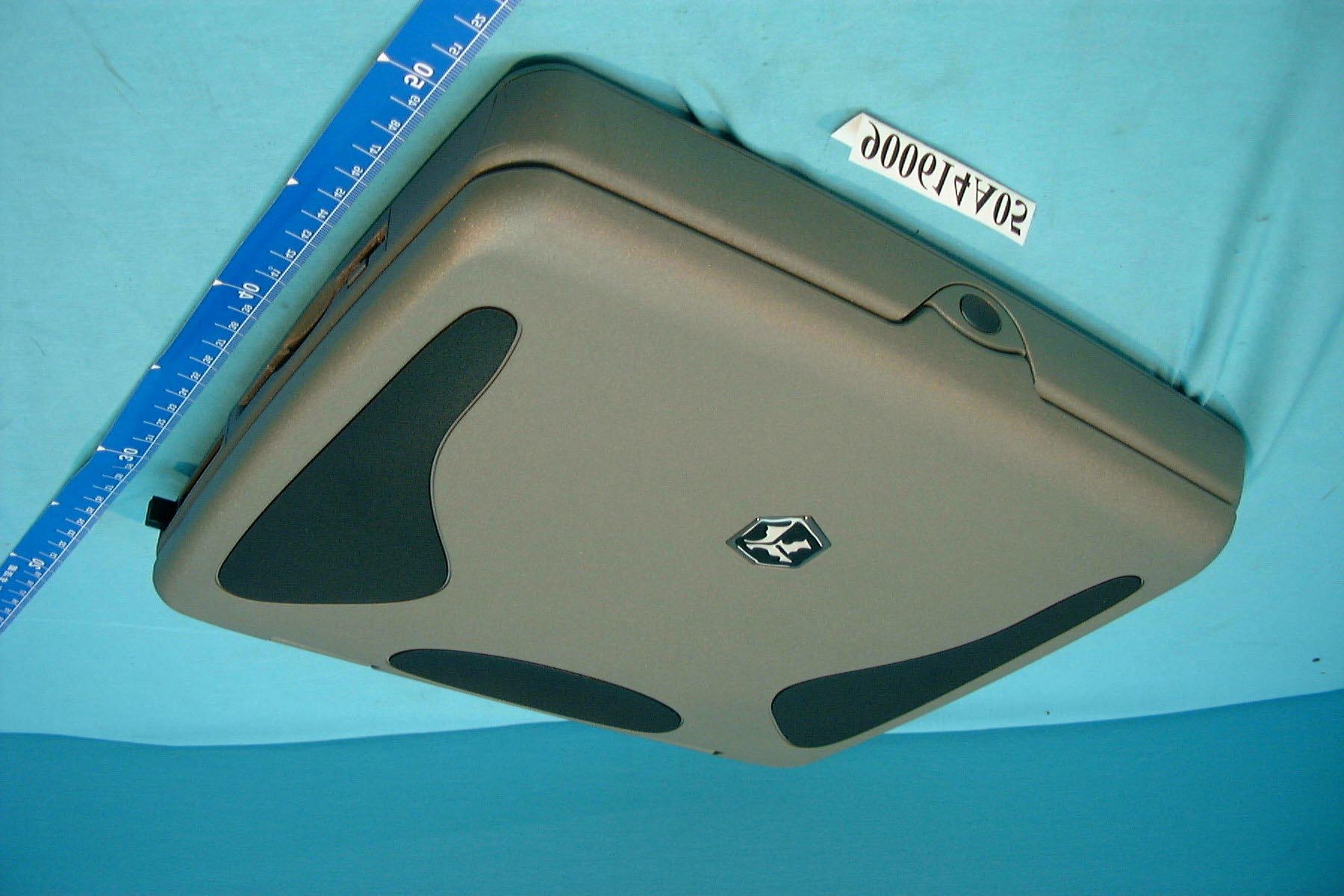

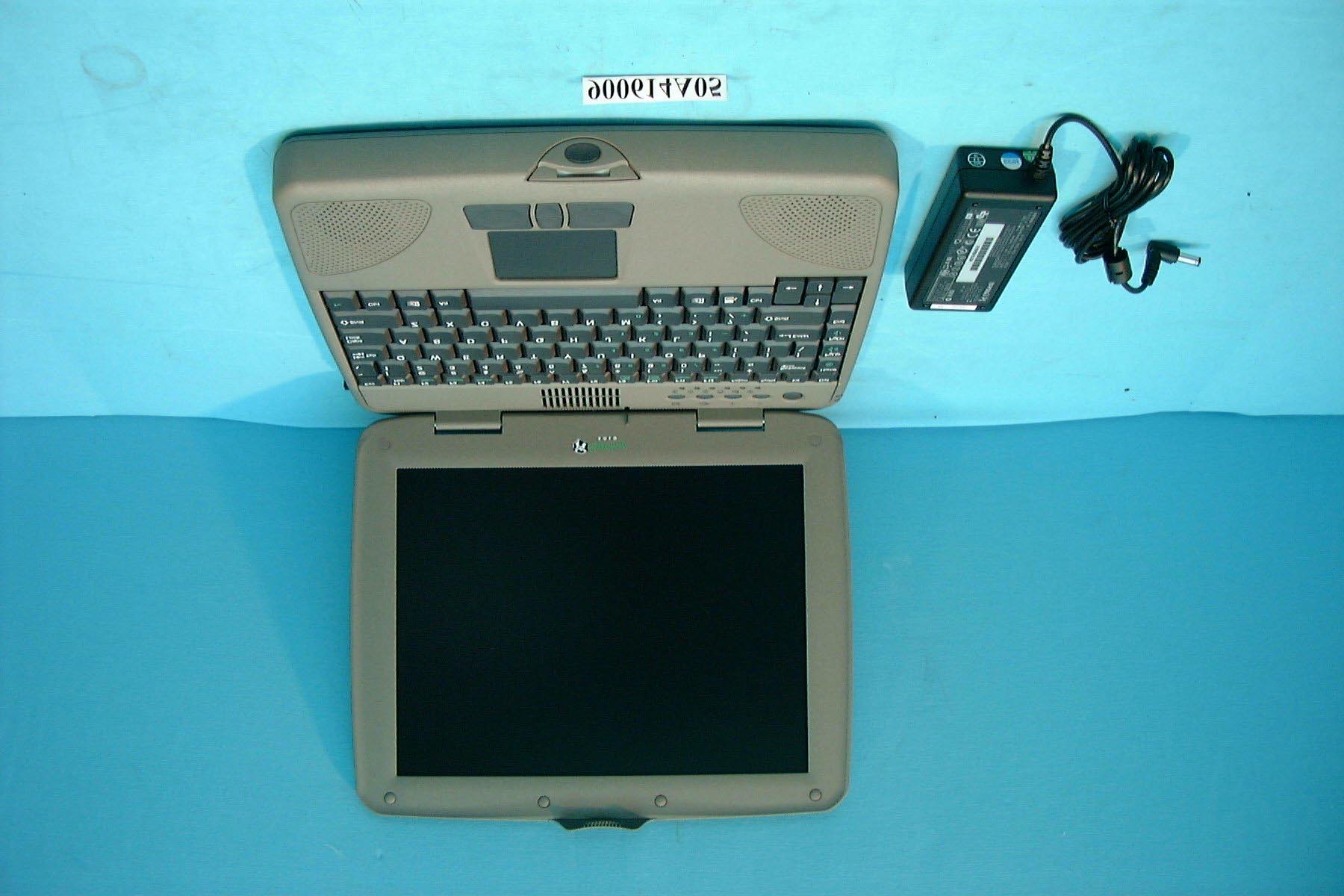

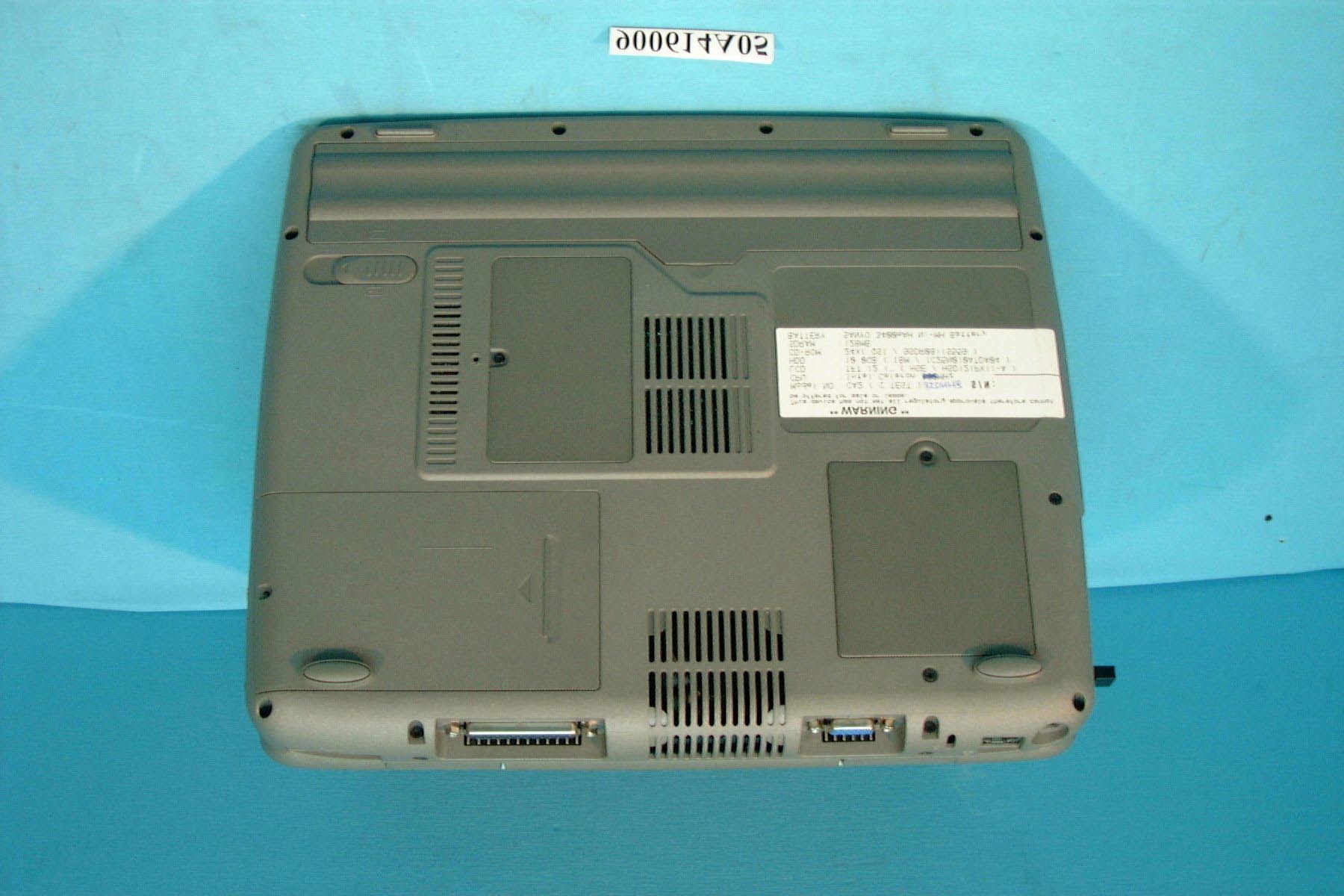

Report No.: RF900705R01 1 Issued: July 11, 2001 ANNEX PHOTOGRAPHS OF EUT Report No.: RF900705R01 2 Issued: July 11, 2001

FCC ID: Label Location

D 1 2 3 4 5 6 7 ABCE 7 6 5 4 3 2 1 EA LTR NAME MODEL MATERIAL FINISH DATE SCALE UNIT MM DWG. NO. APPROVED DESIGNED DRAWN REV 3A TOL. + - 1 PLC2 PLCANGLE 7F, 116 HOU KANG ST. SHIN LIN, TAIPEI, TAIWAN, R.O.C. ITEMDESCRIPTION REVISIONS DESCRIPTION DATEAPP THE 3RD PROJECTION PART NO. Quanta Computer Inc. 2 1 3 FIRST RELEASE RITA S/N HCCA2001 1/1 HCCA2001 013 90.07.11 90.07.11 Ca2 RATING LABEL 3A Rita 0.1 97.7 6 9 . 7 7 . 1 5 7.15 3B MODEL No.: Solo 1200 TH10 TY S/N.: P/N.: AVEC MODEL INPUT:19V 3.16A ADP-60DH REV.B --- DCB Wireless devices installed are checked - None IEEE 802.11b RLAN IEEE 802.11b RLAN Approvals: FCC ID -HFS1200015318 Adapter ADP-60DH REV.B accept any interference received, including interference that may cause undesired operation. materiel brouilieur du Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following Cet appareil numerique de la classe B respecte toutes les exigences du Reglement sur le Causing Equipment Regulations. This class B digital apparatus meets all requirements of the Canadian interference- two conditions: (1) this device may not cause harmful interference. and (2) this device must N93 ITE Made in Taiwan LABEL A LABEL B LABEL C LABEL C 50X10mm LABEL B 34X18mm LABEL A Complies with part 68 0f the FCC rules Ren:0.03 Jacks:RJ-11C FCC REG:LNQ USA-35258-M5-E Complies with part 68 0f the FCC rules Ren:0.03 Jacks:RJ-11C FCC REG:LNQ USA-35258-M5-E MODEL No.: Solo 1200 TH10 TY S/N.: P/N.: AVEC MODEL INPUT:19V 3.16A ADP-60DH REV.B --- Wireless devices installed are checked - None IEEE 802.11b RLAN Adapter ADP-60DH REV.B accept any interference received, including interference that may cause undesired operation. materiel brouilieur du Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following Cet appareil numerique de la classe B respecte toutes les exigences du Reglement sur le Causing Equipment Regulations. This class B digital apparatus meets all requirements of the Canadian interference- two conditions: (1) this device may not cause harmful interference. and (2) this device must N93 ITE Made in Taiwan CANADA ID -XXXXXXXXXXXXX COMPLIES WITH CANADA RSS-210 IEEE 802.11b RLAN Approvals: FCC ID -HFS1200015318 CANADA ID -XXXXXXXXXXXXX COMPLIES WITH CANADA RSS-210

Report No.: RF900705R01 3 Issued: July 11, 2001 Report No.: RF900705R01 4 Issued: July 11, 2001 Report No.: RF900705R01 5 Issued: July 11, 2001 Report No.: RF900705R01 6 Issued: July 11, 2001 Report No.: RF900705R01 7 Issued: July 11, 2001 Report No.: RF900705R01 8 Issued: July 11, 2001

Report No.: RF900705R01 9 Issued: July 11, 2001 Report No.: RF900705R01 10 Issued: July 11, 2001 Report No.: RF900705R01 11 Issued: July 11, 2001 Report No.: RF900705R01 12 Issued: July 11, 2001

Report No.: RF900705R01 13 Issued: July 11, 2001 Report No.: RF900705R01 14 Issued: July 11, 2001 Report No.: RF900705R01 15 Issued: July 11, 2001 Report No.: RF900705R01 16 Issued: July 11, 2001 Report No.: RF900705R01 17 Issued: July 11, 2001 Report No.: RF900705R01 18 Issued: July 11, 2001

Report No.: RF900705R01 19 Issued: July 11, 2001 Report No.: RF900705R01 20 Issued: July 11, 2001 Report No.: RF900705R01 21 Issued: July 11, 2001 Report No.: RF900705R01 22 Issued: July 11, 2001

Report No.: RF900705R01 23 Issued: July 11, 2001 Report No.: RF900705R01 24 Issued: July 11, 2001 Report No.: RF900705R01 25 Issued: July 11, 2001 Report No.: RF900705R01 26 Issued: July 11, 2001

FCC ID: HFS1200015318 Report No.: RF900705R01 1 Issued: July 11, 2001 FCC TEST REPORT REPORT NO.: RF900705R01 MODEL NO.: Solo1200 RECEIVED: July 5, 2001 TESTED: July 4 ~ July 5, 2001 APPLICANT:QUANTA COMPUTER INC. ADDRESS: 7F, No. 116, Hou Kan St., Shih Lin, Taipei, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 49 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 Lab Code: 200102-0 FCC ID: HFS1200015318 Report No.: RF900705R01 2 Issued: July 11, 2001 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT ............................................................. 6 3.2DESCRIPTION OF TEST MODES ............................................................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 4TEST TYPES AND RESULTS ...................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................................... 9 4.1.2TEST INSTRUMENTS ............................................................................................................ 9 4.1.3TEST PROCEDURES...........................................................................................................10 4.1.4TEST SETUP ........................................................................................................................ 10 4.1.5EUT OPERATING CONDITIONS ..........................................................................................11 4.1.6TEST RESULTS.................................................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT .......................................................... 18 4.2.2TEST INSTRUMENTS ..........................................................................................................19 4.2.3TEST PROCEDURES...........................................................................................................20 4.2.4TEST SETUP ........................................................................................................................ 21 4.2.5EUT OPERATING CONDITIONS ......................................................................................... 21 4.2.6TEST RESULTS.................................................................................................................... 22 4.36DB BANDWIDTH MEASUREMENT.......................................................... 27 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................................. 27 4.3.2TEST INSTRUMENTS ..........................................................................................................27 4.3.3TEST PROCEDURE .............................................................................................................28 4.3.4TEST SETUP ........................................................................................................................ 28 4.3.5EUT OPERATING CONDITIONS ......................................................................................... 28 4.3.6TEST RESULTS.................................................................................................................... 29 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 33 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .................................... 33 4.4.2TEST INSTRUMENTS ..........................................................................................................33 4.4.3TEST PROCEDURES...........................................................................................................34 4.4.4TEST SETUP ........................................................................................................................ 34 4.4.5EUT OPERATING CONDITIONS ......................................................................................... 34 FCC ID: HFS1200015318 Report No.: RF900705R01 3 Issued: July 11, 2001 4.4.6TEST RESULTS.................................................................................................................... 35 4.5POWER SPECTRAL DENSITY MEASUREMENT ..................................... 36 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ............................................ 36 4.5.2TEST INSTRUMENTS ..........................................................................................................36 4.5.3TEST PROCEDURE .............................................................................................................37 4.5.4TEST SETUP ........................................................................................................................ 37 4.5.5EUT OPERATING CONDITIONS ......................................................................................... 37 4.5.6TEST RESULTS.................................................................................................................... 38 4.6BAND EDGES MEASURE…

Text truncated - open the document above for the full version.

FCC ID: HFS1200015318 Report No.: RF900705R01 33 Issued: July 11, 2001 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until ROHDE & SCHWARZ TEST RECEIVER ESMI839379/002Dec. 28, 2001 HP ATTENUATOR8496B3247A18505 Cal. on use HP PLOTTER7475A2641V27755 N/A NOTE: 1. The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2. The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: HFS1200015318 Report No.: RF900705R01 34 Issued: July 11, 2001 4.4.3 TEST PROCEDURES a. The transmitter output was connected to the spectrum analyzer through an attenuator. b. The center frequency of the spectrum analyzer was set to the fundamental frequency and using 3 MHz RBW and 3 MHz VBW. c. The span of the spectrum analyzer should be larger than 6dB BandWidth plus 10MHz. d. Used Peak Search to read the peak power after Maximum Hold function was activated. e. Shifted the marker to +/- 3MHz and +/-6MHz, and recorded the reading. f. The Maximum Peak Output Power was the linear summation of the 5 readings in (4) and (5). NOTE: This measurement is the total power of 15MHz bandwidth which is far more wider than 6dB bandwidth. 4.4.4 TEST SETUP 4.4.5 EUT OPERATING CONDITIONS Same as Item 4.3.5 EUT SPECTRUM ANALYZER Attenuator FCC ID: HFS1200015318 Report No.: RF900705R01 35 Issued: July 11, 2001 4.4.6 TEST RESULTS EUT Notebook Computer MODEL Solo1200 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 30 deg. C, 60%RH, 1005 hPa TESTED BY: Gary Chang CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241220.8330PASS 6243721.2130PASS 11246220.8830PASS Note: The gain of the antenna is only – 5 dBi, so the EIRP output power of this device is smaller than 100mW. FCC ID: HFS1200015318 Report No.: RF900705R01 36 Issued: July 11, 2001 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until ROHDE & SCHWARZ TEST RECEIVER ESMI839379/002Dec. 28, 2001 HP ATTENUATOR8496B3247A18505Cal. on…

Text truncated - open the document above for the full version.
