HFS1400015318Notebook PC w/ Internal 2.4 GHz Wireless Card

i Contents 1 Checking Out Your Gateway Notebook . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Left Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Right Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Keyboard area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Identifying your model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 2Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Connecting the AC adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Protecting from power source problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Starting your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Waking up your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Turning off your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Switching user accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Using the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 System key combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Multi-function buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Using the EZ Pad touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Using the touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Connecting the modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Connecting to an Ethernet network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Broadband Internet connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Installing a printer, scanner, or other peripheral device . . . . . . . . . . . . . . . . . . . . . 30 3Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 HelpSpot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 HelpSpot Videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Online help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Gateway Web site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 4 Windows Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 About the Windows environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Using the desktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Using the Start menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 ii Identifying Window items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41 Working with files and folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 Viewing drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 Creating folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44 Copying and moving files and folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45 Deleting files and folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46 Browsing for files and folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 Searching for files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49 Using the Search utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 Working with documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52 Creating a new document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52 Saving a document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53 Opening a document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54 Printing a document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55 Shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56 5 Using the Internet . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Solo 1400-2 (1650x2336x2 tiff)

Solo 1400-1 (1650x2336x2 tiff)

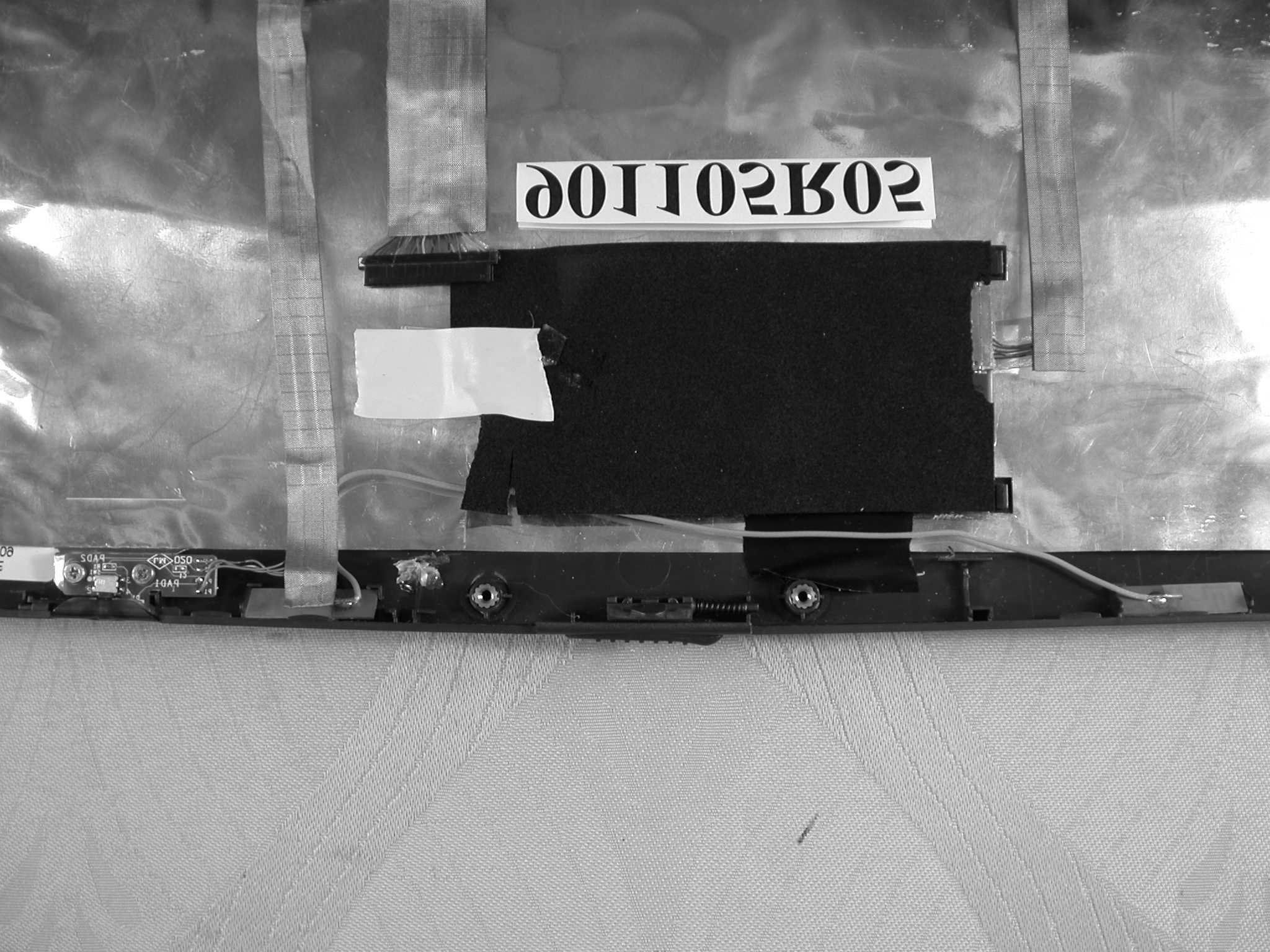

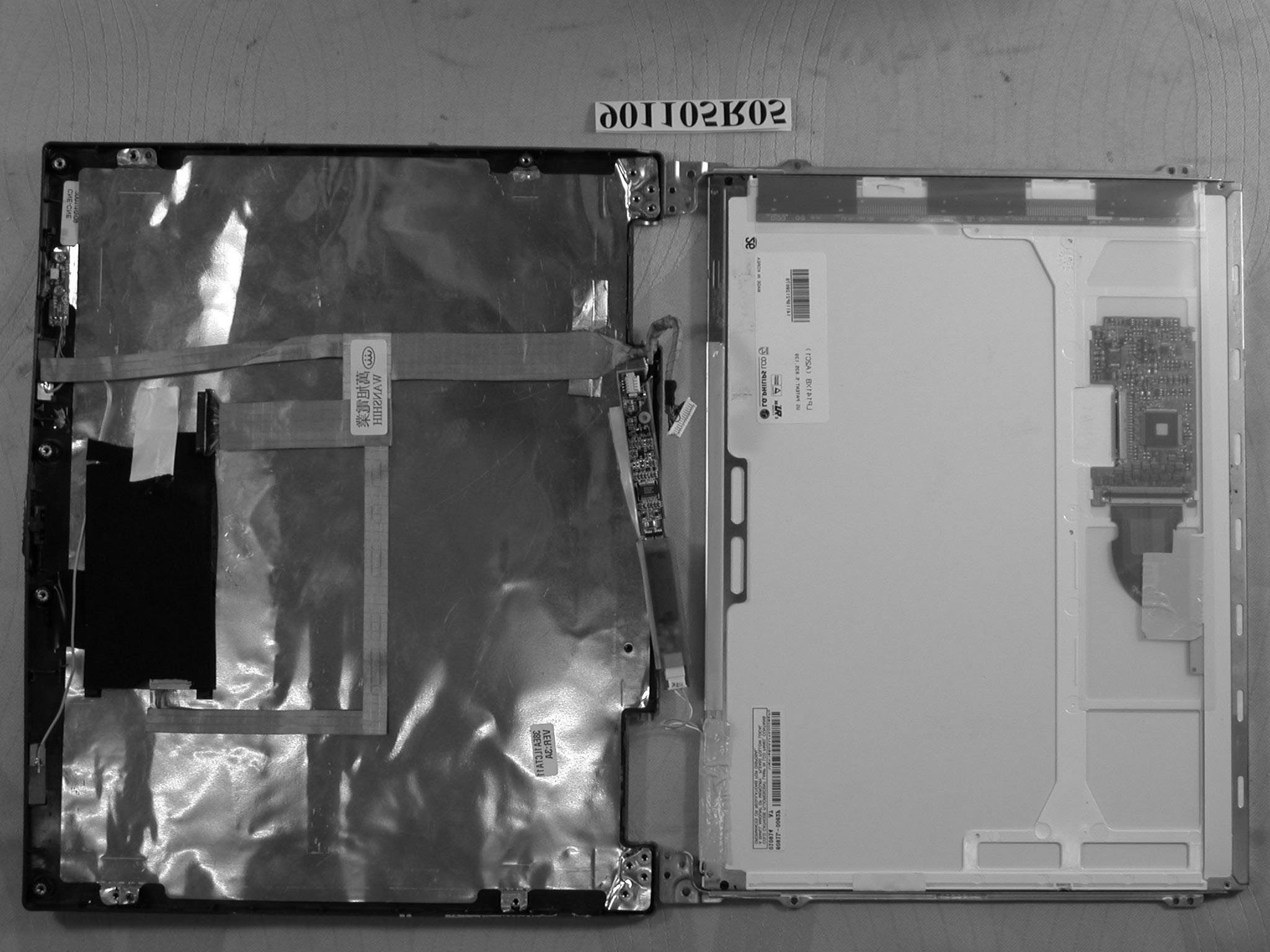

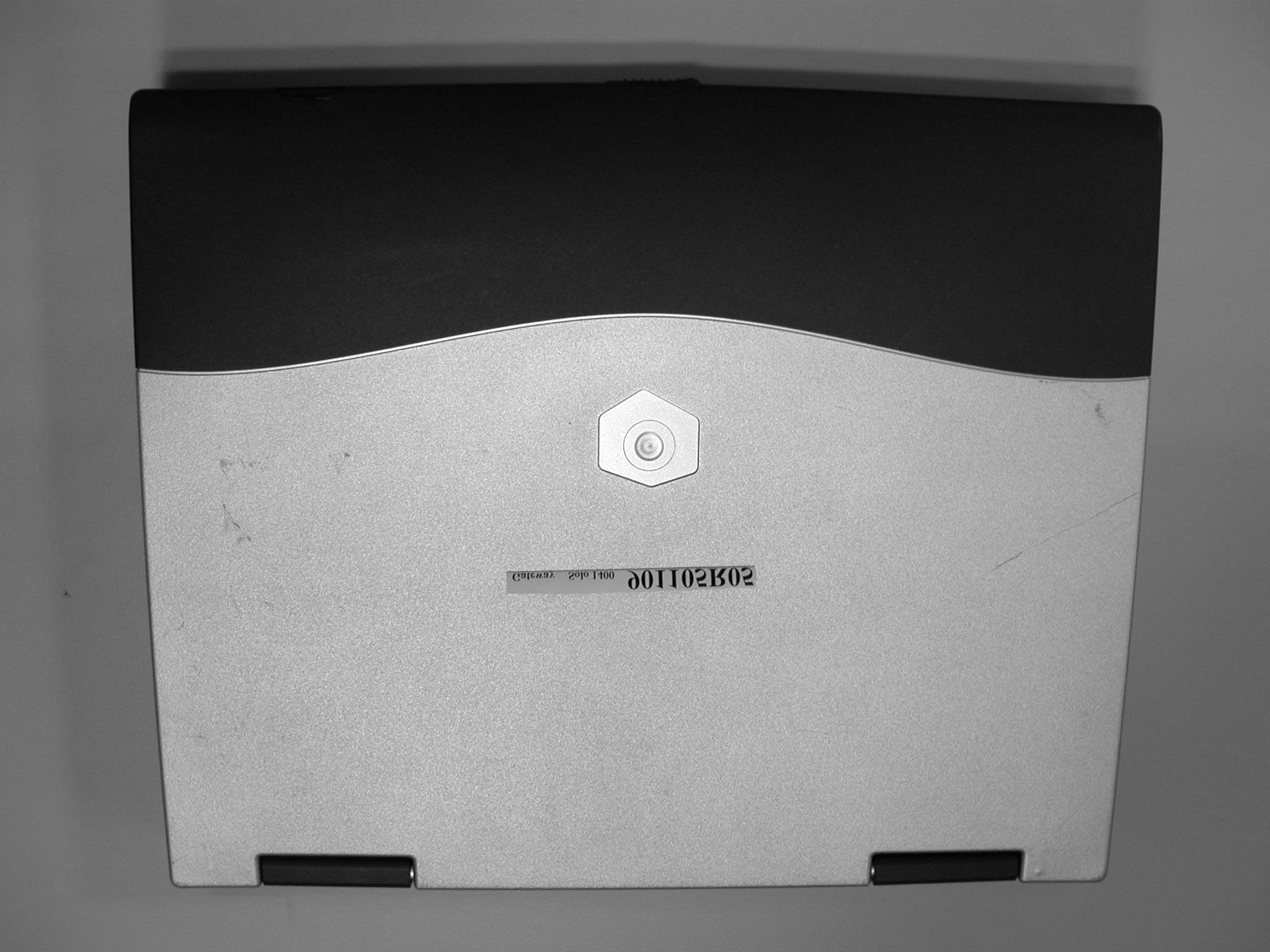

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3 Page 4 Page 5

Page 1 FCC Label Location

D D 1 2 3 4 5 6 7 ABCE 7 6 5 4 3 2 1 ECBA LTR NAME MODEL MATERIAL FINISH DATE SCALE UNIT MM DWG. NO. APPROVED DESIGNED DRAWN REV 3A TOL. + - 1 PLC2 PLCANGLE 7F, 116 HOU KANG ST. SHIN LIN, TAIPEI, TAIWAN, R.O.C. ITEMDESCRIPTION REVISIONS DESCRIPTION DATEAPP THE 3RD PROJECTION PART NO. Quanta Computer Inc. 2 1 3 FIRST RELEASE RITA S/N HCEA1001 1/1 HCEA1001013 90.11.06 90.11.06 Ea1 RATING LABEL PC 3A Rita 0.1 3B 149.7 56.7 6.91 6.91 TH10 CM S/N.: P/N.: Made in Taiwan Complies with part 68 0f the FCC rules Ren:0.0B Jacks:RJ11C FCC REG:HFSM501B168 MODEL No.: Solo 1400 AVEC MODEL ADP-60DH REV.B INPUT:19V 3.16A --- Adapter ADP-60DH REV.B accept any interference received, including interference that may cause undesired operation. materiel brouilieur du Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following Cet appareil numerique de la classe B respecte toutes les exigences du Reglement sur le Causing Equipment Regulations. This class B digital apparatus meets all requirements of the Canadian interference- two conditions: (1) this device may not cause harmful interference. and (2) this device must Fitted with internal Quanta Computer Inc. modem, model number AMC20463-001. 3009615 CONFORMS TO ANSI/UL STD.1950 CERTIFIED TO CAN/CSA STD C22.2 NO.950 LABEL C 50X10mm IEEE 802.11b RLAN Approvals: FCC ID :HFS1400015318 LABEL B 20X7.45mm TH10 CM S/N.: P/N.: Made in Taiwan Complies with part 68 0f the FCC rules Ren:0.0B Jacks:RJ11C FCC REG:HFSM501B168 MODEL No.: Solo 1400 AVEC MODEL ADP-60DH REV.B INPUT:19V 3.16A --- Adapter ADP-60DH REV.B accept any interference received, including interference that may cause undesired operation. materiel brouilieur du Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following Cet appareil numerique de la classe B respecte toutes les exigences du Reglement sur le Causing Equipment Regulations. This class B digital apparatus meets all requirements of the Canadian interference- two conditions: (1) this device may not cause harmful interference. and (2) this device must Fitted with internal Quanta Computer Inc. modem, model number AMC20463-001. 3009615 CONFORMS TO ANSI/UL STD.1950 CERTIFIED TO CAN/CSA STD C22.2 NO.950 LABEL A IEEE 802.11b RLAN Approvals: FCC ID:HFS1400015318 LABEL A LABEL C LABEL B

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9

FCC ID: HFS1400015318 ADT No.901105R05 Operational Description This product is a notebook personal computer with a mini-pci LAN card inside. The transmitter of the EUT (Notebook PC) is powered by host notebook and connected with notebook through mini-pci slot inside the notebook. The antenna is printed antenna, and use internal UFL connector. Under normal use condition, the user has to keep at least 20cm separation distance away from the radiator. The other instruction, please take a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied to increase the data rate, and also the processing gain will be increased.

FCC ID: HFS1400015318 ADT No.: 901105R05 FCC TEST REPORT REPORT NO.: RF901105R05 MODEL NO.: Solo 1400 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: QUANTA COMPUTER INC. ADDRESS: 7F, No. 116, Hou Kan St., Shih Lin, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: HFS1400015318 ADT No.: 901105R05 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20 cm away from the body of the user. Warning statement for keeping 20 cm separation distance and the prohibition of operating next to a person has been printed on the users manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: HFS1400015318 ADT No.: 901105R05 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: HFS1400015318 ADT No.: 901105R05 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 0 dBi or 1 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241218.921.23 6243717.901.19 11246217.221.17 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: HFS1400015318 Report No.: RF901105R05 1 Issued: Nov. 19, 2001 FCC TEST REPORT REPORT NO.: RF901105R05 MODEL NO.: Solo 1400 RECEIVED: Nov. 5, 2001 TESTED: Nov. 7 ~ Nov. 16, 2001 APPLICANT: QUANTA COMPUTER INC. ADDRESS: No.188, Wen Hwa 2 nd Rd., Kuei Shan Hsiang, Tao Yuan, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 60 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: HFS1400015318 Report No.: RF901105R05 2 Issued: Nov. 19, 2001 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS ................................................................... 5 3GENERAL INFORMATION............................................................................ 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES ................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 4TEST TYPES AND RESULTS ....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT .............................. 9 4.1.2TEST INSTRUMENTS................................................................................... 9 4.1.3TEST PROCEDURES ................................................................................. 10 4.1.4TEST SETUP .............................................................................................. 10 4.1.5EUT OPERATING CONDITIONS ................................................................ 11 4.1.6TEST RESULTS(A) ..................................................................................... 12 4.1.7TEST RESULTS(B) ..................................................................................... 18 4.2RADIATED EMISSION MEASUREMENT ................................................... 24 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................. 24 4.2.2TEST INSTRUMENTS................................................................................. 25 4.2.3TEST PROCEDURES ................................................................................. 26 4.2.4TEST SETUP .............................................................................................. 27 4.2.5EUT OPERATING CONDITIONS ................................................................ 27 4.2.6TEST RESULTS (A) .................................................................................... 28 4.2.7TEST RESULTS (B) .................................................................................... 33 4.36DB BANDWIDTH MEASUREMENT .......................................................... 38 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 38 4.3.2TEST INSTRUMENTS................................................................................. 38 4.3.3TEST PROCEDURE.................................................................................... 39 4.3.4TEST SETUP .............................................................................................. 39 4.3.5EUT OPERATING CONDITIONS ................................................................ 39 4.3.6TEST RESULTS .......................................................................................... 40 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 44 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 44 4.4.2TEST INSTRUMENTS................................................................................. 44 4.4.3TEST PROCEDURES ................................................................................. 45 FCC ID: HFS1400015318 Report No.: RF901105R05 3 Issued: Nov. 19, 2001 4.4.4TEST SETUP .............................................................................................. 45 4.4.5EUT OPERATING CONDITIONS ................................................................ 45 4.4.6TEST RESULTS .......................................................................................... 46 4.5POWER SPECTRAL DENSITY MEASUREMENT ...................................... 47 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 47 4.5.2TEST INSTRUMENTS................................................................................. 47 4.5.3TEST PROCEDURE.................................................................................... 48 4.5.4TEST SETUP .............................................................................................. 48 4.5.5EUT OPERATING CONDITIONS ................................................................ 48 4.5.6TEST RESULTS .......................................................................................... 49 4.6BAND EDGES MEASUREMENT ................................................................ 53 4.6.1LIMITS OF BAND EDGES MEASUREMENT .............................................. 53 4.6.2TEST INSTRUMENTS................................................................................. 53 4.6.3TEST PROCEDURE.................................................................................... 53 4.6.4EUT OPERATING CONDITION .................................................................. 54 4.6.5TEST RESULTS ..............…

Text truncated - open the document above for the full version.

Report No.: D901024A081Issued: Nov. 7, 2001 FCC DoC TEST REPORT REPORT NO.: D901024A08 MODEL NO.: Solo 1400, EA1 RECEIVED: Oct. 24, 2001 TESTED: Oct. 31, 2001 APPLICANT:Quanta Computer Inc. ADDRESS:No. 188, Wen Hwa 2 nd Rd., Kuei Shan Hsiang, Tao Yuen Hsien, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 29 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0528 ILAC MRA Lab Code: 200102-0 Report No.: D901024A082Issued: Nov. 7, 2001 Table of Contents 1CERTIFICATION............................................................................................. 3 2SUMMARY OF TEST RESULTS..................................................................... 4 3GENERAL INFORMATION ............................................................................. 5 3.1GENERAL DESCRIPTION OF EUT ............................................................... 5 3.2DESCRIPTION OF TEST MODES ................................................................. 6 3.3DESCRIPTION OF SUPPORT UNITS............................................................ 7 4EMISSION TEST ............................................................................................ 9 4.1CONDUCTED EMISSION MEASUREMENT .................................................. 9 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................... 9 4.1.2 TEST INSTRUMENTS .................................................................................... 9 4.1.3 TEST PROCEDURE ..................................................................................... 10 4.1.4 DEVIATION FROM TEST STANDARD ......................................................... 10 4.1.5 TEST SETUP ................................................................................................ 10 4.1.6 EUT OPERATING CONDITIONS...................................................................11 4.1.7 TEST RESULTS (A) ...................................................................................... 12 4.1.8 TEST RESULTS (B) ...................................................................................... 14 4.2RADIATED EMISSION MEASUREMENT ..................................................... 16 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT .................................. 16 4.2.2 TEST INSTRUMENTS .................................................................................. 17 4.2.3 TEST PROCEDURE ..................................................................................... 17 4.2.4 DEVIATION FROM TEST STANDARD ......................................................... 18 4.2.5 TEST SETUP ................................................................................................ 18 4.2.6 EUT OPERATING CONDITIONS.................................................................. 18 4.2.7 TEST RESULTS (A) ...................................................................................... 19 4.2.8 TEST RESULTS (B) ...................................................................................... 23 5PHOTOGRAPHS OF THE TEST CONFIGURATION ................................... 27 6APPENDIX - INFORMATION ON THE TESTING LABORATORIES............. 29 Report No.: D901024A083Issued: Nov. 7, 2001 1 CERTIFICATION PRODUCT:NOTEBOOK PC BRAND NAME:Gateway, QUANTA MODEL NO:Solo 1400, EA1 TEST ITEM:ENGINEERING SAMPLE APPLICANT:Quanta Computer Inc. STANDARDS:FCC Part 15, Subpart B, Class B CISPR 22:1997, Class B ANSI C63.4-1992 ICES-003: 1997 We, Advance Data Technology Corporation, hereby certify that one sample (model: Solo 1400) of the designation have been tested in our facility on Oct. 31, 2001. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. Report No.: D901024A084Issued: Nov. 7, 2001 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: StandardTest TypeResultRemarks Conducted TestPASS Meets Class B Limit Minimum passing margin is –7.91 dB at 0.151 MHz FCC Part 15, Subpart B, Class B CISPR 22: 1997, Class B Radiated TestPASS Meets Class B Limit Minimum passing margin is –4.0 dB at 496.00 MHz NOTE: For conducted emission test, the test limit used is according to FCC Part 15.107. In this part, conducted emission test for telecom port is not mentioned and therefore this item is not tested. Report No.: D901024A085Issued: Nov. 7, 2001 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCTNOTEBOOK PC MODEL NO.Solo 1400, EA1 POWER SUPPLY Power adapter Brand: DELTA Model: ADP-60DH I/P: 100-240V, 1.5A, 50-60Hz O/P: 19Vdc, 3.16A, 60W Non-shielded AC 2-pin (1.8m) Non-shielded DC (1.2m) DATA CABLENA NOTE: The EUT has two model names, which are identical to each other in all aspects except for their model names and brand names, as the following: ♦ Model: EA1, Brand: QUANTA ♦ Model: Solo 1400, Brand: Gateway From the above models, model: Solo 1400 was selected as the representative for the test and its data is recorded in this report. The EUT was configured with the following key components: ComponentModel & Brand Name Intel PIII 1 GHz Intel Celeron 850 MHz CPU Intel Celeron 900 MHz QDI 14.1” TFT XGA, model: QD141X1LH06 LCD Panel LG 14.1” TFT XGA, model: LP141XB-A2 PC133 64MB PC133 128MBMEMORY PC133 256MB Toshiba 10GB, model: MK1017GAP Toshiba 20GB, model: MK2017GAP Toshiba 20GB, model: MK2018GAP IBM 10GB, model: IC25N010ATDA04-0 HDD I…

Text truncated - open the document above for the full version.

FCC ID: HFS1400015318 Report No.: RF901105R05 58 Issued: Nov. 19, 2001 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: HFS1400015318 Report No.: RF901105R05 59 Issued: Nov. 19, 2001 RADIATED EMISSION TEST
