English Français Español Portable Navigation System Model: CN-GP50U Important Information  Please read these instructions (including “Limited Warranty”and “Customer Services directry”) carefully before using this product and keep this manual for future reference.  Read the “Safety information” presented in this manual before mounting or connecting this product. English  Structure of instructions Important Information l Safety information l Notes on use l Limited warranty l Customer service directry l About the data of the map l Troubleshooting l Maintenance l What is a navigation system? l Specification Quick Reference Guide l Name of controls and function l Turn on the power l Basic map operation l Basic menu operation l Create a route l Picture Viewer l Hands-Free The instructions consist of the following items. First, read “Safety information” in “Important Information”. Then, read each of the instruction manuals as necessary. Installation Instructions l Examples of mounting l Components l Mounting the Mounting Bracket l Mounting CN-GP50U l Removing l Cigarette Lighter Adapter connection l AC Charger connections l External unit connection DVD ROM l Restore Applications l Restore Maps l Install Radar Warner l Read manual • Navigation device •Picture Viewer/Phone (Hands-Free) l Language Selection  Operating Environment l OS: Windows 000 (Service Pack 4), Windows XP (Service Pack ), l DVD-ROM drive l USB port (USB 1.1) l SD Memory Card reader/writer Notes: l Do not duplicate this disc. l You need Acrobat Reader (free) to read the Operating Instructions. Install Acrobat Reader from this DVD-ROM. l This disc is used to recover important information such as the unit’s programs and maps. Keep it in a safe place. 2 English  Table of contents Structure of instructions ................................................................2 Safety information .......................................................................4 Notes on use ............................................................................11 Limited warranty .......................................................................16 Customer service directry ............................................................17 About the data of the map ............................................................18 Troubleshooting ........................................................................20 Restoring ................................................................................25 Maintenance ............................................................................25 What is a navigation system?........................................................26 Specification ............................................................................28 3 English 4 Safety information Warning Observe the following warnings when using this unit.  The driver should neither watch the display nor operate the system while driving. Watching the display or operating the system will distract the driver from looking ahead of the vehicle and can cause accidents. Always stop the vehicle in a safe location and use the parking brake before watching the display or operating the system. In some states and countries, passengers are also prohibited from watching the display.  Do not operate while walking. Furthermore, do not glance at the display. Be sure to stop in a safe location before using. Failure to do so may cause an accident or injury.  Follow actual traffic regulations while driving. Even while following route guidance, always obey road signs and abide all traffic laws. Failure to do so could cause an accident or injury.  Use the proper power supply. This product is designed for operation with a negative grounded 1 V DC battery system. Never operate this product with other battery systems, especially a 4 V DC battery system. If it is used in the wrong type of car, it may cause a fire or an accident.  Protect the slot. Do not insert any foreign objects into the slot of this unit.  Do not disassemble or modify the unit. Do not disassemble, modify the unit or attempt to repair the unit yourself. If the product needs to be repaired, consult your dealer or authorized Panasonic Servicenter.  Read the operating instructions for the unit and all other components carefully before using the system. They contain instructions about how to use the system in a safe and effective manner. Panasonic assumes no responsibility for any problems resulting from failure to observe the instructions given in the manuals.  Panasonic assumes no responsibility for any problems resulting from failure to observe the precautions given in this manual. Handling of the system in a manner that is, for example, incorrect or exceeds the bounds of common sense is not covered by the warranty. Use the system correctly in accordance with the manuals.  The manuals uses pictographs to show you how to use the product safely and to alert you to potential dangers resulting from improper connections and operations. The meanings of the pictographs are explained below. It is important that you fully understand the meanings of the pictographs in order to use the manuals and the system properly. This pictograph alerts you to the presence of important operating instructions. Failure to heed the instructions may result in severe injury or death. Warning This pictograph alerts you to the presence of important operating instructions. Failure to heed the instructions may result in injury or property damage. Caution 4 English 5 Warning Observe the following warnings when using this unit.  Do not use the unit when it is out of order. If the unit is out of order (no power, no sound) or in an abnormal state (has foreign objects in it, is exposed to water, is smoking, or smells), turn it off immediately and consult your dealer or authorized Panasonic Servicenter.  Do not use the unit as a substitute for the navigation equipment of a boat, ship or aircraft, or a map for mo…

Text truncated - open the document above for the full version.

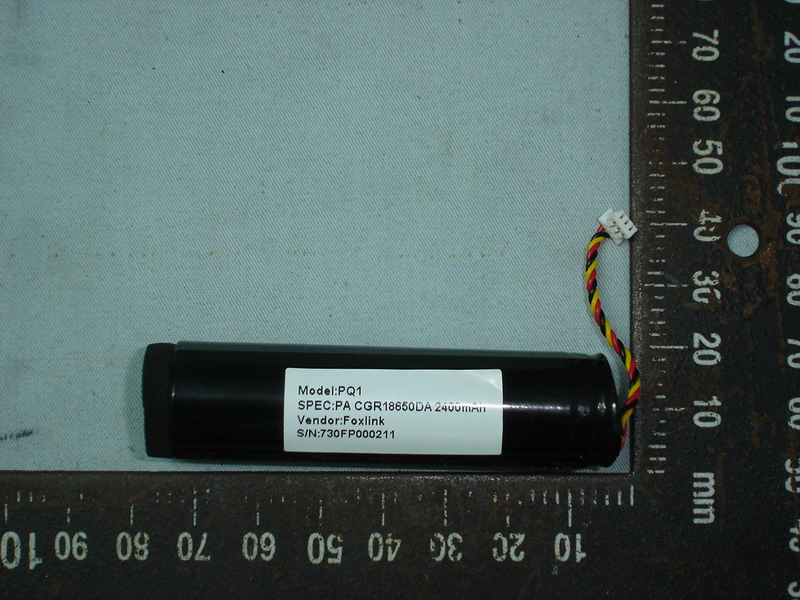

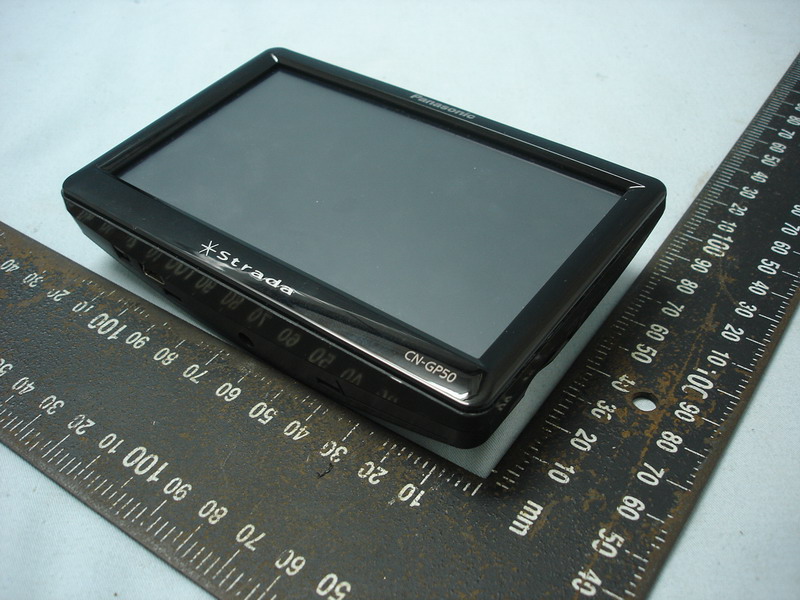

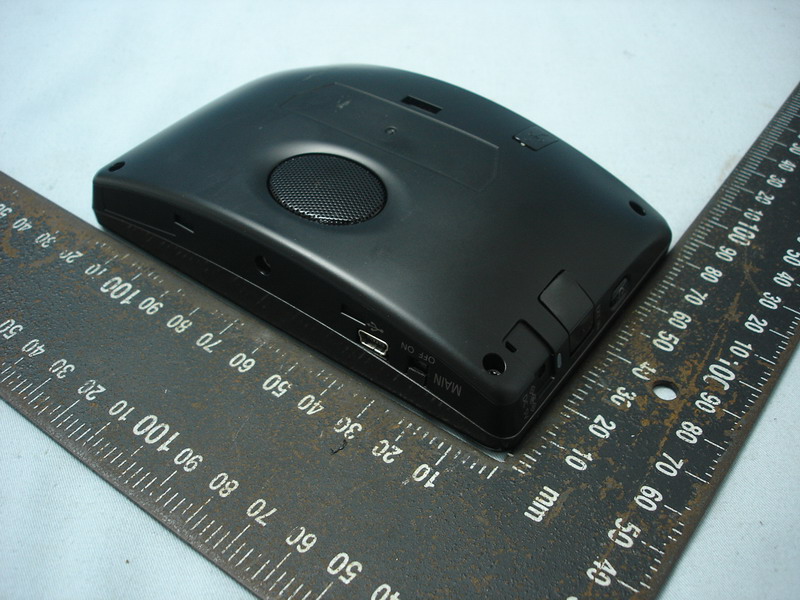

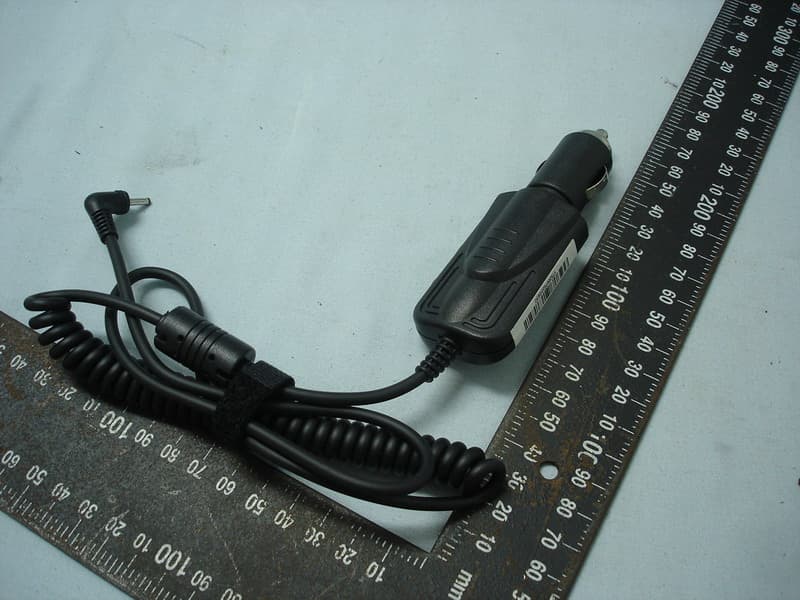

FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 84 of 96 Interocean EMC Technology Corp. FCC Test Report 15 Photographs of EUT Front View of EUT Rear View of EUT FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 92 of 96 Interocean EMC Technology Corp. FCC Test Report View of Battery View of AC Adapter SPEC. FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 93 of 96 Interocean EMC Technology Corp. FCC Test Report Front View of AC Adapter Rear View of AC Adapter FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 94 of 96 Interocean EMC Technology Corp. FCC Test Report View of AC Adapter SPEC. FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 95 of 96 Interocean EMC Technology Corp. FCC Test Report Front View of Car Adapter Rear View of Car Adapter FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 96 of 96 Interocean EMC Technology Corp. FCC Test Report EU & UK Types of Electric Plugs Accessories of EUT

Label Location

FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 85 of 96 Interocean EMC Technology Corp. FCC Test Report Inner View of EUT-1 Inner View of EUT-2 FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 86 of 96 Interocean EMC Technology Corp. FCC Test Report Inner View of EUT-3 Inner View of EUT-4 FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 87 of 96 Interocean EMC Technology Corp. FCC Test Report Component View of Main Board Solder View of Main Board FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 88 of 96 Interocean EMC Technology Corp. FCC Test Report Component View of Bluetooth Board Solder View of Bluetooth Board FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 89 of 96 Interocean EMC Technology Corp. FCC Test Report Front View of Panel Rear View of Panel FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 90 of 96 Interocean EMC Technology Corp. FCC Test Report Component View of Panel Control Board Solder View of Panel Control Board FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 91 of 96 Interocean EMC Technology Corp. FCC Test Report Front View of GPS Rear View of GPS FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 92 of 96 Interocean EMC Technology Corp. FCC Test Report Antenna Location

FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 1 of 3 FCC Part 15 TEST REPORT of E.U.T.: Portable Navigation System Model Number: CN-GP50U; CN-GP50N; CN-GP50 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 Applicant: Quanta Computer Inc. Address: 188, Wen Hwa 2nd Rd., Kuei Shan, Tao Yuan 33377, Taiwan ISSUED BY: Interocean EMC Technology Corp. LAB LOCATION: 244 No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang,Taipei County, Taiwan, R.O.C. FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 2 of 3 RF Exposure Measurement (Fixed use Device) 1 Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2 Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Fixed use Device 3 RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits For Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 3 of 3 4 Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm2. If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 5 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 6 DESCRIPTION OF TEST MODES Operation mode Description of the EUT. 1 E.U.T: Portable Navigation System Model No.: CN-GP50U; CN-GP50N; CN-GP50 7 Test Results 7.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 0dBi or 1 (numeric). 7.2 Output Power Into Antenna & RF Exposure Distance: Mode 1 CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1 2402 0.847227 0.259653 40 2441 0.827942 0.256681 79 2480 0.695024 0.235176 Antenna Gain: 0dBm The minimum allowable distance is very close to the enclosure of the antenna. So, the user has no need to worry about the harmfulness of radiation. But it is recommended to always keep, at least, 20cm separation distance with the antenna.

FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 1 of 96 Interocean EMC Technology Corp. FCC Test Report FCC Part 15 TEST REPORT of E.U.T.： Portable Navigation System Trade Name： Panasonic Model Number： CN-GP50U; CN-GP50N; CN-GP50 Prepared for Quanta Computer Inc. 188, Wen Hwa 2nd Rd., Kuei Shan, Tao Yuan 33377, Taiwan TEL： +886 3 327 2345 FAX： +886 3 396 1334 Prepared by Interocean EMC Technology Corp. 244 No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark: 1. The test report consists of 96 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test results in the report only to the tested sample. 2. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 3 of 96 Interocean EMC Technology Corp. FCC Test Report Table of Contents 1 General Information 6 1.1 Description of Equipment Under Test 6 1.2 Technical Specifications 8 1.3 Table for Carrier Frequencies 10 1.4 Tested Supporting System Detail 11 1.5 Test Facility 13 1.6 Test Methodology 14 1.7 Bluetooth Approvals 14 1.8 Test Facility 14 2 PROVISIONS APPLICABLE. 15 2.1 Definition 15 2.2 Requirement for Compliance 16 2.3 Summary of Measurement 18 2.4 Restricted Bands of Operation 19 2.5 Labeling Requirement 20 2.6 User Information 20 3 SYSTEM TEST CONFIGURATION 21 3.1 Justification 21 4 Power Line Conducted Emission Measurement 22 4.1 Instrument 22 4.2 Block Diagram of Test Configuration 22 4.3 Conducted Limit (Power Line) 22 4.4 Instrument configuration 23 4.5 Configuration of Measurement 23 4.6 Test Result 23 5 Radiated Emission Measurement 26 5.1 Instrument 26 5.2 Instrument (For frequencies measured below 18 GHz) 26 5.3 Standard Applicable and limit 27 5.4 Measuring Instrument Setting 27 5.5 Block Diagram of Test Configuration 28 5.6 Measurement Instrument setting 29 5.7 Configuration of Measurement 29 5.8 Test Result 29 5.9 Field Strength Calculation 48 6 ANTENNA REQUIREMENT 49 6.1 Standard Applicable 49 6.2 Antenna Construction and Directional Gain 49 FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 4 of 96 Interocean EMC Technology Corp. FCC Test Report 7 HOPPING CHANNEL BANDWIDTH MEASUREMENT 50 7.1 Instrument 50 7.2 Standard Applicable and limit 50 7.3 Block Diagram of Test Configuration 50 7.4 Measuring Instrument Setting 50 7.5 Configuration of Measurement 51 7.6 Test result 51 8 MAXIMUM OUTPUT POWER MEASUREMENT 54 8.1 Measurement Equipment 54 8.2 Standard Applicable and limit 54 8.3 Block Diagram of Test Configuration 54 8.4 Measurement Instrument setting 54 8.5 Configuration of Measurement 55 8.6 Test Result 55 9 100 kHz BANDWIDTH OF BAND EDGES MEASUREMENT 58 9.1 Instrument 58 9.2 Standard Applicable 58 9.3 Block Diagram of Test Configuration 58 9.4 Measuring Instrument Setting 59 9.5 Configuration of Measurement 59 9.6 Test Result 59 10 HOPPING CHANNEL SEPARATION 62 10.1 Instrument 62 10.2 Standard Applicable 62 10.3 Block Diagram of Test Configuration 62 10.4 Measuring Instrument Setting 62 10.5 Configuration of Measurement 63 10.6 Test Result 63 11 NUMBER OF HOPPING FREQUENCY USED 66 11.1 Instrument 66 11.2 Standard Applicable and limit 66 11.3 Block Diagram of Test Configuration 66 11.4 Measuring Instrument Setting 66 11.5 Configuration of Measurement 67 11.6 Test Result 67 FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 5 of 96 Interocean EMC Technology Corp. FCC Test Report 12 DWELL TIME ON EACH CHANNEL 70 12.1 Instrument 70 12.2 Standard Applicable and limit 70 12.3 Block Diagram of Test Configuration 70 12.4 Measuring Instrument Setting 70 12.5 Configuration of Measurement 71 12.6 Test Result 71 13 HOPPING SEQUENCE TEST 79 14 Photographs of Test 80 14.1 Power Line Conducted Emission Measurement 80 14.2 Radiated Emission Measurement 81 15 Photographs of EUT 84 FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 6 of 96 Interocean EMC Technology Corp. FCC Test Report 1 General Information 1.1 Description of Equipment Under Test Equipment Under Test :Portable Navigation System Model Number :CN-GP50U; CN-GP50N; CN-GP50 Serial Number :N/A Type of Sample Tested :Proto-type Pre-Production Mass Production Applicant : Quanta Computer Inc. 188, Wen Hwa 2nd Rd., Kuei Shan, Tao Yuan 33377, Taiwan Manufacturer : Quanta Changshu Manufacturing City Tech-Full Computer (Changshu) Co., Ltd. No.8, Jinzhou Road, High-tech Industrial Park, Changshu Economic Development Zone, Changshu, Jiangsu Province, 215500 China Power Supply : Switching Adapter： Manufacturer：DVE；Model No.：DSA-10P-05 050100 Input：100~240Vac, 50-60Hz, 0.3A Output：5Vdc, 2A Power cable： Non-shielded Un-detachable, 1.5m w/o core Cigarette Lighter Adapter： Input：12-24Vdc Output：5Vdc, 2A Power cable： Non-shielded Un-detachable, 1.8m w/o core Serial No.：Y782007022GE3C Build-in Li-ion battery： 2400mAh Date of Receipt Sample :Aug. 10, 2007 Date of Test :Aug. 10~14, 2007 Description of E.U.T. : Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. Bluetooth operates in the unlicensed ISM Band at 2.4 GHz. In the US a band of 81MHz width is available. In this band, 79 RF channels spaced 1MHz apart a defined. The channel is represented by a pseudo-random hopping sequence through the 79 channels. The channel is deviled into time slots, with a nominal slot length of 625μs, where each slot corresponds to different RF hop frequencies. The nominal hop rate is1600 hops/s. All frequencies are equally used. The average time of occupancy is 0.3797 s within a 31.6 second period. The symbol rate on the channel is 1 Ms/s. FCC ID：HFSCNGP50U Report No.: 7A081001FR IC I…

Text truncated - open the document above for the full version.

FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 80 of 96 Interocean EMC Technology Corp. FCC Test Report 14 Photographs of Test 14.1 Power Line Conducted Emission Measurement Front View Rear View FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 81 of 96 Interocean EMC Technology Corp. FCC Test Report 14.2 Radiated Emission Measurement Front View (Frequency under 1GHz) Rear View (Frequency under 1GHz) FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 82 of 96 Interocean EMC Technology Corp. FCC Test Report Front View (Frequency 1-18GHz) Rear View (Frequency 1-18GHz) FCC ID：HFSCNGP50U Report No.: 7A081001FR IC ID：1787B-CNGP50U Page 83 of 96 Interocean EMC Technology Corp. FCC Test Report Front View (Frequency above 18GHz) Rear View (Frequency above 18GHz)
