HFSHA2SANIIcebox Countertop

i Table of Contents Important Safety Instructions General Warnings and Cautions ............................ 1 Protection Against Electric Shock ............................. 2 Information About Repair Service ............................ 3 Getting Started Installing the Batteries ............................................ 6 Set Up Connections ............................................. 8 Connecting a TV Cable or Antenna .................... 8 Connecting an S-Video Source ........................... 9 Connecting a Camera, VCR or Video Game. ....... 9 Connecting the FM Radio Antenna ................... 10 Connecting for Internet Access ......................... 10 Connecting Other Devices .............................. 12 Connecting the SANI Antenna ......................... 13 Connecting the Power .................................... 13 Using the iCEBOX Controls .................................. 14 Front Panel ................................................... 14 Remote and Keyboard .................................... 15 Adjusting the Image and Sound ....................... 23 Stylus & Touch Screen .................................... 23 Configuring iCEBOX Settings ............................... 25 Choose the Television Signal Source ................. 25 Autoscan for Television Channels ...................... 26 Configure an Internet Connection ..................... 27 Configure the Browser Settings ......................... 30 CounterTop Owner’s Manual ii Using the iCEBOX Modes Changing Modes .............................................. 31 Television Mode ................................................ 31 DVD & CD Mode .............................................. 32 Internet Mode ................................................... 33 Radio Mode ..................................................... 39 My Kitchen Mode .............................................. 40 Video Mode ..................................................... 41 Caring for Your iCEBOX Updating Your iCEBOX System ............................. 43 Cleaning the iCEBOX ......................................... 45 Getting Help ................................................ 45 Troubleshooting ................................................. 47 FAQs .............................................................. 48 Privacy Policy .................................................... 52 Specifications.................................................... 54 FCC Statement .................................................. 55 iCEBOX CounterTop Warranty ............................. 56 Index ............................................................... 59 1 Important Safety Instructions Important Safety Instructions When using the iCEBOX™ CounterTop, observe these basic precautions to reduce the risk of personal injury or equipment damage. Before using the iCEBOX •Read and understand all iCEBOX instructions. •Follow all warnings and cautions on the product and in these operating instructions. •Do not use the iCEBOX for anything other than its intended use. Warnings and Cautions The following examples demonstrate warning and caution statements found within this document. Read and follow all warnings and cautions. General Warnings and Cautions The following general hazards could result in personal injury or product damage. Specific warnings and cautions are found in relevant sections of the operating instructions. 1.Read the instructions. All safety and operating instructions should be read before operating the iCEBOX. 2.Retain the instructions. The safety and operating instructions should be retained for future reference. 3.Heed warnings. All warnings on the product and in the operating instructions should be adhered to. 4.Follow instructions. All operating instructions should be followed. 5.Cleaning. Unplug the iCEBOX from the wall before cleaning it. Do not use liquid cleaners or aerosol cleaners. Clean the unit with a damp cloth. 6.Attachments. Do not use attachments which are not recommended by the manufacturer. Warning: Warning statements warn of hazards or unsafe practices that could result in serious personal injury or death. Caution: Caution statements warn of hazards or unsafe practices that could result in minor personal injury or damage to the product.
CounterTop Owner’s Manual 2 7.Do not use the unit near water. For example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swim- ming pool; and the like. 8.Carts and Stands. The iCEBOX should be placed on a cart or stand designed to securely support the weight of the unit. When mounted on a cart or stand, the iCEBOX should be moved care- fully. Sudden stops, excessive force, or uneven surfaces may cause the cart to overturn. 9.Accessories. Do not place this product on an unstable cart, stand, tri- pod, bracket, or table. The product may fall causing serious injury to a child or an adult and serious damage to the product. Protection Against Electric Shock 10.Power sources. This product should only be operated from the type of power source indicated on the marking label. If you are not sure of the power supply to your home, consult your product dealer or local power company. 11.Grounding or polarization. This product is equipped with a threewire groundingtype plug, a plug having a third grounding pin. This plug will only fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace the obsolete outlet. Do not defeat the safety purpose of the groundingtype plug. 12.Powercord protection. Powersupply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, conve- nience receptacles, and the point where they exit from the product. 13.Outdoor antenna grounding. If an outside antenna or cable system is connected to the product, …

Text truncated - open the document above for the full version.

DECLARATION OF CONFORMITY Per FCC Part 2 Section 2. 1077 (a) Responsible Party Name: Quanta Computer Inc. Address: No. 188, Wen Hwa 2 nd Road, Kuei Shan Hsiang Tao Yuan Shien, Taiwan, ROC Phone Number: 886 3 3272345 Fax Number: 886 943 180597 Hereby declares that the product Product: Counter Top Model Number: 115**, IBC***, IBC***-WLAN, IBC-001, IBC-002, IBC**** (the * can be any character or blank) Conforms to the following specifications: FCC Part 15, Subpart B, Section 15.107 (a) and Section 15.109 (a), Class B Digital Device Supplementary Information: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Representative’s Name: Joyce Kuo Signature: Date: April 2, 2004

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 April 2, 2004 RE: FCC ID: HFSHA2SANI_ATCB001244 Attention: Ellis Wu I have a few comments on this Application. 1. Please note that in the first radiated data table you state that the fundamental frequency is channel 27 (924.390244MHz) however, you have not shown the fundamental emissions of this channel. Please provide the fundamental readings associated with the channel in the associated data table. 2. Please note that 15.249 limits below 1GHz are QP limits, not average limits. Consequently, several fundamental emissions fail because QP measurements have not been performed and the peak readings are over the 94dBuV/m QP limit. Items 2and 3 give specific reference to failing fundamental frequencies that must be QP’d in order for compliance to be claimed. Please correct your report to show passing QP measurements in relation to the 94dBuV/m QP limit. 3. Please note that all of the fundamental emissions for 915.16MHz on page 24 shows failing peak readings. Please note that as the limit for this frequency is 94dBuV/m QP and not average you cannot use averaged readings to show compliance. Consequently, the device fails and is not certifiable as presented. Please retest and report the proper QP readings for all frequencies below 1GHz. 4. Please note that the same condition exists for the 924MHz fundamental on page 25 of the report. Consequently, this fundamental frequency is also failing as presented. Please retest and report the proper QP readings below 1GHz 5. Please note that 47CFR part 2.1033 states that for part 15 devices the block diagram is to contain the crystal and data rate (if appropriate) information. The block diagram provided does not appear to contain the crystal or clock frequency information. Please provide a block diagram in conformance to 2.1033 requirements. Also please note that the schematics are not celar on the frequency of the transmitter either. (a clock is shown in the schematics, but there is not indication as to what the frequency of this clock is.) Please provide information on the clocks used in the transmitter. 6. Please provide an operational description of the device. Please include information as mentioned in item 1 (i.e. clock information etc). 7. How is the FCC ID label permanently affixed to the device? 8. Please provide the three character equipment code in item 4a of the 731 form. 9. Please note that the manual does not appear to have the non-modification statement required by 15.21. Please provide a corrected manual with this required statement or please clearly indicate where in the manual this statement is located. 10. The report states that a dipole antenna is used. Please note that the report also states that the gain of the dipole is -2dBi. Please note that the typical gain of a dipole antenna is approximately 2.14dBi. Please explain and confirm if the gain of the antenna mentioned in the report is actually - 2dB. 11. Please note that the antenna connector on the transmitter appear to be a standard type connector. Please explain how the antenna meets the requirements of 15.203. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. z Page 2 April 2, 2004 Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

1 Dennis Ward From: [email protected] Sent: Monday, April 26, 2004 9:34 AM To: dward ATCB Cc: [email protected] Subject: 回信: HFSHA2SANI_ATCB001244 Stephanie, I would like to reply you the question 7, 10 and 11, others Stephanie will reply you. Question7 : The lable will be stamped on the device. Question 10: After confirm with the applicant, the antenna is 2dBi, the antenna size is small than typical dipole antenna. Question 11: The antenna connector type is reversed SMA, it meets the requirement of 15.203. Thanks. Best Regards. 吳佳鑫 / Ellis Wu E-mail : [email protected] 誠信科技 / ADT Corp. TEL : +886 3 3183232 #1624 FAX : +886 3 3270892 "dward ATCB" <dward@americantc b.com> 收件人 <[email protected]> 2004/04/03 09:27 副本抄送 <[email protected]> 主旨 HFSHA2SANI_ATCB001244 Hi Stephanie Please see report. Please understand that 15.249 limits below 1GHz are QP limits and not Average limits. Consequently, because there are no QP measurements for the 916 and 924MHz frequencies mentioned in the report the device fails. You will have to retest and QP the frequencies below 1GHz. Thanks 2 Dennis [附件檔 "4-2-04 HFSHA2SANI_ATCB Comments.pdf" 已被 Ellis Wu/ADT 刪 除]

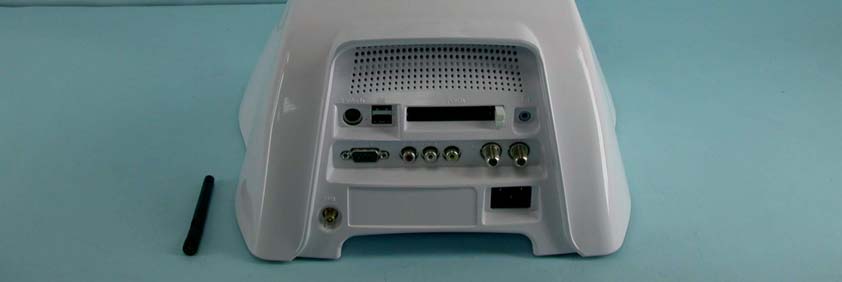

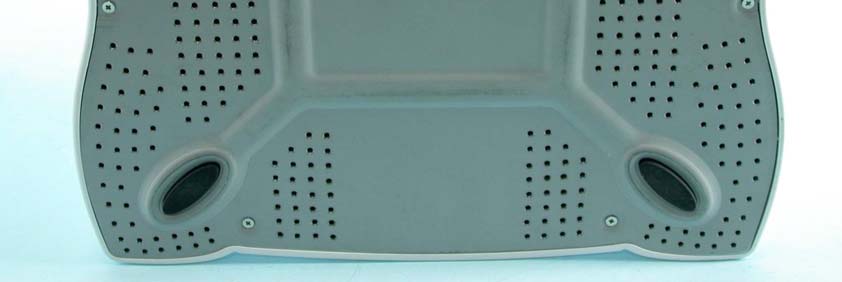

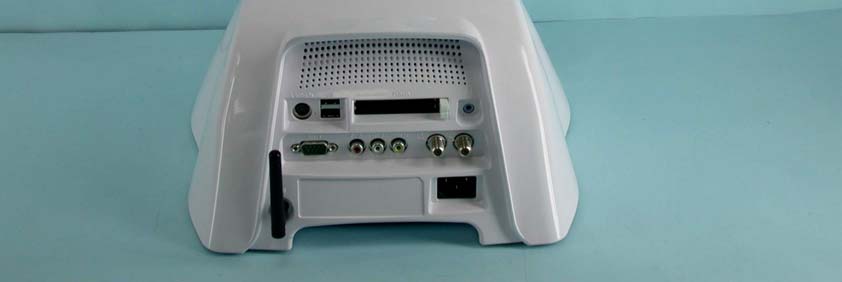

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Quanta Computer Inc. FCC ID: HFSHA2SANI IC ID: 1787B-HA2SANI Model name: IBC-001, Brand: Quanta This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label location

Page 4 Page 5 Page 6

Title RFm module Doc. Number BCC-611-004-2003 Short description RFm RF network module Alpha phase Document history: Revision Date Author/Who What 1 16-Nov-03 Stp Created Related documents: Doc Date Author/Wh o Revision rfq-icu-0.9 16-Sep-03 SR 0.9 RF2200_B0_1.0x 15-Sep-03 Michel Benoit 1.0 BCC-611-001-2003 4-Oct-03 STP 1.0 BCC-611-002-2003 6-Oct-03 STP 1.0 DRAFT November 2003 High performance, low cost Product Description The Hermes networking module is a fully integrated surface mountable transceiver with star networking capabilities. The module is intended for use as low cost FSK transceiver to establish a frequency-programmable, half-duplex bidirectional RF link. The FHSS multi channelled FSK transceiver is intended for UHF radio equipment in compliance with the North American Federal Communications Commission (FCC) part 15.247 and the European Telecommunication Standard Institute (ETSI) specification EN300 220.The transmitter consists of a VCO, a frequency synthesizer and a programmable power amplifier. The integrated receiver is a direct conversion (Z-IF) receiver allowing low power operation. It consists of a low noise amplifier, mixers, internal filters, limiters and a FSK demodulator. Features • 915 / 868MHz FHSS • Networking • Low power operation • Programmable protocol • UART interface • ICD2 programmable Parameter Value Unit Conditions Frequency 868/9915 MHz Modulation FSK RF output power 10 DBm 2.5V Current consumption, TX 33 MA 2.5V Sensitivity −105 DBm (10kbps, BER=10 -3 ) Current consumption, RX 15 MA 5V Maximum data rate 10 kbps DRAFT November 2003 Contents Contents.......................................................................................................................................3 Definitions.....................................................................................................................................6 General Description........................................................................................................................7 Pinout ...........................................................................................................................................8 Using the Number of retransmissions parameter...............................................................................9 Use of RTS/CTS and DCD..............................................................................................................9 Detailed procedure User_x ‡ RFm_x:..................................................................................10 Detailed procedure RFm_x ‡ User_x:..................................................................................13 Programming Mode......................................................................................................................14 Format of the primitives............................................................................................................14 Modes of Operation, Overview......................................................................................................23 Active mode................................................................................................................................. 23 Binding Mode...............................................................................................................................24 User_M Action.........................................................................................................................24 User_Slave action....................................................................................................................25 Other modes of operation.............................................................................................................26 “Sniffer mode”..........................................................................................................................26 “Test modes”...........................................................................................................................26 DRAFT November 2003 Block diagram VCO L N A Sallen-key Sallen-key Main filter Main filter I F A M P P A DIV 2 I F A M P LO-Buffer P A - b u f f e r Frequency Synthesiser-10MHz D e m o d u l a t o r C l o c k r e c o v e r y M o d u l a t o r D e v i a t i o n c o n t r o l RSSI XCO C o n t r o l l o g i c Filter M C U LDO REG MODE RESET RX TX DCD DSR CTS RTS ANT Pin Assignment Pin Name Function I/O Pin Name I/0 1 VCC +5V - 6 TX Serial data out I 2 GND GND - 7 CTS Clear To Send O 3 MODE Mode of operation I 8 RTS Request To Send I 4 RESET HW Reset I 9 DCD Data Carrier Detect O 5 RX Serial data in I 10 GND GND - DRAFT November 2003 BLUECHIP COMMUNICATION AS, Oslo Norway Page 5of 26 RFm: User interface (draft 2003 11 14) 5 Absolute Maximum Ratings Value Parameter Conditions Min Max Units Supply voltage, VDD 5 V Voltage on any pin GND=0 -0.3 5 V Storage Temperature range -50 150 °C Lead Temp 250 °C ESD-Human body model t.b.d. kV Note: “ Absolute Maximum Rating” indicate the limit beyond witch damage to the device may occur. Recommended Operating conditions indicate conditions for which the device is intended to be functional, but do not guarantee specific performance limits. Electrical Characteristics document specific minimum and/or maximum performance values at specified test conditions. Typical values are for information purposes only- based on design parameters or device characterization and are not guaranteed. ATTENTION STATIC SENSITIVE DEVICE HANDLE ONLY AT STATIC SAFE WORK STATION Electrical characterization f RF = 915MHz, Data-rate=10kbps, Modulation type:=Divider , Vdd=5V, T=25°C, unless otherwise specified Values Parameter Conditions Min. Typ. Max. Units Overall RF frequency operating range 868 927 MHz Number of Channels 868MHz 4 915MHz 25 Start-up Time 10 mS Switching time Rx-Rx 500 μS Rx-TX 800 μS Synchronization time <<<1 S Power supply 3 V Temperature range -20 70 °C Transmit section Output Power R load…

Text truncated - open the document above for the full version.

FCC ID: HFSHA2SANI Report No.: RF930206R031Issued: March 3, 2004. FCC TEST REPORT REPORT NO.: RF930206R03 MODEL NO.: IBC-001 (for other model names please refer to page 5) RECEIVED: February 6, 2004 TESTED: February 26, 2004 ~ March 2, 2004 APPLICANT: QUANTA COMPUTER INC. ADDRESS: 7F, 116, Hou Kang St., Shih Lin, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 33 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: HFSHA2SANI Report No.: RF930206R032Issued: March 3, 2004. Table of Contents 1CERTIFICATION ................................................................................................3 2SUMMARY OF TEST RESULTS ........................................................................4 3.GENERAL INFORMATION.................................................................................5 3.1GENERAL DESCRIPTION OF EUT ...................................................................5 3.2DESCRIPTION OF TEST MODES .....................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................6 3.4DESCRIPTION OF SUPPORT UNITS ...............................................................7 4.TEST TYPES AND RESULTS ............................................................................9 4.1CONDUCTED EMISSION MEASUREMENT .....................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT...................................9 4.1.2TEST INSTRUMENTS........................................................................................9 4.1.3TEST PROCEDURES ......................................................................................10 4.1.4DEVIATION FROM TEST STANDARD ............................................................10 4.1.5TEST SETUP.................................................................................................... 11 4.1.6 EUT OPERATING CONDITIONS .................................................................... 11 4.1.7 TEST RESULTS ................................................................................................12 4.2RADIATED EMISSION MEASUREMENT ........................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................18 4.2.2TEST INSTRUMENTS......................................................................................19 4.2.3TEST PROCEDURES ......................................................................................20 4.2.4DEVIATION FROM TEST STANDARD ............................................................20 4.2.5TEST SETUP....................................................................................................21 4.2.6EUT OPERATING CONDITIONS .....................................................................21 4.2.7TEST RESULTS ...............................................................................................22 4.3BAND EDGES MEASUREMENT .....................................................................27 4.3.1LIMITS OF BAND EDGES MEASUREMENT...................................................27 4.3.2TEST INSTRUMENTS......................................................................................27 4.3.3TEST PROCEDURE.........................................................................................27 4.3.4EUT OPERATING CONDITION........................................................................27 4.3.5TEST RESULTS ...............................................................................................28 5.PHOTOGRAPHS OF THE TEST CONFIGURATION.......................................31 6.INFORMATION ON THE TESTING LABORATORIES .....................................33 FCC ID: HFSHA2SANI Report No.: RF930206R033Issued: March 3, 2004. 1 CERTIFICATION PRODUCT : Countertop MODEL NO.: IBC-001 (for other model names please refer to page 5) BRAND: Quanta APPLICANT : QUANTA COMPUTER INC. TEST ITEM: ENGINEERING SAMPLE STANDARDS : FCC Part 15, Subpart C (Section 15.249), ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility from February 26, 2004 to March 2, 2004. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: HFSHA2SANI Report No.: RF930206R034Issued: March 3, 2004. 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestPASS Minimum passing margin is –4.95dB at 0.181MHz 15.209 15.249 Radiated Emission TestPASS Minimum passing margin is –0.60dB at 905.30MHz 15.249 (d)Band Edge MeasurementPASS Meet the requirement of limit Note: The information of measurement uncertainty is available upon the customer’s request. FCC ID: HFSHA2SANI Report No.: RF930206R035Issued: March 3, 2004. 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Countertop MODEL NO. IBC-001 (for other model names please refer to following table) BRAND Quanta POWER SUPPLY 6.0Vdc from host equipment MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 905.609756 ~ 924.390244MHz NUMBER OF CHANNEL 28 ANTENNA TYPE Dipole antenna with –2dBi gain DATA CABLE NA I/O PORTS NA NOTE: 1. The EUT include Transmitter part and Receiver part. 2. The models as below are identical to each othe…

Text truncated - open the document above for the full version.

FCC ID: HFSHA2SANI Report No.: RF930206R0331Issued: March 3, 2004. 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: HFSHA2SANI Report No.: RF930206R0332Issued: March 3, 2004. RADIATED EMISSION TEST
