HFSQTA-TP00126ANotebook Computer

Lenovo ThinkPad C13 Yoga Gen 1 Chromebook Regulatory Notice First Edition (October 2020) © Copyright Lenovo 2020. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS- 35F-05925. Contents About this manual. . . . . . . . . . . . iii Chapter 1. Notice for users in USA and Canada. . . . . . . . . . . . . . . 1 USA - Federal Communications Commission (FCC). . . . . . . . . . . . . . . . . . . . 1 FCC RF exposure compliance. . . . . . . . 1 Emergency Calls. . . . . . . . . . . . . 2 Simultaneous use of RF transmitters. . . . . . 2 Radio Frequency interference requirements. . . 2 Canada — Industry Canada (IC). . . . . . . . . 2 IC certification number. . . . . . . . . . . 2 Low power license-exempt radio communication devices (RSS-247). . . . . . 2 Exposure of humans to RF fields (RSS-102) . . . 3 Canada - Industrie Canada (IC). . . . . . . . . . 3 Numéro de certification IC. . . . . . . . . . 3 Permis d'émission à faible puissance - Cas des appareils de radio-communication ( CNR- 247). . . . . . . . . . . . . . . . . . 3 Conformité des appareils de radiocommunication aux limites d'exposition humaine aux radiofréquences (CNR-102) . . . . 4 Electromagnetic emission notices. . . . . . . . . 4 Usage environment and your health. . . . . . . . 4 Chapter 2. Notice for users in Japan. . . . . . . . . . . . . . . . . . . 5 日本国内で無線LAN/Bluetoothアダプターをご使用 になる場合の注意. . . . . . . . . . . . . . . 5 無線 LAN 製品ご使用時におけるセキュリティに関 するご注意. . . . . . . . . . . . . . . . . . 5 使用環境および快適に使用するために. . . . . . . 6 無線通信機能(モジュールを含む)を持つパーソナル コンピュータの比吸収率（Body SAR）について. . . 6 Chapter 3. Europe — EU Declaration of Conformity. . . . . . . . . . . . . . 9 English. . . . . . . . . . . . . . . . . . . 9 Bulgarian. . . . . . . . . . . . . . . . . . 9 Croatian. . . . . . . . . . . . . . . . . . 10 Czech. . . . . . . . . . . . . . . . . . 10 Danish. . . . . . . . . . . . . . . . . . 10 Dutch. . . . . . . . . . . . . . . . . . . 11 Estonian. . . . . . . . . . . . . . . . . . 11 Finnish. . . . . . . . . . . . . . . . . . 11 French. . . . . . . . . . . . . . . . . . 12 German. . . . . . . . . . . . . . . . . . 12 Greek. . . . . . . . . . . . . . . . . . . 12 Hungarian. . . . . . . . . . . . . . . . . 13 Italian. . . . . . . . . . . . . . . . . . . 13 Latvian. . . . . . . . . . . . . . . . . . 13 Lithuanian. . . . . . . . . . . . . . . . . 14 Norwegian. . . . . . . . . . . . . . . . . 14 Polish. . . . . . . . . . . . . . . . . . . 14 Portuguese. . . . . . . . . . . . . . . . 15 Romanian. . . . . . . . . . . . . . . . . 15 Slovakian. . . . . . . . . . . . . . . . . 15 Slovenian. . . . . . . . . . . . . . . . . 16 Spanish. . . . . . . . . . . . . . . . . . 16 Swedish. . . . . . . . . . . . . . . . . . 17 Turkish. . . . . . . . . . . . . . . . . . 17 Chapter 4. Notice for users in other countries/regions. . . . . . . . . . . 19 Notice for users in Argentina (Nota para uso en Argentina). . . . . . . . . . . . . . . . . 19 Notice for users in Brazil (Aviso para usuarios no Brasil) . . . . . . . . . . . . . . . . . . 19 Notice for Users in Chile (Nota para Uso en Chile). . . . . . . . . . . . . . . . . . . 19 Notice for users in India. . . . . . . . . . . . 19 Notice for users in Mexico (Nota para uso en Mexico). . . . . . . . . . . . . . . . . . 20 Notice for users in Morocco. . . . . . . . . . 20 Notice for users in Nigeria. . . . . . . . . . . 20 Notice for users in Pakistan. . . . . . . . . . 20 Notice for users in Saudi Arabia. . . . . . . . 21 Notice for users in Serbia. . . . . . . . . . . 22 Notice for users in South Africa. . . . . . . . . 22 Notice for users in Taiwan. . . . . . . . . . . 22 Notice for users in the UAE. . . . . . . . . . 22 Chapter 5. Trademarks. . . . . . . . 23 © Copyright Lenovo 2020i iiLenovo ThinkPad C13 Yoga Gen 1 Chromebook Regulatory Notice About this manual This manual contains regulatory information for Lenovo ThinkPad ® C13 Yoga Gen 1 Chromebook (compliance ID:TP00126A). Lenovo ThinkPad C13 Yoga Gen 1 Chromebook supports the following wireless module: • AX200NGW © Copyright Lenovo 2020iii ivLenovo ThinkPad C13 Yoga Gen 1 Chromebook Regulatory Notice Chapter 1. Notice for users in USA and Canada Read this document before using your computer. This computer complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. Install and use your computer according to the following instructions. The latest Regulatory Notice manual is available on the Lenovo Web site. To download the manual, go to https://support.lenovo.comand then follow the on-screen instructions. Lisez ce document avant d'utiliser votre computerte. Cette computerte est conforme aux normes de fréquence radio et de sécurité du pays ou de la région où son utilisation sans fil est autorisée. Installez et utilisez votre computerte en vous conformant aux instructions ci-dessous. La dernière version du manuel Regulatory Notice est disponible sur le site Web de Lenovo. Pour télécharger le document, rendez-vous sur https://support.lenovo.comet suivez les instructions à l'écran. USA - Federal Communications Commission (FCC) This tablet contains the following wireless devices and underwent the certification process of FCC CFR 47 Part 2 section 1093, Part 15 Subpart C and Subpart E under each respective FCC ID below. • FCC ID: HFSQTA-TP00126A – Wireless LAN module with Bluetooth function (model: AX200NGW) Depending on your country or region, you can find the government-required regulatory information through one of the following methods: • On a physical label attached to the outside of your computer shipping carton • On a physical label attached to your computer • Through an electronic-label screen (E-label screen) preinstalled on your computer The wireless module in your computer is preinstalled by Lenovo, and you are prohibited t…

Text truncated - open the document above for the full version.

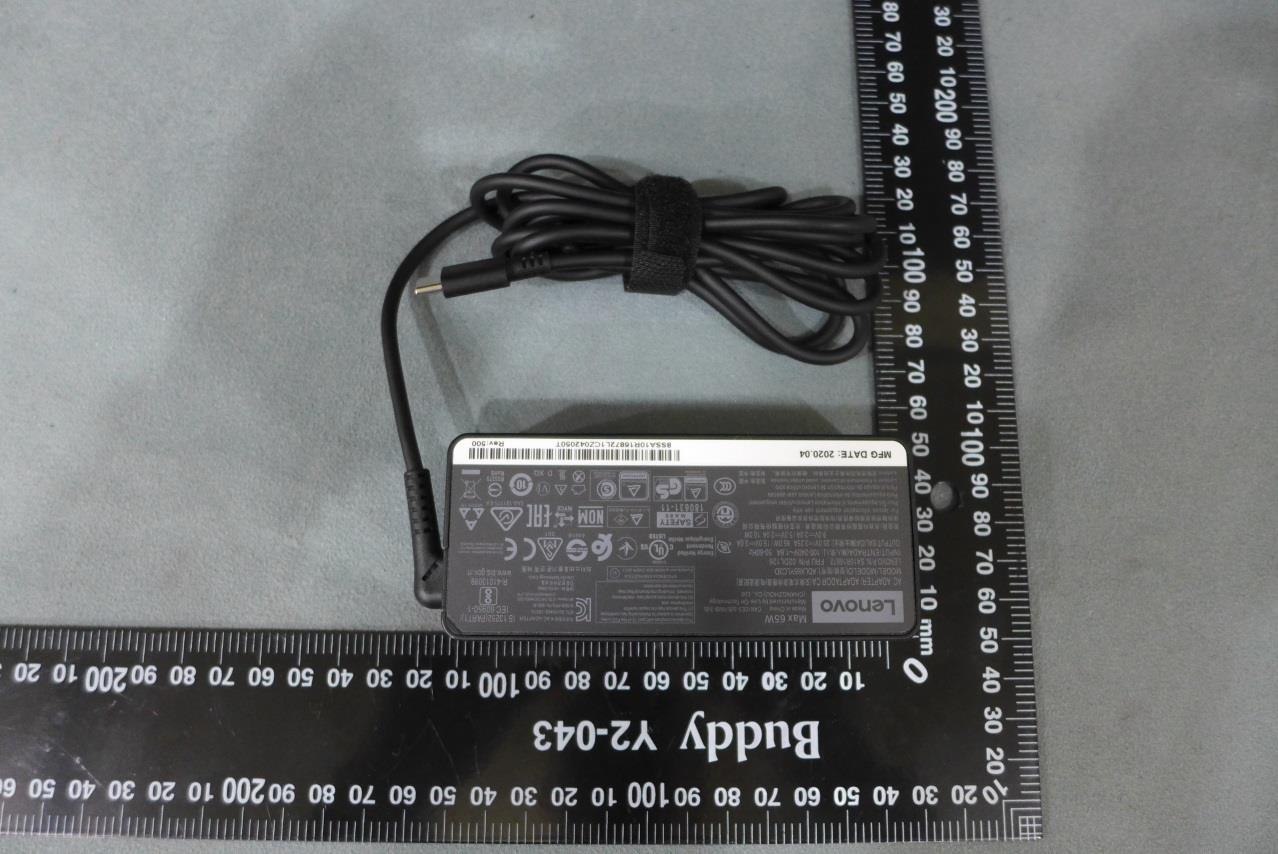

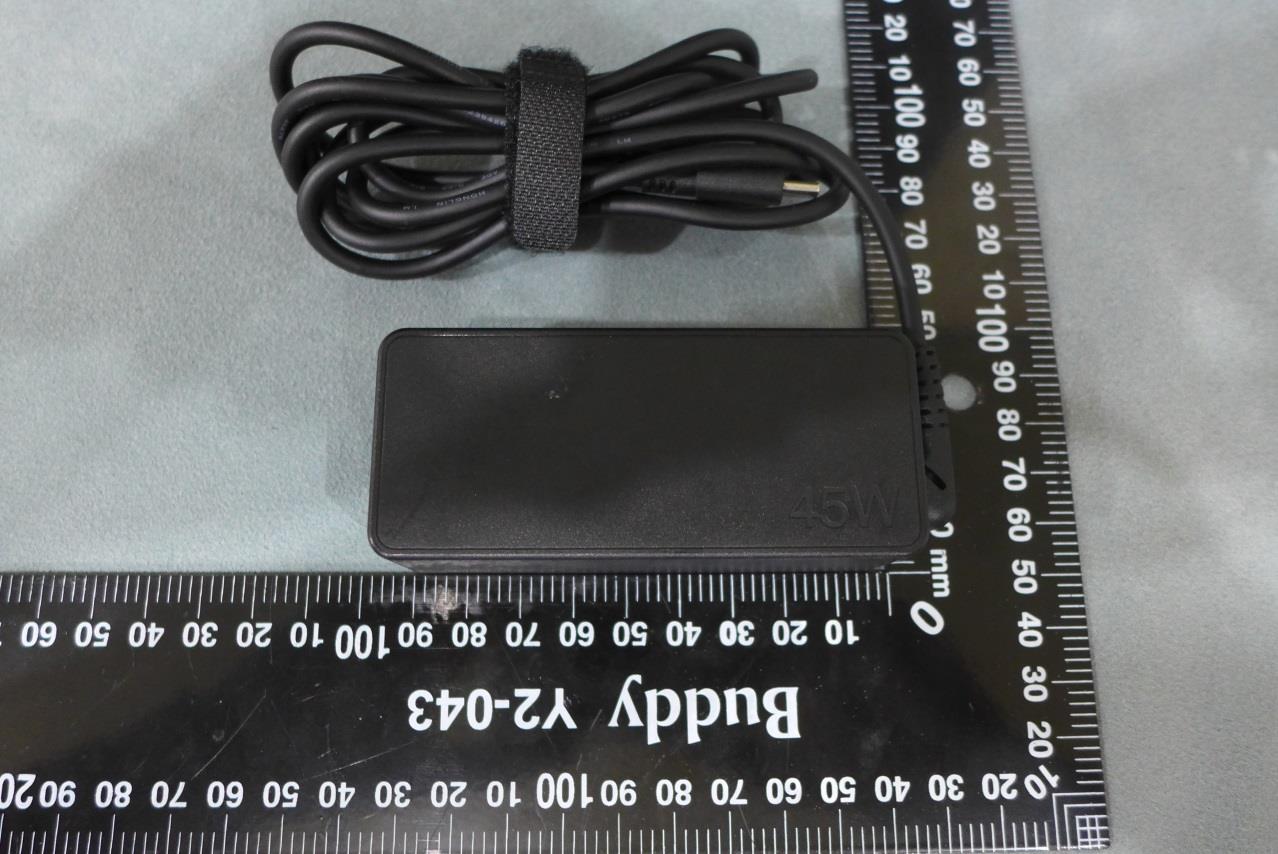

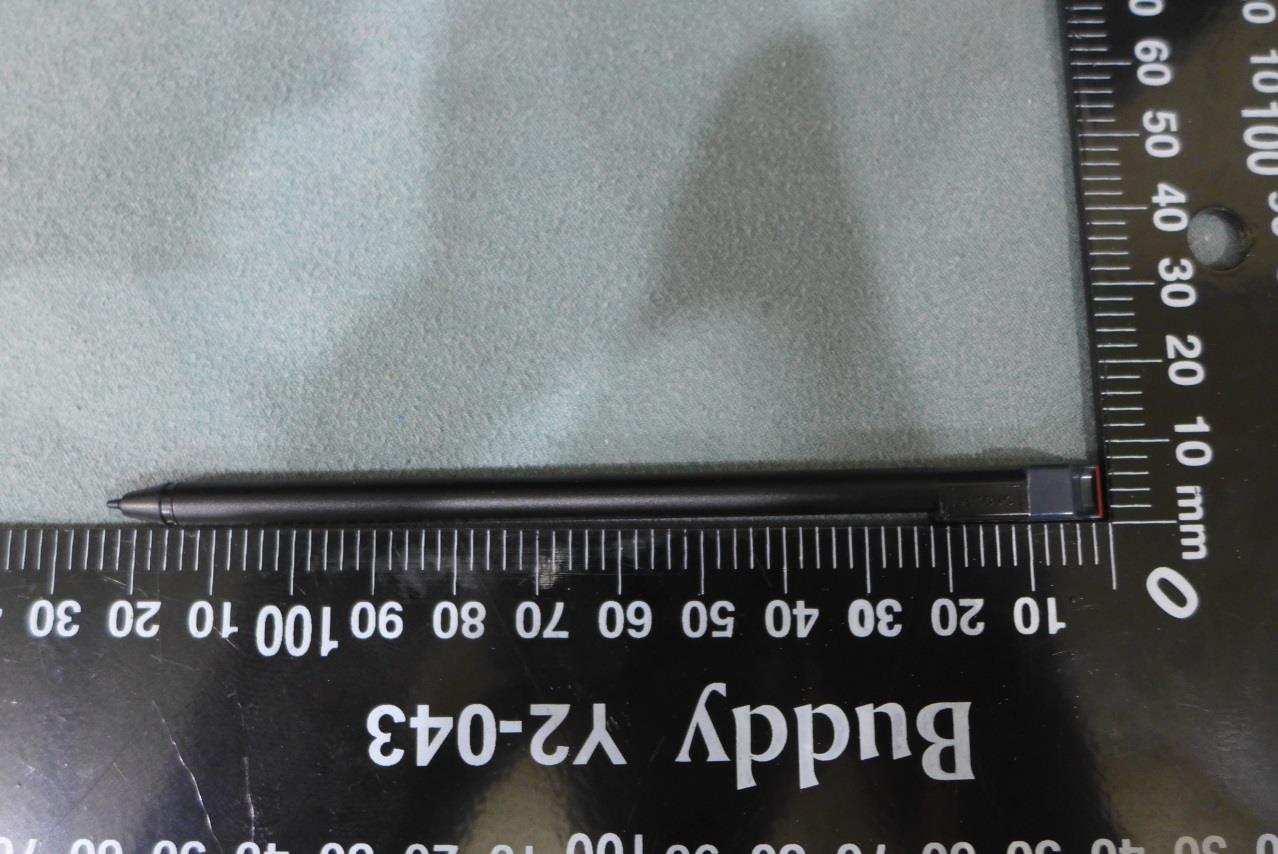

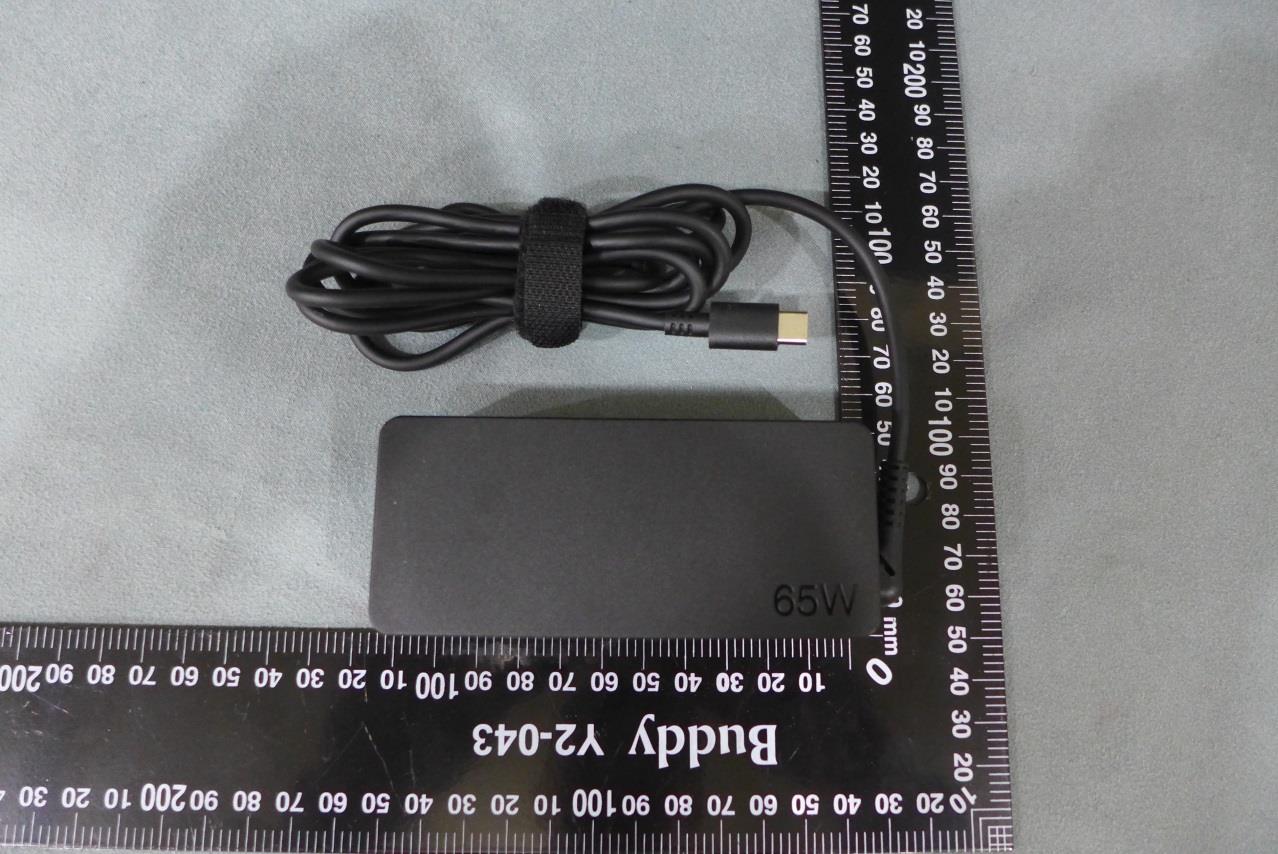

Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 1 of 26 Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 2 of 26 Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 3 of 26 Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 4 of 26 Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 5 of 26 Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 6 of 26 ADLX45YCC3F Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 7 of 26 Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 8 of 26 ADLX65YLC3D Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 9 of 26 Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 10 of 26

v1.0 20200429. Add Lenovo before model name, and remove CCC mark. v2.0 20200508. Align indented text under Lenovo first line in “Reference 2” and remove CECP Version Lable for China v3.0 20200508. even out the spacing between the icons Update D cover label layout V5.0 2020 0708 *Informaiton is needs to be confirmed with Dev team Generation mark reference Need space between “Gen” & “X” Font size : N Font size : N Gen X OK NGGenX print color :UV (clear) / High Gloss size:101.7X24.4mm print color : Pantone Pantone 7543c / Semi-Gloss 4.0 mm Align t o edge of Front Feet 4.0 mm Align t o edge of Front Feet 5.0 mm Align t o edge of holes Lenovo ThinkPad C13 Yoga Gen 1 Chromebook Lenovo ThinkPad C13 Yoga Gen 1 Chromebook TP00126A Lenovo ThinkPad C13 Yoga Gen 1 Chromebook Lenovo ThinkPad C13 Yoga Gen 1 Chromebook TP00126A Lenovo ThinkPad C13 Yoga Gen 1 Chromebook Lenovo ThinkPad C13 Yoga Gen 1 Chromebook TP00126A Lenovo ThinkPad C13 Yoga Gen 1 Chromebook Lenovo ThinkPad C13 Yoga Gen 1 Chromebook TP00126A Lenovo ThinkPad C13 Yoga Gen 1 Chromebook Lenovo ThinkPad C13 Yoga Gen 1 Chromebook TP00126A Lenovo ThinkPad C13 Yoga Gen 1 Chromebook Lenovo ThinkPad C13 Yoga Gen 1 Chromebook TP00126A Lenovo ThinkPad C13 Yoga Gen 1 Chromebook Lenovo ThinkPad C13 Yoga Gen 1 Chromebook TP00126A Lenovo ThinkPad C13 Yoga Gen 1 Chromebook Lenovo ThinkPad C13 Yoga Gen 1 Chromebook TP00126A US(Mexico build) Yonezawa GEO label C GEO label B IndiaGEO label A GEO label, CECP label *The labels hide D-cover silk-printing partially Reference 2 Korea Mexico GEO label ETaiwan Argentina Japan *except for Yonezawa model Must hide Factory ID GEO label C GEO label E GEO label B GEO label A v4.0 20200707. even out the spacing between the icons v5.0 20200708. even out the spacing between the icons Lenovo ThinkPad C13 Yoga Gen 1 Chromebook Lenovo ThinkPad C13 Yoga Gen 1 Chromebook TP00126A Lenovo ThinkPad C13 Yoga Gen 1 Chromebook Lenovo ThinkPad C13 Yoga Gen 1 Chromebook TP00126A Lenovo ThinkPad C13 Yoga Gen 1 Chromebook Lenovo ThinkPad C13 Yoga Gen 1 Chromebook TP00126A

Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 11 of 26 Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 12 of 26 Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 13 of 26 Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 14 of 26 Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 15 of 26 Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 16 of 26 Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 17 of 26 Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 18 of 26 Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 19 of 26 Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 20 of 26 Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 21 of 26 Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 22 of 26 Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 23 of 26 AWAN Antenna Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 24 of 26 AWAN Antenna Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 25 of 26 LUXSHARE-ICT Antenna Appendix No.: EP-2006T132-1 APPENDIX-EUT PHOTOS Project No.: 2006T132 Page 26 of 26 LUXSHARE-ICT Antenna

Test Laboratory: BTL Inc. Date: 2020/7/8 System Check_H2450 DUT: Dipole 2450 MHz D2450V2; Communication System: UID 0, CW (0); Frequency: 2450 MHz; Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2450 MHz; σ = 1.792 S/m; ε r = 39.099; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.5 °C DASY Configuration:  Probe: EX3DV4 - SN7369; ConvF(7.65, 7.65, 7.65) @ 2450 MHz; Calibrated: 2019/6/19  Sensor-Surface: 1.4mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor- Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 31.0  Electronics: DAE4 Sn1486; Calibrated: 2019/6/13  Phantom: ELI V5.0 (20deg probe tilt); Type: QD OVA 002 AA; Serial: 1240  DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) System Performance Check at Frequencies above 1 GHz/Pin=250mW /Area Scan (9x9x1): Measurement grid: dx=12mm, dy=12mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 20.7 W/kg System Performance Check at Frequencies above 1 GHz/Pin=250mW /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 112.3 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 26.1 W/kg SAR(1 g) = 12.3 W/kg; SAR(10 g) = 5.76 W/kg Smallest distance from peaks to all points 3 dB below = 11 mm Ratio of SAR at M2 to SAR at M1 = 46.1% Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 21.0 W/kg Test Laboratory: BTL Inc. Date: 2020/7/9 System Check_H5G DUT: Dipole D5GHzV2; Communication System: UID 0, CW (0); Frequency: 5200 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5200 MHz; σ = 4.655 S/m; ε r = 35.986; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：22.1 °C DASY Configuration:  Probe: EX3DV4 - SN7369; ConvF(5.4, 5.4, 5.4) @ 5200 MHz; Calibrated: 2019/6/19  Sensor-Surface: 1.4mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor- Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 23.0  Electronics: DAE4 Sn1486; Calibrated: 2019/6/13  Phantom: ELI V5.0 (20deg probe tilt); Type: QD OVA 002 AA; Serial: 1240  DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Pin=100mW 1/Area Scan (10x10x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 16.3 W/kg Configuration/Pin=100mW 1/Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 58.94 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 33.5 W/kg SAR(1 g) = 7.28 W/kg; SAR(10 g) = 2.06 W/kg Smallest distance from peaks to all points 3 dB below = 7.4 mm Ratio of SAR at M2 to SAR at M1 = 49.3% Maximum value of SAR (measured) = 19.3 W/kg Test Laboratory: BTL Inc. Date: 2020/7/9 System Check_H5G DUT: Dipole D5GHzV2; Communication System: UID 0, CW (0); Frequency: 5300 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5300 MHz; σ = 4.757 S/m; ε r = 35.871; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：22.1 °C DASY Configuration:  Probe: EX3DV4 - SN7369; ConvF(5.13, 5.13, 5.13) @ 5300 MHz; Calibrated: 2019/6/19  Sensor-Surface: 1.4mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor- Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 23.0  Electronics: DAE4 Sn1486; Calibrated: 2019/6/13  Phantom: ELI V5.0 (20deg probe tilt); Type: QD OVA 002 AA; Serial: 1240  DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Pin=100mW 2/Area Scan (10x10x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 16.5 W/kg Configuration/Pin=100mW 2/Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 59.61 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 31.7 W/kg SAR(1 g) = 7.85 W/kg; SAR(10 g) = 2.26 W/kg Smallest distance from peaks to all points 3 dB below = 7.4 mm Ratio of SAR at M2 to SAR at M1 = 53.8% Maximum value of SAR (measured) = 19.9 W/kg Test Laboratory: BTL Inc. Date: 2020/7/9 System Check_H5G DUT: Dipole D5GHzV2; Communication System: UID 0, CW (0); Frequency: 5600 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5600 MHz; σ = 5.065 S/m; ε r = 35.529; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：22.1 °C DASY Configuration:  Probe: EX3DV4 - SN7369; ConvF(4.81, 4.81, 4.81) @ 5600 MHz; Calibrated: 2019/6/19  Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 23.0  Electronics: DAE4 Sn1486; Calibrated: 2019/6/13  Phantom: ELI V5.0 (20deg probe tilt); Type: QD OVA 002 AA; Serial: 1240  DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Pin=100mW 3/Area Scan (10x10x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 15.9 W/kg Configuration/Pin=100mW 3/Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 56.95 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 31.7 W/kg SAR(1 g) = 7.49 W/kg; SAR(10 g) = 2.14 W/kg Smallest distance from peaks to all points 3 dB below = 7.5 mm Ratio of SAR at M2 to SAR at M1 = 51.8% Maximum value of SAR (measured) = 19.4 W/kg Test Laboratory: BTL Inc. Date: 2020/7/9 System Check_H5G DUT: Dipole D5GHzV2; Communication System: UID 0, CW (0); Frequency: 5800 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5800 MHz; σ = 5.27 S/m; ε r = 35.3; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：22.1 °C DASY Configuration:  Probe: EX3DV4 - SN7369; ConvF(4.88, 4.88, 4.88) @ 5800 MHz; Calibrated: 2019/6/19  Sensor-Surface: 1.4mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor- Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 23.0  Electronics: DAE4 Sn1486; Calibrated: 2019/6/13  Phantom: ELI V5.0 (20deg probe tilt); Type: QD OVA 002 AA; Serial: 1240  DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Pin=100mW 4 /Area Scan (10x10x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 16.8 W/kg Configuration/Pin=100mW 4 /Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 50.5…

Text truncated - open the document above for the full version.

Test Laboratory: BTL Date: 2020/7/8 Wi-Fi_2.4GHz_Tablet Bottom Frequency: 2412 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used (interpolated): f = 2412 MHz; σ = 1.75 S/m; ε r = 39.239; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1486; Calibrated: 2020/6/4 - Probe: EX3DV4 - SN7369; ConvF(7.6, 7.6, 7.6) @ 2412 MHz; Calibrated: 2020/5/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor- Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI V5.0 (20deg probe tilt); Type: QD OVA 002 AA; Serial: 1240 Main/Tablet Bottom/802.11b/Main Ant/ch1/Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 2.08 W/kg Main/Tablet Bottom/802.11b/Main Ant/ch1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 0 V/m; Power Drift = 0.17dB Peak SAR (extrapolated) = 2.99 W/kg SAR(1 g) = 1.03 W/kg; SAR(10 g) = 0.410 W/kg Smallest distance from peaks to all points 3 dB below = 6 mm Ratio of SAR at M2 to SAR at M1 = 33.9% Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.93 W/kg Test Laboratory: BTL Date: 2020/7/9 Wi-Fi_5GHz-Tablet Bottom Frequency: 5250 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used (interpolated): f = 5250 MHz; σ = 4.706 S/m; ε r = 35.929; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1486; Calibrated: 2020/6/4 - Probe: EX3DV4 - SN7369; ConvF(5.13, 5.13, 5.13) @ 5250 MHz; Calibrated: 2020/5/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI V5.0 (20deg probe tilt); Type: QD OVA 002 AA; Serial: 1240 Aux/Tablet Bottom/802.11ac160/Aux Ant/ch50/Area Scan (6x8x1): Measurement grid: dx=10mm, dy=10mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 2.05 W/kg Aux/Tablet Bottom/802.11ac160/Aux Ant/ch50/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 0 V/m; Power Drift = 0.16dB Peak SAR (extrapolated) = 5.30 W/kg SAR(1 g) = 1.32 W/kg; SAR(10 g) = 0.336 W/kg Smallest distance from peaks to all points 3 dB below = 5.1 mm Ratio of SAR at M2 to SAR at M1 = 49% Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 3.57 W/kg Test Laboratory: BTL Date: 2020/7/9 Wi-Fi_5GHz-Tablet Bottom Frequency: 5570 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used (interpolated): f = 5570 MHz; σ = 5.034 S/m; ε r = 35.563; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1486; Calibrated: 2020/6/4 - Probe: EX3DV4 - SN7369; ConvF(4.7, 4.7, 4.7) @ 5570 MHz; Calibrated: 2020/5/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor- Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI V5.0 (20deg probe tilt); Type: QD OVA 002 AA; Serial: 1240 Aux/Yoga Bottom/802.11ac160/Aux Ant/ch114/Area Scan (6x8x1): Measurement grid: dx=10mm, dy=10mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.84 W/kg Aux/Yoga Bottom/802.11ac160/Aux Ant/ch114/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 0.2770 V/m; Power Drift = 0.09dB Peak SAR (extrapolated) = 8.42 W/kg SAR(1 g) = 1.48 W/kg; SAR(10 g) = 0.323 W/kg Smallest distance from peaks to all points 3 dB below = 4.7 mm Ratio of SAR at M2 to SAR at M1 = 46.1% Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 4.12 W/kg Test Laboratory: BTL Date: 2020/7/9 Wi-Fi_5GHz-Tablet Bottom Frequency: 5775 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used (interpolated): f = 5775 MHz; σ = 5.244 S/m; ε r = 35.329; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1486; Calibrated: 2020/6/4 - Probe: EX3DV4 - SN7369; ConvF(4.68, 4.68, 4.68) @ 5775 MHz; Calibrated: 2020/5/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor- Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI V5.0 (20deg probe tilt); Type: QD OVA 002 AA; Serial: 1240 Aux/Tablet Bottom/802.11ac80/Aux Ant/ch155/Area Scan (6x8x1): Measurement grid: dx=10mm, dy=10mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.52 W/kg Aux/Tablet Bottom/802.11ac80/Aux Ant/ch155/Zoom Scan (9x9x9)/Cube 0: grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 1.213 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 5.22 W/kg SAR(1 g) = 1.08 W/kg; SAR(10 g) = 0.257 W/kg Smallest distance from peaks to all points 3 dB below = 5.6 mm Ratio of SAR at M2 to SAR at M1 = 44.1% Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 3.07 W/kg Test Laboratory: BTL Inc. Date: 2020/7/8 Wi-Fi_ Bluetooth_DH5 _Tablet Bottom Frequency: 2402 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used (interpolated): f = 2402 MHz; σ = 1.739 S/m; ε r = 39.276; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1486; Calibrated: 2020/6/4 - Probe: EX3DV4 - SN7369; ConvF(7.6, 7.6, 7.6) @ 2402 MHz; Calibrated: 2020/5/29 - Sens…

Text truncated - open the document above for the full version.

Asset No.： E-434 Model No.： D2450V2 Serial No.： 973 Environmental 23.5°C, 53 % Original Cal. Date： September 21, 2018 Next Cal. Date： September 20, 2021 1IEEE Std 1528-2013 2IEC 62209-2 3KDB865664 Equipment：Manufacturer：Model No.：Serial No.：Cal.Organization：Cal. Date： Power AmplifierMini-CircuitsZHL-42W+QA1333003NAMarch 8, 2019 DC SourcelteckOT6154M00157NASpectember 31, 2019 Power MeterAnritsuML2495A1128008NADecember 5, 2019 Power SensorAnritsuMA2411B1126001NADecember 5, 2019 Power MeterAnritsuML2487A6K00004714NAJune 20, 2019 Power SensorAnritsuMA2491A1725282NAJune 20, 2019 Dual directional couplerWokenTS-PCC0M-05107090019NAMarch 10, 2019 Signal GeneratorR & SN5172BMY56200462NAApril 22, 2019 ENA Network AnalyzerAgilentE5071CMY46524658 NA March 16, 2019 Model No ItemOriginak Cal. ResultVerified on 2019/12/3DeviationResult Impedance, transformed to feed point 52.9Ω+2.01jΩ51.869Ω+1.09jΩ<5ΩPass Return Loss(dB)-29.3-27.192-7.2%Pass SAR Value for 1g(mW/g) 13.112.9-1.5%Pass SAR Value for 10g(mW/g) 6.125.99-2.1%Pass ItemOriginak Cal. ResultVerified on 2019/12/3DeviationResult Impedance, transformed to feed point 49.9Ω+4.38jΩ48.100Ω+5.29jΩ<5ΩPass Return Loss(dB)-27.2-24.913-8.4%Pass SAR Value for 1g(mW/g) 12.813.12.3%Pass SAR Value for 10g(mW/g) 5.936.123.2%Pass SAR Measurement Requirements for 100 MHz to 6 GHz Equipment Information For Head Tissue D2450V2For Body Tissue Dipole Internal Calibration Record Standard List IEEE Recommended Practice for Determining the Peak Spatial-Averaged Specific Absorpiton Rate(SAR) in the Human Head from Wireless Communication Devices: Measurement Texhniques, June 2013 Procedure to determine the Specific Absorption Rate (SAR) for wireless communication devices used in close proximity to the human body(frequency range of 30 MHz to 6 GHz), March 2010 Impedance Test-HeadReturn Loss-Head Calibrator:Approver: Validation Report for Head TSLValidation Report for Body TSL Impedance Test-BodyReturn Loss-Body

Asset No.： E-436 Model No.： D5GHzV2 Serial No.： 1221 Environmental 22.3°C, 55 % Original Cal. Date： June 20, 2018 Next Cal. Date： June 20, 2021 1IEEE Std 1528-2013 2IEC 62209-2 3KDB865664 Equipment：Manufacturer：Model No.：Serial No.：Cal.Organization：Cal. Date： Power AmplifierMini-CircuitsZVE-8G+520701341NAMarch 9, 2018 DC SourcelteckOT6154M00157NAOctober 12, 2018 P-series power meterAgilentN1911AMY45100473NAAugust 11, 2018 wideband power sensorAgilentN1921AMY51100041NAAugust 11, 2018 power MeterAnritsuML2495A1128009NAMar. 11, 2018 Pulse Power SensorAnritsuMA 2411B1027500NAMar. 11, 2018 Dual directional couplerWokenTS-PCC0M-05107090019NAMar. 11, 2018 MXG Analog Signal Generato r AgilentN5181AMY49060710NAAugust 11, 2018 ENA Network AnalyzerAgilentE5071CMY46102965NAMarch 11, 2018 ItemOriginak Cal. Result Verified on 2018/12/25DeviationResult Impedance, transformed to feed point 53.5Ω-8.96jΩ56.5Ω-6.47jΩ<5ΩPass Return Loss(dB)-20.7-24.819.8%Pass SAR Value fo r 1g(mW/g) 7.57.27-3.1%Pass SAR Value fo r 10g(mW/g) 2.162.07-4.2%Pass Impedance, transformed to feed point 50.1Ω-3jΩ49.6Ω-2.8jΩ<5ΩPass Return Loss(dB)-30.5-30.70.7%Pass SAR Value fo r 1g(mW/g) 7.667.34-4.2%Pass SAR Value fo r 10g(mW/g) 2.22.07-5.9%Pass Impedance, transformed to feed point 51.4Ω-5.39jΩ50.2Ω-3.01jΩ<5ΩPass Return Loss(dB)-25.2-28.814.3%Pass SAR Value fo r 1g(mW/g) 8.088.323.0%Pass SAR Value fo r 10g(mW/g) 2.32.331.3%Pass Impedance, transformed to feed point 57.5Ω-2.95jΩ54.9Ω-1.65jΩ<5ΩPass Return Loss(dB)-22.5-25.814.7%Pass SAR Value fo r 1g(mW/g) 7.857.84-0.1%Pass SAR Value fo r 10g(mW/g) 2.252.2-2.2%Pass Impedance, transformed to feed point 54.5Ω-1.38jΩ55.2Ω+1.97jΩ<5ΩPass Return Loss(dB)-26.9-26.1-3.0%Pass SAR Value fo r 1g(mW/g) 7.787.891.4%Pass SAR Value fo r 10g(mW/g) 2.212.210.0%Pass SAR Measurement Requirements for 100 MHz to 6 GHz Equipment Information For Head Tissue D5GHzV2(5.2GHz) D5GHzV2(5.3GHz) Model No Dipole Internal Calibration Record Standard List IEEE Recommended Practice for Determining the Peak Spatial-Averaged Specific Absorpiton Rate(SAR) in the Human Head from Wireless Communication Devices: Measurement Texhniques, June 2013 Procedure to determine the Specific Absorption Rate (SAR) for wireless communication devices used in close proximity to the human body(frequency range of 30 MHz to 6 GHz), March 2010 D5GHzV2(5.5GHz) D5GHzV2(5.6GHz) D5GHzV2(5.8GHz) ItemOriginak Cal. Result Verified on 2018/12/25DeviationResult Impedance, transformed to feed point 53.1Ω-7.52jΩ55.1Ω-7.96jΩ<5ΩPass Return Loss(dB)-22.1-26.118.1%Pass SAR Value fo r 1g(mW/g) 6.997.284.1%Pass SAR Value fo r 10g(mW/g) 1.922.067.3%Pass Impedance, transformed to feed point 49.3Ω-2.06jΩ52.7Ω-1.73jΩ<5ΩPass Return Loss(dB)-33.1-30.3-8.5%Pass SAR Value fo r 1g(mW/g) 7.257.16-1.2%Pass SAR Value fo r 10g(mW/g) 2.042-2.0%Pass Impedance, transformed to feed point 50.9Ω-4.94jΩ48.2Ω-3.03jΩ<5ΩPass Return Loss(dB)-26.1-24.8-5.0%Pass SAR Value fo r 1g(mW/g) 7.637.721.2%Pass SAR Value fo r 10g(mW/g) 2.132.161.4%Pass Impedance, transformed to feed point 58.5Ω-0.79jΩ57.6Ω-0.43jΩ<5ΩPass Return Loss(dB)-22.1-23.25.0%Pass SAR Value fo r 1g(mW/g) 7.787.921.8%Pass SAR Value fo r 10g(mW/g) 2.142.22.8%Pass Impedance, transformed to feed point 54.3Ω+0.12jΩ52.2Ω+0.43jΩ<5ΩPass Return Loss(dB)-27.6-24.1-12.7%Pass SAR Value fo r 1g(mW/g) 7.667.791.7%Pass SAR Value fo r 10g(mW/g) 2.152.160.5%Pass For Body Tissue Impedance Test-HeadReturn Loss-Head D5GHzV2(5.6GHz) D5GHzV2(5.8GHz) Model No D5GHzV2(5.2GHz) D5GHzV2(5.3GHz) D5GHzV2(5.5GHz)

Validation Report for Head TSL of 5.3GHz Impedance Test-BodyReturn Loss-Body Validation Report for Head TSL of 5.2GHz Validation Report for Head TSL of 5.5GHzValidation Report for Head TSL of 5.6GHz Validation Report for Head TSL of 5.8GHzValidation Report for Body TSL of 5.2GHz Validation Report for Body TSL of 5.3GHzValidation Report for Body TSL of 5.5GHz Calibrator:Approver: Validation Report for Body TSL of 5.6GHzValidation Report for Body TSL of 5.8GHz

SAR Peak Location Separation Distance X Y Z 50 Main -0.007 0.115 -0.177 0.771 114 Aux -0.0062 -0.0948 -0.178 1.483 Limit 802.11 ac160 0.02 0.04 Ri (mm) 209.804 Mode Channel ANT Distance SAR SPLSR 802.11 ac160_Channel 50_Main R i = 209.804 mm 802.11 ac160_Channel 114_Aux SAR Peak Location Separation Distance X Y Z 802.11 ac160 50 Main -0.007 0.115 -0.177 0.771 DH5 78 Aux -0.006 -0.102 -0.177 0.146 Limit 0.00 0.04 Ri (mm) 217.002 Mode Channel ANT Distance SAR SPLSR 802.11 ac160_Channel 50_Main R i = 217.002 mm Bluetooth_DH5_Channel 78_Aux

Report No.: BTL-FCC SAR-1-2006T132 Page 1 of 47 Report Version: R01 Report No.: BTL-FCC SAR-1-2006T132 FCC SAR Test Report FCC ID: HFSQTA-TP00126A Report No. : BTL-FCC-1-2006T132 Equipment : Notebook Computer Model Name Series Model : TP00126A Lenovo ThinkPad C13 Yoga Gen 1 Chromebook******** (x=0~9, A~z, "-" or blank) Brand Name : Lenovo Applicant : Lenovo Japan LLC Address : Minatomirai Center Building 21F 3-6-1 Minatomirai, Nishi-ku, Yokohama-shi Kanagawa 220-0012 Date of Receipt : July. 6, 2020 Date of Test : July. 7, 2020 ~ July 9, 2020, September. 11, 2020 Issued Date : September. 14, 2020 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL In Prepared by : Peter Chen, Engineer Approved by : Scott Hsu, Manager BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Report No.: BTL-FCC SAR-1-2006T132 Page 2 of 47 Report Version: R01 Report No.: BTL-FCC SAR-1-2006T132 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrat…
