HFSTA6WM3945ABG2-Spindle Tablet PC

i www.gateway.com Contents 1Getting Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Gateway Web site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Using Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Help and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Searching for a topic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 BigFix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Using Your Computer guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Online help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2 Checking Out Your Gateway Convertible Tablet PC. . . . . . . 9 Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Left . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Right . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Keyboard area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 LCD panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Identifying your model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Gateway model and serial number . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Microsoft Certificate of Authenticity . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Finding your specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Installing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Connecting the AC adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Protecting from power source problems . . . . . . . . . . . . . . . . . . . . . . . 24 Connecting the dial-up modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Connecting to a cable or DSL modem or to an Ethernet network . . . . . . 26 Starting your convertible tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Turning on the Power on Lid Lift feature . . . . . . . . . . . . . . . . . . . . . . 28 Waking up your convertible tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . 29 Turning off your convertible tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Restarting (rebooting) your convertible tablet PC . . . . . . . . . . . . . . . . . . . 30 Status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Using the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Key types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 System key combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Tablet Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 ii www.gateway.com Using the EZ Pad touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Using the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 Converting the display from notebook to tablet mode . . . . . . . . . . . . . 43 Changing display orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Adjusting brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Using the pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46 Storing and removing the pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46 Adjusting the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Turning your wireless radio on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 4 Using Windows XP Tablet PC 2005 . . . . . . . . . . . . . . . . . . . . . . . 51 Using Windows XP Tablet PC 2005 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Using Tablet PC extensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53 Gestures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Pen button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54 Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Tablet Input Panel (TIP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Using speech recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Adjusting tablet and pen settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Programming the buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Adjusting the Tablet PC Input Panel Settings . . . . . . . . . . . . . . . . . . . 58 5 Using Drives and Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Changing modules . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

application 寄件人： lucy.tsai 蔡文君 2006/05/17 02:04 PM 收件人：Generic Office of Engineering Technology <[email protected]> 副本抄送： 主旨： Re:FCC Equipment Authorization System Dear Mr. Andrew Leimer, By confirming with applicant and Intel, the chip manufacturer, about the operating frequency in UNII band, 5.8GHz does has been covered though it hasn't been specified in the operational description. Besides, please be noted that based on applicant's request, the product name would like to be revised to "tablet PC", therefore, we have revised and uploaded all reports, including UNII, DTS and SAR reports. Thank you. Best Regards, Antony Yao Generic Office of Engineering Technology <[email protected]> Generic Office of Engineering Technology <[email protected] c.gov> 2006/05/16 11:49 PM 收件人：[email protected] 副本抄送： 主旨： FCC Equipment Authorization System To: Antony Yao, Compliance Certification Services Inc. From: Andrew Leimer [email protected] FCC Application Processing Branch Re: FCC ID HFSTA6WM3945ABG Applicant: Quanta Computer Inc Correspondence Reference Number: 30901 731 Confirmation Number: EA504219 1) Op desc says 5.2 GHz band only, however EMC and SAR reports show 5.8 GHz band - please explain and/or revise filing 2) further to #1, please advise requested Form731 power, freq, etc for 5.8 GHz band, if applicable 3) FYI-only no response requested: please notify SAR testlab that future filings may request testing in accordance with 802.11abg procedures distributed at May 2005 TCB/testlab/manuf. info-meeting - please contact OET/Lab to obtain document if needed. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal pursuant to Section 2.917 (c) and forfeiture of the filing fee pursuant to section 1.1108. DO NOT reply to this e-mail by using the Reply button. In order for your response to be processed expeditiously, you must upload your response via the Internet at www.fcc.gov, Electronic Filing, OET Equipment Authorization Electronic Filing. If the response is submitted through Add Attachments, in order to expedite processing, a message which informs the processing staff that a new exhibit has been submitted must also be submitted via Submit Correspondence. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

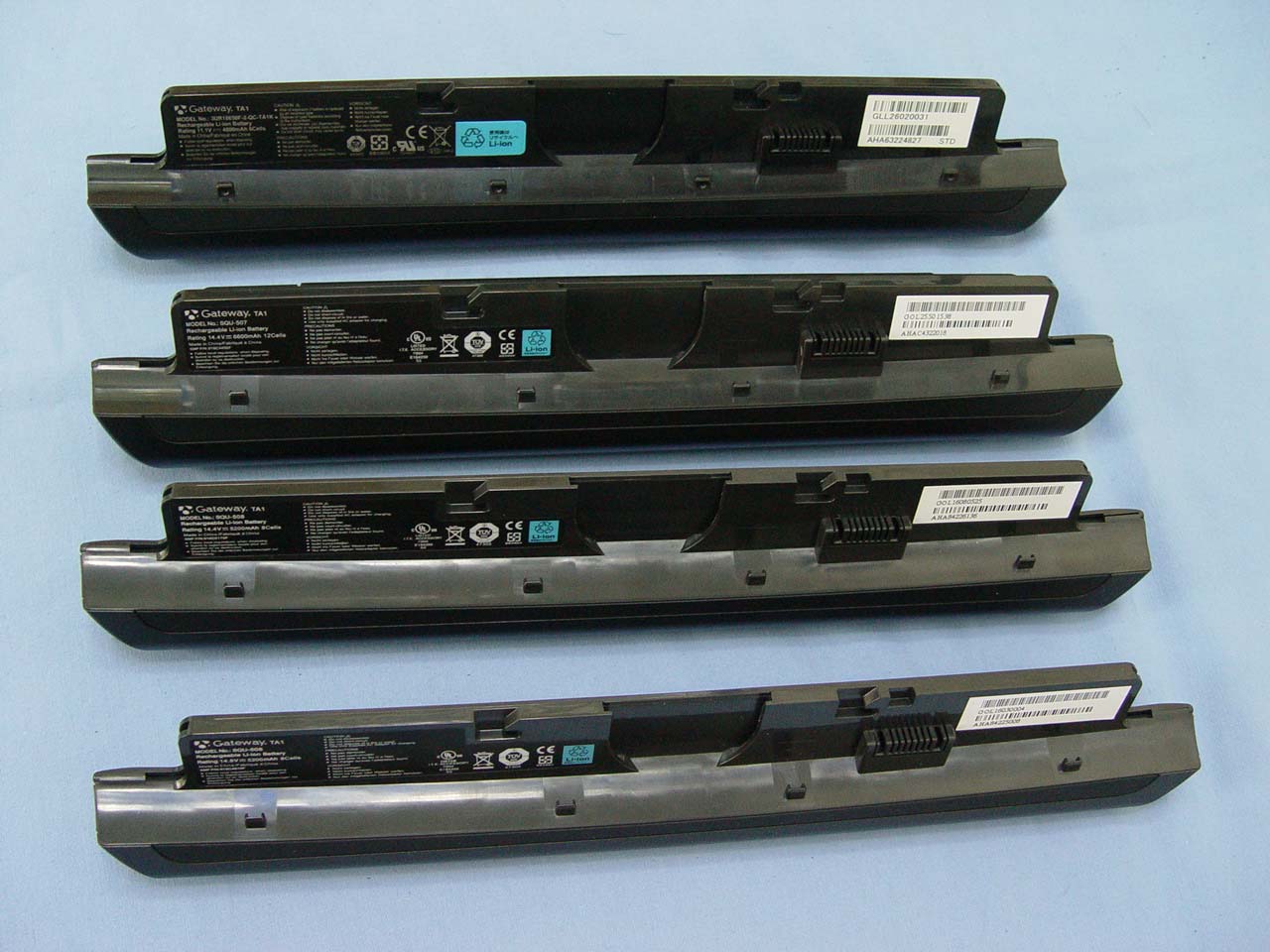

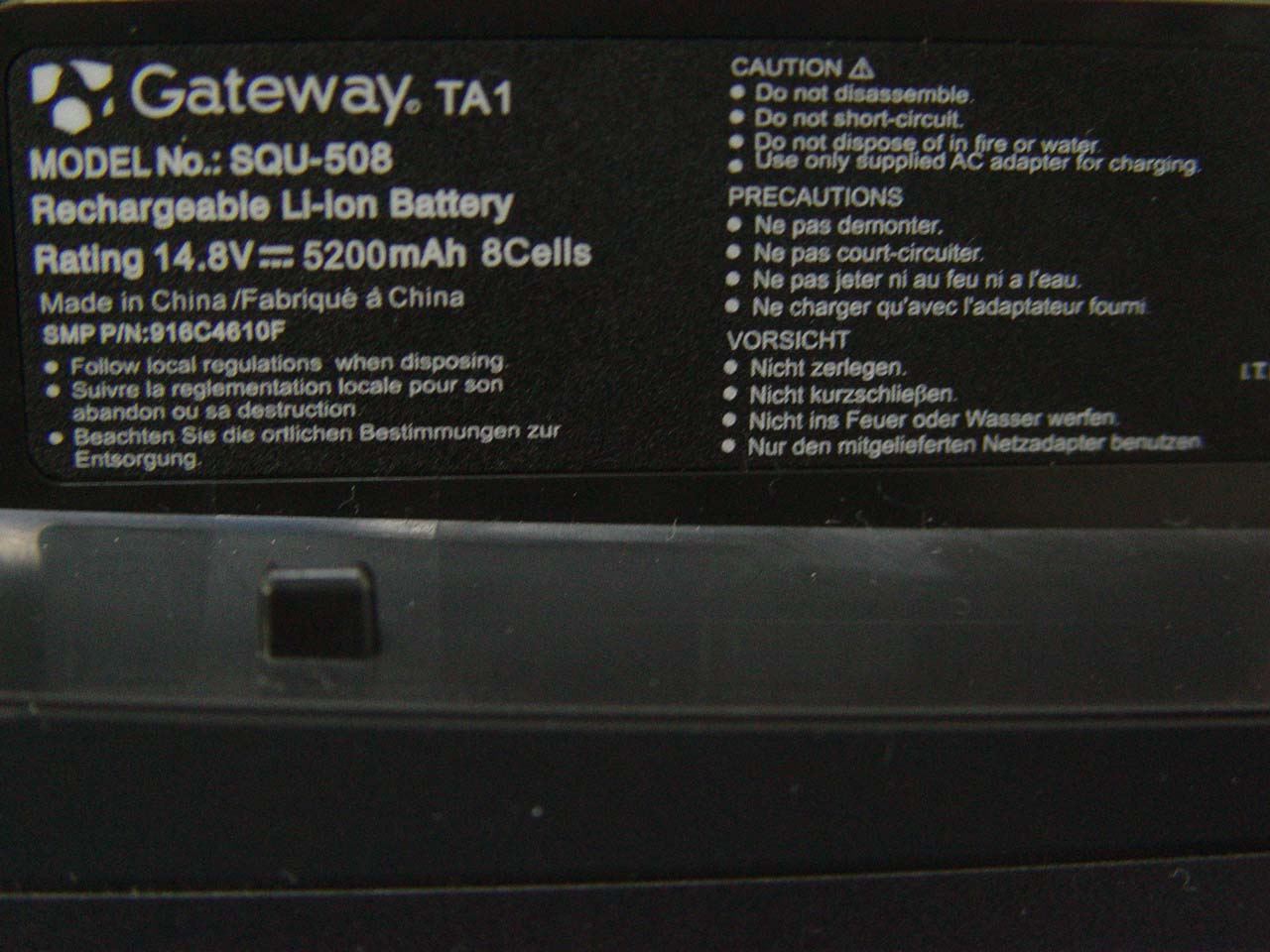

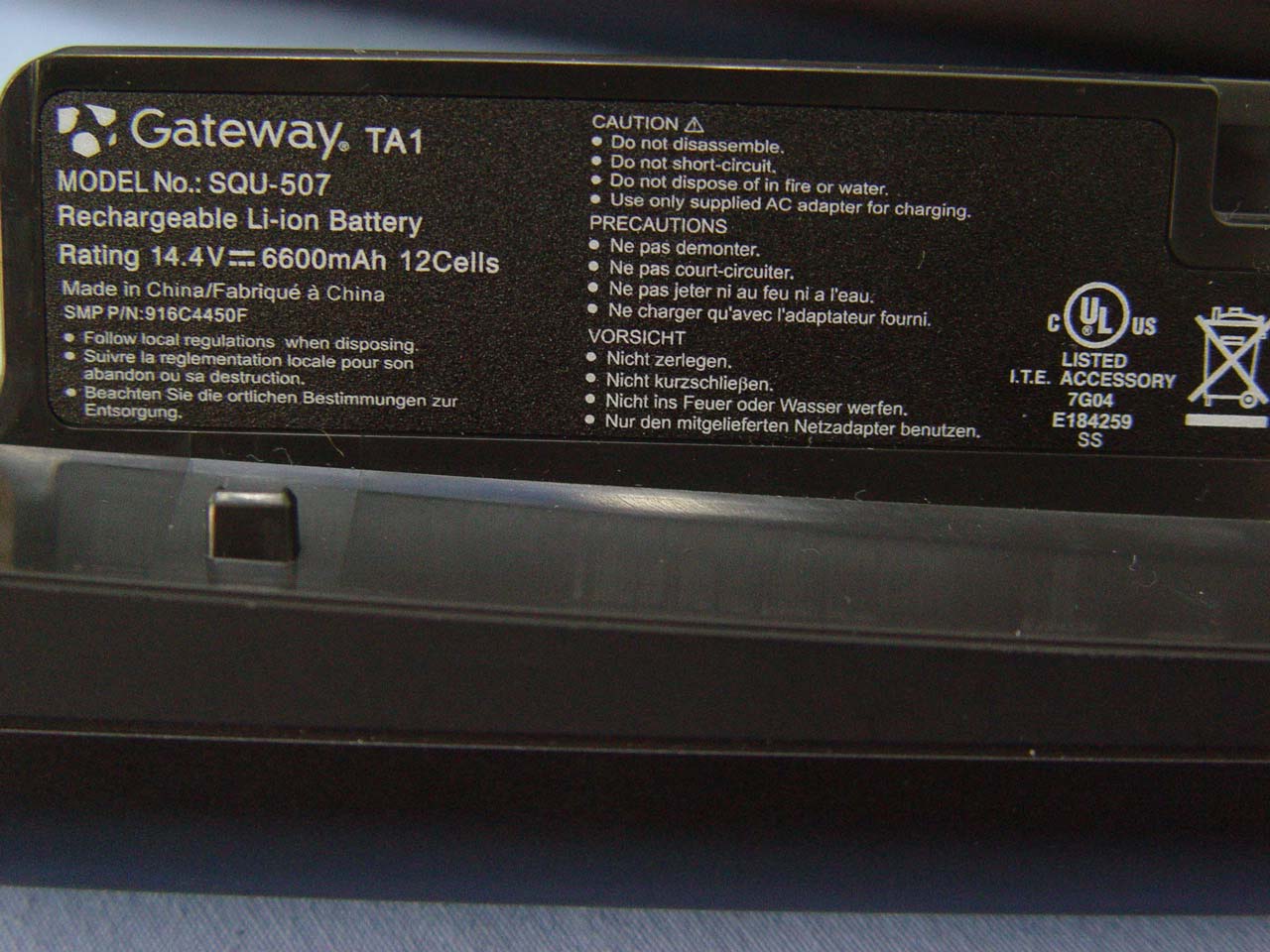

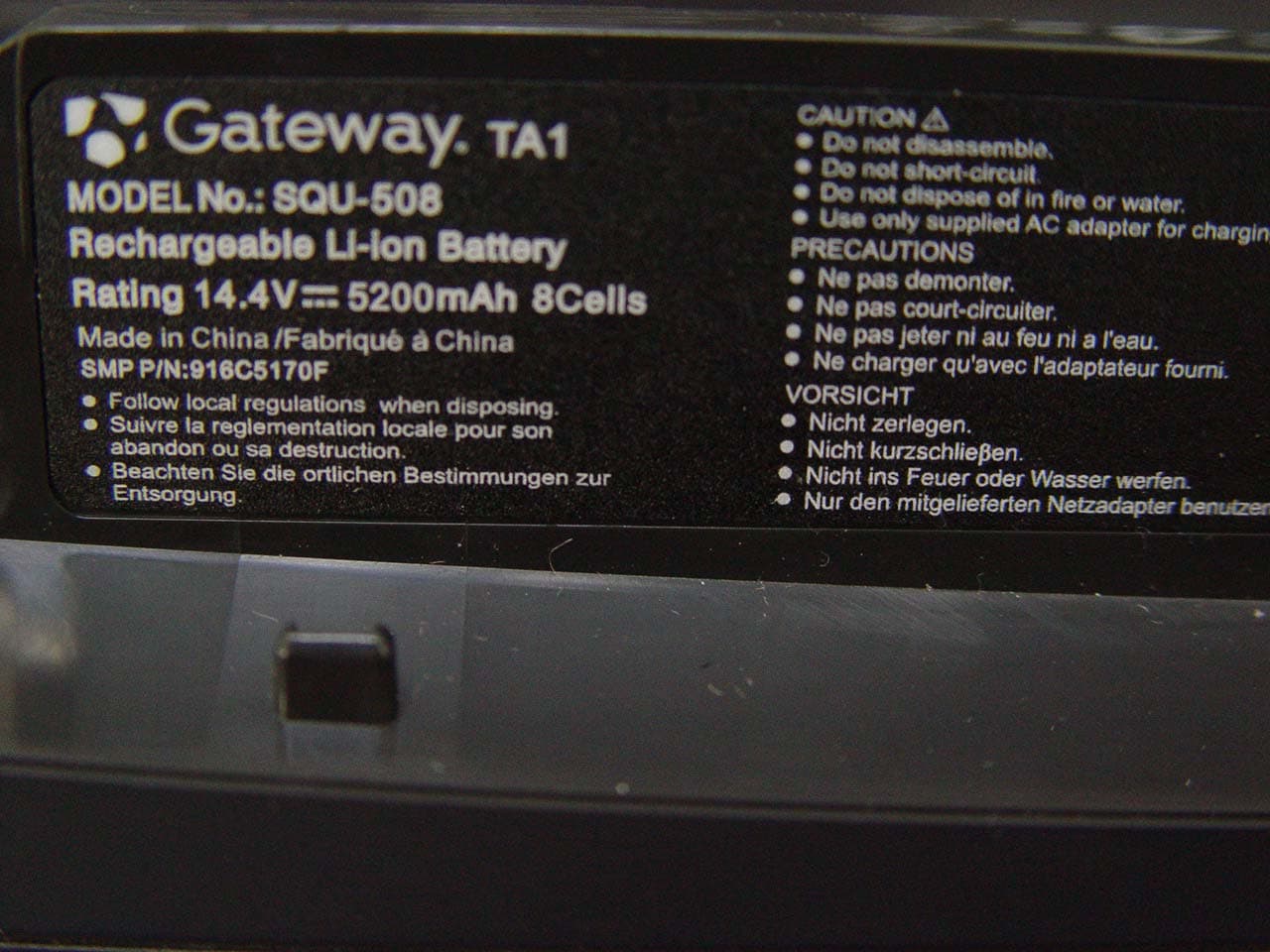

Compliance Certification Services Inc. Report No: 60326101 Date of Issue: April 13, 2006 Page 1 Total Page: 17 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60326101 Date of Issue: April 13, 2006 Page 2 Rev.00 Compliance Certification Services Inc. Report No: 60326101 Date of Issue: April 13, 2006 Page 3 Rev.00 Compliance Certification Services Inc. Report No: 60326101 Date of Issue: April 13, 2006 Page 4 Rev.00 Compliance Certification Services Inc. Report No: 60326101 Date of Issue: April 13, 2006 Page 5 Rev.00

±± ±± 3A --- ---

Compliance Certification Services Inc. Report No: 60326101 Date of Issue: April 13, 2006 Page 6 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60326101 Date of Issue: April 13, 2006 Page 7 Rev.00 Compliance Certification Services Inc. Report No: 60326101 Date of Issue: April 13, 2006 Page 8 Rev.00 Compliance Certification Services Inc. Report No: 60326101 Date of Issue: April 13, 2006 Page 9 Rev.00 Compliance Certification Services Inc. Report No: 60326101 Date of Issue: April 13, 2006 Page 10 Rev.00 Compliance Certification Services Inc. Report No: 60326101 Date of Issue: April 13, 2006 Page 11 Rev.00 Compliance Certification Services Inc. Report No: 60326101 Date of Issue: April 13, 2006 Page 12 Rev.00 Wlan module Compliance Certification Services Inc. Report No: 60326101 Date of Issue: April 13, 2006 Page 13 Rev.00 Compliance Certification Services Inc. Report No: 60326101 Date of Issue: April 13, 2006 Page 14 Rev.00 Bluetooth module Compliance Certification Services Inc. Report No: 60326101 Date of Issue: April 13, 2006 Page 15 Rev.00 Compliance Certification Services Inc. Report No: 60326101 Date of Issue: April 13, 2006 Page 16 Rev.00 Antenna Location for WLAN Aux Antenna Main Antenna Compliance Certification Services Inc. Report No: 60326101 Date of Issue: April 13, 2006 Page 17 Rev.00 Main Antenna Aux Antenna

Ethertronics Inc. 9605 Scranton Road, Suite 300 San Diego, CA 92121 (858) 550-3820 Office (858) 550-3821 FAX GB04001 Antenna Design Specification ET Part No: GB04001-M03 Frequency Band: 2.4-2.485GHz March 28th, 2005 Confidential Rev. 1.1 Ethertronics Inc. 9605 Scranton Road, Suite 300 San Diego, CA 92121 (858) 550-3820 Office (858) 550-3821 FAX TABLE OF CONTENTS 1. Summary................................................................................................................................ 3 1.1. Antenna Performance (GB04001-M03) – Efficiency, Power, Impedance ............................................. 3 1.2. Antenna Configuration............................................................................................................................ 4 1.3. Chamber Measurement Configuration.................................................................................................... 6 2. Bluetooth Measurement in Notebook.................................................................................. 7 2.1. Input Return Loss (Ethertronics GB04001-M03) ................................................................................... 7 2.2. Efficiency (Ethertronics GB04001-M03) ............................................................................................... 8 ............................................................................................................................................................................. 8 2.3. Peak Gain (Ethertronics GB04001-M03) ............................................................................................... 9 2.4. Radiation Pattern Ethertronics GB04001-M03 in Notebook) .............................................................. 10 2.4.1. E1 Plane (φ=0 degree) .................................................................................................................. 10 2.4.2. E2 Plane (φ=90 degree) ................................................................................................................ 10 2.4.3. H Plane (θ=90 degree) .................................................................................................................. 11 2.5. Radiation Pattern Ethertronics GB04001-M03 in Notebook) .............................................................. 12 2.5.1. E1 Plane (φ=0 degree) .................................................................................................................. 12 2.5.2. E2 Plane (φ=90 degree) ................................................................................................................ 12 2.5.3. H Plane (θ=90 degree) .................................................................................................................. 13 3. Mechanical........................................................................................................................... 14 3.1. Mechanical Assembly Drawing, Lead-Free Status............................................................................... 14 2005 © COPYRIGHT ETHERTRONICS INC. This document is issued by Ethertronics Inc. (hereinafter called Ethertronics) in confidence, and is not to be reproduced in whole or in part without the prior written permission of Ethertronics. The information contained herein is the property of Ethertronics and is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of Ethertronics. Ethertronics Inc. 9605 Scranton Road, Suite 300 San Diego, CA 92121 (858) 550-3820 Office (858) 550-3821 FAX ItemSpec Antenna Impedance50 Ohms Power Rating5 watts 1. Summary 1.1. Antenna Performance (GB04001-M03) Open closed Average Efficiency (%) 34 25 Peak Efficiency (%) 55 42 Peak Gain(dBi) 2.2 1.0 The original performance data on Ethertronics GB14001-M02 was tuned slightly high in frequency. The presented data is on Ethertronics GB04001-M03 corrects a frequency shift out of the Blue tooth operating band. Peak Gain has been included per customer request Data has been taken mounted in a Notebook computer with the LCD screen opened and closed The original matching circuit shown below has been removed and replaced by 0 ohm resistors for both Ethertronic antennas ( Brass-Board and GB01004-M03). Ethertronics Inc. 9605 Scranton Road, Suite 300 San Diego, CA 92121 (858) 550-3820 Office (858) 550-3821 FAX 1.2. Antenna Configuration Ethertronics mounted on module Ethertronics antenna on module with plastic border FeedGround Ethertronics Inc. 9605 Scranton Road, Suite 300 San Diego, CA 92121 (858) 550-3820 Office (858) 550-3821 FAX Antenna Module mounted in plastic Holder Antenna Module/Holder Attached to Notebook SMA coaxial connecter Ethertronics Inc. 9605 Scranton Road, Suite 300 San Diego, CA 92121 (858) 550-3820 Office (858) 550-3821 FAX 1.3. Chamber Measurement Configuration Z Y X Ethertronics Inc. 9605 Scranton Road, Suite 300 San Diego, CA 92121 (858) 550-3820 Office (858) 550-3821 FAX 2. Bluetooth Measurement in Notebook 2.1. Input Return Loss (Ethertronics GB04001-M03) 22.12.22.32.42.52.62.72.82.93 -25 -20 -15 -10 -5 0 Return Loss Frequency, (GHz) S11(dB) open closed Figure 1: Input Impedance - RL. 2.42.412.422.432.442.452.462.472.48 0 1 2 3 4 5 6 7 8 9 10 VSWR Frequency, (GHz) VSWR open closed Smith Chart 0.20.512 j0.2 -j0.2 0 j0.5 -j0.5 0 j1 -j1 0 j2 -j2 0 Figure 2: Input Impedance - VSWR and Smith chart. Ethertronics Inc. 9605 Scranton Road, Suite 300 San Diego, CA 92121 (858) 550-3820 Office (858) 550-3821 FAX 2.2. Efficiency (Ethertronics GB04001-M03) Efficiency 0.00 0.10 0.20 0.30 0.40 0.50 22002300240025002600 Freq (MHz) % LCD Screen open LCD screen closed Ethertronics Inc. 9605 Scranton Road, Suite 300 San Diego, CA 92121 (858) 550-3820 Office (858) 550-3821 FAX 2.3. Peak Gain (Ethertronics GB04001-M03) LCD Screen open LCD Screen closed Ethertronics Inc. 9605 Scranton Road, Suite 300 San Diego, CA 92121 (858) 550-3820 Office (858) 550-3821 FAX 2…

Text truncated - open the document above for the full version.

Date/Time: 4/7/2006 9:40:01 AM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-784 Head DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:784 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; ı = 1.98 mho/m; İ r = 51.5; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.2 deg C;Liquid Temperature:24.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 9/22/2005 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.0 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 89.1 V/m; Power Drift = -0.016 dB Peak SAR (extrapolated) = 29.0 W/kg SAR(1 g) = 13.8 mW/g; SAR(10 g) = 6.27 mW/g Maximum value of SAR (measured) = 15.8 mW/g Page1 Date/Time: 4/8/2006 7:05:26 AM Test Laboratory: Compliance Certification Services Inc. D5GHzV2-SN 1004 DUT: Dipole 5GHz ; Type: D5GHz V2; Serial: 1004 Communication System: CW5GHz; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5200 MHz; ı = 5.38 mho/m; İ r = 48.2; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.0 deg C;Liquid Temperature:24.0 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(3.99, 3.99, 3.99); z Sensor-Surface: 2.5mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 9/22/2005 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Pin=250mW,d=10mm f=5200MHz/Area Scan (8x8x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 19.4 mW/g Pin=250mW,d=10mm f=5200MHz/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 80.4 V/m; Power Drift = -0.012 dB Peak SAR (extrapolated) = 71.6 W/kg SAR(1 g) = 18 mW/g; SAR(10 g) = 5.06 mW/g Maximum value of SAR (measured) = 30.7 mW/g Pin=250mW,d=10mm f=5200MHz/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 32.4 mW/g Page1 Page2 Date/Time: 4/8/2006 7:31:13 AM Test Laboratory: Compliance Certification Services Inc. D5GHzV2-SN 1004 DUT: Dipole 5GHz ; Type: D5GHz V2; Serial: 1004 Communication System: CW5GHz; Frequency: 5800 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5800 MHz; ı = 6.24 mho/m; İ r = 47; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.0 deg C;Liquid Temperature:24.0 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(3.82, 3.82, 3.82); z Sensor-Surface: 2.5mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 9/22/2005 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Pin=250mW,d=10mm f=5800MHz/Area Scan (8x8x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 18.4 mW/g Pin=250mW,d=10mm f=5800MHz/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 72.5 V/m; Power Drift = -0.034 dB Peak SAR (extrapolated) = 79.7 W/kg SAR(1 g) = 17 mW/g; SAR(10 g) = 4.71 mW/g Maximum value of SAR (measured) = 28.8 mW/g Pin=250mW,d=10mm f=5800MHz/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 29.4 mW/g Page1 Page2 Date/Time: 4/7/2006 1:12:18 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Top Touch mode Main ant. DUT: TA6; Type: 2-Spindle Tablet PC; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1.02 Medium parameters used (interpolated): f = 2437 MHz; ı = 1.96 mho/m; İ r = 51.5; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.2 deg C;Liquid Temperature:24.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); z Sensor-Surface: 2.5mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 9/22/2005 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Middle CH Rate=1M bit/Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.259 mW/g Middle CH Rate=1M bit/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 9.21 V/m; Power Drift = -0.144 dB Peak SAR (extrapolated) = 0.461 W/kg SAR(1 g) = 0.210 mW/g; SAR(10 g) = 0.096 mW/g Maximum value of SAR (measured) = 0.299 mW/g Middle CH Rate=1M bit/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 9.21 V/m; Power Drift = -0.144 dB Peak SAR (extrapolated) = 0.419 W/kg SAR(1 g) = 0.199 mW/g; SAR(10 g) = 0.092 mW/g Maximum value of SAR (measured) = 0.285 mW/g Middle CH Rate=1M bit/Z Scan (1x1x26): Measurement grid: dx=20mm, dy=20mm, dz=4mm Maximum value of SAR (measured) = 0.305 mW/g Page1 Page2 Date/Time: 4/7/2006 2:13:44 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Top Touch mode Main ant. DUT: TA6; Type: 2-Spindle Tablet PC; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2462 MHz;Duty Cycle: 1:102 Medium parameters used: f = 2462 MHz; ı = 1.99 mho/m; İ r = 51.4; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.2 deg C;Liquid Temperature:24.2 d…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 60326101-SF FCC ID: HFSTA6WM3945ABG Date of Issue: April 12, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 45 Rev. 00 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC TEST REPORT For 2-Spindle Tablet PC Trade Name: Gateway Model: TA6 Issued to Quanta Computer Inc. No. 188, Wen Hwa 2nd RD., Kuei Shan Hsiang, Taoyuan Hsien, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Kung 6 Rd, Wu-Ku Hsiang, Wu-Ku Industrial District, Taipei Hsien, (248) Taiwan. TEL: 886-2-2299-9720 FAX: 886-2-2299-9721 Compliance Certification Services Inc. Report No: 60326101-SF Date of Issue: April 12, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. EUT DESCRIPTION ..................................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .................5 3. DOSIMETRIC ASSESSMENT SYSTEM ................................................................................5 3.1 MEASUREMENT SYSTEM DIAGRAM .........................................................................6 3.2 SYSTEM COMPONENTS.................................................................................................7 System Validation Kits ......................................................................................................8 4. EVALUATION PROCEDURES ...............................................................................................9 5. MEASUREMENT UNCERTAINTY ......................................................................................13 6. EXPOSURE LIMIT ..................................................................................................................14 7. TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS .14 8. MEASUREMENT RESULTS..................................................................................................15 8.1 SYSTEM PERFORMANCE CHECK..............................................................................15 8.2 TEST LIQUID CONFIRMATION...................................................................................17 8.3 EUT TUNE-UP PROCEDURES......................................................................................19 8.4 EUT TEST MODE ...........................................................................................................21 8.5 SAR MEASUREMENTS RESULTS...............................................................................26 9. EUT PHOTOS ...........................................................................................................................41 10. EQUIPMENT LIST & CALIBRATION STATUS................................................................43 11. FACILITIES..............................................................................................................................44 12. REFERENCES ..........................................................................................................................44 13. ATTACHMENTS......................................................................................................................45 Compliance Certification Services Inc. Report No: 60326101-SF Date of Issue: April 12, 2006 Page 3 Rev. 00 CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Applicant: Quanta Computer Inc. No. 188, Wen Hwa 2nd RD., Kuei Shan Hsiang, Taoyuan Hsien, Taiwan, R.O.C. Equipment Under Test: 2-Spindle Tablet PC Trade Name: Gateway Model Number: TA6 Date of Test: April 07~09, 2006 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE APPLICABLE STANDARDS STANDARD TEST RESULT FCC OET 65 Supplement C No non-compliance noted Deviation from Applicable Standard None The device was tested by Compliance Certification Services Inc. in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C (Edition 01-01). The test results in this report apply only to the tested sample of the stated device/equipment. Other simila r device/equipment will not necessarily produce the same results due to production tolerance an d measurement uncertainties. Approved by: Reviewed by: Gavin Lim Chris Hsieh Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: 60326101-SF Date of Issue: April 12, 2006 Page 4 Rev. 00 1. EUT DESCRIPTION Product Tablet PC built in 5GHz Wireless LAN module Trade Name Gateway Model Number TA6 Model Discrepancy N/A Frequency Range IEEE 802.11a: 5.180~5.825 GHz IEEE 802.11b/g: 2.412~2.462 GHz Bluetooth: 2.402~2.480 GHz Max. O/P Power: (Conducted/Average) 802.11a: 14.81 dBm 802.11b: 15.61 dBm 802.11g: 14.27 dBm Max. SAR (1g): 802.11a: 0.191 W/kg 802.11b: 0.247 W/kg 802.11g: 0.250 W/kg Co-location: 802.11a: 0.215 W/kg 802.11b: 0.232 W/kg 802.11g: 0.229 W/kg Modulation Technique IEEE 802.11a: OFDM (QPSK, BPSK, 16-QAM, 64-QAM) IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: DSSS (CCK, DQPSK, DBPSK) + OFDM (QPSK, BPSK, 16-QAM, 64-QAM) Bluetooth: FHSS (GFSK, π/4-DQPSK, 8-DPSK) Antenna Specification Antenna type: Main antenna: PIFA antenna ; Aux antenna: PIFA antenna ; Bluetooth antenna: PIFA antenna Power Supply LITEON / PA1650-01 I/P: AC 100-240V, 1.6A, 50-60Hz O/P: DC 19V, 3.42A Battery: 1. 3UR18650F-2-QC-TA1K 11.1V, 4800mAh 6cells 2. SQU-507 14.4V, 6600mAh 12cells 3. SQU-508 14.4V, 5200mAh 8cells 4. SQU-508 14.8V, 5200mAh 8cells Remark: The sample selected for test was prototype that approximated to production product and was provided by manufacturer. Com…

Text truncated - open the document above for the full version.

Date/Time: 4/7/2006 9:40:01 AM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-784 Head DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:784 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; ı = 1.98 mho/m; İ r = 51.5; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.2 deg C;Liquid Temperature:24.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 9/22/2005 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.0 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 89.1 V/m; Power Drift = -0.016 dB Peak SAR (extrapolated) = 29.0 W/kg SAR(1 g) = 13.8 mW/g; SAR(10 g) = 6.27 mW/g Maximum value of SAR (measured) = 15.8 mW/g Page1 Date/Time: 4/8/2006 7:05:26 AM Test Laboratory: Compliance Certification Services Inc. D5GHzV2-SN 1004 DUT: Dipole 5GHz ; Type: D5GHz V2; Serial: 1004 Communication System: CW5GHz; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium parameters used: …

Text truncated - open the document above for the full version.
