WF-100 Wireless LAN Compact Flash Card BANDPASS FILTER T/R SWITCH POWER AMP. DIRECT UP/DOWN CONVERTER BASEBAND PROCESSOR /MAC VCO FLASH MEMORY 44MHz Clock OSCILLATOR

Quanta Computer Inc. FCC ID.: HFSWF100-MSBU Quanta Computer Inc. No. 4, Wen Ming 1 St., Kwei Shan Hsiang, Tao Yuan Shien, Taiwan, R.O.C. Tel: +886-3-328-0050 Fax:+886-3-211-5512 Federal Communications Commission December 25, 2002 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

Report No.: 02CL028FI Page : 1 of 5 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Quanta Computer Inc. FCC ID.: HFSWF100-MSBU FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Wireless LAN Compact Flash Card Model No.: WF-100 TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Wireless LAN Compact Flash Card Model No.: WF-100 F F C C C C I I D D : : H H F F S S W W F F 1 1 0 0 0 0 - - M M S S B B U U This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

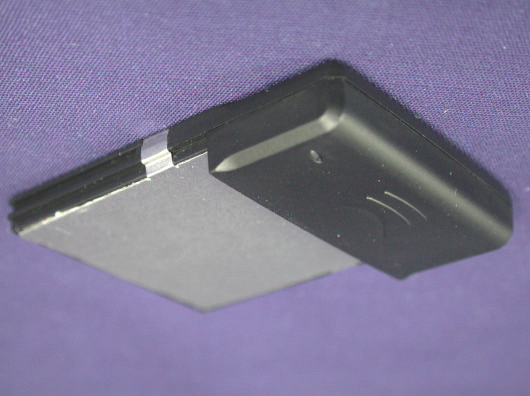

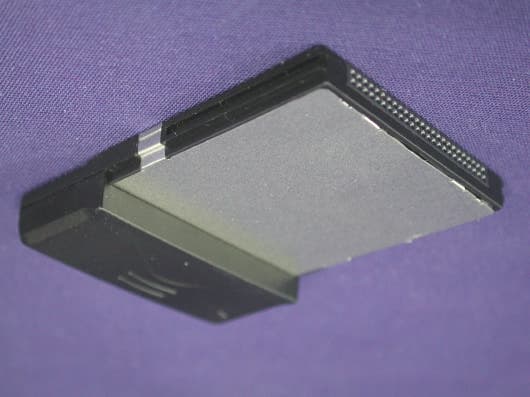

Report No.: 02CL028FI Page : 2 of 5 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 02CL028FI Page : 3 of 5 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 02CL028FI Page : 4 of 5 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 02CL028FI Page : 5 of 5 Version:1.0 (9) EUT Photo (10) EUT Photo

Report No. 02CL028FI Page: 6 of 48 Version:1.0 1.2. Operational Description EUT is a Wireless LAN Compact Flash Card with 11 channels. This device provided four kind of transmitting speed 1,2,5.5 and 11Mbps. The device of RF carrier is DQPSK, DB PSK and CCK. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the Wireless LAN Compact Flash Card transfers data at speeds up to 64/128-bit Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b network. This user manual describes the detail functions of the CompactFlash Type II wireless LAN Card (model name: WF-100) driver and utility, as well as the installation and un-Installation deliberately. WF-100 Complies with full IEEE 802.11b standards with bit rate up to 11Mbps and the interface complies with CompactFlash specifications. The WF-100 software can be installed with the WF-100 CompactFlash wireless LAN card on various Windows platforms include Pocket PC to provide the wireless LAN access functionality; it also contains utility allowing users to configure and monitor the status of the wireless LAN card easily.
