HFSWF2HNotebook PC w/ Wireless Keyboard

UANTA COMPUTER INC No.188, WEN Hwa 2 nd Rd., Kuei Shan Hsiang, Tao Yuan Shien, Taiwan, R.O.C. Tel : 03 - 3272345 Fax : 03 - 3972315 Inform Letter Dear Customer, According to FCC’s regulation, the following Declaration of Conformity has to be made by a company located in USA. They are: This device has been confirmed to be in compliance with the requirements of ANSI C63.4 & FCC part 15 regulations. The test result has been shown in the ADT test report with number RF910218R02. And this compliance is subject to the following two conditions: (1) This device may not cause harmful interference and, (2) This device must accept any interference received, including interference that may cause undesired operation. This declaration can be a separate sheet and be sure that the following message will be also included in this declaration: 1) Product name, model name and trade name. 2) Company name, and address of the one who is responsible for this declaration. 3) Name, title, telephone and fax number as well as the signature of the contact person. Thanks for your attention.

CELSIUS .comEasyGuide CELSIUS Mobile H English Are there ... ... any technical problems or other questions which you would like to be clarified? Please contact:
your sales partner
your sales outlet Further information can be found in the "Safety, Warranty and Ergonomics" booklet. The latest information on our products, tips, updates, etc., can be found on the internet under: http://www.fujitsu-siemens.com Dieses Handbuch wurde auf Recycling-Papier gedruckt. This manual has been printed on recycled paper. Ce manuel est imprimé sur du papier recyclé. Este manual ha sido impreso sobre papel reciclado. Questo manuale è stato stampato su carta da riciclaggio. Denna handbok är tryckt på recyclingpapper. Dit handboek werd op recycling-papier gedrukt. Herausgegeben von/Published by Fujitsu Siemens Computers GmbH Bestell-Nr./Order No.: A26391-K115-Z120-1-19 Printed in the Federal Republic of Germany AG 1001 10/01 A26391-K115-Z120-1-7619 CELSIUS Mobile H Operating Manual Introduction Important notes Preparing the workstation for use Working with the workstation Connecting external devices Settings in BIOS Setup Troubleshooting and tips Memory expansion Technical data Index August 2001 edition DPMS and VESA are registered trademarks of Video Electronics Standards Association. Intel is a registered trademark, Pentium and Celeron are trademarks of Intel Corporation, USA. Microsoft, MS, MS-DOS, Windows, and Windows NT are registered trademarks of Microsoft Corporation. OS/2 and PS/2 are registered trademarks of International Business Machines, Inc. Zip is a trademark of Iomega Corporation. Bluetooth is a trademark owned by Bluetooth SIG Inc., U.S.A. Macrovision is a trademark of Macrovision Corporation, USA. All other trademarks referenced are trademarks or registered trademarks of their respective owners, whose protected rights are acknowledged. Copyright
Fujitsu Siemens Computers GmbH 2001 All rights, including rights of translation, reproduction by printing, copying or similar methods, in part or in whole, are reserved. Offenders will be liable for damages. All rights, including rights created by patent grant or registration of a utility model or design, are reserved. Delivery subject to availability. Right of technical modification reserved. A26391-K115-Z120-2-7619 Contents Introduction .....................................................................................................................................1 Notational conventions......................................................................................................................2 Important notes ...............................................................................................................................3 Safety ................................................................................................................................................3 Notes on installing and removing boards and modules..............................................................5 Manufacturer’s notes.........................................................................................................................6 Copyright-protected technology.................................................................................................6 Energy saving............................................................................................................................6 Disposal and recycling...............................................................................................................7 CE marking........................................................................................................................................7 GS symbol.........................................................................................................................................7 Battery storage ..................................................................................................................................7 Transporting the workstation..............................................................................................................7 Before you travel .......................................................................................................................8 Transporting the workstation......................................................................................................8 Cleaning the workstation ...................................................................................................................9 Preparing the workstation for use................................................................................................11 Unpacking and checking the delivery...............................................................................................11 Switching on the workstation for the first time ..........................................................................12 Connecting the power adapter and switching on the workstation .....................................13 First-time software installation..........................................................................................14 Working with the workstation .......................................................................................................15 Switching the workstation on ...........................................................................................................15 Switching off the workstation ...........................................................................................................16 Switching off workstation via operating system ........................................................................16 Indicators.........................................................................................................................................17 Keyboard ...................................................................................................................................…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 April 8, 2002 RE: Quanta Computer Inc. FCC ID: HFSWF2H After a review of the submitted information, I have a few comments on the above referenced Application. 1) As per our discussions, please provide a formal response addressing the co-location issue that we have discussed. 2) As per our discussions, adjust the RF exposure exhibit to address the following: a) Classify the device as a portable device b) Correct the MPE exhibit to state that the device or its antenna could operate at less than 2.5 cm distance from a person's body since the keyboard may be used in the lap. 3) The users manual statements should be modified to a clearly state "This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter" and should also remove reference to the 20 cm distance (page 17 of 96). The co-location statement should also be added to the notes given on page 57 of 96. 4) The submittal does not include RF block diagrams. Please provide a block diagram for each of the RF circuits that includes the frequencies as specified by CFR 2.1033(a)(5), OR instead a parts list may be provided as long as it directly lists the entire transmitter board as and OEM module. 5) Please confirm that the laptop has been fully configured and tested for DoC requirements as stipulated by ANSI C63.4. 6) Is the antenna gain identical for both the base and the keyboard? Please confirm. 7) Please provide copy of the processing gain as required by 15.247(f) Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Subject: =?big5?B?pl6rSKFHIFJlOiBUb3AgVG9wIHVyZ2VudCBwcm9qZWN0?= To: "Timothy R. Johnson" <[email protected]> Dear Tim, ............... I have made a telephone call to FCC before for such application. They told me that it is allowed to use one FCC ID to cover this project. ............... Alan "Timothy R. Johnson" 收件人： [email protected] <TRJ@adelphia. å‰ ̄本抄é€： net> ä ̧»æ— ̈： Re: Top Top urgent project 2002/03/28 11:27 AM Alan, ....... 3) FYI. Based on my email that I sent to you earlier today, there is a possibility that this submittal will need to be separated into 2 independent submittals, one for the PC base, the other for the keyboard. ...... Thanks, Tim

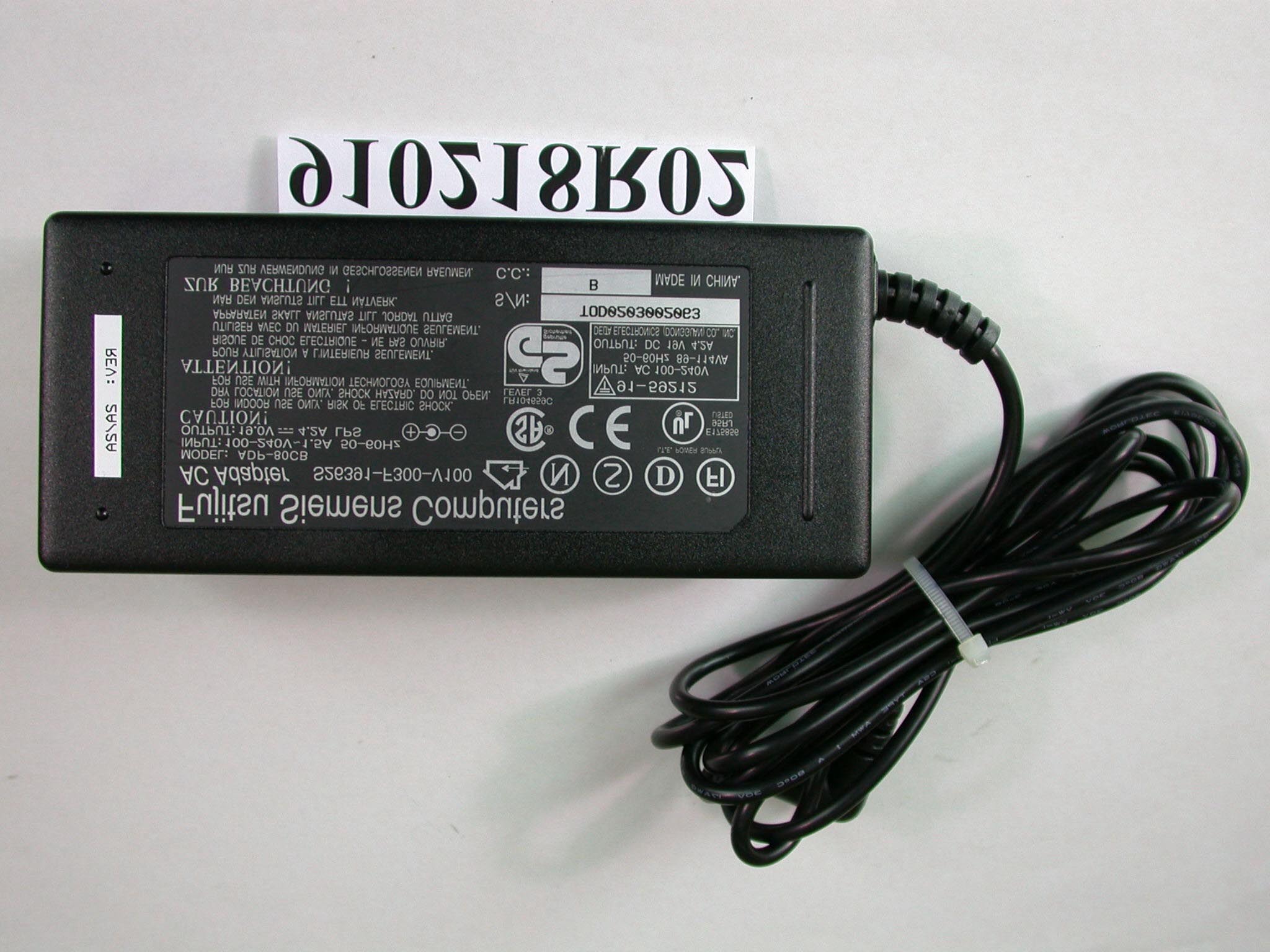

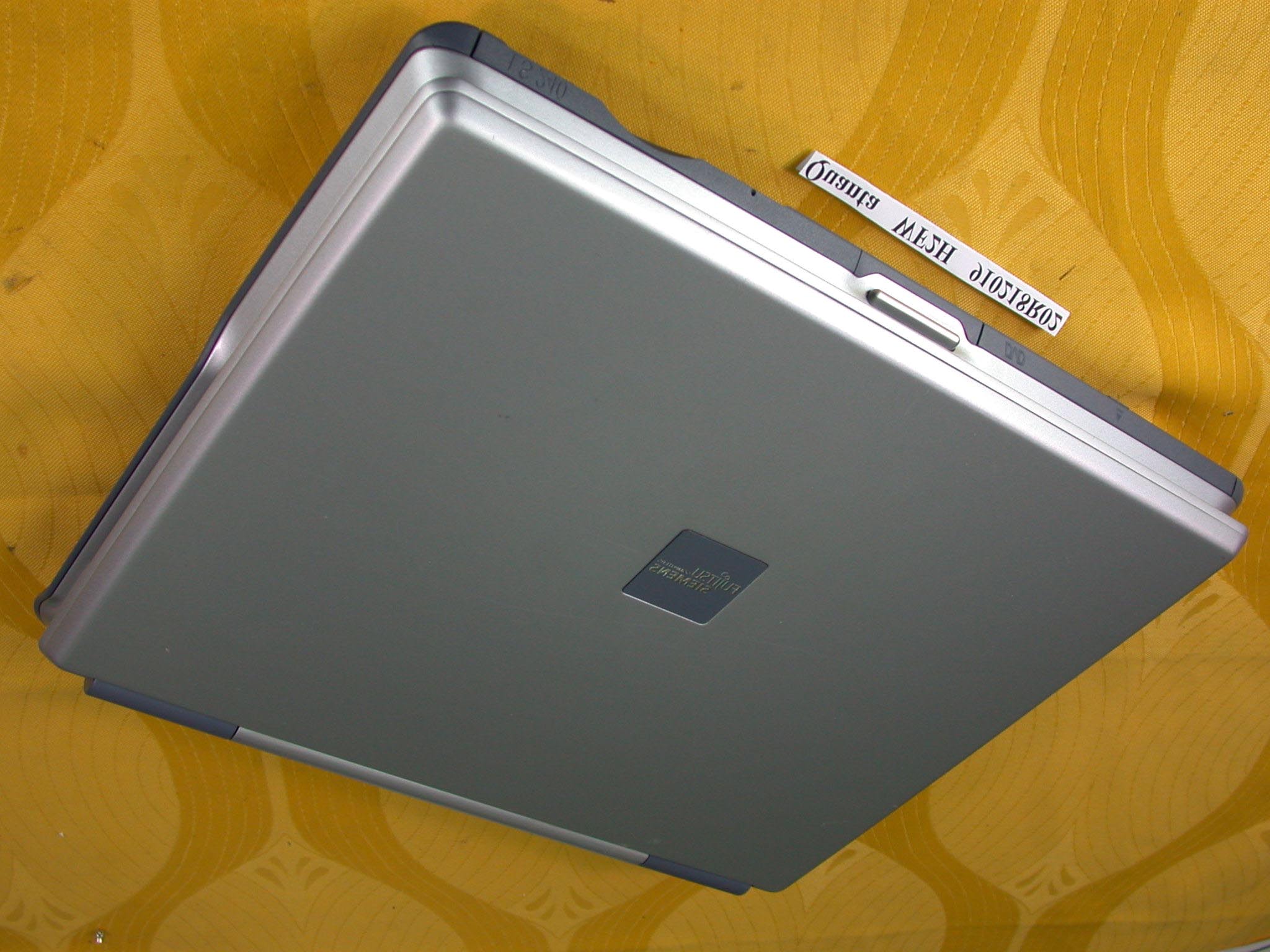

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 12

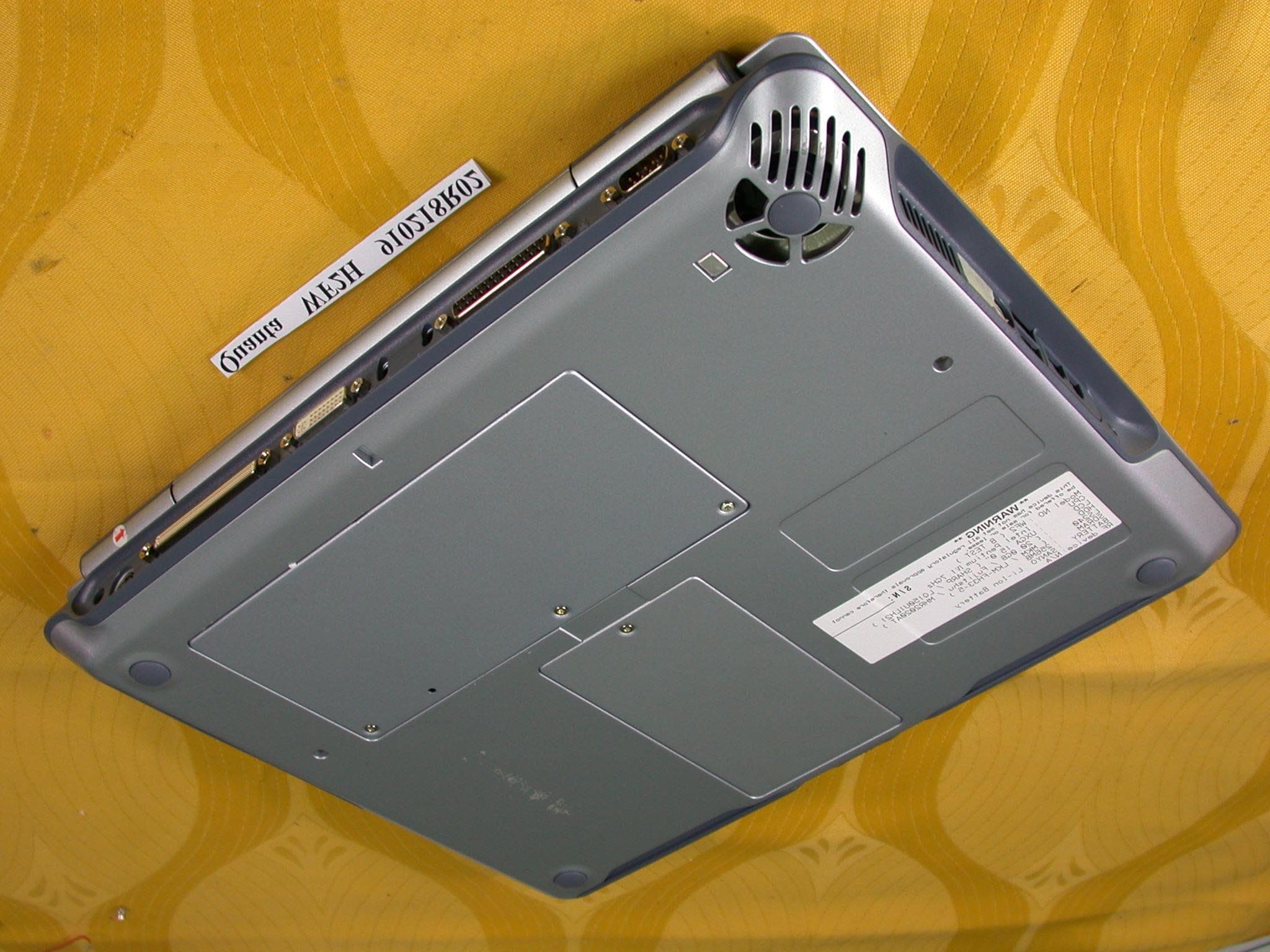

FCC ID Label Location

D D 1 2 3 5 6 7 ABCE 7 6 5 4 3 2 1 ECBA LTR NAME MODEL MATERIAL FINISH DATE SCALE UNIT MM DWG. NO. APPROVED DESIGNED DRAWN REV 3A 3A 3B 3C TOL. + - 1 PLC2 PLCANGLE 7F, 116 HOU KANG ST. SHIN LIN, TAIPEI, TAIWAN, R.O.C. ITEMDESCRIPTION REVISIONS DESCRIPTION DATEAPP THE 3RD PROJECTION PART NO. Quanta Computer Inc. 2 1 3 FIRST RELEASE Rita HCWF2002 1/1 HCWF2002011 91.02.22 91.02.22 Wf2H RATING LABEL WF2H SEE NOTES Rita FREE SEE NOTES , 0.1 5 2 . 6 83.75 R4.3X4 CELSIUS Mobile CELSIUS Mobile H FUJITSU SIEMENS COMPUTERS MADE IN TAIWAN Model No : WF2H Contains : Lithium Battery, Must be recycled or disposed of Properly. The Windows logo is a registered trademark of Microsoft Corporation. DC 19V 4.20A EPA POLLUTION PREVENTER TH10 CM FCC ID : HFSWF2H This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 4 S/N : REV. : P/N : Apparatus Claims of U.S. Patent Nos. 4.631.603, 4.577.216, 4.819.098 and 4.907.093 licensed for limited viewing uses only. ITE

Page 2 Page 3

Page 4 Page 5

Page 6 Page 7

Page 8 Page 9

Page 10 Page 11

OPERATING THEORY BlueTooth is not designed for complicate purpose such as cellular phone. It is designed for normal consumer electronic use and the data rate is quite low. So, it does not to use full- duplexing technique on BlueTooth Device. Once the link has been estiblished, the master will determine the pseudo random code used. Master and slave is both operating in a TDD rule. During master transmitting data, the slave is only in a receiving mode, and vice versa.

Physical Channel29 November 199943 BLUETOOTH SPECIFICATION Version 1.0 Bpage 43 of 1082 Baseband Specification 2 PHYSICAL CHANNEL 2.1 FREQUENCY BAND AND RF CHANNELS Bluetooth operates in the 2.4 GHz ISM band. Although globally available, the exact location and the width of the band may differ by country. In the US and Europe, a band of 83.5 MHz width is available; in this band, 79 RF channels spaced 1 MHz apart are defined. In Japan, Spain, and France, a smaller band is available; in this band, 23 RF channels spaced 1 MHz apart are defined. 2.2 CHANNEL DEFINITION The channel is represented by a pseudo-random hopping sequence hopping through the 79 or 23 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop fre- quencies. The nominal hop rate is 1600 hops/s. All Bluetooth units participating in the piconet are time- and hop-synchronized to the channel. 2.3 TIME SLOTS The channel is divided into time slots, each 625 μs in length. The time slots are numbered according to the Bluetooth clock of the piconet master. The slot numbering ranges from 0 to 2 27 -1 and is cyclic with a cycle length of 2 27 . In the time slots, master and slave can transmit packets. A TDD scheme is used where master and slave alternatively transmit, see Figure 2.1 on page 44. The master shall start its transmission in even- numbered time slots only, and the slave shall start its transmission in odd- numbered time slots only. The packet start shall be aligned with the slot start. Packets transmitted by the master or the slave may extend over up to five time slots. CountryFrequency RangeRF Channels Europe * & USA *. except Spain and France 2400 - 2483.5 MHzf = 2402 + k MHzk= 0,...,78 Japan2471 - 2497 MHzf = 2473 + k MHzk= 0,...,22 Spain2445 - 2475 MHzf = 2449 + k MHzk= 0,...,22 France2446.5 - 2483.5 MHzf = 2454 + k MHzk= 0,...,22 Table 2.1: Available RF channels 4429 November 1999Physical Channel BLUETOOTH SPECIFICATION Version 1.0 Bpage 44 of 1082 Baseband Specification The RF hop frequency shall remain fixed for the duration of the packet. For a single packet, the RF hop frequency to be used is derived from the current Bluetooth clock value. For a multi-slot packet, the RF hop frequency to be used for the entire packet is derived from the Bluetooth clock value in the first slot of the packet. The RF hop frequency in the first slot after a multi-slot packet shall use the frequency as determined by the current Bluetooth clock value. Figure 2.2 on page 44 illustrates the hop definition on single- and multi-slot packets. If a packet occupies more than one time slot, the hop frequency applied shall be the hop frequency as applied in the time slot where the packet transmission was started. Figure 2.1: TDD and timing Figure 2.2: Multi-slot packets 2.4 MODULATION AND BIT RATE The data transmitted has a symbol rate of 1 Ms/s. A Gaussian-shaped, binary FSK modulation is applied with a BT product of 0.5. A binary one is represented by a positive frequency deviation, a binary zero by a negative frequency deviation. The maximum frequency deviation shall be between 140 kHz and 175 kHz. f(k)f(k+1)f(k+2) 625 μs Master Slave f(k) 625 μs f(k+1)f(k+2)f(k+3)f(k+4)f(k+5) f(k)f(k+3)f(k+4)f(k+5) f(k)f(k+5) f(k+6) f(k+6) f(k+6)

FCC ID: HFSWF2H ADT No.910218R02 Operational Description This product is a notebook pc with a detachable keyboard. The transmitter of the EUT (Notebook PC) is powered by host notebook and bluetooth technology is used both on host notebook and keyboard. The antenna is micro strip antenna without antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. This device is a Frequency Hopping device with 79 hopping frequencies. The declared output power is only +10dBm.

ADT No: 910218R02 1 FCC TEST REPORT REPORT NO.: RF910218R02 MODEL NO.: WF2H (for Brand: Quanta) OEM MODEL NO.: Celsius Mobile H (for Brand: Fujitsu, Fujitsu Siemens) ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: QUANTA COMPUTER INC. ADDRESS: 7F, No. 116, Hou Kang St., Shih Lin, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 Lab Code: 200102-0 ADT No: 910218R02 2 RF Exposure Measurement 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz ADT No: 910218R02 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5 Climate Condition The temperature and related humidity: 20 deg. C and 50 % RH 6. Classification This device is not fixed inside the host equipment, it is connected with host through wire. This device and its antenna could operate at less than 2.5 cm far away from the body of the user since the keyboard may be used in the lap. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Portable Device. ADT No: 910218R02 4 7 Test Results 7.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is -2dBi or 0.63 (numeric). 7.2 Output Power Into Antenna & RF Exposure Distance : For the keyboard portion: CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 024025.860.54 3924415.890.54 7824804.230.46 The minimum allowable distance is very close to the enclosure of the antenna. So, the user has no need to worry about the harmfulness of radiation. But it is recommended to always keep, at least, 20 cm separation distance with the antenna.

ADT No: 910218R02 1 FCC TEST REPORT REPORT NO.: RF910218R02 MODEL NO.: WF2H (for Brand: Quanta) OEM MODEL NO.: Celsius Mobile H (for Brand: Fujitsu, Fujitsu Siemens) ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: QUANTA COMPUTER INC. ADDRESS: 7F, No. 116, Hou Kang St., Shih Lin, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 Lab Code: 200102-0 ADT No: 910218R02 2 RF Exposure Measurement 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz ADT No: 910218R02 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5 Climate Condition The temperature and related humidity: 20 deg. C and 50 % RH 6. Classification This device is not fixed inside the host equipment, it is connected with host through wire. This device and its antenna could operate at less than 2.5 cm far away from the body of the user since the keyboard may be used in the lap. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Portable Device. ADT No: 910218R02 4 7 Test Results 7.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is -2dBi or 0.63 (numeric). 7.2 Output Power Into Antenna & RF Exposure Distance : For the laptop base portion: CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 024028.910.67 3924418.810.66 7824808.130.64

FCC ID: HFSWF2H Report No.: RF910218R02 1 Issued: March 21, 2002 FCC TEST REPORT REPORT NO.: RF910218R02 MODEL NO.: WF2H (for Brand: Quanta) OEM MODEL NO.: Celsius Mobile H (for Brand: Fujitsu, Fujitsu Siemens) RECEIVED: Feb. 18, 2002 TESTED: Feb. 27 ~ March 20, 2002 APPLICANT:QUANTA COMPUTER INC. ADDRESS: 7F, No. 116, Hou Kang St., Shih Lin, Taipei, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 85 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: HFSWF2H Report No.: RF910218R02 2 Issued: March 21, 2002 TABLE OF CONTENTS 1CERTIFICATION .........................................................................................................................4 2SUMMARY OF TEST RESULTS.................................................................................................5 3GENERAL INFORMATION .........................................................................................................6 3.1GENERAL DESCRIPTION OF EUT ...........................................................................................6 3.2DESCRIPTION OF TEST MODES .............................................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................7 3.4DESCRIPTION OF SUPPORT UNITS........................................................................................8 4TEST PROCEDURES AND RESULTS .......................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT..............................................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ...........................................................9 4.1.2TEST INSTRUMENTS ................................................................................................................9 4.1.3TEST PROCEDURES ...............................................................................................................10 4.1.4TEST SETUP ............................................................................................................................10 4.1.5TEST RESULTS (A) .................................................................................................................. 11 4.2NUMBER OF HOPPING FREQUENCY USED.........................................................................17 4.2.1LIMIT OF HOPPING FREQUENCY USED ...............................................................................17 4.2.2TEST INSTRUMENTS ..............................................................................................................17 4.2.3TEST PROCEDURES ...............................................................................................................18 4.2.4TEST SETUP ............................................................................................................................18 4.2.5TEST RESULTS (A) ..................................................................................................................18 4.2.6TEST RESULTS (B) ..................................................................................................................21 4.3DWELL TIME ON EACH CHANNEL.........................................................................................23 4.3.1LIMIT OF DWELL TIME USED .................................................................................................23 4.3.2TEST INSTRUMENTS ..............................................................................................................23 4.3.3TEST PROCEDURES ...............................................................................................................24 4.3.4TEST SETUP ............................................................................................................................24 4.3.5TEST RESULTS (A) ..................................................................................................................25 4.3.6TEST RESULTS (B) ..................................................................................................................29 4.4CHANNEL BANDWIDTH ..........................................................................................................33 4.4.1LIMITS OF CHANNEL BANDWIDTH........................................................................................33 4.4.2TEST INSTRUMENTS ..............................................................................................................33 4.4.3TEST PROCEDURE .................................................................................................................34 4.4.4TEST SETUP ............................................................................................................................34 4.4.5EUT OPERATING CONDITION ................................................................................................34 4.4.6TEST RESULTS (A) ..................................................................................................................35 4.4.7TEST RESULTS (B) ..................................................................................................................39 4.5HOPPING CHANNEL SEPARATION ........................................................................................43 4.5.1LIMIT OF HOPPING CHANNEL SEPARATION........................................................................43 4.5.2TEST INSTRUMENTS ................................................................…
