HFSWM100Mini-PCI Wireless LAN card in Notebook Computer

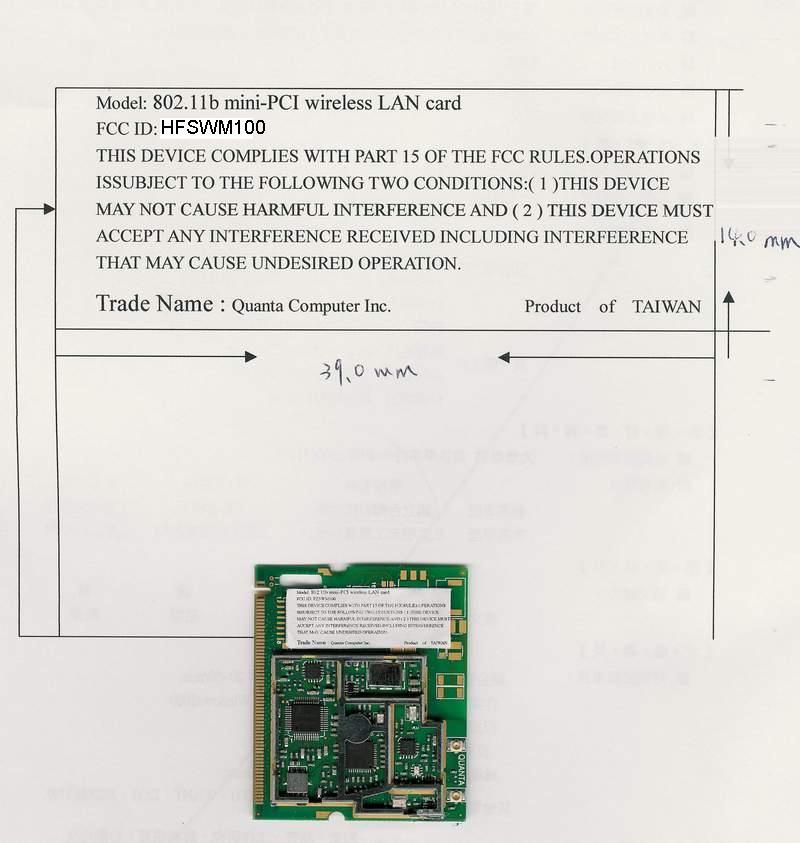

________________________________________________________________________________________ UANTA COMPUTER INC. _______________________________________________________________ WM1-Mini-PCI Wireless LAN Card USER MANUAL Dec 07, 2001 Revision: 1A Issued By: frank wang Checked By: ______________________________________________________________________________ The release of this document is under controlled by the company. Any extra copy of this document must be written permission by the product manager. ______________________________________________________________________________ - Quanta Confidential - UANTA COMPUTER INC. WM1 Mini-PCI User Manual ______________________________________________________________________________ _______ ________________________________________________________________________ WM1 User Manual Rev. 1APage: 2 - Quanta Confidential - Re visionDateRe mark 1A12/07/2001First draft UANTA COMPUTER INC. WM1 Mini-PCI User Manual ______________________________________________________________________________ _______ ________________________________________________________________________ WM1 User Manual Rev. 1APage: 3 - Quanta Confidential - Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy. If this equipment is not installed and used in accordance with the manufacturer's instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by during the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Manufacture r's Disclaime r State me nt The information in this document is subject to change without notice and does not represent a commitment on the part of the vendor. No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy or fitness for any particular purpose of this document. The manufacturer reserves the right to make changes to the content of this document and/or the products associated with it at any time without obligation to notify any person or organization of such changes. In no event will the manufacturer be liable for direct, indirect, special, incidental or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages. This document contains materials protected by copyright. All rights are reserved. No part of this manual may be reproduced or transmitted in any form, by any means or for any purpose without expressed written consent of its authors. Product names appearing in this document are mentioned for identification purchases only. All trademarks, product names or brand names appearing in this document are registered property of their respective owners. Printed in Taiwan UANTA COMPUTER INC. WM1 Mini-PCI User Manual ______________________________________________________________________________ _______ ________________________________________________________________________ WM1 User Manual Rev. 1APage: 4 - Quanta Confidential - Table of Content Table Of Content............................................................................. 4 1Introduction................................................................................... 5 1-1Overview....................................................................................... 5 1-2Features........................................................................................ 5 2Wireless LAN Application.................................................................. 6 2-1Ad-Hoc Topology............................................................................. 6 2-2Infrastructure Topology..................................................................... 7 3Installation Procedure....................................................................... 8 3-1For Windows 2000 installation............................................................. 8 3-2For Windows 98/ME installation.......................................................... 11 4Wireless Client Manager Utility........................................................... 11 5Technical Specification of Wireless LAN............................................... 19 UANTA COMPUTER INC. WM1 Mini-PCI User Manual ______________________________________________________________________________ _______ ________________________________________________________________________ WM1 User Manual Rev. 1APage: 5 - Quanta Confidential - 1 Introduction 1-1 Overview The user manual of the model named WM1 will be based on this documentation. The product complies with full IEEE 802.11b standard with bit rate up to 11Mbps and interface c…

Text truncated - open the document above for the full version.

__________________________________________________________________________ UANTA COMPUTER INC. _______________________________________________________________ To: Federal Communications Commission FCC ID: HFSWM100 Dear Sir, This is to request confidentiality on information submitted for above application. Due to we found recently that some documentation we submitted for applying FCC ID was used by other applicant without our authorization. This is absolutely illegal. So, we would like to request confidentiality on some exhibits we submitted for above application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram, Operational description and Schematics. Best regards, Lolita Hsu Michael Chen Senior Vice-President Quanta Computer, Inc. Tel: 886-3-3272345 Fax: 886-3-3181023

FW: Quanta Computer Inc., FCC ID:PZ5WM100, Assessment no:AN01T1724From: etcemi [[email protected]] Sent: Thursday, January 24, 2002 5:19 AM To: Mike Kuo Subject: Re: Quanta Computer Inc., FCC ID:PZ5WM100, Assessment no:AN01T1724 Hello! Mike, Many thanks for your help. First I would like to ask you a favor, the grantee code for Quanta is HFS, could you replace the grantee code of PZ5? Please find our explanations below: Question #1: There are four pairs of antenna to be used with this transmitter card. Please provide antenna specification for each antenna. Please make sure the information includes antenna type and antenna gain information. ANS.: These antennas are dipole type, and therefore the antenna's gain will hardly exceed 3 dBi. If you can not accept this explanation, I will send you the specifications. Because of this only can be obtained from Antenna provider. Question #2: Radiated emission tests were performed with transmitter card located outside the notebook computer. This test method is only applicable to transmitter module approval. Are you intended to apply for transmitter module approval or as transceiver card ? ANS.: Sorry, would you advise the difference between these two approvals? My client is preferred to get approval for this MiniPCI card seperately, for this card will be used with many different brands of notebook, of course the ODM is Quanta. Question #3: In accordance with user manual, the design specification for the transmitting power is 14dBm+/-1dB. However, the measured antenna conducted output power is 19.9dBm. Please explain the differences. ANS.: Sorry for our omissions, there is a wrong setting with the instrument in the measurement. The correct output power measured is attached. Question #4: Four pair of antennas are included in this filing. There is no antenna installation procedures provided in the user manual. Please explain who is the party going to install the antenna and what is the installation procedures. ANS.: The RF MninPCI card will be installed by manufacturer only and will be built-in in specific inner place of a notebook. An end user is certainly not able to perform the installation of the antenna, so no instructions in the user's manual. Question #5: For multiple antenna configuration, measurement must be performed on the highest gain antenna of each " type ". In other words, if multiple yagi, patch, and dish antennas are proposed, only the highest gain yagi, patch and dish must be tested. In addition, measurement should also be made on the lowest gain antenna, so that the EUT is operating at its highest available output power, in order to test for case radiation. In the test report to radiated emission tests, there is no information to indicate which antenna was used during the tests. Please examine your test procedure and configuration and provide additional test data. ANS.: This RF MiniPCI card is unable to connect to high agin antenna, such as yagi, dish type, for use of the MiniPCI card is intended to install into a notebook. Antenna uesed with this MiniPCI card will be only have a gain no more than 3 dBi, because the only avaible type is dipole under actual situation of tiny space, even they are different shapes. The difference is only on the length of connecting cable between antenna connector and antenna. Question #6: Power output: when using spectrum analyzer to measure antenna conducted output power, the RBW needs to greater than 6dB bandwidth. If the specturm analyzer has limitation of max. 3MHz RBW, you need to correct the reading by using reading + 10 log ( 6dB BW/measurement BW). ANS.: Thia measurement is with the function of Channel Power, the measurement bandwidth is 22 MHz, so this is wider than 6dB bandwith of the EUT. This is also accepted by FCC engineer, Mr. Joe Dichoso, so please advise if you can not accept. Question #7: The document titled principle operation does not provide enough information to justify that this device meet the definition of a direct sequence spread specturm system. ( See section 2.1). Please provide alternate principle operation document. ANS.: Attached please find the inforamtion for DSSS. Question #8: Page 12 of test report, the peak emission level at 2063MHz /Horizontal is 58.8dBuV/m - 3.2dB ( correction factor )=55.6dBuV/m. This peak reading is over the average limit which is 54dBuV/m. Please provide average reading to show the compliance. ANS.: The average value is 51.3 dBuV/m when the RBW and VBW of spectrum analyzer are 1MHz and 300Hz respectively. Question #9: Radiated Measurements at Bandedge. Please perform additional radiated emission at bandedge with fundamental frequencies operate at Channel 1, 6 and 11. ANS.: As FCC ever told me the measurement on bandedge was to investigate the compliance of permitted operational band, so only first channel and last channel have to be measured, right? Anyway if you require test data for channel 6, we will test it and send data to you. The test data is as follows: Frequency (GHz) Horizotal (dBuV/m) Vertical (dBuV/m) 2.39928 63.8(Peak)/53.4(AV) 72.0(Peak)/62.2(AV) 2.48367 61.7(Peak)/50.7(AV) 64.2(Peak)/51.7(AV) Emissions at Lower bandedge is obviously attenuated by more than 20dB from the peak fundamental, please check the plot of bandedge attached. Question #10 : Request for confidentiality is checked on the TCB application form. Please provide a cover letter to indicate which document should be withheld from public disclosure. ANS.: Attached please find the letter requesting confidentiality. Question #11: What is the theoretical process gain? Chip/bit rate? Spread rate/data rate? ANS.: The theoretical process gain is 10.41dB from Harris application note of AN9633 (Note.1). PG=Rc/Rb(dB) By this definition of a system that has a data rate of 1Mbps and a chip rate (Rate of PN code) of 11Mcps will have a PG. of 10.41dB. This device uses 11 bit to spread the data. The PN sequence is named by barker code. The sequence is 11100010010, and Exclusive OR …

Text truncated - open the document above for the full version.

Rev No10 UA2 ANTENNA

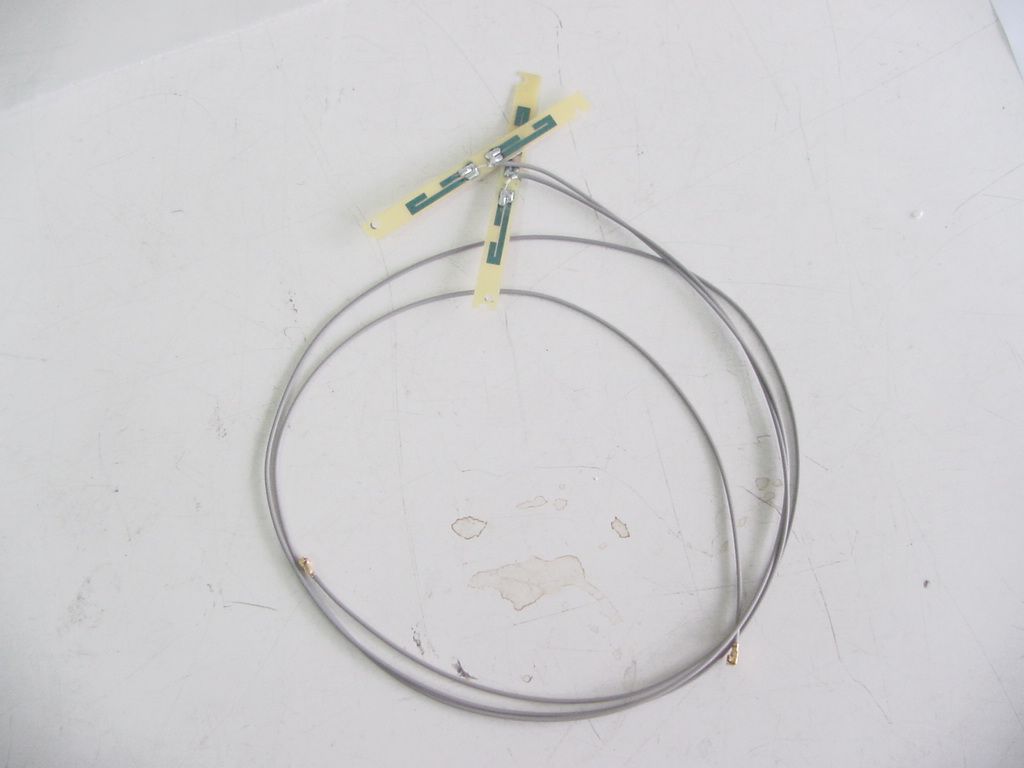

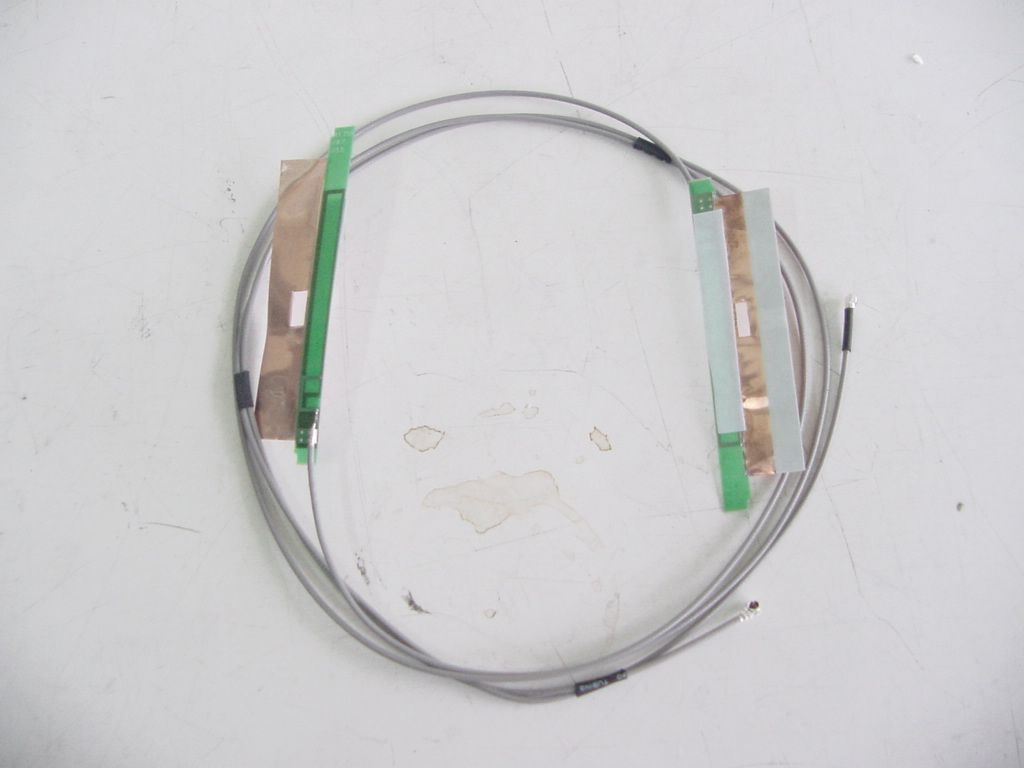

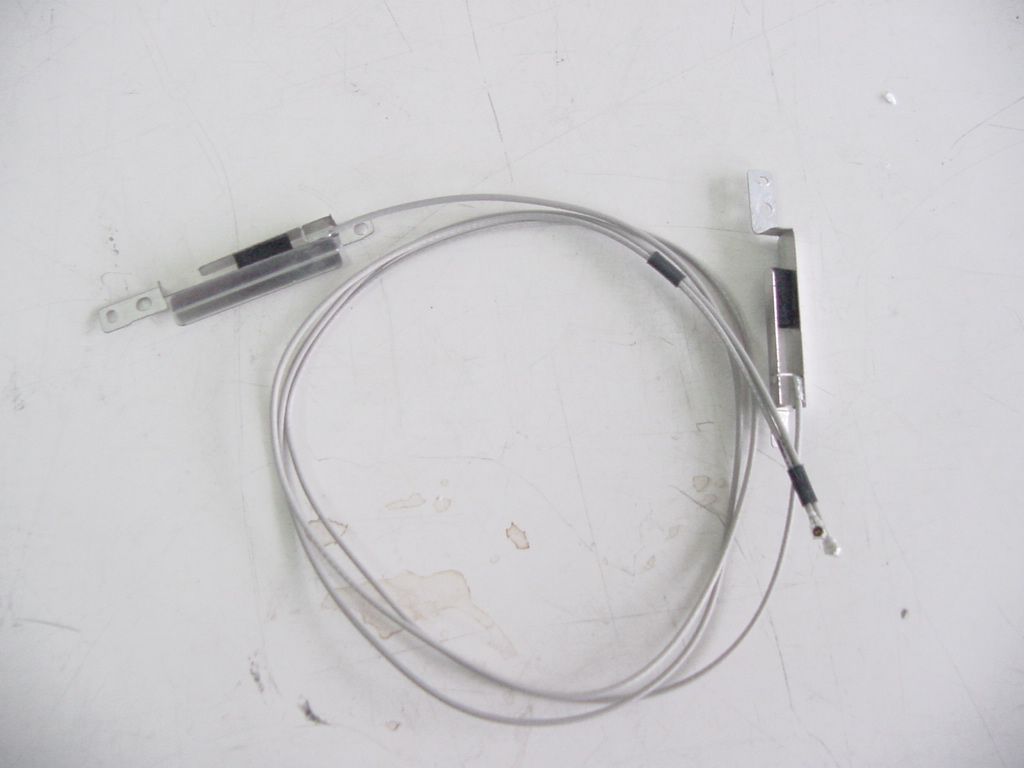

Antenna Specification Antenna ModelAntenna Gain (dBi, Maximum) Antenna TypeEquipped with Notebook Model OA12.25SlotGeteway 450SX4 OA11.0DipoleGeteway 450SX4 YA12.25SlotGeteway 600YGR YA10.88Invert-FGeteway 600YGR UA20.5DipoleGeteway 9550

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : 802.11b mini-pci wireless lan card MODEL : WM1 FCC ID. : HFSWM100 for APPLICANT : Quanta Computer Inc. ADDRESS : No. 188, Wen Hwa 2 nd Rd., Kuei Shan Hsiang, Tao Yuan Shien, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3280026#570~576 Fax:(03)3276188 Report Number : ET90S-11-032 ETC Report No. : ET90S-11-032 FCC ID. : HFSWM100 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Quanta Computer Inc. No. 188, Wen Hwa 2 nd Rd., Kuei Shan Hsiang, Tao Yuan Shien, Taiwan, R.O.C. Manufacturer : Quanta Computer Inc. No. 188, Wen Hwa 2 nd Rd., Kuei Shan Hsiang, Tao Yuan Shien, Taiwan, R.O.C. Description of EUT : a) Type of EUT : 802.11b mini-pci wireless lan card b) Trade Name : Quanta c) Model No. : WM1 d) Power Supply : Adaptor:I/P:100~240Vac 50/60Hz; O/P:3.3V, Tx:380MA, Rx:215MA, Tx:1.245W, Rx:0.7095W Regulation Applied : FCC Rules and Regulations Part 15 Subpart B & C (1999) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Dec. 05, 2001 Test Engineer : Approve & Authorized Signer : Win-Po Tsai, Manager, NVLAP Signatory EMC Dept. I of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET90S-11-032 FCC ID. : HFSWM100 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION......................................................................................................1 1.1 Product Description......................................................................................................................1 1.2 Characteristics of Device.............................................................................................................1 1.3 Test Methodology.........................................................................................................................1 1.4 Test Facility..................................................................................................................................1 2 PROVISIONS APPLICABLE.....................................................................................................2 2.1 Definition.....................................................................................................................................2 2.2 Requirement for Compliance.......................................................................................................3 2.3 Restricted Bands of Operation.....................................................................................................5 2.4 Labeling Requirement..................................................................................................................5 2.5 User Information..........................................................................................................................6 3. SYSTEM TEST CONFIGURATION.........................................................................................7 3.1 Justification..................................................................................................................................7 3.2 Devices for Tested System...........................................................................................................7 4 RADIATED EMISSION MEASUREMENT.............................................................................8 4.1 Applicable Standard.....................................................................................................................8 4.2 Measurement Procedure...............................................................................................................8 4.3 Measuring Instrument.................................................................................................................10 4.4 Radiated Emission Data.............................................................................................................11 4.4.1 RF Portion.........................................................................................................................................11 4.4.2 Other Emission..................................................................................................................................14 4.5 Field Strength Calculation..........................................................................................................14 4.6 Photos of Radiation Measuring Setup........................................................................................15 5 CONDUCTED EMISSION MEASUREMENT.......................................................................19 5.1 Standard Applicable...................................................................................................................19 5.2 Measurement Procedure.............................................................................................................19 5.3 Conducted Emission Data..........................................................................................................20 5.4 Result Data Calculation..............................................................................................................21 5.5 Conducted Measurement Equipment.........................................................................................22 5.6 Photos of Conduction Measuring Setup.....................................................................................23 6 ANTENNA REQUIREMENT...................................................................................................24 6.1 Standard Applicable..............…

Text truncated - open the document above for the full version.

ETC Report No. : ET90S-11-032 Sheet 68 of 104 Sheets FCC ID. : HFSWM100 Rev. No 1.0 Appendix 7 : Processing Gain Tested Data Sheets ETC Report No. : ET90S-11-032 Sheet 69 of 104 Sheets FCC ID. : HFSWM100 Rev. No 1.0 Processing Gain Channel 1 (fc=2412Mhz) @ 11Mbps 6.0 8.0 10.0 12.0 14.0 16.0 18.0 20.0 22.0 24.0 26.0 -8500-7500-6500-5500-4500-3500-2500-1500-50050015002500350045005500650075008500 Frequency Offset (kHz) Processing Gain (dB) ETC Report No. : ET90S-11-032 Sheet 70 of 104 Sheets FCC ID. : HFSWM100 Rev. No 1.0 Processing Gain Channel 6 (fc=2437MHz) @ 11Mbs 6.0 8.0 10.0 12.0 14.0 16.0 18.0 20.0 22.0 24.0 26.0 1 Frequency Offset (kHz) Processing Gain (dB) ETC Report No. : ET90S-11-032 Sheet 71 of 104 Sheets FCC ID. : HFSWM100 Rev. No 1.0 Processing Gain Channel 11 (fc=2462MHz) @ 11Mbs 6.0 8.0 10.0 12.0 14.0 16.0 18.0 20.0 22.0 24.0 26.0 -8500-7500-6500-5500-4500-3500-2500-1500-50050015002500350045005500650075008500 Frequency Offset (kHz) Processing Gain (dB) ETC Report No. : ET90S-11-032 Sheet 72 of 104 Sheets FCC ID. : HFSWM100 Rev. No 1.0 11Mbps CHANNEL 1 Processing Gain Gp = (S/N)o + Mj + Lsys Freq. Gp (S/N)o Mj=J/S Lsys Jammer PER (MHz) (dB) (dB) (dB) (dB) (dBm) (%) 2403.50 22.6 16.4 4.2 2.0 -58.7 <=8.0 2403.55 22.3 16.4 3.9 2.0 -59.0 <=8.0 2403.60 22.2 16.4 3.8 2.0 -59.1 <=8.0 2403.65 22.0 16.4 3.6 2.0 -59.3 <=8.0 2403.70 21.7 16.4 3.3 2.0 -59.6 <=8.0 2403.75 21.1 16.4 2.7 2.0 -60.2 <=8.0 2403.80 20.8 16.4 2.4 2.0 -60.5 <=8.0 2403.85 20.7 16.4 2.3 2.0 -60.6 <=8.0 2403.90 23.2 16.4 4.8 2.0 -58.1 <=8.0 2403.95 20.8 16.4 2.4 2.0 -60.5 <=8.0 2404.00 22.5 16.4 4.1 2.0 -58.8 <=8.0 2404.05 23.8 16.4 5.4 2.0 -57.5 <=8.0 2404.10 23.9 16.4 5.5 2.0 -57.4 <=8.0 2404.15 24.2 16.4 5.8 2.0 -57.1 <=8.0 2404.20 24.2 16.4 5.8 2.0 -57.1 <=8.0 2404.25 24.2 16.4 5.8 2.0 -57.1 <=8.0 2404.30 23.6 16.4 5.2 2.0 -57.7 <=8.0 2404.35 23.6 16.4 5.2 2.0 -57.7 <=8.0 2404.40 23.2 16.4 4.8 2.0 -58.1 <=8.0 2404.45 23.1 16.4 4.7 2.0 -58.2 <=8.0 2404.50 23.1 16.4 4.7 2.0 -58.2 <=8.0 2404.55 22.8 16.4 4.4 2.0 -58.5 <=8.0 2404.60 22.1 16.4 3.7 2.0 -59.2 <=8.0 2404.65 21.5 16.4 3.1 2.0 -59.8 <=8.0 2404.70 21.8 16.4 3.4 2.0 -59.5 <=8.0 2404.75 21.6 16.4 3.2 2.0 -59.7 <=8.0 2404.80 21.6 16.4 3.2 2.0 -59.7 <=8.0 2404.85 20.3 16.4 1.9 2.0 -61.0 <=8.0 2404.90 20.3 16.4 1.9 2.0 -61.0 <=8.0 2404.95 20.4 16.4 2.0 2.0 -60.9 <=8.0 2405.00 20.4 16.4 2.0 2.0 -60.9 <=8.0 ETC Report No. : ET90S-11-032 Sheet 73 of 104 Sheets FCC ID. : HFSWM100 Rev. No 1.0 11Mbps CHANNEL 1 Processing Gain Gp = (S/N)o + Mj + Lsys Freq. Gp (S/N)o Mj=J/S Lsys Jammer PER (MHz) (dB) (dB) (dB) (dB) (dBm) (%) 2405.05 20.6 16.4 2.2 2.0 -60.7 <=8.0 2405.10 20.6 16.4 2.2 2.0 -60.7 <=8.0 2405.15 20.4 16.4 2.0 2.0 -60.9 <=8.0 2405.20 19.9 16.4 1.5 2.0 -61.4 <=8.0 2405.25 19.8 16.4 1.4 2.0 -61.5 <=8.0 2405.30 19.8 16.4 1.4 2.0 -61.5 <=8.0 2405.35 19.2 16.4 0.8 2.0 -62.1 <=8.0 2405.40 19.2 16.4 0.8 2.0 -62.1 <=8.0 2405.45 18.9 16.4 0.5 2.0 -62.4 <=8.0 2405.50 18.7 16.4 0.3 2.0 -62.6 <=8.0 2405.55 18.5 16.4 0.1 2.0 -62.8 <=8.0 2405.60 18.5 16.4 0.1 2.0 -62.8 <=8.0 2405.65 18.5 16.4 0.1 2.0 -62.8 <=8.0 2405.70 18.2 16.4 -0.2 2.0 -63.1 <=8.0 2405.75 17.9 16.4 -0.5 2.0 -63.4 <=8.0 2405.80 17.5 16.4 -0.9 2.0 -63.8 <=8.0 2405.85 17.1 16.4 -1.3 2.0 -64.2 <=8.0 2405.90 16.8 16.4 -1.6 2.0 -64.5 <=8.0 2405.95 16.8 16.4 -1.6 2.0 -64.5 <=8.0 2406.00 16.8 16.4 -1.6 2.0 -64.5 <=8.0 2406.05 16.7 16.4 -1.7 2.0 -64.6 <=8.0 2406.10 16.6 16.4 -1.8 2.0 -64.7 <=8.0 2406.15 16.3 16.4 -2.1 2.0 -65.0 <=8.0 2406.20 16.1 16.4 -2.3 2.0 -65.2 <=8.0 2406.25 16.3 16.4 -2.1 2.0 -65.0 <=8.0 2406.30 16.3 16.4 -2.1 2.0 -65.0 <=8.0 2406.35 16.1 16.4 -2.3 2.0 -65.2 <=8.0 2406.40 15.8 16.4 -2.6 2.0 -65.5 <=8.0 2406.45 15.8 16.4 -2.6 2.0 -65.5 <=8.0 2406.50 15.6 16.4 -2.8 2.0 -65.7 <=8.0 2406.55 15.4 16.4 -3.0 2.0 -65.9 <=8.0 2406.60 15.3 16.4 -3.1 2.0 -66.0 <=8.0 ETC Report No. : ET90S-11-032 Sheet 74 of 104 Sheets FCC ID. : HFSWM100 Rev. No 1.0 11Mbps CHANNEL 1 Processing Gain Gp = (S/N)o + Mj + Lsys Freq. Gp (S/N)o Mj=J/S Lsys Jammer PER (MHz) (dB) (dB) (dB) (dB) (dBm) (%) 2406.65 15.1 16.4 -3.3 2.0 -66.2 <=8.0 2406.70 15.0 16.4 -3.4 2.0 -66.3 <=8.0 2406.75 15.0 16.4 -3.4 2.0 -66.3 <=8.0 2406.80 14.8 16.4 -3.6 2.0 -66.5 <=8.0 2406.85 14.8 16.4 -3.6 2.0 -66.5 <=8.0 2406.90 14.9 16.4 -3.5 2.0 -66.4 <=8.0 2406.95 14.9 16.4 -3.5 2.0 -66.4 <=8.0 2407.00 14.9 16.4 -3.5 2.0 -66.4 <=8.0 2407.05 14.8 16.4 -3.6 2.0 -66.5 <=8.0 2407.10 14.8 16.4 -3.6 2.0 -66.5 <=8.0 2407.15 14.8 16.4 -3.6 2.0 -66.5 <=8.0 2407.20 14.8 16.4 -3.6 2.0 -66.5 <=8.0 2407.25 14.7 16.4 -3.7 2.0 -66.6 <=8.0 2407.30 14.7 16.4 -3.7 2.0 -66.6 <=8.0 2407.35 14.6 16.4 -3.8 2.0 -66.7 <=8.0 2407.40 14.5 16.4 -3.9 2.0 -66.8 <=8.0 2407.45 14.5 16.4 -3.9 2.0 -66.8 <=8.0 2407.50 14.5 16.4 -3.9 2.0 -66.8 <=8.0 2407.55 14.5 16.4 -3.9 2.0 -66.8 <=8.0 2407.60 14.3 16.4 -4.1 2.0 -67.0 <=8.0 2407.65 14.4 16.4 -4.0 2.0 -66.9 <=8.0 2407.70 14.2 16.4 -4.2 2.0 -67.1 <=8.0 2407.75 14.1 16.4 -4.3 2.0 -67.2 <=8.0 2407.80 14.0 16.4 -4.4 2.0 -67.3 <=8.0 2407.85 13.7 16.4 -4.7 2.0 -67.6 <=8.0 2407.90 13.5 16.4 -4.9 2.0 -67.8 <=8.0 2407.95 13.5 16.4 -4.9 2.0 -67.8 <=8.0 2408.00 13.4 16.4 -5.0 2.0 -67.9 <=8.0 2408.05 13.4 16.4 -5.0 2.0 -67.9 <=8.0 2408.10 13.4 16.4 -5.0 2.0 -67.9 <=8.0 2408.15 13.4 16.4 -5.0 2.0 -67.9 <=8.0 2408.20 13.3 16.4 -5.1 2.0 -68.0 <=8.0 ETC Report No. : ET90S-11-032 Sheet 75 of 104 Sheets FCC ID. : HFSWM100 Rev. No 1.0 11Mbps CHANNEL 1 Processing Gain Gp = (S/N)o + Mj + Lsys Freq. Gp (S/N)o Mj=J/S Lsys Jammer PER (MHz) (dB) (dB) (dB) (dB) (dBm) (%) 2408.25 13.5 16.4 -4.9 2.0 -67.8 <=8.0 2408.30 13.5 16.4 -4.9 2.0 -67.8 <=8.0 2408.35 13.5 16.4 -4.9 2.0 -67.8 <=8.0 2408.40 13.3 16.4 -5.1 2.0 -68.0 <=8.0 2408.45 13.2 16.4 -5.2 2.0 -68.1 <=8.0 2408.50 13.2 16.4 -5.2 2.0 -68.1 <=8.0 2408.55 13.2 16.4 -5.2 2.0 -68.1 <=8.0 2408.60 13.1 16.4 -5.3 2.0 -68.2 <=8.0 2408.65 12.8 16.4 -5.6 2.0 -68.5 <=8.0 2408.70 12.8 16.4 -5.6 2.0 -68.5 <=8.0 2408.75 12.8 16.4 -5.6 2.0 -68.5 <=8.0 2408.80 12.8 16.4 -5.6 2.0 -68.5 <=8.0 2408.85 12.8 16.4 -5.6 2.0 …

Text truncated - open the document above for the full version.

1. Dateway 450SX4 a) Channel 1 Operation Mode : Transmitting / Receiving Test Date: Jan. 27, 2001Temperature : 14 Humidity: 71 % Frequency Reading (dBuV) FactorResult (dBuV)LimitMargin (MHz)VaVb(dB)VaVb(dBuV)(dB) 0.485729.935.10.230.135.348.0-12.7 2.401028.026.90.328.327.248.0-19.7 5.982432.432.10.432.832.548.0-15.2 6.420424.826.80.425.227.248.0-20.8 8.735226.025.60.526.526.148.0-21.5 17.950142.242.10.943.143.048.0-4.9 b) Channel 6 Operation Mode : Transmitting / Receiving Test Date: Jan. 27, 2001Temperature : 14 Humidity: 71 % Frequency Reading (dBuV) FactorResult (dBuV)LimitMargin (MHz)VaVb(dB)VaVb(dBuV)(dB) 0.485730.235.40.230.435.648.0-12.4 2.401027.626.30.327.926.648.0-20.1 5.982432.231.80.432.632.248.0-15.4 6.420425.425.80.425.826.248.0-21.8 8.735225.326.40.525.826.948.0-21.1 17.950143.243.00.944.143.948.0-3.9 c) Channel 11 Operation Mode : Transmitting / Receiving Test Date: Jan. 27, 2001Temperature : 14 Humidity: 71 % Frequency Reading (dBuV) FactorResult (dBuV)LimitMargin (MHz)VaVb(dB)VaVb(dBuV)(dB) 0.485730.334.50.230.534.848.0-13.2 2.401027.526.60.327.826.948.0-20.2 5.982432.432.80.432.733.248.0-14.8 6.420425.626.50.426.026.848.0-21.2 8.735226.325.60.526.826.048.0-21.2 17.950142.942.90.943.843.748.0-4.2 2. Gateway 600YGR a) Channel 1 Operation Mode : Transmitting / Receiving Test Date: Jan. 27, 2001Temperature : 14 Humidity: 71 % Frequency Reading (dBuV) FactorResult (dBuV)LimitMargin (MHz)VaVb(dB)VaVb(dBuV)(dB) 0.484229.837.30.230.037.548.0-10.5 0.855329.635.80.329.936.148.0-11.9 2.303427.725.80.328.026.148.0-20.0 5.982635.431.60.435.832.048.0-12.2 8.333625.626.70.426.027.148.0-20.9 17.950243.743.60.944.644.548.0-3.4 b) Channel 6 Operation Mode : Transmitting / Receiving Test Date: Aug. 24, 2001Temperature : 24 Humidity: 71 % Frequency Reading (dBuV) FactorResult (dBuV)LimitMargin (MHz)VaVb(dB)VaVb(dBuV)(dB) 0.484229.038.30.229.338.548.0-9.5 0.855328.634.90.328.935.248.0-12.8 2.303428.425.60.328.725.948.0-19.3 5.982636.232.10.436.532.448.0-11.5 8.333625.125.90.425.526.448.0-21.6 17.950243.744.00.944.644.948.0-3.1 c) Channel 11 Operation Mode : Transmitting / Receiving Test Date: Jan. 27, 2001Temperature : 14 Humidity: 71 % Frequency Reading (dBuV) FactorResult (dBuV)LimitMargin (MHz)VaVb(dB)VaVb(dBuV)(dB) 0.484230.237.70.230.437.948.0-10.1 0.855330.036.80.330.337.048.0-11.0 2.303427.926.70.328.227.048.0-19.8 5.982636.031.00.436.431.448.0-11.6 8.333625.827.60.426.328.148.0-19.9 17.950243.643.00.944.543.948.0-3.5

ETC Report No. : ET90S-11-032FCC ID. : HFSWM100 Sheet 1 of 12 Sheets Radiated Emission Data 1Geteway 450SX4 a) Lower Frequncy (Channel 01) Antenna Type: OA1 (Slot) Operation Mode: Full Power Transmitting (15dBm) Fundamental Frequency : 2412 MHz (Tx), 2038MHx (Rx L.O.) Test Date : Jan 26, 2002Temperature : 17 Humidity : 70% Frequency (MHz) Reading (dBuV) @3m H V Peak Ave Peak Ave Factor (dB) Corr. Result @3m (dBuV/m) Peak Ave Limit @3m (dBuV/m) Peak Ave. Margin (dB) Table Deg. (Deg.) Ant. High (m) 2038.00064.356.164.856.6-4.560.352.174.054.0-1.9431.0 4076.000------------2.0------74.054.0--------- 6114.000------------4.5------74.054.0--------- 8152.000------------6.5------74.054.0--------- 10190.00------------7.6------74.054.0--------- 4824.000------------2.6------74.054.0--- ------ 7236.000------------5.8------74.054.0--------- 9648.000------------7.3------74.054.0--------- 12060.000------------9.2------74.054.0--- ------ 14472.000------------11.6------74.054.0--- ------ 16884.000------------12.1------74.054.0--------- 19296.000------------8.8------74.054.0--------- 21708.000------------9.8------74.054.0--- ------ 24120.000------------10.4------74.054.0--- ------ Note : 1. Remark “ ” means that the emission frequency is from Rx local oscillator. 2. Remark “---” means that the emission level is too low to be measured (a pre-amplifier of about 35 dB is used). 3. Margins are derived from Peak or Average whichever is lower. If there is only peak value in Result field, the Margin is also referred to average limits. ETC Report No. : ET90S-11-032FCC ID. : HFSWM100 Sheet 2 of 12 Sheets b) Middle Frequncy (Channel 06) Antenna Type: OA1 (Slot) Operation Mode: Full Power Transmitting (15.1dBm) Fundamental Frequency : 2412 MHz (Tx), 2063MHx (Rx L.O.) Test Date : Jan 26, 2002Temperature : 17 Humidity : 70% Frequency (MHz) Reading (dBuV) @3m H V Peak Ave Peak Ave Factor (dB) Corr. Result @3m (dBuV/m) Peak Ave Limit @3m (dBuV/m) Peak Ave. Margin (dB) Table Deg. (Deg.) Ant. High (m) 2063.00063.854.762.754.5-4.459.450.374.054.0-3.7451.0 4176.000------------2.0------74.054.0--------- 6264.000--…
