HFSXI1IoT Gateway

干干干 © HDXI1001010

Quanta Computer Inc. No.188, Wenhua 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C. ) Tel: 886 3 3272345, Fax: 886-3-3961334 Date: Jan, 5, 2016 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: HFSXI1, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, __________________________(Signature) Name: Joyce Kuo E-Mail: [email protected] Quanta Computer Inc.

Quanta Computer Inc. No.188, Wenhua 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C. ) Tel: 886 3 3272345, Fax: 886-3-3961334 Date: Jan, 21, 2016 FCC ID: HFSXI1 To Whom it may concern, We, as the grantee of this project FCC ID: HFSXI1, would like to declare that the device labeled with FCC ID HFSXI1 only supports channel 1-11. Regards, __________________________(Signature) Name: Joyce Kuo E-Mail: [email protected] Quanta Computer Inc.

QUANTA COMPUTER INC. No.188, Wenhua 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C. ) Tel: 886 3 3272345, Fax: 886-3-396133 Date: Jan, 19, 2016 Dear Sir or Madam, Due to the business consideration, we hereby declare that our product of IoT Gateway Model: : XI* (*=0~9, A~Z or Blank) ,Cube have as following difference Serial model XI* (*=0~9, A~Z or Blank) ,Cube are identical with main model XI1 and the difference is for Marketing purpose. Any questions regarding this declaration, please don’t hesitate to contact us. Sincerely, Signature___________________________________ Name: Joyce Kuo E-Mail: [email protected] QUANTA COMPUTER INC.

Quanta Computer Inc. No.188, Wenhua 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C. ) Tel: 886 3 3272345, Fax: 886-3-3961334 Date: Jan, 5, 2016 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. UL Verification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA FCC ID: HFSXI1 To whom it may concern: I, the undersigned, hereby authorize Sam Chung / Manager of Compliance Certification Services Inc. and hereafter referred to as CCSRF , to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Sam Chung / Manager of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCSRF as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Name: Joyce Kuo E-Mail: [email protected] Company name:Quanta Computer Inc. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Quanta Computer Inc. No.188, Wenhua 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C. ) Tel: 886 3 3272345, Fax: 886-3-3961334 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: Jan, 5, 2016 Subject: Request for Confidentiality FCC ID: HFSXI1 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Antenna specification Tune-Up Power Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after the grant date of equipment authorization. External Photos Internal Photos Test Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Sincerely yours, Signature___________________________________ Company Officer: Joyce Kuo Telephone Number: 886-3-3272345x15714 Email: [email protected]

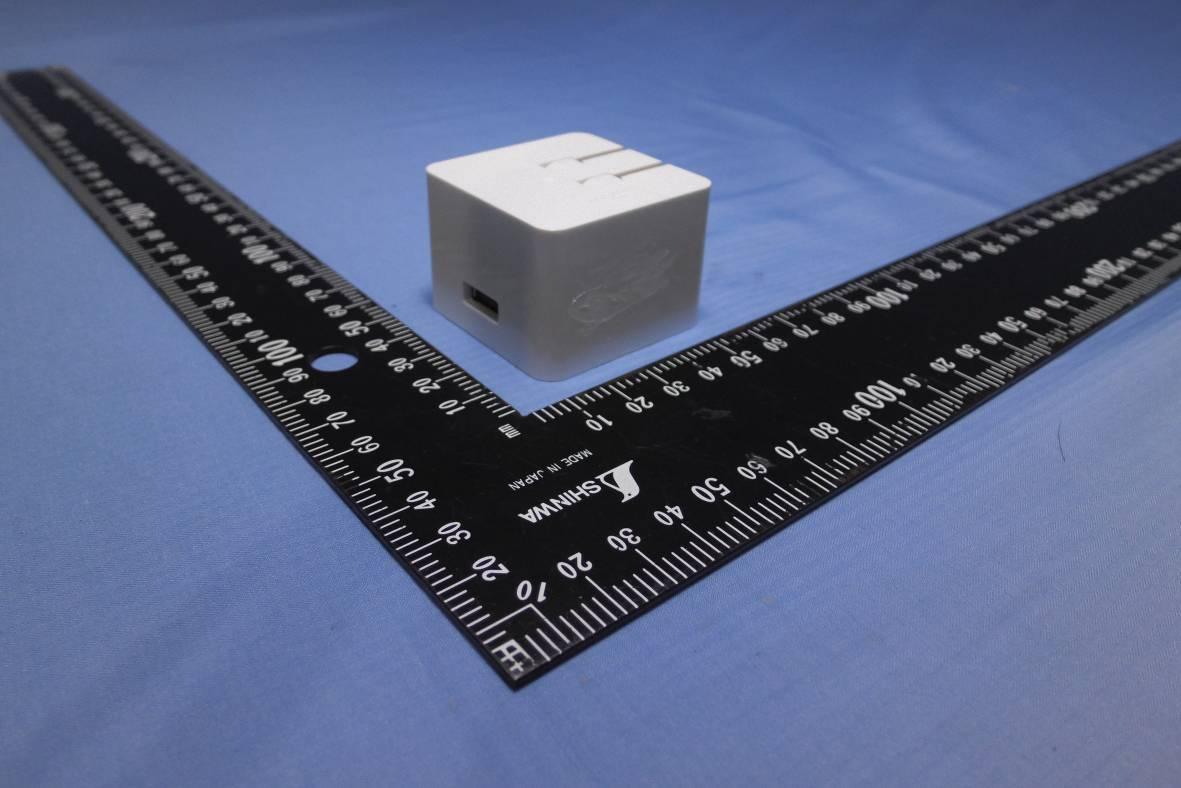

Compliance Certification Services Inc. Report No.: T151228L02 A1 - 1 / 12 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT

Label & Label Location

Compliance Certification Services Inc. Report No.: T151228L02 A1 - 2 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T151228L02 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T151228L02 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T151228L02 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T151228L02 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T151228L02 A1 - 7 Rev. 00 Module Compliance Certification Services Inc. Report No.: T151228L02 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T151228L02 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T151228L02 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T151228L02 A1 - 11 Rev. 00 Antenna Compliance Certification Services Inc. Report No.: T151228L02 A1 - 12 Rev. 00

Compliance Certification Services Inc. Report No.: T151228L02-MF Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. KDB 447498 D03 IEEE C95.1 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 RF EXPOSURE REPORT For IoT Gateway Model: XI*(*=0~9, A~Z or Blank) Trade Name: N/A Issued to Quanta Computer Inc. No.188, Wenhua 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: January 14, 2016 Compliance Certification Services Inc. Report No.: T151228L02-MF Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2016/1/14 Initial Issue ALL Becca Chen Compliance Certification Services Inc. Report No.: T151228L02-MF Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. LIMIT .................................................................................................................... 4 2. EUT SPECIFICATION .......................................................................................... 4 3. TEST RESULTS ................................................................................................... 5 4. MAXIMUM PERMISSIBLE EXPOSURE .............................................................. 6 Compliance Certification Services Inc. Report No.: T151228L02-MF Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. 2. EUT SPECIFICATION EUT IoT Gateway Model XI*(*=0~9, A~Z or Blank) RF Module Broadcom Model: BCM43438 Model Discrepancy All the above models are identical except for the designation of model numbers. The suffix of (*=0~9, A~Z or Blank) on model number is just for marketing purpose only. Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz Bluetooth 2.1 + EDR: 2402 ~ 2480 MHz Bluetooth 4.0: 2402 ~ 2480 MHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Monople-coupled Antenna: 2.4GHz: Antenna Gain :2.19 dBi (Numeric gain:1.66) Maximum Average output power IEEE 802.11b Mode: 16.49 dBm(44.566 mW) IEEE 802.11g Mode:15.77 dBm(37.757 mW) IEEE 802.11n HT 20 Mode: 14.78 dBm(30.061 mW) Bluetooth 2.1 + EDR: 9.14 dBm(8.204 mW) Bluetooth 4.0:7.47 dBm(5.585 mW) Maximum Tune up Power IEEE 802.11b Mode: 18.00 dBm(63.096 mW) IEEE 802.11g Mode:17.00 dBm(50.119 mW) IEEE 802.11n HT 20 Mode: 16.00 dBm(39.811 mW) Bluetooth 2.1 + EDR: 11.00 dBm(12.589 mW) Bluetooth 4.0:9.00 dBm(7.943 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T151228L02-MF Page 5 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 3. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T151228L02-MF Page 6 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 4. MAXIMUM PERMISSIBLE EXPOSURE Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241263.0961.66200.02081 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241250.1191.66200.01661 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 11246239.8111.66200.01321 Bluetooth 2.1 + EDR: : Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1240212.5891.66200.00421 Bluetooth 4.0 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 024027.9431.66200.00261

Compliance Certification Services Inc. FCC ID: HFSXI1 Report No.: T151228L02-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 93 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For IoT Gateway Model: XI*(*=0~9, A~Z or Blank), Cube Trade Name: N/A Issued to Quanta Computer Inc. No.188, Wenhua 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: January 14, 2016 Compliance Certification Services Inc. FCC ID: HFSXI1 Report No.: T151228L02-RP1 Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 January 14, 2016 Initial Issue ALL Becca Chen 01 January 20, 2016 1. Added model no.: Cube 2. Modify IEEE 802.11n HT 20MHz Peak Power 3. Modify radiated emission setting states test. 4. Modify ANSI C63.10:2013 to ANSI C63.10:2009. 5. Modify Un-restricted Band Emissions data. P1, P4, P5, P6, P11, P23, P40~P45 Becca Chen 02 January 26, 2016 1. Modify PPSD data P47~P53 Becca Chen Compliance Certification Services Inc. FCC ID: HFSXI1 Report No.: T151228L02-RP1 Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ......................................................................................... 4 2. EUT DESCRIPTION ............................................................................................................. 5 3. TEST METHODOLOGY ....................................................................................................... 6 3.1 EUT CONFIGURATION .................................................................................................. 6 3.2 EUT EXERCISE .............................................................................................................. 6 3.3 GENERAL TEST PROCEDURES ................................................................................... 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................ 7 3.5 DESCRIPTION OF TEST MODES .................................................................................. 8 4. INSTRUMENT CALIBRATION ............................................................................................. 9 4.1 MEASURING INSTRUMENT CALIBRATION .................................................................. 9 4.2 MEASUREMENT EQUIPMENT USED ............................................................................ 9 4.3 MEASUREMENT UNCERTAINTY ................................................................................ 10 5. FACILITIES AND ACCREDITATIONS ............................................................................... 11 5.1 FACILITIES ................................................................................................................... 11 5.2 EQUIPMENT ................................................................................................................. 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ........................................................... 12 6. SETUP OF EQUIPMENT UNDER TEST ............................................................................ 13 6.1 SETUP CONFIGURATION OF EUT .............................................................................. 13 6.2 SUPPORT EQUIPMENT ............................................................................................... 13 7. FCC PART 15.247 REQUIREMENTS ................................................................................ 14 7.1 6DB BANDWIDTH ......................................................................................................... 14 7.2 PEAK POWER .............................................................................................................. 22 7.3 AVERAGE POWER ...................................................................................................... 24 7.4 BAND EDGES MEASUREMENT .................................................................................. 26 7.5 PEAK POWER SPECTRAL DENSITY .......................................................................... 46 7.6 RADIATED EMISSIONS ............................................................................................... 54 7.7 POWERLINE CONDUCTED EMISSIONS ..................................................................... 87 APPENDIX I PHOTOGRAPHS OF TEST SETUP .................................................................... 90 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: HFSXI1 Report No.: T151228L02-RP1 Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Quanta Computer Inc. No.188, Wenhua 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C.) Equipment Under Test: IoT Gateway Trade Name: N/A Model: XI*(*=0~9, A~Z or Blank), Cube Date of Test: January 7 ~ 11, 2016 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Miller Lee Angel Cheng Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. FCC ID: HFSXI1 Report No.: T151228L02-RP1 Page 5 Rev. 00 2…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: HFSXI1 Report No.: T151228L02-RP3 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 50 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For IoT Gateway Model: XI*(*=0~9, A~Z or Blank), Cube Trade Name: N/A Issued to Quanta Computer Inc. No.188, Wenhua 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: January 14, 2016 Compliance Certification Services Inc. FCC ID: HFSXI1 Report No.: T151228L02-RP3 Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 January 14, 2016 Initial Issue ALL Becca Chen 01 January 20, 2016 1. Added model no.: Cube. 2. Modify DA00-705 to KDB558074. 3. Modify radiated emission setting states test. 4. Modify ANSI C63.10:2013 to ANSI C63.10:2009. P1, P4, P5, P6, P11 Becca Chen Compliance Certification Services Inc. FCC ID: HFSXI1 Report No.: T151228L02-RP3 Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ........................................................................................... 4 2. EUT DESCRIPTION ................................................................................................................ 5 3. TEST METHODOLOGY .......................................................................................................... 6 3.1 EUT CONFIGURATION ..................................................................................................... 6 3.2 EUT EXERCISE ................................................................................................................. 6 3.3 GENERAL TEST PROCEDURES ..................................................................................... 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ......................................... 7 3.5 DESCRIPTION OF TEST MODES .................................................................................... 8 4 INSTRUMENT CALIBRATION ............................................................................................... 9 4.1 MEASURING INSTRUMENT CALIBRATION .................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 9 4.3 MEASUREMENT UNCERTAINTY ................................................................................... 10 5 FACILITIES AND ACCREDITATIONS ................................................................................. 11 5.1 FACILITIES ...................................................................................................................... 11 5.2 EQUIPMENT .................................................................................................................... 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ............................................................. 12 6 SETUP OF EQUIPMENT UNDER TEST .............................................................................. 13 6.1 SETUP CONFIGURATION OF EUT ................................................................................ 13 6.2 SUPPORT EQUIPMENT ................................................................................................. 13 7 FCC PART 15.247 REQUIREMENTS .................................................................................. 14 7.1 6DB BANDWIDTH ........................................................................................................... 14 7.2 PEAK POWER ................................................................................................................. 17 7.3 AVERAGE POWER ......................................................................................................... 18 7.4 BAND EDGES MEASUREMENT ..................................................................................... 19 7.5 PEAK POWER SPECTRAL DENSITY ............................................................................ 26 7.6 RADIATED EMISSIONS .................................................................................................. 29 7.7 POWERLINE CONDUCTED EMISSIONS ....................................................................... 44 APPENDIX I PHOTOGRAPHS OF TEST SETUP ...................................................................... 47 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: HFSXI1 Report No.: T151228L02-RP3 Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Quanta Computer Inc. No.188, Wenhua 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C.) Equipment Under Test: IoT Gateway Trade Name: N/A Model: XI*(*=0~9, A~Z or Blank), Cube Date of Test: January 7 ~ 14, 2016 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Miller Lee Angel Cheng Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. FCC ID: HFSXI1 Report No.: T151228L02-RP3 Page 5 Rev. 00 2. EUT DESCRIPTION Product IoT Gateway Trade Name N/A Model Number …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: HFSXI1 Report No.: T151228L02-RP1 Page 90 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: HFSXI1 Report No.: T151228L02-RP1 Page 91 Rev. 00 Radiated Emissions Setup Photos Below 1 GHz Compliance Certification Services Inc. FCC ID: HFSXI1 Report No.: T151228L02-RP1 Page 92 Rev. 00 Above 1 GHz Compliance Certification Services Inc. FCC ID: HFSXI1 Report No.: T151228L02-RP1 Page 93 Rev. 00 Powerline Conducted Emissions Setup Photos

Compliance Certification Services Inc. FCC ID: HFSXI1 Report No.: T151228L02-RP3 Page 47 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SETUP PHOTOS Compliance Certification Services Inc. FCC ID: HFSXI1 Report No.: T151228L02-RP3 Page 48 Rev. 00 Radiated Emissions Setup Photos Below 1 GHz Compliance Certification Services Inc. FCC ID: HFSXI1 Report No.: T151228L02-RP3 Page 49 Rev. 00 Above 1 GHz Compliance Certification Services Inc. FCC ID: HFSXI1 Report No.: T151228L02-RP3 Page 50 Rev. 00 Powerline Conducted Emissions Setup Photos
