Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices) any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Statement Needed to be Shown on End Product Since this module is installed inside the end product, the end product should be affixed a label on visible area showing that this product contain a RF module, and also its FCC ID. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

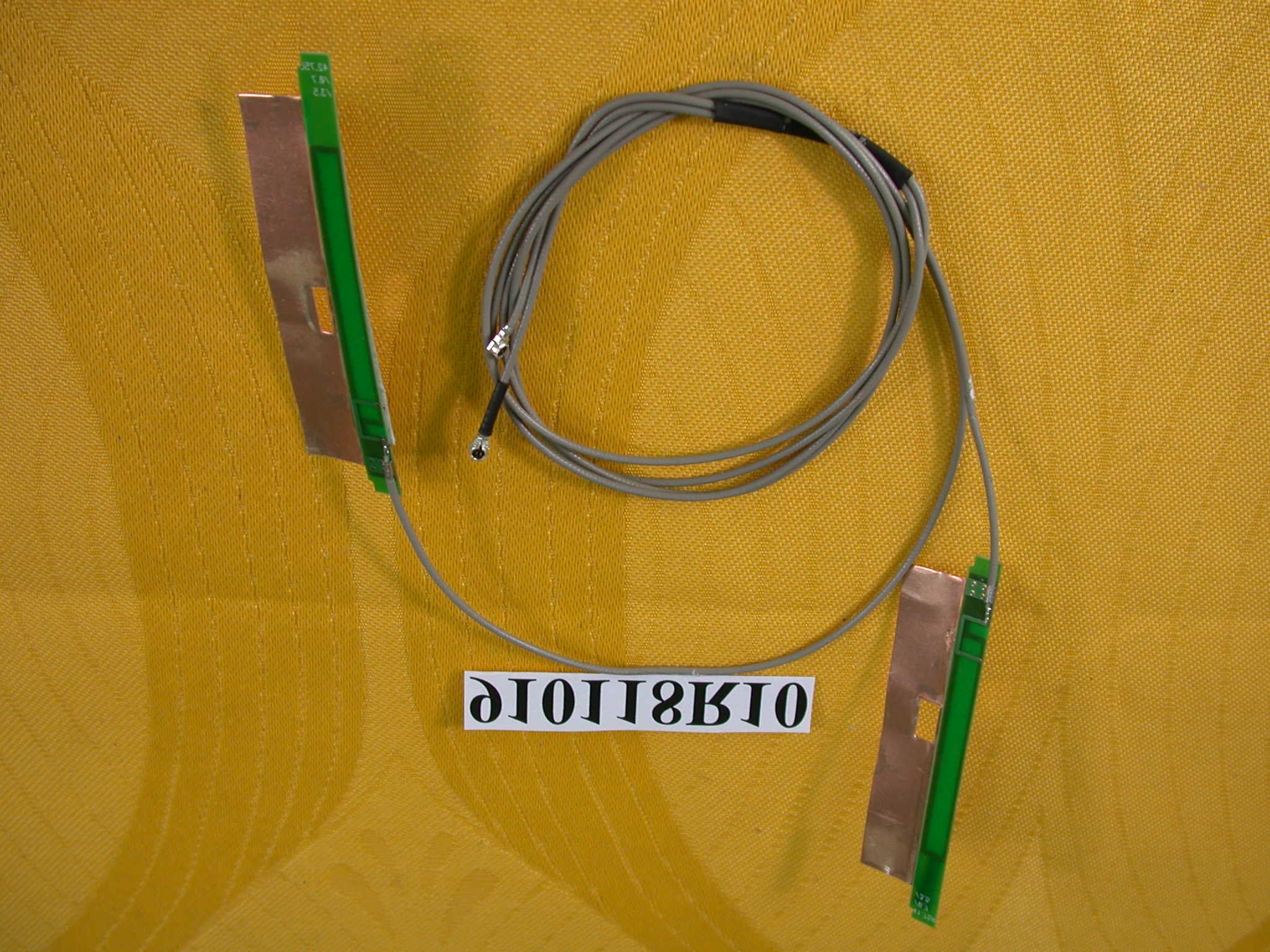

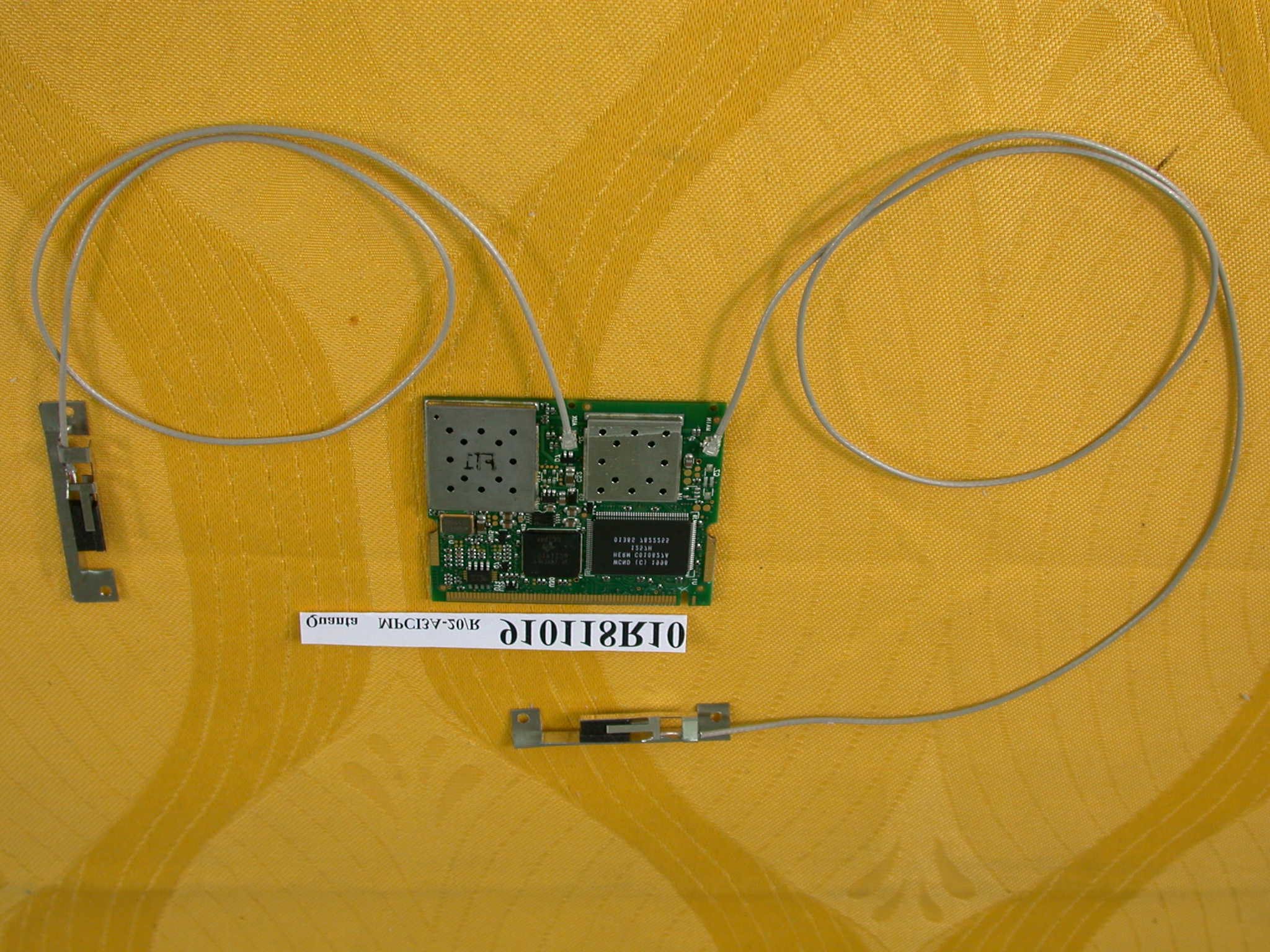

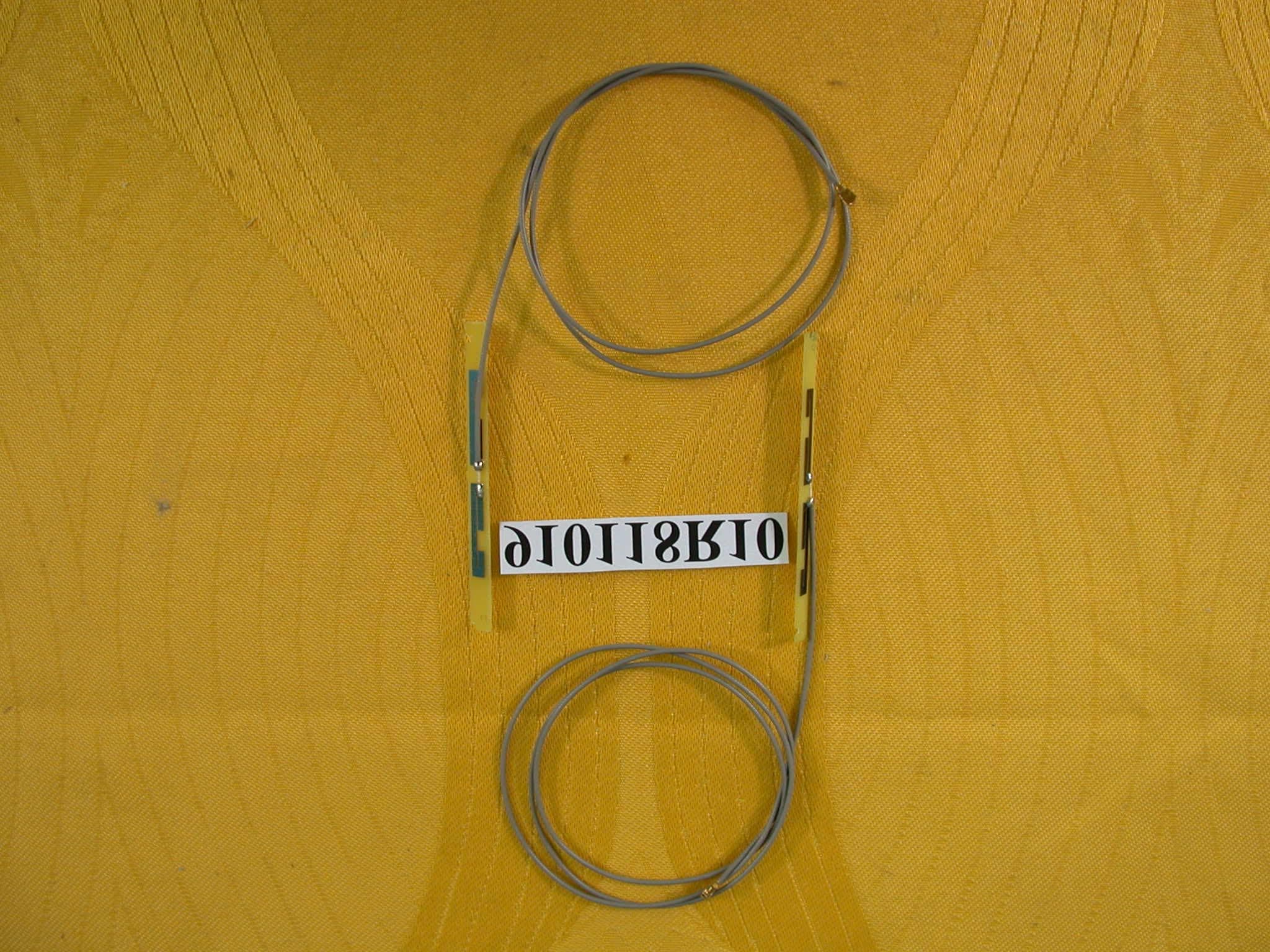

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

Page 3 Page 4

Page 5

FCC ID: Label Location

D D 1 2 3 4 5 6 7 ABCE 7 6 5 4 3 2 1 ECBA LTR NAME MODEL MATERIAL FINISH DATE SCALE UNIT MM DWG. NO. APPROVED DESIGNED DRAWN REV 3A TOL. + - 1 PLC2 PLCANGLE 7F, 116 HOU KANG ST. SHIN LIN, TAIPEI, TAIWAN, R.O.C. ITEMDESCRIPTION REVISIONS DESCRIPTION DATEAPP THE 3RD PROJECTION PART NO. Quanta Computer Inc. 2 1 3 FIRST RELEASE RITA S/N HCYA1005 1/1 HCYA1005 91.01.31 91.01.31 Ya1 WIRELESS LABEL SEE NOTES 3A Rita 0.1 3B SEE NOTES NOTES 3C 8.0 40.0 FCC ID:HFSYA600MPCI3A20R Canada xxxxxxxxxxx ; Quanta: MPCI3A-20/R

Page 6

Page 7 Page 8

FCC ID: HFSYA600MPCI3A20R ADT No.910118R10 Operational Description The transmitter of the EUT is powered by host equipment. The EUT used four antennas that Metal, Dipole, Large Printed and Small Printed Antenna. There is used UFL antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: HFSYA600MPCI3A20R Report No.: RF910118R10 1 Issued: February 22, 2002 FCC TEST REPORT REPORT NO.: RF910118R10 MODEL NO.: MPCI3A-20/R RECEIVED: Jan. 18, 2002 TESTED: Jan. 30 ~ Feb. 19, 2002 APPLICANT:QUANTA COMPUTER INC. ADDRESS: 7F, No. 116, Hou Kang St., Shih Lin, Taipei, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 65 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: HFSYA600MPCI3A20R Report No.: RF910118R10 2 Issued: February 22, 2002 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT ............................................................. 6 3.2DESCRIPTION OF TEST MODES ............................................................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 4TEST TYPES AND RESULTS ...................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4TEST SETUP .............................................................................................. 10 4.1.5EUT OPERATING CONDITIONS.................................................................11 4.1.6TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 18 4.2.2TEST INSTRUMENTS ................................................................................ 19 4.2.3TEST PROCEDURES................................................................................. 20 4.2.4TEST SETUP .............................................................................................. 21 4.2.5EUT OPERATING CONDITIONS................................................................ 21 4.2.6TEST RESULTS(A) ..................................................................................... 22 4.2.7TEST RESULTS(B) ..................................................................................... 27 4.2.8TEST RESULTS(C)..................................................................................... 32 4.2.9TEST RESULTS(D)..................................................................................... 37 4.36dB BANDWIDTH MEASUREMENT .......................................................... 42 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 42 4.3.2TEST INSTRUMENTS ................................................................................ 42 4.3.3TEST PROCEDURE ................................................................................... 43 4.3.4TEST SETUP .............................................................................................. 43 4.3.5EUT OPERATING CONDITIONS................................................................ 43 4.3.6TEST RESULTS.......................................................................................... 44 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 48 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 48 4.4.2TEST INSTRUMENTS ................................................................................ 48 FCC ID: HFSYA600MPCI3A20R Report No.: RF910118R10 3 Issued: February 22, 2002 4.4.3TEST PROCEDURES................................................................................. 49 4.4.4TEST SETUP .............................................................................................. 49 4.4.5EUT OPERATING CONDITIONS................................................................ 49 4.4.6TEST RESULTS.......................................................................................... 50 4.5POWER SPECTRAL DENSITY MEASUREMENT ..................................... 51 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 51 4.5.2TEST INSTRUMENTS ................................................................................ 51 4.5.3TEST PROCEDURE ................................................................................... 52 4.5.4TEST SETUP .............................................................................................. 52 4.5.5EUT OPERATING CONDITIONS................................................................ 52 4.5.6TEST RESULTS.......................................................................................... 53 4.6BAND EDGES MEASUREMENT ................................................................ 57 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 57 4.6.2TEST INSTRUMENTS ................................................................................ 57 4.6.3TEST PROCEDURE ................................................................................... 57 4.6.4EUT OPERATING CONDITIO…

Text truncated - open the document above for the full version.

FCC ID: HFSYA600MPCI3A20R Report No.: RF910118R10 51 Issued: February 22, 2002 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049July 17, 2002 NOTE: 1. The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2. The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: HFSYA600MPCI3A20R Report No.: RF910118R10 52 Issued: February 22, 2002 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3 kHz RBW and 30 kHz VBW, set sweep time=span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3KHz for a full response of the mixer in the spectrum analyzer. 4.5.4 TEST SETUP 4.5.5 EUT OPERATING CONDITIONS Same as 4.3.5 EUT SPECTRUM ANALYZER FCC ID: HFSYA600MPCI3A20R Report No.: RF910118R10 53 Issued: February 22, 2002 4.5.6 TEST RESULTS EUT Wireless module (MiniPCI) MODEL MPCI3A-20/R INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 18 deg. C, 67%RH, 1005 hPa TESTED BY: Bruce Shiau CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-8.628PASS 62437-8.508PASS 112462-8.178PASS FCC ID: HFSYA600MPCI3A20R Report No.: RF910118R10 54 Issued: February 22, 2002 CH1 FCC ID: HFSYA600MPCI3A20R Report No.: RF910118R10 55 Issued: February 22, 2002 CH6 FCC ID: HFSYA600MPCI3A20R Report No.: RF910118R10 56 Issued: February 22, 2002 CH11 FCC ID: HFSYA600MPCI3A20R Report No.: RF910118R10 57 Issued: February 22, 2002 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049July 17, 2002 NOTE: The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. FCC ID: HFSYA600MPCI3A20R Report No.: RF910118R10 58 Issued: February 22, 2002 4.6.4 EUT OPERATING CONDITION Same as Item 4.3.5 4.6.5 TEST RESULTS The spectrum plots are attached on the following 2 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE: The band edge emission plot on the following 2 pages shows 59.13dB delta between carrier maximum power and local maximum emission in restrict band (2.485GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.7 (Page 31) is 99.4dBuV/m, so the maximum field strength in restrict band is 99.4-59.13=40.27 dBuV/m which is under 54 dBuV/m limit. FCC ID: HFSYA600MPCI3A20R Report No.: RF910118R10 59 Issued: February 22, 2002 FCC ID: HFSYA600MPCI3A20R Report No.: RF910118R10 60 Issued: February 22, 2002 FCC ID: HFSYA600MPCI3A20R Report No.: RF910118R10 61 Issued: February 22, 2002 4.7 ANTENNA REQUIREMENT 4.7.1 STANDARD APPLICABLE For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (b), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. 4.7.2 ANTENNA CONNECTED CONSTRUCTION This product used four antennas that are Metal, Dipole, Large Printed and Small Printed Antenna. There is used UFL antenna connector. And the maximum Gain of this antenna is only -2dBi. FCC ID: HFSYA600MPCI3A20R Report No.: RF910118R10 62 Issued: February 22, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: HFSYA600MPCI3A20R Report No.: RF910118R10 63 Issued: February 22, 2002 RADIATED EMISSION TEST FCC ID: HFSYA600MPCI3A20R Report No.: RF910118R10 64 Issued: February 22, 2002 FCC ID: HFSYA600MPCI3A20R Report No.: RF910118R10 65 Issued: February 22, 2002 6 INFORMATION ON THE TESTING LABORATORIES We, ADT Corp., were founded in 1988 to provide our best service in EMC and Safety consultation. Our laboratories are accredited and approved by the following approval agencies according to ISO/IEC 17025, Guide 25 or EN 45001: USAFCC, NVLAP GermanyTUV Rheinland JapanVCCI New ZealandMoC NorwayNEMKO R.O.C.BSMI, DGT, CNLA Copies of accreditation certificates of our laboratories obtained from approval agencies can be downloaded from our web site: www.adt.com.tw/index.5/phtml. If you have any comments, please feel free to contact us at the following: Lin Kou EMC Lab: Tel: 886-2-26052180 Fax: 886-2-26052943 Hsin Chu EMC Lab: Tel: 886-35-935343 Fax: 886-35-935342 Lin Kou Safety Lab: Tel: 886-2-26093195 Fax: 886-2-26093184 Lin Kou RF&Telecom Lab Tel: 886-3-3270910 Fax: 886-3-3270892 Email: [email protected] Web Site: www.adt.com.tw The address and road map of all our labs can be found in our web site also.

FCC ID: HFSYA600MPCI3A20R Report No.: RF910118R10 62 Issued: February 22, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: HFSYA600MPCI3A20R Report No.: RF910118R10 63 Issued: February 22, 2002 RADIATED EMISSION TEST FCC ID: HFSYA600MPCI3A20R Report No.: RF910118R10 64 Issued: February 22, 2002
