HFSZI2WM3B2100Notebook Computer W/802.11b WLAN Module

TravelMate 660 series User’s guide Changes may be made periodically to the information in this publication without obligation to notify any person of such revision or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose. Record the model number, serial number, purchase date, and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your computer. All correspondence concerning your unit should include the serial number, model number, and purchase information. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopy, recording, or otherwise, without the prior written permission of Acer Incorporated. Model number : _________________________________ Serial number: ___________________________________ Purchase date: ___________________________________ Place of purchase: ________________________________ Copyright © 2003 Acer Incorporated. All Rights Reserved. TravelMate 660 series User’s guide Original Issue: June 2003 TravelMate 660 series Notebook computer Acer and the Acer logo are registered trademarks of Acer Incorporated. Other company's product names or trademarks are used herein for identification purposes only and belong to their respective companies. iii English First things first We would like to thank you for making the TravelMate series of notebook computers your choice for your mobile computing needs. We hope you will be happy with your TravelMate as much as we enjoyed making it for you. Yo u r g u i d e s To help you use your TravelMate, we have designed a set of guides: For more information about our products, services, and support information, please visit our Web site (www.acer.com ). First off, the Just for Starters... poster helps you get started with setting up your computer. ThisUser’s guide introduces you to the many ways your computer can help you be more productive. This guide provides clear and concise information about the computer, so read it thoroughly. If you ever need to print out a copy, this User’s guide is also available in PDF (Portable Document Format). Follow these steps: 1 Click on Start,Programs,TravelMate. 2 Click on TravelMate User’s guide. Note: Viewing the file requires Adobe Acrobat Reader installed. For instructions on how to use Adobe Acrobat Reader, access the Help menu. iv English Basic care and tips for using your computer Turning your computer on and off To turn on the computer, simply press the power button on the left of the launch keys found above your TravelMate’s standard keyboard. See “Front view” on page 4 for the location of the power switch. To turn the power off, do any of the following: •Use the Windows shutdown command For Windows 2000: Click on Start,Shut Down..., and select Shut down; then click on OK. - or - For Windows XP: Click on Start,Turn off Computer; then click Tur n Off. •Use the power switch Note: You can also use the power switch to perform power management functions. See Windows help for more information. •Use the customized functions for power management You can also shut down the computer by closing the display cover, or by pressing the sleep hot key (Fn-F4). See the online guide for details. Note: If you cannot power off the computer normally, press and hold the power switch for more than four seconds to shut down the computer. If you turn off the computer and want to turn it on again, wait at least two seconds before powering up. Taking care of your computer Your computer will serve you well if you take care of it. •Do not expose the computer to direct sunlight. Do not place it near sources of heat, such as a radiator. •Do not expose the computer to temperatures below 0ºC (32ºF) or above 50ºC (122ºF). •Do not subject the computer to magnetic fields. v English •Do not expose the computer to rain or moisture. •Do not spill water or any liquid on the computer. •Do not subject the computer to heavy shock and vibration. •Do not expose the computer to dust and dirt. •Never place objects on top of the computer to avoid damaging the computer. •Do not slam the computer display when you close it. •Never place the computer on uneven surfaces. Taking care of your AC adapter Here are some ways to take care of your AC adapter: •Do not connect the adapter to any other device. •Do not step on the power cord or place heavy objects on top of it. Carefully route the power cord and any cables away from personal traffic. •When unplugging the power cord, do not pull on the cord itself but pull on the plug. •The total ampere ratings of the equipment plugged in should not exceed the ampere rating of the cord if you are using an extension cord. Also, the total current rating of all equipment plugged into a single wall outlet should not exceed the fuse rating. Taking care of your battery pack Here are some ways to take care of your battery pack: •Use only batteries of the same kind as replacements. Turn the power off before removing or replacing batteries. •Do not tamper with batteries. Keep them away from children. •Dispose of used batteries according to local regulations. Recycle if at all possible. Cleaning and servicing When cleaning the computer, follow these steps: 1Power off the computer and remove the battery pack. 2Disconnect the AC adapter. vi English 3Use a soft cloth moistened with water. Do not use liquid or aerosol cleaners. 4To clean the display screen, use an LCD cleaning kit. If any of the following occurs: •The computer has been dropped or the body has been damaged. •Liquid has been spilled into the product. •The computer does not operate normally. Please refer to "…

Text truncated - open the document above for the full version.

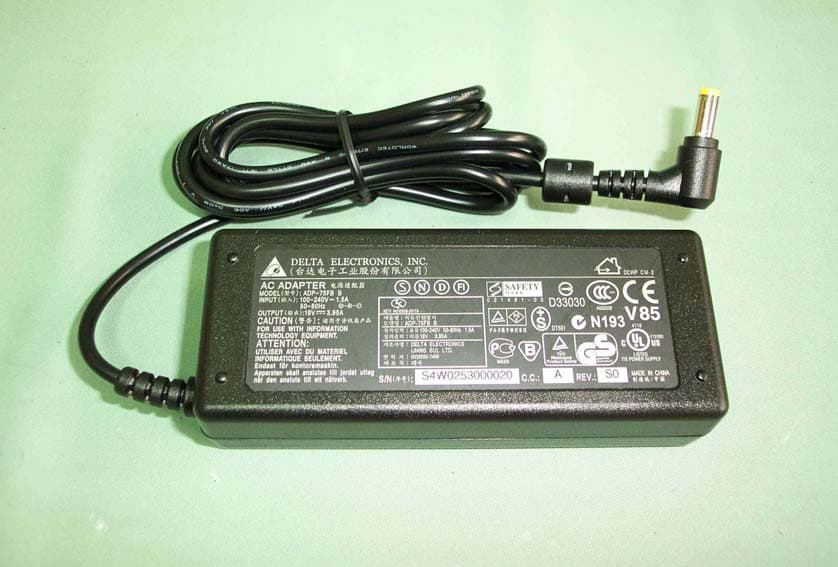

C&C Laboratory Co. Ltd. REPORT NO: 030050-R-ID ID: HFSZI2WM3B2100 DATE: April 16, 2003 APPENDIX 2 EXTERNAL PHOTOGRPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 030050-R-ID ID: HFSZI2WM3B2100 DATE: April 16, 2003 Open of EUT Front of EUT C&C Laboratory Co. Ltd. REPORT NO: 030050-R-ID ID: HFSZI2WM3B2100 DATE: April 16, 2003 Back of EUT Left of EUT C&C Laboratory Co. Ltd. REPORT NO: 030050-R-ID ID: HFSZI2WM3B2100 DATE: April 16, 2003 Right of EUT Front of Adaptor C&C Laboratory Co. Ltd. REPORT NO: 030050-R-ID ID: HFSZI2WM3B2100 DATE: April 16, 2003 Back of adaptor

FCC ID LABEL FORMAT AND LOCATION Applicant: Quanta Computer Inc. FCC ID: HFSZI2WM3B2100 FCC ID: HFSZI2WM3B2100 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

C&C Laboratory Co. Ltd. REPORT NO: 030050-R-ID ID: HFSZI2WM3B2100 DATE: April 16, 2003 APPENDIX 3 INTERNAL PHOTOGRPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 030050-R-ID ID: HFSZI2WM3B2100 DATE: April 16, 2003 Internal of EUT-1 Internal of EUT-2 Antenna Position Antenna Position C&C Laboratory Co. Ltd. REPORT NO: 030050-R-ID ID: HFSZI2WM3B2100 DATE: April 16, 2003 Internal of EUT-3 Front of motherboard C&C Laboratory Co. Ltd. REPORT NO: 030050-R-ID ID: HFSZI2WM3B2100 DATE: April 16, 2003 Back of motherboard Front of RF Module C&C Laboratory Co. Ltd. REPORT NO: 030050-R-ID ID: HFSZI2WM3B2100 DATE: April 16, 2003 Front of RF Module-1 Back of Module C&C Laboratory Co. Ltd. REPORT NO: 030050-R-ID ID: HFSZI2WM3B2100 DATE: April 16, 2003 Antenna

Prepared By: NWInG-CABLE-ME Sheng Tai page1 Date : 2003/4/23 FOXCONN NWInG Antenna Engineering Test Report Quanta ZI2 WLAN Antenna Prepared By: NWInG-CABLE-ME Sheng Tai page2 Date : 2003/4/23 VSWR of WLAN Left Antenna 2. 4 GHz = 1. 10 2. 4 GHz = 1. 33 5. 15GHz = 1. 72 5. 25GHz = 2. 01 5. 35GHz = 1. 55 Cable lengt h = 110+390 mm Prepared By: NWInG-CABLE-ME Sheng Tai page3 Date : 2003/4/23 X-Y Plane Radiation Patte rn of WLAN Left Antenna 2.4GHz ~2.5GHz HORI Z ONTA L POLARI Z A TION VERTIC AL POLARI ZATIO N Prepared By: NWInG-CABLE-ME Sheng Tai page4 Date : 2003/4/23 X-Y Plane Radiation Patte rn of WLAN Left Antenna 5.15GHz ~5.35GHz HORI Z ONTA L POLARI Z A TION VERTIC AL POLARI ZATIO N Prepared By: NWInG-CABLE-ME Sheng Tai page5 Date : 2003/4/23 X-Y Plane Gain of WLAN Left Antenna Average Gain F r e q ( G H z ) 2 . 4 2 . 4 5 2. 5 5 .1 5 5 .2 5 5 .3 5 XY - H ( d B i ) - 1 1. 93 - 1 2. 30 - 1 2. 39 - 9 . 4 6 - 8. 73 - 8 . 5 6 XY - V ( d B i ) - 4 . 5 0 - 4. 95 - 5 . 7 2 - 9. 25 - 8 . 9 0 - 8. 87 A v e r age G a i n - 3 . 7 8 - 4. 22 - 4 . 8 7 - 6. 34 - 5 . 8 0 - 5. 70 Peak Ga in F r e q ( G H z ) 2 .4 2 . 45 2. 5 5 .15 5 .2 5 5 . 3 5 X Y -H(d B i ) - 5 .3 9 - 5. 81 - 6 .42 - 2.2 1 - 1 .59 - 2.0 8 X Y -V (d B i ) - 0 .1 6 - 0. 19 - 0 .95 - 2.6 5 - 1 .30 - 1.4 8 Prepared By: NWInG-CABLE-ME Sheng Tai page6 Date : 2003/4/23 VSW R of WLAN Ri ght Ant e n n a 2. 4 GHz = 1. 56 2. 4 GHz = 1. 42 5. 15GHz = 1. 92 5. 25GHz = 1. 85 5. 35GHz = 1. 10 Cable lengt h = 420 mm Prepared By: NWInG-CABLE-ME Sheng Tai page7 Date : 2003/4/23 X-Y Plane Radiation Patte rn of WLAN Right Antenna 2.4 GHz ~2.5 GHz HORI Z ONTA L POLARI Z A TION VERTIC AL POLARI ZATIO N Prepared By: NWInG-CABLE-ME Sheng Tai page8 Date : 2003/4/23 X-Y Plane Radiation Patte rn of WLAN Right Antenna 5.15 GHz ~ 5.35 GHz HORI Z ONTA L POLARI Z A TION VERTIC AL POLARI ZATIO N Prepared By: NWInG-CABLE-ME Sheng Tai page9 Date : 2003/4/23 Average Gain X- Y Plane Gain of WLAN Ri ght Ant e n n a ( 15” LCD ) F r e q ( G H z ) 2 . 4 2 . 4 5 2. 5 5 .1 5 5 .2 5 5 .3 5 XY - H ( d B i ) - 1 2. 03 - 1 2. 73 - 1 3. 62 - 1 6. 98 - 1 4. 01 - 1 4. 87 XY - V ( d B i ) - 1 0. 37 - 1 1. 55 - 1 2. 69 - 1 2. 76 - 1 1. 67 - 9 . 7 7 A v e r age G a i n - 8 . 1 1 - 9. 09 - 1 0. 12 - 1 1. 37 - 9 . 6 7 - 8. 60 Peak Ga in F r e q ( G H z ) 2 .4 2 . 45 2. 5 5 .15 5 .2 5 5 . 3 5 X Y -H(d B i ) - 3 .8 7 - 5. 38 - 7 .29 - 9.4 1 - 7 .18 - 7.0 7 X Y -V (d B i ) - 4 .2 1 - 5. 60 - 5 .62 - 5.5 8 - 4 .96 - 2.3 9

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for Notebook Computer With 802.11b Wireless LAN MODEL: ZI2 FCC ID: HFSZI2WM3B2100 May 2, 2003 REPORT NO: 03T1947-2 Prepared for Quanta Computer Inc. No. 188, Wen Hwa 2 nd Road Kuei Shan Hsiang, Tao Yuan Shien Taiwan, R. O. C. Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 REPORT NO: 03T1947-2 DATE: May 2, 2003 FCC ID: HFSZI2WM3B2100 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 24 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Date of Tests: May 1 & 2, 2003 Report No: 03T1947-2 APPLICANT: Quanta Computer Inc. No. 188, Wen Hwa 2nd Road Kuei Shan Hsiang, Tao Yuan Shien Taiwan, R. O. C. MODEL: ZI2 FCC ID: HFSZI2WM3B2100 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum (DSSS) Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: 14.43 dBm (Conducted) Max. SAR (1g): 0.0243 mW/g Application Type: Certification FCC Rule Part(s): §15.247 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager REPORT NO: 03T1947-2 DATE: May 2, 2003 FCC ID: HFSZI2WM3B2100 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 24 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. EUT DESCRIPTION ............................................................................................. 4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ............... 5 3. DOSIMETRIC ASSESSMENT SYSTEM ................................................................ 5 3.1. MEASUREMENT SYSTEM DIAGRAM.............................................................................................6 3.2. SYSTEM COMPONENTS.................................................................................................................7 4. EVALUATION PROCEDURES .............................................................................. 9 5. MEASUREMENT UNCERTAINTY ....................................................................... 12 6. EXPOSURE LIMIT ............................................................................................. 13 7. MEASUREMENT RESULTS ............................................................................... 14 7.1. SYSTEM VALIDATION ...................................................................................................................14 7.2. TEST LIQUID CONFIRMATION .....................................................................................................15 7.3. EUT TUNE-UP PROCEDURES......................................................................................................16 7.4. EUT SETUP PHOTOS....................................................................................................................17 7.5. SAR MEASUREMENT RESULTS ..................................................................................................19 8. EUT PHOTOS .................................................................................................... 20 9. EQUIPMENTS LIST & CALIBRATION STATUS .................................................. 22 10. REFERENCES .................................................................................................. 23 11. ATTACHMENTS ................................................................................................ 24 REPORT NO: 03T1947-2 DATE: May 2, 2003 FCC ID: HFSZI2WM3B2100 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 24 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EUT DESCRIPTION APPLICANT: Quanta Computer Inc. No. 188, Wen Hwa 2nd Road Kuei Shan Hsiang, Tao Yuan Shien Taiwan, R. O. C. MODEL: ZI2 FCC ID: HFSZI2WM3B2100 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum (DSSS) Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: 14.43 dBm (Conducted) Max. SAR (1g): 0.0243 mW/g Application Type: Certification FCC Rule Part(s): §15.247 Wireless Module: Wireless LAN - Manufactured “Intel”, model “WM3B2100” Antenna (s): Main / Aux - Manufactured by Foxconn, Part no WDAN-Q1ZI1002 (See attachments for details) 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. REPORT NO: 03T1947-2 DATE: May 2, 2003 FCC ID: HFSZI2WM3B2100 COMPLIANCE CERTIFICATION SERVICES Page: 5 of 24 This report shall not be reproduced except in full, without t…

Text truncated - open the document above for the full version.

Date/Time: 05/01/03 09:47:22 Test Laboratory: Compliance Certification Services File Name: D2450V2 SN 706_12.8 mW.da4 DUT: Dipole Type & Serial Number: D2450V2 SN 706 Program: System Validation (ET3DV6 SN 1577); I/P Power 250 mW, Air temp. 26 deg C, liquid temp. 24 deg C Communication System: CW - 2450 MHz; Frequency: 2450 MHz; Duty Cycle: 1:1 Medium: Head 2450 MHz ( σ = 1.8496 mho/m, ε = 39.94, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.1, 5.1, 5.1); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 1 - TP:1185 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 93.9 V/m Peak SAR = 26.7 mW/g SAR(1 g) = 12.8 mW/g; SAR(10 g) = 5.79 mW/g Power Drift = -0.02 dB Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -21.8 -19.6 -17.4 -15.3 -13.1 -10.9 -8.72 -6.54 -4.36 -2.18 0 Date/Time: 05/02/03 09:53:02 Test Laboratory: Compliance Certification Services File Name: D2450V2 SN 706_12.9 mW.da4 DUT: Dipole Type & Serial Number: D2450V2 SN 706 Program: System Validation (ET3DV6 SN 1577); I/P Power 250 mW, Air temp. 26 deg C, liquid temp. 24 deg C Communication System: CW - 2450 MHz; Frequency: 2450 MHz; Duty Cycle: 1:1 Medium: Head 2450 MHz ( σ = 1.8536 mho/m, ε = 39.55, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.1, 5.1, 5.1); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 1 - TP:1185 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 93.8 V/m Peak SAR = 26.7 mW/g SAR(1 g) = 12.9 mW/g; SAR(10 g) = 5.88 mW/g Power Drift = -0.04 dB Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -22 -19.8 -17.6 -15.4 -13.2 -11 -8.78 -6.59 -4.39 -2.2 0

Date/Time: 05/01/03 14:27:12 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.0233 mW.da4 EUT Seup Configuration 1 (Main Antenna) SAR in dB -2.85 -2.53 -2.21 -1.9 -1.58 -1.26 -0.949 -0.632 -0.316 0 Date/Time: 05/01/03 14:27:12 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.0233 mW.da4 DUT: Quanta Type & Serial Number: Z12 Program: EUT Seup Configuration 1; Air temp 26 deg C & Liquid temp 24 deg C Communication System: DSSS; Frequency: 2412 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.8632 mho/m, ε = 54.89, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 3.59 V/m Peak SAR = 0.0421 mW/g SAR(1 g) = 0.0233 mW/g; SAR(10 g) = 0.0182 mW/g Power Drift = -0.12 dB Area Scan (10x29x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -2.85 -2.53 -2.21 -1.9 -1.58 -1.26 -0.949 -0.632 -0.316 0 Date/Time: 05/01/03 14:27:12 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.0229 mW.da4 DUT: Quanta Type & Serial Number: Z12 Program: EUT Seup Configuration 1; Air temp 26 deg C & Liquid temp 24 deg C Communication System: DSSS; Frequency: 2412 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.8632 mho/m, ε = 54.89, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 3.59 V/m Peak SAR = 0.0464 mW/g SAR(1 g) = 0.0229 mW/g; SAR(10 g) = 0.0181 mW/g Power Drift = -0.12 dB Area Scan (10x29x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -2.53 -2.27 -2.02 -1.77 -1.52 -1.26 -1.01 -0.758 -0.505 -0.253 0 Date/Time: 05/01/03 14:35:46 Test Laboratory: Compliance Certification Services File Name: 2M-CH_0.0223 mW.da4 DUT: Quanta Type & Serial Number: Z12 Program: EUT Seup Configuration 1; Air temp 26 deg C & Liquid temp 24 deg C Communication System: DSSS; Frequency: 2437 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.8632 mho/m, ε = 54.89, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 3.25 V/m Peak SAR = 0.041 mW/g SAR(1 g) = 0.0223 mW/g; SAR(10 g) = 0.0171 mW/g Power Drift = 0.09 dB Area Scan (10x29x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -3.26 -2.93 -2.6 -2.28 -1.95 -1.63 -1.3 -0.977 -0.651 -0.326 0 Date/Time: 05/01/03 14:35:46 Test Laboratory: Compliance Certification Services File Name: 2M-CH_0.0209 mW.da4 DUT: Quanta Type & Serial Number: Z12 Program: EUT Seup Configuration 1; Air temp 26 deg C & Liquid temp 24 deg C Communication System: DSSS; Frequency: 2437 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.8632 mho/m, ε = 54.89, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 3.25 V/m Peak SAR = 0.0467 mW/g SAR(1 g) = 0.0209 mW/g; SAR(10 g) = 0.0167 mW/g Power Drift = 0.09 dB Area Scan (10x29x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -2.4 -2.16 -1.92 -1.68 -1.44 -1.2 -0.962 -0.721 -0.481 -0.24 0 Date/Time: 05/01/03 14:43:46 Test Laboratory: Compliance Certification Services File Name: 3H-CH_0.0243 mW.da4 DUT: Quanta Type & Serial Number: Z12 Program: EUT Seup Configuration 1; Air temp 26 deg C & Liquid temp 24 deg C Communication System: DSSS; Frequency: 2462 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.8632 mho/m, ε = 54.89, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 3.27 V/m Peak SAR = 0.0445 mW/g SAR(1 g) = 0.0243 mW/g; SAR(10 g) = 0.0186 mW/g Power Drift = 0.08 dB Area Scan (10x29x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -3.15 -2.84 -2.52 -2.21 -1.89 -1.58 -1.26 -0.946 -0.631 -0.315 0 Date/Time: 05/01/03 17:08:08 Test Laboratory: Compliance Certification Services File Name: 2M-CH_0.0154 mW .da4 EUT SeupConfiguration 1 (Aux Antenna) SAR in dB -6.55 -5.89 -5.24 -4.58 -3.93 -3.27 -2.62 -1.96 -1.31 -0.655 0 Date/Time: 05/01/03 17:05:22 Test Laboratory: Compliance Certification Services File Name: 2M-CH_0.0154 mW.da4 DUT: Quanta Type & Serial Number: Z12 Program: EUT Seup Configuration 1; Air temp 26 deg C & Liquid temp 24 deg C Communication System: DSSS; Frequency: 2437 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.8632 mho/m, ε = 54.89, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 1.67 V/m Peak SAR = 0.044 mW/g SAR(1 g) = 0.0154 mW/g; SAR(10 g) = 0.00…

Text truncated - open the document above for the full version.

C&C Laboratory Co. Ltd. REPORT NO: 030050-R-ID ID: HFSZI2WM3B2100 DATE: April 16, 2003 APPENDIX 1 PHOTOGRPHS OF SET UP C&C Laboratory Co. Ltd. REPORT NO: 030050-R-ID ID: HFSZI2WM3B2100 DATE: April 16, 2003 PHOTOGRPHS OF SET UP Radiated Emission Set up Photos C&C Laboratory Co. Ltd. REPORT NO: 030050-R-ID ID: HFSZI2WM3B2100 DATE: April 16, 2003 Conducted Emission Set Up Photos
