HFSZW1LWM3B2100Notebook Computer W/802.11b WLAN Module

2 Federal Communications Commission (FCC) Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: •This device may not cause harmful interference, and •This device must accept any interference received; including interference that may cause undesired operation. This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. CAUTION! Changes or modifications to this unit not expressly approved by the party responsible for the compliance could void the user's authority to operate this equipment. FCC RF Radiation Exposure Statement: 1.This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device was tested for typical lap held operations with the device contacted directly to the human body to the back side of the notebook computer. To maintain compliance with FCC RF exposure compliance requirements, avoid direct contact to the transmitting antenna during transmitting. MACROVISION CORPORATION PRODUCT NOTICE This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. 3 CONTENTS TAKING CARE OF YOUR NOTEBOOK PC ................................................... 5 1 BEFORE YOU START ............................................................................... 9 1-1 Making sure you have everything................................................... 9 1-2 Finding where everything is located ............................................ 10 2 GETTING STARTED ............................................................................... 19 2-1 Power Sources ............................................................................... 19 2-2 Display Panel.................................................................................. 22 2-3 Starting Your Notebook PC ........................................................... 24 2-4 Status Display Indicators .............................................................. 26 2-5 Using the Keyboard ....................................................................... 29 2-6 Volume Control .............................................................................. 31 2-7 Power Management........................................................................ 32 3 USING YOUR NOTEBOOK PC ............................................................... 35 3-1 Touchpad Pointing Device ............................................................ 35 3-2 Memory Card Reader ..................................................................... 37 3-3 Optical Drive ................................................................................... 38 3-4 PC Cards ......................................................................................... 45 3-5 Memory Upgrade Module .............................................................. 47 3-6 Device Ports on Optional Port Replicator .................................... 51 4 TROUBLESHOOTING............................................................................ 55 4-1 Identifying the Problem ................................................................. 55 APPENDIX.................................................................................................... 57 Notebook Specifications ....................................................................... 57 WLAN Specifications ............................................................................. 58 4 This page is intentionally left blank. 5 TAKING CARE OF YOUR NOTEBOOK PC To prevent possible overheating of the computer’s processor, make sure you don’t block the openings provided for ventilation. DO NOT place or drop objects on the com- puter and DO NOT apply heavy pressure on it. DO NOT subject the computer to magnetic fields. DO NOT place on uneven or unstable work surfaces. DO NOT press or touch the display panel. DO NOT use your notebook computer under harsh conditions. 6 DO NOT place near fire or other sources of heat. DO NOT tamper with the batteries. Keep them away from children. DO NOT expose to direct sunlight.DO NOT use or store in extreme temperatures. Avoid sudden changes in temperature or hu- midity by keeping it away fromA/C and heat- ing vents. DO NOT expose the computer to rain or mois- ture. 7 DO NOT expose to dust and/or corrosive chemicals. DO NOT slam your notebook shut and never pick up or hold your notebook by the display. DO NOT spray water or any other cleaning flu- ids directly on the display. If you are traveling with your computer, re- member to carry it as hand luggage. Do not check it in as baggage. …

Text truncated - open the document above for the full version.

1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 AA BB CC DD ZW1L BLOCK DIAGRAM (Micro-FCPGA) PG 3,4 ODEM MCH-M 593 BGA PG 5,6,7 ICH4-M 421 BGA PG 9,10,11 SIO PC87391 4X100MHZ 66(266)MHZ, 1.8V HUB I/F ATA 66/100 Clocking PG 2 PG 28 CPU VR PG 36 POWERAC/BATT CONNECTOR BATT CHARGER PG 37 PG 33,34,35 BANIAS PG 12 3.3V LPC, 33MHz (CDROM,DVD,CD-RW,DVD-RW) PG 13 PG 9 Primary IDE - HDD USB PORT 0,1 AGP 1.5V, 66MHz 100 Pins TQFP 33MHZ, 3.3V PCI PG 13 (BLUE TOOTH) USB PORT 4 PC87591 PG 29 Keyboard PG 29 FLASH PG 29PG 29 Touchpad CK408 176 Pins LQFP 478 Pins USB 2.0 PG 19 AC-LINK DDR SDRAM 2.5V, 266MHz DDR-SODIMM1 DDR-SODIMM2 PG 8 PSB CPU Thermal Sensor PG 3 BANIAS / ODEM PG 18 RJ11 FAN 1 PG 30 Secondary IDE - MEDIA Bay Video Controller PG 20,21,22 LVDS PG 13 USB PORT 2,3 ATI M7/M9 Port Replicator PG 31 DC Jack,Modem port CRT port(VGA & S-Video) Audio jacks(Analog & Digital) Ethernet port KB/Mouse,Serial port 2XUSB(2,3),Parallel port PG 37 CRT port R.G,B PG 23 LCD Panel PG 24 DDR 32MB/64MB TV out PG 23 +1.8V 2.5VSUS 5VPCU 3V_591 PG 25,26,27 AUDIOMDC CARD BUS SLOTS CARDBUS PG 15 MICREL 280 MINI-PCI PG 19 IEEE-1394 PG 16 TI-TPA43AB21 PG 17 BCM4401/5702 LAN 10/100/1G O2 OZ6912 VCC_CORE +VCCP +VCCP +1.2V +2.5VSUS +1.8V +1.8V +1.8V +1.5V+1.5V +1.5V +3VSUS +3V +3V+3V+3VAUX +2.5V +2.5VSUS+1.25V 3V_591 +3V_S5 +3V Parallel +5V RS232 +5V PG 31PG 28 FIR PG 28 +3/5V3V_591+5V+5V +5V +5VSUS +5VSUS +3V+5VA +3VAUX +5V +3VAUX PG 14 +12V +3V +5V +5V +5V +VCCP +1.8V+3V +3V 4 in 1 Card Reader PG 13 RJ45 PG 18 Bridge Battery PG 12 Schematic Block Digram 3A 138Tuesday, April 01, 2003 A3 SizeDocument NumberRev Date:Sheet of Quanta Computer Inc. PROJECT : ZW1L

From: Mike Kuo Sent: Sunday, June 15, 2003 4:38 PM To: Eric (E-mail); Eva Kao (E-mail); Lucy (E-mail); Ting (E-mail); Jonson Lee (E-mail); Vincent (E-mail) Cc: Shirley Kang Subject: FW: Quanta Computer Inc., FCC ID:HFSZW1LWM3B2100, AN03T2891 -----Original Message----- From: CERTADM Sent: Sunday, June 15, 2003 4:36 PM To: '[email protected]' Subject: Quanta Computer Inc., FCC ID:HFSZW1LWM3B2100, AN03T2891 Notice_content ------------- Question #1: Page 25 of DTS test report: there is no six highest data reported for AC line conducted tests. Please provide the data. Question #2: SAR Test Report : Page 15 / 16 and 17 of test report, for some of liquid which is difficult to tune to the target value, FCC allows to have wider deviation to the target value. However, only the permittivity allows to have <+/- 10% but the conductive shall be maintained within <+/- 5%. Even though the measured liquid parameter are within +/- 5%, please correct your test report on the limits. Question #3: SAR Test report : Page 18, configuration 2 item 3: EUT location in the card slot: lower slot. How many slots are in the host PC ? The transmitter module is mini-PCI card. Based upon the internal photos of notebook computer, there is only one mini-PCI slot. Please explain. Question #4: In the SAR test data plots, it includes configuration #3 and #4 test plots but there is no such description for configuration #3 and #4 documented in the SAR test report. Please provide detail description to explain the configuration #3 and #4. Please note : the Sar tabular test data must have same reference as Sar test data plot for quick reference. All Sar test data plots do not provide detail description of each configuration so the reviewer can only use configuration description to understand the test configuration. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

C&C Laboratory Co. Ltd. REPORT NO:030057-R-ID ID: HFSZW1LWM3B2100 DATE: May 7, 2003 Page 32 Rev. 00 APPENDIX 2 EXTERNAL PHOTOGRPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO:030057-R-ID ID: HFSZW1LWM3B2100 DATE: May 7, 2003 Page 33 Rev. 00 Front of EUT Back of EUT C&C Laboratory Co. Ltd. REPORT NO:030057-R-ID ID: HFSZW1LWM3B2100 DATE: May 7, 2003 Page 34 Rev. 00 Left of EUT Right of EUT C&C Laboratory Co. Ltd. REPORT NO:030057-R-ID ID: HFSZW1LWM3B2100 DATE: May 7, 2003 Page 35 Rev. 00 Open of EUT Bottom of EUT C&C Laboratory Co. Ltd. REPORT NO:030057-R-ID ID: HFSZW1LWM3B2100 DATE: May 7, 2003 Page 36 Rev. 00 Front of Adaptor Back of Adaptor

FCC ID / IC LABEL FORMAT AND LOCATION Applicant: Quanta Computer Inc. FCC ID: HFSZW1LWM3B2100 IC: 1787B-ZW1L21 FCC ID: HFSZW1LWM3B2100 IC: 1787B-ZW1L21 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. “Complies with Canada RSS-210” LABEL AREA

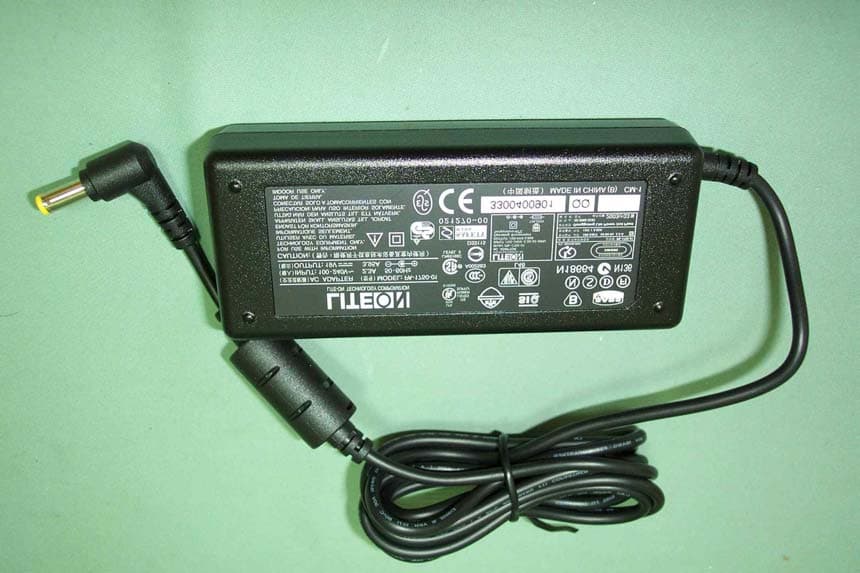

C&C Laboratory Co. Ltd. REPORT NO:030057-R-ID ID: HFSZW1LWM3B2100 DATE: May 7, 2003 Page 37 Rev. 00 APPENDIX 3 INTERNAL PHOTOGRPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO:030057-R-ID ID: HFSZW1LWM3B2100 DATE: May 7, 2003 Page 38 Rev. 00 Internal of EUT-1 Internal of EUT-2 C&C Laboratory Co. Ltd. REPORT NO:030057-R-ID ID: HFSZW1LWM3B2100 DATE: May 7, 2003 Page 39 Rev. 00 Internal of EUT-3 Internal of EUT-4 Antenna Position Antenna Position C&C Laboratory Co. Ltd. REPORT NO:030057-R-ID ID: HFSZW1LWM3B2100 DATE: May 7, 2003 Page 40 Rev. 00 Internal of EUT-5 Internal of EUT-6 C&C Laboratory Co. Ltd. REPORT NO:030057-R-ID ID: HFSZW1LWM3B2100 DATE: May 7, 2003 Page 41 Rev. 00 Front of motherboard Back of motherboard C&C Laboratory Co. Ltd. REPORT NO:030057-R-ID ID: HFSZW1LWM3B2100 DATE: May 7, 2003 Page 42 Rev. 00 Antenna Antenna C&C Laboratory Co. Ltd. REPORT NO:030057-R-ID ID: HFSZW1LWM3B2100 DATE: May 7, 2003 Page 43 Rev. 00 Front of Module Back of Module C&C Laboratory Co. Ltd. REPORT NO:030057-R-ID ID: HFSZW1LWM3B2100 DATE: May 7, 2003 Page 44 Rev. 00 Internal of Module --- 1 Internal of Module --- 2 C&C Laboratory Co. Ltd. REPORT NO:030057-R-ID ID: HFSZW1LWM3B2100 DATE: May 7, 2003 Page 45 Rev. 00 Internal of Module --- 3

CUSTOMER NAME : QUANTA DESCRIPTION: RF CABLE ASS'Y CUSTOMER P/N.: HON HAI P/N. : FX01A51-00 DATE: 4/3'03 REV : A PLEASE RETURN TO US ONE COPY OF "SPECIFICATION FOR APPROVAL" WITH YOUR CONFIRMATIVE SIGNATURES. SIGNATURES Hon Hai Precision Industry Co., Ltd. FOXCONN COMPUTER CONNECTOR (KUN SHAN) CO.,LTD. No 999 BEIMEN ROAD YUSHAN TOWN KUNSHAN CITY, JIANGSU PROVINCE CHINA TEL: (0520)7790998 FAX: (0520)7790998-2837 UNIFORM INVOICE NUMBER: 04541302 SPECIFICATION FOR APPROVAL WDAN-Q1ZW1001 DESCRIPTION: RF CABLE ASS'Y CUSTOMER P/N: HON HAI P/N: REV NO: X1 ATTACHMENT: 1. CABLE ASS'Y CUSTOMER DRAWING 2. BILL OF MATERIAL FOR P/N: WDAN-Q1ZW1001 REV.NO. DATE CHANGES. DWG. NO. X14/3'03605-0100-512 R&D PREPARED X.F Lin 4/3'03 APPROVEDCHECKED S.T ZHANG 4/3'03 HON HAI PRECISION INC.CO.,LTD. SPECIFICATION FOR APPROVAL C.C Wang 4/3'03 WDAN-Q1ZW1001 HON HAI PRECISION INDUSTRY CO., LTD FOXCONN COMPUTER CONNECTOR (KUN SHAN) CO., LTD. NO. 999 BEIMEN ROAD YUSHAN TOWN KUNSHAN CITY, JIANGSU PROVINCE CHINA HON HAI P/N: CUSTOMER P/N: DESCRIPTION:RF CABLE ASS'Y DESCRIPTIONVENDERUNITREMARK 01-01012008-001 01-01012009-001 052-0001-585FOXCONN1 052-0002-585FOXCONN1 703-3208-21132 AWG OD=1.13mmFOXCONNA/R 703-3200-21133 AWG OD=1.13mmFOXCONNA/R SGX0001-00RF CONNFOXCONN2 090-0003-033H.S Tube A/R PREPARED: X.F Lin 4/3'03 Sheet Metal P/N BILL OF MATERIAL APR.:C.C Wang 4/3'03CHK:S.T ZHANG 4/3'03 PCB PCB WDAN-Q1ZW1001 Sheet Metal F O X C O N N C C B G Prepared By: NWInG-CABLE-ME Shwan Hung page1 Date : 2003/04/02 FOXCONN NWInG Antenna Engineering Test Report QUANTA ZW1 WLAN Antenna C Test Report Prepared By: NWInG-CABLE-ME Shwan Hung page2 Date : 2003/04/02 Prepared By: NWInG-CABLE-ME Shwan Hung page3 Date : 2003/04/02 VSWR of Right Antenna with 14 “ p anel VS W R 12345 2 2.5 3 3.5 4 4.5 5 5.5 6 F r eq ( G H z) SWR 2.4 GHz = 1.5202.45GHz = 1.3292.5 GHz = 1.4515.15GHz = 1.1355.25GHz = 1.5305.35GHz = 1.259 Cable length = 447 mm Prepared By: NWInG-CABLE-ME Shwan Hung page4 Date : 2003/04/02 X-Y Plane Radiation Pattern of Right Antenna In 2.4 GHz~ 2.5 GHz HORIZONTAL POLARIZATION VERTICAL POLARIZATION Prepared By: NWInG-CABLE-ME Shwan Hung page5 Date : 2003/04/02 X-Y Plane Radiation Pattern of Right Antenna In 5.15 GHz~ 5.35 GHz HORIZONTAL POLARIZATION VERTICAL POLARIZATION Prepared By: NWInG-CABLE-ME Shwan Hung page6 Date : 2003/04/02 X-Y Plane Gain of Right Antenna 14 “ p anel Average Gain F r e q ( G H z ) 2 .4 2.45 2.5 5 .15 5 .25 5 .35 X Y -H (d B i ) - 9 .74 - 9.77 - 9 .58 - 11.08 - 10.34 - 10.77 XY- V ( d B i ) - 7 .63 - 7.24 - 7 .00 - 7.73 - 7 .23 - 7.50 A v e r age G a i n - 5 .55 - 5.31 - 5 .09 - 6.08 - 5 .50 - 5.83 Peak Gain F r e q ( G H z ) 2 .4 2.45 2.5 5 .15 5 .25 5 .35 X Y -H (d B i ) - 3 .61 - 4.57 - 4 .91 - 3.77 - 3 .55 - 3.66 X Y -V (d B i ) - 1 .89 - 1.23 - 1 .03 - 1.44 - 2 .09 - 1.47 Prepared By: NWInG-CABLE-ME Shwan Hung page7 Date : 2003/04/02 VSWR of Left Antenna with 14 “ p anel VS W R 12345 2 2.5 3 3.5 4 4.5 5 5.5 6 F r eq ( G H z) SWR 2.4 GHz = 1.6662.45GHz = 1.3362.5 GHz = 1.4575.15 GHz = 1.3735.25 GHz = 1.4525.35 GHz = 1.366 Cable length = 287 mm Prepared By: NWInG-CABLE-ME Shwan Hung page8 Date : 2003/04/02 X-Y Plane Radiation Pattern of Left Antenna In 2.4GHz~2.5GHz HORIZONTAL POLARIZATION VERTICAL POLARIZATION Prepared By: NWInG-CABLE-ME Shwan Hung page9 Date : 2003/04/02 X-Y Plane Radiation Pattern of Left Antenna In 5.15GHz~ 5.35GHz HORIZONTAL POLARIZATION VERTICAL POLARIZATION Prepared By: NWInG-CABLE-ME Shwan Hung page10 Date : 2003/04/02 X-Y Plane Gain of Left Antenna 14 “ p anel Average Gain F r e q ( G H z ) 2 .4 2.45 2.5 5 .15 5 .25 5 .35 X Y -H (d B i ) - 11.69 - 11.62 - 11.40 - 10.20 - 9 .36 - 11.10 XY- V ( d B i ) - 6 .47 - 6.06 - 6 .10 - 6.41 - 6 .55 - 6.90 A v e r age G a i n - 5 .33 - 5.00 - 4 .97 - 4.89 - 4 .72 - 5.50 Peak Gain F r e q ( G H z ) 2 .4 2.45 2.5 5 .15 5 .25 5 .35 X Y -H (d B i ) - 5 .76 - 5.68 - 6 .37 - 4.71 - 2 .63 - 4.29 X Y -V (d B i ) - 1 .91 - 0.73 - 0 .42 2 .15 2 .47 2 .59 Prepared By: NWInG-CABLE-ME Shwan Hung page11 Date : 2003/04/02 VSWR of Right Antenna with 15 “ p anel VS W R 12345 2 2.5 3 3.5 4 4.5 5 5.5 6 Fr e q ( G H z ) SWR 2.4 GHz = 1.7012.45GHz = 1.7092.5 GHz = 1.6975.15 GHz = 1.5475.25 GHz = 1.3905.35 GHz = 1.279 Cable length = 447 mm Prepared By: NWInG-CABLE-ME Shwan Hung page12 Date : 2003/04/02 X-Y Plane Radiation Pattern of Right Antenna In 2.4 GHz~ 2.5 GHz HORIZONTAL POLARIZATION VERTICAL POLARIZATION Prepared By: NWInG-CABLE-ME Shwan Hung page13 Date : 2003/04/02 X-Y Plane Radiation Pattern of Right Antenna In 5.15 GHz~ 5.35 GHz HORIZONTAL POLARIZATION VERTICAL POLARIZATION Prepared By: NWInG-CABLE-ME Shwan Hung page14 Date : 2003/04/02 X-Y Plane Gain of Right Antenna 15 “ p anel Average Gain F r e q ( G H z ) 2 .4 2.45 2.5 5 .15 5 .25 5 .35 X Y -H (d B i ) - 8 .50 - 8.50 - 9 .04 - 11.92 - 11.44 - 11.69 XY- V ( d B i ) - 7 .33 - 7.59 - 6 .93 - 7.67 - 6 .94 - 7.13 A v e r age G a i n - 4 .86 - 5.01 - 4 .85 - 6.28 - 5 .62 - 5.83 Peak Gain F r e q ( G H z ) 2 .4 2.45 2.5 5 .15 5 .25 5 .35 X Y -H (d B i ) - 2 .65 - 1.94 - 2 .19 - 4.84 - 5 .00 - 4.48 X Y -V (d B i ) - 2 .55 - 1.74 - 1 .68 - 0.69 - 1 .58 - 1.36 Prepared By: NWInG-CABLE-ME Shwan Hung page15 Date : 2003/04/02 VSWR of Left Antenna with 15 “ p anel VS W R 12345 2 2.5 3 3.5 4 4.5 5 5.5 6 Fr e q ( G H z ) SWR 2.4 GHz = 1.6562.45GHz = 1.5182.5 GHz = 1.2715.15 GHz = 1.2615.25 GHz = 1.5355.35 GHz = 1.504 Cable length = 287 mm Prepared By: NWInG-CABLE-ME Shwan Hung page16 Date : 2003/04/02 X-Y Plane Radiation Pattern of Left Antenna In 2.4GHz~2.5GHz HORIZONTAL POLARIZATION VERTICAL POLARIZATION Prepared By: NWInG-CABLE-ME Shwan Hung page17 Date : 2003/04/02 X-Y Plane Radiation Pattern of Left Antenna In 5.15GHz~ 5.35GHz HORIZONTAL POLARIZATION VERTICAL POLARIZATION Prepared By: NWInG-CABLE-ME Shwan Hung page18 Date : 2003/04/02 X-Y Plane Gain of Left Antenna 15 “ p anel Average Gain F r e q ( G H z ) 2 .4 2.45 2.5 5 .15 5 .25 5 .35 X Y -H (d B i ) - 10.72 - 10.75 - 10.00 - 10.51 - 9 .67 - 10.64 XY…
