HLEMS912P2DBWireless Pocket 2D Scanner

© 2022 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners Wireless Pocket 2D Scanner - MS912 Plus - User's Manual Version 1.0 © 2022 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners Revision History Date Change Description Version 20221122 First Published Version V1.0 i © 2022 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners About This Manual Preface Thank you for purchasing the Unitech product. This manual explains how to install, operate and maintain our product. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, such as photocopying, recording, or information storage and retrieval systems, without permission in writing from the manufacturer. The material in this manual is subject to change without notice. Regulatory Compliance Statements FCC Warning Statement This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference with radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference with radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to ii © 2022 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help. 1.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure requirements, avoid direct contact to the transmitting antenna during transmitting. 3.Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. FCC Label Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference. 2.This device must accept any interference received, including interference that may cause undesired operation. European Conformity Statement Unitech Electronics co., Ltd herewith declares that the Unitech product is in compliance with the essential requirements and all other provisions of the RED 2014/53/EU directive. The declaration of conformity is available for download at : https://portal.Unitech.eu/public/Safetyregulatorystatement iv © 2022 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners RoHS Statement This device conforms to RoHS (Restriction Of Hazardous Substances) European Union regulations that set maximum concentration limits on hazardous materials used in electrical and electronic equipment. Waste electrical and electronic equipment (WEEE) Unitech has set up a policy and process to meet the 2012/19/EU concerning electronic waste disposal. For more detailed information of the electronic waste disposal of the products you have purchased from Unitech directly or via Unitech’s resellers, you shall either contact your local supplier or visit us at : https://portal.Unitech.eu/public/WEEE v © 2022 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners Taiwan NCC Warning Statement 低功率警語法規規範 取得審驗證明之低功率射頻器材， 非經核准，公司、商號或使用者均不得擅自變 更頻率、加大功率或變更原設計之特性及功能。低功率射頻器材之使用不得影響 飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾 時方得繼續使用。前述合法通信，指依電信管理法規定作業之無線電通信。低功 率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 應避免影響附近雷達系統之操作。 vi © 2022 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners Laser Information The Unitech product is certified in the U.S. to conform to the requirements of DHHS/CDRH 21CFR Subchapter J and to the requirements of IEC 60825-1. Class II and Class 2 products are not considered to be hazardous. The Unitech product contains internally a Visible Laser Diode (VLD) whose emissions do not exceed the maximum limits as set forth in the above regulations. The scanner is designed so that there is no human access to harmful laser light during normal operation, user maintenance or prescribed service operations. The laser safety warning label required by the DHHS/IEC fo…

Text truncated - open the document above for the full version.

Battery 3.7V Battery Charge IC 2D ENGINE Bluetooth Module (FSC-BT981) LDO 3.3V Indicate LED 24MHz 32.768KHz U3&U6 X1 X2 U7 MCU HT32F12365 LDO 3.3V U2 U1 CN1 USB(Type-C) J5 LDO 3.3V U4 16MHz LDO 3.3V Buzzer J2 U2 LED U5 MX25L1606E U1 BZ1

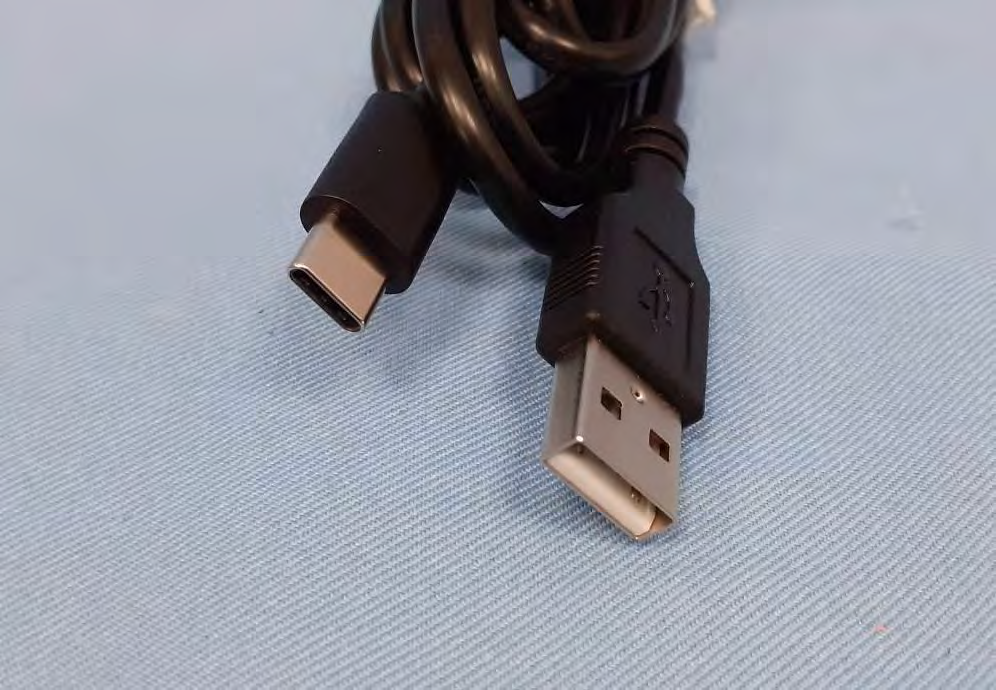

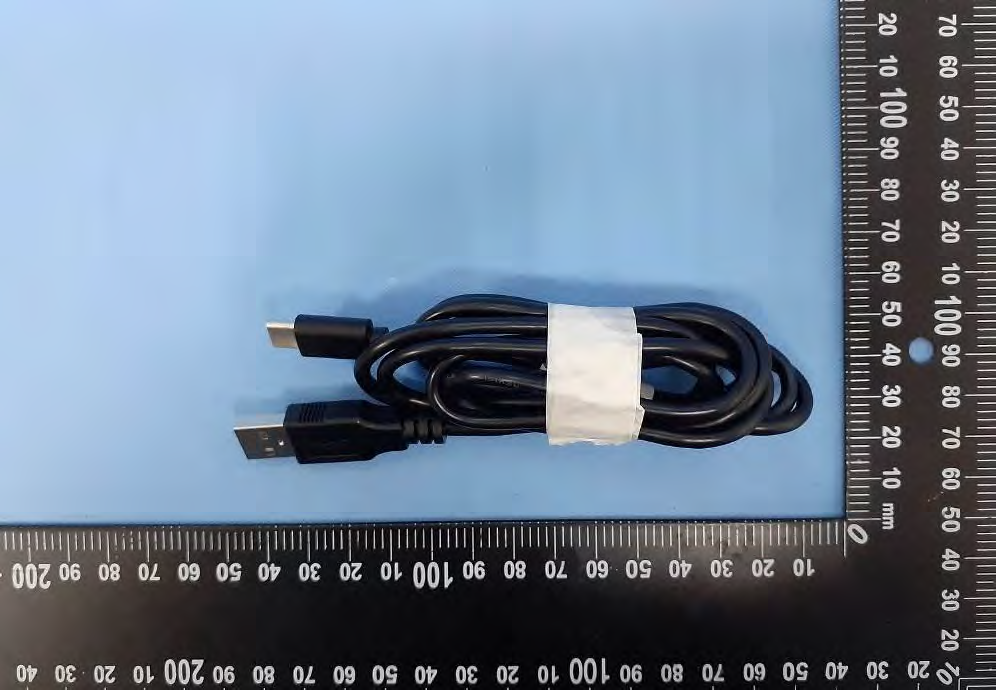

22 -2146_EUT External Photos Page 1 of 6 External Photos Model Number: MS912 Plus 22 -2146_EUT External Photos Page 2 of 6 EUT Photo (1) EUT Photo (2) 22 -2146_EUT External Photos Page 3 of 6 EUT Photo (3) EUT Photo (4) 22 -2146_EUT External Photos Page 4 of 6 EUT Photo (5) EUT Photo (6) 22 -2146_EUT External Photos Page 5 of 6 EUT Photo (7) EUT Photo (8) 22 -2146_EUT External Photos Page 6 of 6 EUT Photo (9)

MS912 Plus Product Label Label location: Bottom S/N: 50AKXXXXXXX Model: MS912 Plus Wireless Pocket 2D Scanner MS912-2UBB00-SG 2D FCC ID: HLEMS912P2DB D35280 RoHS *50AKXXXXXXX* Made In Taiwan VER: HM3-t-1.00.BTB R xxx-xxxxxx XXXXXXXXXXXXXX Label location: Bottom 3.7V 230mA

22-2146_EUT Internal Photos Page 1 of 12 Internal Photos Model Number: MS912 Plus 22-2146_EUT Internal Photos Page 2 of 12 EUT Photo (1) EUT Photo (2) 22-2146_EUT Internal Photos Page 3 of 12 EUT Photo (3) EUT Photo (4) 22-2146_EUT Internal Photos Page 4 of 12 EUT Photo (5) EUT Photo (6) 22-2146_EUT Internal Photos Page 5 of 12 EUT Photo (7) EUT Photo (8) 22-2146_EUT Internal Photos Page 6 of 12 EUT Photo (9) EUT Photo (10) 22-2146_EUT Internal Photos Page 7 of 12 EUT Photo (11) EUT Photo (12) 22-2146_EUT Internal Photos Page 8 of 12 EUT Photo (13) EUT Photo (14) 22-2146_EUT Internal Photos Page 9 of 12 EUT Photo (15) EUT Photo (16) 22-2146_EUT Internal Photos Page 10 of 12 EUT Photo (17) EUT Photo (18) 22-2146_EUT Internal Photos Page 11 of 12 EUT Photo (19) EUT Photo (20) Bluetooth ANT. 22-2146_EUT Internal Photos Page 12 of 12 EUT Photo (21)

Operational Description FSC-BT981 is a high-performance, highly integratedBluetooth 5.0 BR/BLE, designed to operate on the2400MHz to 2480Mhz ISM frequency band.Abundant peripherals, power-on reset (POR) and I2C, arithmetic accelerators further reduce the cost and sizeof the entire system. The EUT is a BT Dual mode Module with built-in Bluetooth 5.0 transceiver. This device is GFSK(1Mbps) of transmitting speed and modulation. Frequency hopping spread spectrum systems are not required to employ all available hopping channels during each transmission. The transmitter is presented with a continuous data stream. In addition, a system employing short transmission bursts must comply with the definition of a frequency hopping system and must distribute its 40 channels. In Basic Rate Mode,the number of the channels is 79 in 2402MHz - 2480Mhz. This device provides three kinds of transmitting speed and modulation, respectively GFSK(1Mbps) /π/4DQPSK(2Mbps) / 8DPSK(3Mbps). The system receivers have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shift frequencies in synchronization with the transmitted signals. Frequency hopping spread spectrum systems are not required to employ all available hopping channels during each transmission. The transmitter is presented with a continuous data stream. In addition, a system employing short transmission bursts must comply with the definition of a frequency hopping system and must distribute its 79 channels and over the minimum number of hopping channels (75 channels). The incorporation of intelligence within a frequency hopping spread spectrum system that permits the system to recognize other users within the spectrum band so that it individually and independently chooses and adapts its hop sets to avoid hopping on occupied channels is permitted. The coordination of frequency hopping systems in any other manner for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters is not permitted. Execute SDoC for Part15B.

Page 1 of 8 Report Number: 2302FS13 Version: 00 RF Exposure Exemption Applicant ： unitech electronics co., ltd. Product Name ： Wireless Pocket 2D Scanner Trade Name ： unitech Model Number ： MS912 Plus Applicable Standard ： 47 CFR §2.1093 Received Date ： Dec. 27, 2022 Issue Date ： Feb. 15, 2023 Issued by Approved By ： Eurofins E&E Wireless Taiwan Co., Ltd. No. 140-1, Changan Street, Bade District, Taoyuan City 334025, Taiwan (R.O.C.) Tel：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 Test Firm MRA designation number: TW0010 Note: 1.The test results are valid only for samples provided by customers and under the test conditions described in this report. 2.This report shall not be reproduced except in full, without the written approval of Eurofins E&E Wireless Taiwan Co., Ltd. 3.The relevant information is provided by customers in this test report. According to the correctness, appropriateness or completeness of the information provided by the customer, if there is any doubt or error in the information which affects the validity of the test results, the laboratory does not take the responsibility. Page 2 of 8 Report Number: 2302FS13 Version: 00 Revision History Rev. Issued Date Revisions Revised By 00 Feb. 15, 2023 Initial Issue Emma Chao Page 3 of 8 Report Number: 2302FS13 Version: 00 Contents 1. General Information .................................................................................................................... 4 2. Description of Equipment under Test (EUT) ............................................................................ 5 3. RF Exposure Limit ...................................................................................................................... 6 4. Exemption Evaluation ................................................................................................................ 7 5. Maximum Tune-up Power ........................................................................................................... 8 6. Result ........................................................................................................................................... 8 7. Conclusion ................................................................................................................................... 8 Page 4 of 8 Report Number: 2302FS13 Version: 00 1. General Information 1.1 Reference Testing Standards Standard Description Version 47 CFR §2.1093 Radiofrequency radiation exposure evaluation: portable devices - IEEE C95.1 IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz 1992 KDB 447498 D04 RF exposure procedures and equipment authorization policies for mobile and portable devices v01 1.2 Testing Location Lab Name: Eurofins E&E Wireless Taiwan Co., Ltd. Site Address: ■ No. 140-1, Changan Street, Bade District, Taoyuan City 334025, Taiwan (R.O.C.) Site Address: □ No. 2, Wuquan 5th Rd. Wugu Dist., New Taipei City, Taiwan (R.O.C.) Page 5 of 8 Report Number: 2302FS13 Version: 00 2. Description of Equipment under Test (EUT) Applicant unitech electronics co., ltd. 5F, No. 136, Lane 235, Pao-Chiao Rd. Hsin-Tien Dist., New Taipei City, Taiwan Product Name Wireless Pocket 2D Scanner Trade Name unitech Model Number MS912 Plus FCC ID HLEMS912P2DB Frequency Range Bluetooth：2402 - 2480 MHz Supported Modulations Bluetooth : BR / EDR / LE Note: The above information of DUT was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. Antenna Information Model Type Frequency Max. Gain (dBi) RFANT5220110A0T MULTILAYER CERAMIC ANTENNA 2400 - 2500 2 Antenna Diversity Bluetooth : 1TX Page 6 of 8 Report Number: 2302FS13 Version: 00 3. RF Exposure Limit Table 1 Safety Limits for Controlled / Uncontrolled Environment Exposure SAR Exposure Limit General Population / Uncontrolled Exposure 1 (W/kg) Occupational / Controlled Exposure 2 (W/kg) Spatial Peak SAR 3 (head or Body) 1.60 8.00 Spatial Peak SAR 4 (Whole Body) 0.08 0.40 Spatial Peak SAR 5 (Hands / Feet / Ankle / Wrist ) 4.00 20.00 Note: 1. General Population / Uncontrolled Environments are defined as locations where there is the exposure of individuals who have no knowledge or control of their exposure. 2. Occupational / Controlled Environments are defined as locations where there is exposure that may be incurred by persons who are aware of the potential for exposure, (i.e. as a result of employment or occupation). 3. The Spatial Peak value of the SAR averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube) and over the appropriate averaging time. 4. The Spatial Average value of the SAR averaged over the whole body. 5. The Spatial Peak value of the SAR averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube) and over the appropriate averaging time. Page 7 of 8 Report Number: 2302FS13 Version: 00 4. Exemption Evaluation Exemption evaluation was performed according to the appendix A and B in KDB447498 D04. The General Sequence for Determination of Procedure demonstrated in Figure A.1 of KDB447498 D04 was applied. Page 8 of 8 Report Number: 2302FS13 Version: 00 5. Maximum Tune-up Power Operate Band Frequency (MHz) Maximum Tune-up(dBm) Bluetooth 2402 - 2480 0 6. Result Band Frequency (MHz) Antenna Tune-up Power (dBm) Tune-up Power (mW) ANT Gain (dBi) ERP (W) ERP (mW) <§1.1307(b)(3)(i)(A)> 1 mW Exemption Threshold ERP (mW) <§1.1307(b)(3)(i)(A)> 1 mW Exemption considerations Bluetooth 2402 - 2480 ANT 0 0.00 1.00 2.00 0.001 0.966 1.00 Qualified Note: This device is qualified for the 1 mW blanket exemption under § 1.1307(b)(3)(i)(A). 7. Conclusion The result shows that this device is qualified for 1 mW Test Exemption in KDB447498. Therefore, SAR testing is not required. ---END---

5 5 4 4 3 3 2 2 1 1 DD CC BB AA N SS S CK DM D P MISO MOSI FW _TXDFW _TXD FW _RXD BOOT1 Adapter IN W P NRST PW _ON RXD_ENG TRIG FW _RXD FW _TXD BOOT1 B Z DM D P BAT-ADC D C - IN CTSRTS BT_PWBT_ LINK RXD TXD N SS S CK W P MOSI MISO TRIG_ENG DA _ LINK STATUS N RST Buzzer BZ L ED2 L ED1 Decode LED1Decode LED2 Decode LED1 Decode LED2 HO LD POW ER PW _ON TXD_ENG TRIG_ENG RXD_ENG TXD_ENG ENG_PW ENG_PW DA_CM U _D+ G ND U _D+ U_ D- U_ D- VBAT VBAT BAT-VCC 3V3 3V3 3V3 3V3 3V3 3V3 3V3 3V3 3V3 3V3 VB 3V3 BZ 3V3 VB BAT-VCC BAT-VCC 3V3 BAT-VCC BAT-VCC 3V3 BZ ENG_VDD BAT-VCC ENG_VDD VBUS VBUS Adapter IN HOLD POW ER BAT-ADC D C - IN TRRIG POW ER STATUS TRRIG POW ER TRIG RXD DA_CM RTS TXD BT_ LINK CTS LED1 BT_PW LED2 DA_ LINK Buzzer TRRIG POW ER SizeDocument Number R e v: Sheet o f DESIGNED CHECKD APPROVEDDRAWING NO. MARSON TECHNOLOGY CO., LTD. MS 912 2D R EV:01 A3 11 0.1 RED Green DM DP BEEP DLED C18 1uF R2827R RV3 PDFB033250 R7 100K RV1 NC R25 100K R41K 1% Q5 2N3904 C22 10uF R81K 1% R14 10K R11 10K C1 10uF U 2 HT32F12365 PA1 1 PA2 2 PA3 3 PA4 4 PA5 5 PA6 6 PA7 7 USBDM/PB12 8 USBDP/PB13 9 CLDO 10 VDD_1 11 VSS_1 12 nRST 13 VBAT 14 X32KIN 15 X32KOUT 16 RTCOUT 17 XTALIN 18 XTALOUT 19 PD4 20 PD5 21 PA8_BOOT0 22 PA9_BOOT1 23 PA10 24 JTDO 25 JTCK/SWCLK 26 JTMS/SWDIO 27 JTDI 28 JTRST 29 PB0 30 PB1 31 VDD_2 32 VSS_2 33 PB2 34 PB3 35 PB4 36 PB5 37 PB6 38 PB7 39 PB8 40 PB9 41 PB10 42 PB11 43 VDDA 44 VSSA 45 PA0 46 P3 TP C N1 1 2 P2 TP C6 1uF R18 10K RV2 PDFB050150 R2 22K 1% R9560R C16 10uF R17 10K R1210K R2210K C17 10uF RV5 PDFB050150 R510K R29 10K Q2 2N3906 C B E D1 BAT54C 3 1 2 R16 100K C7 2.2uF C27 NC U6XC6223 VOUT 1 VSS 2 CE 3 VIN 4 R6 1K 1% C5 104 R15 100K C4 104 L10R C29 104 U4XC6223 VOUT 1 VSS 2 CE 3 VIN 4 P4 TP C20 104 10K Q1 MUN5211T1 B E C U3XC6223 VOUT 1 VSS 2 CE 3 VIN 4 C14 1uF R3 10K NTC 10K R23 10K C23 1uF C25 2.2uF R24 10K D2 1N4148 12 R325K1 + C19 10uF X1 32.768K C9 103 C28 NC RV6 PDFB050150 R11K 1% R2727R X2 16MHz + C24 10uF U5XC6223 VOUT 1 VSS 2 CE 3 VIN 4 C2 104 R10220R C10 10P C8 2.2uF R21 10K U1 MX25L1606E CS# 1 SO 2 WP# 3 GND 4 SI 5 SCLK 6 HOLD# 7 Vcc 8 C26 NC R13 10K C12 10P Q4 2N3904 J3 CON14C 1 14 34 56 78 910 1112 13 2 + C3 10uF J1 1.27mm 1 2 3 4 5 6 R31 100K R2647K J2 CONN PCB 5x2-S 2 4 6 8 10 1 3 5 7 9 R19 10K C21 10uF J5 SBC-160S1B-20xx-S412 GND A1 GND B12 VBUS A4 VBUS B9 SBU2 B8 CC1 A5 DN2 B7 DP1 A6 DN1 A7 DP2 B6 SBU1 A8 CC2 B5 VBUS B4 VBUS A9 GND B1 GND A12 C11 10P SW 1 SW 1 2 R3047K U7 MP2607 BATT 1 BATT 2 MODE 3 ICHSET 4 TMR 5 CEB 6 GND 7 NTC 8 STAT2 9 STAT1 10 IN 11 IN 12 SYS 13 SYS 14 C13 10P RV4 PDFB033250 R20 NC P1 TP Q3 2N3904 C15 10uF 54321 DD CC BB AA BuzzerCTS TXD RXD RTS SWCLK SWDAT BT_LINK DA_CM RSSI VDD BAT-VCC BAT-VCC BAT-VCC VDD VDD BT_PW TRRIG POWER LED1 LED2 RXD RTS TXD CTS LED1 BT_PW LED2 Buzzer TRRIG POWER BT_LINK RSSI DA_CM SizeDocument Number R e v : Sheet o f DESIGNED CHECKD APPROVEDDRAWING NO. MARSON TECHNOLOGY CO., LTD. MT840 BT Rev:02 A4 11 C2 0R P2 TP BZ BZ1 BZ_2.7K 2 1 P5 TP J1 CON14C 1 14 34 56 78 910 1112 13 2 D1 1N4148 1 2 C1 0R LED1 RED 1 2 P4 TP R31K 1% C5 10uF C4 104 U2 VRH3301NTX VIN 1 VOUT 5 CE 3 GND 2 BP 4 P1 TP R210K R4 47K LED2 GREEN 1 2 U1 FSC-BT981 GND 1 VDD_3V3 2 PIO0 3 VDD_3V3 4 VDD_3V3 5 NC 6 PIO1 7 SWDAT 8 PIO2 9 PIO3 10 PIO2 11 PIO3 12 UART_CTS/PIO4 13 SWDAT 14 UART_RTS/PIO5 15 NC 16 NC 17 NC 18 RESET 19 UART_RX 20 UART_TX 21 PIO1 22 PIO0 23 RESET 24 PIO0 25 SWCLK 26 PIO1 27 PIO6/LED 28 GND 29 ANT 30 C3 104 L1 0R SW1 SW 12 P3 TP ANT1 1 R1100R

FCC Part 47 §15.247 2400-2483.5 MHz 2021 Hardware Setup: WMS Measurements\TS8997 Spectrum Analyzer: SA FSV3044 (SA FSV3044) @ VISA (ADR TCPIP::192.168.48.148::inst0::instr), SN 1330.5000K43/101255, FW 1.60SP1 OSP: OSP-B157W8PLUS (OSP-B157W8PLUS) @ VISA (ADR TCPIP::192.168.48.157::inst0::instr), SN 1527.1144.05 / 100850, FW 2.10.0.23 Page 1 of 16 Report Number:2302FR19 Rev.00 Minimum Emission Bandwidth 6 dB (2402 MHz) 6 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 2402.000000 0.752476 0.500000 --- 2401.603960 2402.356436 (continuation of the "6 dB Bandwidth" table from column 6 ...) DUT Frequency (MHz) Max Level (dBm) Result 2402.000000 -1.2 PASS Level in dBm Page 2 of 16 Report Number:2302FR19 Rev.00 Minimum Emission Bandwidth 6 dB (2440 MHz) 6 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 2440.000000 0.752476 0.500000 --- 2439.603960 2440.356436 (continuation of the "6 dB Bandwidth" table from column 6 ...) DUT Frequency (MHz) Max Level (dBm) Result 2440.000000 -1.1 PASS Level in dBm Page 3 of 16 Report Number:2302FR19 Rev.00 Minimum Emission Bandwidth 6 dB (2480 MHz) 6 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 2480.000000 0.752476 0.500000 --- 2479.603960 2480.356436 (continuation of the "6 dB Bandwidth" table from column 6 ...) DUT Frequency (MHz) Max Level (dBm) Result 2480.000000 -2.3 PASS Level in dBm Page 4 of 16 Report Number:2302FR19 Rev.00 Peak Power Spectral Density (2402 MHz) RBW:100 kHz ; VBW:300 kHz Result DUT Frequency (MHz) Frequency (MHz) PSD (dBm) Limit Max (dBm) Result 2402.000000 2402.223508 -1.137 8.0 PASS Ports Port State 1 used Level in dBm Page 5 of 16 Report Number:2302FR19 Rev.00 Peak Power Spectral Density (2440 MHz) RBW:100 kHz ; VBW:300 kHz Result DUT Frequency (MHz) Frequency (MHz) PSD (dBm) Limit Max (dBm) Result 2440.000000 2440.223508 -1.134 8.0 PASS Ports Port State 1 used Level in dBm Page 6 of 16 Report Number:2302FR19 Rev.00 Peak Power Spectral Density (2480 MHz) RBW:100 kHz ; VBW:300 kHz Result DUT Frequency (MHz) Frequency (MHz) PSD (dBm) Limit Max (dBm) Result 2480.000000 2480.223508 -2.295 8.0 PASS Ports Port State 1 used Level in dBm Page 7 of 16 Report Number:2302FR19 Rev.00 Occupied Channel Bandwidth 99% (2402 MHz) 99 % Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 2402.000000 1.055000 --- --- 2401.467500 2402.522500 (continuation of the "99 % Bandwidth" table from column 6 ...) DUT Frequency (MHz) Result 2402.000000 PASS Level in dBm Page 8 of 16 Report Number:2302FR19 Rev.00 Occupied Channel Bandwidth 99% (2440 MHz) 99 % Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 2440.000000 1.055000 --- --- 2439.467500 2440.522500 (continuation of the "99 % Bandwidth" table from column 6 ...) DUT Frequency (MHz) Result 2440.000000 PASS Level in dBm Page 9 of 16 Report Number:2302FR19 Rev.00 Occupied Channel Bandwidth 99% (2480 MHz) 99 % Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 2480.000000 1.055000 --- --- 2479.467500 2480.522500 (continuation of the "99 % Bandwidth" table from column 6 ...) DUT Frequency (MHz) Result 2480.000000 PASS Level in dBm Page 10 of 16 Report Number:2302FR19 Rev.00 Band Edge low (2402 MHz) Customized settings. Result DUT Frequency (MHz) Result 2402.000000 PASS Measurements Frequency (MHz) Level (dBm) Margin (dB) Limit (dBm) Result 2399.525000 -38.5 17.3 -21.1 PASS 2399.475000 -38.6 17.4 -21.1 PASS 2399.575000 -39.0 17.9 -21.1 PASS 2399.275000 -39.3 18.1 -21.1 PASS 2399.225000 -39.5 18.4 -21.1 PASS 2399.425000 -39.6 18.5 -21.1 PASS 2399.325000 -39.6 18.5 -21.1 PASS 2399.625000 -39.8 18.7 -21.1 PASS 2399.675000 -40.3 19.1 -21.1 PASS 2399.375000 -40.3 19.1 -21.1 PASS 2399.725000 -40.8 19.7 -21.1 PASS 2399.175000 -41.0 19.9 -21.1 PASS 2399.125000 -41.2 20.0 -21.1 PASS 2399.075000 -41.4 20.2 -21.1 PASS 2399.975000 -41.8 20.6 -21.1 PASS Level in dBm Page 11 of 16 Report Number:2302FR19 Rev.00 Band Edge high (2480 MHz) Customized settings. Result DUT Frequency (MHz) Result 2480.000000 PASS Measurements Frequency (MHz) Level (dBm) Margin (dB) Limit (dBm) Result 2483.825000 -44.6 22.2 -22.4 PASS 2483.875000 -44.6 22.2 -22.4 PASS 2483.775000 -44.8 22.3 -22.4 PASS 2483.925000 -44.9 22.5 -22.4 PASS 2483.725000 -45.2 22.8 -22.4 PASS 2483.975000 -45.8 23.4 -22.4 PASS 2483.675000 -45.8 23.4 -22.4 PASS 2483.525000 -46.0 23.6 -22.4 PASS 2484.025000 -46.1 23.7 -22.4 PASS 2483.575000 -46.1 23.7 -22.4 PASS 2483.625000 -46.2 23.8 -22.4 PASS 2484.075000 -46.4 23.9 -22.4 PASS 2484.125000 -46.6 24.2 -22.4 PASS 2484.175000 -47.4 25.0 -22.4 PASS 2484.275000 -47.5 25.1 -22.4 PASS Level in dBm Page 12 of 16 Report Number:2302FR19 Rev.00 Tx Spurious Emission (2402 MHz) Customized settings. Result DUT Frequency (MHz) Result 2402.000000 PASS Final measurements Frequency (MHz) Level Pre Measurement (dBm) level (dBm) Limit (dBm) Margin (dB) Result 2399.958664 -2.7 -56.9 -21.1 35.8 PASS Pre Measurements Frequency (MHz) Level (dBm) Margin (dB) Limit (dBm) 2395.021008 -0.7 -20.4 -21.1 3198.089779 -35.6 14.5 -21.1 4007.625053 -38.5 17.4 -21.1 791.785714 -39.0 17.9 -21.1 3208.084042 -45.2 24.0 -21.1 5606.707076 -45.7 24.6 -21.1 4807.166065 -47.2 26.1 -21.1 6406.248088 -50.1 29.0 -21.1 3447.946345 -53.3 32.2 -21.1 2385.063025 -55.1 34.0 -21.1 1598.382353 -55.8 34.7 -21.1 7205.789099 -56.1 34.9 -21.1 3258.055355 -59.7 38.6 -21.1 3188.095516 -59.8 38.7 -21.1 7485.628453 -61.6 40.5 -21.1 Level in dBm Page 13 of 16 Report Number:2302FR19 Rev.00 Level in dBm Page 14 of 16 Report Number:2302FR19 Rev.00 Tx Spurious Emission (2440 MHz) Customized settings. Result DUT Frequency (MHz) Result 2440.000000 PASS Measuremen…

Text truncated - open the document above for the full version.

Page 1 of 42 Report Number: 2302FR19 Version: 00 RF Test Report Applicant ： unitech electronics co., ltd. Product Name ： Wireless Pocket 2D Scanner Trade Name ： unitech Model Number ： MS912 Plus Applicable Standard ： FCC 47 CFR PART 15 SUBPART C ANSI C63.10:2013 Received Date ： Dec. 27, 2022 Test Period ： Jan. 18 ~ Feb. 06, 2023 Issued Date ： Feb. 15, 2023 Issued by Eurofins E&E Wireless Taiwan Co., Ltd. No. 140-1, Changan Street, Bade District, Taoyuan City 334025, Taiwan (R.O.C.) Tel：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 Frequency Range: 9 kHz to 325 GHz (Bade test site) Frequency Range: 9 kHz to 40 GHz (Wugu test site) Test Firm MRA designation number: TW0010 Note: 1.The test results are valid only for samples provided by customers and under the test conditions described in this report. 2.This report shall not be reproduced except in full, without the written approval of Eurofins E&E Wireless Taiwan Co., Ltd. 3.The relevant information is provided by customers in this test report. According to the correctness, appropriateness or completeness of the information provided by the customer, if there is any doubt or error in the information which affects the validity of the test results, the laboratory does not take the responsibility. Page 2 of 42 Report Number: 2302FR19 Version: 00 Revision History Version Issued Date Revisions Revised By 00 Feb. 15, 2023 Initial Issue Abby Huang Page 3 of 42 Report Number: 2302FR19 Version: 00 Ve r i f i c a t i o n o f C o m p l i a n c e Applicant : unitech electronics co., ltd. Product Name : Wireless Pocket 2D Scanner Trade Name : unitech Model Number : MS912 Plus FCC ID : HLEMS912P2DB Applicable Standard : FCC 47 CFR PART 15 SUBPART C ANSI C63.10:2013 Test Result : Complied Performing Lab. : Eurofins E&E Wireless Taiwan Co., Ltd. No. 140-1, Changan Street, Bade District, Taoyuan City 334025, Taiwan (R.O.C.) Tel：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 Eurofins E&E Wireless Taiwan Co., Ltd. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by Eurofins E&E Wireless Taiwan Co., Ltd. based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Approved By ： Page 4 of 42 Report Number: 2302FR19 Version: 00 TABLE OF CONTENTS 1 General Information ......................................................................................................... 5 1.1. Summary of Test Result ............................................................................................. 5 1.2. Testing Location ......................................................................................................... 6 1.3. Measurement Uncertainty .......................................................................................... 6 2 EUT Description................................................................................................................ 7 3 Test Methodology ............................................................................................................. 8 3.1. Mode of Operation ...................................................................................................... 8 3.2. EUT Test Step ............................................................................................................. 8 3.3. Configuration of Test System Details .......................................................................... 9 3.4. Test Instruments ....................................................................................................... 11 3.5. Test Site Environment............................................................................................... 12 4 Measurement Procedure ................................................................................................ 13 4.1. AC Power Line Conducted Emission Measurement ................................................. 13 4.2. Radiated Emission Measurement ............................................................................. 15 4.3. Maximum Conducted Output Power Measurement .................................................. 19 4.4. 6 dB RF Bandwidth Measurement ............................................................................ 20 4.5. Maximum Power Density Measurement ................................................................... 21 4.6. Out of Band Conducted Emissions Measurement .................................................... 22 4.7. Antenna Measurement .....................…
