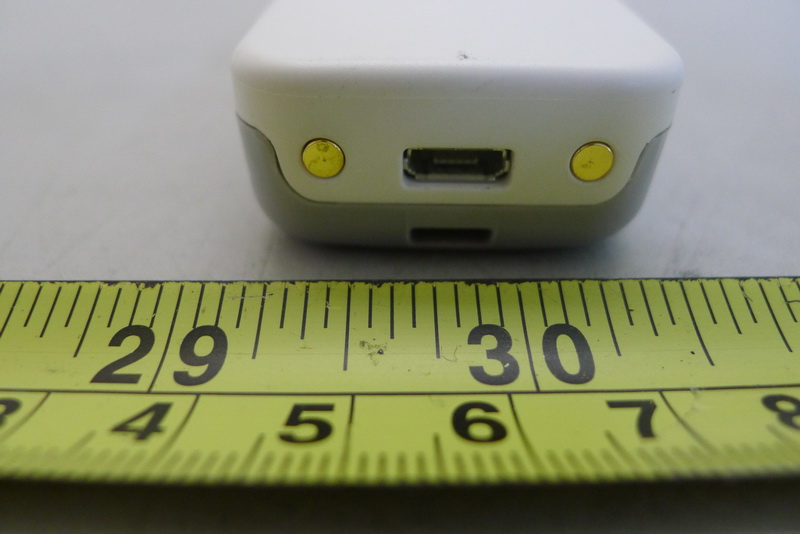

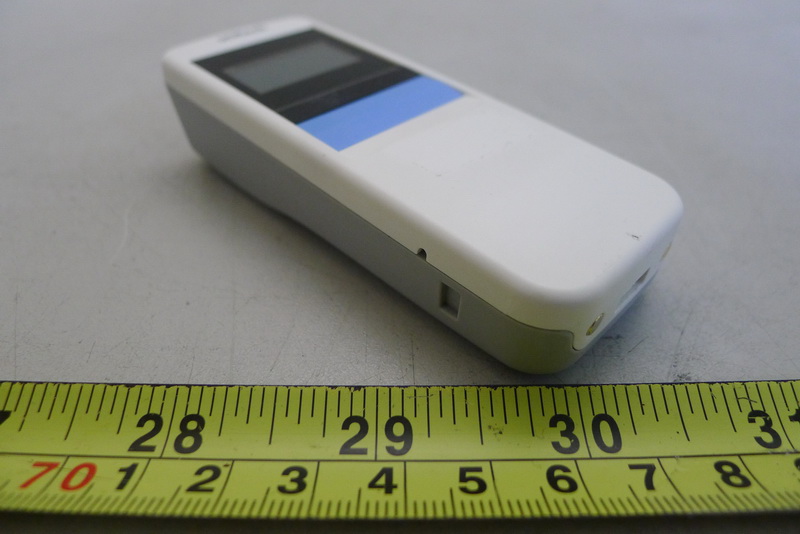

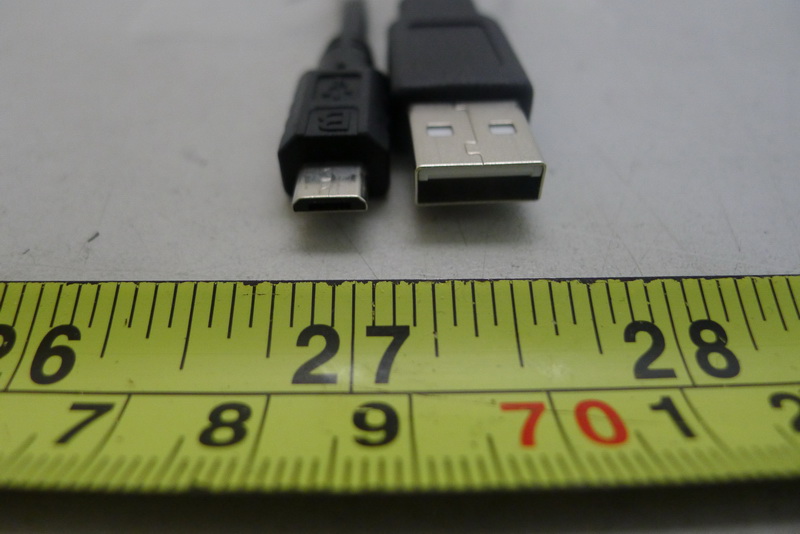

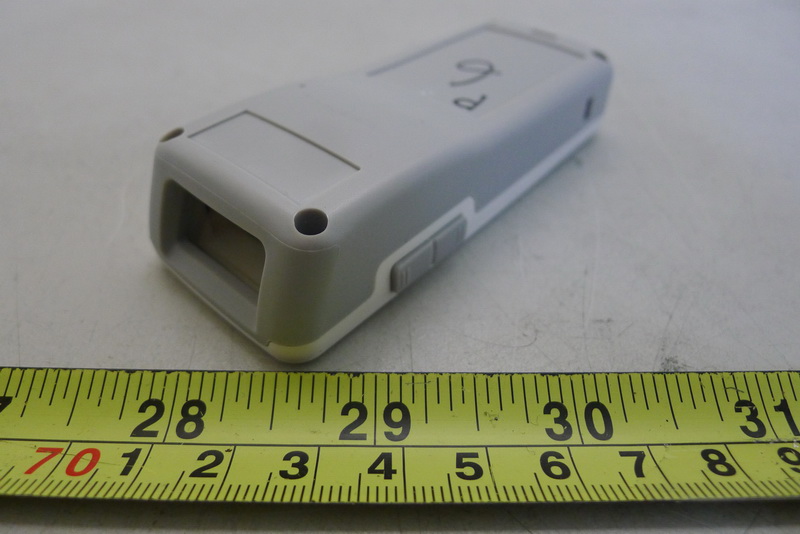

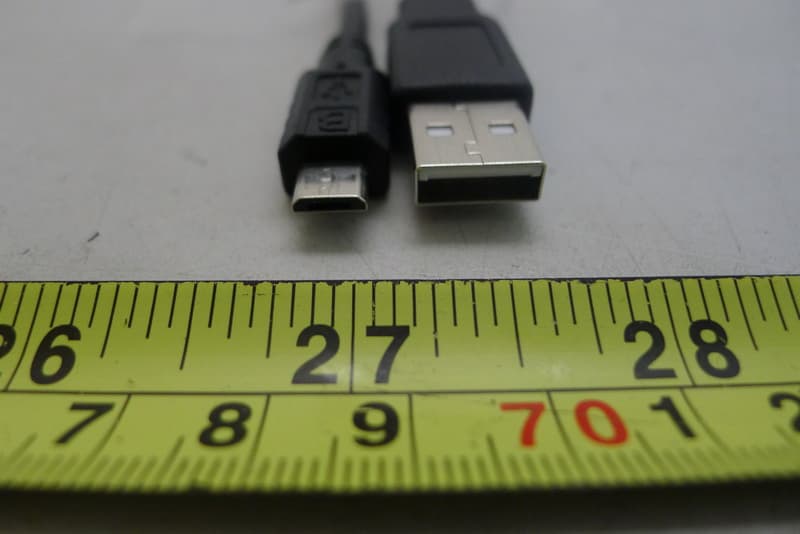

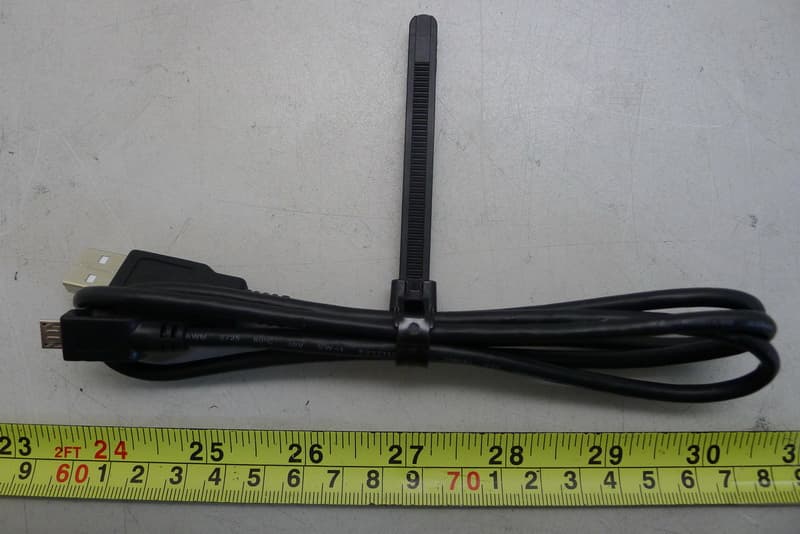

HLEMS916BTWireless Pocket Laser Scanner

© 2015 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. Wireless(BT) Pocket Laser Scanner - MS916 - User's Manual Version 1.0 i Table of Contents Chapter 1 Overview ..........................................................................................................1 Package Contents ........................................................................................1 Scanner Detail..............................................................................................3 Getting Started .............................................................................................4 BATTERY CHARGING .................................................................................4 Pairing With PC/Notebook For The First Time..............................................5 Specifications ...............................................................................................6 Chapter 2 MS916 Setting Code........................................................................................9 Chapter 3 Setting Up MS916..........................................................................................15 MS916 Menu Tree......................................................................................14 General Setting ..........................................................................................16 Data & Memory ..........................................................................................19 BT Configuring ...........................................................................................20 Barcode setting ..........................................................................................22 Disable All Code .........................................................................................22 Chapter 4 Parameter Menus ..........................................................................................24 Introduction ................................................................................................23 Operational Parameters .............................................................................23 Set Default Parameter................................................................................28 Beeper Volume...........................................................................................29 Beeper Tone ...............................................................................................29 Laser On Time............................................................................................30 Aim Duration...............................................................................................31 Triggering Modes........................................................................................31 Time-out Between Same Symbol ...............................................................33 Beep After Good Decode............................................................................33 Parameter Scanning...................................................................................34 ii Parameter Pass Through ...........................................................................34 Disable All Symbologies .............................................................................35 Linear Code Type Security Level................................................................36 Bi-directional Redundancy .........................................................................37 UPC/EAN ...................................................................................................38 Code 128....................................................................................................46 Code 39......................................................................................................47 Code 93......................................................................................................52 Code 11 ......................................................................................................54 Interleaved 2 of 5........................................................................................57 Discrete 2 of 5 ............................................................................................61 Chinese 2 of 5 ............................................................................................63 Codabar .....................................................................................................63 MSI.............................................................................................................66 GS1 DataBar ..............................................................................................70 Transmit Code ID Character.......................................................................72 Prefix/Suffix Values.....................................................................................73 Scan Data Transmission Format ................................................................74 Numeric Bar Codes ....................................................................................76 - 1 - Package Contents Please make sure the following contents are in the MS916 gift box. If something is missing or damaged, please contact your Unitech representative. The standard package contents MS916 Scanner Resource CD Quick Reference Guide Micro USB to USB Cable Whist Strap Overview - 2 - Optional accessories 1-Slot Charging cradle 5-Slot Charging cradle USB Adapter NOTE: 1. The scanner’s default power off time is 5 minutes. 2. Please charge scanner for at least 2 hours prior to initial use. - 3 - Scanner Detail Micro USB Connector For scanner charging and data transmission Scan Window Scan & Power Button Power On/Off & Scan barcode Charging Status LED (Red LED) It will light up while the scanner is charging Page up / Page down keys Move up / down through list of menu items Scan LED (Green LED) It will…

Text truncated - open the document above for the full version.

CERTIFICATE OF COMPLIANCE Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the BTL EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment Wireless Pocket Laser Scanner Model Name MS916 Brand Name unitech Applicant unitech electronics co., ltd. Address 5F, No. 136, Lane 235, Pao-Chiao Rd., Hsin-Tien City, New Taipei City, Taiwan. Standard(s) FCC Part 15, Subpart B: 2014 ANSI C63.4-2009 ICES-003 Issue 5: 2012 CISPR 22: 2008 CAN/CSA-CISPR 22-10 Report(s) BTL-FCCE-1-1503001 The test data, data evaluation, and equipment configuration contained in our test report(s) above was (were) obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory BTL INC. B1, No. 37, Lane 365, Yang-Guang St., Nei-Hu District, Taipei City 114, Taiwan. TEL:+886-2-2657-3299 FAX:+886-2-2657-3331

Project No.: 1503001 Page 2 of 15 Project No.: 1503001 Page 3 of 15 Project No.: 1503001 Page 4 of 15

ODEHOOFRDWLRQ

Project No.: 1503001 Page 5 of 15 Project No.: 1503001 Page 6 of 15 Project No.: 1503001 Page 7 of 15 Project No.: 1503001 Page 8 of 15 Project No.: 1503001 Page 9 of 15 Project No.: 1503001 Page 10 of 15 Project No.: 1503001 Page 11 of 15 Project No.: 1503001 Page 12 of 15 Project No.: 1503001 Page 13 of 15 Project No.: 1503001 Page 14 of 15 Project No.: 1503001 Page 15 of 15

FCC RF EXPOSURE REPORT FCC ID:HLEMS916BT Project No. : 1503001 Equipment : Wireless Pocket Laser Scanner Model : MS916 Applicant : unitech electronics co., ltd. Address : 5F, No. 136, Lane 235, Pao-Chiao Rd., Hsin-Tien City, New Taipei City, Taiwan According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL Inc. B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Table for Filed Antenna Ant. Manufacturer Model NameAntenna TypeConnector Gain(dBi) 1 AT9520-B2R4H AA Chip N/A 3.00 GENERAL CONCULUSION: Maximum measured transmitter power: OutputPower (dBm) Output Power (mW) Limit (mW) 5.30 3.4 10 According to FCC KDB447498 V05, Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The maximum measured output peak power of this EUT is 3.4mW, less than 10mW at 5mm distance. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold

Report No.: BTL-FCCP-1-1503001 Page 1 of 104 FCC&IC Radio Test Report FCC ID: HLEMS916BT This report concerns (check one):Original GrantClass II Change Project No. : 1503001 Equipment : Wireless Pocket Laser Scanner Model Name : MS916 Applicant : unitech electronics co., ltd. Address : 5F, No. 136, Lane 235, Pao-Chiao Rd., Hsin-Tien City, New Taipei City, Taiwan Date of Receipt : Mar. 03, 2015 Date of Test : Mar. 03, 2015 ~ Mar. 25, 2015 Issued Date : Mar. 26, 2015 Tested by : BTL Inc. Testing Engineer : (Rush Kao) Technical Manager : (Jeff Yang) Authorized Signatory : (Andy Chiu) BTL INC. B1, No.37, Lane 365, Yang Guang St., Nei-Hu District, Taipei City 114, Taiwan. TEL:+886-2-2657-3299 FAX: +886-2- 2657-3331 Report No.: BTL-FCCP-1-1503001 Page 2 of 104 Declaration BTL represents to the client that testing is done in accordance with standard procedures as a pplicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the clien t. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-1-1503001 Page 3 of 104 Table of Contents Page 1 . CERTIFICATION 7 2 . SUMMARY OF TEST RESULTS 8 2.1 TEST FACILITY 9 2.2 MEASUREMENT UNCERTAINTY 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 12 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCKDIAGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATIONFROMTESTSTANDARD 15 4.1.4 TESTSETUP 16 4.1.5 EUT OPERATINGCONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 TEST PROCEDURE 18 4.2.3 DEVIATIONFROMTESTSTANDARD 18 4.2.4 TESTSETUP 19 4.2.5 EUT OPERATING CONDITIONS 20 4.2.6 EUT TEST CONDITIONS 20 4.2.7 TEST RESULTS (9KHZTO 30MHZ) 20 4.2.8 TEST RESULTS(BETWEEN 30MHZ TO 1000 MHZ) 21 4.2.9 TEST RESULTS(ABOVE 1000 MHZ) 21 5 .NUMBER OF HOPPING CHANNEL 22 5.1 APPLIED PROCEDURES 22 5.1.1 TEST PROCEDURE 22 5.1.2 DEVIATION FROM STANDARD 22 5.1.3 TEST SETUP 22 5.1.4 EUT OPERATION CONDITIONS 22 5.1.5 EUT TEST CONDITIONS 22 5.1.6 TEST RESULTS 22 Report No.: BTL-FCCP-1-1503001 Page 4 of 104 Table of Contents Page 6 .AVERAGE TIME OF OCCUPANCY 23 6.1 APPLIED PROCEDURES / LIMIT 23 6.1.1 TEST PROCEDURE 23 6.1.2 DEVIATION FROM STANDARD 23 6.1.3 TEST SETUP 23 6.1.4 EUT OPERATION CONDITIONS 24 6.1.5 EUT TEST CONDITIONS 24 6.1.6 TEST RESULTS 24 7 .HOPPING CHANNEL SEPARATION MEASUREMENT 25 7.1 APPLIED PROCEDURES /LIMIT 25 7.1.1 TEST PROCEDURE 25 7.1.2 DEVIATION FROM STANDARD 25 7.1.3 TEST SETUP 25 7.1.4 EUT TEST CONDITIONS 25 7.1.5 TEST RESULTS 25 8 .BANDWIDTH TEST 26 8.1 APPLIED PROCEDURES 26 8.1.1 TEST PROCEDURE 26 8.1.2 DEVIATION FROM STANDARD 26 8.1.3 TEST SETUP 26 8.1.4 EUT OPERATION CONDITIONS 26 8.1.5 EUT TEST CONDITIONS 26 8.1.6 TEST RESULTS 26 9 .PEAKOUTPUT POWER TEST 27 9.1 APPLIED PROCEDURES / LIMIT 27 9.1.1 TEST PROCEDURE 27 9.1.2 DEVIATION FROM STANDARD 27 9.1.3 TEST SETUP 27 9.1.4 EUT OPERATION CONDITIONS 27 9.1.5 EUT TEST CONDITIONS 27 9.1.6 TEST RESULTS 27 10 .ANTENNA CONDUCTED SPURIOUS EMISSION 28 10.1 APPLIED PROCEDURES / LIMIT 28 10.1.1 TEST PROCEDURE 28 10.1.2 DEVIATION FROM STANDARD 28 10.1.3 TEST SETUP 28 10.1.4 EUT OPERATION CONDITIONS 28 10.1.5 EUT TEST CONDITIONS 28 10.1.6 TEST RESULTS 28 11 . MEASUREMENT INSTRUMENTS LIST 29 Report No.: BTL-FCCP-1-1503001 Page 5 of 104 Table of Contents Page 12 .EUT TEST PHOTO 31 ATTACHMENT A - CONDUCTED EMISSION 35 ATTACHMENT B - RADIATED EMISSION (9KHZ-30MHZ) 38 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 40 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 43 ATTACHMENT E - NUMBER OF HOPPING CHANNEL 68 ATTACHMENT F - AVERAGE TIME OF OCCUPANCY 70 ATTACHMENT G - HOPPING CHANNEL SEPARATION MEASUREMENT 83 ATTACHMENT H - BANDWIDTH 88 ATTACHMENT I - PEAK OUTPUT POWER 93 ATTACHMENT J - ANTENNA CONDUCTED SPURIOUS EMISSION 98 Report No.: BTL-FCCP-1-1503001 Page 6 of 104 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-1-1503001 Original Issue. Mar. 26, 2015 Report No.: BTL-FCCP-1-1503001 Page 7 of 104 1. CERTIFICATION Equipment : Wireless Pocket Laser Scanner Brand Name : unitech Model Name : MS916 Applicant unitech electronics co., ltd. Date of Test : Mar. 03, 2015 ~ Mar. 25, 2015 Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C: 2014 (15.247) /ANSI C63.4 : 2009 / FCC Public Notice DA 00-705, March 30, 2000. The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc.. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-1-1503001 ) were obtained utilizing t…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1503001 Page 31 of 104 12.EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FCCP-1-1503001 Page 32 of 104 Radiated Measurement Photos 9K-30MHz Report No.: BTL-FCCP-1-1503001 Page 33 of 104 Radiated Measurement Photos 30MHz-1G Report No.: BTL-FCCP-1-1503001 Page 34 of 104 Radiated Measurement Photos Above 1G
