HLEMT200LFIP Base Intercom Door Phone

Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. - 1 - IP Base Intercom Door Phone MT200L Regulatory Compliance Statements
FCC Warning Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following:  Relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit that is different from the receiver.  Consult the dealer or an experienced radio/television technician for help. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Canadian Compliance Statement Industry Canada Notice Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
European Conformity Statement Declaration of Conformity with Regard to the R&TTE 1999/5/EC and EMC 89/336/ EEC directives.
RoHS Statement This device conforms to RoHS (Restriction of Hazardous Substances) European Union regulations that set maximum concentration limits on hazardous materials used in electrical and electronic equipment. Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. - 2 -
Taiwan NCC Warning Statement 根據NCC低功率電波輻射性電機管理辦法 規定: 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加 大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停 用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 Warranty The following items are covered under Unitech Limited Warranty:
MT200L Intercom & Access Control Terminal -- 1-year limited warranty.
Cables -- three-month limited warranty. Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. - 3 - Front View Rear View Terminal Block Pin Assignment Pin Description J10_1 D1+ J10_2 D1- J11_1 RS485+ J11_2 RS485- J12_1 R1C J12_2 R1NO J13_1 R1NC J13_2 (Floated) J14_1 12Vin J14_2 GND Relay Output RL1-CTRLHigh R1 (C & NO Linked) RL1-CTRLLow R1 (C & NC Linked) Digit Input D1+ and D1- are the positive and negative terminals of the external power input D1 = High Digit input1 = High D1 = Low Digit input1 = Low Terminal block DC Input Jack PoE Ethernet Port Hall Switch Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. - 4 - ※If you need Operation Manual and Installation guide, please check with the dealer. MT200 SERIES Installation Notes

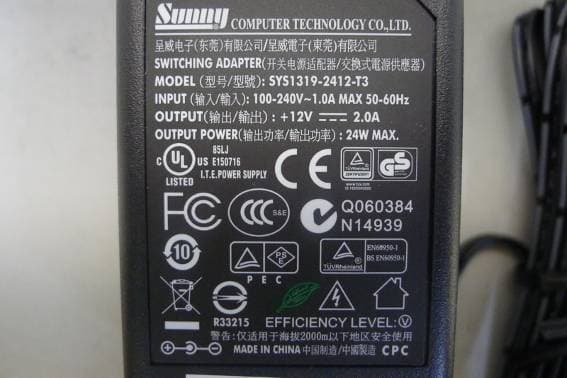

Connect Power Plug the Power Adapter Cable into the MT200 SERIES’s DC input jack, then connect the other end of the Power Adapter into an electrical outlet.
Using Terminal Block The MT200 SERIES provides one 10-position terminal blocks for input/output signals. The I/O panels are on the MT200 SERIES’s rear side.
Installation (I) – Plastic in wall box Mount and fix the MT200 SERIES terminal with four screws (M2 x 20mm) to the housing embedded into the wall. Next, install an upper plaque and a lower plaque for ornaments on the cover of MT200 SERIES terminal. 1. The upper and lower plaques are consumptive materials, so carefully attach the two plaques. If the materials are damaged, please contact your dealer for solution. 2. MT200 is a door phone with front panel IP65 degree. While outdoors on-site installation, please have "shield case" to protect the device to avoid the rain flows into device body that might be resulting in oxidation or short circuit. While installing the device in the wall, please use "Silicone" sealing the gap between the device with the wall to prevent infiltration of rainwater from the wall surface. Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. - 5 -
Installation (II) – Iron in wall box Follow below picture, mount and fix the MT200 SERIES terminal with accessories to the housing embedded into the wall. Install an upper plaque and a lower plaque for ornaments on the cover of MT200 SERIES terminal. 1. The upper and lower plaques are consumptive materials, so carefully attach the two plaques. If the materials are damaged, please contact your supplier for solution. 2. MT200 is a door phone with front panel IP65 degree. While outdoors on-site installation, please have "shield case" to protect the device to avoid the rain flows into device body that might be resulting in oxidation or short circuit. While installing the device in the wall, please use "Silicone" sealing the gap between the device with the wall to prevent infiltration of rainwater from the wall surface. ※ ※※ ※ 產品安裝手冊 產品安裝手冊產品安裝手冊 產品安裝手冊 及 及及 及 Elfin社區對講系統安裝 社區對講系統安裝社區對講系統安裝 社區對講系統安裝 / 使用 使用使用 使用 手冊 手冊手冊 手冊 請逕洽經銷商索取說明光碟 請逕洽經銷商索取說明光碟請逕洽經銷商索取說明光碟 請逕洽經銷商索取說明光碟…

Text truncated - open the document above for the full version.

Autho Rules the c r Part 1 Equi p Mode Brand Appli Addre Stand Rep o The te was ( accre techn samp orized under . The produ riteria limits 5, Subpart pment el Name d Name icant ess dard(s) ort(s) est data, da (were) obta dited by the ical standa le and item CER r Declaratio uct listed in Class B o f B, establish IP Base In MT200L TASHI; u n unitech e 5F, No. 1 3 Taiwan. FCC Part ANSI C63 ICES-003 CISPR 22 CAN/CS A BTL-FCC E ata evaluati ained utilizi e Authority rd(s). The t (s) tested. B N RTIFIC on of Confo follows w a f conducted hed by the F ntercom Do nitech lectronics 36, Lane 23 15, Subpar .4-2009 Issue 5: 2 0 : 2008 A-CISPR 22 E-1-141017 on, and equ ng the tes of TAF acc est data co Aut 1, No. 37, L ei-Hu Distri TEL: FAX: CATE rmity accor as (were) tes d and radia FCC, USA. oor Phone co., ltd. 35, Pao-Ch rt B: 2013 012 -10 72 uipment co st procedure cording to th ontained in t Andy Chi horized Sig BTL INC Lane 365, Y ct, Taipei C +886-2-265 +886-2-265 EOF C rding to 47 sted in the ted emissi o iao Rd., Hs nfiguration es, test ins he ISO-170 the referenc u natory C. Yang-Guang City 114, Taiw 57-3299 57-3331 COMP CFR, Part 2 BTL EMC L ons of the T sin-Tien Cit contained i struments, 025 quality a ced test rep g St., wan. LIANC 2 and Part Laboratory Technical S ty ., New Ta n our test r test sites t assessmen port relate o CE 15 of the F to comply w Standards F aipei City, report(s) ab that has b t standard only to the E FCC with FCC ove een and EUT

Project No.: 1410172 Page 2 of 23 Project No.: 1410172 Page 3 of 23 Project No.: 1410172 Page 4 of 23 Project No.: 1410172 Page 5 of 23 Project No.: 1410172 Page 6 of 23

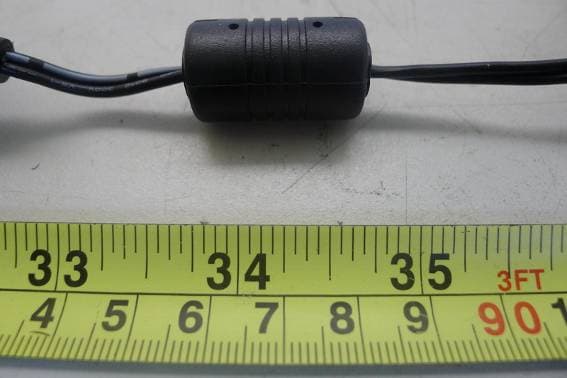

Project No.: 1410172 Page 7 of 23 AC Project No.: 1410172 Page 8 of 23 POE Project No.: 1410172 Page 9 of 23 Project No.: 1410172 Page 10 of 23 Project No.: 1410172 Page 11 of 23 Project No.: 1410172 Page 12 of 23 Project No.: 1410172 Page 13 of 23 Project No.: 1410172 Page 14 of 23 Project No.: 1410172 Page 15 of 23 Project No.: 1410172 Page 16 of 23 Project No.: 1410172 Page 17 of 23 Project No.: 1410172 Page 18 of 23 Project No.: 1410172 Page 19 of 23 Project No.: 1410172 Page 20 of 23 Project No.: 1410172 Page 21 of 23 Project No.: 1410172 Page 22 of 23 Project No.: 1410172 Page 23 of 23

Report No.: BTL-FCCP-1-1410172 Page 1 of 35 Radio Test Report FCC ID: HLEMT200LF This report concerns (check one) : Original Grant Class II Change Project No. : 1410172 Equipment : IP Base Intercom Door Phone Model Name : MT200L Applicant : unitech electronics co., ltd. Address : 5F, No. 136, Lane 235, Pao-Chiao Rd., Hsin-Tien City ., New Taipei City, Taiwan. Date of Receipt : Oct. 20, 2014 Date of Test : Oct. 20, 2014 ~ Nov. 14, 2014 Issued Date : Nov. 17, 2014 Tested by : BTL Inc. Testing Engineer : (Josh Lin) Technical Manager : (Jeff Yang) Authorized Signatory : (Andy Chiu) BTL INC. B1, No. 37, Lane 365, Yang-guang St., Nei-hu District, Taipei City 114, Taiwan. TEL:+886-2-2657-3299 FAX: +886-2- 2657-3331 Report No.: BTL-FCCP-1-1410172 Page 2 of 35 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-1-1410172 Page 3 of 35 Table of Contents REPORT ISSUED HISTORY 5 1 CERTIFICATION 6 2 SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 10 3.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.4 DESCRIPTION OF SUPPORT UNITS 12 4 CONDUCTED EMISSION 13 4.1 LIMITS 13 4.2 TEST PROCEDURES 13 4.3 TEST SETUP LAYOUT 14 4.4 DEVIATION FROM TEST STANDARD 14 4.5 EUT OPERATING CONDITIONS 14 4.6 EUT TEST CONDITIONS 14 4.7 TEST RESULTS 14 5 RADIATED EMISSION 15 5.1 LIMITS 15 5.2 TEST PROCEDURE 16 5.3 DEVIATION FROM TEST STANDARD 17 5.4 TEST SETUP 17 5.5 EUT OPERATING CONDITIONS 17 5.6 EUT TEST CONDITIONS 18 5.7 TEST RESULTS (BELOW 30MHZ) - FCC PART 15.209 18 5.8 TEST RESULTS - (30-1000MHZ) - FCC PART 15.209 18 5.9 TEST RESULTS- FCC PART 15.225 18 6 FREQUENCY STABILITY 19 6.1 LIMITS 19 6.2 TEST PROCEDURE 19 6.3 DEVIATION FROM TEST STANDARD 19 6.4 EUT OPERATING CONDITIONS 19 6.5 EUT TEST CONDITIONS 19 6.6 TEST RESULTS 19 7 . MEASUREMENT INSTRUMENTS LIST 20 8 EUT TEST PHOTO 21 ATTACHMENT A - CONDUCTED EMISSION 24 Report No.: BTL-FCCP-1-1410172 Page 4 of 35 Table of Contents ATTACHMENT B - RADIATED EMISSION (9KHZ-30MHZ) 27 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 29 ATTACHMENT D - RADIATED EMISSION (FCC PART 15.225) 32 ATTACHMENT E - FREQUENCY STABILITY MEASUREMENT 34 Report No.: BTL-FCCP-1-1410172 Page 5 of 35 REPORT ISSUED HISTORY Issue No. Description Issued Date BTL-FCCP-1-1410172 Original Issue. Nov. 17, 2014 Report No.: BTL-FCCP-1-1410172 Page 6 of 35 1 CERTIFICATION Equipment : IP Base Intercom Door Phone Brand Name : TASHI;unitech Model Name : MT200L Applicant : unitech electronics co., ltd. Date of Test : Oct. 20, 2014 ~ Nov. 14, 2014 Standards : FCC Part 15, Subpart C: 2013 ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc.. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-1-1410172 ) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCCP-1-1410172 Page 7 of 35 2 SUMMARY OF TEST RESULTS Test procedures according to the technical standards: Standard Section Test Item Result 15.207 Conducted emission PASS 15.35 / 15.205 / 15.209 / 15.225 Radiated emission PASS 15.225(e) Frequency Stability PASS 15.203 Antenna Requirement PASS NOTE: 1. N/A: denotes test is not applicable in this Test Report Report No.: BTL-FCCP-1-1410172 Page 8 of 35 2.1 TEST FACILITY The test facilities used to collect the test data in this report: Conducted emission Test: C02: (VCCI RN: C-3477; FCC RN: 614388; FCC DN: TW1054) 1F., No. 61, Ln. 77, Sing-ai Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C.) Radiated emission Test: CB08: (FCC RN: 614388; FCC DN: TW1054; IC Assigned Code: 4428C-1) 1F., No. 61, Ln. 77, Sing-ai Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C.) 2.2 MEASUREMENT UNCERTAINTY The measurement uncertainty is not specified by FCC/Industry Canada rules and for reference only. The reported uncertainty of measurement y ± U,where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2,providing a level of confidence of approximately 95%. The measurement instrumentation uncertainty considerations contained in CISPR 16-4-2. A. Conducted emission test: Test Site Measurement Frequency Range U,(dB) NOTE C02 150 kHz ~ 30 MHz 2.59 B. Radiated emission test: Test Site Item Measurement Frequency Range Uncertainty NOTE CB08 Radiated emission at 3m Horizontal Pola…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1410172 Page 21 of 35 8 EUT TEST PHOTO Conducted emission test photos Report No.: BTL-FCCP-1-1410172 Page 22 of 35 Radiated emission test photos 9KHz to 30MHz Report No.: BTL-FCCP-1-1410172 Page 23 of 35 Radiated emission test photos 30MHz to 1000MHz
