HLEPA690BTGMobile terminal with barcode reader

Copyright 2011 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Mobile terminal with barcode reader - PA690 - User’s Manual 400854G Version 1.2 Copyright 2011 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. i Copyright 2011 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Preface About This Manual This manual explains how to install, operate and maintain the PA690 Mobile terminal with barcode reader. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, such as photocopying, recording, or information storage and retrieval systems, without permission in writing from the manufacturer. The material in this manual is subject to change without notice. © Copyright 2011 Unitech Electronics Co., Ltd. All rights reserved. Unitech global website address: http:\\www.unitech-adc.com Bluetooth is a registered trademark of Bluetooth SIG. Microsoft, Windows and ActiveSync are either registered trademarks or trademarks of Microsoft Corporation. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. Unitech is a member of Oracle Embedded Software Licensing Program. ii Copyright 2011 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Regulatory Compliance Statements FCC Warning Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference with radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference with radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help. 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure requirements, avoid direct contact to the transmitting antenna during transmitting. 3. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. Operation on the 5.15 - 5.25GHz frequency band is restricted to indoor use only. The FCC requires indoor use for the 5.15-5.25GHz band to reduce the potential for harmful interference to co-channel Mobile Satellite Systems. Therefore, it will only transmit on the 5.25-5.35 GHz, 5.47-5.725 GHz and 5.725 –5.850 GHz band when associated with an access point (AP). iii Copyright 2011 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. FCC Label Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. RF Radiation Exposure Statement For body contact during operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Canadian Compliance Statement This Class B Digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numerique de la classe B respecte les exigences du Reglement sur le material broilleur du Canada. European Conformity Statement Declaration of Conformity with regards to the R&TTE 1999/5/EC and EMC 89/336/ EEC directives. RoHS Statement This device conforms to RoHS (Reduction Of Hazardous Substan ces) European Union regulations that set maximum concentration limits on hazardous materials used in electrical and electronic equipment. iv Copyright 2011 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. TaiwanNCC Warning Statement 交通部電信總局低功率電波輻射性電機管理辦法 (930322) 根據交通部低功率管理辦法規定： 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司 、商號或使用者 均不得擅自變更頻率 、加大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有 干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合 法通信 ，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電 機設備之干擾。 Laser Information The Unitech PA690 series is certified in the U.S. to conform to the requirements of DHHS/CDRH 21CFR Subchapter J and to the requirements of IEC 825-1. Class II and Class 2 products are not considered to be hazardous. The PA690 series contains internally a Visible Laser Diode (VLD) whose emissions do not exceed the maximum limits as set forth in the above regulations. The scanner is designed so that there is no human access to harmful laser light during normal operation, user maintenance or prescribed service operations. The laser safety warning label required by the DHHS/IEC for the PA690 series' optional laser scanner module is located…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 November 18, 2011 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Sporton International Inc. Jan. 09, 2012 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _Sporton International Inc._hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Mobile terminal with barcode reader Model name: PA690 ,HC1-9260UADG;HC1-9261QADG We affirm that between SIEMIC and __Sporton Internationl Inc.___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Jones Tsai / Director Contact information / address: No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C.

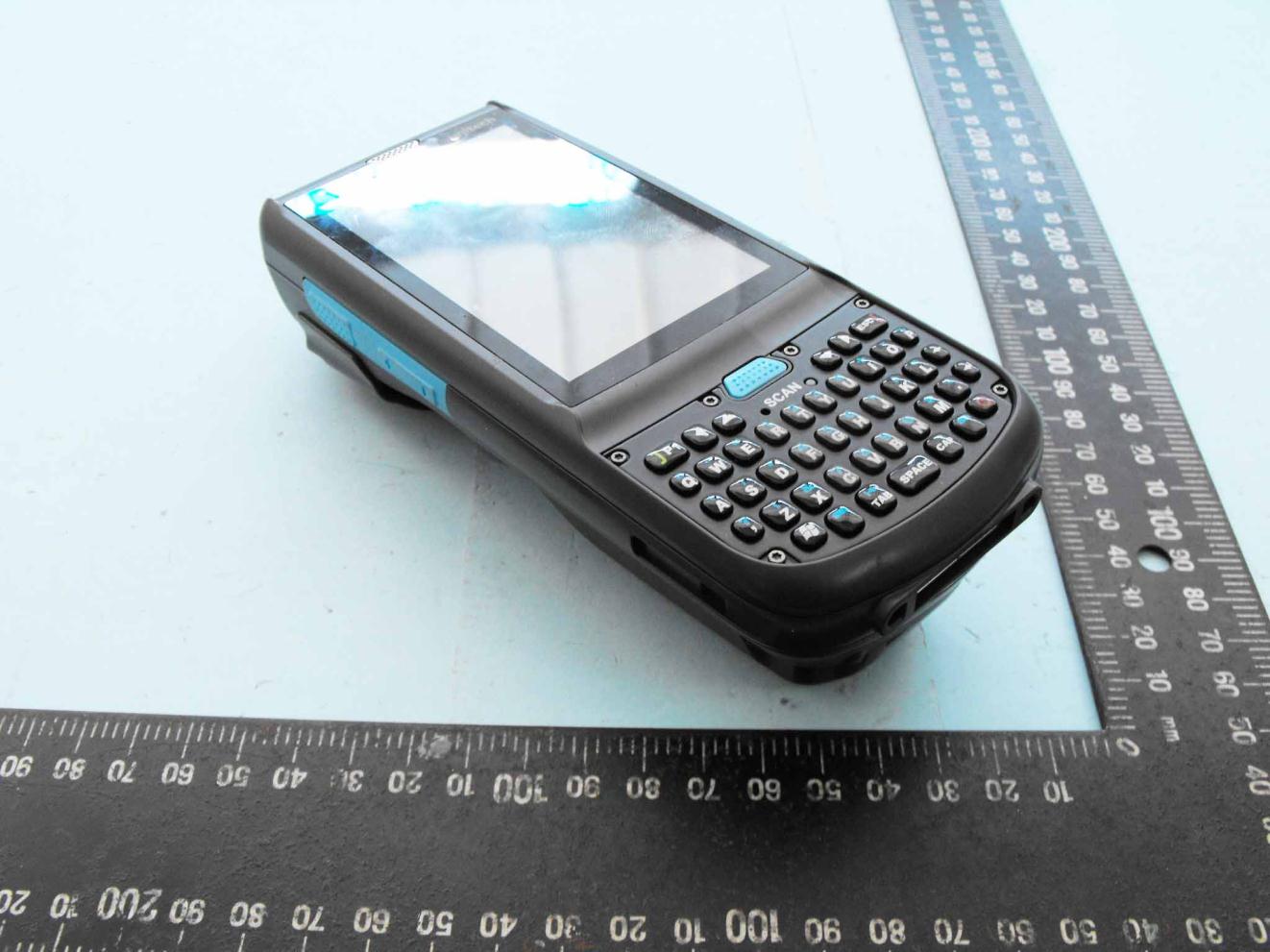

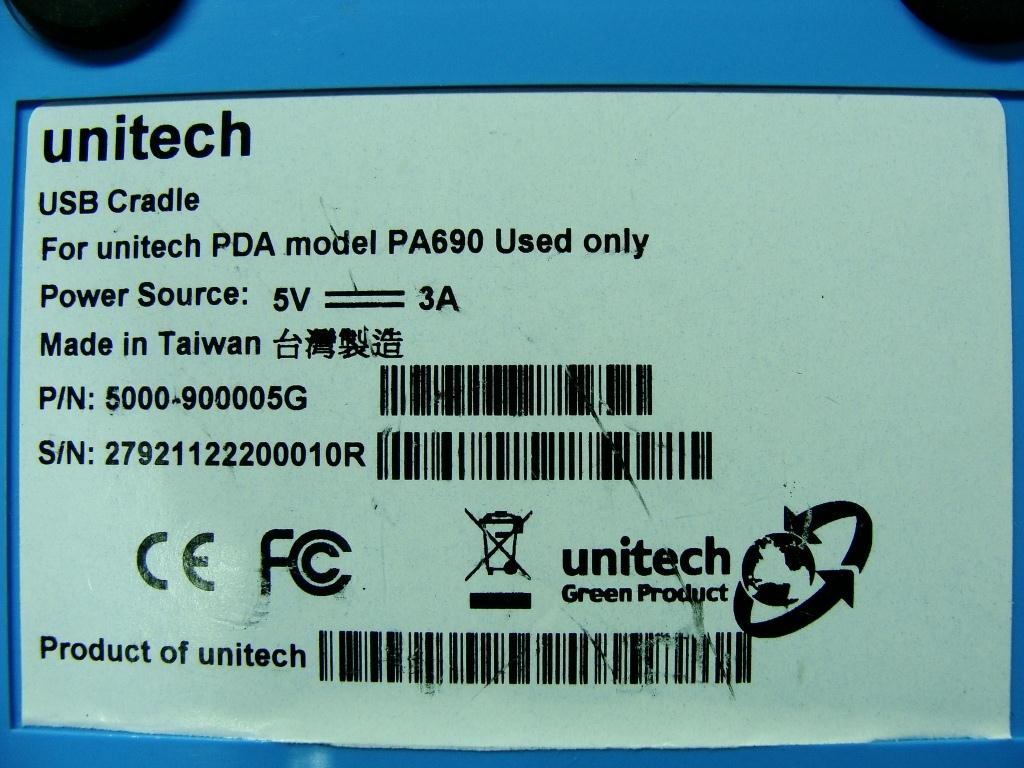

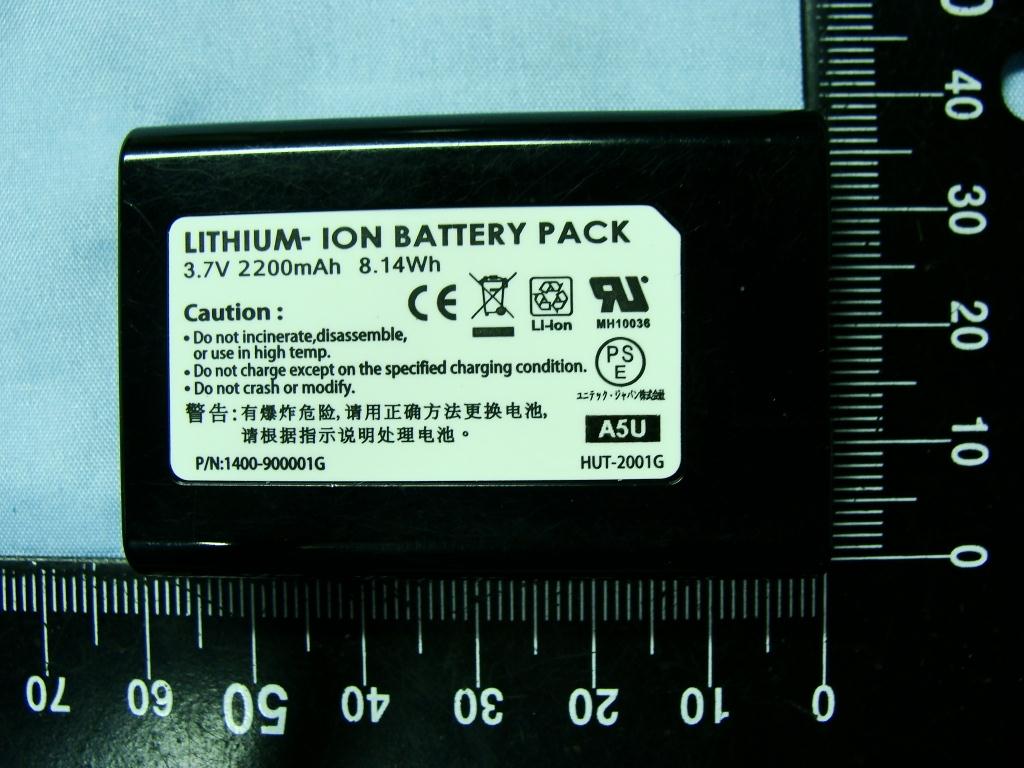

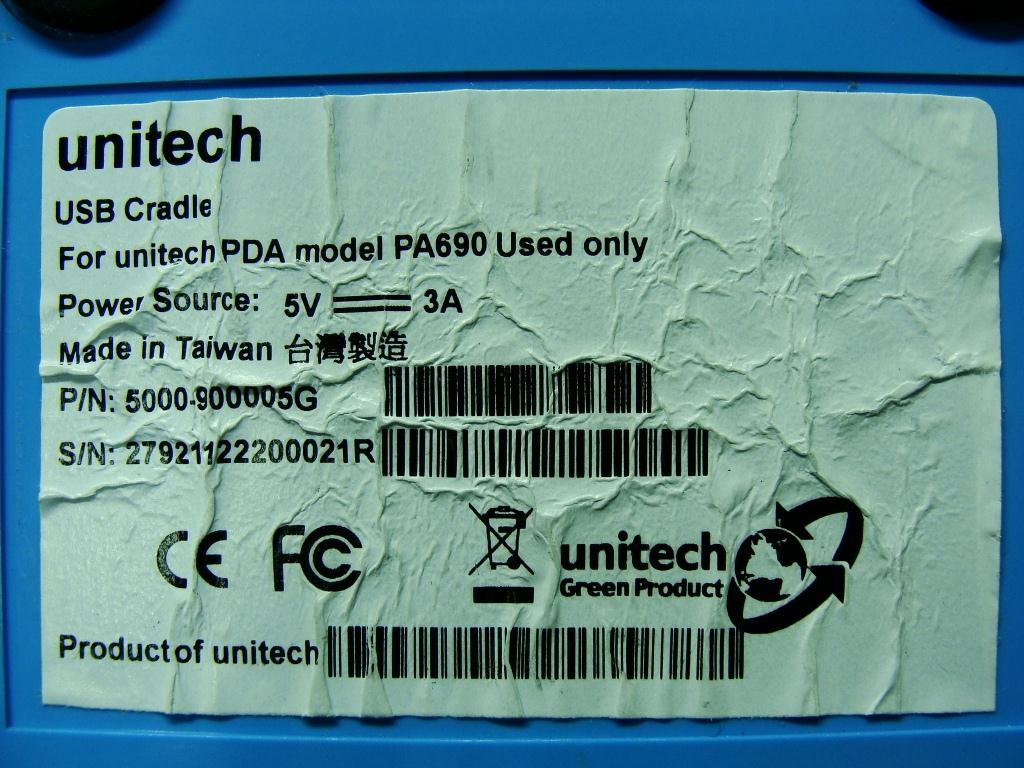

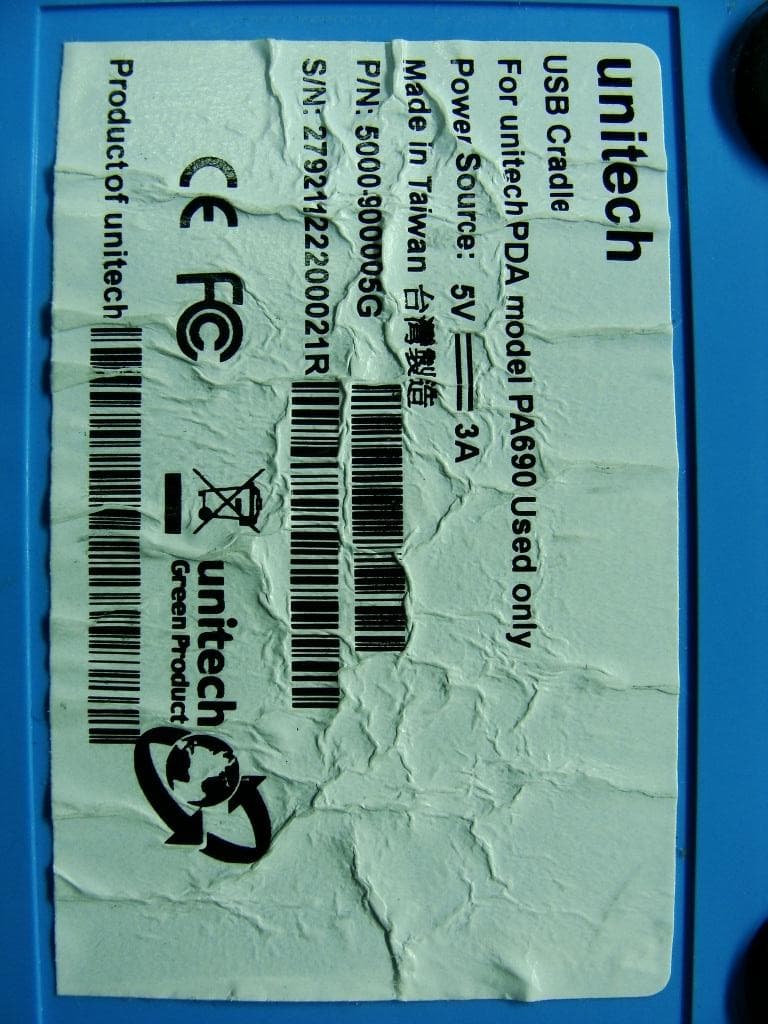

Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 1 of 21 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 2 of 21 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 3 of 21 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 4 of 21 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 5 of 21 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG List of Accessory: Specification of Accessory AC Adapter Brand Name ENG ELECTRIC Co., LTD. Model Name 3A-182WP05 Battery 1 Brand Name HELIX Model Name P/N:1400-900001G Battery 2 Brand Name HELIX Model Name P/N:1400-900005G U cup cable (RS232 interface) Brand Name Unitech Model Name 1550-900044G U cup cable (USB interface) Brand Name Unitech Model Name 1550-900043G USB cardle Brand Name Unitech Model Name 5000-900005G Ethernet cardle Brand Name Unitech Model Name 5000-900004G LCD Panel Brand Name NEC Model Name NL4864HL11-01B Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 6 of 21 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG 720510 Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 7 of 21 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG AC Adapter Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 8 of 21 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG Battery 1 Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 9 of 21 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG Battery 2 Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 10 of 21 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG USB cardle Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 11 of 21 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG Ethernet cardle

Mobile Phone Battery Compartment Label Location

Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 12 of 21 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 13 of 21 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 14 of 21 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 15 of 21 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 16 of 21 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG Bluetooth Antenna <Tx/Rx> Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 17 of 21 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG GPS Antenna <Rx> Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 18 of 21 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG WLAN Aux. Antenna <Tx/Rx> Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 19 of 21 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 20 of 21 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG WLAN Main. Antenna <Tx/Rx> Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 21 of 21 TEL : 886-3-327-3456 Report Issued Date : Jan. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG

Photographs of EUT Report No.: EP132448-01 Brand Name: unitech / Model Name: ELLA;PA690 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : 01. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA690BTGG Antenna location Length Width WLAN Main Antenna <TX / RX> 4.0 cm 0.3 cm WLAN Aux Antenna <TX / RX> 4.0 cm 0.3 cm GPS Antenna < RX> 1.2 cm 0.4 cm Bluetooth Antenna <TX / RX> 1.2 cm 0.4 cm WLAN Main Antenna <Tx / Rx> GPS Antenna <Rx> 4.4 cm 0.8 cm 5.4 cm 0.9 cm 8cm 1.8 cm 8 cm 4.4 cm Bluetooth & WLAN Aux. Antenna <Tx / Rx> 5.7 cm 6.7 cm 0.6 cm 1.1 cm 5 cm Bluetooth Antenna <Tx / Rx>

SPORTON INTERNATIONAL INC. Page Number : 1 of 36 TEL : 886-3-327-3456 Report Issued Date : Jan. 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : HLEPA690BTG FCC SAR Test Report Report No. : FA132448-01 FCC SAR Test Report APPLICANT : Unitech Electronics Co., Ltd. EQUIPMENT : Mobile terminal with barcode reader BRAND NAME : unitech MODEL NAME : ELLA;PA690;HC1-9260UADG;HC1-9261QADG FCC ID : HLEPA690BTG STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Jun. 20, 2011 and completely tested on Jul. 03, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report appNTEly exclusively to the tested model / sample. Without written approval of SPORTON IRNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 36 TEL : 886-3-327-3456 Report Issued Date : Jan. 10, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : HLEPA690BTG FCC SAR Test Report Report No. : FA132448-01 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2 Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3 General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Applied Standards ............................................................................................................................................ 7 3.3 Device Category and SAR Limits ..................................................................................................................... 7 3.4 Test Conditions ................................................................................................................................................. 7 3.4.1 Ambient Condition ................................................................................................................................... 7 3.4.2 Test Configuration ................................................................................................................................... 7 4 Specific Absorption Rate (SAR) ................................................................................................................................ 8 4.1 Introduction ....................................................................................................................................................... 8 4.2 SAR Definition .................................................................................................................................................. 8 5 SAR Measurement System ........................................................................................................................................ 9 5.1 E-Field Probe...................................................................................................................................................10 5.1.1 E-Field Probe Specification ...................................................................................................................10 5.1.2 E-Field Probe Calibration ....................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3 Robot ............................................................................................................................................................... 11 5.4 Measurement Server .......................................................................................................................................12 5.5 Phantom ..........................................................................................................................................................13 5.6 Device Holder ..................................................................................................................................................14 5.7 Data Storage and Evaluation ...........................................................................................................................16 5.7.1 Data Storage ...................................................................................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/22 System Check_Head_2450MHz_110622 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_110622 Medium parameters used: f = 2450 MHz; σ = 1.85 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.77, 6.77, 6.77); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 6.43 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.0 V/m; Power Drift = -0.001 dB Peak SAR (extrapolated) = 12.9 W/kg SAR(1 g) = 5.61 mW/g; SAR(10 g) = 2.52 mW/g Maximum value of SAR (measured) = 6.37 mW/g 0 dB = 6.37mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/23 System Check_Head_2450MHz_110623 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_110623 Medium parameters used: f = 2450 MHz; σ = 1.83 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.41, 4.41, 4.41); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 5.62 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.4 V/m; Power Drift = -0.019 dB Peak SAR (extrapolated) = 10.4 W/kg SAR(1 g) = 4.89 mW/g; SAR(10 g) = 2.3 mW/g Maximum value of SAR (measured) = 5.53 mW/g 0 dB = 5.53mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/22 System Check_Body_2450MHz_110622 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_110622 Medium parameters used: f = 2450 MHz; σ = 1.97 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.02, 7.02, 7.02); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 6.85 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.9 V/m; Power Drift = -0.137 dB Peak SAR (extrapolated) = 12.1 W/kg SAR(1 g) = 5.65 mW/g; SAR(10 g) = 2.56 mW/g Maximum value of SAR (measured) = 6.47 mW/g 0 dB = 6.47mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/7/2 System Check_Head_5200MHz_110702 DUT: Dipole 5GHz Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: HSL_5G_110702 Medium parameters used: f = 5200 MHz; σ = 4.8 mho/m; ε r = 35.5; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY4 Configuration: - Probe: EX3DV4 - SN3697; ConvF(4.8, 4.8, 4.8); Calibrated: 2011/4/19 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 14.6 mW/g Pin=100mW/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 57.7 V/m; Power Drift = 0.040 dB Peak SAR (extrapolated) = 32.5 W/kg SAR(1 g) = 8.21 mW/g; SAR(10 g) = 2.31 mW/g Maximum value of SAR (measured) = 13.9 mW/g 0 dB = 13.9mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/7/2 System Check_Head_5200MHz_110702 DUT: Dipole 5GHz Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: HSL_5G_110702 Medium parameters used: f = 5200 MHz; σ = 4.8 mho/m; ε r = 35.2; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.3 °C DASY4 Configuration: - Probe: EX3DV4 - SN3731; ConvF(4.83, 4.83, 4.83); Calibrated: 2010/9/20 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.2 mW/g Pin=100mW/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 51.0 V/m; Power Drift = 0.130 dB Peak SAR (extrapolated) = 31.5 W/kg SAR(1 g) = 7.86 mW/g; SAR(10 g) = 2.19 mW/g Maximum value of SAR (measured) = 13.2 mW/g 0 dB = 13.2mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/7/3 System Check_Body_5200MHz_110703 DUT: Dipole 5GHz Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: MSL_5G_110703 Medium parameters used: f = 5200 MHz; σ = 5.36 mho/m; ε r = 48.7; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY4 Configuration: - Probe: EX3DV4 - SN3697; ConvF(3.97, 3.97, 3.97); Calibrated: 2011/4/19 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80;…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/22 #39 802.11b_Right Cheek_Ch1_Ant1_Battery1 DUT: 132448-01 Communication System: 802.11b ; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: HSL_2450_110622 Medium parameters used: f = 2412 MHz; σ = 1.8 mho/m; ε r = 39.5; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.77, 6.77, 6.77); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch1/Area Scan (51x111x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.044 mW/g Ch1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.91 V/m; Power Drift = 0.185 dB Peak SAR (extrapolated) = 0.115 W/kg SAR(1 g) = 0.044 mW/g; SAR(10 g) = 0.019 mW/g Maximum value of SAR (measured) = 0.048 mW/g 0 dB = 0.048mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/22 #40 802.11b_Right Tilted_Ch1_Ant1_Battery1 DUT: 132448-01 Communication System: 802.11b ; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: HSL_2450_110622 Medium parameters used: f = 2412 MHz; σ = 1.8 mho/m; ε r = 39.5; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.77, 6.77, 6.77); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch1/Area Scan (51x111x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.027 mW/g Ch1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.1 V/m; Power Drift = 0.124 dB Peak SAR (extrapolated) = 0.031 W/kg SAR(1 g) = 0.017 mW/g; SAR(10 g) = 0.00828 mW/g Maximum value of SAR (measured) = 0.018 mW/g Ch1/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.1 V/m; Power Drift = 0.124 dB Peak SAR (extrapolated) = 0.040 W/kg SAR(1 g) = 0.011 mW/g; SAR(10 g) = 0.00506 mW/g Maximum value of SAR (measured) = 0.011 mW/g 0 dB = 0.011mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/23 #41 802.11b_Left Cheek_Ch1_Ant1_Battery1 DUT: 132448-01 Communication System: 802.11b ; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: HSL_2450_110623 Medium parameters used: f = 2412 MHz; σ = 1.79 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.41, 4.41, 4.41); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch1/Area Scan (51x111x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.074 mW/g Ch1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.65 V/m; Power Drift = 0.148 dB Peak SAR (extrapolated) = 0.129 W/kg SAR(1 g) = 0.067 mW/g; SAR(10 g) = 0.035 mW/g Maximum value of SAR (measured) = 0.070 mW/g 0 dB = 0.070mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/23 #41 802.11b_Left …

Text truncated - open the document above for the full version.
