HLEPA692BTNPRugged Handheld Computer

Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. PA692 Rugged Handheld Computer - PA692 - User’s Manual 400979G_Version 1.0 Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. i Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Preface About This Manual This manual explains how to install, operate and maintain the PA692 Rugged Handheld Computer. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, such as photocopying, recording, or information storage and retrieval systems, without permission in writing from the manufacturer. The material in this manual is subject to change without notice. © Copyright 2011 Unitech Electronics Co., Ltd. All rights reserved. Unitech global website address: http:\\www.unitech-adc.com Microsoft, Windows and ActiveSync are either registered trademarks or trademarks of Microsoft Corporation. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. Unitech is a member of Oracle Embedded Software Licensing Program. Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. ii Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Regulatory Compliance Statements FCC Warning Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference with radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference with radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help. 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure requirements, avoid direct contact to the transmitting antenna during transmitting. 3. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. Operation on the 5.15 - 5.25GHz frequency band is restricted to indoor use only. The FCC requires indoor use for the 5.15-5.25GHz band to reduce the potential for harmful interference to co-channel Mobile Satellite Systems. Therefore, it will only transmit on the 5.25-5.35 GHz, 5.47-5.725 GHz and 5.725 –5.850 GHz band when associated with an access point (AP). iii Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. FCC Label Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. RF Radiation Exposure Statement For body contact during operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Canadian Compliance Statement This Class B Digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numerique de la classe B respecte les exigences du Reglement sur le material broilleur du Canada. European Conformity Statement Declaration of Conformity with regards to the R&TTE 1999/5/EC and EMC 89/336/ EEC directives. RoHS Statement This device conforms to RoHS (Reduction Of Hazardous Substance s) European Union regulations that set maximum concentration limits on hazardous materials used in electrical and electronic equipment. iv Copyright 2012 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. TaiwanNCC Warning Statement 交通部電信總局低功率電波輻射性電機管理辦法 (930322) 根據交通部低功率管理辦法規定： 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司 、商號或使用者 均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有 干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合 法通信 ，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電 機設備之干擾。 Laser Information The Unitech PA692 series is certified in the U.S. to conform to the requirements of DHHS/CDRH 21CFR Subchapter J and to the requirements of IEC 825-1. Class II and Class 2 products are not considered to be hazardous. The PA692 series contains internally a Visible Laser Diode (VLD) whose emissions do not exceed the maximum limits as set forth in the above regulations. The scanner is designed so that there is no human access to harmful laser light during normal operation, user maintenance or prescribed service operations. The laser safety warning label required by the DHHS/IEC for the PA692 series' optional laser scanner module is located on the me…

Text truncated - open the document above for the full version.

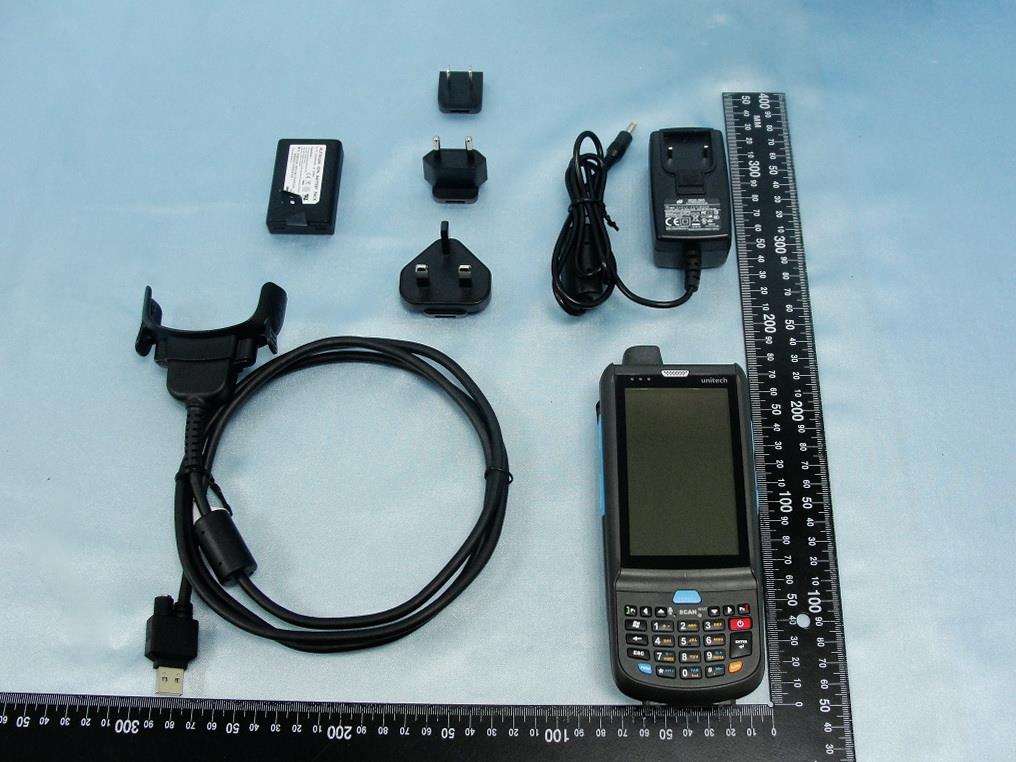

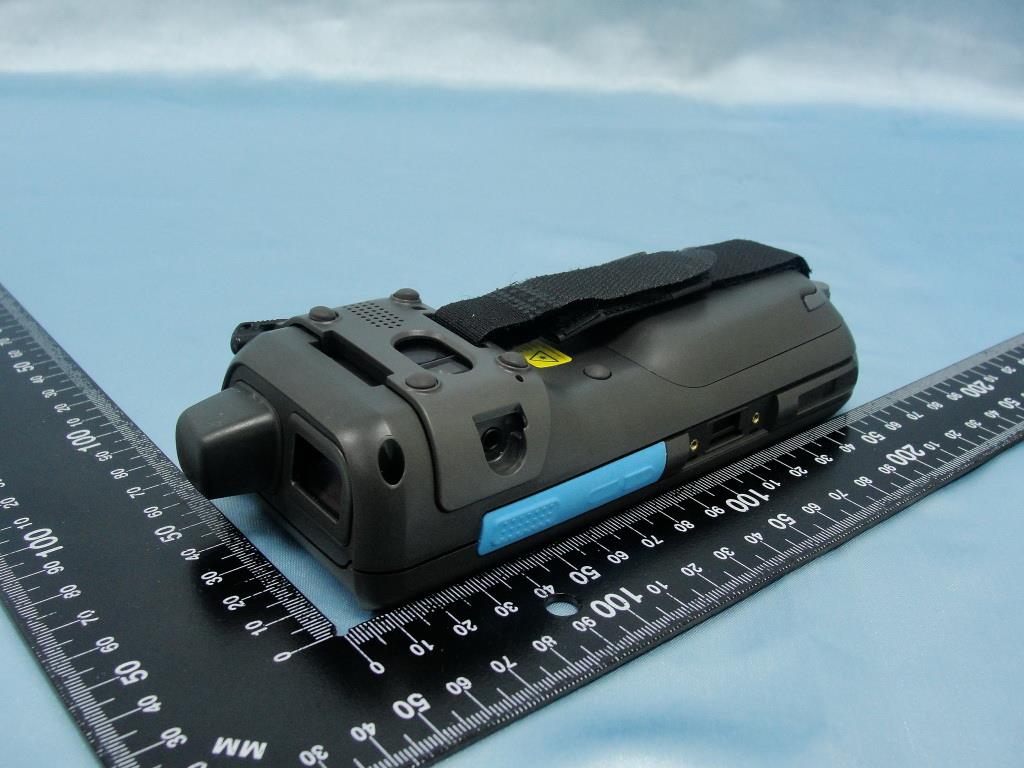

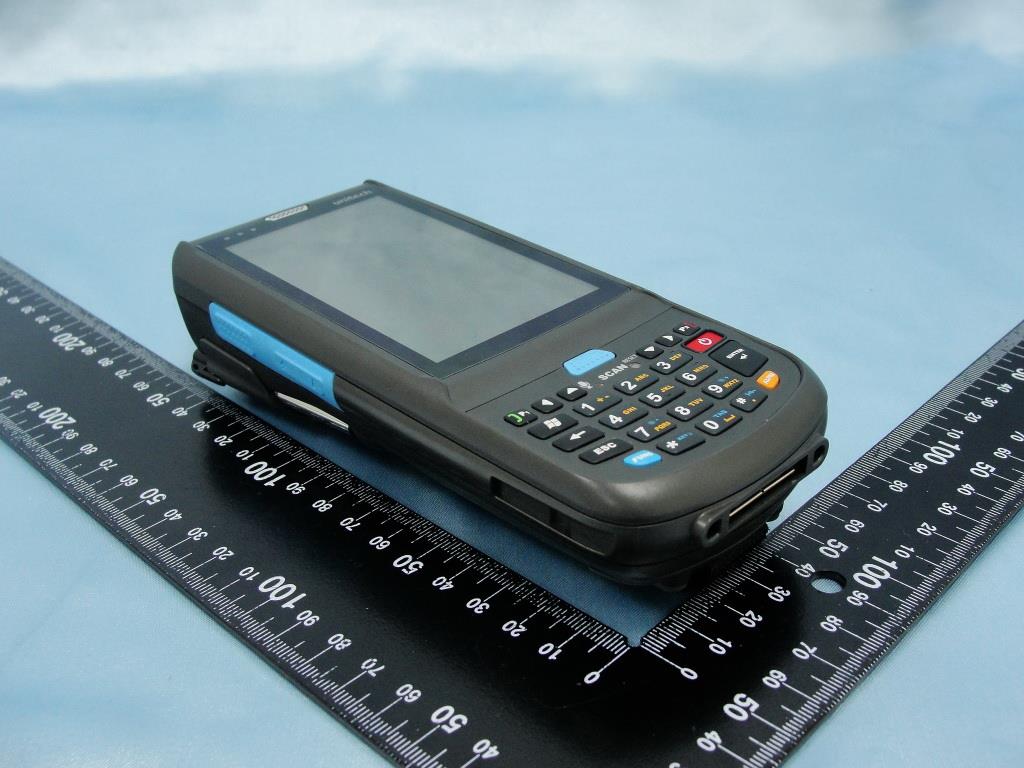

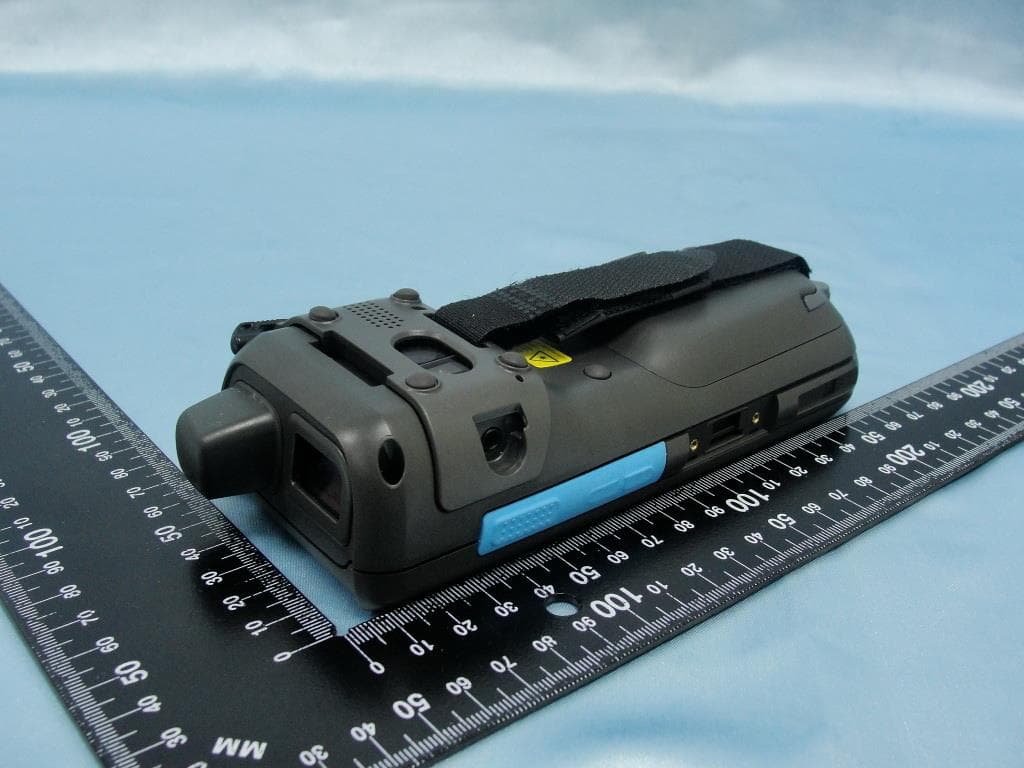

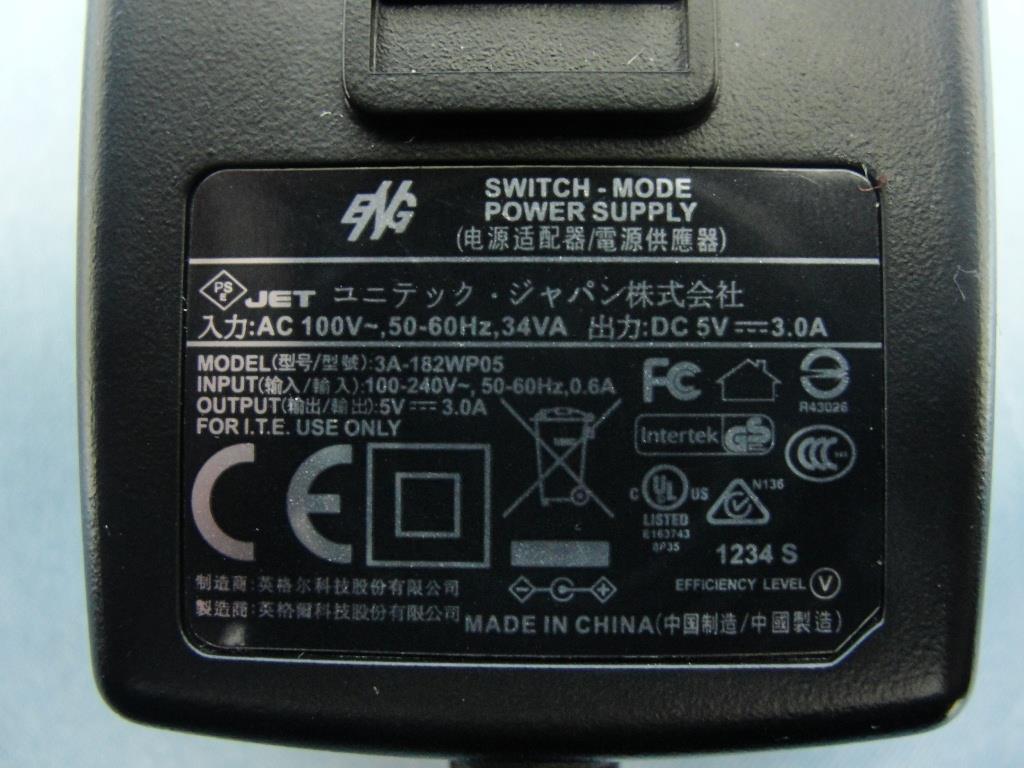

Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 1 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 2 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 3 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 4 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 5 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP List of Accessory: Specification of Accessory AC Adapter Brand Name ENG ELECTRIC Co., LTD. Model Name 3A-182WP05 Battery Brand Name WELL Tech Energy Model Name 1400-900001G U cup USB Cable Brand Name unitech Model Name 1550-900043G Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 6 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP 720510 Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 7 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 8 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP

Back of the EUT Label Location Battery Compartment

Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 9 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 10 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 11 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 12 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 13 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 14 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 15 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 16 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 17 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 18 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 19 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP WWAN Antenna Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 20 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 21 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP WLAN Main Antenna Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 22 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 23 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP WLAN Aux. & Bluetooth Antenna Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 24 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP Photographs of EUT Report No.: EP310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 25 of 25 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP GPS Antenna

Photographs of EUT Report No.: 310457 Brand Name: unitech / Model Name: PA692 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : May 08, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP EUT Length: 17.9 cm EUT Width: 7.5 cm Antenna Length Width WWAN Antenna <Tx / Rx> 2.3 cm 1.0 cm WLAN Main Antenna <Tx / Rx> 3.2 cm 0.9 cm Bluetooth & WLAN Aux. Antenna <Tx / Rx> 4.0 cm 0.9 cm GPS Antenna <RX> 1.2 cm 0.4 cm The shortest distance between the Tx antennas WWAN Antenna <Tx / Rx> to WLAN Main Antenna <Tx / Rx> 4.0 cm WWAN Antenna <Tx / Rx> to Bluetooth & WLAN Aux. Antenna <Tx / Rx> 4.6 cm WLAN Main Antenna <Tx / Rx> to Bluetooth & WLAN Aux. Antenna <Tx / Rx> 4.3 cm WLAN Main Antenna <Tx / Rx> 6.1 cm 7.8 cm WWAN Antenna <Tx / Rx> GPS Antenna <Rx> 2.0 cm 5.9 cm Bluetooth & WLAN Aux. Antenna <Tx / Rx> 15.0 cm 7.8 cm 5.9 cm 4.5 cm 6.9 cm

SPORTON INTERNATIONAL INC. Page Number : 1 of 51 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP FCC SAR Test Report Report No. : FA310457 FCC SAR Test Report APPLICANT : Unitech Electronics Co., Ltd. EQUIPMENT : Rugged Handheld Computer BRAND NAME : unitech MODEL NAME : PA692 FCC ID : HLEPA692BTNP STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Apr. 17, 2013. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 51 TEL : 886-3-327-3456 Report Issued Date : May 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HLEPA692BTNP FCC SAR Test Report Report No. : FA310457 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 6 3.2 Maximum RF output power among production units .............................................................................................. 7 3.3 Applied Standard .................................................................................................................................................... 9 3.4 Device Category and SAR Limits ........................................................................................................................... 9 3.5 Test Conditions ....................................................................................................................................................... 9 4. Specific Absorption Rate (SAR) ..................................................................................................................................10 4.1 Introduction ...........................................................................................................................................................10 4.2 SAR Definition .......................................................................................................................................................10 5. SAR Measurement System ..........................................................................................................................................11 5.1 E-Field Probe ........................................................................................................................................................ 11 5.2 Data Acquisition Electronics (DAE) .......................................................................................................................13 5.3 Robot ....................................................................................................................................................................13 5.4 Measurement Server .............................................................................................................................................13 5.5 Phantom ................................................................................................................................................................14 5.6 Device Holder........................................................................................................................................................15 5.7 Data Storage and Evaluation ................................................................................................................................16 5.8 Test Equipment List ...............................................................................................................................................18 6. Tissue Simulating Liquids ...........................................................................................................................................19 7. SAR System Verification .............................................................................................................................................21 7.1 Purpose of System Performance check ................................................................................................................21 7.2 System Setup ..............................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/4/12 System Check_Head_835MHz_130412 DUT: D835V2-SN:499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_130412 Medium parameters used: f = 835 MHz; σ = 0.906 mho/m; ε r = 42.966; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2012/12/5 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.5 (6469) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.63 mW/g Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 56.284 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 3.323 mW/g SAR(1 g) = 2.41 mW/g; SAR(10 g) = 1.61 mW/g Maximum value of SAR (measured) = 2.59 mW/g 0 dB = 2.59 mW/g = 8.27 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/4/12 System Check_Body_835MHz_130412 DUT: D835V2-SN:499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_130412 Medium parameters used: f = 835 MHz; σ = 0.963 mho/m; ε r = 54.544; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.08, 6.08, 6.08); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2012/12/5 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.5 (6469) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.62 mW/g Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 54.056 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.472 mW/g SAR(1 g) = 2.44 mW/g; SAR(10 g) = 1.61 mW/g Maximum value of SAR (measured) = 2.63 mW/g 0 dB = 2.63 mW/g = 8.40 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/11 System Check_Head_1900MHz_130311 DUT: D1900V2-SN:5d142 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_130311 Medium parameters used: f = 1900 MHz; σ = 1.44 mho/m; ε r = 40.631; ρ = 1000 kg/m 3 Ambient Temperature：22.2 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(5.05, 5.05, 5.05); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1478 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12.3 mW/g Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 91.846 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 16.067 mW/g SAR(1 g) = 9.86 mW/g; SAR(10 g) = 5.52 mW/g Maximum value of SAR (measured) = 12.1 mW/g 0 dB = 12.1 mW/g = 21.66 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/4/12 System Check_Head_1900MHz_130412 DUT: D1900V2-SN:5d142 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_130412 Medium parameters used: f = 1900 MHz; σ = 1.449 mho/m; ε r = 39.755; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(5.06, 5.06, 5.06); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2012/12/5 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.5 (6469) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12.3 mW/g Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 94.914 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 17.173 mW/g SAR(1 g) = 10.2 mW/g; SAR(10 g) = 5.4 mW/g Maximum value of SAR (measured) = 11.4 mW/g 0 dB = 11.4 mW/g = 21.14 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/11 System Check_Body_1900MHz_130311 DUT: D1900V2-SN:5d142 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_130311 Medium parameters used: f = 1900 MHz; σ = 1.505 mho/m; ε r = 53.691; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.67, 4.67, 4.67); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1446 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12.8 mW/g Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 90.033 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 17.128 mW/g SAR(1 g) = 9.47 mW/g; SAR(10 g) = 4.93 mW/g Maximum value of SAR (measured) = 11.9 mW/g 0 dB = 11.9 mW/g = 21.51 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/4/12 System Check_Body_1900MHz_130412 DUT: D1900V2-SN:5d041 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_130412 Medium parameters used: f = 1900 MHz; σ = 1.534 mho/m; ε r = 51.914; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.58, 4.58, 4.58); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2012/12/5 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: …

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/4/12 #36_GSM850_GSM Voice_Right Cheek_Ch251 DUT: 310457 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_130412 Medium parameters used: f = 849 MHz; σ = 0.919 mho/m; ε r = 42.794; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2012/12/5 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.5 (6469) Configuration/Ch251/Area Scan (71x141x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.334 mW/g Configuration/Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 19.645 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.469 mW/g SAR(1 g) = 0.331 mW/g; SAR(10 g) = 0.225 mW/g Maximum value of SAR (measured) = 0.351 mW/g 0 dB = 0.351 mW/g = -9.09 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/4/12 #37_GSM850_GSM Voice_Right Tilted_Ch251 DUT: 310457 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_130412 Medium parameters used: f = 849 MHz; σ = 0.919 mho/m; ε r = 42.794; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2012/12/5 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.5 (6469) Configuration/Ch251/Area Scan (71x141x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.317 mW/g Configuration/Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 19.241 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 0.452 mW/g SAR(1 g) = 0.303 mW/g; SAR(10 g) = 0.194 mW/g Maximum value of SAR (measured) = 0.326 mW/g 0 dB = 0.326 mW/g = -9.74 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/4/12 #34_GSM850_GSM Voice_Left Cheek_Ch251 DUT: 310457 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8. 3 Medium: HSL_850_130412 Medium parameters used: f = 849 MHz; σ = 0.919 mho/m; ε r = 42.794; ρ = 1000 kg/ m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2012/12/5 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.5 (6469) Configuration/Ch251/Area Scan (71x141x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.290 mW/g Configuration/Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 3.560 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.386 mW/g SAR(1 g) = 0.281 mW/g; SAR(10 g) = 0.196 mW/g Maximum value of SAR (measured) = 0.303 mW/g Configuration/Ch251/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 3.560 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.316 mW/g SAR(1 g) = 0.252 mW/g; SAR(10 g) = 0.186 mW/g Maximum value of SAR (measured) = 0.269 mW/g 0 dB = 0.269 mW/g = -11.40 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/4/12 #35_GSM850_GSM Voice_Left Tilted_Ch251 DUT: 310457 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_130412 Medium parameters used: f = 849 MHz; σ = 0.919 mho/m; ε r = 42.794; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2012/5/29; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2012/12/5 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.5 (6469) Configuration/Ch251/Area Scan (71x141x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.273 mW/g Configuration/Ch251/Zo…

Text truncated - open the document above for the full version.
