HLEPA966BTGPDA Sacnner

PA966BTG/3$7BTG 315(9B 3URGXFW5HIHUHQFH*XLGH Unitech is a member of Oracle Embedded Software Licensing Program 2 Product Reference Guide Chapter 1. Introduction ................................................................... 4 Unitech PA966 & Accessories .................................................................. 6 Tour of the Unitech PA966 .......................................................................... 7 PA966 Front and Left Side ......................................................................... 7 PA966 Back ............................................................................................... 7 First Steps with the Unitech PA966 ............................................................ 8 Installing the Battery Pack .......................................................................... 8 Supplying Power to the PA966 ................................................................... 9 Charging the Main and Backup Batteries for the First Time ........................ 9 Using the Stylus ........................................................................................ 10 PCMCIA Pulling Tags .............................................................................. 10 Insert CF card to PA966 ........................................................................... 10 Protective Screen Film ............................................................................. 11 First Operation of the Unitech PA966 ...................................................... 11 Pressing the ON/OFF Key ........................................................................ 11 Adjusting Screen Brightness ................................................................... 11 Calibrating the PA966 .............................................................................. 11 Setting Time Zone, Date, and Time ......................................................... 11 Flash Memory .......................................................................................... 13 Chapter 2.Using the Keypad and Scanner .................................14 Keypad .................................................................................................... 14 Alpha Key ................................................................................................ 15 Useful hotkeys .......................................................................................... 15 Software Keyboard (Windows CE Keyboard) ........................................... 16 Opening the Windows CE Keyboard: ....................................................... 16 Keying-in Characters: ............................................................................... 16 International Character Support:............................................................... 16 Moving the Keyboard: .............................................................................. 16 Closing the Keyboard: .............................................................................. 16 Using the Laser Scanner .......................................................................... 17 Chapter 3.Power system ...............................................................18 Charging the Lithium-Ion Battery Pack ..................................................... 18 Charging the Main and Backup Battery for the First Time ......................... 18 Power Status Indication ............................................................................ 19 3 Product Reference Guide Checking Main and Backup Battery Status ............................................... 20 How to Save Battery Power ..................................................................... 21 Warm Boot / Cold Boot ............................................................................ 22 Charging Considerations ......................................................................... 23 Storage and Safety Precautions .............................................................. 23 Chapter 4.Communication.. .........................................................24 Introduction.............................................................................................. .24 Connecting............................................................................................... 24 ActiveSync.. ............................................................................................. 25 Installing Microsoft ActiveSync .. .............................................................. 28 Connecting the Device to your computer ................................................28 Synchronizing with your computer............................................................ 30 Synchronizing Information .....................................................................32 Use Activesync to exchange files .........................................................33 InBox . ..................................................................................................... 34 Sending and Receiving E-Mail with InBox. ................................................ 34 Sending Mail Remotely . .......................................................................... 34 Setting Up Remote Mail . .......................................................................... 35 Work Remotely. ....................................................................................... 35 Receiving Messages . .............................................................................. 36 Sending Messages . ............................................................................... 37 RF Communication .................................................................................. 37 Setting the RF communication..................................................................38 Appendix A. ............................................................................................. 40 Appendix B. ................…

Text truncated - open the document above for the full version.

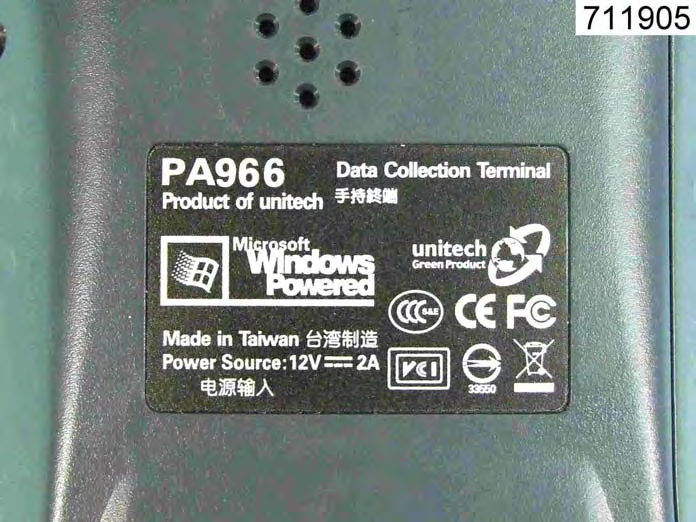

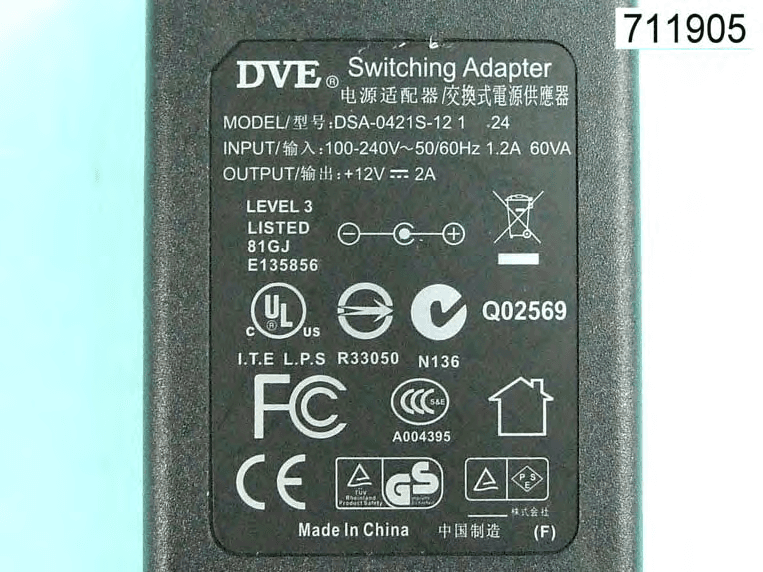

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT Model No. PA966BTG (handheld) FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 Model No. PA967BTG (gun grip) FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C41 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C42 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C47 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C48 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C49 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255

PA966BTG FCC ID: HLEPA600BT T3355 FCC ID: HLEPA966BTG CCAF0XXXXXXXTX FEDERAL COMMUNICATIONS COMMISSION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. XXXXXXXXXXX YYYYYYYYYYY

PA966BTG Label location PA967BTG Label location

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C8 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C9 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C10 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 PIFA Antenna (For BT) FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C11 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C12 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C13 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C14 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 BT Module FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C15 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C16 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C17 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 PIFA Antenna (For WLAN) FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C18 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C19 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C20 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C21 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C22 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 WLAN Module FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C23 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C24 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C25 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C26 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C27 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C28 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C29 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C30 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C31 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C32 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C33 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C34 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C35 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C36 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C37 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C38 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C39 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C40 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C43 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C44 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C45 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C46 OF C49 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 15, 2007 FAX : 886-2-2696-2255

FCC TEST REPORT Report No.: FR711905-01AC Page No. : 1 of 3 FCC ID : HLEPA966BTG Maximum Permissible Exposure FCC TEST REPORT Report No.: FR711905-01AC Page No. : 2 of 3 FCC ID : HLEPA966BTG 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC TEST REPORT Report No.: FR711905-01AC Page No. : 3 of 3 FCC ID : HLEPA966BTG 1.3. Calculated Result and Limit Antenna Type : Printed Max Conducted Power for IEEE 802.11b/g : 18.57dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result -1.48 0.7112 18.5700 71.9449 0.010185 1 Complies

FCC TEST REPORT Report No.: FR711905-01AC SPORTON International Inc. Report Format Version: a FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : PDA Scanner Model No. : PA966BTG, PA967BTG Brand Name : unitech Filing Type : New Application Applicant : unitech electronics co., ltd. 3F, No.236, Shinhu 2 nd Rd., Neihu Chiu, Taipei, Taiwan114, R.O.C. FCC ID : HLEPA966BTG Manufacturer : unitech electronics co., ltd. 5F, No.136, Lane 235, Pao-Chiao Rd., Hsin-Tien, Taiwan 231 R.O.C. Received Date : Jan. 28, 2007 Final Test Date : Aug. 14, 2007 Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. 6F, No. 106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. ILAC MRA FCC TEST REPORT Report No.: FR711905-01AC SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Aug. 16, 2007 FAX : 886-2-2696-2255 FCC ID : HLEPA966BTG Table of Contents 1. SUMMARY OF THE TEST RESULT ...................................................................................................................... 2 2. GENERAL INFORMATION..................................................................................................................................... 3 2.1. Product Details ........................................................................................................................................................................................ 3 2.2. Accessories ............................................................................................................................................................................................. 3 2.3. Table for Filed Antenna ........................................................................................................................................................................... 3 2.4. Table for Carrier Frequencies ................................................................................................................................................................. 4 2.5. Table for Test Modes .............................................................................................................................................................................. 4 2.6. Table for Testing Locations ..................................................................................................................................................................... 5 2.7. Table for Supporting Units....................................................................................................................................................................... 5 2.8. Table for Parameters of Test Software Setting ....................................................................................................................................... 5 2.9. EUT Operation during Test ..................................................................................................................................................................... 5 2.10. Test Configurations ................................................................................................................................................................................. 6 3. TEST RESULT ........................................................................................................................................................ 8 3.1. AC Power Line Conducted Emissions Measurement.............................................................................................................................. 8 3.2. Maximum Peak Output Power Measurement........................................................................................................................................ 12 3.3. Power Spectral Density Measurement .................................................................................................................................................. 14 3.4. 6dB Spectrum Bandwidth Measurement............................................................................................................................................... 19 3.5. Radiated Emissions Measurement........................................................................................................................................................ 24 3.6. Band Edge Emissions Measurement .................................................................................................................................................... 42 3.7. Antenna Requirements.......................................................................................................................................................................... 47 4. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 48 5. TEST LOCATION.................................................................................................................................................. 49 6. TAF CERTIFICATE OF ACCREDITATION .......................................................................................................... 50 APPENDIX A. COLLECTION REPORT (WLAN WITH BT) .......................................................................... A1 ~ A14 APPENDIX B. TEST PHOTOS ........................................................................................................................ …

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No.: FR711905-01AC SPORTON International Inc. Page No. : A1 of A14 TEL : 886-2-2696-2468 Issued Date : Aug. 17, 2007 FAX : 886-2-2696-2255 FCC ID : HLEPA966BTG Appendix A. Collocation Report FCC TEST REPORT Report No.: FR711905-01AC SPORTON International Inc. Page No. : A2 of A14 TEL : 886-2-2696-2468 Issued Date : Aug. 17, 2007 FAX : 886-2-2696-2255 FCC ID : HLEPA966BTG 1. TEST RESULT 1.1. Radiated Emissions Measurement 1.1.1. Limit 20dBc in any 100 kHz bandwidth outside the operating frequency band. In case the emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 1.1.2. Measuring Instruments and Setting Please refer to section 4 of equipments list in this report. The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Attenuation Auto Start Frequency 1000 MHz Stop Frequency 10th carrier harmonic RB / VB (Emission in restricted band) 1MHz / 1MHz for Peak, 1 MHz / 10Hz for Average RB / VB (Emission in non-restricted band) 100KHz / 100KHz for peak Receiver Parameter Setting Attenuation Auto Start ~ Stop Frequency 9kHz~150kHz / RB 200Hz for QP Start ~ Stop Frequency 150kHz~30MHz / RB 9kHz for QP Start ~ Stop Frequency 30MHz~1000MHz / RB 120kHz for QP FCC TEST REPORT Report No.: FR711905-01AC SPORTON International Inc. Page No. : A3 of A14 TEL : 886-2-2696-2468 Issued Date : Aug. 17, 2007 FAX : 886-2-2696-2255 FCC ID : HLEPA966BTG 1.1.3. Test Procedures 1. Configure the EUT according to ANSI C63.4. The EUT was placed on the top of the turntable 0.8 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz VBW and RBW for peak reading. Then 1MHz RBW and 10Hz VBW for average reading in spectrum analyzer. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum value. 8. If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High – Low scan is not required in this case. FCC TEST REPORT Report No.: FR711905-01AC SPORTON International Inc. Page No. : A4 of A14 TEL : 886-2-2696-2468 Issued Date : Aug. 17, 2007 FAX : 886-2-2696-2255 FCC ID : HLEPA966BTG 1.1.4. Test Setup Layout For radiated emissions below 30MHz For radiated emissions above 30MHz Above 10 GHz shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade form 3m to 1m. Distance extrapolation factor = 20 log (specific distance [3m] / test distance [1m]) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor [9.54 dB]. 1.1.5. Test Deviation There is no deviation with the original standard. 1.1.6. EUT Operation during Test The EUT was programmed to be in continuously transmitting mode. 3 or 1m FCC TEST REPORT Report No.: FR711905-01AC SPORTON International Inc. Page No. : A5 of A14 TEL : 886-2-2696-2468 Issued Date : Aug. 17, 2007 FAX : 886-2-2696-2255 FCC ID : HLEPA966BTG 1.1.7. Results of Radiated Emissions (9kHz~30MHz) Temperature 24 Humidity 53% Test Engineer Vic Hsiao Freq. Level Over Limit Limit Line Remark (MHz) (dBuV) (dB) (dBuV) - - - - See Note Note: The amplitude of spurious emissions that are attenuated by more than 20 dB below the permissible value has no need to be reported. Distance extrapolation factor = 40 log (specific distance / test distance) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor. FCC TEST REPORT Report No.: FR711905-01AC SPORTON International Inc. Page No. : A6 of A14 TEL : 886-2-2696-2468 Issued Date : Aug. 17, 2007 FAX : 886-2-2696-2255 FCC ID : HLEPA966BTG 1.1.8. Results of Radiated Emissions (30MHz~1GHz) Temperature 25 Humidity 54% Test Engineer Duncan Configurations Mode 1 Horizontal FCC TEST REPORT Report No.: FR711905-01AC SPORTON International Inc. Pag…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No.: FR711905-01AC Page No. : B1 of B6 FCC ID : HLEPA966BTG Appendix B. Test Photos FCC TEST REPORT Report No.: FR711905-01AC Page No. : B2 of B6 FCC ID : HLEPA966BTG 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR711905-01AC Page No. : B3 of B6 FCC ID : HLEPA966BTG SIDE VIEW FCC TEST REPORT Report No.: FR711905-01AC Page No. : B4 of B6 FCC ID : HLEPA966BTG 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR711905-01AC Page No. : B5 of B6 FCC ID : HLEPA966BTG For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR711905-01AC Page No. : B6 of B6 FCC ID : HLEPA966BTG For radiated emissions above 1GHz FRONT VIEW REAR VIEW
