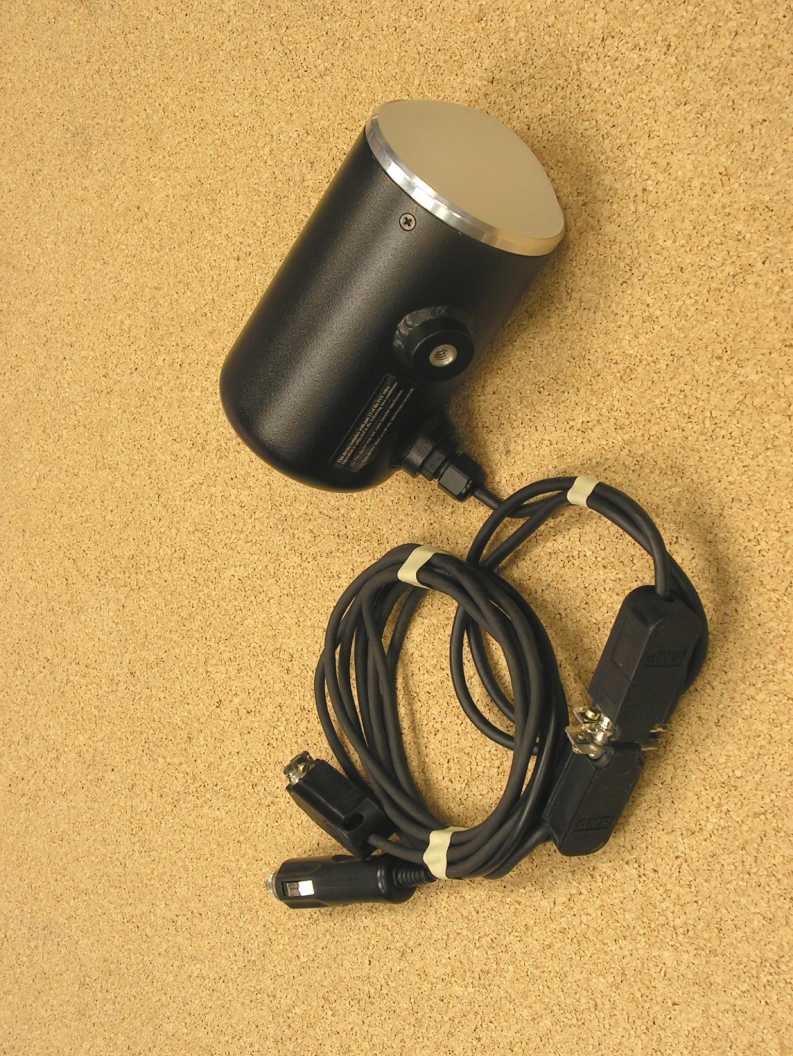

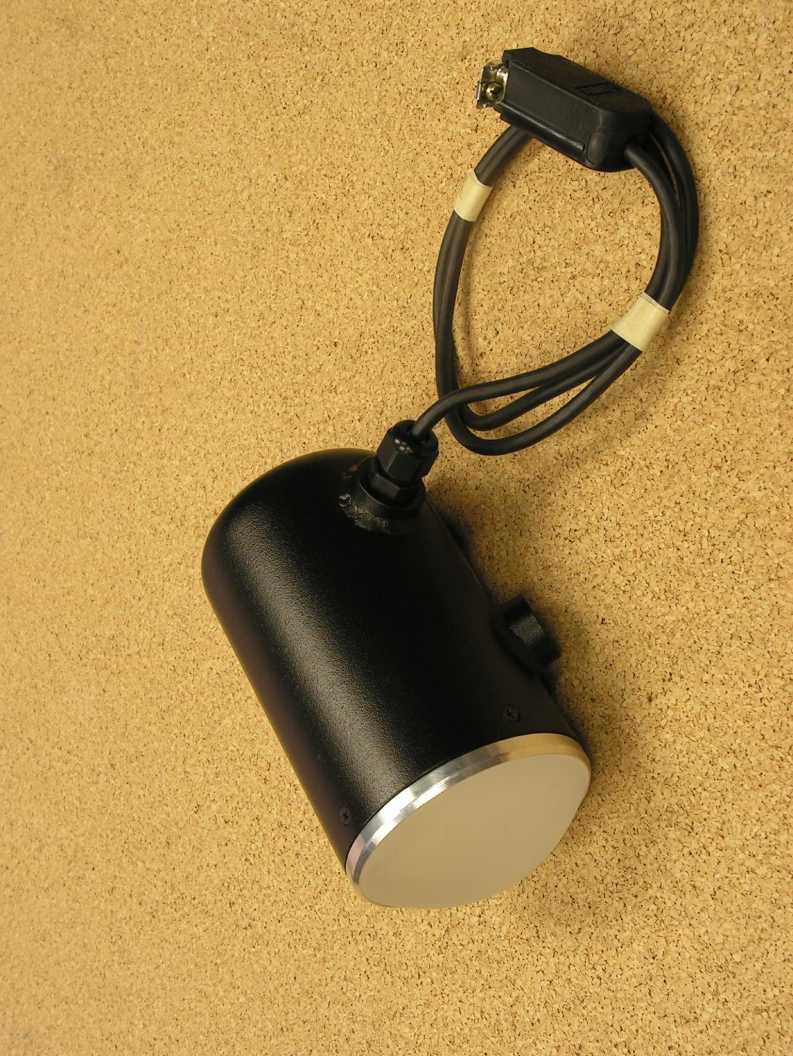

HTR-SI3Traffic/Speed Radar

User’s Manual Rev 8/6/2013 Not intended for use in Canada SI-3 ™ System Interface 3 SI-3 ™ System Interface 3 User’s Manual Table of Contents Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 1 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2 Receiving Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 3 .1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 3 .2 Connecting The Serial Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 3 .3 Optional Programming Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 3 .4 Mounting Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 4 Configuring the SI-3™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 4 .1 Equipment Needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 4 .2 Device Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 4 .3 Configuration Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 4 .4 Baud Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 4 .5 Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 4 .6 Min/Max Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 4 .7 Target Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 4 .8 Target Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 4 .9 Cosine Horizontal and Cosine Vertical . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 4 .10 Update Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 4 .11 Hold Time and Speed Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 4 .12 Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 4 .13 Serial Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 4 .14 Start and Stop Output Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 4 .15 Radar On/Off Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 5 Performance Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 5 .1 How Radar Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 5 .2 Interference Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 5 .2 .1 Angular Interference (Cosine Effect) . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 5 .2 .2 Fan Interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 5 .2 .3 Electromagnetic Interference (EMI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 5 .2 .4 Feedback Interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 5 .2 .5 Multi-Path Beam Cancellation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 5 .2 .6 Radio Frequency Interference (RFI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 5 .2 .7 Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 5 .2 .8 Environmental Factors: Wind, Rain, Snow . . . . . . . . . . . . . . . . . . . . . . .21 6 Testing The Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 6 .1 Tuning Fork Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 7 Care, Cleaning, and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 8 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 8 .1 Antenna Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 8 .2 Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 8 .3 Speed Range Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 8 .4 Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 9 Legal Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 9 .1 Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 9 .2 FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 9 .3 Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 9 .4 Installer Note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 9 .5 End User Note . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, Michigan 48109-2122 USA Tel: (734) 483-4211 Fax: (734) 647-2106 e-mail: [email protected] Attn.:Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Decatur Electronics, Inc. SI-3 FCC ID: HTR-SI3 Please find enclosed application materials for certification of Decatur Electronics, Inc. SI-3. We tested it and found it to comply with CFR Title 47, Part 15.245. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 483-4211, or e-mail [email protected]. Sincerely, Valdis V. Liepa The University of Michigan Radiation Laboratory 8

Decatur Electronics, Inc. 3433 East Wood Street Phoenix, AZ 85040 Federal Communications Commission Applications Processing Branch 7435 Oakland Mills Road Colombia, MD 21046 Re: Letter of Agency for FCC Compliance Testing Please be advised that Decatur Electronics authorizes Dr. Valdis V. Liepa of the University of Michigan, Department of Electrical Engineering and Computer Science, Ann Arbor, Michigan, to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification. Anti-Drug Abuse Certification: I further certify that no party (as defined in 1.2002 of CFR47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti Drug Abuse Act of 1988, 21 U.S.C. 853(a). Dated this19 th day of July, 20013. By:Todd J Cottle Title:Engineering Manager email:[email protected] On behalf of:Decatur Electronics Telephone:217-428-4315 Fax:602-621-4200

Type of Confidentiality Requested Exhibit Short Term Permanent (1) ID Label & Location Short Term Permanent (3) External Photos Short Term Permanent 1 (4) Block Diagram Short Term Permanent (5) Schematics Short Term Permanent (7) Test Setup Photos Short Term Permanent (8) User’s Manual Short Term Permanent (9) Internal Photos Short Term Permanent (10) Parts List & Placement Short Term Permanent (11) RF Exposure Short Term Permanent (12) Description of Operation 1. Block Diagram includes internal oscillator frequency information that the manufacturer Sincerely, Valdis V. Liepa, Research Scientist University of Michigan Re: Certification for Decatur Field Disturbance Sensor FCC ID: HTR-SI3 IC: 1270A-SI3 REQUEST FOR CONFIDENTIALITY Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, Decatur requests that a part of the subject application be held confidential. TRW has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. considers to be proprietary. Permanent Confidentiality: Decatur requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only): Decatur requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected].

1.00 2.00 R0.10 NOTES: 1. MATERIAL: 2 MIL WHITE MYLAR, WITH 1 MIL CLEAR LAMINATE OVER SERIAL #'S TO PREVENT RUBBING OFF WHEN EXPOSED TO ALCOHOL OR OTHER CLEANING FLUIDS. 2. ADHESIVE: 3M - 350 SERIES ADHESIVES. 3. MATING MATERIA L: BLACK MINI-TEX POWDER COAT #UFB-400-T3 . 4. TEMPERATURE RANGE: -40°C TO 70°C 5. DECAL: BLACK BACKGROUND WITH WHITE TEXT. 6. SERIAL NUMBER: WHITE BACKGROUND WITH BLACK TEXT AND BARCODE. 7. FONT: TIMES 8. SERIAL # MUST NOT DISOLVE (RUB OFF) WHEN EXPOSED TO ALCOHOL OR OTHER CLEANING FLUIDS. 9. UNIQUE SERIAL NUMBER SEQUENCE TO BE STATED WITH PURCHASE ORDER. (REPRESENTED BY "XXXXX") 10. USE LEADING ZERO(S) AS PLACE HOLDER(S) FOR A TOTAL OF 5 DIGITS. Actual Size SIZE A SW-FILE NAME: REV. DEI PART NUMBER: DRAWN: CHECKED: ENG APPR: SHEET 1 OF 1 PROPRIETARY AND CONFIDENTIAL DATE: MFG APPR: 2:1 7/29/2013 S1051-85 S1051-85A_ B DFox TCottle DESCRIPTION: SI-3 Serial Tag SCALE: 2 Mil White Mylar 1 Mil Clear Laminate MATERIAL: FINISH: THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SONCELL NORTH AMERICA. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF SONCELL NORTH AMERICA IS PROHIBITED. TOLERANCES: DIMENSIONS ARE IN INCHES ANGULAR: 1 degree UNLESS OTHERWISE SPECIFIED: TWO SPACE DECIMAL: .030 THREE SPACE DECIMAL: .010 AEP PART NUMBER:

TrailersRadarVideo A S O N C E L L N A C O M P A N Y GSA Contract GS-07F-0231L 50 Years Serving Law Enforcement D e c a t u r E l e c t r o n i c s , I n c . | 7 1 5 B r i g h t S t r e e t | D e c a t u r , I l l i n o i s 6 2 5 2 2 8 0 0 . 4 2 8 . 4 3 1 5 | O u t s i d e U S A 2 1 7 - 4 2 8 - 4 3 1 5 | F a x 2 1 7 - 4 2 8 - 5 3 0 2 w w w . D e c a t u r R a d a r . c o m | E - m a i l : i n f o @ d e c a t u r e l e c t r o n i c s . c o m SI3 Theory of Operation The SI3 is composed internally of two printed circuit boards (S785-300-0 and S785-100-B-0) and a Doppler microwave assembly S757-6T-0 S785-300-0 functions as a power pre-regulator. Unconditioned supply voltage is monitored by U5 Voltage Supervisor. Once the supply voltage reaches design minimums, switches Q2 and Q1 (S785-100-B-0) are turned on. U3 is a 7.6V high efficiency switching regulator with a nominal switching frequency of 340kHz. 7.6V (regulated), GND and Power_Ena lines are sent to the main DSP board S785-100-B-0. S757-6T-0 is a microwave assembly. At its heart is P450-5D. This is a commercially available integrated Gunn oscillator and microwave detector transceiver. Upon receiving 5VDC power, the Gunn oscillator section of the microwave transceiver generates a 7mW 24.150 GHz (nominal) NON signal. Transmitter frequency is fixed and set by a mechanical tuner (temperature compensated) in the microwave transceiver P450-5D. Some of the microwave energy provides LO pumping for the receiver diodes and the horn/lens antenna radiates the remainder. If the radiated energy happens to strike a moving object, part of the energy will be reflected back towards the antenna. The frequency of the reflected energy is Doppler shifted proportional to its speed. This reflected energy is mixed at the receiver diodes (M1, M2) extracting the Doppler shift information. The placement of the receiver diodes is such that by applying appropriate DSP algorithms the direction of the object may be determined. The low level Doppler analog signals are sent to main DSP board S785-100-B-0. S785-100-B-0 is the main DSP board. U19 and U20 are 3.3V and 1.9V switching regulators. They are synchronized together and switch at a nominal frequency of 850kHz. Both the DSP processor (U15) and the Stereo A/D Converter (U10) are clocked at 24.576 MHZ from X1, clock oscillator. The low level Doppler signals from S757-6T-0 are amplified and presented to U10 Stereo A/D Converter for digitizing. The 5V Linear Regulator (U21) supplies power for the Gunn TrailersRadarVideo A S O N C E L L N A C O M P A N Y GSA Contract GS-07F-0231L 50 Years Serving Law Enforcement D e c a t u r E l e c t r o n i c s , I n c . | 7 1 5 B r i g h t S t r e e t | D e c a t u r , I l l i n o i s 6 2 5 2 2 8 0 0 . 4 2 8 . 4 3 1 5 | O u t s i d e U S A 2 1 7 - 4 2 8 - 4 3 1 5 | F a x 2 1 7 - 4 2 8 - 5 3 0 2 w w w . D e c a t u r R a d a r . c o m | E - m a i l : i n f o @ d e c a t u r e l e c t r o n i c s . c o m oscillator section of P450-5D in the microwave assembly S757-6T-0. The regulator is under DSP control and is normally enabled at all times. The DSP processor (U15) analyzes the information from the Stereo A/D converter. If qualified targets are found, they reported in a standardized packet of information through RS-232 port. U11 provides level shifting and signal conditioning functions between the RS-232 port and U15 DSP Process. Information is typically sent at 9600 baud from the DSP processor.

MPE / Health Hazard Requirement: According to CFR 15 §1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. MPE / Health Hazard Separation Distance: The minimum separation distance calculated following FCC OET Bulletin 65 is calculated as follows, where S is power density, EIRP(dBm) = E 3 (dBμV/m) – 95.2 dB( mW/(μV/m) ) EIRP = 120.4 (dBμ V/m) - 95.2 dB( mW/(μ V/m) ) = 25.2 dBm = 331.1 mW ERP = EIRP – 2.15 = 25.2 – 2.15 = 23.05 dBm = 201.8 mW = 0.202 W The power density at 20 cm is computed to be: S(mW/cm 2 ) = EIRP(mW)/(4π R(cm) 2 ) = 0.066 mW/cm 2 NOTE:Under no circumstances is the ERP of this device greater than 3W, as required by 2.1091 and the FCC mm-wave accepted test procedures.

Date of Issue: July 31, 2013Prepared For: Decatur Electronics, Inc.Test Report No.: 417124-664 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, Michigan 48109-2122 USA Tel: (734) 483-4211 Fax: (734) 647-2106 e-mail: [email protected] Testing of Electromagnetic Emissions per USA: CFR Title 47, Part 15.245 Canada: RSS-210 and RSS-Gen are herein reported for Decatur Electronics, Inc. SI-3 Test Report No.: 417124-664 Copyright c ©2013 Applicant/Provider: Decatur Electronics, Inc. 3433 East Wood Street, Phoenix Arizona 85040 USA Phone: +1 (217) 428-4315, Fax: +1 (602) 621-4200 Contact Person: Todd Cottle; [email protected] Report by: Report Date of Issue: July 31, 2013 Valdis V. Liepa, Ph.D. Results of testing completed on (or before) July 31, 2013 are as follows. Emissions:The transmitter fundamental emission meets the regulatory limit(s) by no less than 7.6 dB. Transmit chain spurious harmonic emissions comply by no less than 8.1 dB. Unintentional spurious emissions from digital cir- cuitry comply with the radiated emission limit(s) by more than 2.2 dB. AC Power Line conducted emissions comply by more than 1.7 dB. The University of Michigan Radiation Laboratory, 3228 EECS Building, Ann Arbor, Michigan 48109-2122 USAPage 1 of 17 Date of Issue: July 31, 2013Prepared For: Decatur Electronics, Inc.Test Report No.: 417124-664 Contents 1 Test Specifications, General Procedures, and Location3 1.1 Test Specification and General Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 1.2 Test Location and Equipment Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 2 Configuration and Identification of the Equipment Under Test5 2.1 Description and Declarations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2.1.1EUT Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2.1.2Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2.1.3Variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2.1.4Test Samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.5Functional Exerciser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.6Modifications Made . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.7Production Intent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.8Declared Exemptions and Additional Product Notes . . . . . . . . . . . . . . . . . . . . . . . .6 3 Emissions7 3.1 General Test Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 3.1.1Radiated Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 3.1.2Conducted Emissions Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3.1.3Power Supply Variation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3.2 Intentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2.1Fundamental Emission Pulsed Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2.2Fundamental Emission Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3.2.3Fundamental Emission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 3.3 Unintentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 3.3.1Transmit Chain Spurious Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 3.3.2Radiated Digital Spurious . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3.3.3Conducted Emissions Test Results - AC Power Port(s) . . . . . . . . . . . . . . . . . . . . . . . 17 List of Tables 1The University of Michigan Radiation Laboratory Equipment List.. . . . . . . . . . . . . . . . . . .4 2EUT Declarations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 3Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 4Intentional Emission Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 5Fundamental Radiated Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 6Transmit Chain Spurious Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 7Radiated Digital Spurious Emissions.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 8AC Mains Power Conducted Emissions Results.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 List of Figures 1Photos of EUT.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2EUT Test Configuration Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 3Radiated Emissions Diagram of the EUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 4Radiated Emissions Test Setup Photograph(s). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 5Conducted Emissions Setup Diagram of the EUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 6Conducted Emissions Test Setup Photograph(s). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 7Intentional Emission Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 The University of Michigan Radiation Laboratory, 3228 EECS Building, Ann Arbor, Michigan 48109-2122 USAPage 2 of 17 Date of Issue: July 31, 2013Prepared For: Decatur Electronics, Inc.Test Report No.: 417124-664 1 Test Specifications, General Proc…
