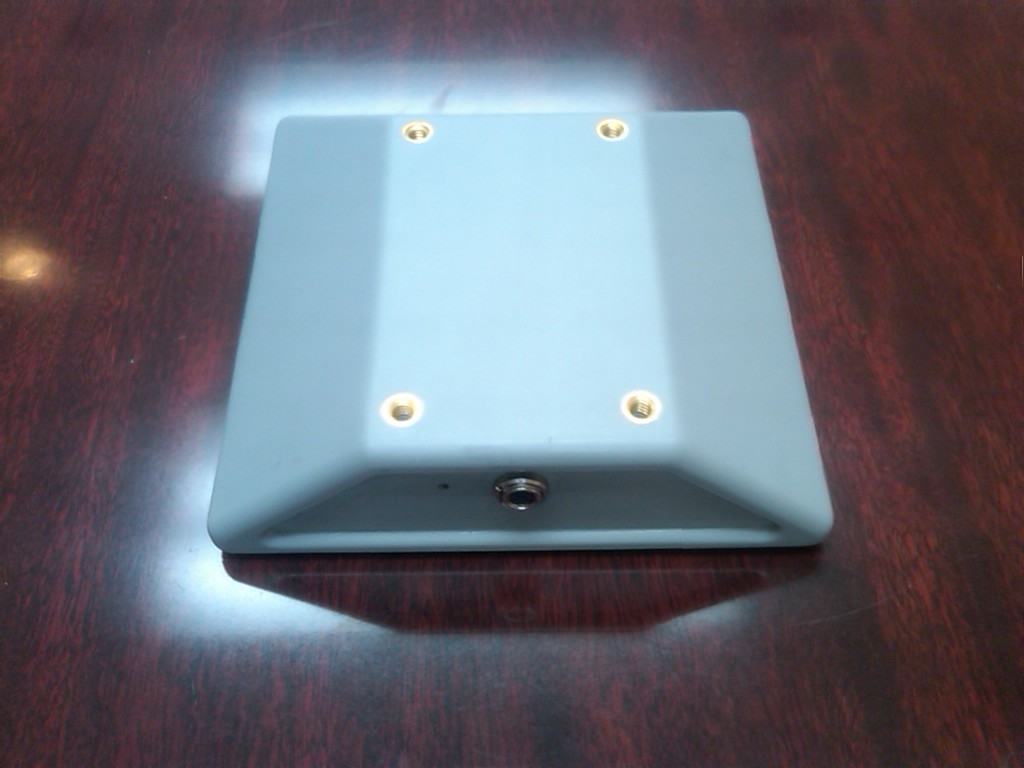

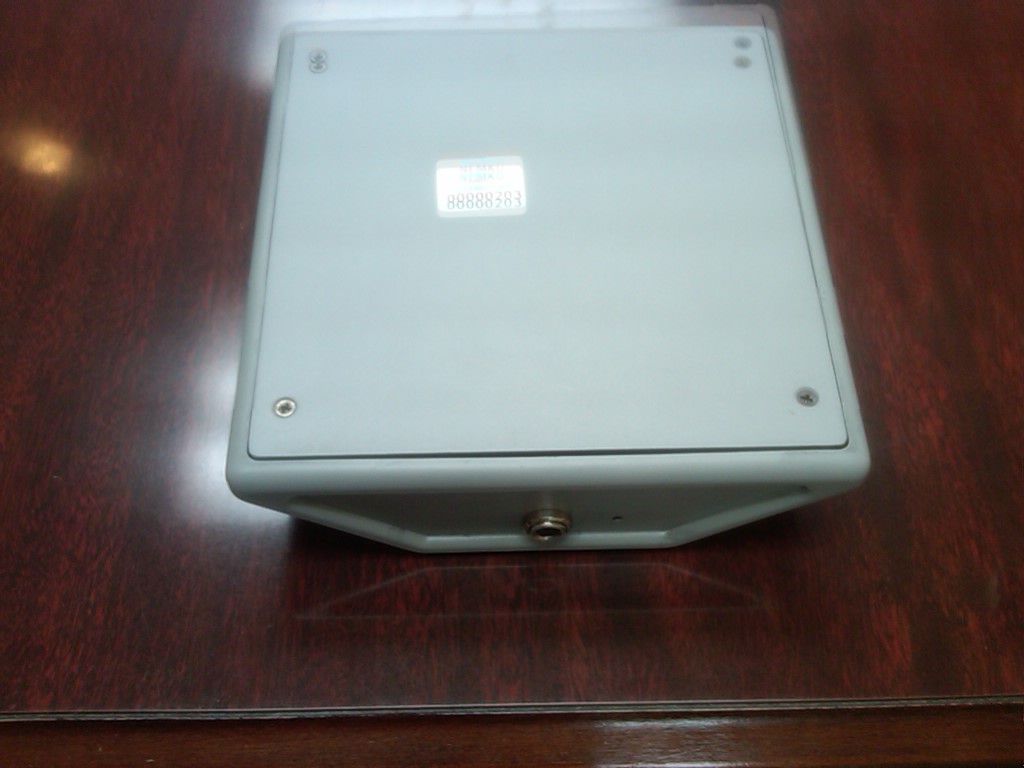

HTRSI-3LLow profile directional radar unit

User’s Manual Rev 2/11/2013 SI-3L ™ System Interface 3 Low Profile SI-3L ™ System Interface 3 Low Profile User’s Manual Table of Contents Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 1 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2 Receiving Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 3 .1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 3 .2 Connecting The Serial Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 3 .3 Optional Programming Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 3 .4 Mounting Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 4 Configuring the SI-3L™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 4 .1 Equipment Needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 4 .2 Configuration Program Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 4 .3 Configuration Items Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 4 .3 .1 Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 4 .3 .2 Unit ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 4 .3 .3 Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 4 .3 .4 Target Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 4 .3 .5 Target Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 4 .3 .6 Cosine Horizontal and Cosine Vertical . . . . . . . . . . . . . . . . . . . . . . . . . .17 4 .3 .7 Hold Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 4 .3 .8 Update Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 4 .3 .9 Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 4 .3 .10 Alarm Speed Threshold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 4 .3 .11 Baud Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 4 .3 .12 Serial Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 4 .4 Select Program FILE to Load from MENU (Optional) . . . . . . . . . . . . . . .20 4 .5 Press CONFIGURE or PROGRAM CONFIGURE . . . . . . . . . . . . . . . . . . . . . .20 4 .5 .1 Configure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 4 .5 .2 Program and Configure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 4 .6 Power Up SI Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 4 .7 Configurtion Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 5 Performance Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 5 .1 How Radar Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 5 .2 Interference Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 5 .2 .1 Angular Interference (Cosine Effect) . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 5 .2 .2 Fan Interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 5 .2 .3 Electromagnetic Interference (EMI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 5 .2 .4 Feedback Interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 5 .2 .5 Multi-Path Beam Cancellation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 5 .2 .6 Radio Frequency Interference (RFI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 5 .2 .7 Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 5 .2 .8 Environmental Factors: Wind, Rain, Snow . . . . . . . . . . . . . . . . . . . . . . .25 6 Testing The Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 6 .1 Tuning Fork Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 7 Care, Cleaning, and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 8 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 8 .1 Antenna Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 8 .2 Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 8 .3 Speed Range Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 8 .4 Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 9 Legal Requirem…

Text truncated - open the document above for the full version.

1.22 R0.110 R0.110 40° 0.35 0.35 2.60 0.04 0.56 5.20 0.77 2.60 Material: 8mil Autotex XE Velvet Polyester.• Adhesive: 3M 350 Series Adhesive.• Mating Material: Smooth ABS Plastic.• Temperature Range: -40°C to 70°C• Revision C: Updated Phone number & Canada 310• Serialization:• Must Resist Cleaning Solvents Such as Alcohol.• Unique Serial Numbers Sequence to be Stated with Purchase Order.• Use leading Zero(s) as Place Holder(s) for a Total of Five Digits.• White Background with Black Text and Barcode.• SIZE A SW-FILE NAME: REV. DEI PART NUMBER: DRAWN: CHECKED: ENG APPR: SHEET 1 OF 1 PROPRIETARY AND CONFIDENTIAL DATE: MFG APPR: 1:1 2/7/2013 S1051-156 S1051-156 C DFox DESCRIPTION: SI-3L Serial Decal SCALE: 8mil Autptex XE Velvet Polyester Velvet MATERIAL: FINISH: THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SONCELL NORTH AMERICA. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF SONCELL NORTH AMERICA IS PROHIBITED. TOLERANCES: DIMENSIONS ARE IN INCHES ANGULAR: 1 degree UNLESS OTHERWISE SPECIFIED: TWO SPACE DECIMAL: .030 THREE SPACE DECIMAL: .010 AEP PART NUMBER:

Nemko Test Report: 10225628RUS1 Applicant: Decatur Electronics, Inc. 3433 E. Wood St. Phoenix, AZ 85040 USA Equipment Under Test: SI-3L (E.U.T.) FCC ID.: HTRSI-3L In Accordance With: FCC Part 15, Subpart C, 15.245 and Industry Canada RSS-310, Issue 2 Tested By: Nemko USA Inc. 802 N. Kealy Lewisville, Texas 75057-3136 TESTED BY: DATE: 09 November, 2012 David Light, Senior Wireless Engineer APPROVED BY: DATE: 10 November, 2012 Mike Cantwell Total Number of Pages: 13 Nemko USA, Inc. CFR 47, PART 15, SUBPART C, Paragraph 15.245 And Industry Canada RSS-310, Issue 2 EQUIPMENT: SI-3L PROJECT NO.: 10225628RUS1 Page 2 of 13 Table Of Contents SECTION 1. SUMMARY OF TEST RESULTS 3 SECTION 2. GENERAL EQUIPMENT SPECIFICATION 5 SECTION 3. RADIATED EMISSIONS 6 ANNEX A TEST DIAGRAMS 11 Nemko USA, Inc. CFR 47, PART 15, SUBPART C, Paragraph 15.245 And Industry Canada RSS-310, Issue 2 EQUIPMENT: SI-3L PROJECT NO.: 10225628RUS1 Page 3 of 13 Section 1. Summary Of Test Results Manufacturer: Decatur Electronics, Inc. Model No.: SI-3L Serial No.: None General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15.245 and Industry Canada RSS-210, Issue 8. All tests were conducted using measurement procedure ANSI C63.4-2003. Radiated Emissions were made on an open area test site. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Nemko USA, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety, for use by the company’s employees only. This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Nemko USA, Inc. is a NVLAP accredited laboratory. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA, Inc. CFR 47, PART 15, SUBPART C, Paragraph 15.245 And Industry Canada RSS-310, Issue 2 EQUIPMENT: SI-3L PROJECT NO.: 10225628RUS1 Page 4 of 13 Summary Of Test Data NAME OF TEST PARA. NO. RESULT Conducted Emissions 15.207 / RSS-Gen 7.2.4 NA Radiated Emissions 15.245 / RSS-310, clause 3.10 Complies Footnotes For N/A’s: The EUT is battery powered. Nemko USA, Inc. CFR 47, PART 15, SUBPART C, Paragraph 15.245 And Industry Canada RSS-310, Issue 2 EQUIPMENT: SI-3L PROJECT NO.: 10225628RUS1 Page 5 of 13 Section 2. General Equipment Specification Frequency Range: 24.075 to 24.175 GHz Single Operating Frequency(ies) of Sample: 24.108 GHz Tunable Bands: None Number of Channels: 1 Channel Spacing: NA User Frequency Adjustment: None Integral Antenna Yes No Description of EUT The SI-3L™ is a low profile, advanced patch array radar designed for applications in which space is at a premium. Nemko USA, Inc. CFR 47, PART 15, SUBPART C, Paragraph 15.245 And Industry Canada RSS-310, Issue 2 EQUIPMENT: SI-3L PROJECT NO.: 10225628RUS1 Page 6 of 13 Section 3. Radiated Emissions NAME OF TEST: Radiated Emissions PARA. NO.: FCC 15.245 RSS-210 Annex 7 TESTED BY: David LightTom Tidwell / Debbie Jensen DATE: 26 October 2012 Minimum Standard: Para no. 15.245 (a) Operation under the provisions of this section is limited to intentional radiators used as field disturbance sensors, excluding perimeter protection systems. (b) The field strength of emissions from intentional radiators operated within these frequency bands shall comply with the following: Carrier (MHz) Field Strength (mV/m) Field Strength (dBV/m) Harmonic (mV/m) Harmonic (dBV/m) 902-928 500 114 1.6 64 2435-2465 500 114 1.6 64 5785-5815 500 114 1.6 64 10500-10550 2500 128 25 88 24075-24175 2500 128 25 88 (1) Regardless of the limits shown in the above table, harmonic emissions in the restricted bands below 17.7 GHz, as specified in § 15.205, shall not exceed the field strength limits shown in § 15.209. Harmonic emissions in the restricted bands at and above 17.7 GHz shall not exceed the following field strength limits: (i) For the second and third harmonics of field disturbance sensors operating in the 24075-24175 MHz band and for other field disturbance sensors designed for use only within a building or to open building doors, 25.0 mV/m. (ii) For all other field disturbance sensors, 7.5 mV/m. (iii) Field disturbance sensors designed to be used in motor vehicles or aircraft must include features to prevent continuous operation unless their emissions in the restricted bands, other than the second and third harmonics from devices operating in the 24075-24175 MHz band, fully comply with the limits given in § 15.209. Continuous operation of field disturbance sensors designed to be used in farm equipment, vehicles such as fork lifts that are intended primarily for use indoors or for very specialized operations, or railroad locomotives, railroad cars and other equipment which travels on fixed tracks is permitted. A field disturbance sensor will Nemko USA, Inc. CFR 47, PART 15, SUBPART C, Paragraph 15.245 And Industry Canada RSS-310, Issue 2 EQUIPMENT: SI-3L PROJECT NO.: 10225628RUS1 Page 7 of 13 be considered not to be operating in a continuous mode if its operation is limited to specific activities of limited duration (e.g., putting a vehicle into reverse gear, activating a turn signal, etc.). (2) Field strength limits are specified at a distance of 3 meters. (3) Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 50 dB below the level of the fundamental or to the general rad…
