HWF-WCN11BC802.11b Wireless LAN CardBus

802.11b Wireless LAN Cardbus User Guide 2 COPYRIGHT Information in this document is subject to change without notice. Companies, names, and data used in examples are fictitious unless otherwise noted. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of this company. This company may have patents or pending patent applications, trademarks, copyrights, or other intellectual property rights covering subject matter in this document. The furnishing of this document does not give you license to these patents, trademarks, copyrights, or other intellectual property except as expressly provided in any written license agreement from this company. All rights reserved. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio technician for help. FCC Caution This equipment must be installed and operated in accordance with provided instructions and a minimum 2.5 cm spacing must be provided between computer mounted antenna and person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. 3 Federal Communication Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 2.5cm (8 inches) during normal operation. R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE) The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000. Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment. EU Countries Intended for Use The ETSI version of this device is intended for home and office use in Austria Belgium, Denmark, Finland, France, (with Frequency channel restrictions) Germany, Greece, Ireland, Italy, Luxembourg, the Netherlands, Portugal, Spain, Sweden, and the United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and Switzerland. EU Countries Not intended for use None. Potential restrictive use France: Only channels 10,11,12, and 13 4 Table of Contents FEATURES..................................................................................................... 5 SYSTEM REQUIREMENTS............................................................................ 5 PACKAGE CONTENTS.................................................................................. 5 LED INDICATORS.......................................................................................... 5 SPECIFICATIONS........................................................................................... 5 Charper 1. Driver & Utility Installation......................................................... 7 Using the Cardbus Adapter ............................................................................. 9 Using the Cardbus Adapter Configuration Utility.............................................. 9 Using Windows XP WLAN Utility..................................................................... 10 Chapter 2. Cardbus Adapter Utility Configuration...................................... 11 Configuration................................................................................................... 11 Advanced Configuration.................................................................................. 12 Status.............................................................................................................. 13 Statistics .......................................................................................................... 14 About............................................................................................................... 14 Exit...................................................................…

Text truncated - open the document above for the full version.

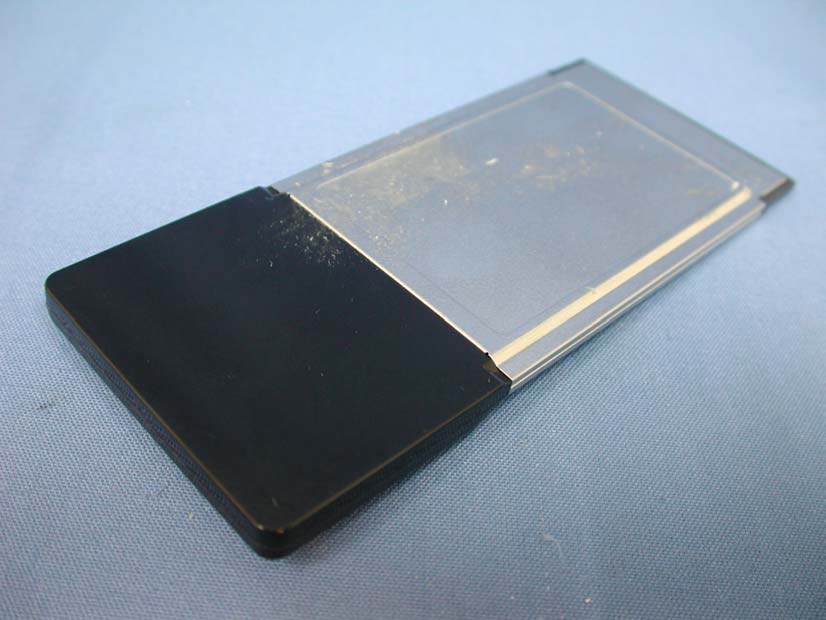

Report No.: 034H078FI Page : 1 of 4 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Mustek Systems Inc. FCC ID.: HWF-WCN11BC No.25, R&D Road II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Tel: 886 3 577 9373 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. 802.11b Wireless LAN CardBus Mustek Model No.: 11bCardBus, 11b-1CardBus, 11b-2CardBus, 11b-3CardBus TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan 802.11b Wireless LAN CardBus Mustek Model No.: 11bCardBus, 11b-1CardBus, 11b-2CardBus, 11b-3CardBus F F C C C C I I D D : : H H W W F F - - W W C C N N 1 1 1 1 B B C C This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Mustek Systems Inc. FCC ID.: HWF-WCN11BC No.25, R&D Road II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Tel: 886 3 577 9373 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. 802.11b Wireless LAN CardBus Mustek Model No.: 11bCardBus, 11b-1CardBus, 11b-2CardBus, 11b-3CardBus TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan 802.11b Wireless LAN CardBus Mustek Model No.: 11bCardBus, 11b-1CardBus, 11b-2CardBus, 11b-3CardBus F F C C C C I I D D : : H H W W F F - - W W C C N N 1 1 1 1 B B C C This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No.: 034H078FI Page : 2 of 4 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 034H078FI Page : 3 of 4 Version:1.0 (5) EUT Photo Report No.: 034H078FI Page : 4 of 4 Version:1.0 (6) EUT Photo

1.1. Operational Description EUT is a 802.11b Wireless LAN CardBus with 11 channels. This device provided four kind of transmitting speed 1,2,5.5 and 11Mbps. The device of RF carrier is DQPSK, DB PSK and CCK. The device adapts direct sequence spread spectrum modulation. The antenna was soldered on PCB provides diversity function to improve the receiving function. This 802.11b Wireless LAN CardBus is an IEEE 802.11b Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the 802.11b Wireless LAN CardBus transfers data at speeds up to 64/128-bit Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b network.

0597 ILAC MRA Specific Absorption Rate (SAR) Test Report for Mustek System Inc. on the 802.11b Wireless LAN CardBus Model Number: 11bCardBus Test Report: EME-030561 Date of Report: May 12, 2003 Date of test: May 8, 2003 Total No of Pages Contained in this Report: 63 Accredited for testing to FCC Part 15 Tested by: Bruce Wu Reviewed by: Elton Chen Review Date: May 12, 2003 All services undertaken are subject to the following general policy: Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of Intertek Testing Services, Taiwan Ltd. Intertek Testing Services ETL SEMKO FCC ID. : HWF-WCN11BC Report No.: EME-030561 Page 2 of 63 STATEMENT OF COMPLIANCE..........................................................................................................3 1.0 JOB DESCRIPTION....................................................................................................................4 1.1 Client Information..............................................................................................................4 1.2 Equipment under test (EUT)..............................................................................................4 1.3 Test plan reference.............................................................................................................5 1.4 System test configuration...................................................................................................5 1.5 Modifications required for compliance..............................................................................6 1.6 Additions, deviations and exclusions from standards........................................................6 2.0 SAR EVALUATION.....................................................................................................................7 2.1 SAR Limits.........................................................................................................................7 2.2 Configuration Photographs.................................................................................................8 2.3 SAR measurement system................................................................................................12 2.4 SAR measurement system validation...............................................................................13 3.0 TEST EQUIPMENT...................................................................................................................16 3.1 Equipment List.................................................................................................................16 3.2 Body Tissue Simulating Liquid for evaluation test..........................................................17 3.3 E-Field Probe Calibration.................................................................................................18 3.4 Measurement Uncertainty................................................................................................18 3.5 Measurement Traceability..................................................................................................19 4.0 WARNING LABEL INFORMATION - USA..........................................................................19 4.1 Inner view of EUT...................................................................................................................20 5.0 REFERENCES............................................................................................................................22 5.0 DOCUMENT HISTORY............................................................................................................23 APPENDIX A - SAR Evaluation Data...................................................................................................24 APPENDIX B – 2450MHz body liquid Calibration Data.....................................................................39 APPENDIX C - E-Field Probe Certificate and Calibration Data........................................................41 Validation dipole certificate and performance measurements................................41 Intertek Testing Services ETL SEMKO FCC ID. : HWF-WCN11BC Report No.: EME-030561 Page 3 of 63 STATEMENT OF COMPLIANCE The Mustek sample device, model # 11bCardBus was evaluated in accordance with the requirements for compliance testing defined in FCC OET Bulletin 65, Supplement C (Edition 01-01). Testing was performed at the Intertek Testing Services facility in Hsinchu, Taiwan. For the evaluation, the dosimetric assessment system INDEXSAR SARA2 was used. The phantom employed was the box phantom of 2mm thick in one wall. The total uncertainty for the evaluation of the spatial peak SAR values averaged over a cube of 1g tissue mass had been assessed for this system to be ±27.5%. The device was tested at their maximum output power declared by the Mustek In summary, the maximum spatial peak SAR value for the sample device averaged over 1g was found to be: Phantom Position SAR 1g , mW/g 2mm thick box phantom wall Laptop is touching and perpendicular to the phantom 0.219 mW/g. In conclusion, the tested Sample device was found to be in compliance with the requirements defined in OET Bulletin 65, Supplement C (Edition 01-01) for body configurations. Intertek Testing Services ETL SEMKO FCC ID. : HWF-WCN11BC Report No.: EME-030561 Page 4 of 63 1.0 JOB DESCRIPTION 1.1 Client Information The 11bCardBus has been tested at the request of: Company: Mustek Systems Inc. No. 25, R&D Road II, Science-Based Industrial Park, Hsin-Chu, Taiwan 1.2 Equipment under test (EUT) Product Descriptions: Equipment 802.11b Wireless LAN CardBus Trade Name Mustek Model No: 11bCardBus FCC ID HWF-WCN11BC S/N No. Not Labeled Category Portable RF Exposure Uncontrolled Environment …

Text truncated - open the document above for the full version.

A A B B C C D D E E 44 33 22 11 26 PCBA,MAIN BOARD,802.11B CardBUS RTL8180+PHILIPS 59-131-01020 59-131-01020 X2 2003/01/20 Sam.Chen TITLE: DWG NO WH.USED: ISS P/N Pof ORG DATA ORG BY CHK BY CONCURRED APPROVED FINAL APPR SCALE UNITS MATERIAL TOLERANCE X. .X .XX + + + FINISH VENDOR 1 2 3 APPROVEDDESCRIPTION (LO: OD->ND)CHG. BYDATEECO NO.ISS REVISSONS LO:LOCATION, OD:OLD DATA, ND:NEW DATAFILE NAME: 鴻友科技股份有限公司 RTL8180-QFP128 RTL8180-QFP128 CBE3B CBE2B IRDYB TRDYB CLKRUB FRAMEB CBE1B PAR SERRB PERRB STOPB DEVSELB AD[0..31] PE2/AUX INTAB REQB PMEB VMAIN RF REF OUT RF REF IN CBE0B RSTB CSTCHG PE1/PHITXQ TRSW- IFLE/AGCSET PAPE RFLE CALEN/AGCRESET RIFSD TRSW+ ANTSEL- ANTSEL+ RIFSCK BB_TXI+ BB_TXI- BB_TXQ+ BB_TXQ- BB_RXI+ BB_RXI- BB_RXQ+ BB_RXQ- TXDET CLK GNTB IDSEL VCOPDN/TXI/9356SEL BB2RF BB2RF R F _ R X I + BB_RXI+ R F _ R X I - BB_RXI- R F _ R X Q + BB_RXQ+ R F _ R X Q - BB_RXQ- R F _ T X Q + BB_TXQ+ R F _ T X Q - BB_TXQ- R F _ T X I + R F _ T X I - BB_TXI+ BB_TXI- VCOPDN/PHITXI/9356SEL PE1/PHITXQ cardbus&power.sch cardbus&power.sch AD[0..31] IDSEL VMAIN DEVSELB STOPB TRDYB FRAMEB RSTB CBE3B SERRB REQB CSTCHG CBE2B CBE1B CBE0B GNTB CLK PAR PERRB IRDYB CLKRUNB PMEB INTAB PhilipRF PhilipRF ANTSEL+ ANTSEL- TRSW- TRSW+ IFLE/AGCSET CALEN/AGCRESET RF_REF_IN RF_REF_OUT R F _ R X I - R F _ R X I + R F _ R X Q - R F _ R X Q + R F _ T X Q - R F _ T X Q + R F _ T X I - R F _ T X I + PE2/AUX RFLE RIFSCK RIFSD TXDET AD[0..31] PDF created with FinePrint pdfFactory trial version http://www.fineprint.com A A B B C C D D E E 44 33 22 11 1. For analog TXIQ interface, DR6, DR7, DR8, DR9, DR21, DR22, DR23, DR25, DR26 and DR27 must be mounted, discard DR5 and DR10. And Setting the EEPROM, DigitalPHY=0. Analog interface is the default selection. 2. For digital TXIQ interface, DR5 and DR10 must be mounted, discard DR6, DR7, DR8, DR9, DR21, DR22, DR23, DR25, DR26 and DR27. And setting the EEPROM, DigitalPHY=1. 47pF NPO for 2.4G Z=50/20 ohm 47pF NPO for 2.4G Z=50/20 ohm 47pF NPO for 2.4G Z=50/20 ohm 47pF NPO for 2.4G Z=50/20 ohm 47pF NPO for 2.4G Z=50/20 ohm 47pF NPO for 2.4G Z=50/20 ohm 47pF NPO for 2.4G Z=50/20 ohm 47pF NPO for 2.4G Z=50/20 ohm 59-131-01020 X2 PCBA,MAIN BOARD,802.11B CardBUS (BB2RF) 36Thursday, April 24, 2003 Title SizeDocument NumberRev Date:Sheetof AGND AGNDAGND AGND AGNDAGND AGND AGND AGND AGND T8 TP 1 DC4 NP DCx3 NP T4 TP 1 DC10 NP DC7 NP DC12 NP DR7 82(1%) DR8 82(1%) T2 TP 1 T5 TP 1 DR26 0 DCx4 NP DR23 0 DR10 NP T3 TP 1 T10 TP 1 DR9 82(1%) DR21 390(1%) DC6 NP T7 TP 1 DCx1 NPDR25 390(1%) DR6 82(1%) DR27 0 DR22 0 DR5 NP DCx2 NP DC3 NP T9 TP 1 RF_RXI+BB_RXI+ RF_RXI-BB_RXI- RF_RXQ+BB_RXQ+ RF_RXQ-BB_RXQ- RF_TXQ+BB_TXQ+ RF_TXQ-BB_TXQ- RF_TXI+ RF_TXI- BB_TXI+ BB_TXI- VCOPDN/PHITXI/9356SEL PE1/PHITXQ PDF created with FinePrint pdfFactory trial version http://www.fineprint.com A A B B C C D D E E 44 33 22 11 Option: Connect RR5 to bypass 3.0V regulator Modified by Realtek Modified by Realtek Modified by Realtek Modified by Philips To Philips PAPE 59-131-01020 DR52 FOR 16bit INTERFACE X2 PCBA,MAIN BOARD,802.11B CardBUS (cardbus&power.sch) 46Thursday, April 24, 2003 Title SizeDocument NumberRev Date:Sheetof AD[0..31] AD27 PERRB AD1 CBE3B AD18AD19 CLK CBE1B AD3 STOPB AD21 TRDYB DEVSELBINTAB VMAIN AD16 AD29 REQB SERRB FRAMEB AD8 AD31 AD26 AD25 AD24 AD14 AD0 RSTB AD10AD9 AD28 AD6 IRDYB AD7 AD13 AD22 AD20 AD4 AD2 AD23 GNTB AD12 CBE0B CLKRUB CBE2B AD30 PAR AD11 AD5 AD15 AD17 CSTCHG VDD2400 VDD18 VCC33 VDD33 VCC33VCC33 VDD2411 PRx20/NP LL4 SBK201209T-700YS DC2 0.1uF + CC14 4.7uF RR3 0 PRx1 0/NP RR2 0 RR1 0 UU1 XC6209B302MR 1 2 3 5 4 IN GROUND /SHTDN OUT NC CB1 68PIN-CARDBUS 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 65 66 67 68 A 1 A 2 A 3 A 4 A 5 A 6 A 7 A 8 GND CCD1B CAD2 CAD4 CAD6 RFU CAD8 CAD10 CVS1B CAD13 CAD15 CAD16 RFU CBLOCKB CSTOPB CDEVSELB VCC VPP2 CTRDYB CFRAMEB CAD17 CAD19 CVS2B CRSTB CSERRB CREQB CBE3B CAUDIOB CSTSCHG CAD28 GND CAD0 CAD1 CAD3 CAD5 CAD7 CBE0B CAD9 CAD11 CAD12 CAD14 CBE1B CPAR CPERRB CGNTB CINTB VCC VPP1 CCLK CIRDYB CBE2B CAD18 CAD20 CAD21 CAD22 CAD23 CAD24 CAD25 CAD26 CAD27 CAD29 RFU CLKRUNB GND CAD30 CAD31 CCD2B GND G N D G N D G N D G N D G N D G N D G N D G N D CC11 10nF CC6 10nF LL2 SBK201209T-700YS + CC15 47uF CC12 10nF T6 TP 1 CC7 10nF CC10 10nF +CC16 47uF LL3 SBK201209T-700YS + CC13 4.7uF CC4 10nF UU3 XC6204B182MR 1 2 3 5 4 IN GROUND /SHTDN OUT NC + CC17 4.7uF UU1 XC6209B302MR 1 2 3 5 4 IN GROUND /SHTDN OUT NC CCx4 10nF DR53 0 CC8 10nF CC9 10nF + CC18 4.7uF + CC19 4.7uF LL5 SBK201209T-700YS CC3 10nF LLx2 SBK201209T-700YS DR52 0 LLx1 SBK201209T-700YS RR4 0 + DC1 47uF AD[0..31] IDSEL VMAIN DEVSELB STOPB TRDYB FRAMEB RSTB CBE3B SERRB REQB CSTCHG CBE2B CBE1B CBE0B GNTB CLK PAR PERRB IRDYB CLKRUNB PMEB INTAB PDF created with FinePrint pdfFactory trial version http://www.fineprint.com A A B B C C D D E E 44 33 22 11 Power for SA2400 TRSW+ TRSW- TX or RX 1 0 TX 0 1 RX control pin current consume < 100uA ANTSEL+ ANTSEL- which ANT 1 0 ANT1 0 1 ANT2 Floating: High Gain mode(15dB), 20dBm output consumes 185mA Pull Low: Low Gain mode(14dB), 20dBm output consumes 185mA For high supply voltages (>3.2 V) the low-gain mode is advised. For low supply voltages (<3.3 V) the high-gain mode is advised. NOTE1 NOTE1: must take more care for PA ground plane partition changing the value of PR15 to 4.3K and charge pump current to 2.4mA may have better performance. No pop, just for debuging Modified by Philips Modified by Philips Modified by Realtek Discard by Philips Modified by Philips to 10pF 59-131-01020 X2 PCBA,MAIN BOARD,802.11B CardBUS (PhilipRF) A3 56Thursday, April 24, 2003 Title SizeDocument NumberRev Date:Sheetof A_VDD2400 DVDD2400 VDD_VCO2400 VDD_PLL2400 AVDD2400 A_VDD2400 VDD_VCO2400 VDD_PLL2400 AVDD2400 DVDD2400 VDD2400 AGND AGND AGND AGND AGND AGND AGND AGND AGND AGND AGND AGND AGND AGND AGND AGND AGND VDD2411 AGND AGND AGND AGND AGNDAGND AGND AGNDAG…

Text truncated - open the document above for the full version.

Report No. 034H078FI Page: 1 of 34 Version:1.0 Test Report Product Name : 802.11b Wireless LAN CardBus Model No.: 11bCardBus, 11b-1CardBus, 11b-2CardBus, 11b-3CardBus FCC ID.: HWF-WCN11BC Applicant : Mustek Systems Inc. Address : No.25, R&D Road II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Date of Receipt : Apr 22, 2003 Date of Test : Apr 28, 2003 Report No. : 034H078FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 034H078FI Page: 2 of 34 Version:1.0 Test Report Certification Test Date : Apr 28, 2003 Report No. : 034H078FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name : 802.11b Wireless LAN CardBus Applicant : Mustek Systems Inc. Address : No.25, R&D Road II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Manufacturer : Mustek Systems Inc. Model No. : 11bCardBus, 11b-1CardBus, 11b-2CardBus, 11b-3CardBus FCC ID. : HWF-WCN11BC Rated Voltage : DC 3V(Power by PC) Trade Name : Mustek Measurement Standard : FCC Part 15 Subpart C Paragraph 15.247 Measurement Procedure : ANSI C63.4: 1992 Test Result : Complied Documented By : ( Ginny Peng ) Tested By : ( Kenny Jwo ) Approved By : ( Kevin Wang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200347-0 Report No. 034H078FI Page: 3 of 34 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of tested System .....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................11 2.5. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................14 3.4. Test Result of Peak Power Output...............................................................................................15 4. Radiated Emission .....................................................................................................................16 4.1. Test Equipment............................................................................................................................16 4.2. Test Setup ....................................................................................................................................16 4.3. Limits ..........................................................................................................................................17 4.4. Test Procedure .............................................................................................................................17 4.5. Test Result of Radiated Emission................................................................................................18 5. Band Edge ..................................................................................................................................24 5.1. Test Equipment............................................................................................................................24 5.2. Test Setup ....................................................................................................................................24 5.3. Limits ..........................................................................................................................................25 5.4. Test Procedure .............................................................................................................................25 5.5. Test Result of Band Edge .................................................…

Text truncated - open the document above for the full version.

Report No.: 034H078FI Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 034H078FI Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 034H078FI Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn)
