www.peavey.com XR ® -AT Powered Mixer Operating Manual FCC/ICES Compliancy Statement This device complies with Part 15 of the FCC rules and Industry Canada license‐exempt RSS Standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, that may cause undesired operation. Le présent appareil est conforme aux CNR d’lndustrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) I’appareil ne doit pas produire de brouillage, et (2) I’utilisateur de I’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Warning: Changes or modifications to the equipment not approved by Peavey Electronics Corp. can void the user’s authority to use the equipment. Note – This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures. Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Caution The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. FCC Compliancy Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, that may cause undesired operation. Warning: Changes or modifications to the equipment not approved by Peavey Electronics Corp. can void the user’s authority to use the equipment. Note - This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures. • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Peavey Electronics Corporation • 5022 Hartley Peavey Drive • Meridian, MS • 39305 (601) 483-5365 • FAX (601) 486-1278 • www.peavey.com • 80305780 • ©2011 ENGLISH XR ® - AT Powered Mixer Congratulations on the purchase of your new XR ® -AT powered mixer from Peavey ® . The Peavey XR-AT is a revolutionary all-in-one powered mixer that provides everything a musician or DJ needs, including up to eight combination XLR and 1/4" inputs using Peavey’s award winning mic preamps and dual 500 Watt amplifiers for crystal clear audio reproduction. Plus, for the first time ever, the XR-AT mixer includes Antares ® Auto-Tune ® pitch correction technology. This technology can literally help anyone sing in key and is used on professional recordings and live performances throughout the world. The Peavey XR-AT uses exclusive features like Midmorph ® to accurately improve tone and clarity of vocals. Feedback is quickly and easily identified and removed with Peavey’s dual 9-band graphic EQ’s combined with our patented and revolutionary FLS ® Feedback Locating System. The XR-AT is equipped with Peavey’s exclusive Kosmos ® -C technology, which drastically enhances the low end of the audio spectrum. Built-in 24-bit digital effects complement the already feature-packed unit. Before you begin using your powered mixer it is very important to ensure that the product has the proper AC voltage supplied. You can find the proper voltage for your amp printed next to the IEC line (power) cord on the rear panel of the unit. Features: • FLS ® Feedback Locating System • Midmorph ® EQ • Kosmos ® -C • On-board 24-bit digital effects with mute button • Digital effects parameter control • Combination XLR and 1/4" input jacks • Dual 9-band graphic EQ with FLS ® • Master mic mute • Footswitchable Effects Defeat • Global 48 volt phantom power • RCA, 3.5mm media Inputs • Bluetooth ® streaming • USB Audio playback • Selectable main or monitor dual power amp • RCA record outputs • LED meter bridge • Power amp sub-sonic filter • Clip and signal present indicators • Main and monitor 1/4" line level outputs • DDT ™ speaker protection circuit • Three channels of Antares ® Auto-Tune ® pitch correction VENTILATION: For proper ventilation, allow 6" (15.5 cm) clearance on all sides. MIC/LINE INPUT (CH.1-8) This combination input jack can accept either a 1/4" (balanced or unbalanced) input or an XLR balanced…

Text truncated - open the document above for the full version.

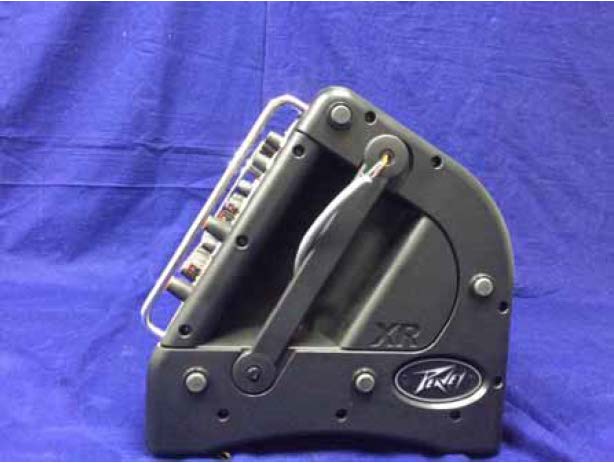

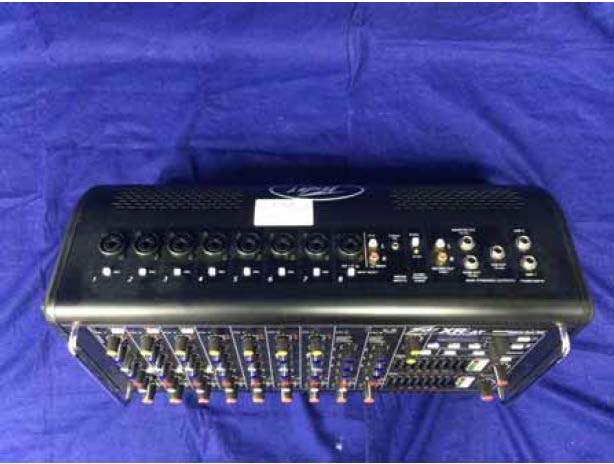

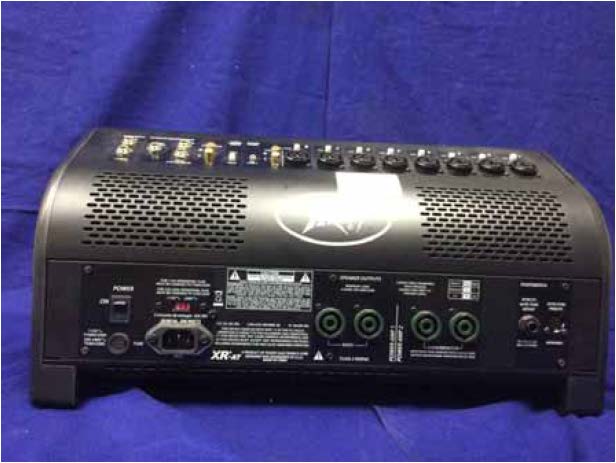

Peavey XR-AT EUT External Photo

Peavey XR-AT Label Sample and Location

Peavey XR-AT EUT Internal Photo BT ANTENNA BT MODULE

RF Exposure Evaluation Declaration Product Name : Audio mixer Model No. : XR-AT FCC ID : I4S-XR-AT IC : 3642B-XR-AT Applicant : Peavey Electronics Corp. Address : 5022 Hartley Peavey Drive, Meridian, MS, 39305, USA Date of Receipt : Mar. 30, 2015 Issued Date : May. 08, 2015 Report No. : 1540056R-RF-US-P20V01 Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No: 1540056R-RF-US-P20V01 Page: 3 of 6 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC Japan :VCCI China :CNAS Report No: 1540056R-RF-US-P20V01 Page: 4 of 6 History of This Test Report REPORT NO. VERSION DESCRIPTION ISSUED DATE 1540056R-RF-US-P20V01 V1.0 Initial Issued Report May. 08, 2015 Report No: 1540056R-RF-US-P20V01 Page: 5 of 6 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No: 1540056R-RF-US-P20V01 Page: 6 of 6 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. Test Result of RF Exposure Evaluation Product : Audio mixer Test Item : RF Exposure Evaluation Test Site : AC-6 z Antenna Gain: Antenna Gain: The maximum Gain measured in fully anechoic chamber is -1dBi or 0.79 in logarithm scale. z Output Power into Antenna & RF Exposure Evaluation Distance: Frequency Band (MHz) Maximum Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 2402- 2480 MHz 1.8928 0.000299 Note: The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm2. The End

Test Report FCC Part15 Subpart C Product Name : Audio mixer Model No. : XR-AT FCC ID : I4S-XR-AT IC : 3642B-XR-AT Applicant : Peavey Electronics Corp. Address : 5022 Hartley Peavey Drive, Meridian, MS, 39305, USA Date of Receipt : Mar. 30, 2015 Test Date : Mar. 30, 2015~ May. 08, 2015 Issued Date : May. 08, 2015 Report No. : 1540056R-RF-US-P06V01 Report Version : V 1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No.: 1540056R-RF-US-P06V01 Page: 3 of 102 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC Japan : VCCI China : CNAS Report No.: 1540056R-RF-US-P06V01 Page: 4 of 102 TABLE OF CONTENTS Description Page 1. General Information.................................................................................................... 8 1.1. EUT Description ......................................................................................................... 8 1.1. Mode of Operation ..................................................................................................... 9 1.2. Tested System Details .............................................................................................. 11 1.3. Configuration of Tested System ............................................................................... 12 1.4. EUT Exercise Software ............................................................................................ 13 2. Technical Test ........................................................................................................... 14 2.1. Summary of Test Result ........................................................................................... 14 2.2. Test Environment ..................................................................................................... 16 3. Conducted Emission ................................................................................................ 17 3.1. Test Equipment ........................................................................................................ 17 3.2. Test Setup ................................................................................................................ 17 3.3. Limit .......................................................................................................................... 18 3.4. Test Procedure ......................................................................................................... 18 3.5. Uncertainty ............................................................................................................... 18 3.6. Test Result ............................................................................................................... 19 4. Radiated Emission ................................................................................................... 21 4.1. Test Equipment ........................................................................................................ 21 4.2. Test Setup ................................................................................................................ 22 4.3. Limit .......................................................................................................................... 23 4.4. Test Procedure ......................................................................................................... 23 4.5. Uncertainty ............................................................................................................... 24 4.6. Test Result ............................................................................................................... 25 5. 20dB Bandwidth ....................................................................................................... 30 5.1 Test Equipment ........................................................................................................ 30 5.2 Test Setup ................................................................................................................ 30 5.3 Limit .......................................................................................................................... 30 5.4 Test Procedure ......................................................................................................... 31 5.5 Uncertainty ...........................................…

Text truncated - open the document above for the full version.

Peavey XR-AT Test Setup Photo
