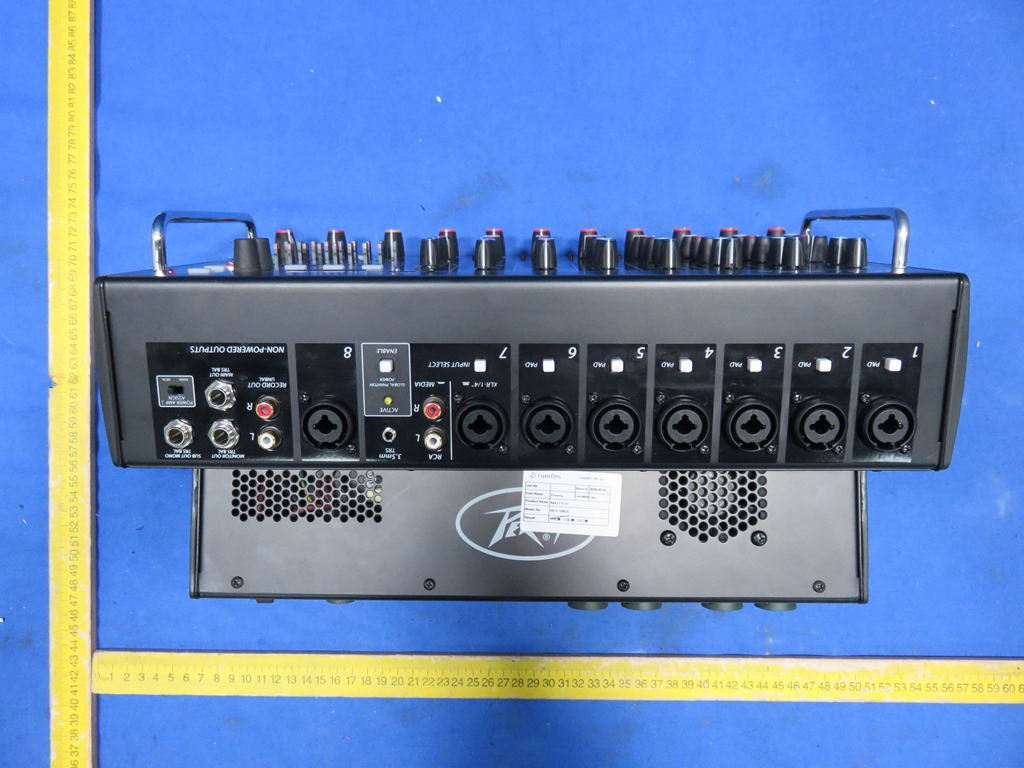

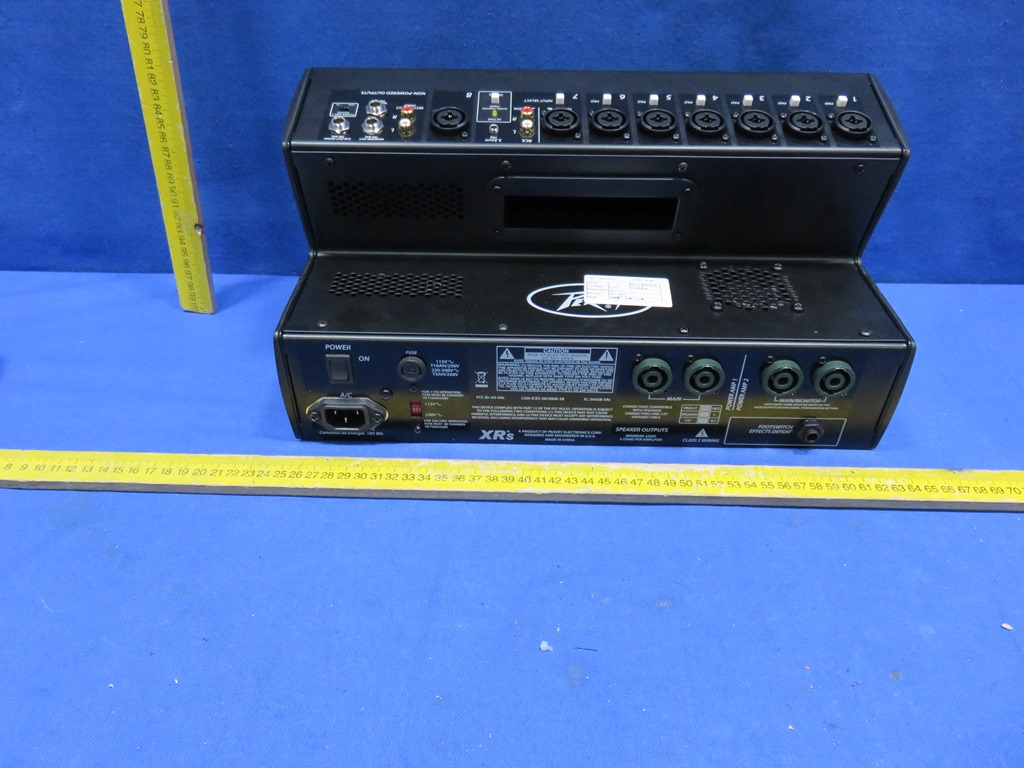

www.peavey.com XR ® s Powered Mixer Operating Manual 2 FCC Compliancy Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, that may cause undesired operation. Warning: Changes or modifications to the equipment not approved by Peavey Electronics Corp. can void the user’s authority to use the equipment. Note - This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures. • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Peavey Electronics Corporation • 5022 Hartley Peavey Drive • Meridian, MS • 39305 (601) 483-5365 • FAX (601) 486-1278 • www.peavey.com • 80305780 • ©2011 3 ENGLISH XR®s Powered Mixer Congratulations on the purchase of your new XR®s powered mixer from Peavey®. The Peavey XRs is a revolutionary all in one powered mixer. Everything a musician or DJ needs providing up to eight combination XLR and ¼” inputs using Peavey’s award winning mic preamps and dual 500 Watt amplifiers for crystal clear audio reproduction. The Peavey XRs uses exclusive features like Mid-Morph to accurately improve tone and clarity of vocals. Feedback is quickly and easily identified and removed with Peavey’s dual 9-band graphic EQ’s combined with our patented and revolutionary FLS Feedback Locating System. The XRs is equipped with Peavey’s exclusive Kosmos-C technology, which drastically enhances the low end of the audio spectrum. Built-in 24-bit digital effects compliment the already feature packed unit. Before you begin using your powered mixer it is very important to ensure that the product has the proper AC voltage supplied. You can find the proper voltage for your amp printed next to the IEC line (power) cord on the rear panel of the unit. FEATURES: • FLS® Feedback Locating System • Mid-Morph® EQ • Kosmos®-C • On-board 24- bit digital effects with mute button • Digital effects parameter control • Combination XLR and 1/4” input jacks • Dual 9-Band Graphic EQ with FLS • Master Mic Mute • Footswitchable effects defeat • Global 48 Volt Phantom Power • RCA, 1/8” Media input • Bluetooth® Streaming Audio In • Selectable Main or Monitor dual power section • RCA Record outputs • LED Meter bridge • Power amp sub-sonic filter • Clip and signal presence LED indicators • Main and Monitor 1/4” line level outputs • DDT ™ Speaker protection circuit VENTILATION: For proper ventilation, allow 6” (15.5 cm) clearance on all sides. 4 MIC/LINE INPUT (CH.1-8) This combination input jack can accept either a ¼” (balanced or unbalanced) input or a XLR balanced, low-impedance connection. The tip is positive on the ¼” balanced input, and pin 2 is positive on the XLR PAD (CH. 1-6) When engaged, the pad reduces the input signal by 25dB. If you notice distortion from a particular channel or if the channel becomes loud very quickly, try engaging this switch. In ad- dition to increasing the dynamic range, the channel can now accommodate a higher input level before clipping occurs, which may be helpful when close-mic’ing a loud guitar amp or drum kit, for example. HIGH EQ This High EQ shelving type of active tone control varies the treble frequencies (+/- 15 dB at 12kHz) and is designed to remove noise or add brilliance to the signal, depending on the qual- ity of the source. MID-MORPH EQ (CH. 1-7) Where most mid-range controls work at just one frequency, the Mid-Morph works at two. When turned counterclockwise, it cuts at 250Hz to reduce frequencies that muddy the sound. When turned clockwise, it boosts at 4kHz to add intelligibility to vocals. Either way, improved vocal or instrument definition can be achieved. LOW EQ A shelving type of EQ that varies the bass frequency levels (+/- 15dB at 80Hz). Low EQ adds depth to thin-sounding signals or cleans up the muddy ones. As with any EQ, use sparingly. Too much of this EQ can give you a booming bottom end. MONITOR SEND The monitor send adjusts the level of the channel signal added to the monitor send (16). EFFECTS SEND (CH. 1-7) This control adjusts the level of channel signal added to the effects mix. The signal is sent to the internal effects processor. Turning the knob to the left (0) will turn off the effects on the associ- ated channel, while turning the knob to the right will increase the amount of the selected effect. CLIP When this LED turns on or blinks red, it is an indication that the signal in the channel is potentially too strong and could cause distortion. Turn down the Level control (10) until the Clip light is no longer present. If you are having difficulty getting a clean signal, try varying the output of the connected device, if possible. SIG When this LED is green, it is an indication the mixer is receiving signal at the input of the chan- nel. If you are having trouble getting sound out of the mixer and this LED is not on, check the microphone, instrument or cable that is connected to the channel. Channel Strip for Channels 1-7 HIGH HIGHMID-MORPH LOW LOW…
