I54-06301Toy Radio Controlled Vehicle

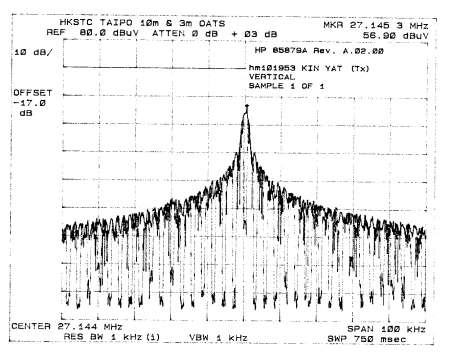

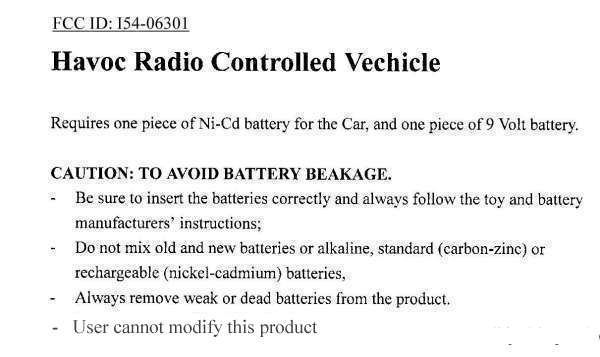

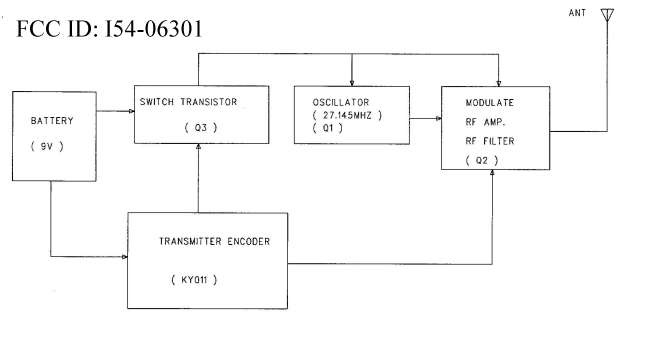

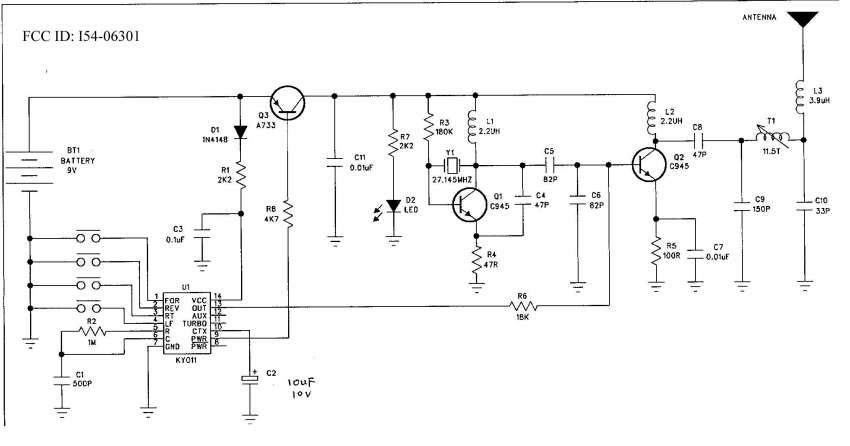

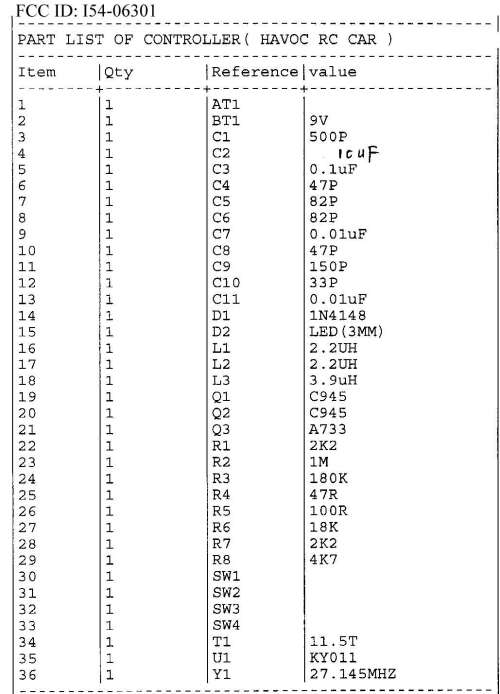

Date: 2000-01-10 TEST REPORT Page 1 of 7 No.: HM101953 ___Law Man Kit_____ ______Kitty Choy_______ ____Patrick Wong______ Patrick Wong Testing EngineerVerify byfor Managing Director APPLICANT: (CODE:KIY001) Tiger Electronics Inc. 980 Woodlands Parkway, Vernon Hills, IL 60061, U.S.A. DATE OF SAMPLES RECEIVED: 1999.12.23. DATE OF TESTING: 2000.01.08. DESCRIPTION OF SAMPLE(S): A sample of product said to be: Product:HAVOC RADIO CONTROLLED VEHICLE Manufacturer:KIN YAT INDUSTRIAL CO., LTD. Model Number: 06-301 Brand Name:TIGER Rating:9Vd.c. ("6F22" size battery × 1) Origin:CHINA INVESTIGATIONS REQUESTED: Measurement to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiator. RESULT/ REMARK: Please see attached sheet(s). CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED after modification by customer with the clause 15.227 of Federal Communications Commission Rules and Regulations Part 15. TEST EQUIPMENT AUDIT: Please see Appendix A Date: 2000-01-10 TEST REPORT Page 2 of 7 No.: HM101953 T E S T S U M M A R Y *** INTENTIONAL RADIATOR *** (1) Measurement of Emission of RF energy on the carrier frequency.............Satisfactory (2) Measurement of the out-of band emissions including harmonics..............Satisfactory (3) Measurement of Emission Within Band Edges.........................................Satisfactory (4) Measurement of Line-Conducted Voltage onto AC Power Line...............Not applicable T E S T D A T A Please refer to the attached result sheets . Date: 2000-01-10 TEST REPORT Page 3 of 7 No.: HM101953 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference TEST REFERENCE: FCC Rules Part 15 Subpart Section 15.227(26.96-27.28MHz) TEST CONDITION: Normal TEST DATE: 2000.01.08 Emission of RF energy on the carrier frequency -- 27.145 MHz (PEAK VALUE) Emission Frequency Meter Reading PolarizationAntenna Factor Field Strength (at 3m) FCC Limit MHz dB(μV) H-VdB dB(μV/ m)μV/ mμV/ m 27.161.0V+18.579.59440.6100000 Emission of RF energy on the carrier frequency -- 27.145 MHz (AVERAGE VALUE) Emission Frequency Meter Reading PolarizationAntenna Factor Field Strength (at 3m)FCC Limit MHz dB(μV) H-VdB dB(μV/ m)μV/ mμV/ m 27.129.7V+18.548.2257.010000 ... to be continued Date: 2000-01-10 TEST REPORT Page 4 of 7 No.: HM101953 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. TEST REFERENCE: FCC Rules Part 15 Section 15.227 (26.96-27.28 MHz) TEST CONDITION : Normal TEST DATE : 2000.01.08 The out-of-band emissions, including harmonics (25-1000 MHz) (CISPR VALUE) Emission Frequency Meter Reading PolarizationAntenna factor Field Strength (at 3m)FCC Limit MHz dB(μV) H-VdB dB( μ V) μ V/m μ V/m 54.320.3V+12.933.245.7100 81.4<1.0+8.9<9.9<3.1100 108.6<1.0+12.2<13.2<4.6150 135.7<1.0+10.8<11.8<3.9150 162.9<1.0+9.5<10.5<3.3150 190.0<1.0+11.1<12.1<4.0150 217.2<1.0+12.2<13.2<4.6200 244.3<1.0+13.5<14.5<5.3200 271.5<1.0+16.0<17.0<7.1200 298.6<1.0+16.5<17.5<7.5200 325.7<1.0+16.6<17.6<7.6200 352.9<1.0+16.7<17.7<7.7200 380.0<1.0+17.4<18.4<8.3200 407.2<1.0+18.2<19.2<9.1200 434.3<1.0+19.5<20.5<10.6200 461.5<1.0+20.1<21.1<11.4200 488.6<1.0+20.3<21.3<11.6200 515.8<1.0+20.9<21.9<12.4200 542.9<1.0+22.1<23.1<14.3200 570.0<1.0+22.8<23.8<15.5200 597.2<1.0+23.3<24.3<16.4200 624.3<1.0+23.4<24.4<16.6200 651.5<1.0+23.6<24.6<17.0200 678.6<1.0+24.9<25.9<19.7200 705.8<1.0+25.1<26.1<20.2200 732.9<1.0+25.4<26.4<20.9200 760.1<1.0+26.4<27.4<23.4200 787.2<1.0+26.8<27.8<24.5200 814.4<1.0+26.7<27.7<24.3200 ... to be continued Date: 2000-01-10 TEST REPORT Page 5 of 7 No.: HM101953 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. ============================================ TEST REFERENCE: FCC Rules Part 15 Section 15.227 (26.96-27.28 MHz) TEST CONDITION : Normal TEST DATE : 2000.01.08 The out-of-band emissions, including harmonics (25-1000 MHz) (CISPR VALUE) Emission Frequency Meter Reading PolarizationAntenna factor Field Strength (at 3m)FCC Limit MHz dB(μV) H-VdB dB( μ V) μ V/m μ V/m 841.5 <1.0 +26.1<27.1<22.6200 868.6 <1.0 +26.8<27.8<24.5200 895.8 <1.0 +27.1<28.1<25.4200 922.9 <1.0 +27.5<28.5<26.6200 950.1 <1.0 +28.1<29.1<28.5200 977.2 <1.0 +28.2<29.2<28.8500 999.5 <1.0 +28.5<29.5<29.9500 ==================== SUMMARY =================== All data is within limits ============================================= Broad-band Antennas were used both polarizations of emissions were measured. polarizations at highest reading indicated as: H -- HorizontalV -- Vertical ============================================= Date: 2000-01-10 TEST REPORT Page 6 of 7 No.: HM101953 *** INTENTIONAL RADIATOR *** (2) Measurement of Emissions Within Band Edges . TEST REFERENCE: FCC Rules Part 15 section 15.227(26.96-27.28MHz) TEST CONDITION: Normal TEST DATE : 2000.01.08. Please see the exhibit of bandwidth RESULTS AND NOTES L: FCC Lower Band Edge..............................................................................-> 26.960MHz H: FCC Higher Band Edge.............................................................................-> 27.280MHz C: Unmodulated carrier at frequency...............................................................-> 27.145MHz D: No. of dB from unmodulated carrier...........................................................-> 56.9dB SPECTRUM ANALYZER SETTINGS Resolution bandwidth : 1.0KHz Frequency span: 10.0KHz/div No. of dB/div: 10.0dB/div FCC Limit Minimum No. of dB from unmodulated carrier required : 26.0dB ================SUMMARY================ All data is within limits ====================================== Date: 2000-01-10 TEST REPORT Page 7 of 7 No.: HM101953 NOTES FOR THE RADIATION MEASUREMENT (1) Test site facility: Open field test site located at Taipo (Hong Kong) with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC Rules. (2) Distance between the EUT and measuring antenna: 3 meters. (3) Measuring instrumentations: CISPR Quasi-…

Text truncated - open the document above for the full version.

Date: 2000-01-10 TEST REPORT Page A1 of A1 No.: HM101953 APPENDIX A TEST EQUIPMENT AUDIT Radiated Emission EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL. EM007SPECTRUM ANALYZERHEWLETT PACKARDHP85660B3144A2119211/06/99 EM008SPECTRUM ANALYZER DISPLAYHEWLETT PACKARDHP85662A3144A2051411/06/99 EM009QUASI PEAK ADAPTORHEWLETT PACKARDHP85650A3303A0170211/06/99 EM010RF PRESELECTORHEWLETT PACKARDHP85685A3221A0141011/06/99 EM011ATTENNUATOR/SWITCHHEWLETT PACKARDHP11713A2508A1059511/06/99 EM012PRE-AMPLIFIERHEWLETT PACKARDHP8449B3008A0026211/06/99 EM013CONTROLLER (COMPUTER), COLOR MONITOR, KEYBOARD & MOUSE FLOPPY DRIVE HEWLET T P ACKARD HEWLET T P ACKARD HEWLET T P ACKARD HP9000 HP A1097C HP9133L 6226A60314 3151J39517 2623A02468 CM EM017ANTENNAARA INC.LPB-2513/A1069TBD EM072SIGNAL GENERATORHEWLETT PACKARD8640B1948A1189230/03/98 EM083HKSTC OPEN AREA TEST SITEHKSTCN/AN/A25/02/99 EM145EMI TEST RECEIVERR & SESCS 30830245/02110/05/99 Re marks:- CMCorrective Maintenance N/ANot Applicable or Not Available TBDTo Be Determined
