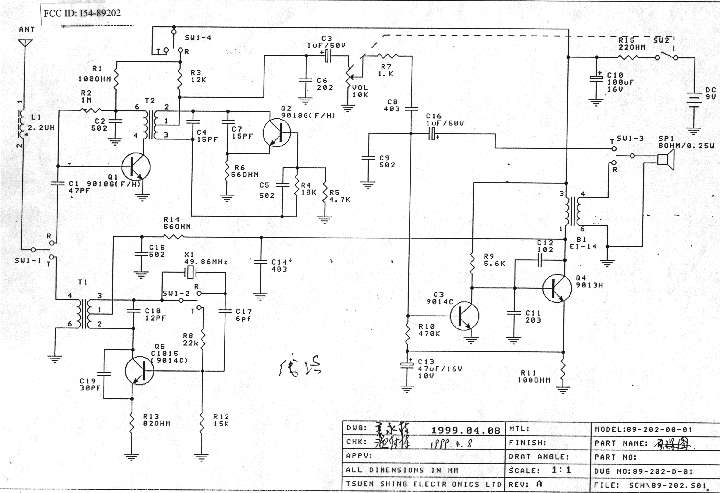

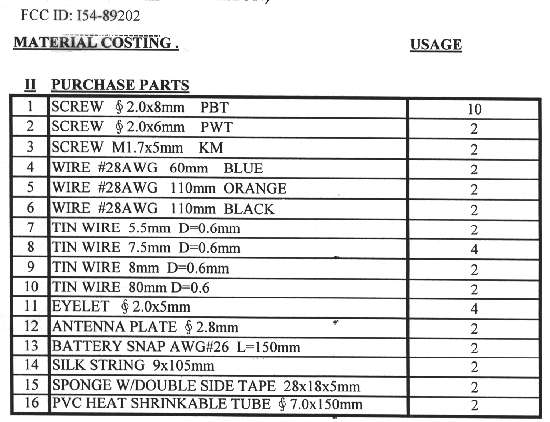

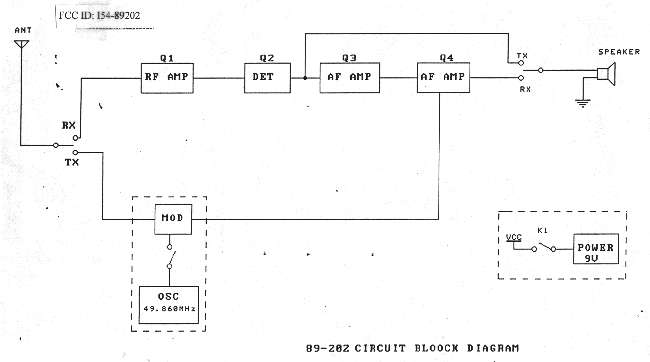

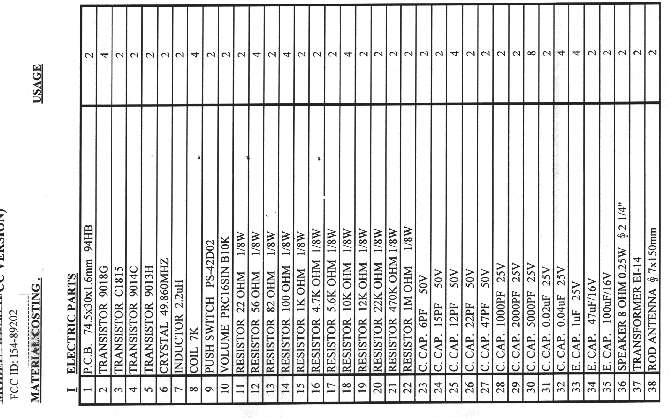

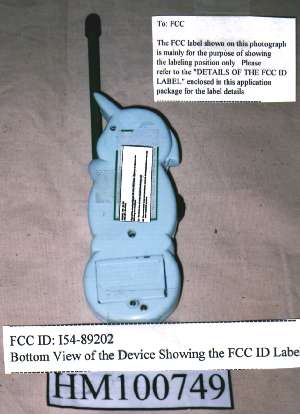

I54-89202

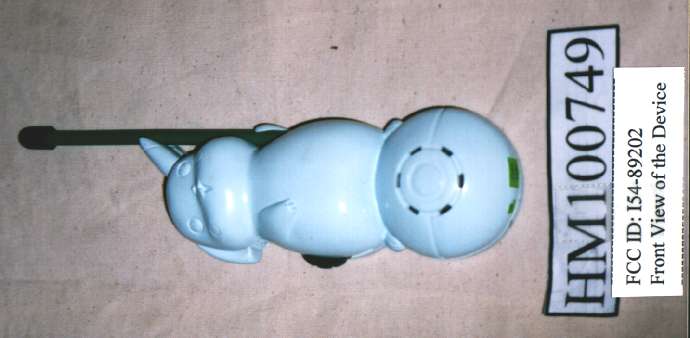

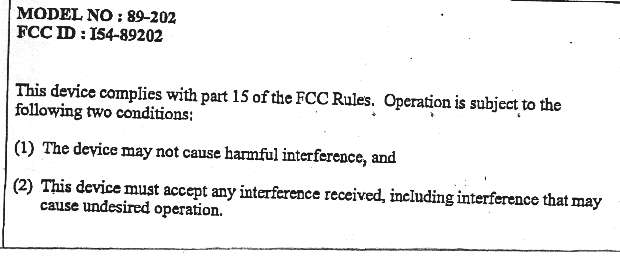

FCC ID: I54-89202 THE OPERATION MANUAL FOR MODEL TO OPERATE: 1.Switch the ON/OFF VOLUME control ON by pushing the dial down. To turn OFF, move the dial up until you hear it click. 2. To transit, press the PUSH TO TALk button and speak into the microphone. Speak in a normal voice. 3. To receive, release the PUSH TO TALK button, and listen to the sender’s message. 4.Your voice will transmit up to 100 feet in areas with clear reception. 5. The walkie talkie can attach to your belt with the BELT CLIPS for ease and portability. ‘‘THE FOLLOWING FACTORS CAN AFFECT THE PERFORMANCE AND OPERATING RANGE OF THE WALKIE TALKIE; COMPUTERS, ACTIVE ELECTRONIC EQUIPMENT, FLUORESCENT LIGHTS AND TALL BUILDINGS’’ CAUTION 1.If your walkie talkie does not operate properly try a new set of batteries since your batteries may be defective or have low voltage even though they appear to be new. 2.After use always return the ON/OFF control to the off position. 3.Do not touch antenna with your fingers or hand. it will cause week transmission. 4.Your walkie talkie set has been fully adjusted prior to shipment from the factory. Do not touch the internal parts other than replacing the battery. 5.Manufacturer recommends alkaline batteries for maximum performance. 6.To prevent damage, do not expose the set to rain or moisture 7.The user changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To ensure proper function: •Do not mix new & old batteries. •Do not mix alkaline, standard of rechargeable batteries. •Battery installation should be done by an adult. •Non-rechargeable batteries are not to be recharged. •Rechargeable batteries are to be removed from the toy before being charged (if removable). •Only batteries of the same or equivalent type as recommended are to be used. •Batteries are to be inserted with correct polarity. •Exhausted batteries are to be removed from the toy. •The supply terminals are not to be short circuited. BATTERY INSTALLATION: 1.Slide the ON/OFF SWITCH to the OFF position. 2.To open the BATTERY COVER, slide the BATTERY COVER in downward notice to release the door. 3.To install 9 volt or “6LR61” battery observe the battery polarity by matching the map on connector with the proper snap terminals on the battery. Use care not to bend the connector terminals. Push the battery connector firmly on the battery. Reinstall the BATTERY COVER . .

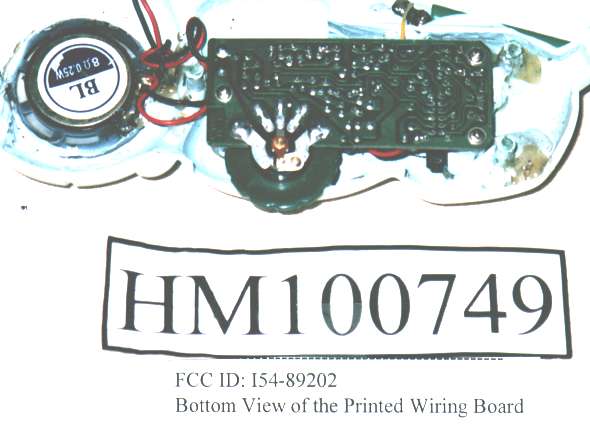

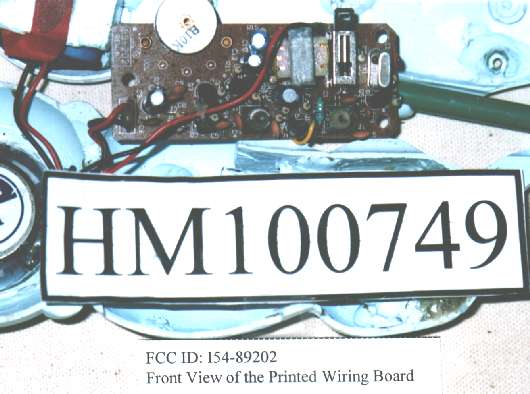

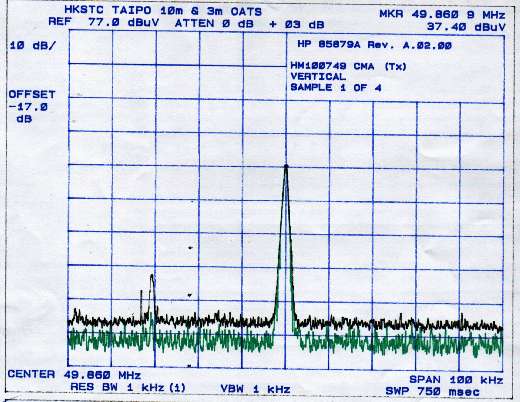

Date: 1999-05-04 TEST REPORT Page 1 of 8 No.: HM100749 __LAW MAN KIT KITTY CHOY PATRICK WONG Patrick Wong Testing EngineerVerify byfor Managing Director Conditions in issuance of Test Report 1. This Report is issued in confidence to the client and it will be strictly treated as such by the Hong Kong Standards and Testing Centre Ltd. It may not be reproduced either in its entirety or in part and it may not be used for advertising. The client to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Hong Kong Standards and Testing Centre Ltd. to his customer, supplier or other persons directly concerned. The Hong Kong Standards and Testing Centre Ltd. will not, without the consent of the client, enter into any discussion or correspondence with any third party concerning the contents of the Report. 2. The report refers only to the sample tested and does not apply to the bulk, unless the sampling has been carried out by the Hong Kong Standards and Testing Centre Ltd. and is stated as such in the Report. 3. In the event of the improper use of the report, the Hong Kong Standards and Testing Centre Ltd. reserves the rights to withdraw it, and to adopt any other remedies which may be appropriate. 4. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Hong Kong Standards and Testing Centre Ltd. 5. The Hong Kong Standards and Testing Centre Ltd. will not be liable for or accept responsibility for any loss or damage howsoever arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 6. Applicants wishing to use the Report in court proceedings or arbitration shall inform the Hong Kong Standards and testing Centre Ltd. to that effect prior to submitting the sample for testing. APPLICANT: Tiger Electronics Inc. 980 Woodlands Parkway, Vernon Hills, IL 60061, U.S.A. DATE OF SAMPLES RECEIVED: 1999-04-17 DATE OF TESTING: 1999-04-30 DESCRIPTION OF SAMPLE(S): A sample of product said to be: Product:POKEMON WALKIE TALKIE Manufacturer:TSUEN SHING ENTERPRISES LIMITED Model Number: 89-202 Brand Name:N/A Rating:9Vd.c. ("6F22" size battery × 1) Origin:CHINA INVESTIGATIONS REQUESTED: Measurement to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart B - Unintentional Radiator and Subpart C - Intentional Radiator. RESULT/ REMARK: Please see attached sheet(s). CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED with the clause 15.109(a) and ANSI C63.4-1992 Section 12.1.1.1-2. for the Receiver Section and with the clause 15.235 for the Transmitter Section of Federal Communications Commission Rules and Regulations Part 15. TEST EQUIPMENT AUDIT: Please see Appendix A Date: 1999-05-04 TEST REPORT Page 2 of 8 No.: HM100749 T E S T S U M M A R Y . ***UNINTENTIONAL RADIATOR*** (A)Measurement of Radiated Emissions .......................................................Satisfactory (B) Line Conducted Voltage Test. .................................................................Not applicable *** INTENTIONAL RADIATOR*** : (1) Measurement of Emission of RF energy on the carrier frequency.............. Satisfactory Measurement of the out-of band emissions including harmonics............... Satisfactory (2) Measurement of Emission Within Band Edges.......................................... Satisfactory (3)Measurement of Line-Conducted Voltage onto AC Power Line................ Not applicable T E S T D A T A Please refer to the attached result sheets . Date: 1999-05-04 TEST REPORT Page 3 of 8 No.: HM100749 ***UNINTENTIONAL RADIATOR*** (A) Measurement of Radiated Interference ====================================================== TEST REFERENCE: FCC Rules Part 15 Subpart B section 15.109(a) TEST CONDITION : Normal TEST DATE : 1999-04-30 =================================================================================== Freq. to whichFreq of thePolarizationMeter Antenna Field StrengthFCC limit tuned emission H-V reading (at 3m) factor (at 3m) @ MHz MHz dB( μ V) dB dB( μ V/m) μ V/m μ V/m 49.860 49.9V16.2+15.031.236.3100 99.7<1.0+12.2<13.2< 5150 149.6<1.0+ 9.8<10.8< 3150 199.4<1.0+11.5<12.5< 4150 249.3<1.0+15.9<16.9< 7200 299.1<1.0+17.0<18.0< 8200 349.0<1.0+17.2<18.2< 8200 398.8<1.0+18.8<19.8<10200 448.7<1.0+19.7<20.7<11200 498.6<1.0+20.6<21.6<12200 548.4<1.0+22.2<23.2<14200 598.3<1.0+23.4<24.4<17200 648.1<1.0+23.5<24.5<17200 698.0<1.0+25.0<26.0<20200 747.8<1.0+26.2<27.2<25200 797.7<1.0+27.2<28.2<25200 847.5<1.0+27.2<28.2<25200 897.5<1.0+27.2<28.2<25200 947.2<1.0+27.8<28.8<27200 997.1<1.0+28.5<29.5<27500 ================================================================================== ==========SUMMARY========== All data is within limits ============================================================ Broad-band Antennas were used and both polarizations of emissions were measured Polarizations at highest reading indicated as: H -- HorizontalV -- Vertical ============================================================= Date: 1999-05-04 TEST REPORT Page 4 of 8 No.: HM100749 NOTES FOR THE RADIATION MEASUREMENT (1) Test site facility: Open field test site located at Taipo (Hong Kong) with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC Rules. (2) Distance between the ET and measuring antenna: 3 meters. (3) Measuring instrumentation: CISPR Quasi-peak type field strength meter (25 MHz - 1000 MHz.). 6 dB bandwidth set at 120 KHz. Also, peak level of the fundamental emissions was measured in order to determine compliance with the 20dB peak to average limit specified in Section 15.35(b) of the FCC new Rules. (4) Measuring antenna: Broad band antenna for the frequency range 25-1000 MHz, connected with 10 meters coaxial cable. Cable loss of the coaxial cable. included in the Antenna Factor for measurement data. Th…

Text truncated - open the document above for the full version.

Date:1999-05-04 APPENDIX A Page A1 of A1 No.: HM100749/504 TEST EQUIPMENT AUDIT Radiated Emission EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL EM007SPECTRUM ANALYZERH PHP85660B3144A2119229/05/98 EM008SPECTRUM ANALYZER DISPLAYH PHP85662A3144A2051429/05/98 EM009QUASI PEAK ADAPTORH PHP85650A3303A0170229/05/98 EM010RF PRESELECTORH PHP85685A3221A0141029/05/98 EM011ATTENNUATOR/SWITCHH PHP11713A2508A1059529/05/98 EM012PRE-AMPLIFIERH PHP8449B3008A0026229/05/98 EM013CONTROLLER (COMPUTER), COLOR MONITOR, KEYBOARD & MOUSE FLOPPY DRIVE H P H P H P HP9000 HP A1097C HP9133L 6226A60314 3151J39517 2623A02468 CM EM016ANTENNAARA INC.LPB-2513/A104705/08/98 EM072SIGNAL GENERATORHP8640B1948A1189230/03/98 EM083HKSTC OPEN AREA TEST SITEHKSTCN/AN/A16/02/98 ABBREVIATIONS: CM = Corrective Maintenance N/A = Not Applicable

Date: 1999-05-04 TEST REPORT Page 1 of 8 No.: HM100749 __LAW MAN KIT KITTY CHOY PATRICK WONG Patrick Wong Testing EngineerVerify byfor Managing Director Conditions in issuance of Test Report 1. This Report is issued in confidence to the client and it will be strictly treated as such by the Hong Kong Standards and Testing Centre Ltd. It may not be reproduced either in its entirety or in part and it may not be used for advertising. The client to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Hong Kong Standards and Testing Centre Ltd. to his customer, supplier or other persons directly concerned. The Hong Kong Standards and Testing Centre Ltd. will not, without the consent of the client, enter into any discussion or correspondence with any third party concerning the contents of the Report. 2. The report refers only to the sample tested and does not apply to the bulk, unless the sampling has been carried out by the Hong Kong Standards and Testing Centre Ltd. and is stated as such in the Report. 3. In the event of the improper use of the report, the Hong Kong Standards and Testing Centre Ltd. reserves the rights to withdraw it, and to adopt any other remedies which may be appropriate. 4. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Hong Kong Standards and Testing Centre Ltd. 5. The Hong Kong Standards and Testing Centre Ltd. will not be liable for or accept responsibility for any loss or damage howsoever arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 6. Applicants wishing to use the Report in court proceedings or arbitration shall inform the Hong Kong Standards and testing Centre Ltd. to that effect prior to submitting the sample for testing. APPLICANT: Tiger Electronics Inc. 980 Woodlands Parkway, Vernon Hills, IL 60061, U.S.A. DATE OF SAMPLES RECEIVED: 1999-04-17 DATE OF TESTING: 1999-04-30 DESCRIPTION OF SAMPLE(S): A sample of product said to be: Product:POKEMON WALKIE TALKIE Manufacturer:TSUEN SHING ENTERPRISES LIMITED Model Number: 89-202 Brand Name:N/A Rating:9Vd.c. ("6F22" size battery × 1) Origin:CHINA INVESTIGATIONS REQUESTED: Measurement to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart B - Unintentional Radiator and Subpart C - Intentional Radiator. RESULT/ REMARK: Please see attached sheet(s). CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED with the clause 15.109(a) and ANSI C63.4-1992 Section 12.1.1.1-2. for the Receiver Section and with the clause 15.235 for the Transmitter Section of Federal Communications Commission Rules and Regulations Part 15. TEST EQUIPMENT AUDIT: Please see Appendix A Date: 1999-05-04 TEST REPORT Page 2 of 8 No.: HM100749 T E S T S U M M A R Y . ***UNINTENTIONAL RADIATOR*** (A)Measurement of Radiated Emissions .......................................................Satisfactory (B) Line Conducted Voltage Test. .................................................................Not applicable *** INTENTIONAL RADIATOR*** : (1) Measurement of Emission of RF energy on the carrier frequency.............. Satisfactory Measurement of the out-of band emissions including harmonics............... Satisfactory (2) Measurement of Emission Within Band Edges.......................................... Satisfactory (3)Measurement of Line-Conducted Voltage onto AC Power Line................ Not applicable T E S T D A T A Please refer to the attached result sheets . Date: 1999-05-04 TEST REPORT Page 3 of 8 No.: HM100749 ***UNINTENTIONAL RADIATOR*** (A) Measurement of Radiated Interference ====================================================== TEST REFERENCE: FCC Rules Part 15 Subpart B section 15.109(a) TEST CONDITION : Normal TEST DATE : 1999-04-30 =================================================================================== Freq. to whichFreq of thePolarizationMeter Antenna Field StrengthFCC limit tuned emission H-V reading (at 3m) factor (at 3m) @ MHz MHz dB( μ V) dB dB( μ V/m) μ V/m μ V/m 49.860 49.9V16.2+15.031.236.3100 99.7<1.0+12.2<13.2< 5150 149.6<1.0+ 9.8<10.8< 3150 199.4<1.0+11.5<12.5< 4150 249.3<1.0+15.9<16.9< 7200 299.1<1.0+17.0<18.0< 8200 349.0<1.0+17.2<18.2< 8200 398.8<1.0+18.8<19.8<10200 448.7<1.0+19.7<20.7<11200 498.6<1.0+20.6<21.6<12200 548.4<1.0+22.2<23.2<14200 598.3<1.0+23.4<24.4<17200 648.1<1.0+23.5<24.5<17200 698.0<1.0+25.0<26.0<20200 747.8<1.0+26.2<27.2<25200 797.7<1.0+27.2<28.2<25200 847.5<1.0+27.2<28.2<25200 897.5<1.0+27.2<28.2<25200 947.2<1.0+27.8<28.8<27200 997.1<1.0+28.5<29.5<27500 ================================================================================== ==========SUMMARY========== All data is within limits ============================================================ Broad-band Antennas were used and both polarizations of emissions were measured Polarizations at highest reading indicated as: H -- HorizontalV -- Vertical ============================================================= Date: 1999-05-04 TEST REPORT Page 4 of 8 No.: HM100749 NOTES FOR THE RADIATION MEASUREMENT (1) Test site facility: Open field test site located at Taipo (Hong Kong) with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC Rules. (2) Distance between the ET and measuring antenna: 3 meters. (3) Measuring instrumentation: CISPR Quasi-peak type field strength meter (25 MHz - 1000 MHz.). 6 dB bandwidth set at 120 KHz. Also, peak level of the fundamental emissions was measured in order to determine compliance with the 20dB peak to average limit specified in Section 15.35(b) of the FCC new Rules. (4) Measuring antenna: Broad band antenna for the frequency range 25-1000 MHz, connected with 10 meters coaxial cable. Cable loss of the coaxial cable. included in the Antenna Factor for measurement data. Th…

Text truncated - open the document above for the full version.

Date:1999-05-04 APPENDIX A Page A1 of A1 No.: HM100749/504 TEST EQUIPMENT AUDIT Radiated Emission EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL EM007SPECTRUM ANALYZERH PHP85660B3144A2119229/05/98 EM008SPECTRUM ANALYZER DISPLAYH PHP85662A3144A2051429/05/98 EM009QUASI PEAK ADAPTORH PHP85650A3303A0170229/05/98 EM010RF PRESELECTORH PHP85685A3221A0141029/05/98 EM011ATTENNUATOR/SWITCHH PHP11713A2508A1059529/05/98 EM012PRE-AMPLIFIERH PHP8449B3008A0026229/05/98 EM013CONTROLLER (COMPUTER), COLOR MONITOR, KEYBOARD & MOUSE FLOPPY DRIVE H P H P H P HP9000 HP A1097C HP9133L 6226A60314 3151J39517 2623A02468 CM EM016ANTENNAARA INC.LPB-2513/A104705/08/98 EM072SIGNAL GENERATORHP8640B1948A1189230/03/98 EM083HKSTC OPEN AREA TEST SITEHKSTCN/AN/A16/02/98 ABBREVIATIONS: CM = Corrective Maintenance N/A = Not Applicable
