1 Helen Zhao Subject:FW: Fellowes, Inc., FCC ID: IDHBTHS02, Assessment NO.: AN05T4662, Notice#1 Antenna Specification.PDF Test Report_01.pdf From: hsieh Sent: Thursday, March 31, 2005 3:27 AM Subject: Fw: Fellowes, Inc., FCC ID: IDHBTHS02, Assessment NO.: AN05T4662, Notice#1 > Dear Helen, > > Re-Q#1: Please see the new test report page 12 - A.4. > > Re-Q#2: Please see the new test report page 25 - Note. > > Re-Q#3: Please see the new test report page 54. > > Re-Q#4: Attached please find the Antenna Specification. > > If you have more questions please feel free to contact with me. > > Best regards, > Joe > > > Question #1: The user manual shows that typical use of the device (with belt > clip) is upright with ON/OFF button on top. But the test setup photos > show the device was formally tested with charging port on bottom (90 degree > rotation, though the test Report mentioned the device was pretested in three > orthogonal planes. Please explain what is the worst case from the > measurement, and indicate clearly on the test report. > > Question #2: Test report Section 4.4.3 listed the radiated emission level at > 2390MHz and 2483.5MHz only, please confirm whether this is highest value you > got from restrict band of 2310-2390MHz and 2483.5-2500 MHz respectively. > > Question #3: Test Report Section 10 Number of hopping channels, based upon > FCC public Notice DA 00-705, RBW should be larger than 1% of the span, in > your case, 835KHz, however the plots shows that you used 100KHz as RBW, > which does not comply with FCC measurement standard. Please provide test > plots with the correct RBW setting. > > Question #4: Please provide antenna specification including antenna photo. > > Best Regards, > Helen Zhao > > > > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 30 days of the original e-mail date may result in 2 > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender. > > >

ETC Report No.: ET93S-09-208-04Page A1 of A1 FCC ID: IDHBTHS02 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

Sticker readymade Fellowes: Pouch Dongle Page 1 FCC ID: BBB-BTXXXA m a d e i n c h i n a SN: 00XX0XX Information Sticker Colours Sticker Colour - Silver/Chrome Printing Colour - Black 8.15mm 24.8mm FCC ID: BBB-BTXXXAFCC ID: BBB-BTXXXA m d e i n h a a c i n m d e i n h a a c i n SN: 00XX0XXSN: 00XX0XX Information Sticker Artwork Sclae 1:1 Size: 8.15mm x 24.8mm c Pouch Dongle Artwork 01 April 2004 3.2mm Printing Fellowes: Pouch Dongle Pairing Logo Colour Printing Colour - Flat White Pairing Logo Artwork Sclae 1:1 Size: ̈ 3.2mm c readymade Page 2 Pouch Dongle Artwork 01 April 2004

ETC Report No.: ET93S-09-208-04Page B1 of B7 FCC ID: IDHBTHS02 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT ETC Report No.: ET93S-09-208-04Page B2 of B7 FCC ID: IDHBTHS02 3. Inside View 3 of EUT 4. Inside View 4 of EUT ETC Report No.: ET93S-09-208-04Page B3 of B7 FCC ID: IDHBTHS02 5. Inside View 5 of EUT 6. Inside View 6 of EUT ETC Report No.: ET93S-09-208-04Page B4 of B7 FCC ID: IDHBTHS02 7. Inside View 7 of EUT 8. Inside View 8 of EUT ETC Report No.: ET93S-09-208-04Page B5 of B7 FCC ID: IDHBTHS02 9. Inside View 9 of EUT 10. Inside View 10 of EUT ETC Report No.: ET93S-09-208-04Page B6 of B7 FCC ID: IDHBTHS02 11. Front view of PCB1 12. Rear view of PCB1 ETC Report No.: ET93S-09-208-04Page B7 of B7 FCC ID: IDHBTHS02 13. Front view of PCB2 14. Rear view of PCB2

Antenna Photo and Position Chip Antenna

ETC Report No. : ET93S-09-208-04 Sheet 1 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: ET93S-09-208-04 Client: Fellowes Inc. Product: Earglove Bluetooth Adapter Model: Earglove BT Adapter FCC ID: IDHBTHS02 Manufacturer/supplier: Antonio Precise Products Manufactory Ltd. Date test item received: 2004/09/02 Date test campaign completed: 2004/09/22 Date of issue: 2004/11/02 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 71 pages Total number of pages of photos: External photos 1 pages Internal photos 7 pages Setup photos 2 pages Test Engineer Checked By Approved By Mark Joe Hsieh Tsung-Ching Lin ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WEN-MING RD., LO-SHAN TSUN, KUI-SHAN HSIANG, TAOYUAN HSIEN 333 TAIWAN, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 ETC Report No. : ET93S-09-208-04 Sheet 2 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 TEST REPORT CERTIFICATION Client : Fellowes Inc. Address : 1789 Norwood Avenue, Itasca, Illinois 60143-1095, USA Manufacturer : Antonio Precise Products Manufactory Ltd. Address : 3/F, Photonics Centre, No. 2 Science Park East Avenue, Hong Kong Science Park, Shatin, N.T. Hong Kong EUT : Earglove Bluetooth Adapter Trade name : Earglove Bluetooth Adapter Model No. : Earglove BT Adapter Power Source : Adapter Model No.: SA106A-0512-6 Input: 100-240Vac, 50-60Hz, 250mA Output: DC 5.5Vdc, 0.5A, 2.75W Regulations applied : FCC 47 CFR, Part 15 Subpart C (2003) The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following:
ISO9001: TüV Product Service  ISO/IEC 17025: BSMI, CNLA, DGT, NVLAP, CCIBLAC, UL, Compliance  Filing: FCC, Industry Canada, VCCI  MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through CNLA NVLAP Lab Code 200133-0 ETC Report No. : ET93S-09-208-04 Sheet 3 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION .................................................................................................................. 5 1.1 Product Description..................................................................................................................................5 1.2 Characteristics of Device.........................................................................................................................5 1.3 Test Methodology....................................................................................................................................5 1.4 Modifiction List of EUT..........................................................................................................................5 1.5 Test Facility..............................................................................................................................................5 2 PROVISIONS APPLICABLE ................................................................................................................. 6 2.1 Definition.................................................................................................................................................6 2.2 Requirement for Compliance...................................................................................................................7 2.3 Restricted Bands of Operation.................................................................................................................9 2.4 Labeling Requirement..............................................................................................................................9 2.5 User Information....................................................................................................................................10 3. SYSTEM TEST CONFIGURATION ................................................................................................... 11 3.1 Justification............................................................................................................................................11 3.2 Devices for Tested System.....................................................................................................................11 4 RADIATED EMISSION MEASUREMENT ....................................................................................... 12 4.1 Applicable Standard...............................................................................................................................12 4.2 Measurement Procedure.........................................................................................................................12 4.3 Measuring Instrument............................................................................................................................14 4.4 Radiated Emission Data.........................................................................................................................15 4.4.1 RF Portion.........................................................…

Text truncated - open the document above for the full version.

ETC Report No. : ET93S-09-208-04 Sheet 36 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 7 20dB EMISSION BANDWIDTH MEASUREMENT 7.1 Standard Applicable According to 15.247(a)(1), for frequency hopping systems, hopping channel carrier frequencies seperated by a minimum of 25kHz or the 20dB bandwidth of hopping channel, whichever is greater. 7.2 Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. The setup of the EUT as shown in figure 4. Turn on the EUT and connect it to measurement instrument. Then set it to any convenient frequency within its operating range. Set a reference level on the measuring instrument equal to the highest peak value. 3. Measure the frequency difference of two frequencies that were attenuated 20 dB from the reference level. Record the frequency difference as the emission bandwidth. 4. Repeat above procedures until all frequencies measured were complete. Figure 4: Emission bandwidth measurement configuration. EUT Spectrum Analyzer 7.3 Measurement Equipment Equipment Manufacturer Model No. Next Cal. Due Spectrum Analyzer Hewlett-Packard 8564EC 09/16/2005 ETC Report No. : ET93S-09-208-04 Sheet 37 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 7.4 Measurement Data Test Date : Sep. 22, 2004 Temperature : 24 °C Humidity: 69% Channel Frequency (MHz) 20 dB Bandwidth (MHz) Chart 0 2402 0.715 Page 38 39 2441 0.730 Page 39 78 2480 0.725 Page 40 Note: Please refer to page 38 to page 40 for chart ETC Report No. : ET93S-09-208-04 Sheet 38 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 ETC Report No. : ET93S-09-208-04 Sheet 39 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 ETC Report No. : ET93S-09-208-04 Sheet 40 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 ETC Report No. : ET93S-09-208-04 Sheet 41 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 8 OUTPUT POWER MEASUREMENT 8.1 Standard Applicable For frequency hopping system, according to 15.247(b), the maximum peak output power of the transmitter shall not exceed 1 Watt. If Receving antennas of directional gain greater than 6 dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. 8.2 Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. The setup of the EUT as shown in figure 4. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set it to any measured frequency within its operating range and make sure the instrument is operated in its linear range. 3. Set RBW of spectrum analyzer to 1 MHz and VBW to 3 MHz. 4. Measure the highest amplitude appearing on spectral display and record the level to calculate result data. 5. Repeat above procedures until all frequencies measured were complete. 8.3 Measurement Equipment Equipment Manufacturer Model No. Next Cal. Due Spectrum Analyzer Hewlett-Packard 8564EC 09/16/2005 ETC Report No. : ET93S-09-208-04 Sheet 42 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 8.4 Measurement Data Test Date : Sep. 22, 2004 Temperature : 24 °C Humidity: 69% Channel Frequency (MHz) Reading (dBm) Cable Loss (dB) Maximum Peak Output Power (dBm) Maximum Peak Output Power (mW) FCC Limit (mW) Chart 0 2402 -5.00 1.0 -4.00 0.40 1000 Page 43 39 2441 -4.66 1.0 -3.66 0.43 1000 Page 44 78 2480 -4.50 1.0 -3.50 0.45 1000 Page 45 Note: Please refer to page 43 to page 45 for chart ETC Report No. : ET93S-09-208-04 Sheet 43 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 ETC Report No. : ET93S-09-208-04 Sheet 44 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 ETC Report No. : ET93S-09-208-04 Sheet 45 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 ETC Report No. : ET93S-09-208-04 Sheet 46 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 9 OUT-OF-BAND RF CONDUCTED SPURIOUS EMISSION MEASUREMENT 9.1 Standard Applicable According to 15.247(c), if any 100 kHz bandwidth outside these frequency bands, the radio frequency power that is produced by the modulation products of the spreading sequence, the information sequence and the carrier frequency shall be either at least 20 dB below that in any 100 kHz bandwidth within the band that contains the highest level of the desired power or shall not exceed the general levels specified in § 15.209(a), whichever results in the lesser attenuation. 9.2 Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. The setup of the EUT as shown in figure 4. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set it to any measured frequency within its operating range and make sure the instrument is operated in its linear range. 3. Set both RBW and VBW of spectrum analyzer to 100 kHz with a convenient frequency span including 100kHz bandwidth from band edge. 4. Measure the highest amplitude appearing on spectral display and set it as a reference level. Plot the graph with marking the highest point and edge frequency. 5. Repeat above procedures until all measured frequencies were complete. 9.3 Measurement Equipment Equipment Manufacturer Model No. Next Cal. Due Spectrum Analyzer Hewlett-Packard 8564EC 09/16/2005 ETC Report No. : ET93S-09-208-04 Sheet 47 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 9.4 Measurement Data Test Date : Sep. 22, 2004 Temperature : 24 °C Humidity: 69% Channel Test Frequency Range Note Chart 0 2360 MHz - 2440 MHz Lower Band Edge Page 48 78 2443.5 MHz - 2523.5 MHz Upper Band Edge Page 49 0 30 MHz - 25 GHz Page 50 39 30 MHz - 25 GHz Page 51 78 30 MHz - 25 GHz Page 52 Note: Please refer to page 48 to page 52 for chart ETC Report No. : ET93S-09-208-04 Sheet 48 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 ETC Report No. : ET93S-09-208-04 Sheet 49 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 ETC Report No. : ET93S-09-208-04 Sheet 50 of 71 Sheets FCC ID: IDHBTHS02 Rev. …

Text truncated - open the document above for the full version.

ETC Report No. : ET93S-09-208-04 Sheet 53 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 10 NUMBER of HOPPING CHANNELS 10.1 Standard Applicable According to 15.247(b)(1), for frequency hopping systems, operating in the 2400-2483.5MHz band employing at least 75 hopping channels 10.2 Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. The setup of the EUT as shown in figure 4. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set EUT to hopping operating mode and set spectrum analyzer miximum to measure the number of hopping channels. 10.3 Measurement Equipment Equipment Manufacturer Model No. Next Cal. Due Spectrum Analyzer Rohde & Schwarz FSU46 10/03/2005 10.4 Measurement Data Test Date : Sep. 22, 2004 Temperature : 24 °C Humidity: 69% Number of hopping channels = 79 channels Note: Please refer to page 54 for chart ETC Report No. : ET93S-09-208-04 Sheet 54 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 Ref 23 dBmAtt 20 dB * A 4.4 MHz/Start 2.439 GHzStop 2.483 GHz * * RBW 500 kHz VBW 500 kHz SWT 2.5 ms 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -0.01 dBm 2.440057692 GHz 2 Marker 2 [T1 ] -1.27 dBm 2.480014423 GHz Date: 29.MAR.2005 18:34:58 Ref 23 dBmAtt 20 dB * A 4.3 MHz/Start 2.398 GHzStop 2.441 GHz * * RBW 500 kHz VBW 500 kHz SWT 2.5 ms 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] 0.99 dBm 2.401996795 GHz 2 Marker 2 [T1 ] 0.01 dBm 2.440104167 GHz Date: 29.MAR.2005 18:33:31 ETC Report No. : ET93S-09-208-04 Sheet 55 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 11 HOPPING CHANNEL CARRIER FREQUENCY SEPARATED 11.1 Standard Applicable According to 15.247(a)(1), the frequency hopping system shall have hopping channel carrier frequencies seperated by minimum of 25kHz or the 20dB bandwidth of hopping channel, whichever is greater. 11.2 Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. The setup of the EUT as shown in figure 4. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set it to any measurement frequency within its operating ragne and make sure the instrument is operated in its linear range. 3. Set spectrum analyzer maximum hold to measure channel carrier frequency , then adjust channel carrier frequency to adjacent channel. 4. Repeat above procedure until all measured frequencies were complete. 11.3 Measurement Equipment Equipment Manufacturer Model No. Next Cal. Due Spectrum Analyzer Hewlett-Packard 8564EC 09/16/2005 ETC Report No. : ET93S-09-208-04 Sheet 56 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 11.4 Measurement Data Test Date : Sep. 22, 2004 Temperature : 24 °C Humidity: 69% a) 2402MHz channel seperation is 1MHz b) 2441MHz channel seperation is 1MHz c) 2480MHz channel seperation is 1MHz Channel Frequency (MHz) Hopping Channel Carrier Frequency Separated (MHz) Chart 0 2402 1 Page 57 39 2441 1 Page 58 78 2480 1 Page 59 Note: Please refer to page 57 to page 59 for chart ETC Report No. : ET93S-09-208-04 Sheet 57 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 ETC Report No. : ET93S-09-208-04 Sheet 58 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 ETC Report No. : ET93S-09-208-04 Sheet 59 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 ETC Report No. : ET93S-09-208-04 Sheet 60 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 12 POWER SPECTRAL DENSITY 12.1 Standard Applicable According to 15.247(d), for bluetooth device, the peak power spectral density conducted from the intentional radiator to the antenna shall not be greater them 8dBm in any 3kHz band during any time interral of continuous transmission. 12.2 Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. The setup of the EUT as shown in figure 4. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set it to any measured frequency within its operating range and make sure the instrument is operated in its linear range. 3. Set RBW of spectrum analyzer to 3kHz, VBW to 30 kHz, sweep 300kHz and sweep time 100 sec. 4. Measure the highest amplitude appearing on spectral display and record the level to calculate result data. 5. Repeat above procedures until all frequencies measured were complete. 12.3 Measurement Equipment Equipment Manufacturer Model No. Next Cal. Due Spectrum Analyzer Hewlett-Packard 8564EC 09/16/2005 ETC Report No. : ET93S-09-208-04 Sheet 61 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 12.4 Measurement Data Test Date : Sep. 22, 2004 Temperature : 24 °C Humidity: 69% Channel Frequency (MHz) Reading (dBm) Cable Loss (dB) Power Spectral Density (dBm) FCC Limit (dBm) Chart 0 2402 -17.50 1.0 -16.50 8 Page 62 39 2441 -17.16 1.0 -16.16 8 Page 63 78 2480 -17.50 1.0 -16.50 8 Page 64 Note: Please refer to page 62 to page 64 for chart ETC Report No. : ET93S-09-208-04 Sheet 62 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 ETC Report No. : ET93S-09-208-04 Sheet 63 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 ETC Report No. : ET93S-09-208-04 Sheet 64 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 ETC Report No. : ET93S-09-208-04 Sheet 65 of 71 Sheets FCC ID: IDHBTHS02 Rev. No 1.0 13 Dwell Time 13.1 Standard Applicable According to 15.247(a)(1)(iii), frequency hopping system in the 2400-2483.5MHz band employing at least 15 non-overlapping channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 second multiplied by the number of hopping channels employed. 13.2 Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. The setup of the EUT as shown in figure 4. 13.3 Measurement Equipment Equipment Manufacturer …

Text truncated - open the document above for the full version.

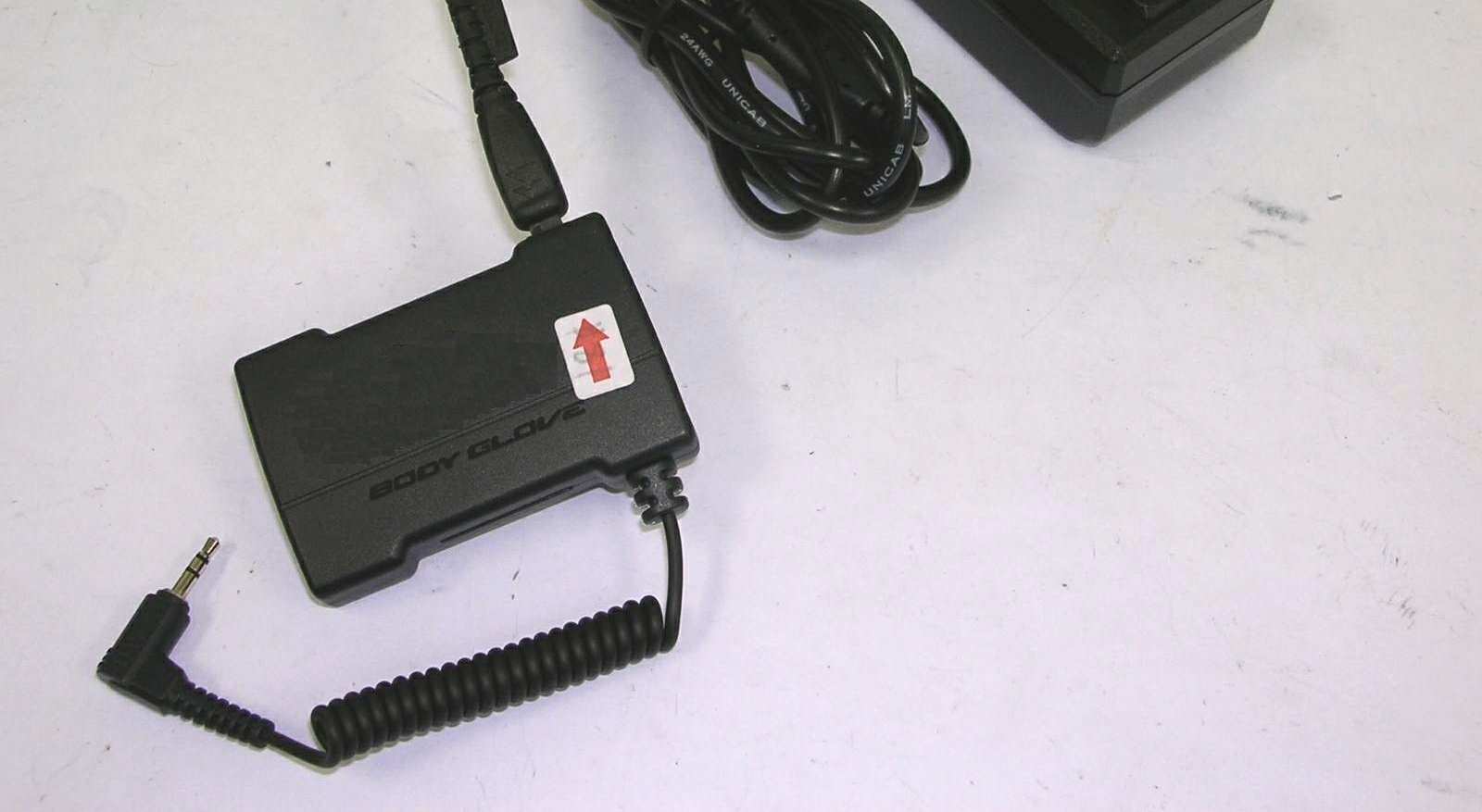

ETC Report No. : ET93S-09-208-04Sheet 1 of 2 Sheets FCC ID: IDHBTHS02 Photos of Radiation Measuring Setup ETC Report No. : ET93S-09-208-04Sheet 2 of 2 Sheets FCC ID: IDHBTHS02 Photos of Conduction Measuring Setup
