IDHBTHS03BlueVoice Bluetooth Headset

1 Helen Zhao Subject:FW: Fellowes, Inc., FCC ID: IDHBTHS03, Assessment NO.: AN04T4327, Notice#1 Revised Label.pdfSetup photos.docTest report_01.pdfTest report_02.pdf -----Original Message----- From: hsieh Sent: Wednesday, November 17, 2004 8:12 PM To: Helen Zhao Subject: Re: Fellowes, Inc., FCC ID: IDHBTHS03, Assessment NO.: AN04T4327, Notice#1 Hi Helen, Attached please find the new FCC ID Label format, new test report and setup photos. Re-Q#1: Please see the new label. Re-Q#2: The sentence is not fit at that page. Please review the new test report 01. Re-Q#3: Please see the new test report 02 for new Channel Separation test. Re-Q#4: Please see the new setup photos. Re-Q#5: Please see page 11 of the revise user manual. There is some important note sentences for RF exposure. If it's not appropriate, please kindly contact me. Thanks for your remind. Best regards, Joe Hsieh ETC, Taiwan -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Tuesday, November 09, 2004 3:42 PM To: Helen Zhao Subject: Fellowes, Inc., FCC ID: IDHBTHS03, Assessment NO.: AN04T4327, Notice#1 Question #1: FCC ID label format shows "FCC ID: HBTHS03", which does not agree with form 731. Please correct. Question #2: Test report section 4.4.2 Other emission indicates "Item of margin shown in above table refer to average limit." Based upon FCC15.209(d) 2 the emission limits for 30MHz - 1GHz are baed on measurements employing a CISPR quasi-peak detector. Please explain. Question #3: Section 11.4 Channel Separation of the test report shows the RBW was set far below 1% of the span during the test. Please redo the test by using the correct setttings. Question #4: There are three identical radiated emission test setup photos in the Setup Photos exhibit. Please provide one more photo to show the front view. Question #5: The user manual does not include RF exposure statement: The antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Best regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

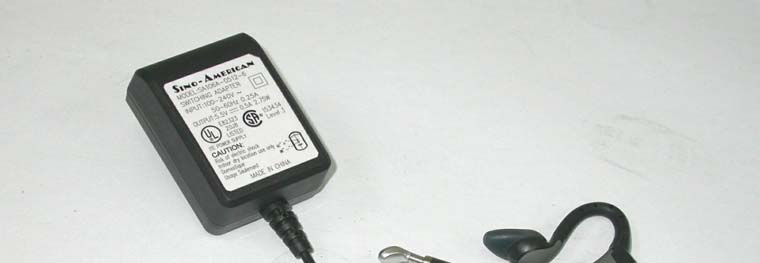

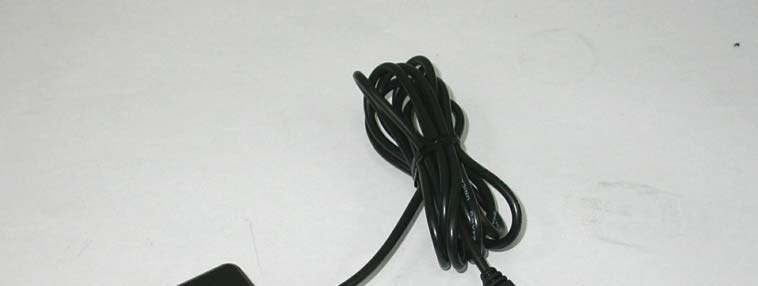

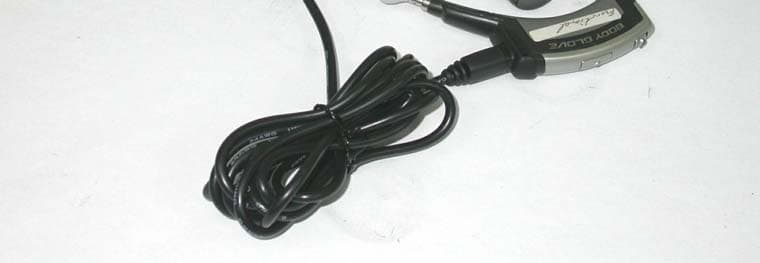

ETC Report No.: ET93S-09-023-04 Page A1 of A1 FCC ID: IDHBTHS03 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

ETC Report No.: ET93S-09-023-04 Page B1 of B6 FCC ID: IDHBTHS03 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT ETC Report No.: ET93S-09-023-04 Page B2 of B6 FCC ID: IDHBTHS03 3. Inside View 3 of EUT 4. Inside View 4 of EUT ETC Report No.: ET93S-09-023-04 Page B3 of B6 FCC ID: IDHBTHS03 5. Inside View 5 of EUT 6. Inside View 6 of EUT ETC Report No.: ET93S-09-023-04 Page B4 of B6 FCC ID: IDHBTHS03 7. Inside View 7 of EUT 8. Inside View 8 of EUT ETC Report No.: ET93S-09-023-04 Page B5 of B6 FCC ID: IDHBTHS03 9. Front view of PCB1 10. Rear view of PCB1 ETC Report No.: ET93S-09-023-04 Page B6 of B6 FCC ID: IDHBTHS03 11. Front view of PCB2 12. Rear view of PCB2

Operation Principle FCC ID: IDHBTHS03 The Bluetooth Headset designed with a transmitting method of Frequency Hopping spread spectrum is for local area network operation, which operates at 2.4GHz ISM band and data rate up to 11Mbps. The channel is represented by a pseudo-random hopping sequence through the 79 channels. The channel is divided into time slots, with a nominal slot length where each slot corresponds to different RF hop frequencies. The nominal hop rate is 1600 hops/s. Any device that you want to use with the Bluetooth Headset has to be compatible with Bluetooth wireless technology and support the Headset Profile. To be able to use the Headset together with a mobile phone, the mobile phone must built-in Bluetooth capability.

ETC Report No. : ET93S-09-023-04Sheet 1 of 71 Sheets FCC ID: IDHBTHS03 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: ET93S-09-023-04 Client:Fellowes Inc. Product:BlueVoice Bluetooth Headset Model:Earglove BlueVoice FCC ID:IDHBTHS03 Manufacturer/supplier:Antonio Precise Products Manufactory Ltd. Date test item received:2004/08/23 Date test campaign completed: 2004/11/17 Date of issue: 2004/11/17 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 71 pages Total number of pages of photos: External photos 1 pages Internal photos 6 pages Setup photos 3 pages Test EngineerChecked ByApproved By Mark ChangJoe HsiehTsung-Ching Lin ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WEN-MING RD., LO-SHAN TSUN, KUI-SHAN HSIANG, TAOYUAN HSIEN 333 TAIWAN, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 ETC Report No. : ET93S-09-023-04Sheet 2 of 71 Sheets FCC ID: IDHBTHS03 Rev. No 1.0 TEST REPORT CERTIFICATION Client: Fellowes Inc. Address: 1789 Norwood Avenue, Itasca, Illinois 60143-1095, USA Manufacturer: Antonio Precise Products Manufactory Ltd. Address: 3/F, Photonics Centre, No. 2 Science Park East Avenue, Hong Kong Science Park, Shatin, Hong Kong EUT: BlueVoice Bluetooth Headset Trade name: ---- Model No.: Earglove BlueVoice Power Source: Adapter Model No.: SA106A-0512-6 Input: 100-240Vac, 50-60Hz,0.25A Output: DC 5.5Vdc, 0.5A, 2.75W Regulations applied: FCC 47 CFR, Part 15 Subpart C (2003) The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following: n ISO9001: TüV Product Service o ISO/IEC 17025: BSMI, CNLA, DGT, NVLAP, CCIBLAC, UL, Compliance p Filing: FCC, Industry Canada, VCCI q MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through CNLA NVLAP Lab Code 200133-0 ETC Report No. : ET93S-09-023-04Sheet 3 of 71 Sheets FCC ID: IDHBTHS03 Rev. No 1.0 Table of ContentsPage 1 GENERAL INFORMATION .................................................................................................................. 5 1.1 Product Description.................................................................................................................................. 5 1.2 Characteristics of Device ......................................................................................................................... 5 1.3 Test Methodology .................................................................................................................................... 5 1.4 Modifiction List of EUT .......................................................................................................................... 5 1.5 Test Facility.............................................................................................................................................. 5 2 PROVISIONS APPLICABLE ................................................................................................................. 6 2.1 Definition ................................................................................................................................................. 6 2.2 Requirement for Compliance ................................................................................................................... 7 2.3 Restricted Bands of Operation ................................................................................................................. 9 2.4 Labeling Requirement .............................................................................................................................. 9 2.5 User Information .................................................................................................................................... 10 3. SYSTEM TEST CONFIGURATION ...................................................................................................11 3.1 Justification ............................................................................................................................................ 11 3.2 Devices for Tested System..................................................................................................................... 11 4 RADIATED EMISSION MEASUREMENT........................................................................................ 12 4.1 Applicable Standard ............................................................................................................................... 12 4.2 Measurement Procedure......................................................................................................................... 12 4.3 Measuring Instrument ............................................................................................................................ 14 4.4 Radiated Emission Data ......................................................................................................................... 15 4.4.1 RF Portion...........................................................................…

Text truncated - open the document above for the full version.

ETC Report No. : ET93S-09-023-04Sheet 46 of 71 Sheets FCC ID: IDHBTHS03 Rev. No 1.0 9 OUT-OF-BAND RF CONDUCTED SPURIOUS EMISSION MEASUREMENT 9.1 Standard Applicable According to 15.247(c), if any 100 kHz bandwidth outside these frequency bands, the radio frequency power that is produced by the modulation products of the spreading sequence, the information sequence and the carrier frequency shall be either at least 20 dB below that in any 100 kHz bandwidth within the band that contains the highest level of the desired power or shall not exceed the general levels specified in 15.209(a), whichever results in the lesser attenuation. 9.2 Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. The setup of the EUT as shown in figure 4. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set it to any measured frequency within its operating range and make sure the instrument is operated in its linear range. 3. Set both RBW and VBW of spectrum analyzer to 100 kHz with a convenient frequency span including 100kHz bandwidth from band edge. 4. Measure the highest amplitude appearing on spectral display and set it as a reference level. Plot the graph with marking the highest point and edge frequency. 5. Repeat above procedures until all measured frequencies were complete. 9.3 Measurement Equipment EquipmentManufacturerModel No.Next Cal. Due Spectrum AnalyzerHewlett-Packard8564EC09/16/2005 ETC Report No. : ET93S-09-023-04Sheet 47 of 71 Sheets FCC ID: IDHBTHS03 Rev. No 1.0 9.4 Measurement Data Test Date : Aug. 27, 2004Temperature : 21 Humidity: 69% ChannelTest Frequency RangeNoteChart 02360 MHz - 2440 MHzLower Band EdgePage 48 782443.5 MHz - 2523.5 MHzUpper Band EdgePage 49 030 MHz - 25 GHzPage 50 3930 MHz - 25 GHzPage 51 7830 MHz - 25 GHzPage 52 Note: Please refer to page 48 to page 52 for chart ETC Report No. : ET93S-09-023-04Sheet 53 of 71 Sheets FCC ID: IDHBTHS03 Rev. No 1.0 10 NUMBER of HOPPING CHANNELS 10.1 Standard Applicable According to 15.247(b)(1), for frequency hopping systems, operating in the 2400-2483.5MHz band employing at least 75 hopping channels 10.2 Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. The setup of the EUT as shown in figure 4. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set EUT to hopping operating mode and set spectrum analyzer miximum to measure the number of hopping channels. 10.3 Measurement Equipment EquipmentManufacturerModel No.Next Cal. Due Spectrum AnalyzerHewlett-Packard8564EC09/16/2005 10.4 Measurement Data Test Date: Aug. 27, 2004Temperature : 21 Humidity: 69% Number of hopping channels = 79 channels Note: Please refer to page 54 for chart ETC Report No. : ET93S-09-023-04Sheet 55 of 71 Sheets FCC ID: IDHBTHS03 Rev. No 1.0 11 HOPPING CHANNEL CARRIER FREQUENCY SEPARATED 11.1 Standard Applicable According to 15.247(a)(1), the frequency hopping system shall have hopping channel carrier frequencies seperated by minimum of 25kHz or the 20dB bandwidth of hopping channel, whichever is greater. 11.2 Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. The setup of the EUT as shown in figure 4. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set it to any measurement frequency within its operating ragne and make sure the instrument is operated in its linear range. 3. Set spectrum analyzer maximum hold to measure channel carrier frequency , then adjust channel carrier frequency to adjacent channel. 4. Repeat above procedure until all measured frequencies were complete. 11.3 Measurement Equipment EquipmentManufacturerModel No.Next Cal. Due Spectrum AnalyzerHewlett-Packard8564EC09/16/2005 ETC Report No. : ET93S-09-023-04Sheet 56 of 71 Sheets FCC ID: IDHBTHS03 Rev. No 1.0 11.4 Measurement Data Test Date : Nov. 17, 2004 Temperature : 20 Humidity: 72% a)2402MHz channel seperation is 1MHz b)2441MHz channel seperation is 1MHz c)2480MHz channel seperation is 1MHz Channel Frequency (MHz) Hopping Channel Carrier Frequency Separated (MHz) Chart 024021Page 57 3924411Page 58 7824801Page 59 Note: Please refer to page 57 to page 59 for chart

ETC Report No. : ET93S-09-023-04Sheet 60 of 71 Sheets FCC ID: IDHBTHS03 Rev. No 1.0 12 POWER SPECTRAL DENSITY 12.1 Standard Applicable According to 15.247(d), for bluetooth device, the peak power spectral density conducted from the intentional radiator to the antenna shall not be greater them 8dBm in any 3kHz band during any time interral of continuous transmission. 12.2 Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. The setup of the EUT as shown in figure 4. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set it to any measured frequency within its operating range and make sure the instrument is operated in its linear range. 3. Set RBW of spectrum analyzer to 3kHz, VBW to 30 kHz, sweep 300kHz and sweep time 100 sec. 4. Measure the highest amplitude appearing on spectral display and record the level to calculate result data. 5. Repeat above procedures until all frequencies measured were complete. 12.3 Measurement Equipment EquipmentManufacturerModel No.Next Cal. Due Spectrum AnalyzerHewlett-Packard8564EC09/16/2005 ETC Report No. : ET93S-09-023-04Sheet 61 of 71 Sheets FCC ID: IDHBTHS03 Rev. No 1.0 12.4 Measurement Data Test Date : Aug. 27, 2004Temperature : 21 Humidity: 69% Channel Frequency (MHz) Reading (dBm) Cable Loss (dB) Power Spectral Density (dBm) FCC Limit (dBm) Chart 02402-8.331.0-7.338Page 62 392441-7.501.0-6.508Page 63 782480-8.331.0-7.338Page 64 Note: Please refer to page 62 to page 64 for chart ETC Report No. : ET93S-09-023-04Sheet 65 of 71 Sheets FCC ID: IDHBTHS03 Rev. No 1.0 13 Dwell Time 13.1 Standard Applicable According to 15.247(a)(1)(iii), frequency hopping system in the 2400-2483.5MHz band employing at least 15 non-overlapping channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 second multiplied by the number of hopping channels employed. 13.2 Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. The setup of the EUT as shown in figure 4. 13.3 Measurement Equipment EquipmentManufacturerModel No.Next Cal. Due Spectrum AnalyzerHewlett-Packard8564EC09/16/2005 13.4 Measurement Data Test Date : Aug. 27, 2004Temperature : 21 Humidity: 69% Test period=0.4(second/channel) 79× channel=31.6sec a)2402MHz dwell time= 421.7us × 79 800 × 31.6 = 134.944 ms b)2441MHz dwell time= 423.3 us × 79 800 × 31.6 = 135.456 ms c)2480MHz dwell time= 421.7 us × 79 800 × 31.6 = 134.944 ms Note: Please refer to page 66 to page 71 for chart

ETC Report No. : ET93S-09-023-04 Sheet 1 of 2 Sheets FCC ID: IDHBTHS03 Photos of Radiation Measuring Setup ETC Report No. : ET93S-09-023-04 Sheet 2 of 2 Sheets FCC ID: IDHBTHS03 Photos of Conduction Measuring Setup
