IDHFEL1Wireless Mouse

Request for Confidentiality February 21, 2002 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID:IDHFEL1 Please be advised that the following information is to be held confidential and behalf of Fellowes Inc. • Block Diagram • Schematics • Description of Operation The application contains technical information which Fellowes Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Signatory Johann Roidt

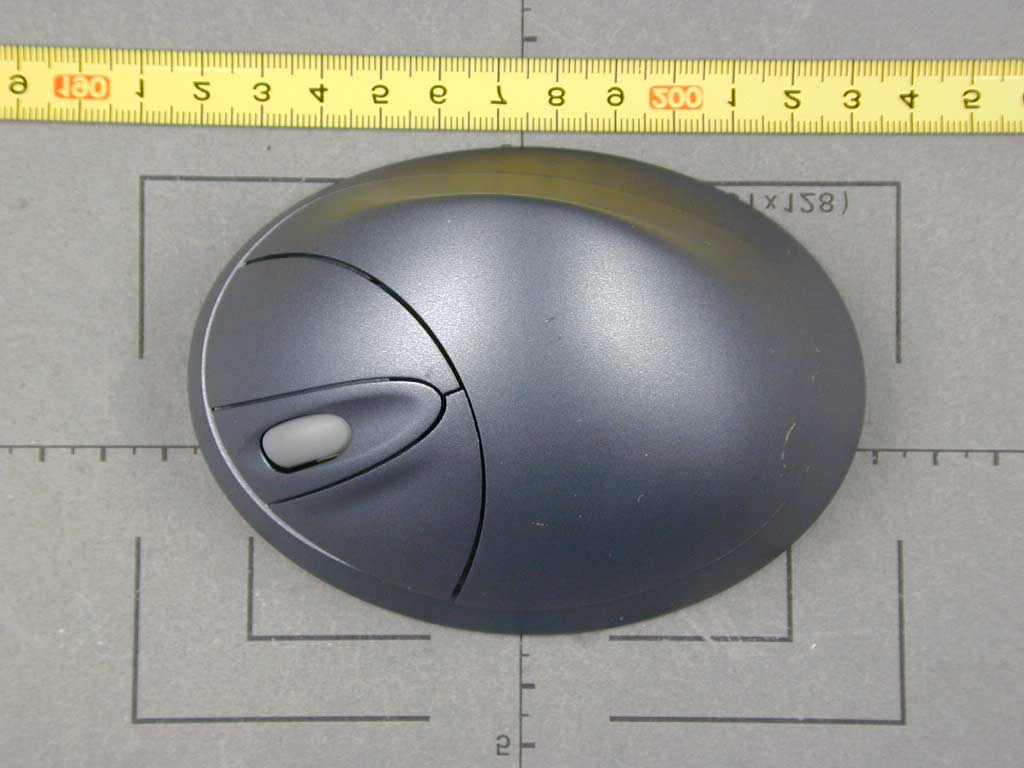

FCC ID: IDHFEL1External Photos Page 1 of 2 FCC ID IDHFEL1 External Photos FCC ID: IDHFEL1External Photos Page 2 of 2

FCC ID: IDHFEL1Label Information Page 1 of 1 FCC ID IDHFEL1 Label Information

FCC ID: IDHFEL1Internal Photos Page 1 of 2 FCC ID IDHFEL1 Internal Photos FCC ID: IDHFEL1Internal Photos Page 2 of 2

EMV-Pr ̧fzentrum EMI/EMC-Testcenter Page 1 of 28 Pages Straubing, 13 February 2002 T E S T - R E P O R T No. 56408-20042 for 99931 TX ERGO TECH CORDLESS Applicant:Fellowes Manufacturing company Purpose of testing:To show compliance with FCC Code of Federal Regulations, CFR 47, Part 15, Subpart C, Section 15.227 Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. FCC-ID: ---Test Report No. 56408-20042 Page 2 of 28 Pages Table of Contents 1. Administrative Data ..............................................................................................3 2. Identification of Test Laboratory ...........................................................................4 3. Summary of Test Results.....................................................................................5 4. Operation Mode of EUT .......................................................................................6 5. Configuration of EUT and Peripheral Devices ......................................................7 6. Measuring Methods..............................................................................................8 6.1. Field strength of in-band emissions (ß15.227 (a)) and unwanted emissions < 30 MHz (ß15.209 (b)) ................................................8 6.2. Unwanted Emission 30 MHz - 1 GHz (ß15.209 (b)) .......................................9 7. Photographs of Test Setups...............................................................................11 7.1. Radiated Emissions 30 ñ 1000 MHz (Pre-Test in Fully Anechoic Chamber) ....................................................................................................12 7.2. Radiated Emissions 30 ñ 1000 MHz (Final Test in Open Area Test-Site) ....................................................................................................13 8. Equipment List ...................................................................................................14 9. Referenced Regulations.....................................................................................16 10. List of Measurements.........................................................................................17 11. Test Results .......................................................................................................18 12. Charts taken during testing ................................................................................22 FCC-ID: ---Test Report No. 56408-20042 Page 3 of 28 Pages 1.Administrative Data Equipment Under Test (EUT):99931 TX Serial number(s):--- Type of equipment:ERGO TECH CORDLESS Type of emission:10K0F1D Parts/accessories:--- FCC-ID:--- Applicant:Fellowes Manufacturing company (full address)1789 Norwood Avenue Itasca, Illinois 60143-1095 USA Contract identification:--- Contact person:Joan Wu (Universal Technology Co. Ltd.) Manufacturer:Fellowes Manufacturing company Receipt of EUT:September 19, 2001 Dates of test:September to November 2001 Note:--- Responsible for testing:Thomas Eberl Responsible for test report:Thomas Eberl (cj) FCC-ID: ---Test Report No. 56408-20042 Page 4 of 28 Pages 2.Identification of Test Laboratory Test Laboratory:Senton GmbH EMI/EMC Test Center (full address):Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Contact person:Mr. Johann Roidt Communication:Telephone(+49) 0 94 21 / 55 22-0 Fax (+49) 0 94 21 / 55 22-99 eMail:[email protected] FCC registration number:90926 Industry Canada file number:IC 3050 FCC-ID: ---Test Report No. 56408-20042 Page 5 of 28 Pages 3.Summary of Test Results The tested sample complies with the requirements for set forth in the The Code of Federal Regulations 47, Part 15, Subpart C, Section 15.227 of the Federal Communication Commission (FCC). Johann RoidtThomas Eberl Technical ManagerTest Engineer FCC-ID: ---Test Report No. 56408-20042 Page 6 of 28 Pages 4.Operation Mode of EUT Continuously TX mode (by moving mouse automaticly) FCC-ID: ---Test Report No. 56408-20042 Page 7 of 28 Pages 5.Configuration of EUT and Peripheral Devices Configuration of cables of EUT Not applicable Configuration of peripheral devices connected to EUT No peripheral devices connected FCC-ID: ---Test Report No. 56408-20042 Page 8 of 28 Pages 6.Measuring Methods 6.1. Field strength of in-band emissions (ß15.227 (a)) and unwanted emissions < 30 MHz (ß15.209 (b)) Radiated emissions in the frequency range 9 kHz ñ 30 MHz will be measured initially at a distance of 3 meters. A prescan at 3 meter distance will be performed in a shielded room with the detector of the spectrum analyzer or EMI Receiver set to peak. Final measurement is then performed at 30 meter distance. In case the regulation requires testing at other distances, the result will be extrapolated. The extrapolation factor will be determined by making a second measurement at 10 meter distance. The provisions of 15.31 (d) apply. According to section 15.209 (d) final measurementis performed with the detector set to Quasi Peak except for the frequency bands 9 ñ 90 kHz and 110 ñ 490 kHz where average detector is employed. FCC-ID: ---Test Report No. 56408-20042 Page 9 of 28 Pages 6.2. Unwanted Emission 30 MHz - 1 GHz (ß15.209 (b)) Radiated emissions were measured over the frequency range from 30 MHz to 1 GHz. For final testing the detector-function of the spectrum analyzer was set to quasi peak Measurements were made in both the horizontal and vertical planes of polarization. Preliminary scans were taken in a semi-anechoic room using a spectrum analyzer with the detector function set to peak and resolution bandwidth set to 100 kHz. All tests were performed at a test-distance of 3 meters. Hand-held or body-worn devices are rotated through three orthogonal axes to determine which attitude and configuration produces the highest emission relative to the limit and therefore shall be used for final…

Text truncated - open the document above for the full version.

FCC-ID: ---Test Report No. 56408-20042 Page 12 of 28 Pages 7.1. Radiated Emissions 30 ñ 1000 MHz (Pre-Test in Fully Anechoic Chamber) FCC-ID: ---Test Report No. 56408-20042 Page 13 of 28 Pages 7.2. Radiated Emissions 30 ñ 1000 MHz (Final Test in Open Area Test-Site)
