DA114 User Manual Product Overview Figure 1 below illustrates the interactions of the DA113 device with the outside world as well as with other components of the DA113 system overall. This device collects encoded audio watermarked with Arbitron’s patented Critical Band Encoding Technology and using cellular technology forwards this information back to Arbitron servers. The DA113 also determines if the person is in home or out of the home using an In-Home Transmitter. The DA113 also uses a Headphone adapter to when the panelist is wearing headphones to collect this data from MP3 or other devices that use headphones. Figure 1: Interaction of DA113 and DA114System DA113 Main Functions as below： 1. Audio data Acquisition Functions: data collection through the DSP, and then transmitted to specified Server through the phone's GPRS 2. GPRS Function: Use only on a mobile phone SIM card, GPRS function, will collect the data sent to the specified server. No SIM card of various number of services, such as ADN, SDN, FDN. 3. Bluetooth function : The Bluetooth device only a search feature, only can search to the Device ID and Bluetooth address. No Bluetooth connectivity, no data transmission and other functions also do not support. In addition, DA113 Bluetooth can not be searched. DA114 Main Functions as below： DA114 is an accessory of DA113, the HW part are made of DC power supply and Bluetooth chip. Working Processes: power-on reset directly by DC power supply, and then the Bluetooth module go into sending a specific Device ID and Bluetooth address automatically, the work cycle is 60 minutes. Once finish one cycle then go into next same cycle, and uninterruptible power equipment will be permanently loop cases. DA114 will not allow any Bluetooth device to match, so it will not be any data transmission, only as a specific identifiable through the Bluetooth wireless device. User guide DA113 was designed for those companies which working for collecting audience rating, Broadcasting rating, music rating, etc. Radio station and TV station need encoded Arbitron’s CBET into their Radio and TV audio. There is a high sensitive microphone in DA113, so DA113 can receive outside audio and decoded CBET to analysis which Radio, TV or music it is. Also DA113 will search DA114 through Bluetooth every 5min to determine whether DA113 is working at home or not. And DA113 have an acceleration sensor to determine whether DA113 is in moving status or not. After decode audio finished, DA113 will save current information along with current in-home status and moving status. DA113 will report its discovery result to internet Server every day through GPRS. Usually, those companies need do as following: 1. With Arbitron’s assista nce, Cooperate with Radio station, TV station, etc, to embed CBET in the show; 2. With Arb itron’s assistance, set one internet server and configure DA113 to enable it can upload data to that server; 3. H ire enough people and give everyone one set of DA113. Let them carry DA113 and collect their hobby on Radio, TV, etc; 4. Final ly, they can get report from server about audience rating and Broadcasting Rating; For the employee, they need do follow that: 1. Put DA11 4 to you home power supply, so that DA114 can work constantly. DA114 will be waiting for Bluetooth search always; 2. Charg e DA113 to ensure it have full battery at first time. DA113 will power on and work once it gets power supply. And DA113 only can be shutdown automatically when battery capacity is very weak; 3. Carry DA113 always so that it can receive what your are listening; 4. When y ou are listening from stereo device through headphone, please connect your headphone and personal stereo device to headphone adaptor. So that DA113 can receive the audio; 5. Every night please charge DA113, to ensure it has enough power; F CC Warning NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) The device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Radio Frequency Exposure statement: This product has been evaluated under FCC Bulletin OET 65C and found compliant to the requirement asset as set forth in CFR 47 section 2.1093 and 15.247(i) addressing RF Exposure from radio frequency device. The redialed output power of this product is far below the FCC radio frequency exposure limits.

FCC Confidential Authorization Date: Jan 27 2010 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: IGKDA114A Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: „ Detailed Circuit Schematics of EUT--- (Long term) „ BOM--- (Long term) „ Block Diagram--- (Long term) „ Circuit Description--- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Page 1 of 1 Sincerely Yours, Signature: Typed or Printed Name: Daniel Conley Title: Manager, Outsourced Manufacturing and Contract Services Company Name: Arbitron Inc.

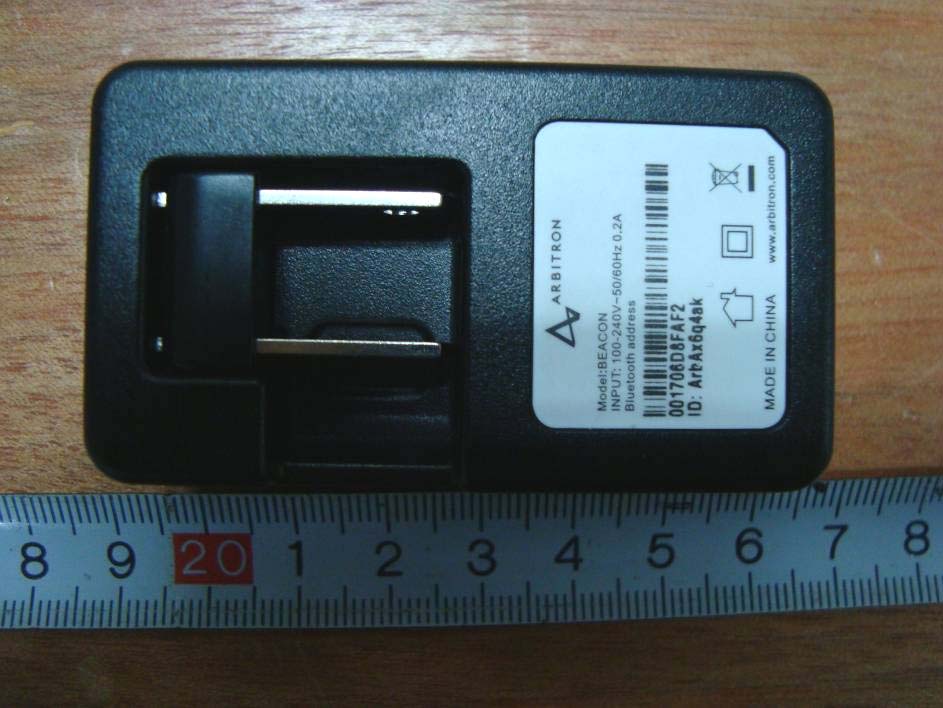

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Top View EUT – Bottom View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT –Cover off View EUT – RF Board with Shielded Cover Top View Antenna EUT – RF Board Top View EUT – RF Board Bottom View EUT – Power Board Top View EUT – Power Board Bottom View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15.247 MEASUREMENT AND TEST REPORT For Arbitron Inc. 9705 Patuxent Woods Drive, Columbia, MD 21076, USA FCC ID: IGKDA114A Report Type: Original Report Product Type: Gen2 Beacon Test Engineer: Vicent Kang Report Number: RSC10011951-247 Report Date: 2010-03-30 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 Arbitron Inc. FCC ID: IGKDA114A Report No.: RSC10011951-247 Page 2 of 39 FCC Part15.247 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................6 CONFIGURATION OF TEST SETUP.................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................7 SUMMARY OF TEST RESULTS...............................................................................................................................8 FCC §15.247 (i), §1.1307 (b)(1) & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE).................................9 STANDARD APPLICABLE..............................................................................................................................................9 TEST DATA..................................................................................................................................................................9 FCC§15.203 – ANTENNA REQUIREMENT ...........................................................................................................10 STANDARD APPLICABLE............................................................................................................................................10 ANTENNA CONNECTOR CONSTRUCTION....................................................................................................................10 FCC §15.207(a) - CONDUCTED EMISSIONS ........................................................................................................11 APPLICABLE STANDARD............................................................................................................................................11 MEASUREMENT UNCERTAINTY..................................................................................................................................11 EUT SETUP................................................................................................................................................................11 EMI TEST RECEIVER SETUP.......................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST RESULTS SUMMARY..........................................................................................................................................12 TEST DATA................................................................................................................................................................12 FCC §15.205, §15.209 & §15.247(d) – RADIATED EMISSIONS...........................................................................15 APPLICABLE STANDARD............................................................................................................................................15 MEASUREMENT UNC…
